CHRYSLER 300 SRT 2008 1.G Owners Manual

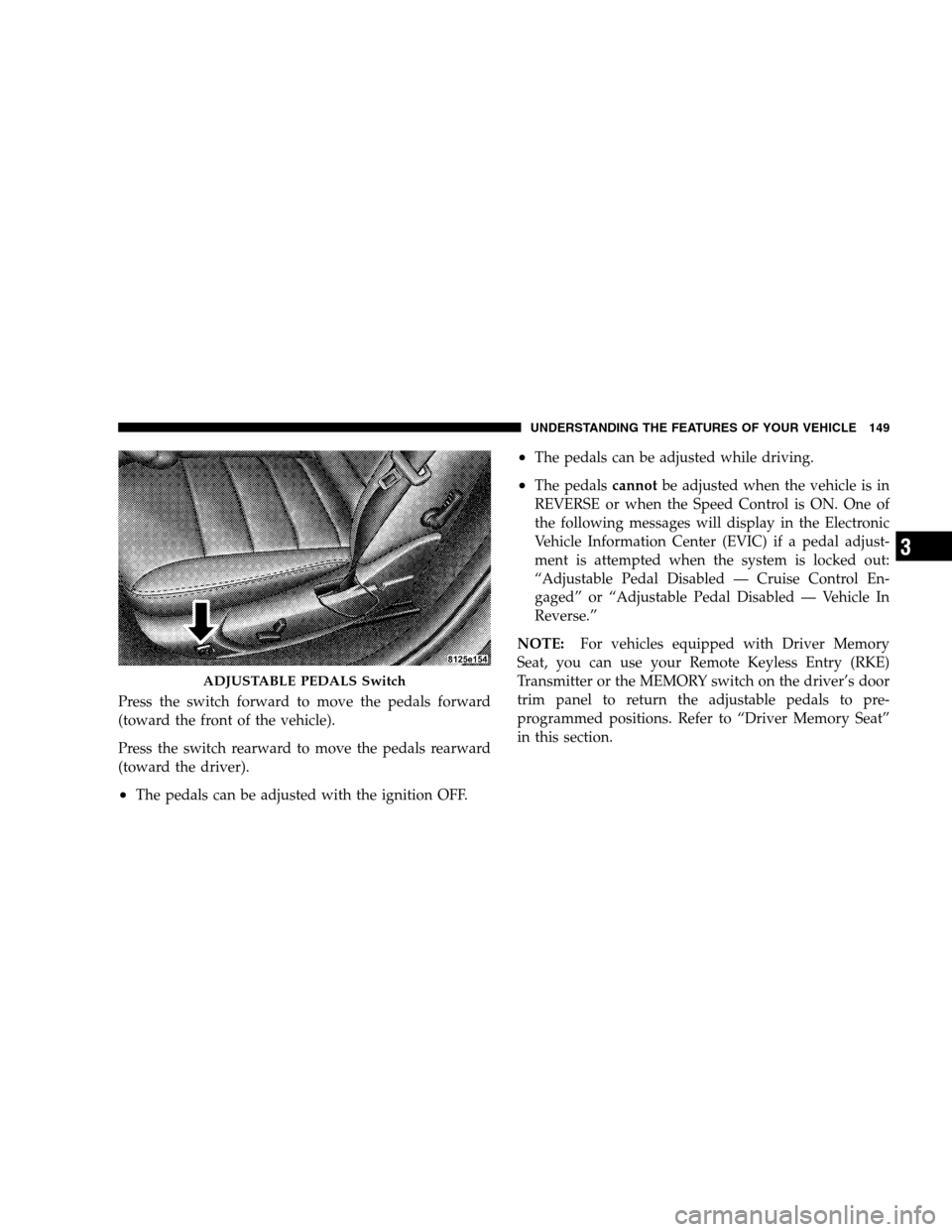

Press the switch forward to move the pedals forward
(toward the front of the vehicle).
Press the switch rearward to move the pedals rearward
(toward the driver).
•The pedals can be adjusted with the ignition OFF.
•The pedals can be adjusted while driving.
•The pedalscannotbe adjusted when the vehicle is in
REVERSE or when the Speed Control is ON. One of
the following messages will display in the Electronic
Vehicle Information Center (EVIC) if a pedal adjust-
ment is attempted when the system is locked out:
“Adjustable Pedal Disabled — Cruise Control En-
gaged” or “Adjustable Pedal Disabled — Vehicle In
Reverse.”
NOTE:For vehicles equipped with Driver Memory
Seat, you can use your Remote Keyless Entry (RKE)
Transmitter or the MEMORY switch on the driver’s door
trim panel to return the adjustable pedals to pre-
programmed positions. Refer to “Driver Memory Seat”
in this section.
ADJUSTABLE PEDALS Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3

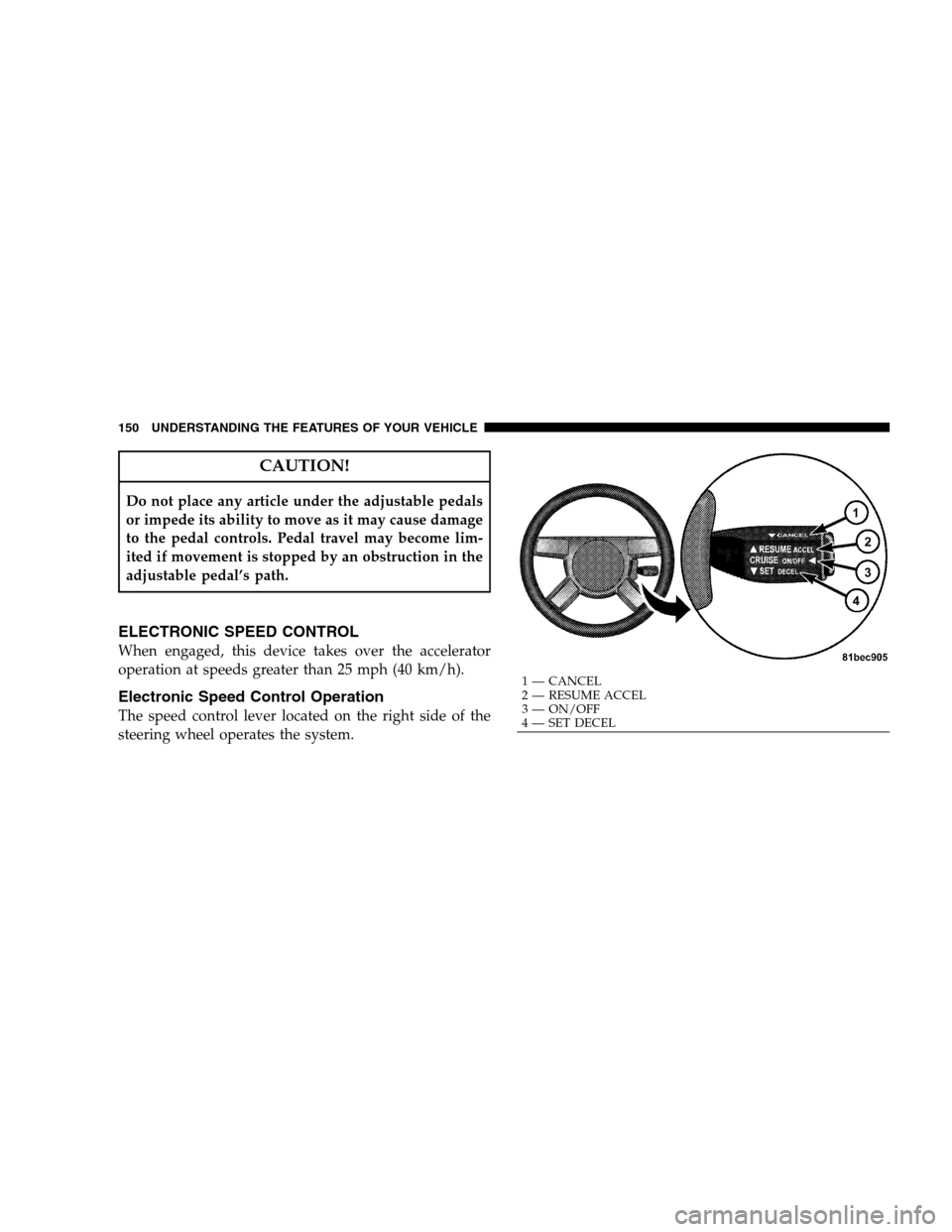

CAUTION!
Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.
ELECTRONIC SPEED CONTROL
When engaged, this device takes over the accelerator
operation at speeds greater than 25 mph (40 km/h).
Electronic Speed Control Operation
The speed control lever located on the right side of the
steering wheel operates the system.
1 — CANCEL
2 — RESUME ACCEL
3 — ON/OFF
4 — SET DECEL 150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

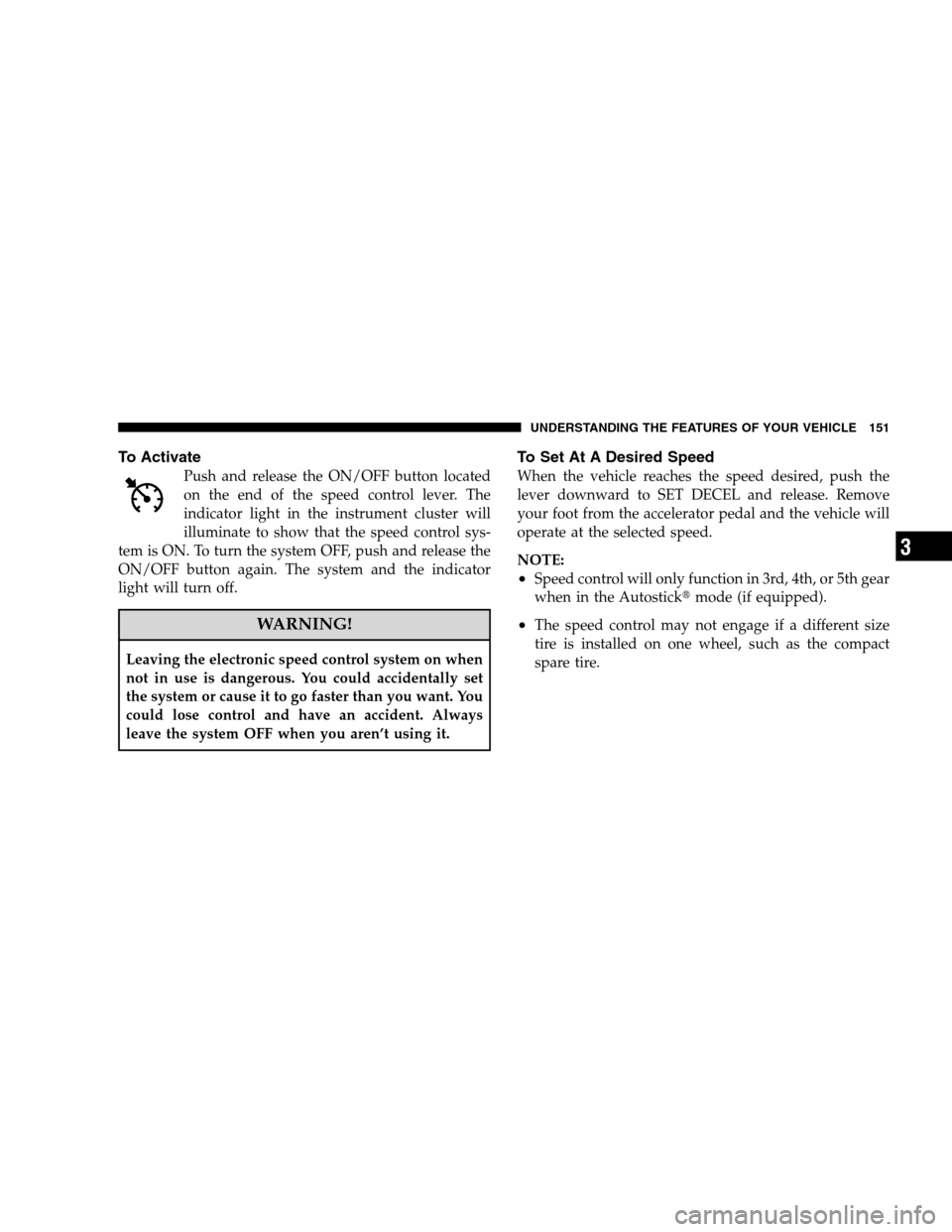

To Activate
Push and release the ON/OFF button located
on the end of the speed control lever. The
indicator light in the instrument cluster will
illuminate to show that the speed control sys-
tem is ON. To turn the system OFF, push and release the
ON/OFF button again. The system and the indicator
light will turn off.
WARNING!
Leaving the electronic speed control system on when
not in use is dangerous. You could accidentally set
the system or cause it to go faster than you want. You
could lose control and have an accident. Always
leave the system OFF when you aren’t using it.
To Set At A Desired Speed
When the vehicle reaches the speed desired, push the
lever downward to SET DECEL and release. Remove
your foot from the accelerator pedal and the vehicle will
operate at the selected speed.
NOTE:
•Speed control will only function in 3rd, 4th, or 5th gear
when in the Autostickmode (if equipped).
•The speed control may not engage if a different size
tire is installed on one wheel, such as the compact
spare tire.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

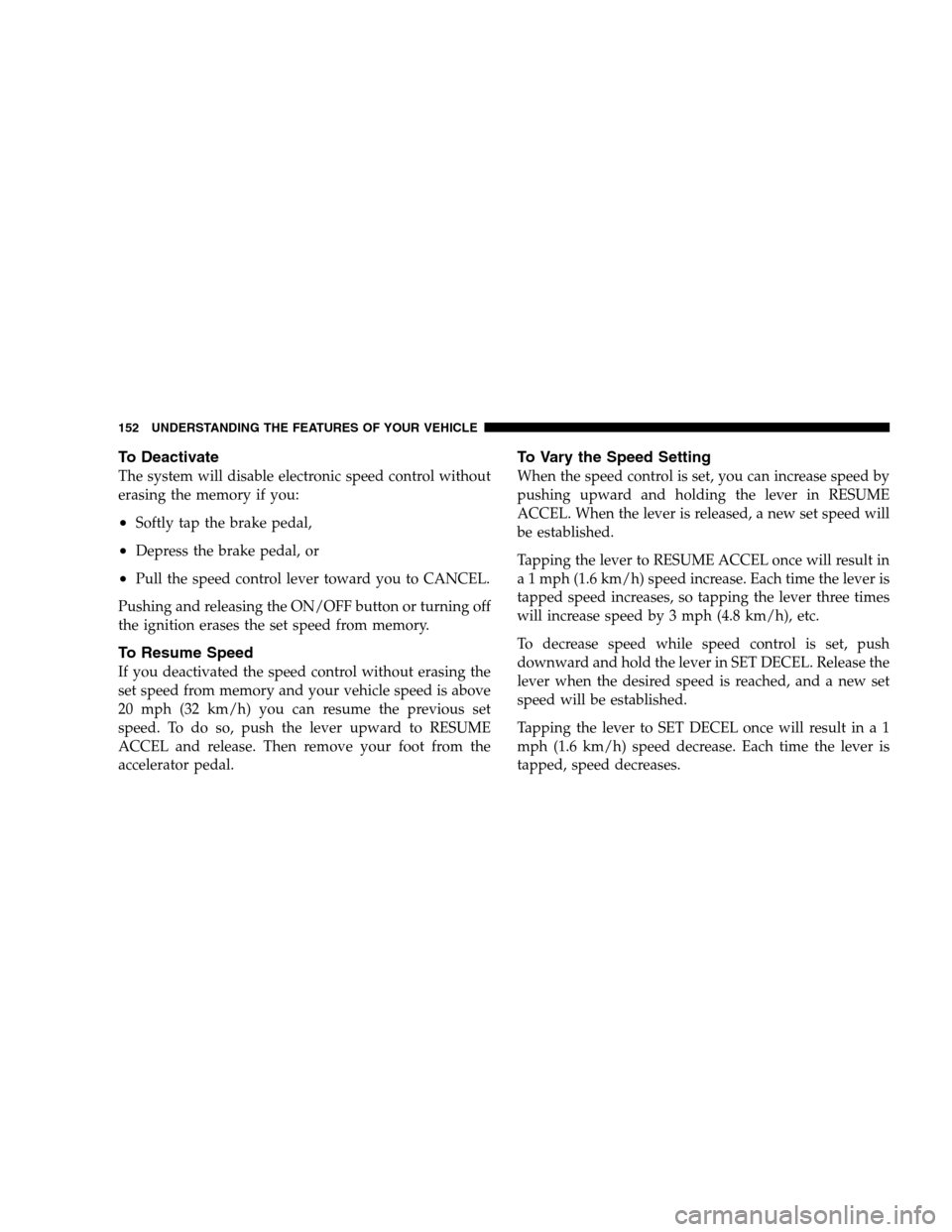

To Deactivate
The system will disable electronic speed control without
erasing the memory if you:
•Softly tap the brake pedal,
•Depress the brake pedal, or
•Pull the speed control lever toward you to CANCEL.
Pushing and releasing the ON/OFF button or turning off
the ignition erases the set speed from memory.
To Resume Speed
If you deactivated the speed control without erasing the
set speed from memory and your vehicle speed is above
20 mph (32 km/h) you can resume the previous set
speed. To do so, push the lever upward to RESUME
ACCEL and release. Then remove your foot from the
accelerator pedal.
To Vary the Speed Setting
When the speed control is set, you can increase speed by
pushing upward and holding the lever in RESUME
ACCEL. When the lever is released, a new set speed will
be established.
Tapping the lever to RESUME ACCEL once will result in
a 1 mph (1.6 km/h) speed increase. Each time the lever is
tapped speed increases, so tapping the lever three times
will increase speed by 3 mph (4.8 km/h), etc.
To decrease speed while speed control is set, push
downward and hold the lever in SET DECEL. Release the
lever when the desired speed is reached, and a new set
speed will be established.
Tapping the lever to SET DECEL once will result in a 1
mph (1.6 km/h) speed decrease. Each time the lever is
tapped, speed decreases.
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

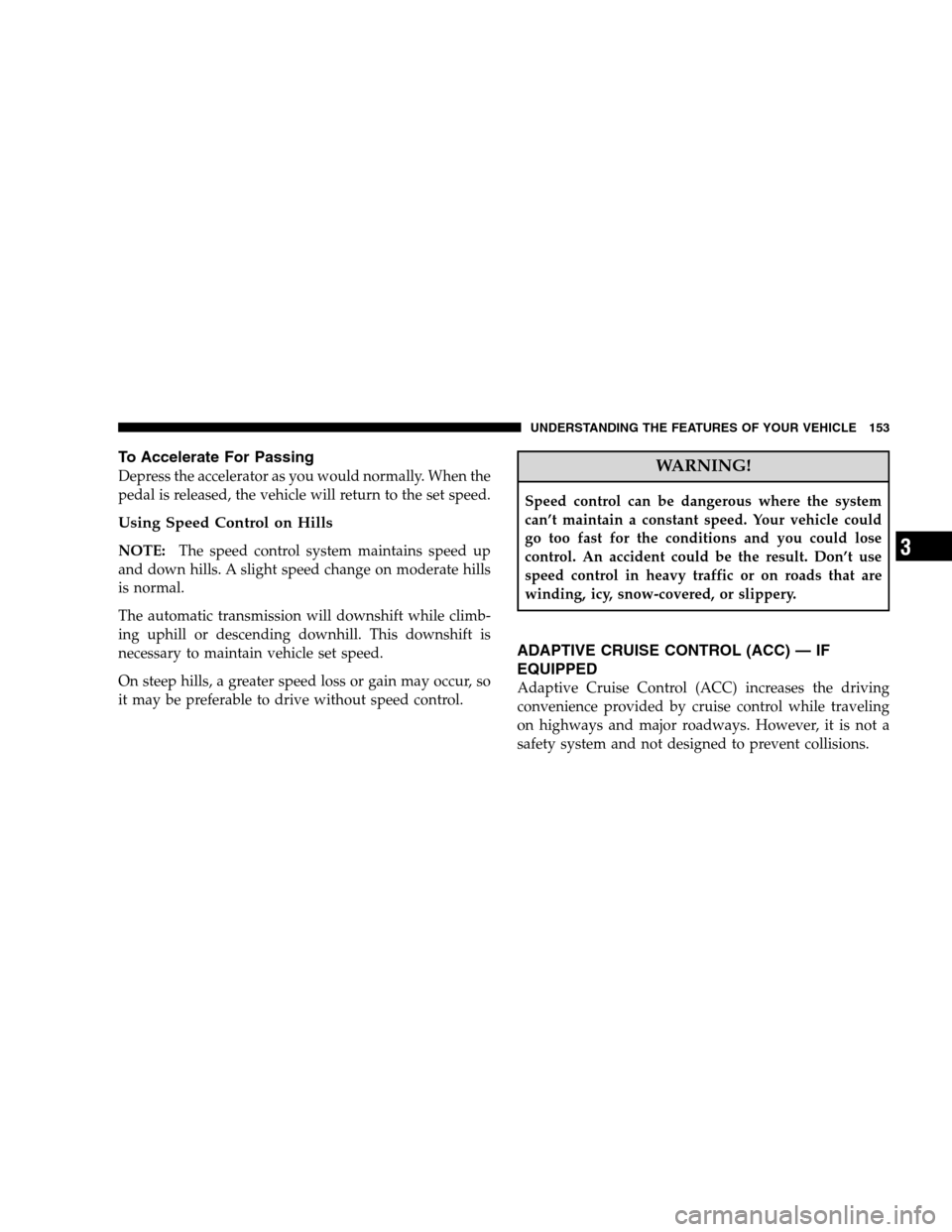

To Accelerate For Passing
Depress the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
Using Speed Control on Hills
NOTE:The speed control system maintains speed up
and down hills. A slight speed change on moderate hills
is normal.
The automatic transmission will downshift while climb-
ing uphill or descending downhill. This downshift is
necessary to maintain vehicle set speed.
On steep hills, a greater speed loss or gain may occur, so
it may be preferable to drive without speed control.
WARNING!
Speed control can be dangerous where the system
can’t maintain a constant speed. Your vehicle could
go too fast for the conditions and you could lose
control. An accident could be the result. Don’t use
speed control in heavy traffic or on roads that are
winding, icy, snow-covered, or slippery.
ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED
Adaptive Cruise Control (ACC) increases the driving
convenience provided by cruise control while traveling
on highways and major roadways. However, it is not a
safety system and not designed to prevent collisions.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

ACC will allow you to keep cruise control engaged in
light to moderate traffic conditions without the constant
need to reset your cruise control. ACC utilizes an infrared
sensor designed to detect a vehicle directly ahead in your
path.
NOTE:
•If the sensor does not detect a vehicle directly ahead of
you, ACC will function in the same way as a standard
cruise control system. For additional information, refer
to “Electronic Speed Control” in this section.
•If the ACC sensor detects a vehicle ahead, ACC will
apply limited braking or acceleration automatically so
that your vehicle maintains a preset following dis-
tance.
WARNING!
•Adaptive Cruise Control (ACC) is a convenience system. It is not
a substitute for active driving involvement. It is always the
driver ’s responsibility to be attentive of road, traffic, and weather
conditions, vehicle speed, distance to the vehicle ahead; and, most
importantly, brake operation to ensure safe operation of the
vehicle under all road conditions. Your complete attention is
always required while driving to maintain safe control of your
vehicle. Failure to follow these warnings can result in an accident
or serious personal injury.
•The ACC system:
Does not react to pedestrians, oncoming vehicles, and stationary
objects (i.e., a stopped vehicle in a traffic jam or a disabled
vehicle).
Does not predict the lane curvature or the movement of preceding
vehicles and will not compensate for such changes.
Cannot take street, traffic, and weather conditions into account,
and may be limited upon adverse sight distance conditions.
Does not always fully recognize complex driving conditions,
which can result in wrong or missing distance warnings.
May not detect a vehicle ahead when strong light (for example,
sunrise or sunset) is directly shining on the front of the vehicle.
Can only apply a maximum of 25% of the vehicle’s braking
capability, and will not bring the vehicle to a complete stop.
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

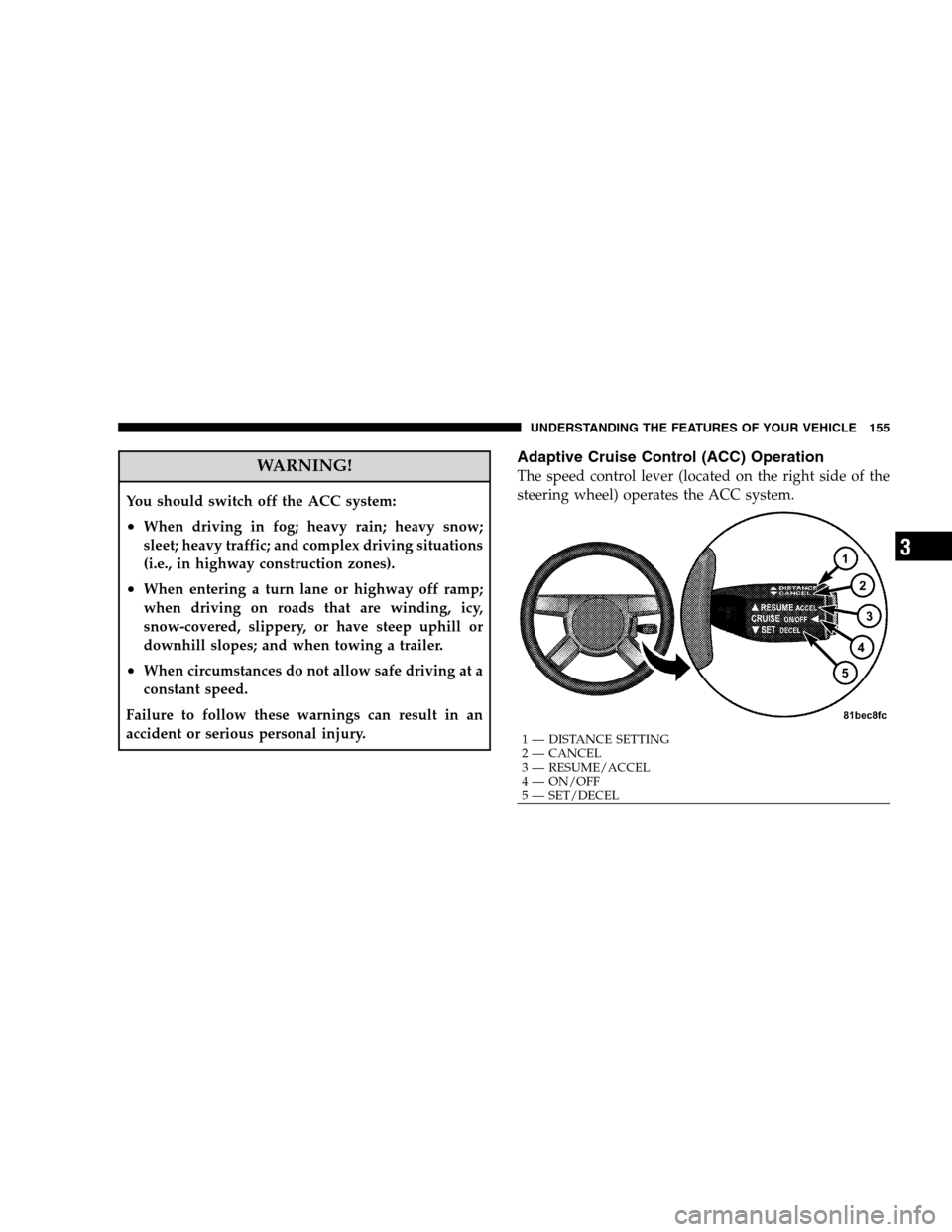

WARNING!
You should switch off the ACC system:
•When driving in fog; heavy rain; heavy snow;
sleet; heavy traffic; and complex driving situations
(i.e., in highway construction zones).
•When entering a turn lane or highway off ramp;
when driving on roads that are winding, icy,
snow-covered, slippery, or have steep uphill or
downhill slopes; and when towing a trailer.
•When circumstances do not allow safe driving at a
constant speed.
Failure to follow these warnings can result in an
accident or serious personal injury.
Adaptive Cruise Control (ACC) Operation
The speed control lever (located on the right side of the
steering wheel) operates the ACC system.
1 — DISTANCE SETTING
2 — CANCEL
3 — RESUME/ACCEL
4 — ON/OFF
5 — SET/DECELUNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
3

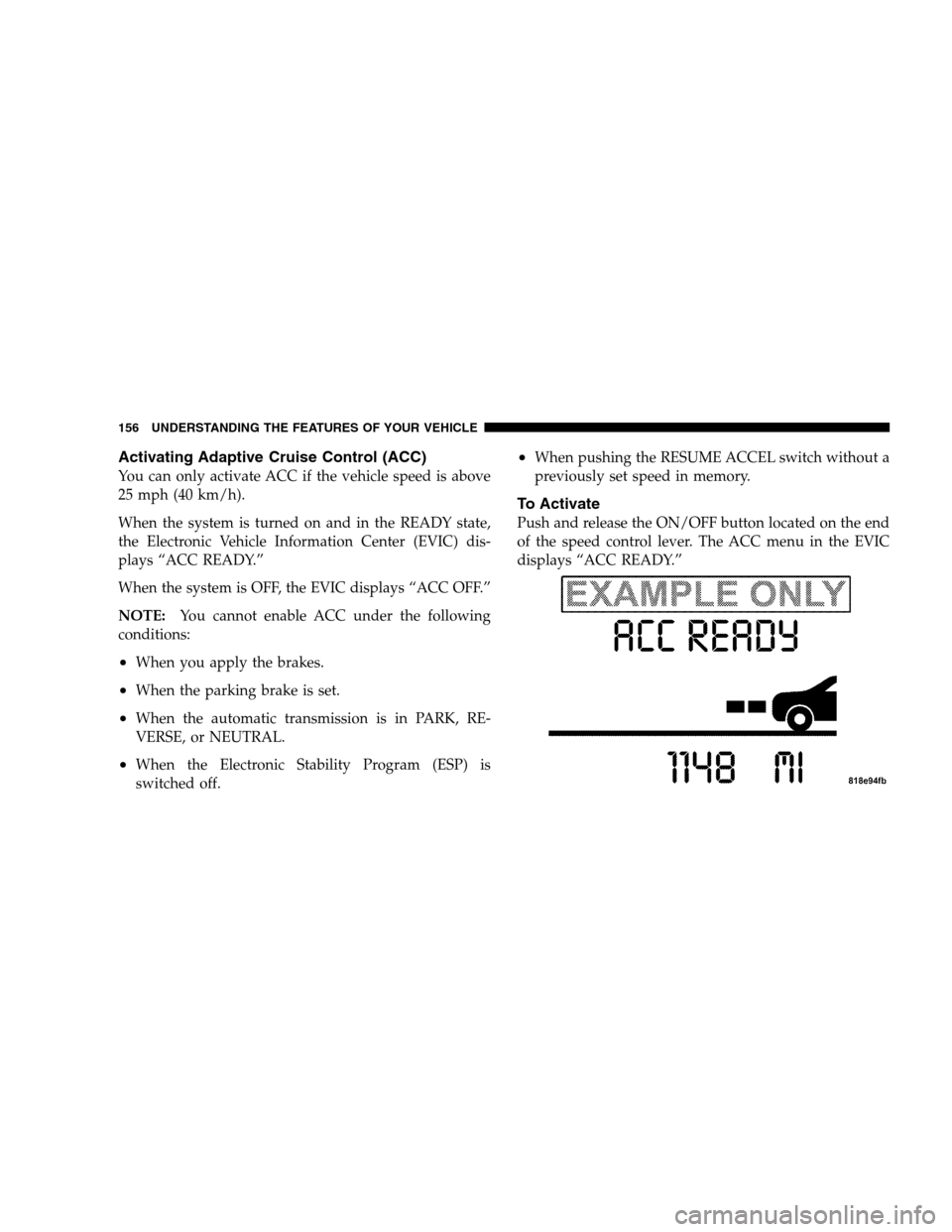

Activating Adaptive Cruise Control (ACC)
You can only activate ACC if the vehicle speed is above
25 mph (40 km/h).
When the system is turned on and in the READY state,
the Electronic Vehicle Information Center (EVIC) dis-
plays “ACC READY.”
When the system is OFF, the EVIC displays “ACC OFF.”
NOTE:You cannot enable ACC under the following
conditions:
•When you apply the brakes.
•When the parking brake is set.
•When the automatic transmission is in PARK, RE-
VERSE, or NEUTRAL.
•When the Electronic Stability Program (ESP) is
switched off.
•When pushing the RESUME ACCEL switch without a
previously set speed in memory.
To Activate
Push and release the ON/OFF button located on the end
of the speed control lever. The ACC menu in the EVIC
displays “ACC READY.”
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

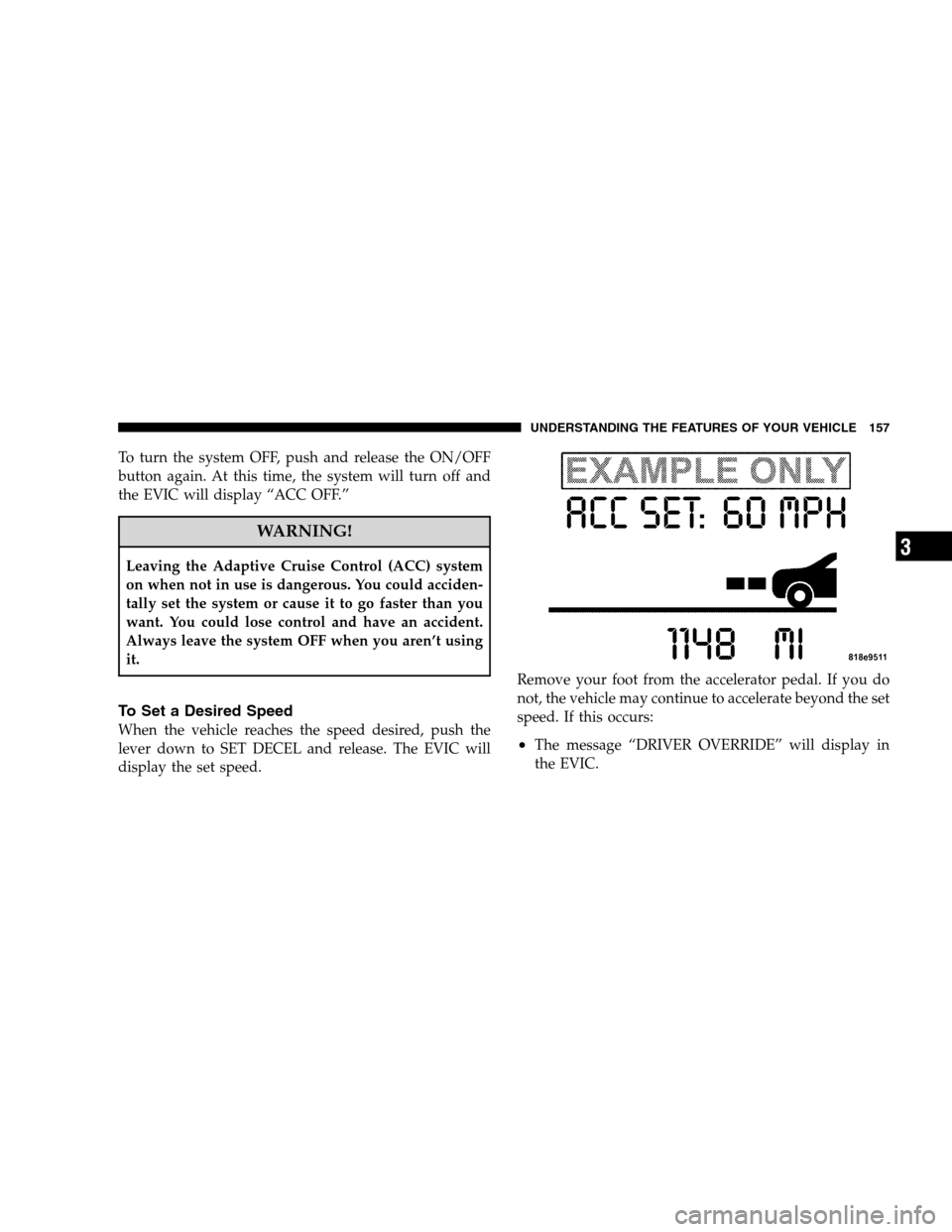

To turn the system OFF, push and release the ON/OFF
button again. At this time, the system will turn off and
the EVIC will display “ACC OFF.”
WARNING!
Leaving the Adaptive Cruise Control (ACC) system
on when not in use is dangerous. You could acciden-
tally set the system or cause it to go faster than you
want. You could lose control and have an accident.
Always leave the system OFF when you aren’t using
it.
To Set a Desired Speed
When the vehicle reaches the speed desired, push the
lever down to SET DECEL and release. The EVIC will
display the set speed.Remove your foot from the accelerator pedal. If you do
not, the vehicle may continue to accelerate beyond the set
speed. If this occurs:•The message “DRIVER OVERRIDE” will display in
the EVIC.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157
3

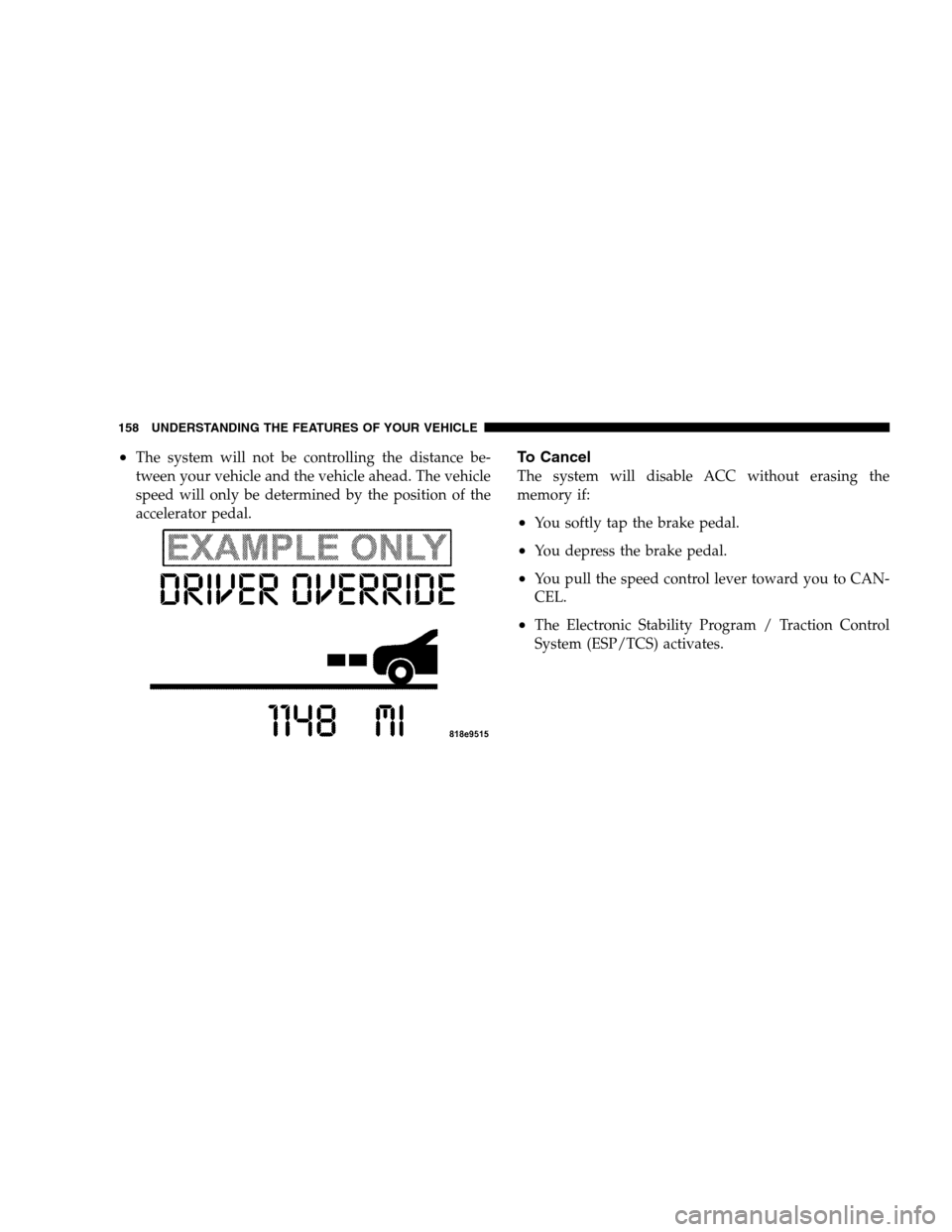

•The system will not be controlling the distance be-
tween your vehicle and the vehicle ahead. The vehicle
speed will only be determined by the position of the
accelerator pedal.To Cancel
The system will disable ACC without erasing the
memory if:
•You softly tap the brake pedal.
•You depress the brake pedal.
•You pull the speed control lever toward you to CAN-
CEL.
•The Electronic Stability Program / Traction Control
System (ESP/TCS) activates.
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
