CHRYSLER 300 SRT 2008 1.G Owners Manual

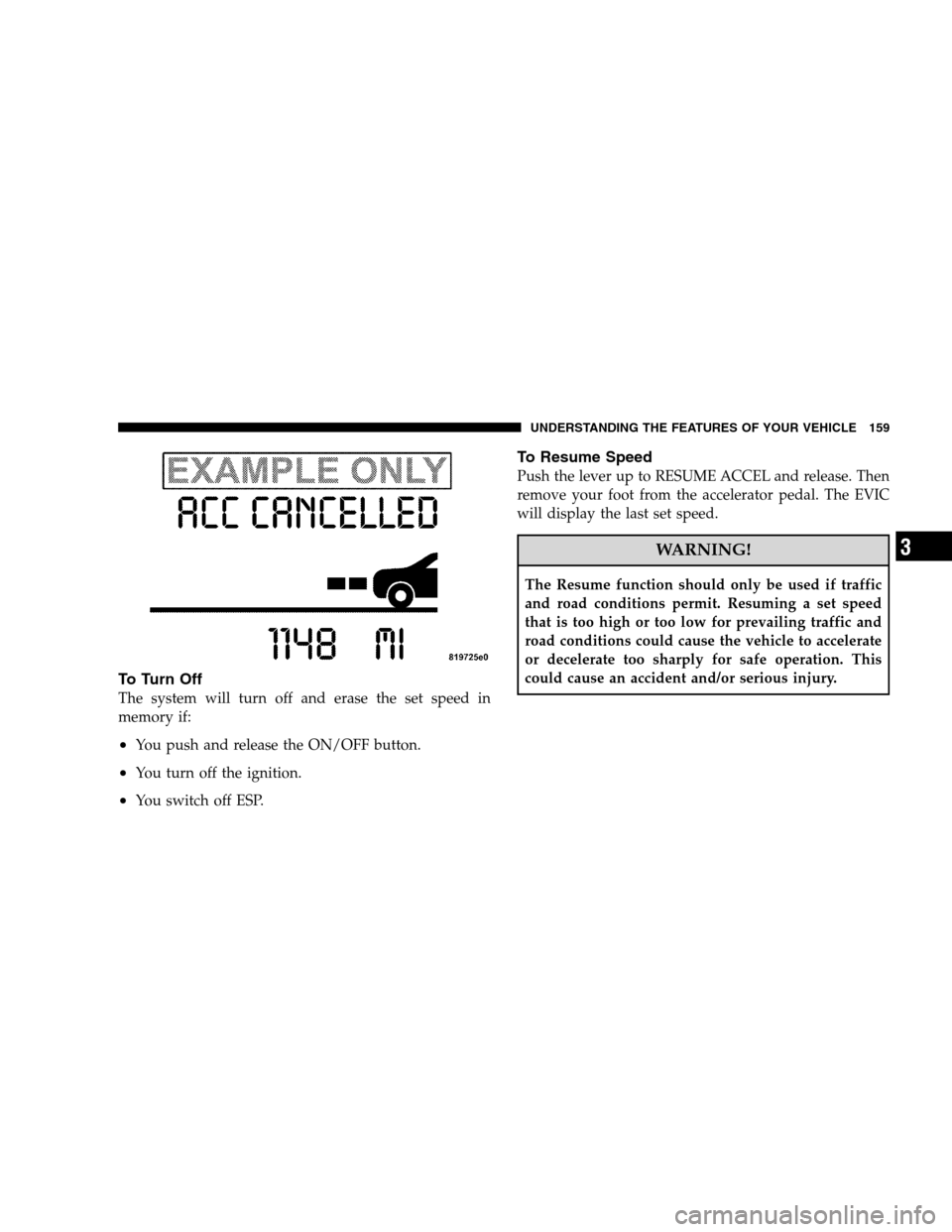

To Tu r n O f f
The system will turn off and erase the set speed in
memory if:
•You push and release the ON/OFF button.
•You turn off the ignition.
•You switch off ESP.
To Resume Speed
Push the lever up to RESUME ACCEL and release. Then
remove your foot from the accelerator pedal. The EVIC
will display the last set speed.
WARNING!
The Resume function should only be used if traffic
and road conditions permit. Resuming a set speed
that is too high or too low for prevailing traffic and
road conditions could cause the vehicle to accelerate
or decelerate too sharply for safe operation. This
could cause an accident and/or serious injury.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
3

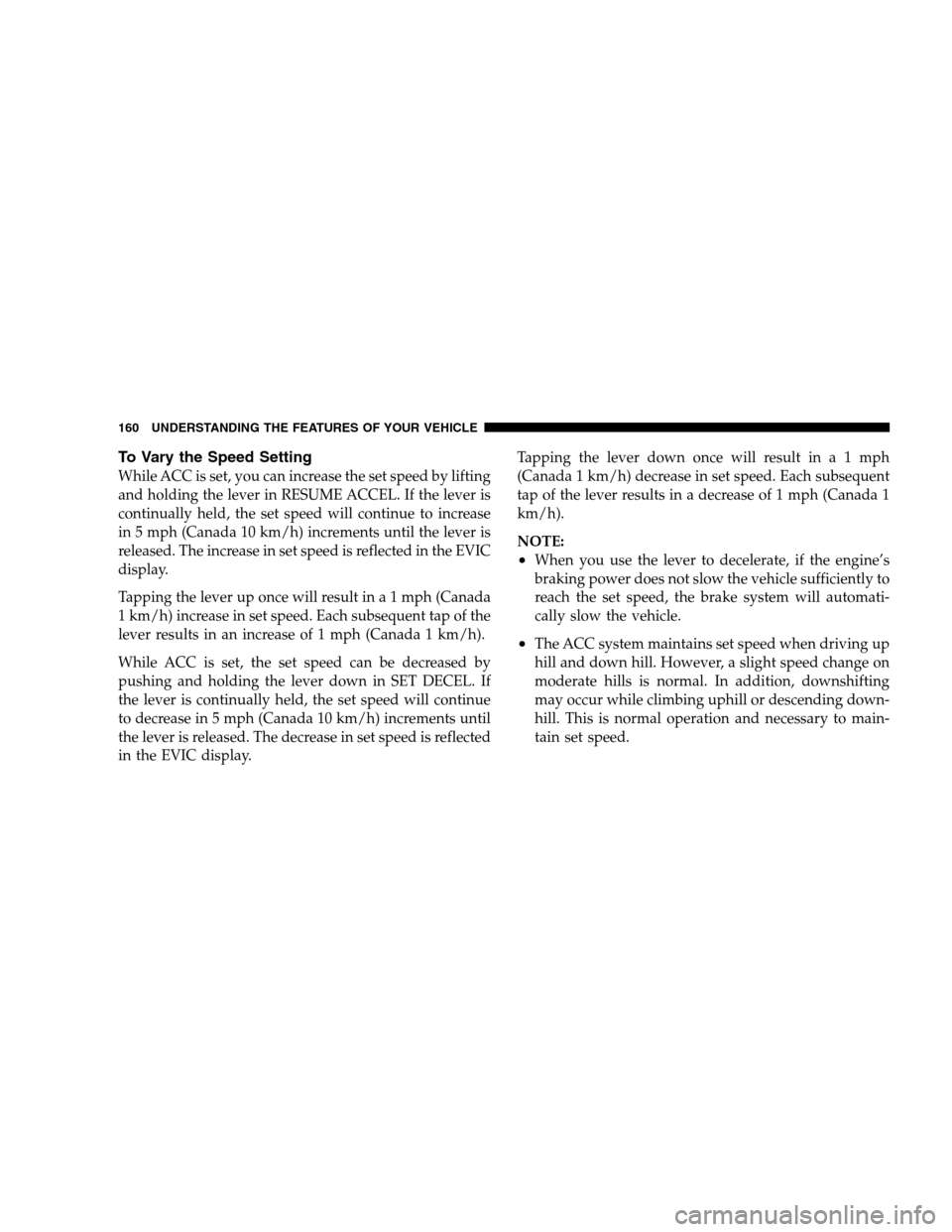

To Vary the Speed Setting
While ACC is set, you can increase the set speed by lifting
and holding the lever in RESUME ACCEL. If the lever is
continually held, the set speed will continue to increase
in 5 mph (Canada 10 km/h) increments until the lever is
released. The increase in set speed is reflected in the EVIC
display.
Tapping the lever up once will result in a 1 mph (Canada
1 km/h) increase in set speed. Each subsequent tap of the
lever results in an increase of 1 mph (Canada 1 km/h).
While ACC is set, the set speed can be decreased by
pushing and holding the lever down in SET DECEL. If
the lever is continually held, the set speed will continue
to decrease in 5 mph (Canada 10 km/h) increments until
the lever is released. The decrease in set speed is reflected
in the EVIC display.Tapping the lever down once will result ina1mph
(Canada 1 km/h) decrease in set speed. Each subsequent
tap of the lever results in a decrease of 1 mph (Canada 1
km/h).
NOTE:
•When you use the lever to decelerate, if the engine’s
braking power does not slow the vehicle sufficiently to
reach the set speed, the brake system will automati-
cally slow the vehicle.
•The ACC system maintains set speed when driving up
hill and down hill. However, a slight speed change on
moderate hills is normal. In addition, downshifting
may occur while climbing uphill or descending down-
hill. This is normal operation and necessary to main-
tain set speed.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Setting the Following Distance in ACC
The specified following distance for ACC can be set by
varying the distance setting between long, medium, and
short. Using this distance setting and the vehicle speed,
ACC calculates and sets the distance to the vehicle ahead.
This distance setting displays in the EVIC.To can change the distance setting, push the lever away
from you to DISTANCE and release. Each time this is
done, the distance setting toggles between long, medium,
and short.
If there is no vehicle ahead, the vehicle will maintain the
set speed. If a slower moving vehicle is detected in the
same lane, the EVIC displays the “Sensed Vehicle Indi-
cator” icon, and the system adjusts vehicle speed auto-
matically to maintain the distance setting, regardless of
the set speed.
The vehicle will then maintain the set distance until:
•The vehicle ahead accelerates to a speed above the set
speed.
•The vehicle ahead moves out of your lane or view of
the sensor.
•The vehicle ahead slows to a speed below 15 mph (24
km/h) and the system automatically disables itself.1 — Sensor Bars. Default Distance Setting is Three Bars = Long.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161
3

•The distance setting is changed.
•The system disengages. (Refer to the information on
ACC Activation).
The maximum braking applied by ACC is limited; how-
ever, the driver can always apply the brakes manually, if
necessary.
NOTE:The brake lights will illuminate whenever the
ACC system applies the brakes.

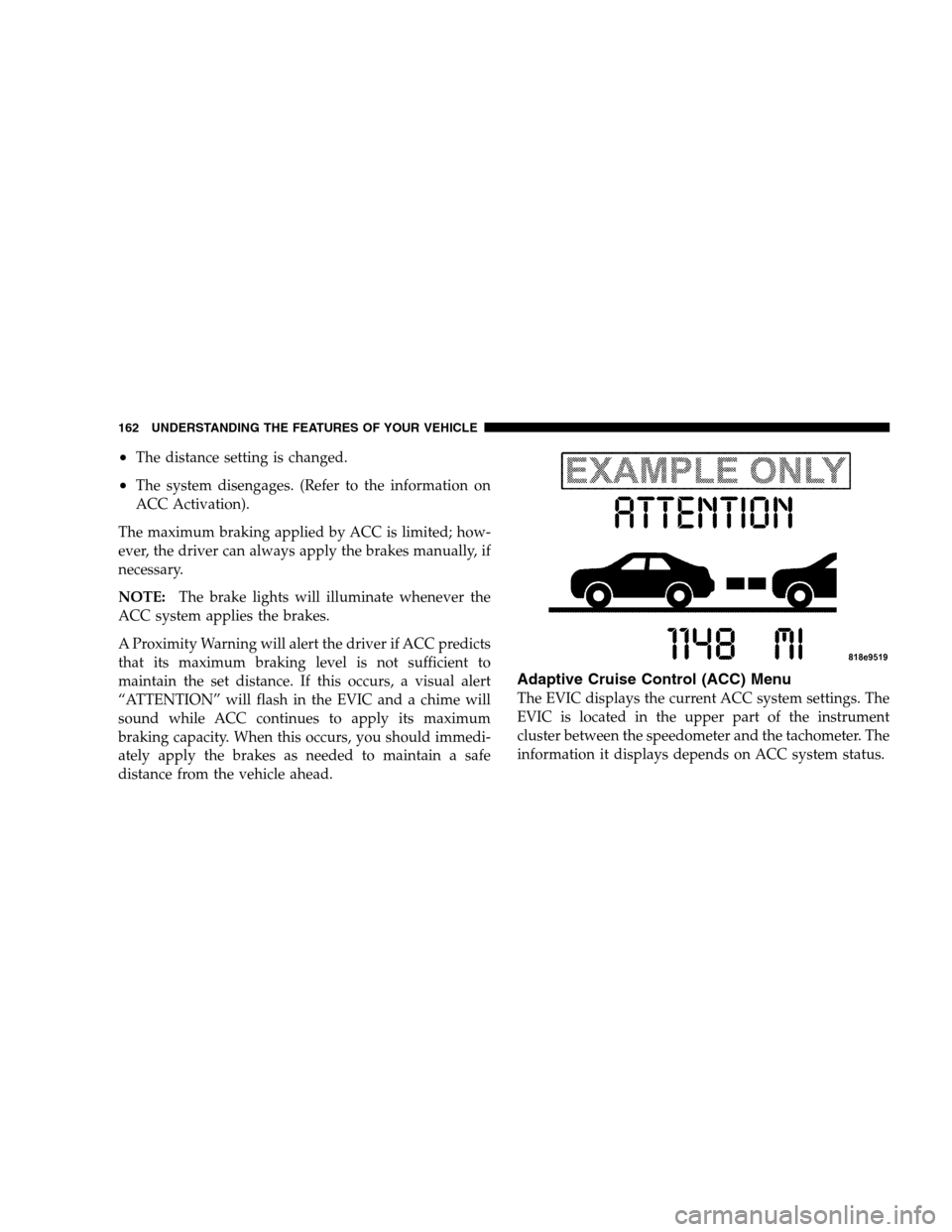

A Proximity Warning will alert the driver if ACC predicts
that its maximum braking level is not sufficient to
maintain the set distance. If this occurs, a visual alert
“ATTENTION” will flash in the EVIC and a chime will
sound while ACC continues to apply its maximum
braking capacity. When this occurs, you should immedi-
ately apply the brakes as needed to maintain a safe
distance from the vehicle ahead.
Adaptive Cruise Control (ACC) Menu
The EVIC displays the current ACC system settings. The
EVIC is located in the upper part of the instrument
cluster between the speedometer and the tachometer. The
information it displays depends on ACC system status.
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

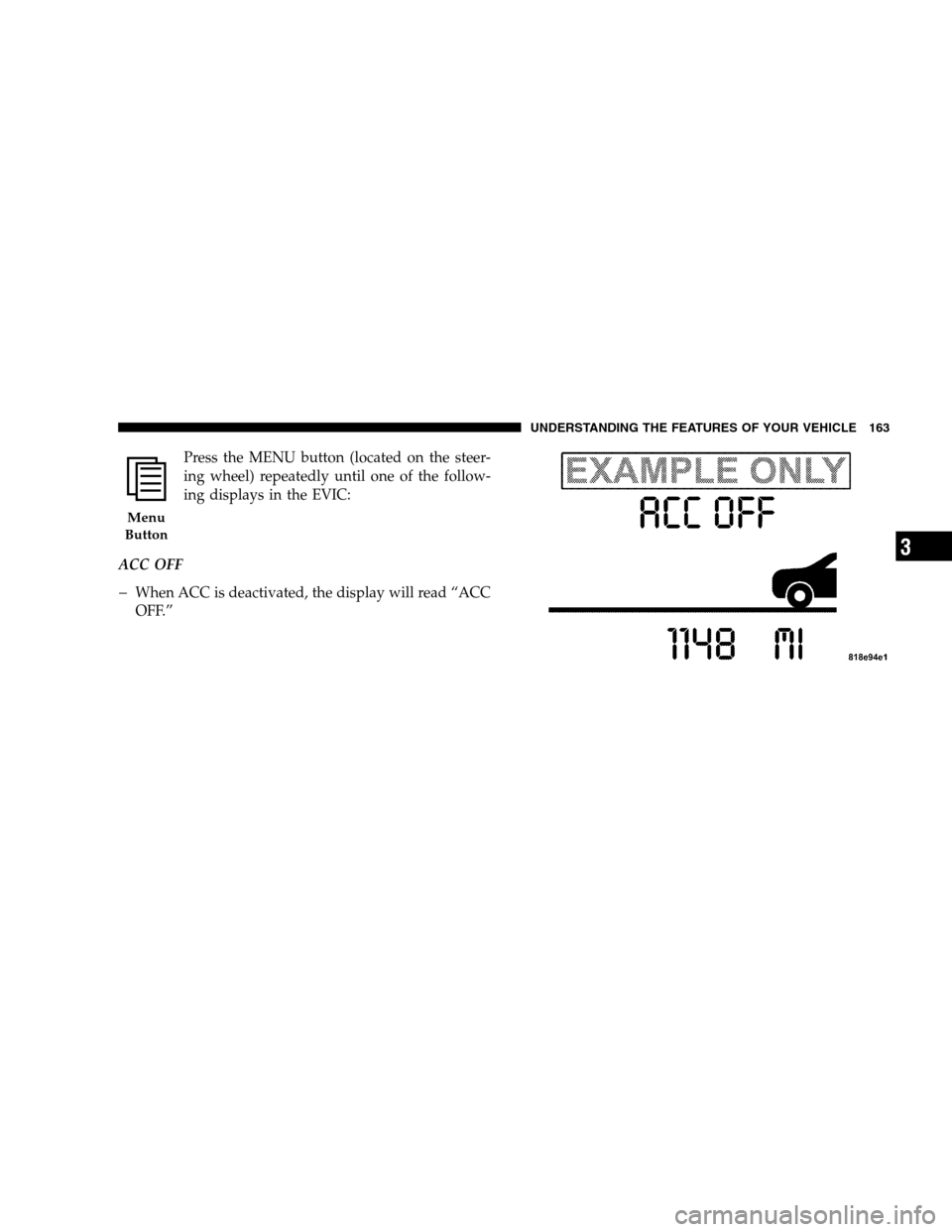

Press the MENU button (located on the steer-
ing wheel) repeatedly until one of the follow-
ing displays in the EVIC:
ACC OFF
When ACC is deactivated, the display will read “ACC
OFF.”
Menu
Button
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
3

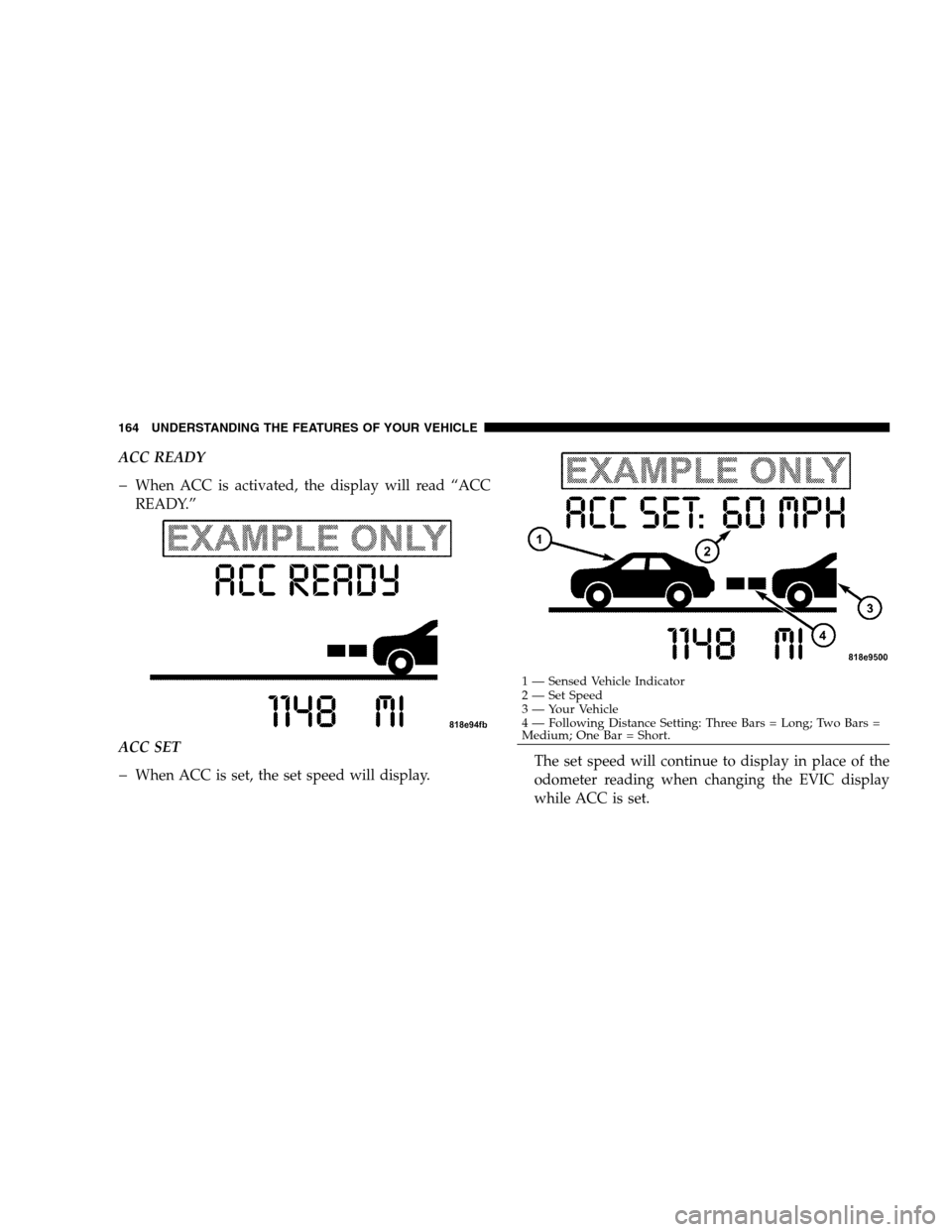

ACC READY
When ACC is activated, the display will read “ACC
READY.”
ACC SET
When ACC is set, the set speed will display.The set speed will continue to display in place of the
odometer reading when changing the EVIC display
while ACC is set.
1 — Sensed Vehicle Indicator
2 — Set Speed
3 — Your Vehicle
4 — Following Distance Setting: Three Bars = Long; Two Bars =
Medium; One Bar = Short. 164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

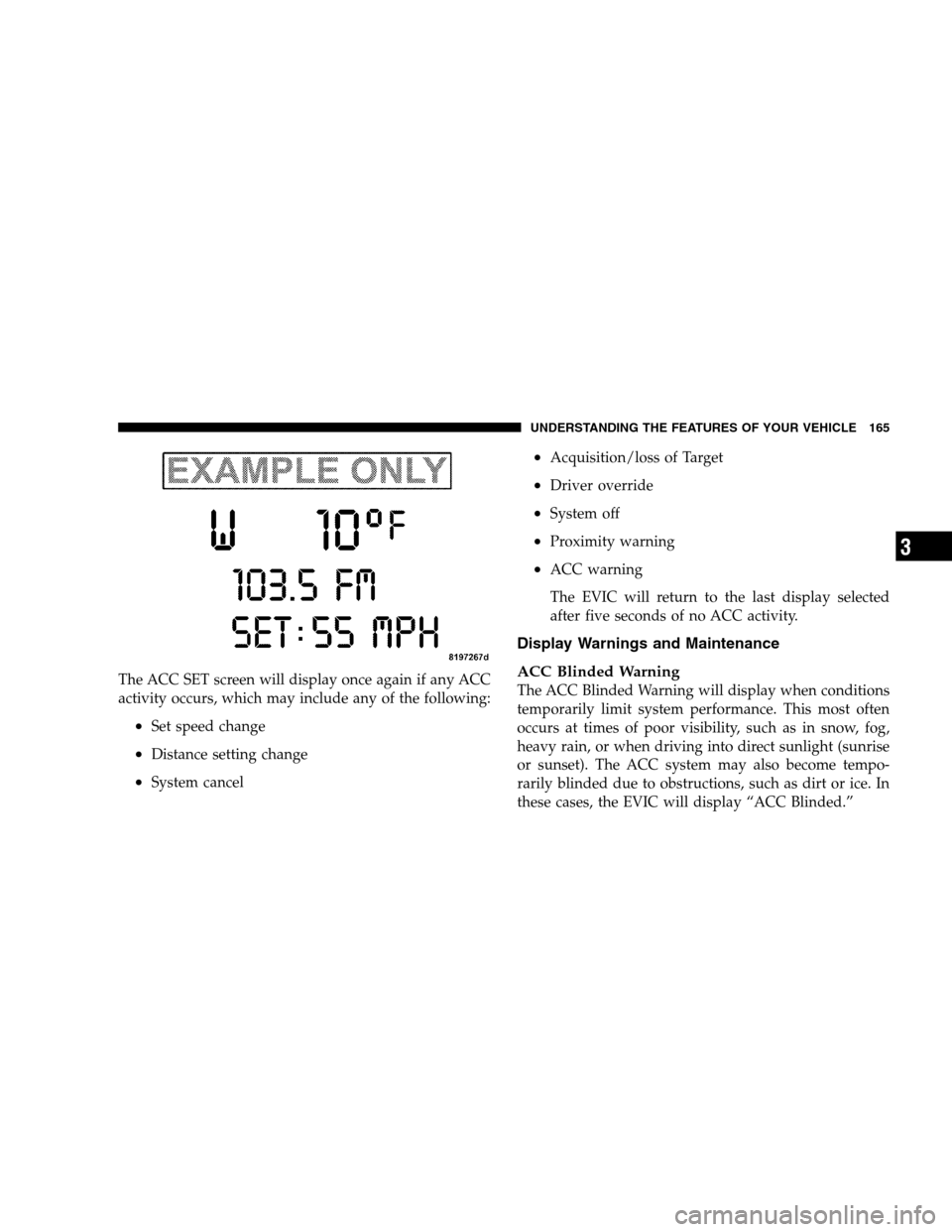

The ACC SET screen will display once again if any ACC
activity occurs, which may include any of the following:
•Set speed change
•Distance setting change
•System cancel
•Acquisition/loss of Target
•Driver override
•System off
•Proximity warning
•ACC warning
The EVIC will return to the last display selected
after five seconds of no ACC activity.
Display Warnings and Maintenance
ACC Blinded Warning
The ACC Blinded Warning will display when conditions
temporarily limit system performance. This most often
occurs at times of poor visibility, such as in snow, fog,
heavy rain, or when driving into direct sunlight (sunrise
or sunset). The ACC system may also become tempo-
rarily blinded due to obstructions, such as dirt or ice. In
these cases, the EVIC will display “ACC Blinded.”
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
3

If weather conditions are not a factor, the driver should
examine the sensor. It may require cleaning or removal of
an obstruction. The sensor is located behind the grille,
slightly offset from the center of the grille.To keep the ACC System operating properly, it is impor-
tant to note the following maintenance items:
•Always keep the sensor clean. Carefully wipe the
sensor lens with a soft cloth. Be cautious not to
damage the sensor lens.
ACC Sensor Location
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•Do not remove any screws from the sensor or the
sensor mount. Doing so could cause an ACC system
malfunction or failure and require a sensor re-
alignment.
•If the sensor is damaged due to an accident, see your
authorized dealer for service.
•Do not attach or install any accessories near the sensor,
including transparent material or aftermarket grilles.
Doing so could cause an ACC system failure or
malfunction.
When the condition that deactivated the system is no
longer present, the system will return to the “ACC Off”
state and will resume function by simply reactivating it.
NOTE:Installing a vehicle front-end protector or an
aftermarket grille or modifying the grille is not recom-
mended. Doing so may block the sensor and inhibit ACC
operation.
ACC Unavailable Warning
If the system turns off, and the EVIC displaysACC
UNAVAILABLE,there may be a temporary malfunction
that limits ACC functionality. In this case, ACC will be
temporarily unavailable. If this occurs, try activating
ACC again later, following a key cycle. If the problem
persists, see your authorized dealer.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167
3

Service ACC Warning
If the system turns off, and the EVIC displays “SERVICE
ACC,” it indicates there is an internal system fault that
requires service from an authorized dealer.
Precautions While Driving with ACC
In certain driving situations, ACC may have detection
issues. In these cases, ACC may brake late or unexpect-
edly. The driver needs to stay alert and may need to
intervene.
Adding a Trailer Hitch
The weight of a trailer hitch may affect the performance
of ACC. If there is a noticeable change in performance
following the installation of a hitch, such as reduced
detection range, please see your authorized dealer for
service.

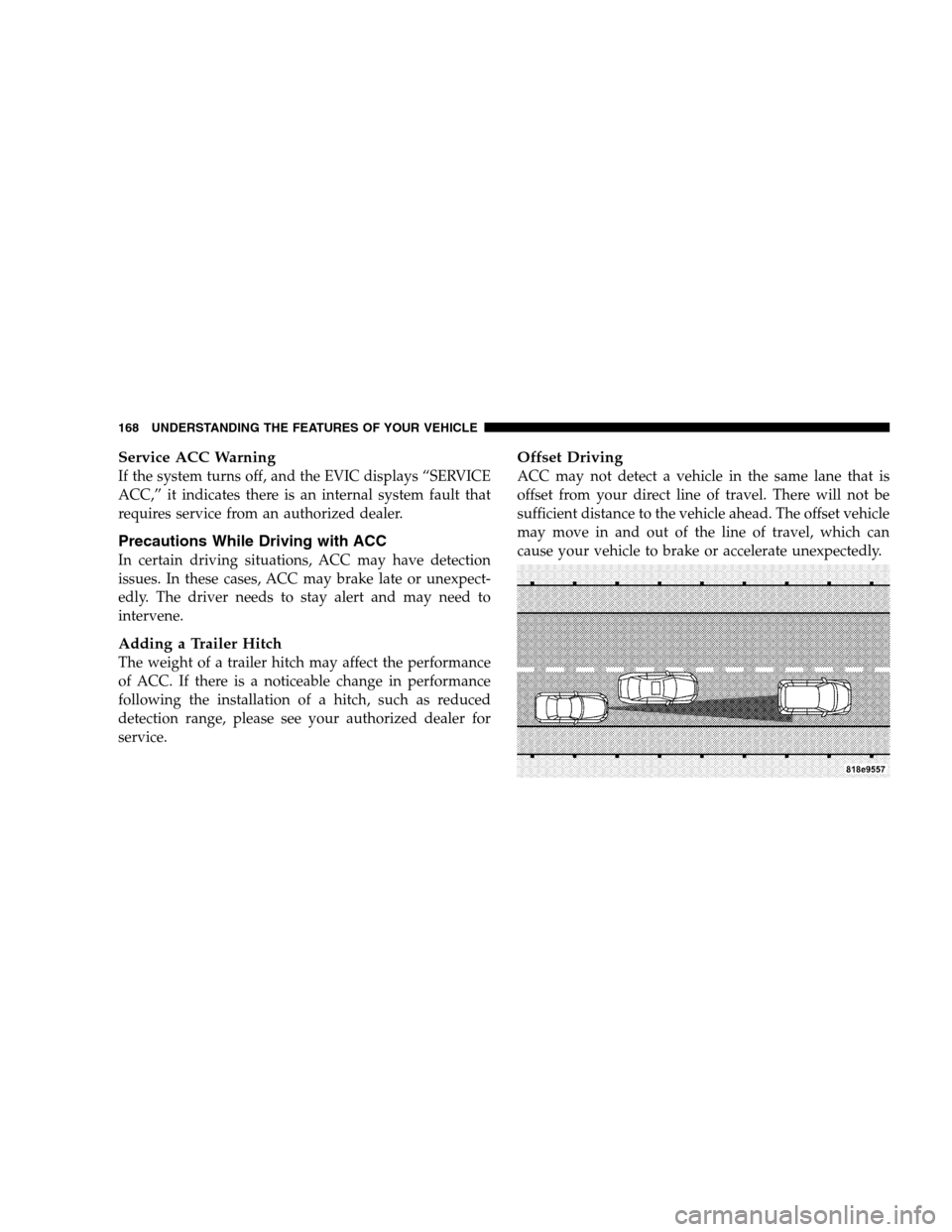

Offset Driving
ACC may not detect a vehicle in the same lane that is
offset from your direct line of travel. There will not be
sufficient distance to the vehicle ahead. The offset vehicle
may move in and out of the line of travel, which can
cause your vehicle to brake or accelerate unexpectedly.
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
