Page 415 of 481
²Do not use any solvents or protectants on YES Essen-
tialstproducts.
Interior Care
Use MOPARtTotal Clean to clean fabric upholstery and
carpeting.
Interior trim should be cleaned starting with a damp
cloth, a damp cloth with MOPARtTotal Clean, then
MOPARtSpot & Stain Remover, if absolutely necessary.
Do not use harsh cleaners or Armorall. Use MOPARt
Total Clean to clean vinyl upholstery.
Leather Seat Care and Cleaning
MOPARtTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.Stubborn soils can be removed easily with a soft cloth
and MOPARtTotal Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
MAINTAINING YOUR VEHICLE 413
7
Page 420 of 481
This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may be
stamped on the inside cover, otherwise the cavity num-
ber of each fuse is stamped on the inside cover that
corresponds to the following chart. These fuses and
relays can be obtained from your authorized dealer.
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
1 30 Amp
PinkStarter
2 30 Amp
PinkFront Wiper
3 40 Amp
GreenBrake Batt
4 30 Amp
PinkJB Feed Acc # 2
5 40 Amp
GreenPower Seats
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
6 30 Amp
PinkRun Remote Relay
Feed
7 40 Amp
GreenBlower Motor Relay
Feed
8 40 Amp
GreenJB Feed Acc Delay
9 Spare
10 30 Amp
PinkASD
11 40 Amp
GreenPower Liftgate ( If
Equipped)
12 40 Amp
GreenJB Feed / Heated Rear
Glass (EBL)/T-Case
Brake
13 30 Amp
PinkJB Feed RR
418 MAINTAINING YOUR VEHICLE
Page 421 of 481
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
14 40 Amp
GreenESP Pump
15 50 Amp
RedJB Feed
16 10 Amp
RedSpare
17 Spare
18 20 Amp
YellowFuel Pump
19 20 Amp
YellowNext Generation Con-
troller (NGC)
20 25 Amp
Clear115V Power Inverter
21 20 Amp
YellowABS BattCav-
ityCartridge
Fuse /
RelayMini Fuse Description
22 20 Amp
YellowNext Generation Con-
troller (NGC) Batt
23 20 Amp
YellowTrailer Tow
24 15 Amp
BlueA/C Clutch
25 15 Amp
BlueStop Lamp Switch
26 Spare
27 20 Amp
YellowRun/Start Relay Feed
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 Spare
MAINTAINING YOUR VEHICLE 419
7
Page 423 of 481
An integrated power module is located in the left side of
the engine compartment. This center contains cartridge
fuses, mini fuses and relays. A description of each fuse
and component may be stamped on the inside cover,
otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
1 Relay Wiper On/Off Rly
2 Relay Wiper Hi/Lo Rly
3 Relay Horn Rly
4 Relay Rear Wiper Rly
5 Relay Lt Trailer-Tow Stop/
Turn Rly
6 Relay Rt Trailer-Tow Stop/
Turn Rly
7 Relay Park Lamps Rly
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
10 10 Amp
RedRt Park Lamps
11 Relay Radiator Fan Hi Rly
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
MAINTAINING YOUR VEHICLE 421
7
Page 455 of 481

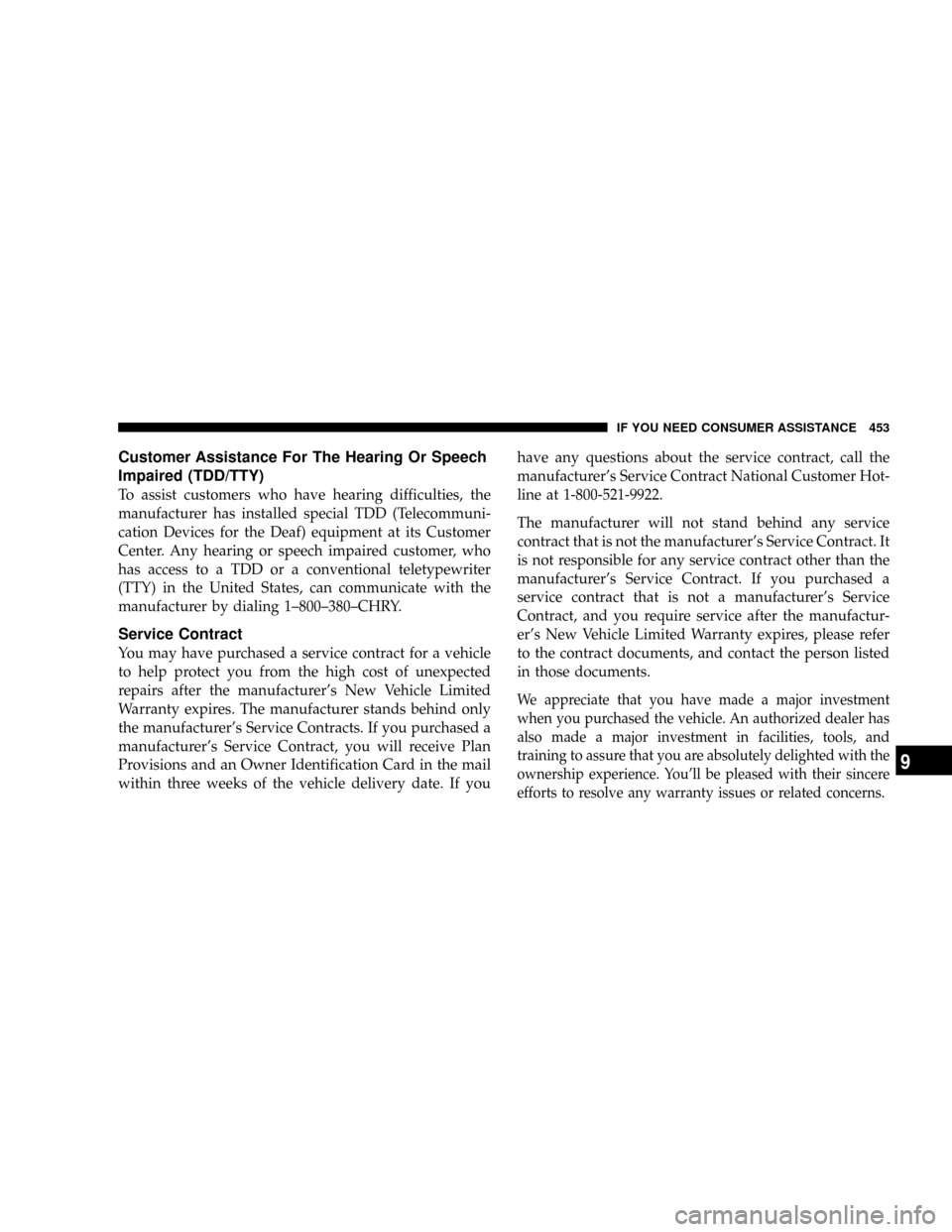

Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its Customer
Center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1±800±380±CHRY.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer's New Vehicle Limited
Warranty expires. The manufacturer stands behind only
the manufacturer's Service Contracts. If you purchased a
manufacturer's Service Contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If youhave any questions about the service contract, call the
manufacturer's Service Contract National Customer Hot-
line at 1-800-521-9922.
The manufacturer will not stand behind any service
contract that is not the manufacturer's Service Contract. It
is not responsible for any service contract other than the
manufacturer's Service Contract. If you purchased a
service contract that is not a manufacturer's Service
Contract, and you require service after the manufactur-
er's New Vehicle Limited Warranty expires, please refer
to the contract documents, and contact the person listed
in those documents.
We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer has
also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with the
ownership experience. You'll be pleased with their sincere
efforts to resolve any warranty issues or related concerns.
IF YOU NEED CONSUMER ASSISTANCE 453
9
Page 460 of 481

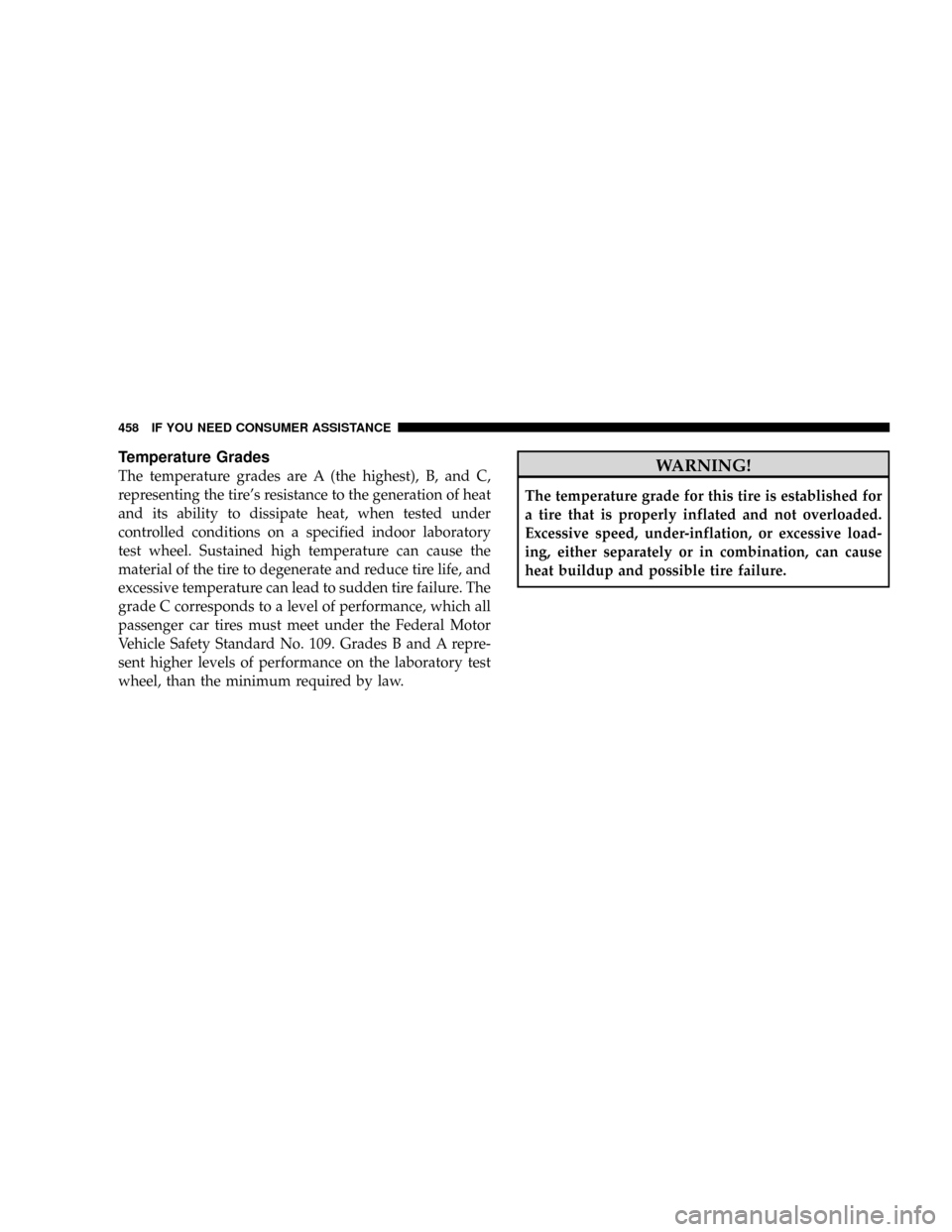

Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
458 IF YOU NEED CONSUMER ASSISTANCE
Page 466 of 481
Traction Control System................. 300
Electronic Roll Mitigation (ERM)............. 302
Electronic Speed Control (Cruise Control)...... 155
Electronic Stability Program (ESP).........212,303
Electronic Vehicle Information Center
(EVIC).............................163,167
Emergency, In Case of
Freeing Vehicle When Stuck............... 379
Jacking............................. 371
Tow Hooks.......................... 380
Towing............................. 381
Emission Control System Maintenance......388,436
Engine
Air Cleaner.......................... 393
Block Heater......................... 278
Break-In Recommendations................ 74
Compartment......................385,386
Coolant (Antifreeze).................... 432
Exhaust Gas Caution................40,75,340Fails to Start.......................... 276
Flooded, Starting...................... 276
Fuel Requirements..................... 431
Jump Starting......................... 377
Multi-Displacement..................... 294
Oil ...........................390,431,432
Oil Filler Cap...................385,386,391
Oil Selection.......................391,431
Oil Synthetic......................... 392
Starting............................. 275
Temperature Gauge..................... 204
Entry System, Illuminated.................. 20
Event Data Recorder...................... 63
Exhaust Gas Caution..............40,75,340,398
Exhaust System.......................75,397
Extender, Seat Belt........................ 53
Fabric Care............................ 412
464 INDEX
Page 470 of 481
Key, Sentry (Immobilizer)................... 15
Keyless Entry System...................... 21
Keys................................. 12
Knee Bolster............................ 54
Lane Change and Turn Signals.........148,204,425
Lap/Shoulder Belts....................... 41
LATCH (Lower Anchors and Tether for CHildren).. 68
Life of Tires............................ 322
Liftgate................................ 37
Lights..............................77,142
Airbag............................62,215
Anti-Lock Warning..................... 206
Back-Up............................. 425
Brake Warning........................ 210
Bulb Replacement...................423,424
Center Mounted Stop................... 428
Courtesy/Reading..................... 165
Cruise.............................. 215Daytime Running...................... 146
Dome.............................. 166
Electronic Stability Program (ESP)
Indicator.........................212,303
Fog ..........................147,209,429
Hazard Warning Flasher................. 368
High Beam........................... 149
High Beam/Low Beam Select............. 149
Instrument Cluster..................... 204
Interior..........................144,165
License............................. 427
Lights On Reminder.................... 146
Low Fuel............................ 204
Malfunction Indicator (Check Engine)........ 212
Passing............................. 149
Reading............................. 166
Seat Belt Reminder..................... 205
Service.............................. 423
Tire Pressure Monitoring (TPMS)........... 213
468 INDEX
