REMOTE KEYLESS ENTRY (RKE)
NOTE:
²For the remote starting feature (if equipped), refer to
ªRemote Starting Systemº in section 2.
²For the power liftgate feature (if equipped), refer to the
ªPower Liftgateº in section 2.
²Your vehicle's transmitter may have three, four, or five
buttons (shown), depending on the optional features
purchased with your vehicle.
This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances a
minimum of 66 ft (20 m) using a handheld radio Trans-
mitter. The transmitter need not be pointed at the vehicle
to activate the system.
NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock the Doors and Liftgate:
Press and release the UNLOCK button on the transmitter
once to unlock only the driver's door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash twice.Transmitter with Integrated Key
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

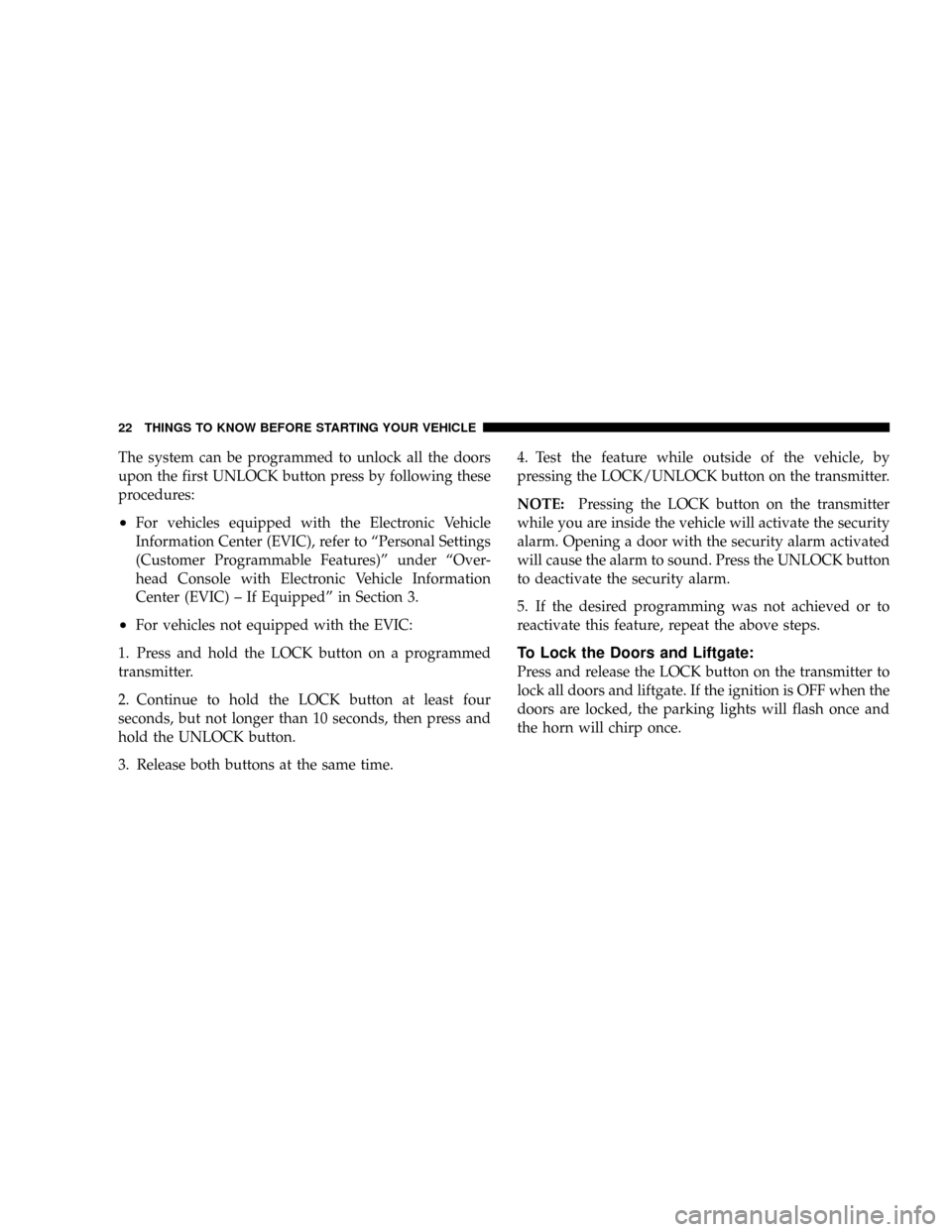

The system can be programmed to unlock all the doors
upon the first UNLOCK button press by following these
procedures:
²For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to ªPersonal Settings
(Customer Programmable Features)º under ªOver-
head Console with Electronic Vehicle Information
Center (EVIC) ± If Equippedº in Section 3.
²For vehicles not equipped with the EVIC:
1. Press and hold the LOCK button on a programmed
transmitter.
2. Continue to hold the LOCK button at least four
seconds, but not longer than 10 seconds, then press and
hold the UNLOCK button.
3. Release both buttons at the same time.4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the transmitter.
NOTE:Pressing the LOCK button on the transmitter
while you are inside the vehicle will activate the security
alarm. Opening a door with the security alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the security alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To Lock the Doors and Liftgate:
Press and release the LOCK button on the transmitter to
lock all doors and liftgate. If the ignition is OFF when the
doors are locked, the parking lights will flash once and
the horn will chirp once.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

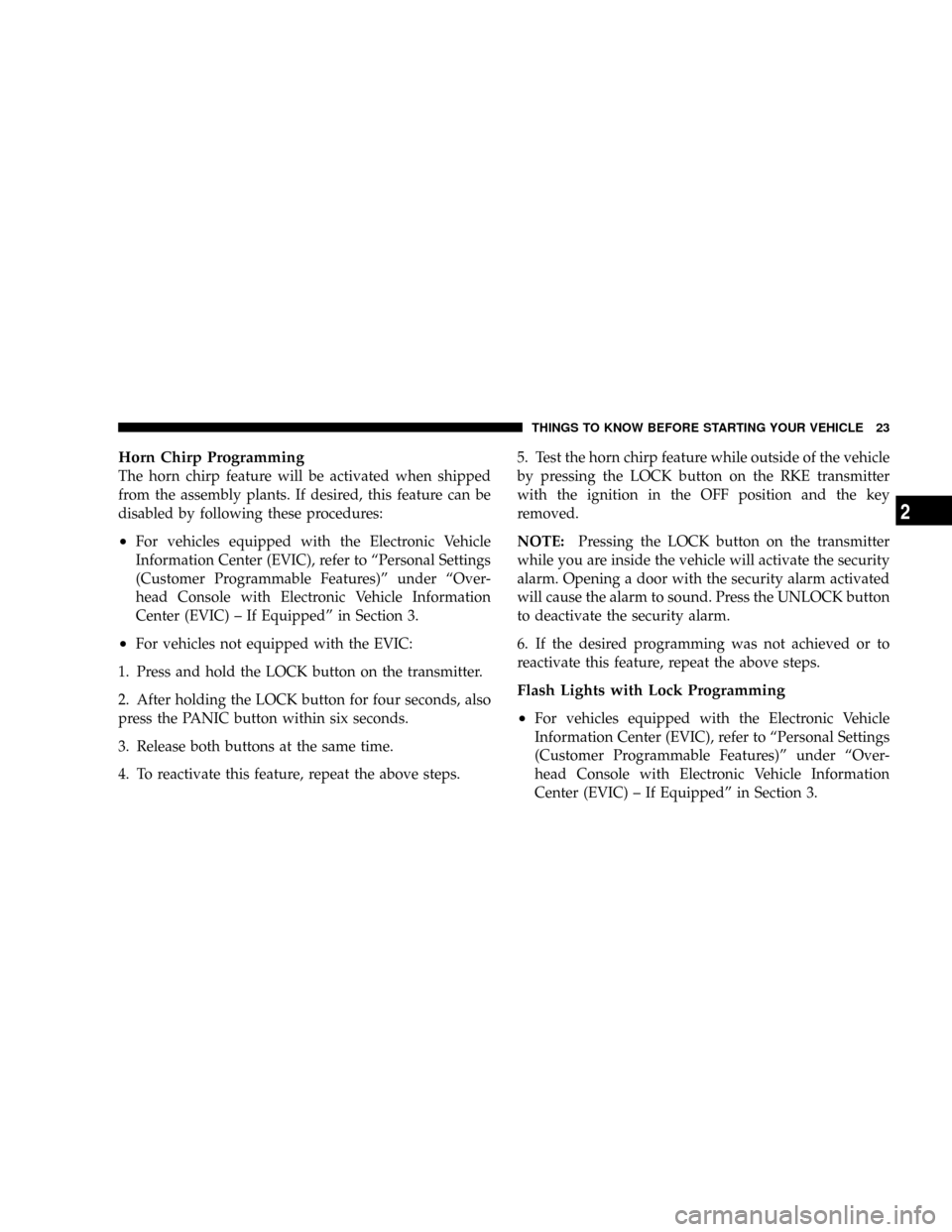

Horn Chirp Programming
The horn chirp feature will be activated when shipped
from the assembly plants. If desired, this feature can be
disabled by following these procedures:
²For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to ªPersonal Settings
(Customer Programmable Features)º under ªOver-
head Console with Electronic Vehicle Information
Center (EVIC) ± If Equippedº in Section 3.
²For vehicles not equipped with the EVIC:
1. Press and hold the LOCK button on the transmitter.
2. After holding the LOCK button for four seconds, also
press the PANIC button within six seconds.
3. Release both buttons at the same time.
4. To reactivate this feature, repeat the above steps.5. Test the horn chirp feature while outside of the vehicle
by pressing the LOCK button on the RKE transmitter
with the ignition in the OFF position and the key
removed.
NOTE:Pressing the LOCK button on the transmitter
while you are inside the vehicle will activate the security
alarm. Opening a door with the security alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the security alarm.
6. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
Flash Lights with Lock Programming
²
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to ªPersonal Settings
(Customer Programmable Features)º under ªOver-
head Console with Electronic Vehicle Information
Center (EVIC) ± If Equippedº in Section 3.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

²For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the UNLOCK button on the transmit-
ter.
2. After holding the UNLOCK button for four seconds,
also press the LOCK button within six seconds.
3. Release both buttons at the same time.
4. Test the flash lights with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the
transmitter with the ignition in the OFF position and the
key removed.
NOTE:Pressing the LOCK button on the key fob while
you are inside the vehicle will activate the security alarm.
Opening a door with the security alarm activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the security alarm.5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
Using the Panic Alarm
To activate the PANIC mode, while the ignition is OFF,
press and release the PANIC button on the transmitter
once. When the PANIC mode is activated, the interior
lights will illuminate, the head lights and parking lights
will flash and the horn will sound.
To cancel the PANIC mode, press and release the PANIC
button on the transmitter a second time. PANIC mode
will automatically cancel after three minutes or if the
vehicle is started or exceeds 15 mph (24 km/h). During
the PANIC mode, the door locks and Remote Keyless
Entry system will function normally. PANIC mode will
not disarm the security alarm system on vehicles so
equipped.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

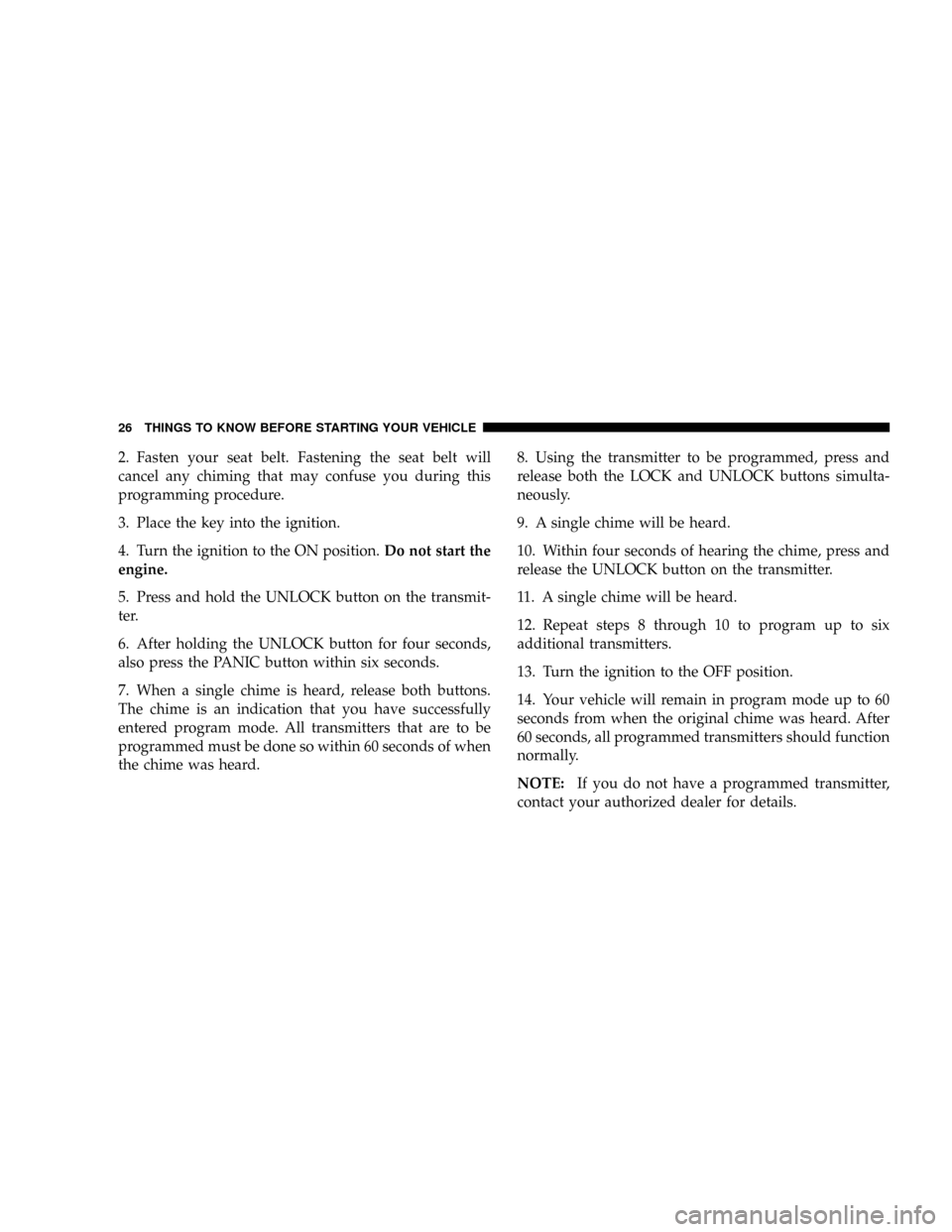

2. Fasten your seat belt. Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.
3. Place the key into the ignition.
4. Turn the ignition to the ON position.Do not start the
engine.
5. Press and hold the UNLOCK button on the transmit-
ter.
6. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
7. When a single chime is heard, release both buttons.
The chime is an indication that you have successfully
entered program mode. All transmitters that are to be
programmed must be done so within 60 seconds of when
the chime was heard.8. Using the transmitter to be programmed, press and
release both the LOCK and UNLOCK buttons simulta-
neously.
9. A single chime will be heard.
10. Within four seconds of hearing the chime, press and
release the UNLOCK button on the transmitter.
11. A single chime will be heard.
12. Repeat steps 8 through 10 to program up to six
additional transmitters.
13. Turn the ignition to the OFF position.
14. Your vehicle will remain in program mode up to 60
seconds from when the original chime was heard. After
60 seconds, all programmed transmitters should function
normally.
NOTE:If you do not have a programmed transmitter,
contact your authorized dealer for details.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material ± special handling may ap-
ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
1. If the transmitter is equipped with a screw, remove the
screw. With the transmitter buttons facing down, use a
flat blade to pry the two halves of the transmitter apart.
Make sure not to damage the elastomer seal during
removal.
2. Remove and replace the battery. When replacing the
battery, match the + sign on the battery to the + sign on
the inside of the battery clip, located on the back cover.
Avoid touching the new battery with your fingers. Skin
oils may cause battery deterioration. If you touch a
battery, clean it with rubbing alcohol.
Separating Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
NOTE:
²If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
²There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.
²The power liftgate must be in the full open position in
order to power close. If the liftgate is not fully open,press the RKE Transmitter or overhead console button
to fully open the liftgate and then press again to close.
²If the liftgate handle is pulled while the power liftgate
is closing, the liftgate will reverse to the full open
position.
²If the liftgate handle is pulled while the power liftgate
is opening, the liftgate motor will disengage to allow
manual operation.
²The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
²The power liftgate will not operate in temperatures
below222ÉF (230ÉC) or temperatures above 150ÉF
(65ÉC). Be sure to remove any buildup of snow or ice
from the liftgate before pressing any of the power
liftgate buttons.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2

Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
Voice Recognition Button
Actual button location may vary with radio.
The individual buttons are described in the
ªOperationº section.
The UConnecttsystem can be used with any Hands-Free
Profile certified Bluetoothtcellular phone. See the
UConnecttwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnectt
features. Refer to your cellular service provider or the
phone manufacturer for details.The UConnecttsystem is fully integrated with the vehi-
cle's audio system. The volume of the UConnecttsystem
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the UConnecttsystem such as9CELL9or caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnectt
system and to navigate through the UConnecttmenu
structure. Voice commands are required after most
UConnecttsystem prompts. You will be prompted for a
specific command and then guided through the available
options.
²Prior to giving a voice command, one must wait for
the beep, which follows the9Ready9prompt or another
prompt.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

DRIVER MEMORY SYSTEM Ð IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver's door panel can be used to recall the driver's seat
position, driver's outside mirror position, adjustable
brake, accelerator pedals position, Automatic Tempera-
ture Control (ATC) temperature setting and radio station
preset settings. Your Remote Keyless Entry (RKE) trans-
mitters can also be programmed to recall the same
positions when the UNLOCK button is pressed.
Your vehicle was delivered with two RKE transmitters.
One or both RKE transmitters can be linked to either
memory position. The memory system can accommodate
up to two RKE transmitters, each RKE transmitter linked
to either of the two memory positions.
Memory Buttons
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

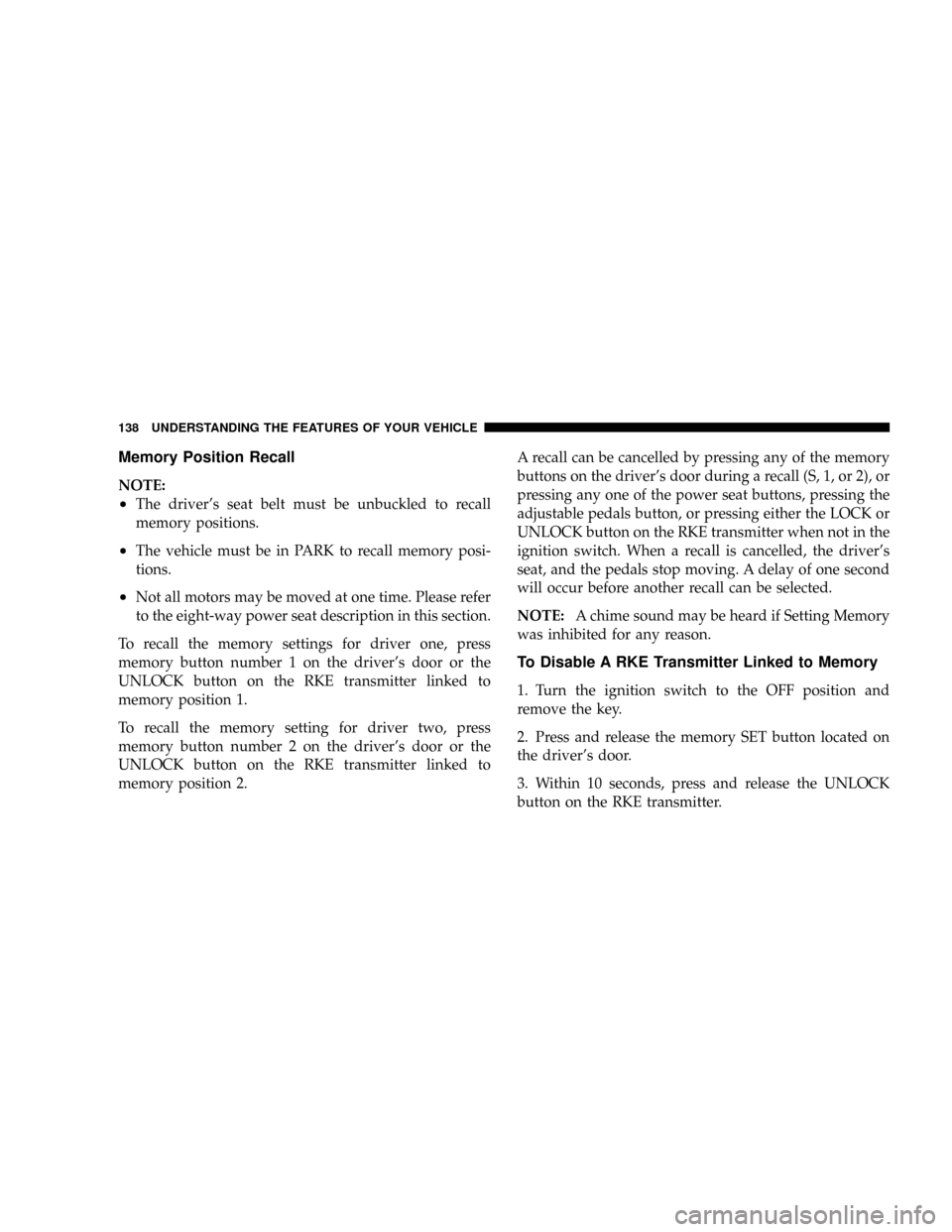

Memory Position Recall
NOTE:
²The driver's seat belt must be unbuckled to recall
memory positions.
²The vehicle must be in PARK to recall memory posi-
tions.
²Not all motors may be moved at one time. Please refer
to the eight-way power seat description in this section.
To recall the memory settings for driver one, press
memory button number 1 on the driver's door or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver's door or the
UNLOCK button on the RKE transmitter linked to
memory position 2.A recall can be cancelled by pressing any of the memory
buttons on the driver's door during a recall (S, 1, or 2), or
pressing any one of the power seat buttons, pressing the
adjustable pedals button, or pressing either the LOCK or
UNLOCK button on the RKE transmitter when not in the
ignition switch. When a recall is cancelled, the driver's
seat, and the pedals stop moving. A delay of one second
will occur before another recall can be selected.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
To Disable A RKE Transmitter Linked to Memory
1. Turn the ignition switch to the OFF position and
remove the key.
2. Press and release the memory SET button located on
the driver's door.
3. Within 10 seconds, press and release the UNLOCK
button on the RKE transmitter.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
