CHRYSLER CARAVAN 2002 Service Manual

Fig. 82 REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE
23 - 178 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

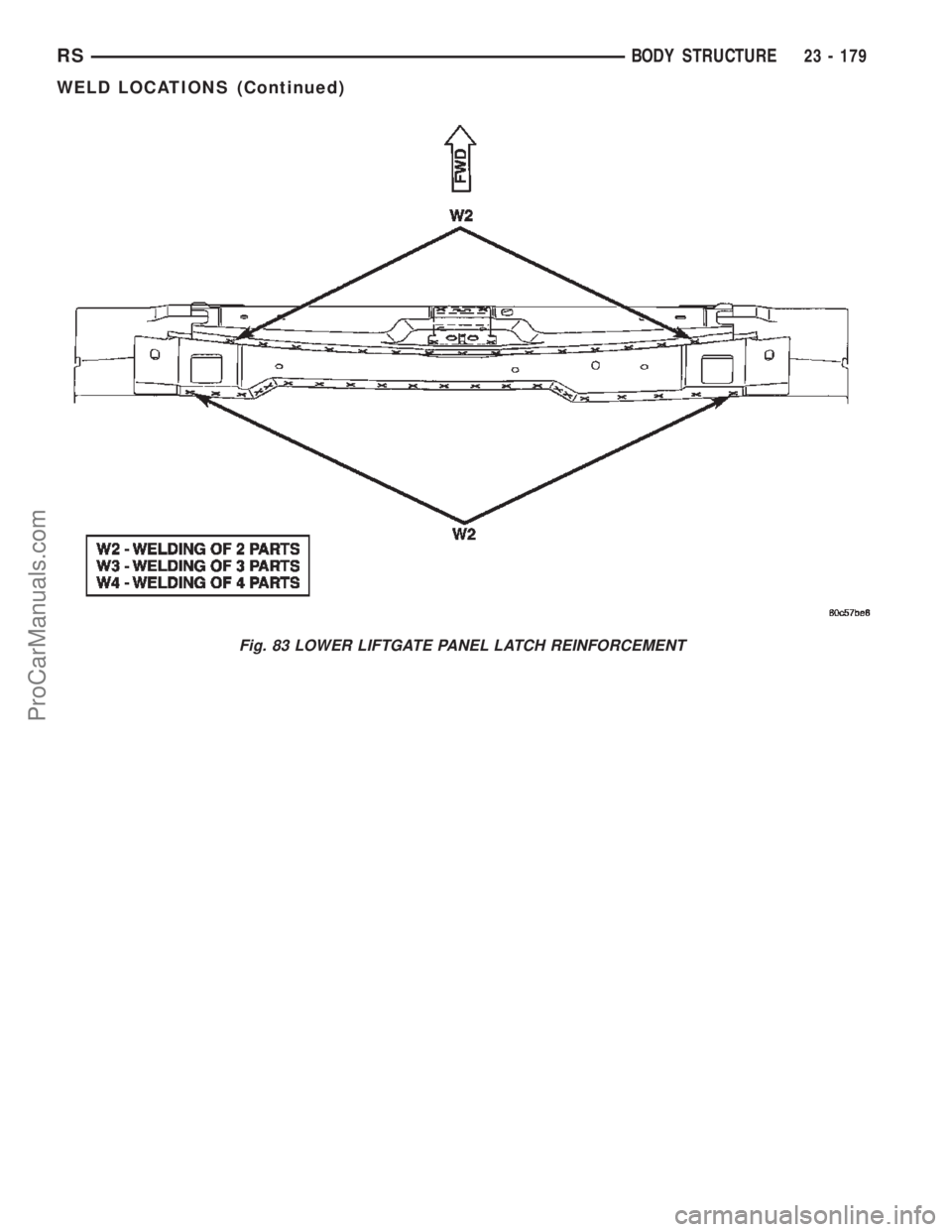

Fig. 83 LOWER LIFTGATE PANEL LATCH REINFORCEMENT
RSBODY STRUCTURE23 - 179
WELD LOCATIONS (Continued)
ProCarManuals.com

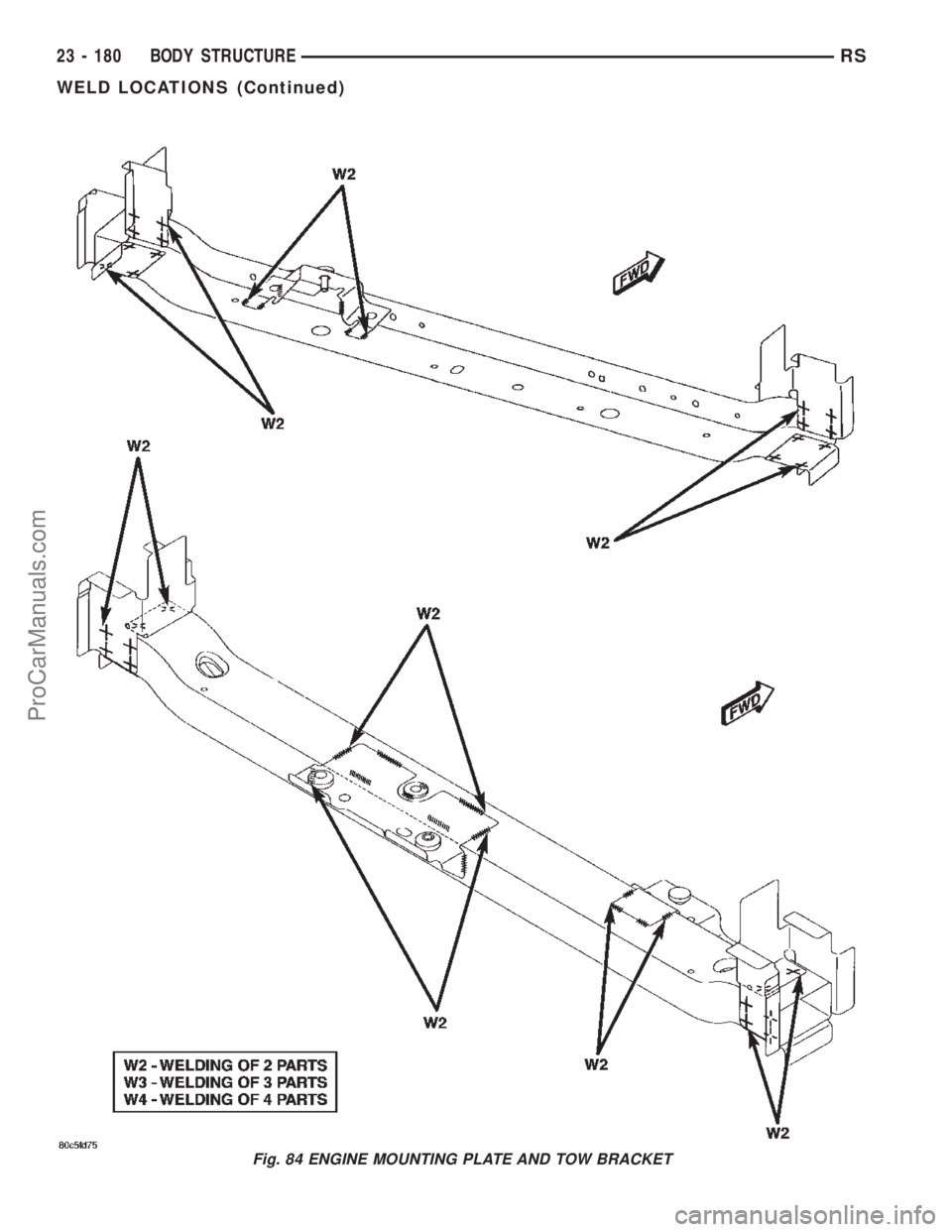

Fig. 84 ENGINE MOUNTING PLATE AND TOW BRACKET
23 - 180 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

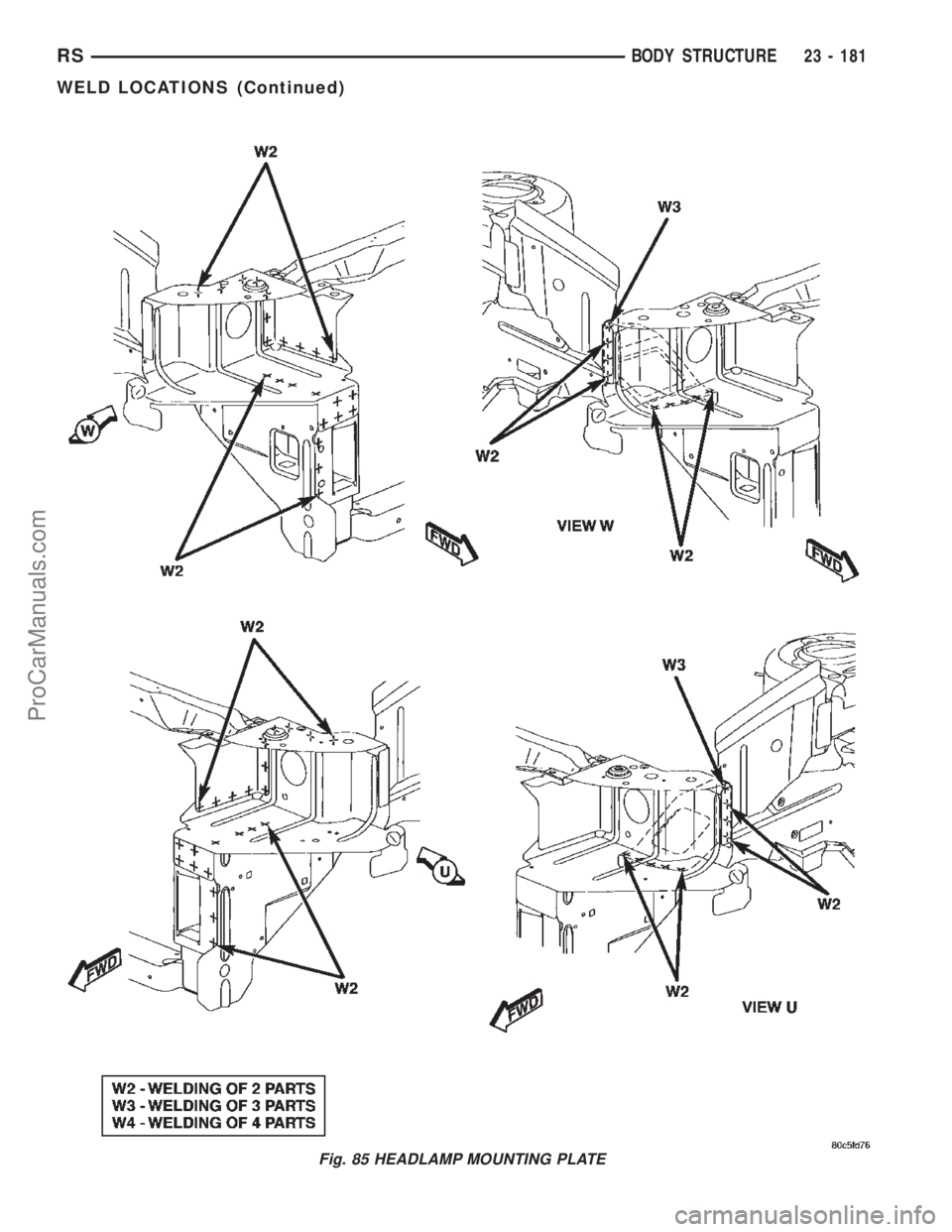

Fig. 85 HEADLAMP MOUNTING PLATE
RSBODY STRUCTURE23 - 181
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 86 LOWER RADIATOR CROSS MEMBER BRACKETS
23 - 182 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

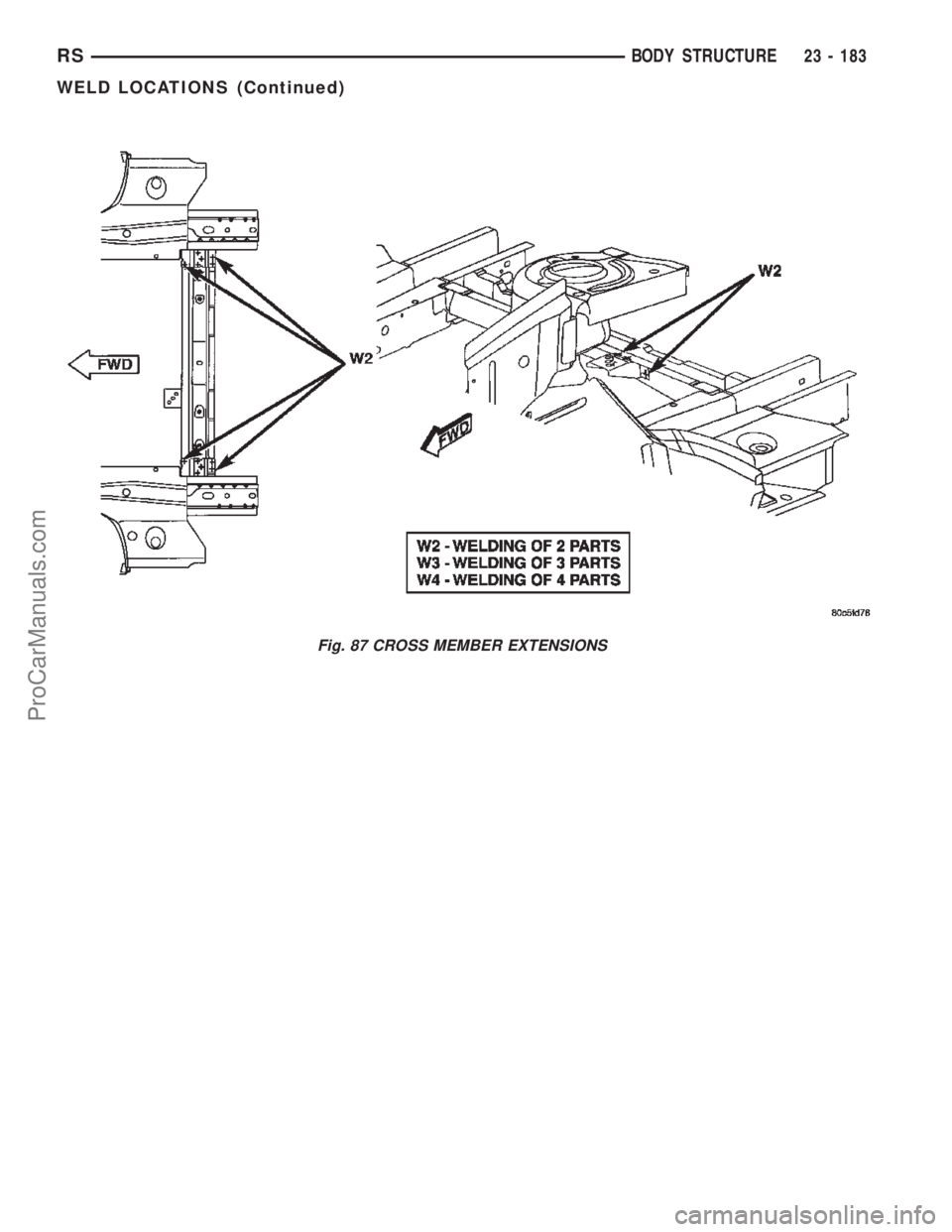

Fig. 87 CROSS MEMBER EXTENSIONS
RSBODY STRUCTURE23 - 183
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 88 JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR
23 - 184 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 89 FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY
Fig. 90 FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY
RSBODY STRUCTURE23 - 185
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 91 FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY
23 - 186 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 92 REAR SUPPORT AND TIRE STOWAGE CROSS MEMBERS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 187
WELD LOCATIONS (Continued)
