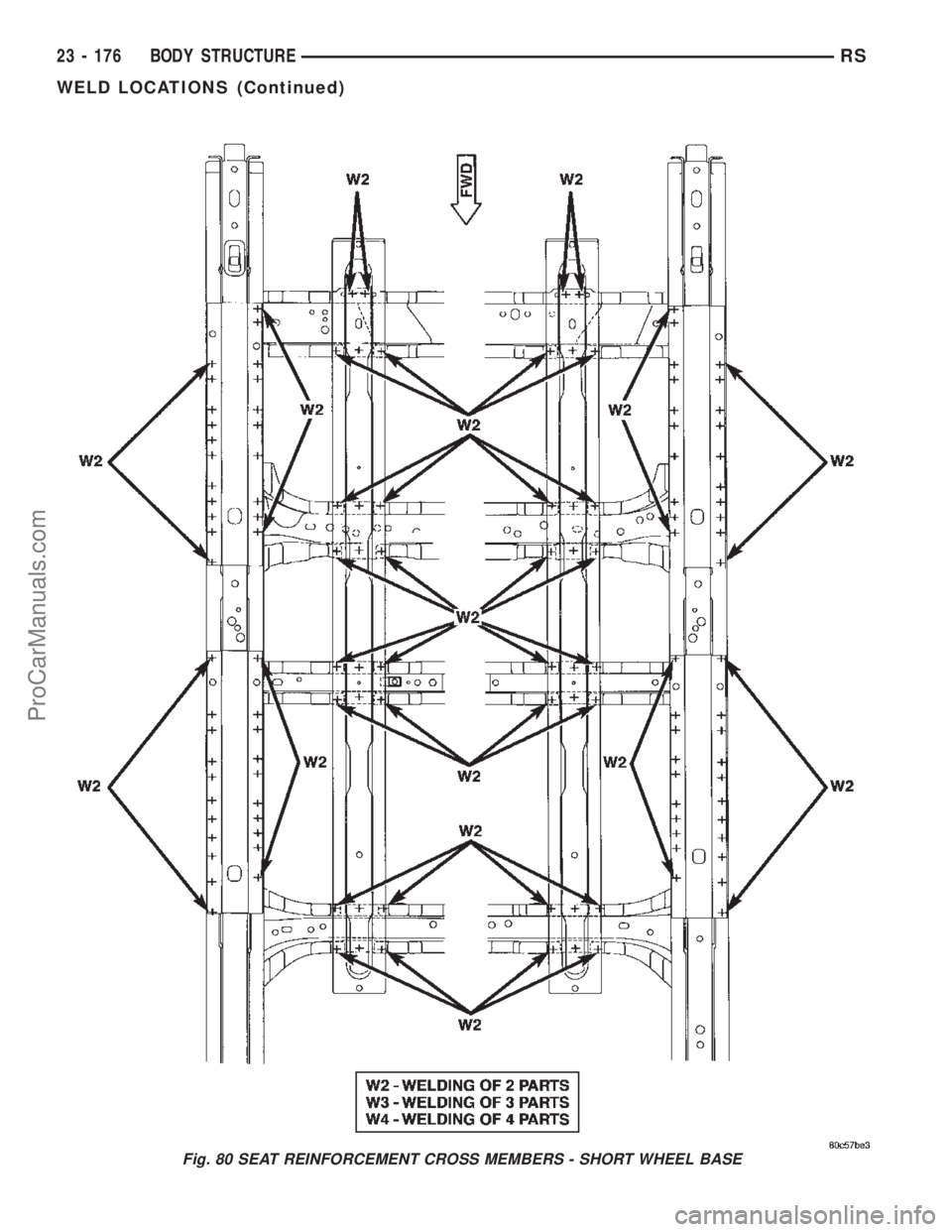

Fig. 80 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE
23 - 176 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

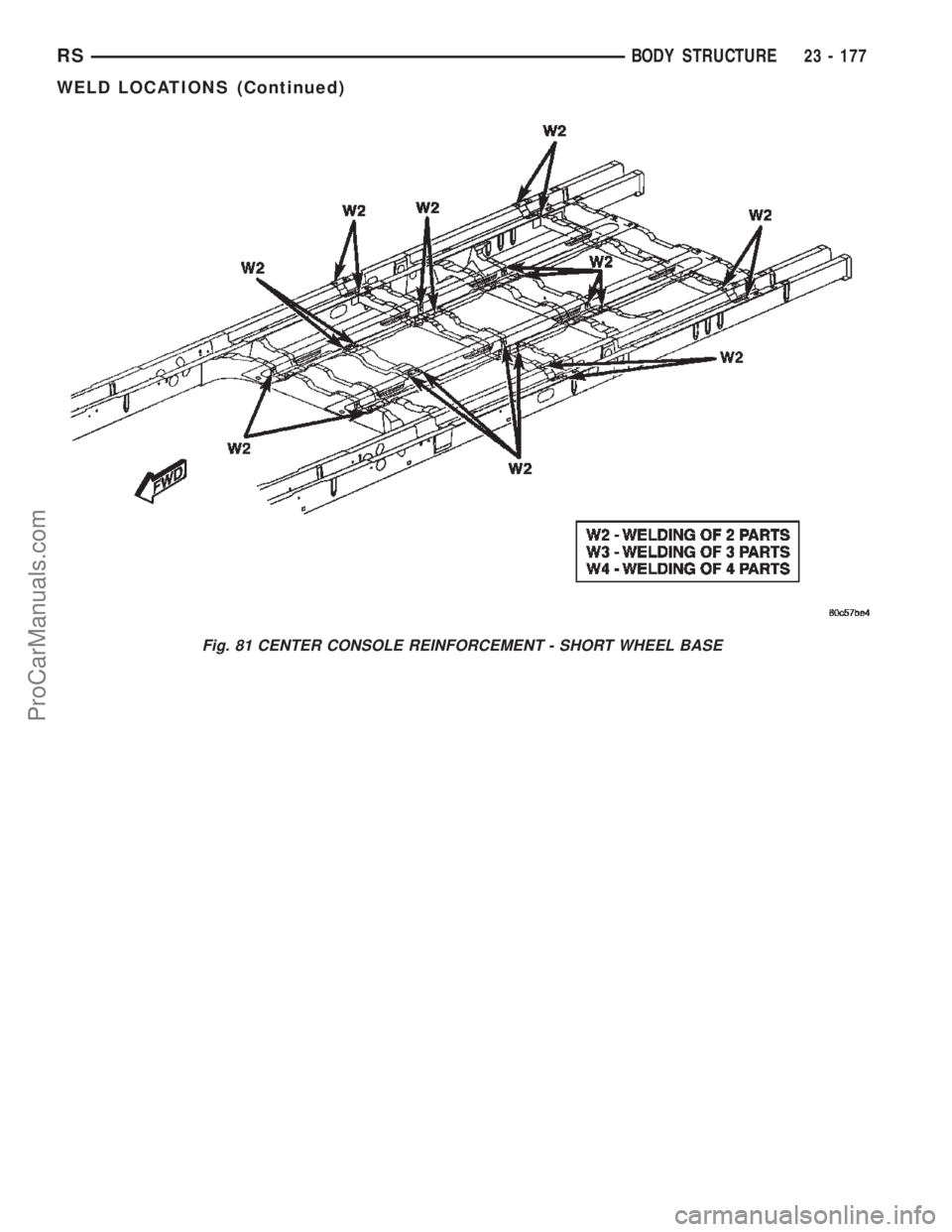

Fig. 81 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE
RSBODY STRUCTURE23 - 177
WELD LOCATIONS (Continued)
ProCarManuals.com

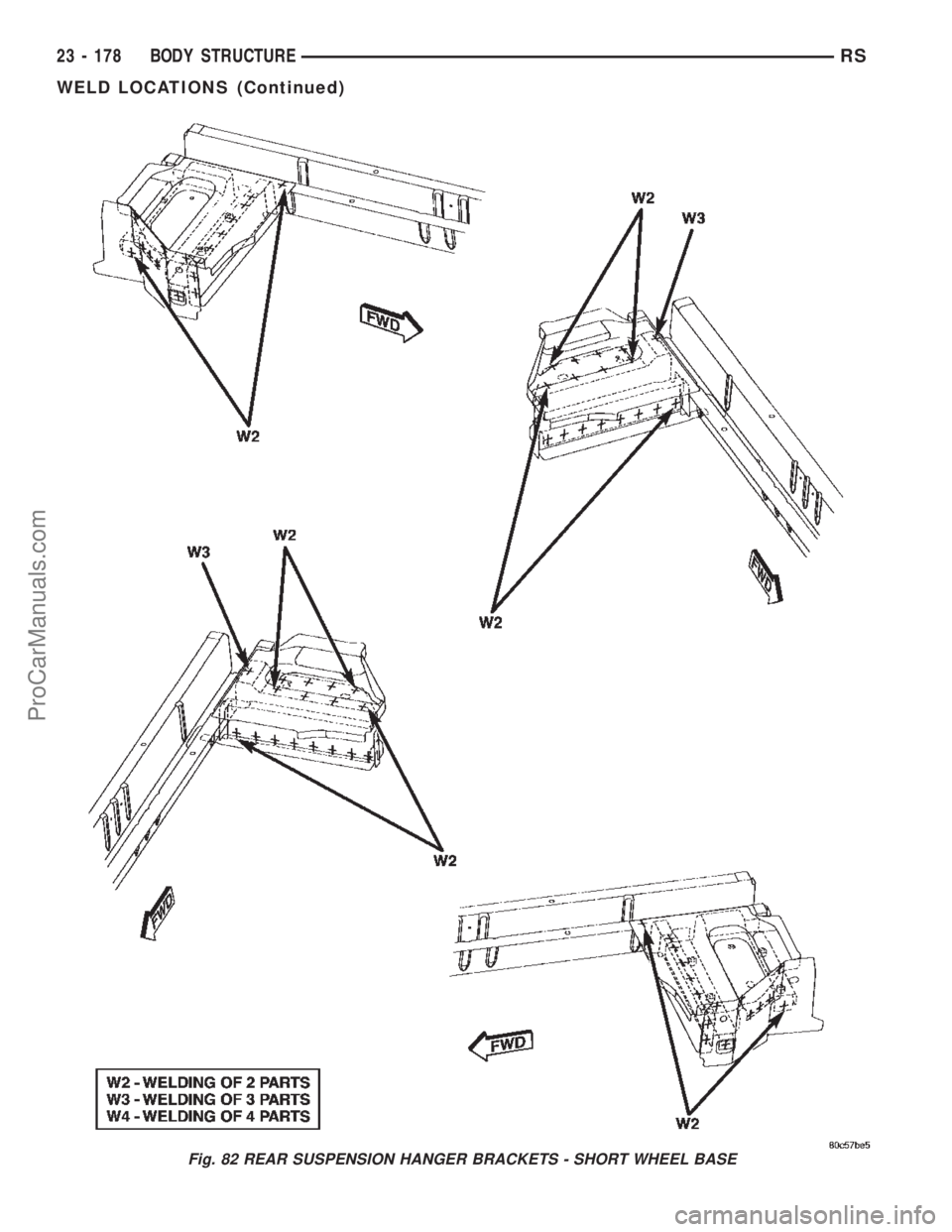

Fig. 82 REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE
23 - 178 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

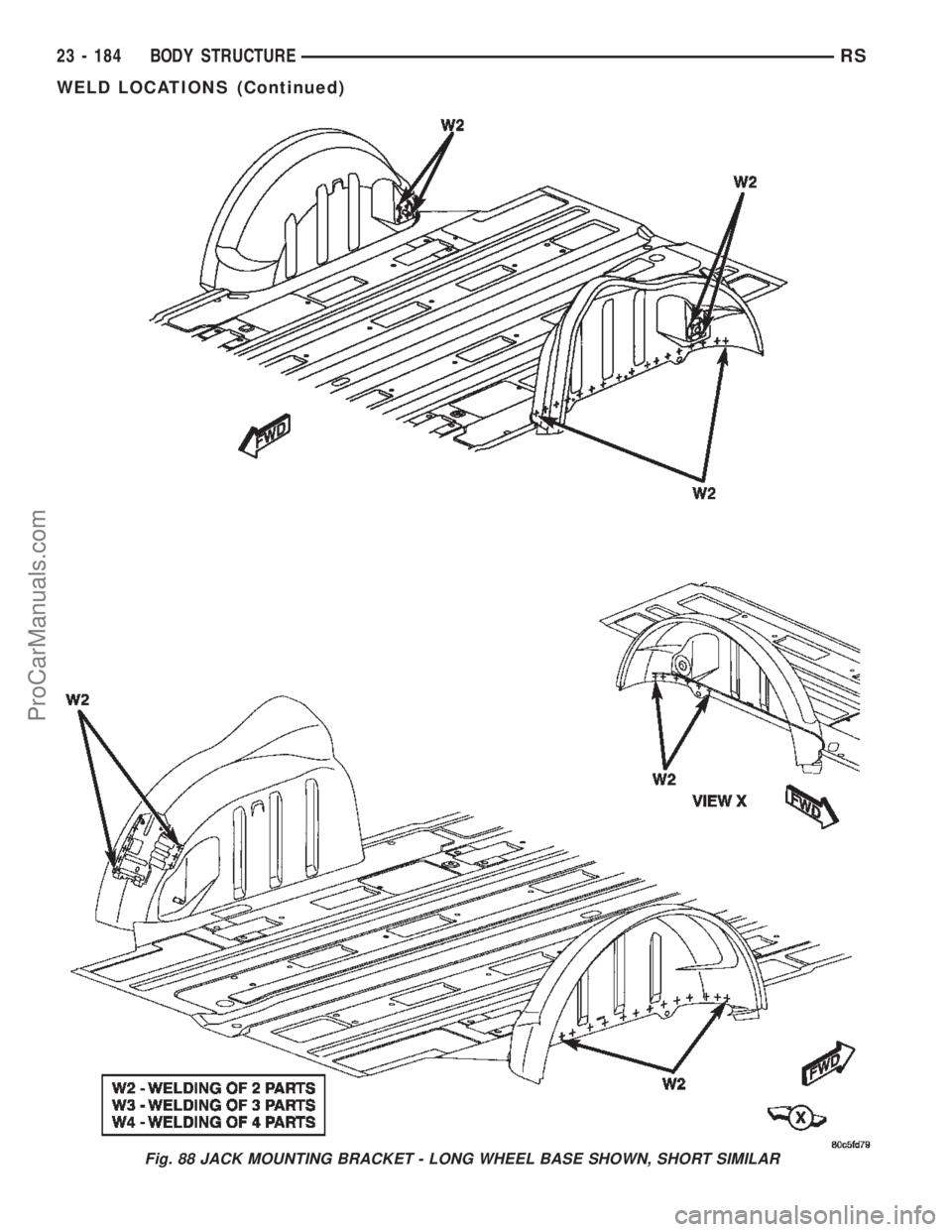

Fig. 88 JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR
23 - 184 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 89 FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY
Fig. 90 FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY
RSBODY STRUCTURE23 - 185
WELD LOCATIONS (Continued)
ProCarManuals.com

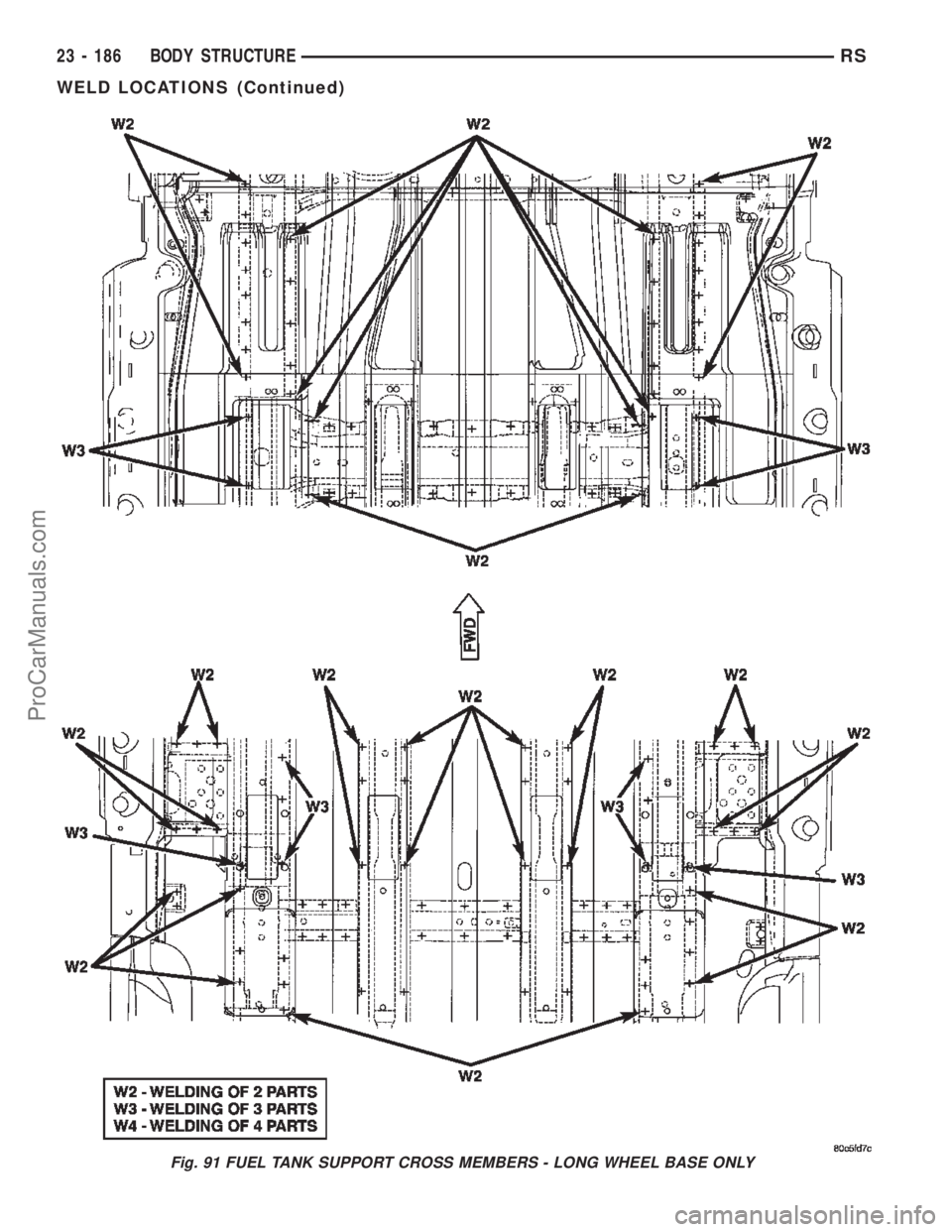

Fig. 91 FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY
23 - 186 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

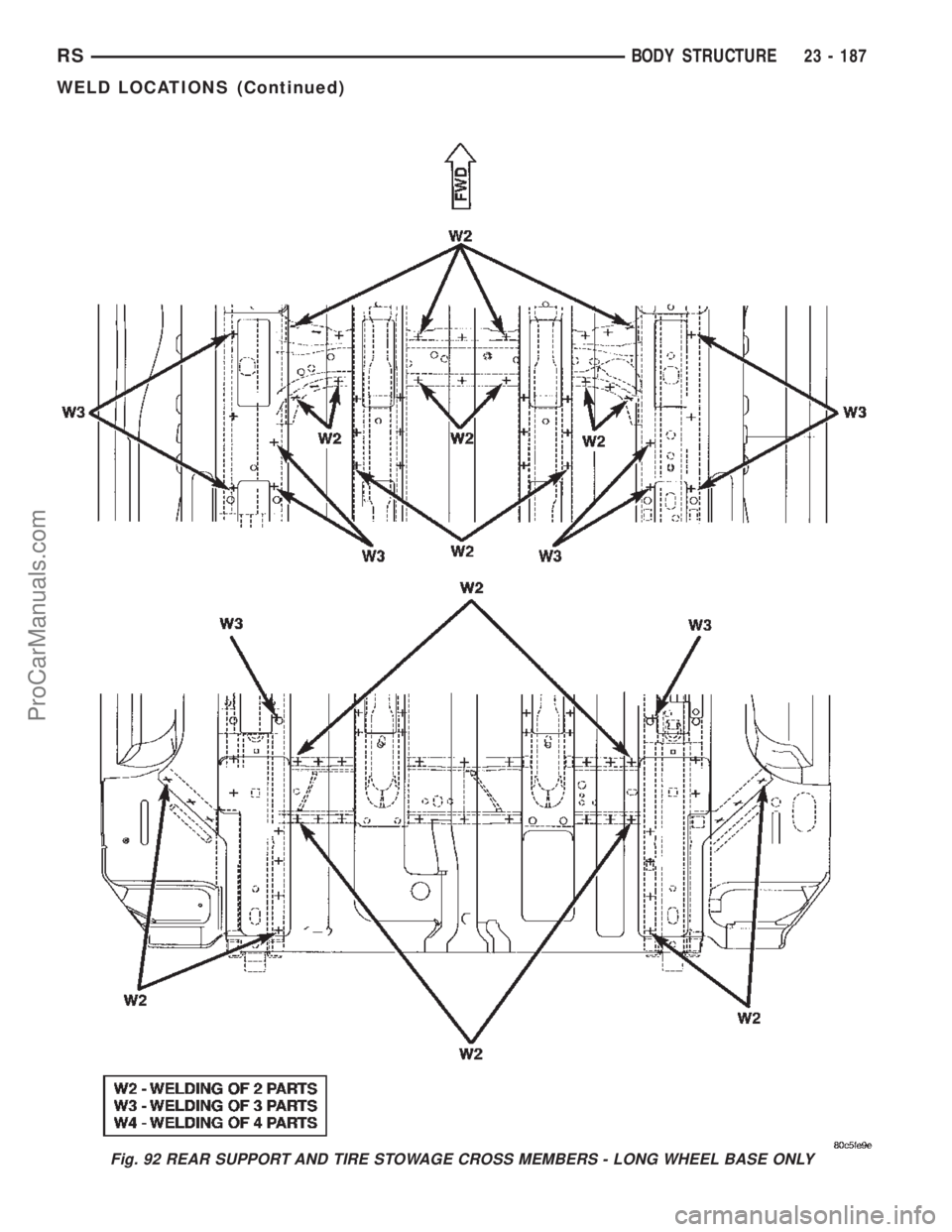

Fig. 92 REAR SUPPORT AND TIRE STOWAGE CROSS MEMBERS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 187
WELD LOCATIONS (Continued)
ProCarManuals.com

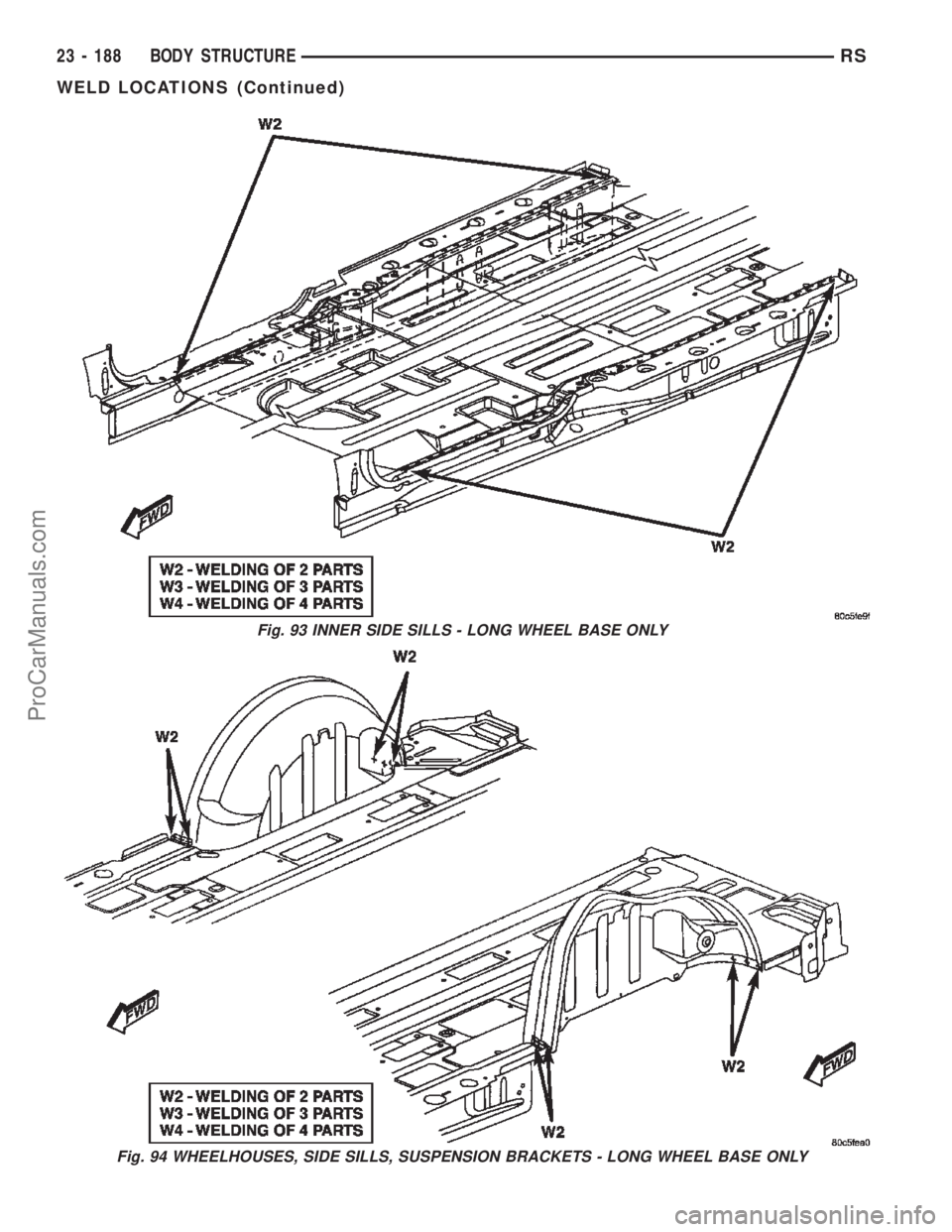

Fig. 93 INNER SIDE SILLS - LONG WHEEL BASE ONLY
Fig. 94 WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY
23 - 188 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 95 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 189
WELD LOCATIONS (Continued)
ProCarManuals.com

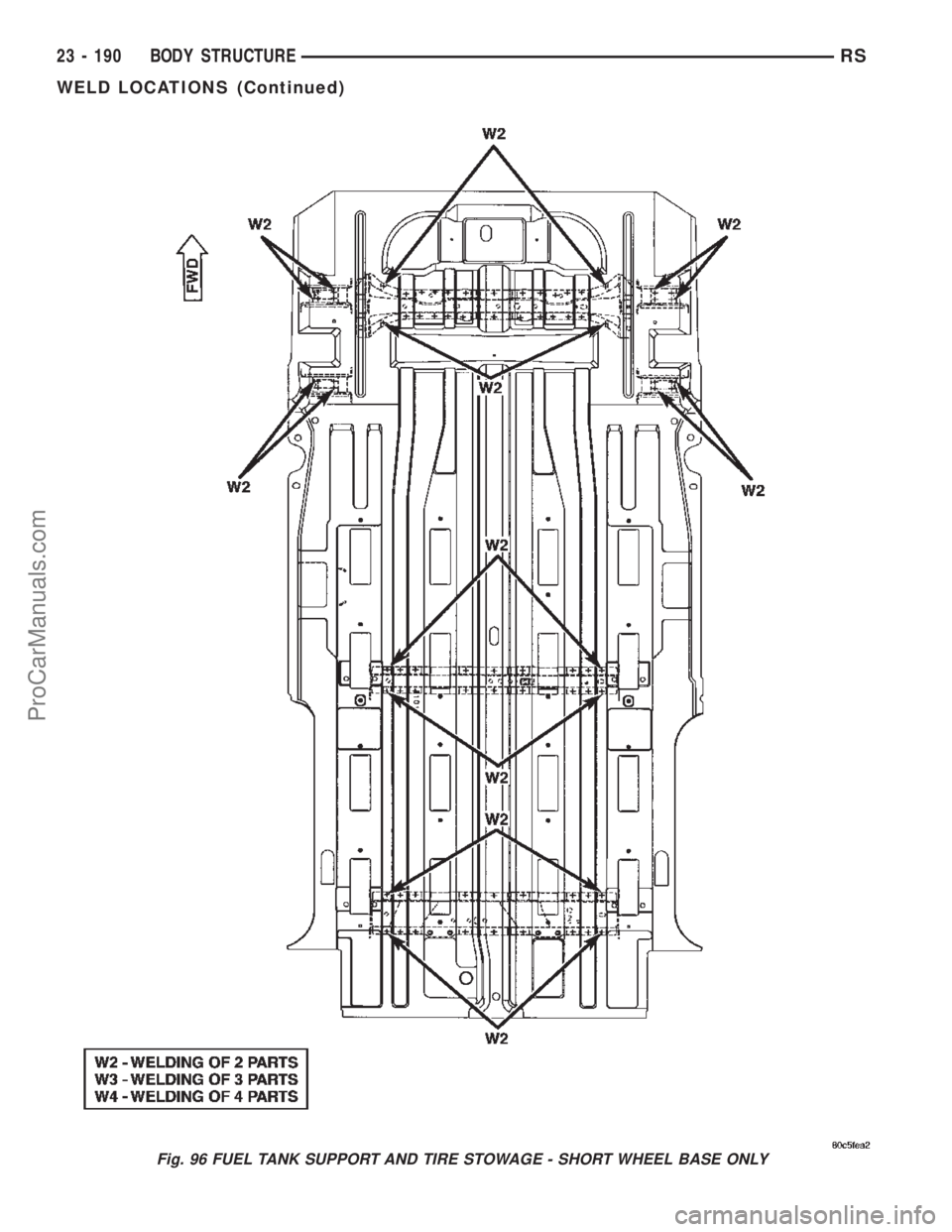

Fig. 96 FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY
23 - 190 BODY STRUCTURERS
WELD LOCATIONS (Continued)
