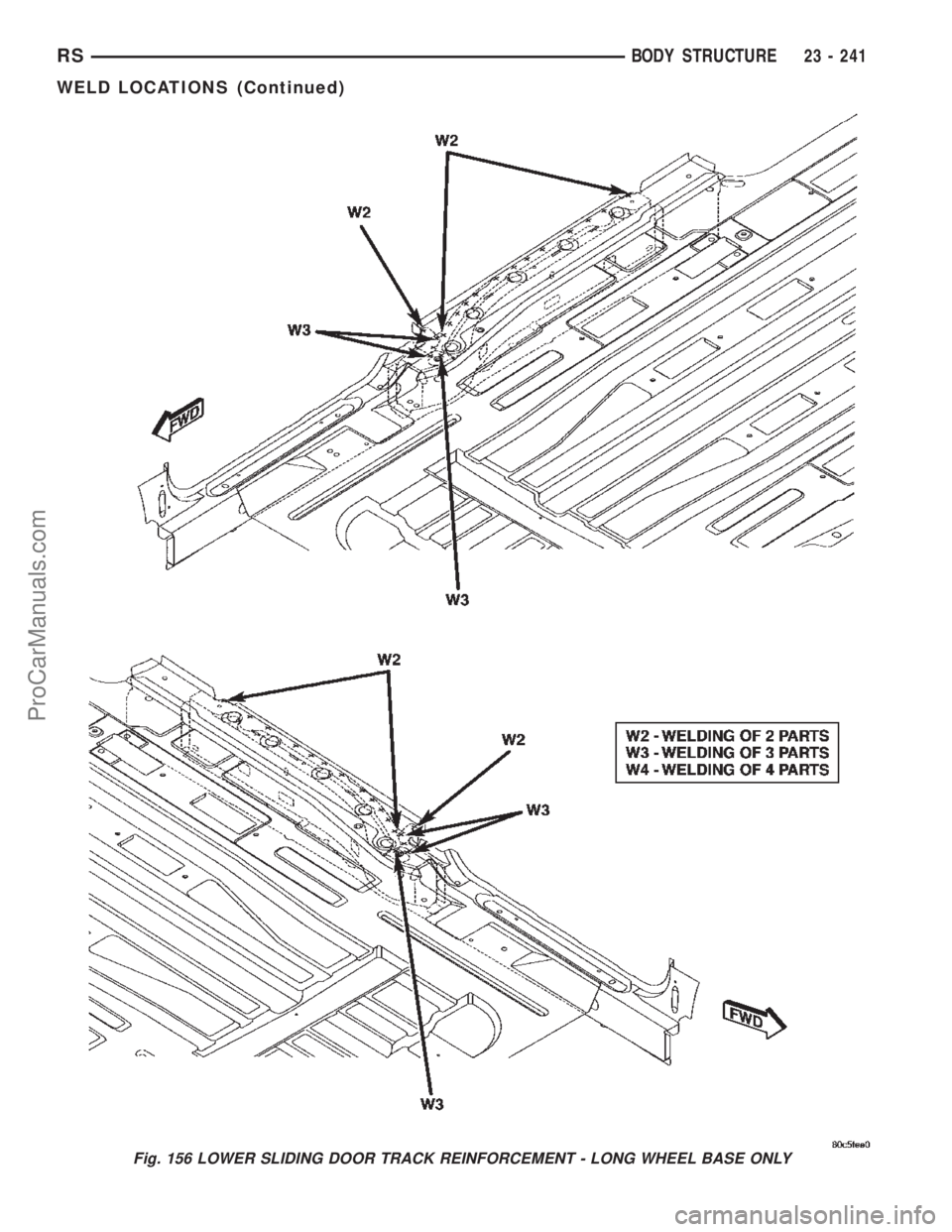

Fig. 156 LOWER SLIDING DOOR TRACK REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 241
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 157 UPPER WINDSHIELD FRAME/ROOF PANEL - LONG WHEEL BASE ONLY
Fig. 158 ROOF BOWS/INNER ROOF SIDE RAILS
23 - 242 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

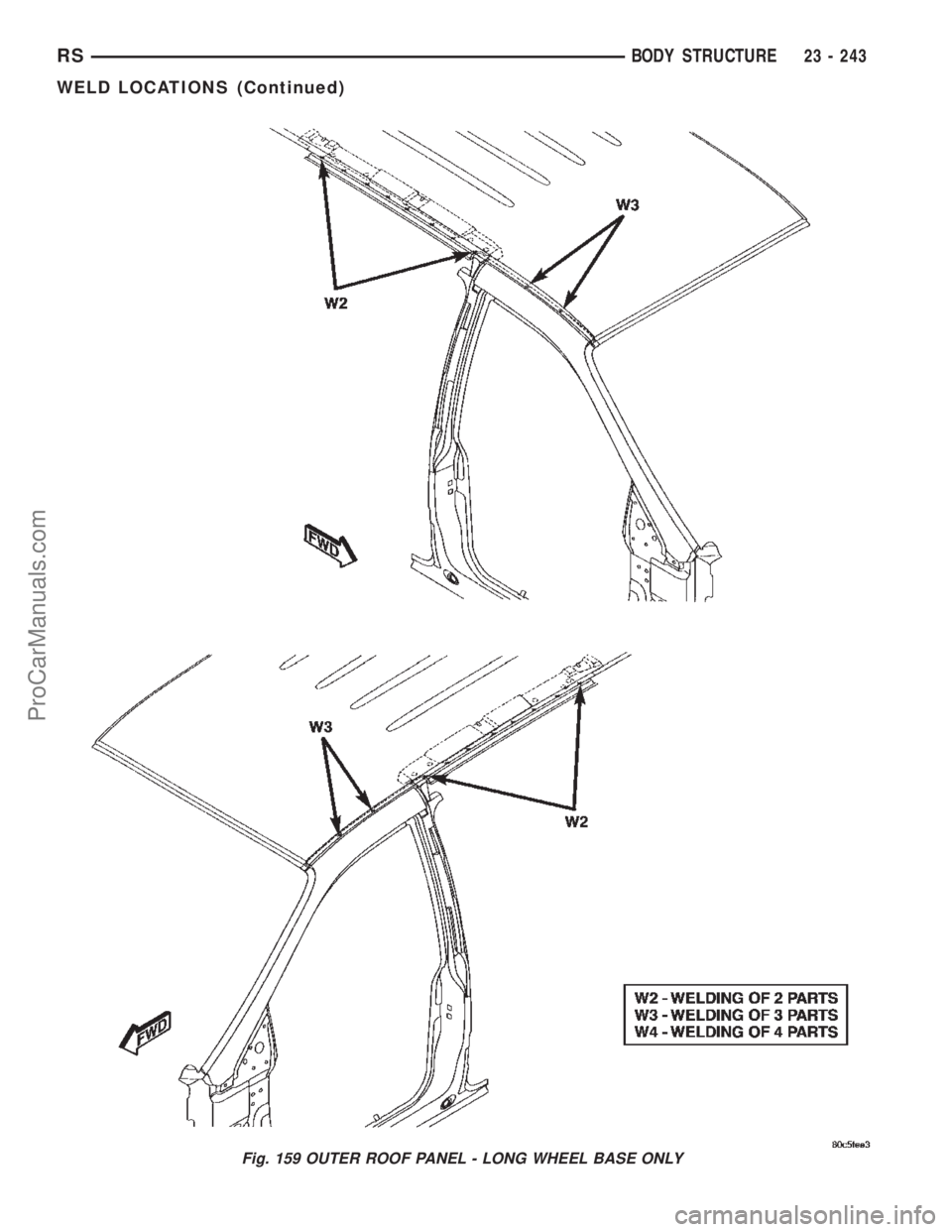

Fig. 159 OUTER ROOF PANEL - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 243
WELD LOCATIONS (Continued)
ProCarManuals.com

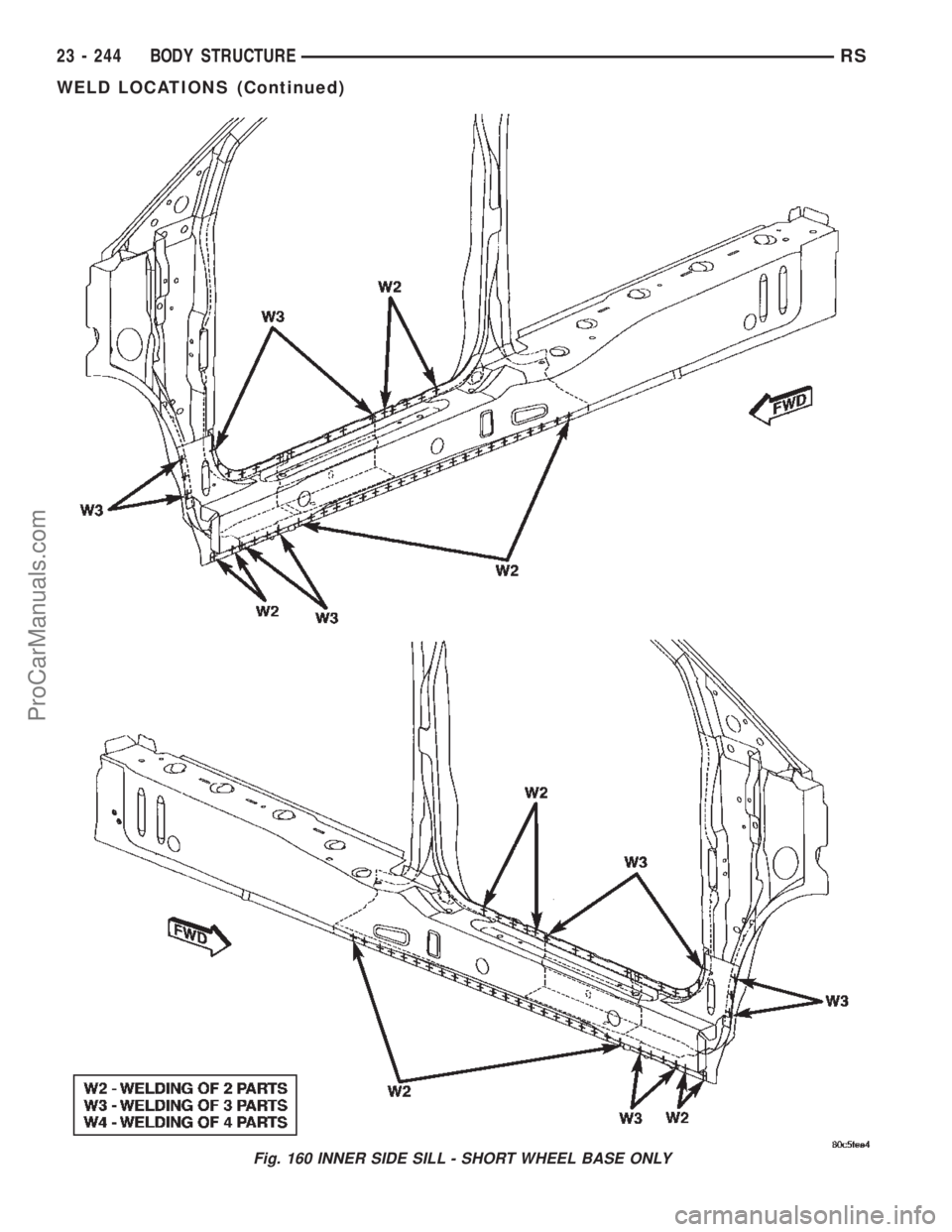

Fig. 160 INNER SIDE SILL - SHORT WHEEL BASE ONLY
23 - 244 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

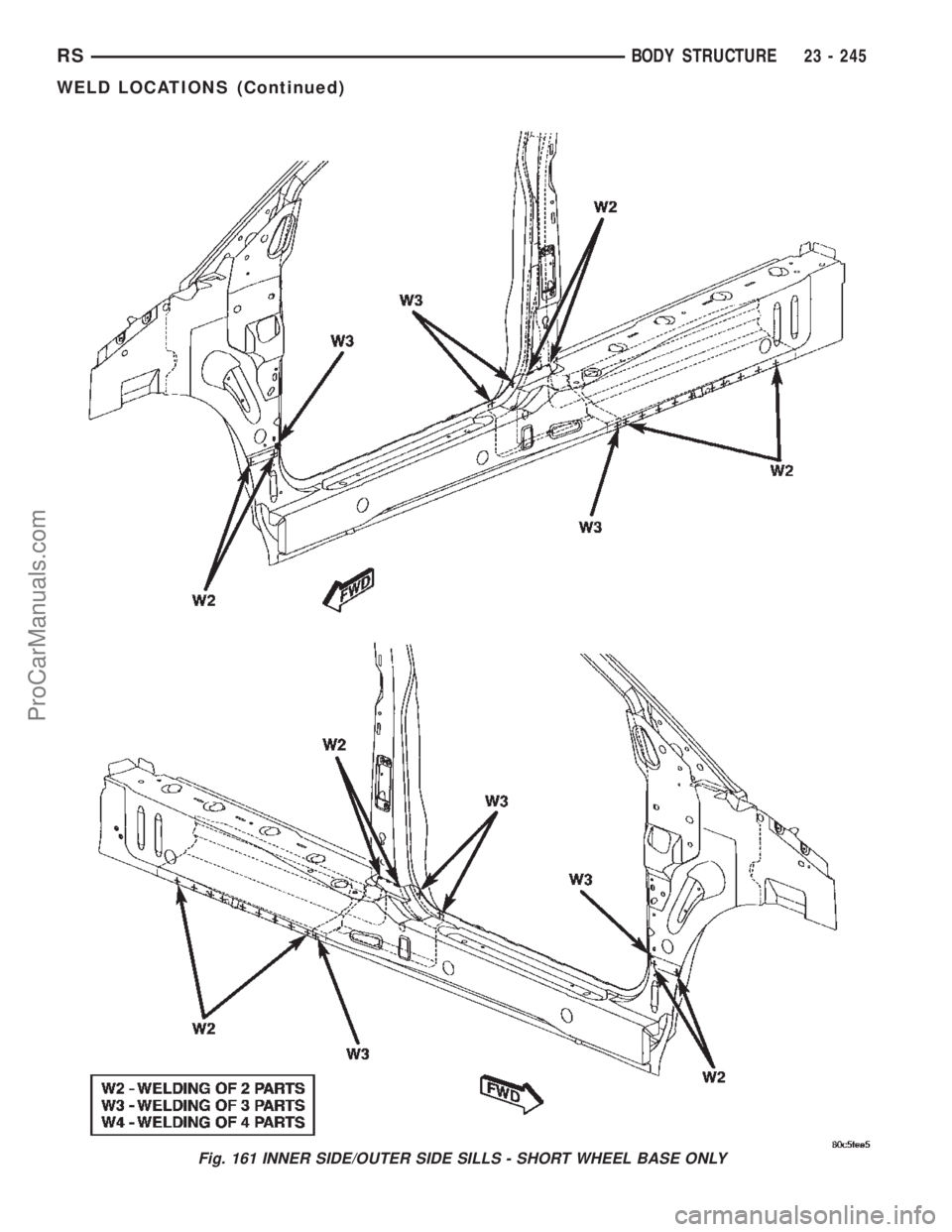

Fig. 161 INNER SIDE/OUTER SIDE SILLS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 245
WELD LOCATIONS (Continued)
ProCarManuals.com

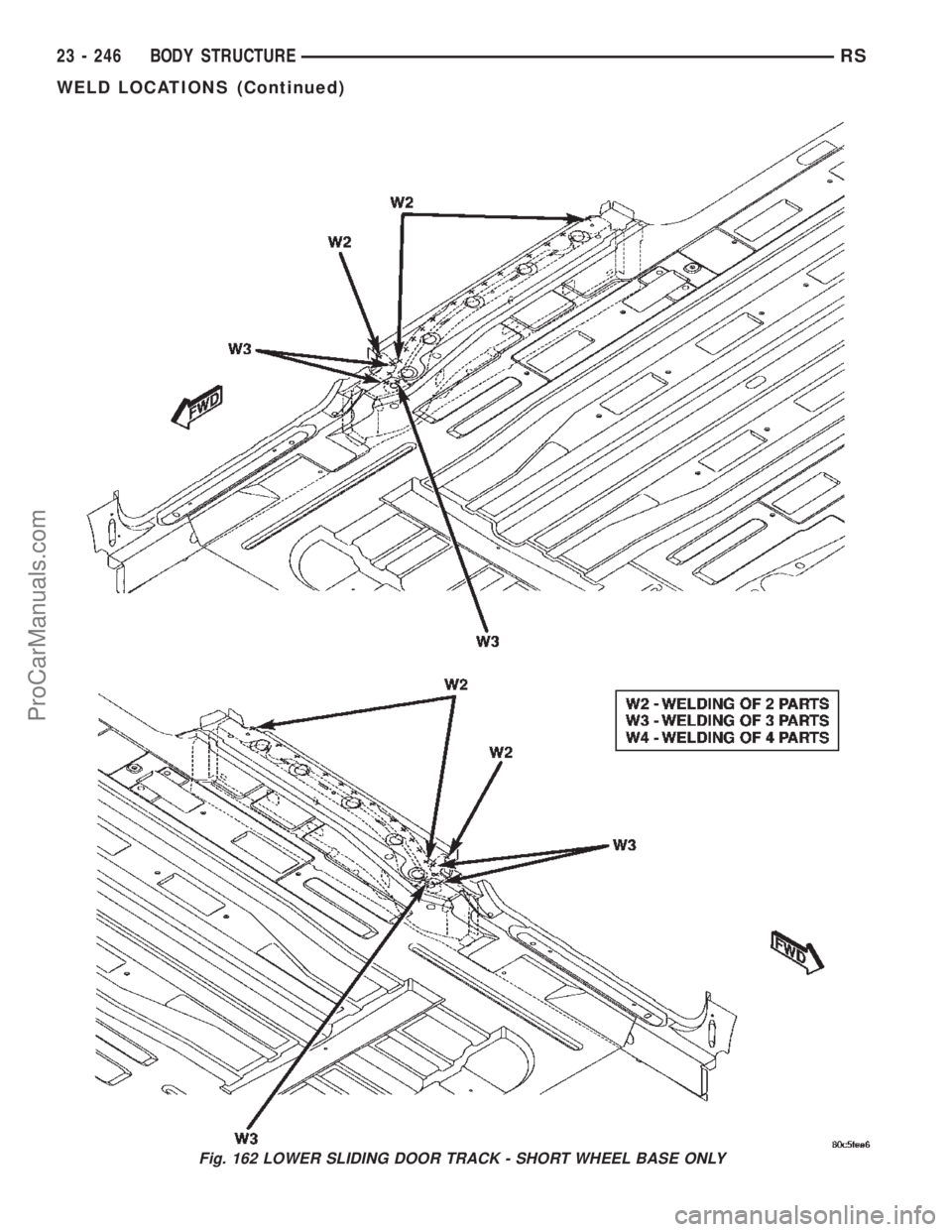

Fig. 162 LOWER SLIDING DOOR TRACK - SHORT WHEEL BASE ONLY
23 - 246 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

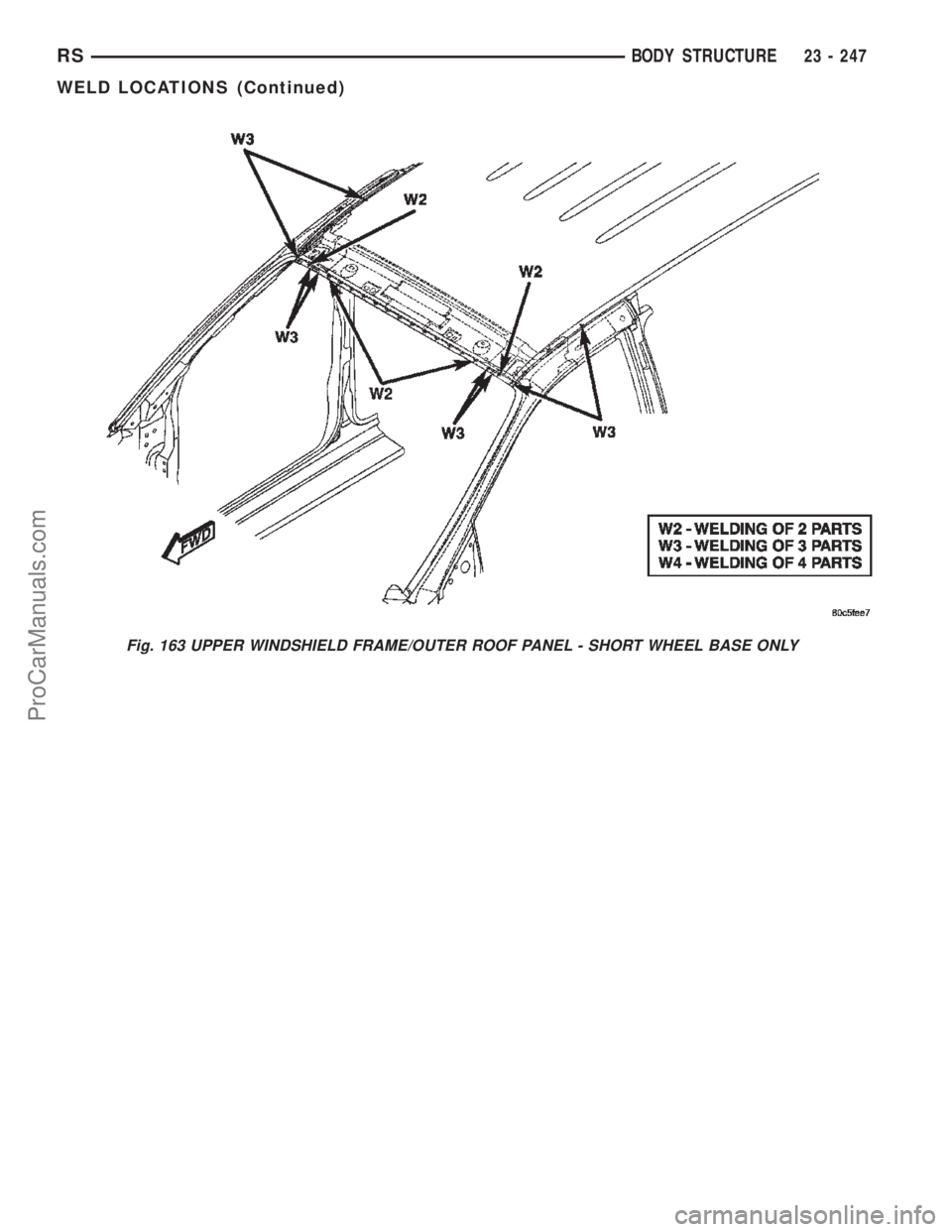

Fig. 163 UPPER WINDSHIELD FRAME/OUTER ROOF PANEL - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 247
WELD LOCATIONS (Continued)
ProCarManuals.com

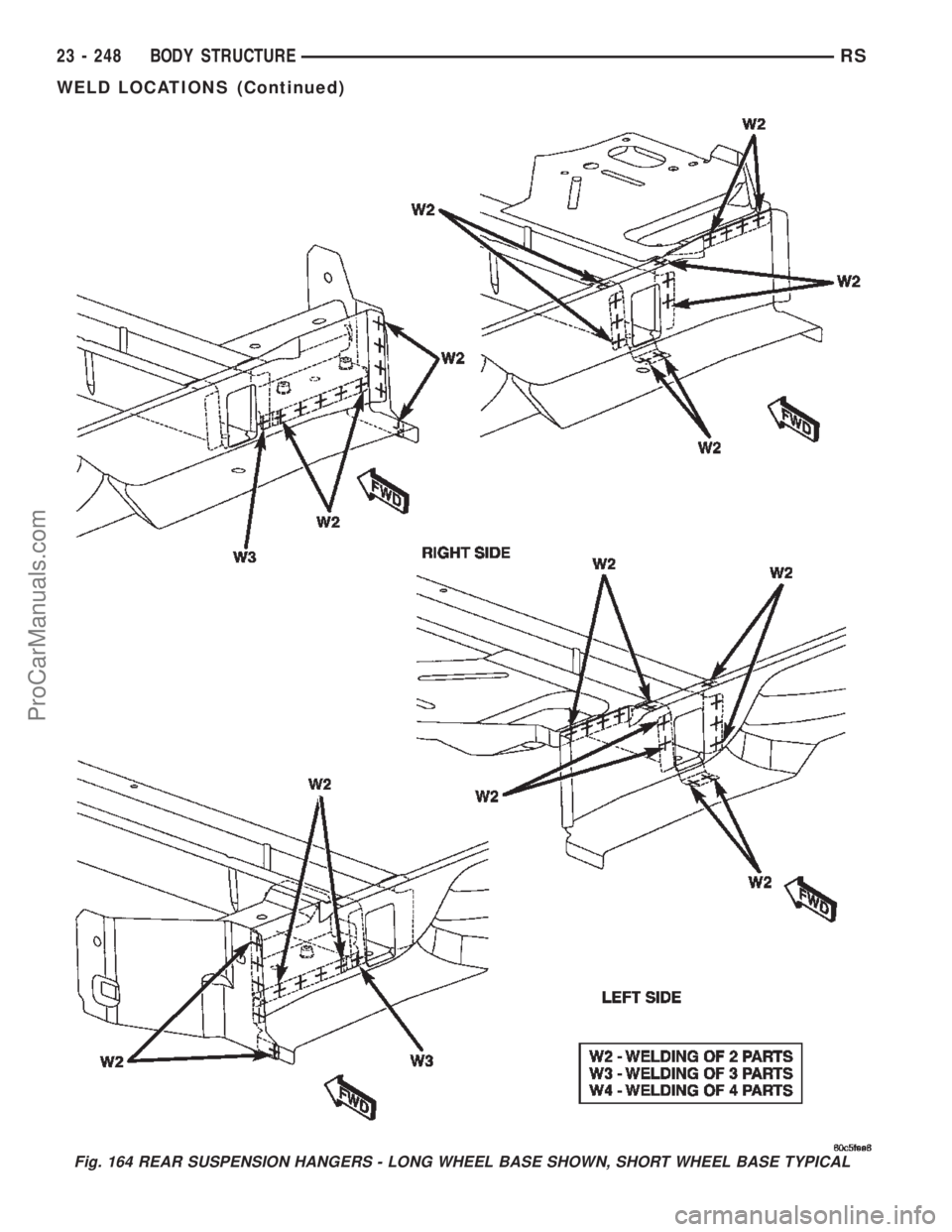

Fig. 164 REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE TYPICAL
23 - 248 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 165 FRONT LOWER LIFTGATE OPENING
Fig. 166 REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 249
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 167 INNER WHEELHOUSE - LONG WHEEL BASE ONLY
23 - 250 BODY STRUCTURERS
WELD LOCATIONS (Continued)
