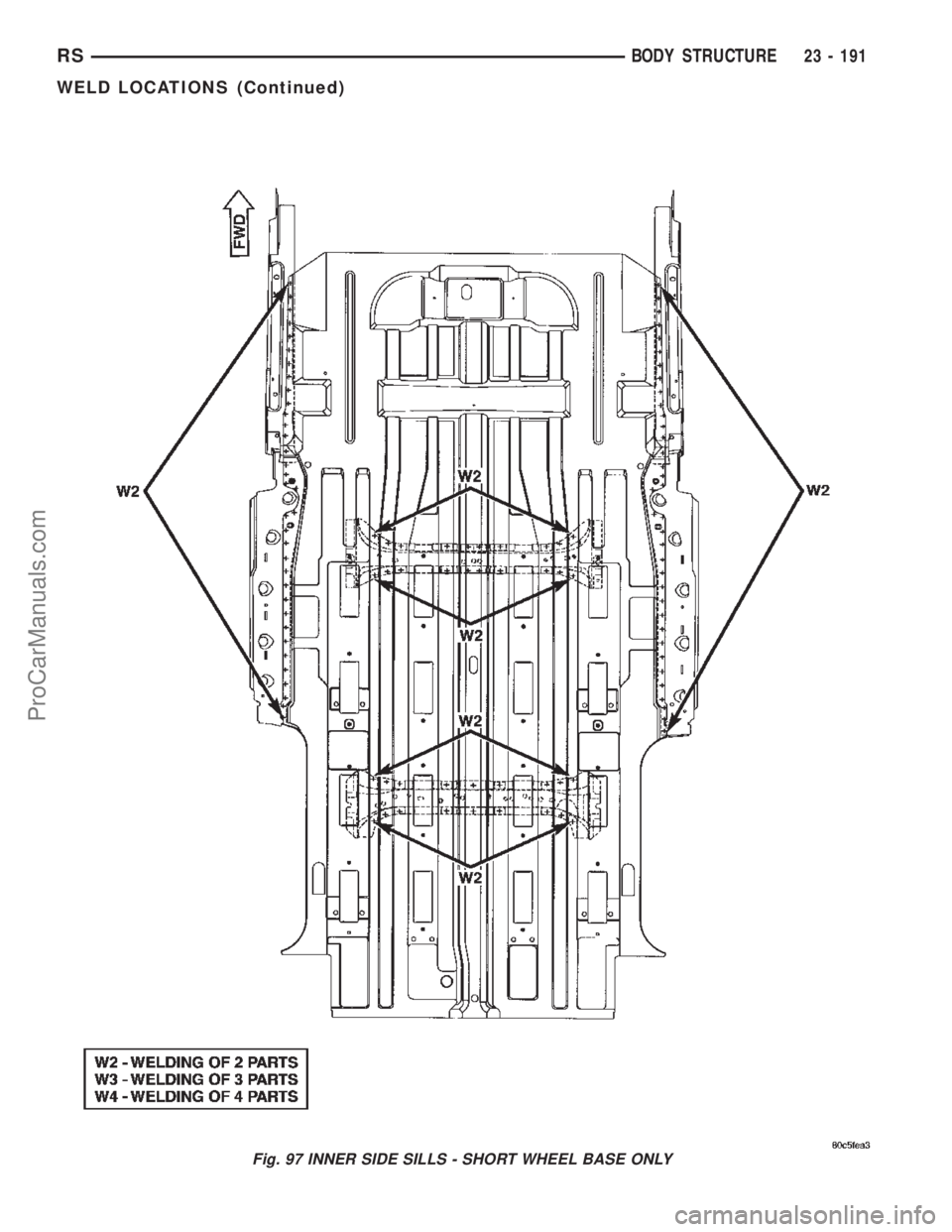

Fig. 97 INNER SIDE SILLS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 191
WELD LOCATIONS (Continued)
ProCarManuals.com

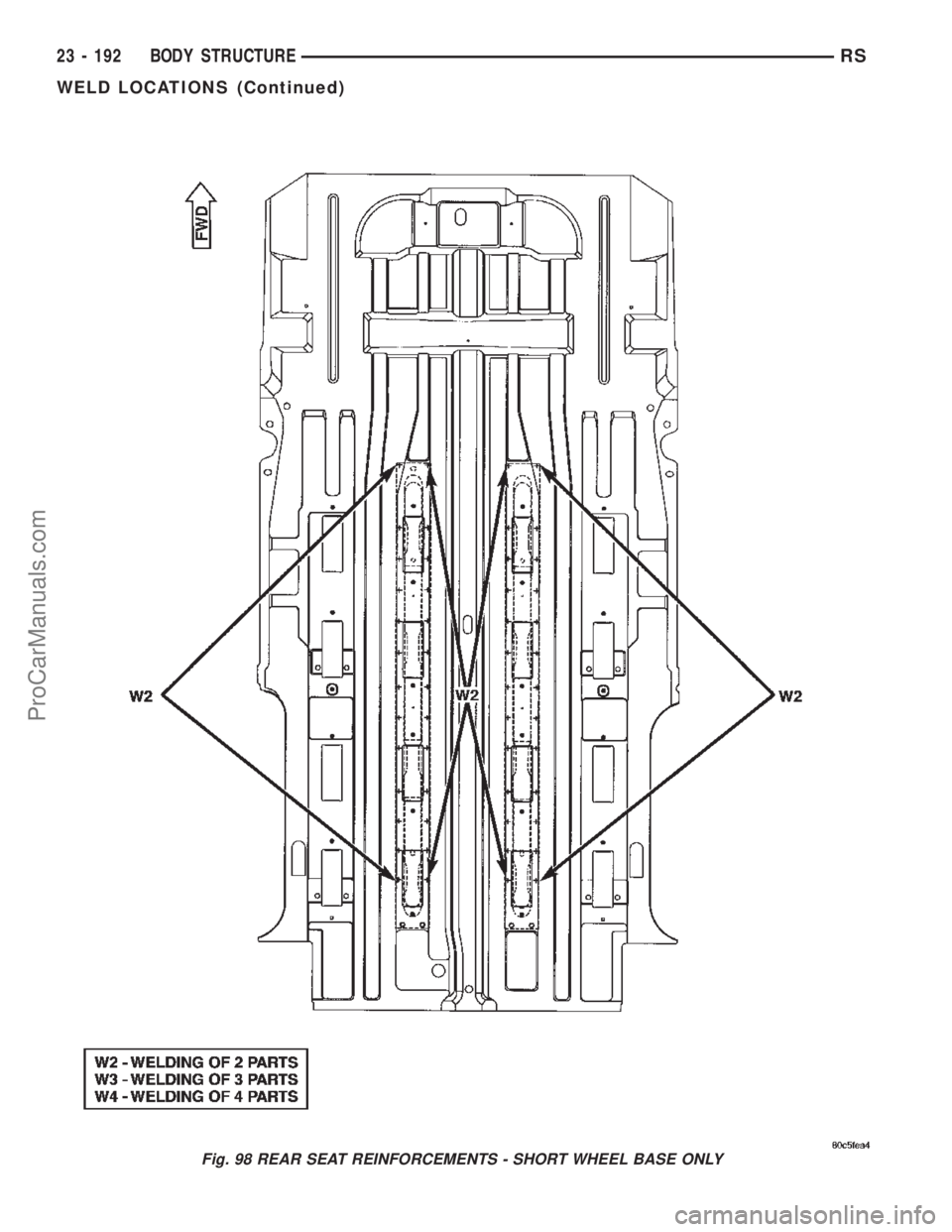

Fig. 98 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
23 - 192 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

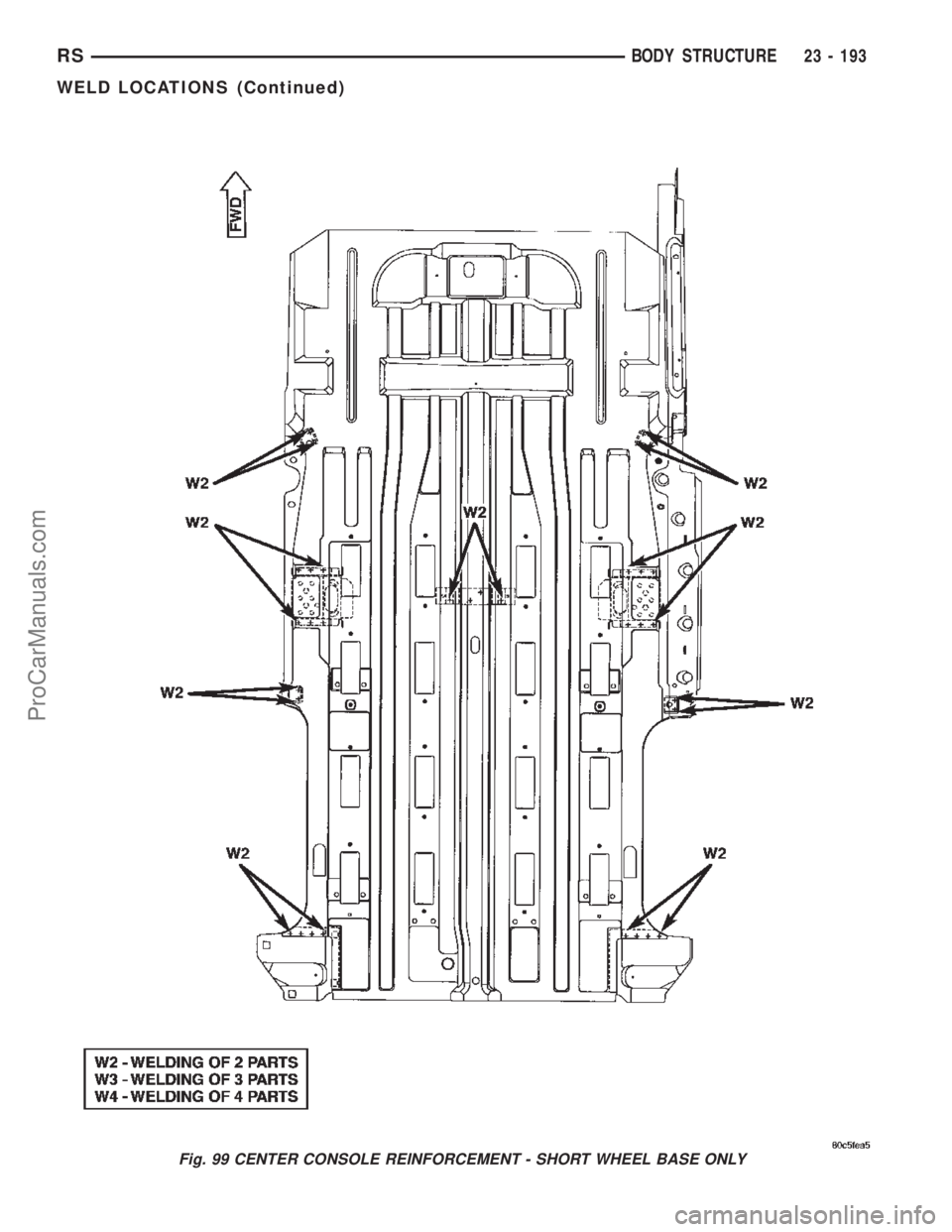

Fig. 99 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 193
WELD LOCATIONS (Continued)
ProCarManuals.com

Fig. 100 WHEELHOUSES - SHORT WHEEL BASE ONLY
Fig. 101 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY
23 - 194 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

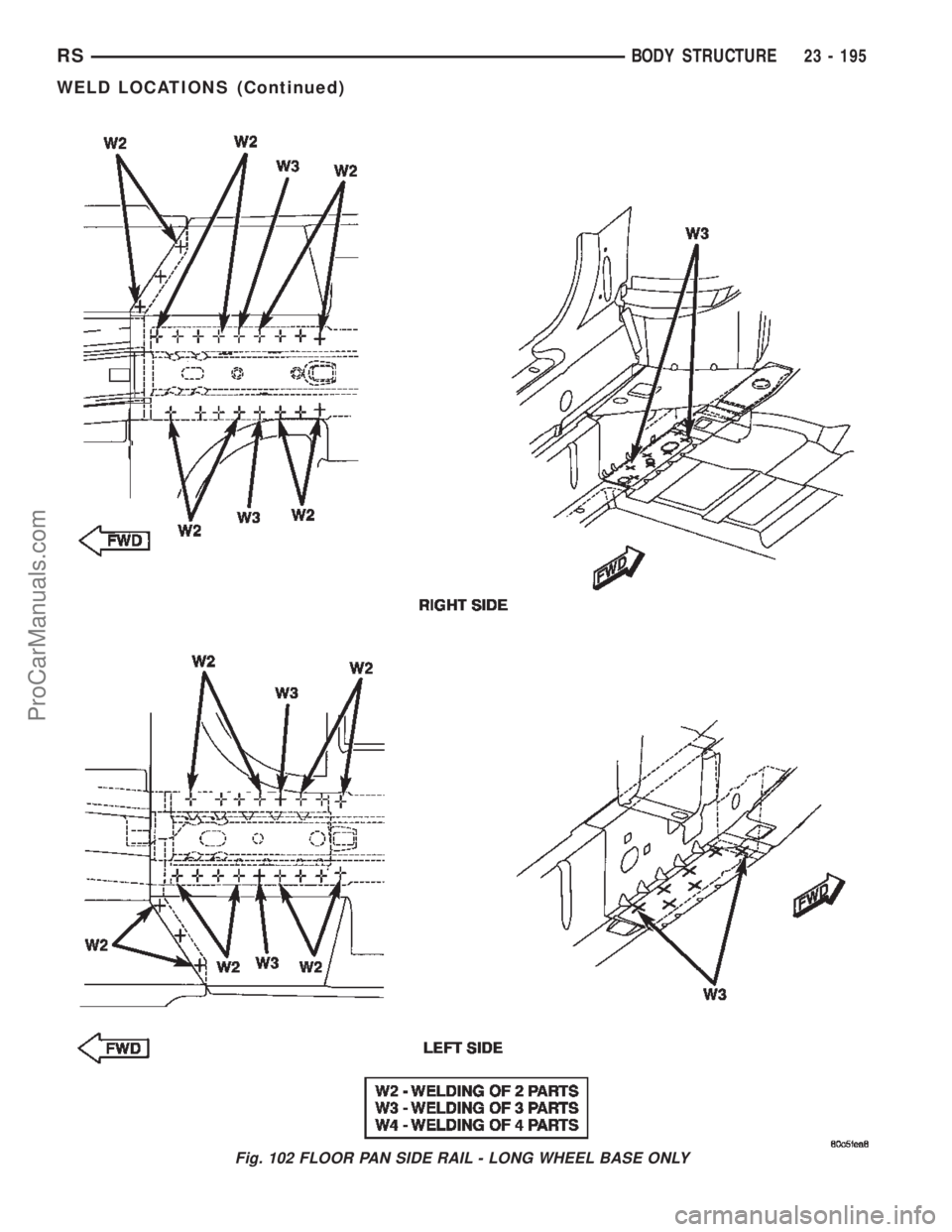

Fig. 102 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 195
WELD LOCATIONS (Continued)
ProCarManuals.com

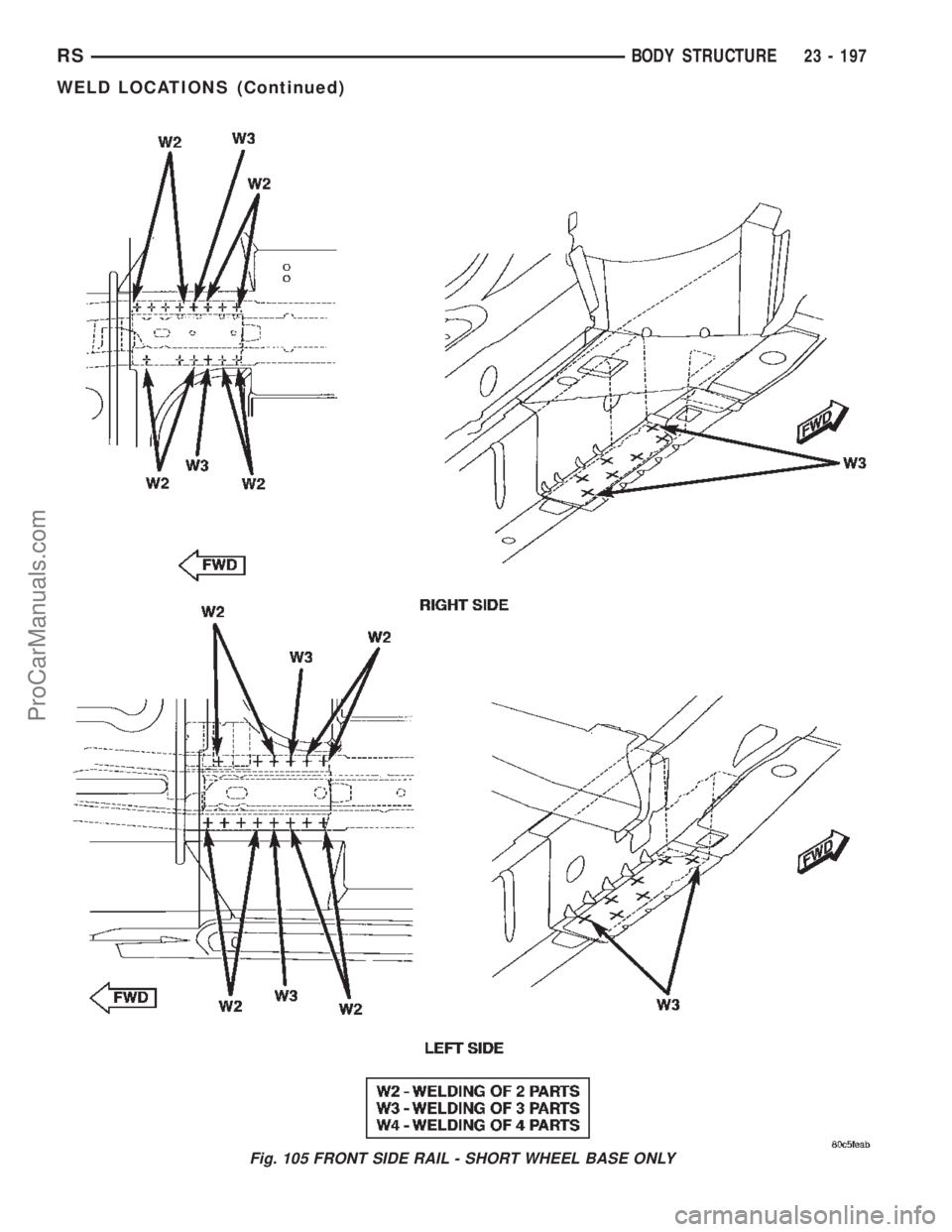

Fig. 105 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 197
WELD LOCATIONS (Continued)
ProCarManuals.com

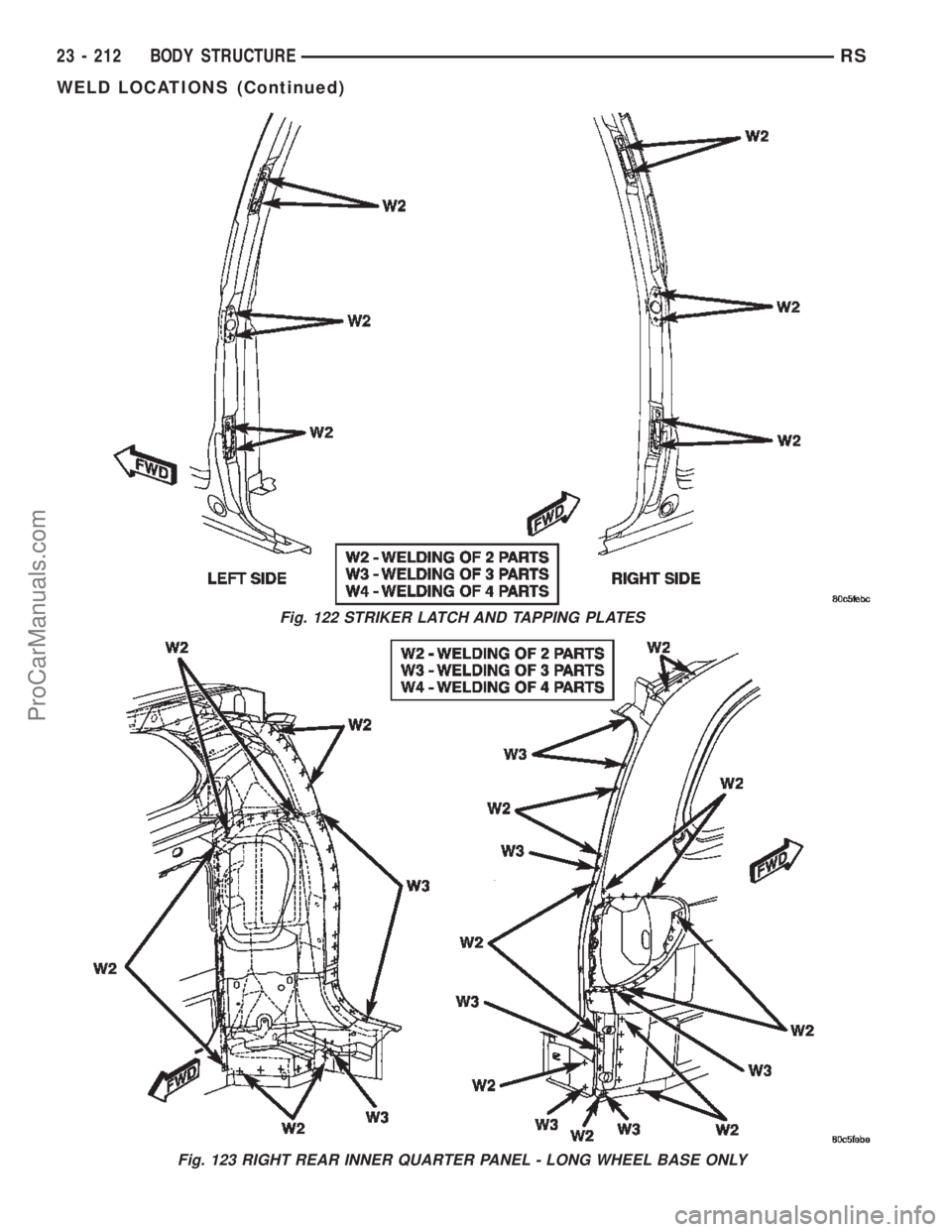

Fig. 122 STRIKER LATCH AND TAPPING PLATES
Fig. 123 RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
23 - 212 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

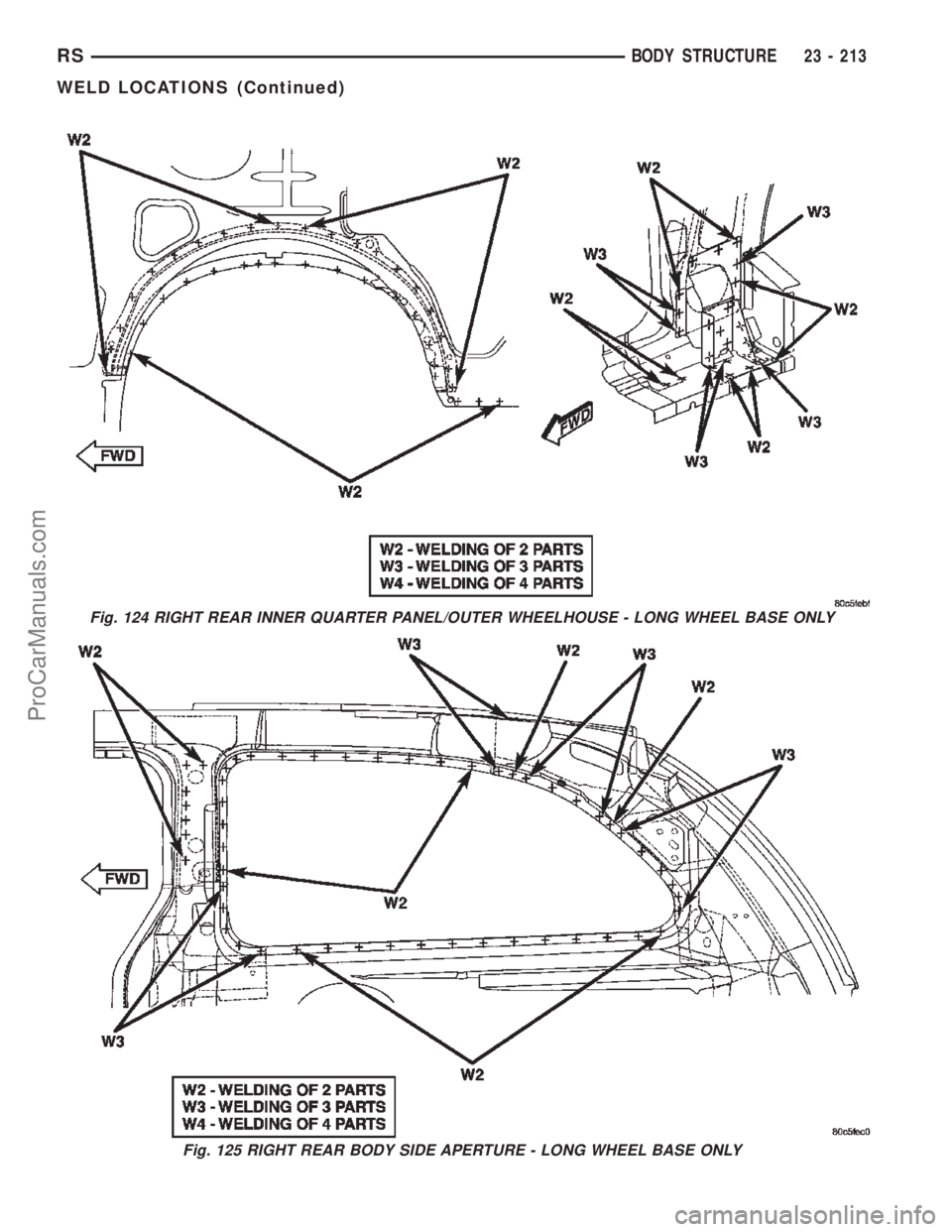

Fig. 124 RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY
Fig. 125 RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 213
WELD LOCATIONS (Continued)
ProCarManuals.com

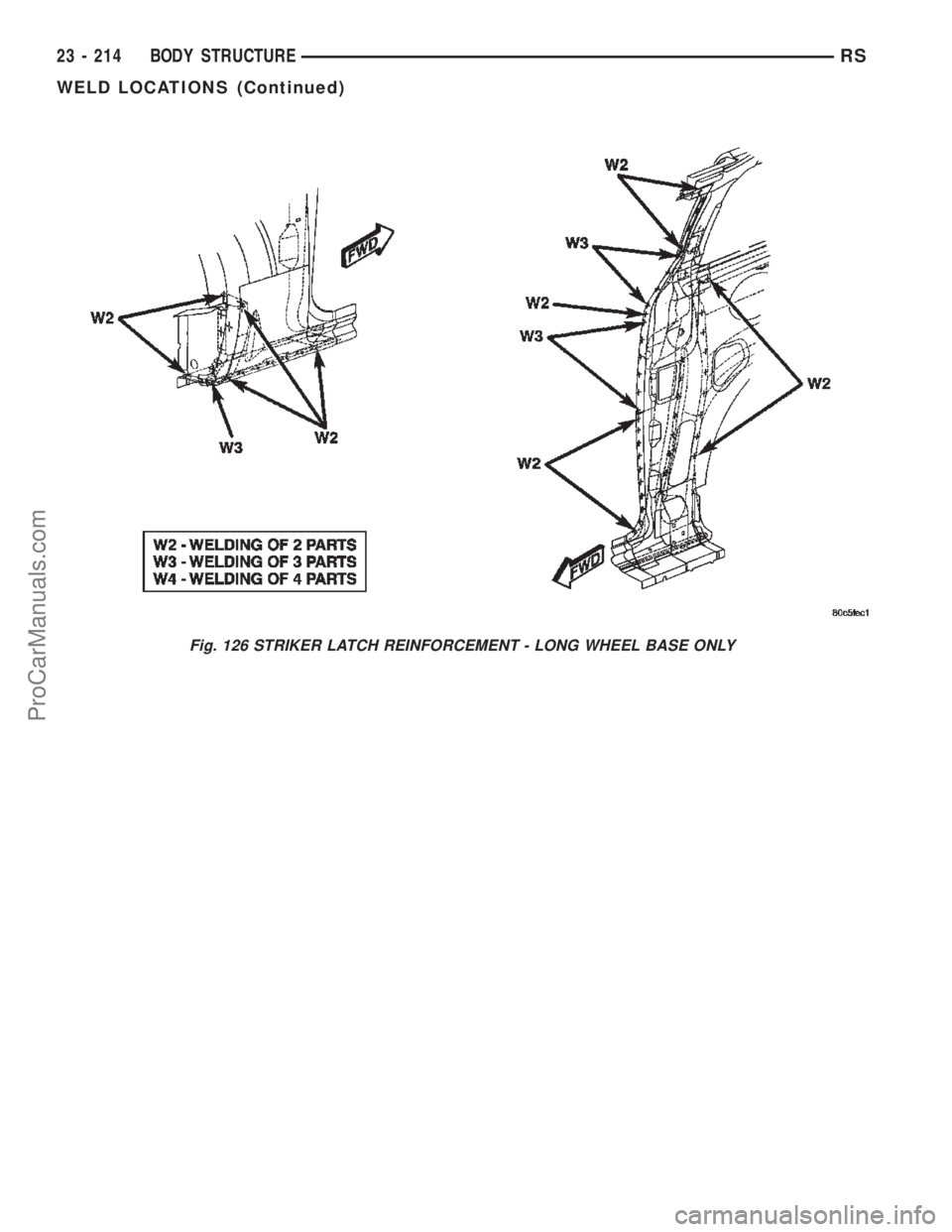

Fig. 126 STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY
23 - 214 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

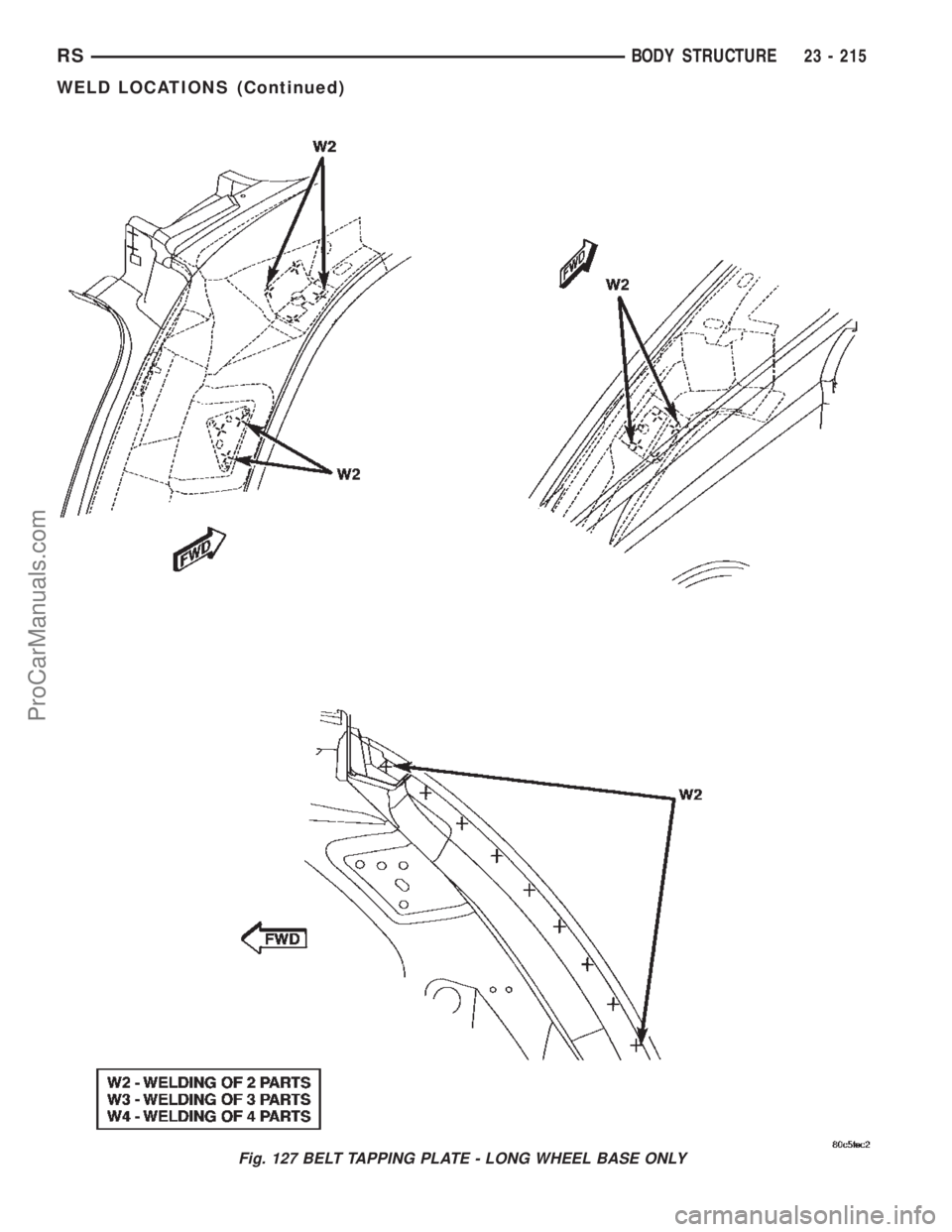

Fig. 127 BELT TAPPING PLATE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 215
WELD LOCATIONS (Continued)
ProCarManuals.com
