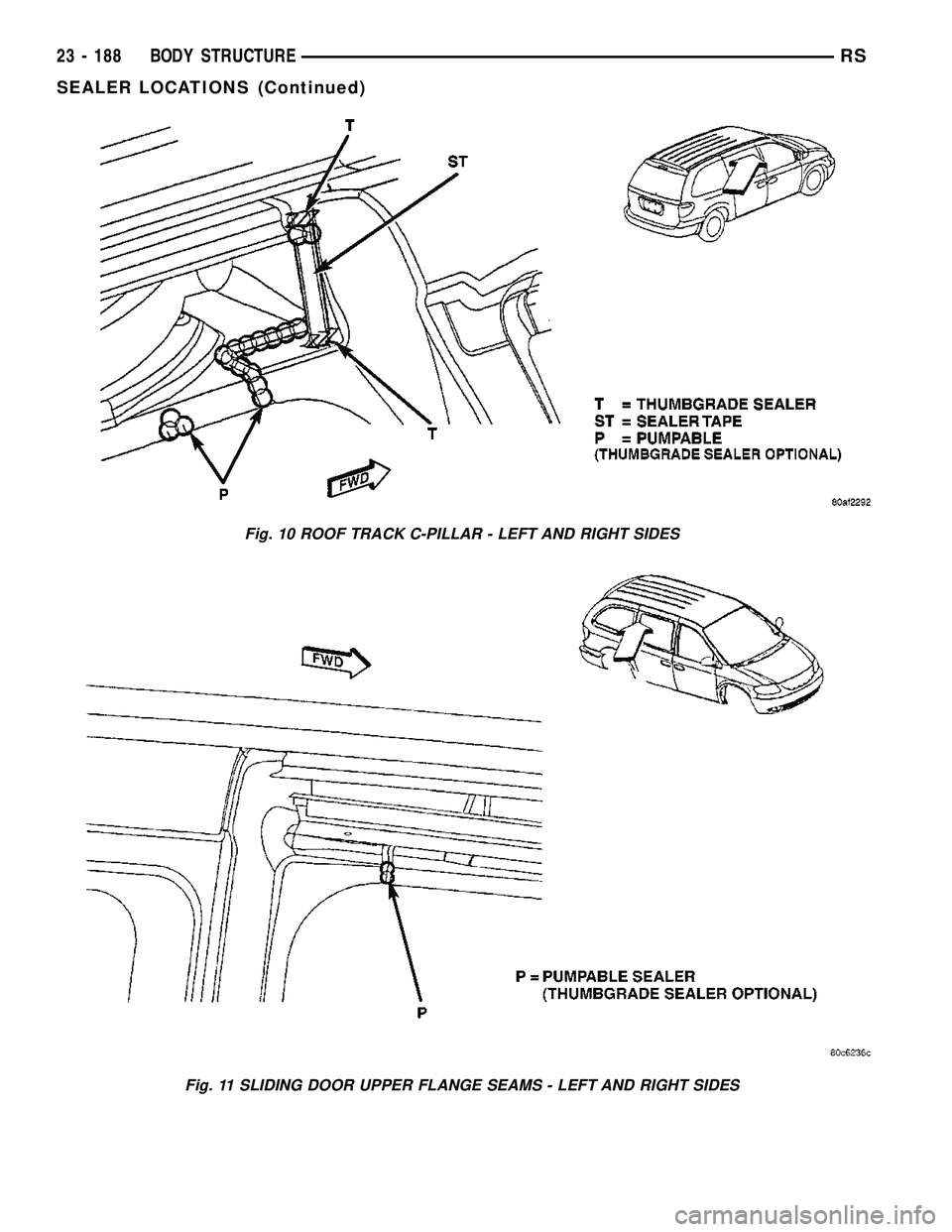

Fig. 10 ROOF TRACK C-PILLAR - LEFT AND RIGHT SIDES
Fig. 11 SLIDING DOOR UPPER FLANGE SEAMS - LEFT AND RIGHT SIDES
23 - 188 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 12 QUARTER PANEL EXTERIOR AREA - LEFT AND RIGHT SIDES
Fig. 13 LOWER REAR EXTERIOR CORNER PANELS - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 189
SEALER LOCATIONS (Continued)

Fig. 14 LOWER SILL LIFTGATE OPENING - LEFT AND RIGHT SIDES
Fig. 15 C-PILLAR CAN - LEFT AND RIGHT SIDES
23 - 190 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

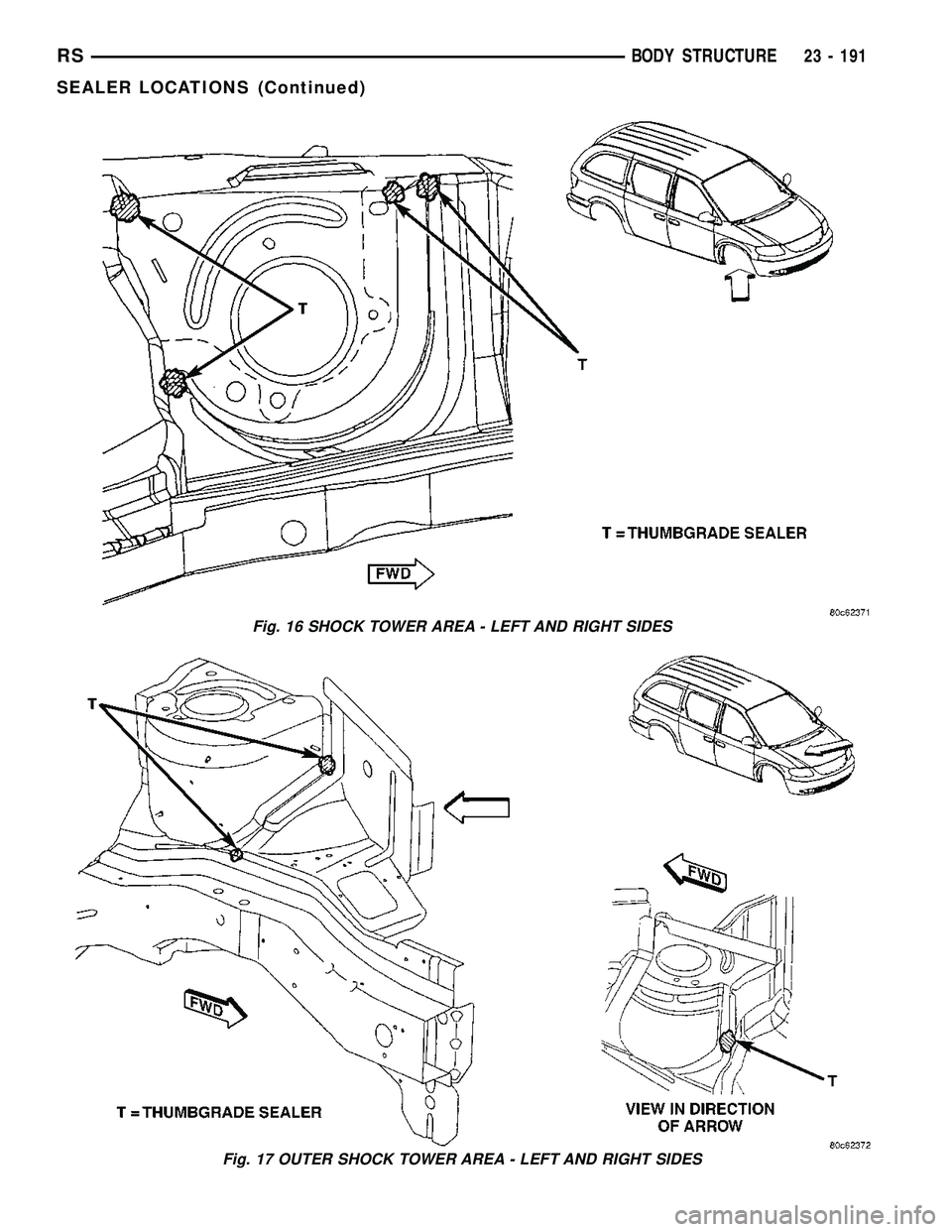

Fig. 16 SHOCK TOWER AREA - LEFT AND RIGHT SIDES
Fig. 17 OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 191
SEALER LOCATIONS (Continued)

Fig. 18 CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES
Fig. 19 A & B-PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES
23 - 192 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 20 REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES
Fig. 21 REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 193
SEALER LOCATIONS (Continued)

Fig. 22 UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES
Fig. 23 UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES
23 - 194 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 24 REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES
Fig. 25 LIFTGATE PANEL OPENING - UNDERSIDE
RSBODY STRUCTURE23 - 195
SEALER LOCATIONS (Continued)

Fig. 26 D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES
Fig. 27 REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES
23 - 196 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 28 UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES
Fig. 29 FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 197
