Fig. 30 REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT SIDES
Fig. 31 TAIL LAMP CAN - LEFT AND RIGHT SIDES
23 - 198 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 32 B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES
Fig. 33 FRONT FLOOR PAN & RISER
RSBODY STRUCTURE23 - 199
SEALER LOCATIONS (Continued)

Fig. 34 FLOOR PAN SEAMS - LEFT AND RIGHT SIDES
Fig. 35 FLOOR PAN & REAR WHEELHOUSE AREA - LEFT AND RIGHT SIDES
23 - 200 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 36 FLOOR PAN SILL & D-PILLAR SEAMS - LEFT AND RIGHT SIDES
Fig. 37 LEFT SIDE SEAT ANCHOR REINFORCEMENT - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 201
SEALER LOCATIONS (Continued)

Fig. 38 UNDERBODY - LEFT AND RIGHT SIDES
Fig. 39 ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES
23 - 202 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

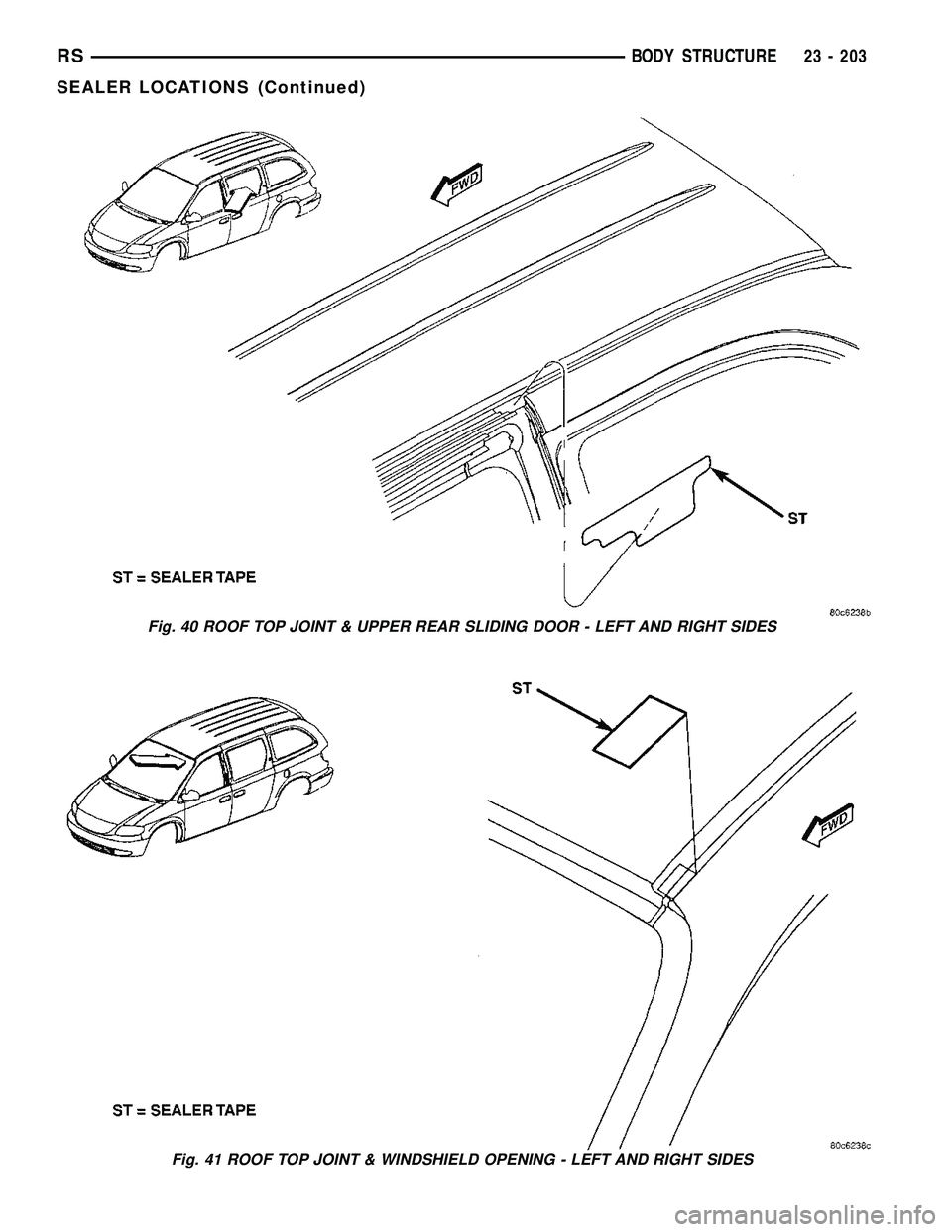

Fig. 40 ROOF TOP JOINT & UPPER REAR SLIDING DOOR - LEFT AND RIGHT SIDES
Fig. 41 ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 203
SEALER LOCATIONS (Continued)

Fig. 42 LIFT GATE ROOF COACH JOINT - LEFT AND RIGHT SIDES
Fig. 43 ROOF RAP JOINT - LEFT AND RIGHT SIDES
23 - 204 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 44 DRAIN HOLE PATCHES
Fig. 45 WHEELHOUSE VENT HOLE - LEFT SIDE SHOWN - RIGHT SIDE TYPICAL
RSBODY STRUCTURE23 - 205
SEALER LOCATIONS (Continued)

Fig. 46 FLOOR PAN HOLES - LEFT AND RIDE SIDES
Fig. 47 HOOD FRONT HEM FLANGE & SIDES
23 - 206 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 48 FRONT DOOR LOWER FLANGE
Fig. 49 LIFTGATE HEM FLANGE AND LATCH COVER SEAMS
RSBODY STRUCTURE23 - 207
