body CHRYSLER CARAVAN 2005 Service Manual

Fig. 48 FRONT DOOR LOWER FLANGE
Fig. 49 LIFTGATE HEM FLANGE AND LATCH COVER SEAMS
RSBODY STRUCTURE23 - 207
SEALER LOCATIONS (Continued)

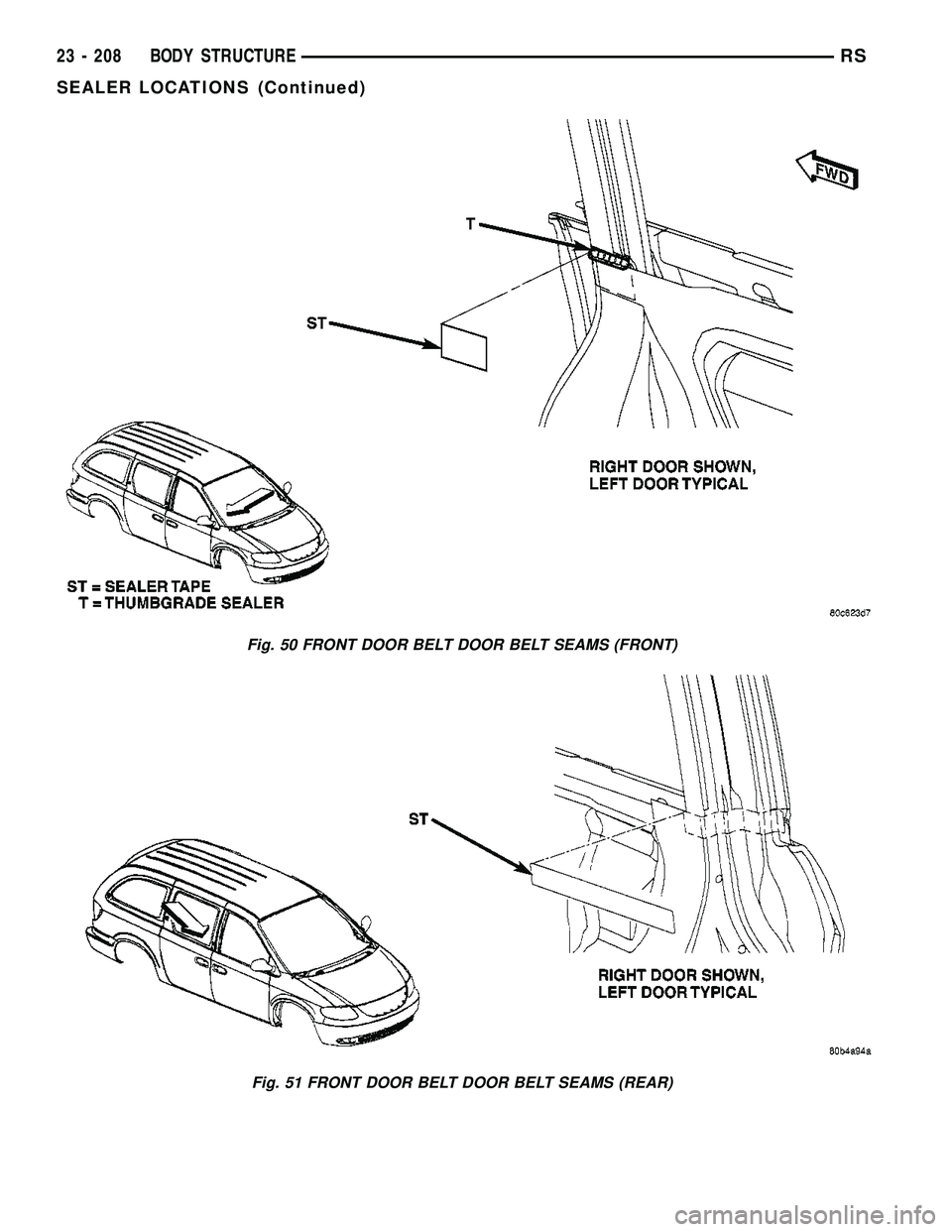

Fig. 50 FRONT DOOR BELT DOOR BELT SEAMS (FRONT)
Fig. 51 FRONT DOOR BELT DOOR BELT SEAMS (REAR)
23 - 208 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

SPECIFICATIONS - BODY SEALING LOCATIONS
- FOLD-IN-FLOOR ONLY
INDEX
DESCRIPTION FIGURE
FLOOR PAN SEAMS 52
CENTER FLOOR PAN ENDS 53
REAR SEAT FLOOR PAN ENDS 54
REAR TUB FRONT SEAMS 55
LEFT REAR WHEELHOUSE SEAM - FLOOR PAN 56
RIGHT REAR WHEELHOUSE SEAM - FLOOR PAN 57
REAR D-PILLAR PANEL AND FRAME 58
UNDERBODY 59
FLOOR PAN SEALER PATCHES 60
TOE PAN PLASTIC PLUG 61
UNDERBODY PLASTIC PLUGS (1 OF 2) 62
UNDERBODY PLASTIC PLUGS (2 OF 2) 63
REAR WHEELHOUSE PLASTIC PLUG 64
Fig. 52 FLOOR PAN SEAMS
RSBODY STRUCTURE23 - 209
SEALER LOCATIONS (Continued)

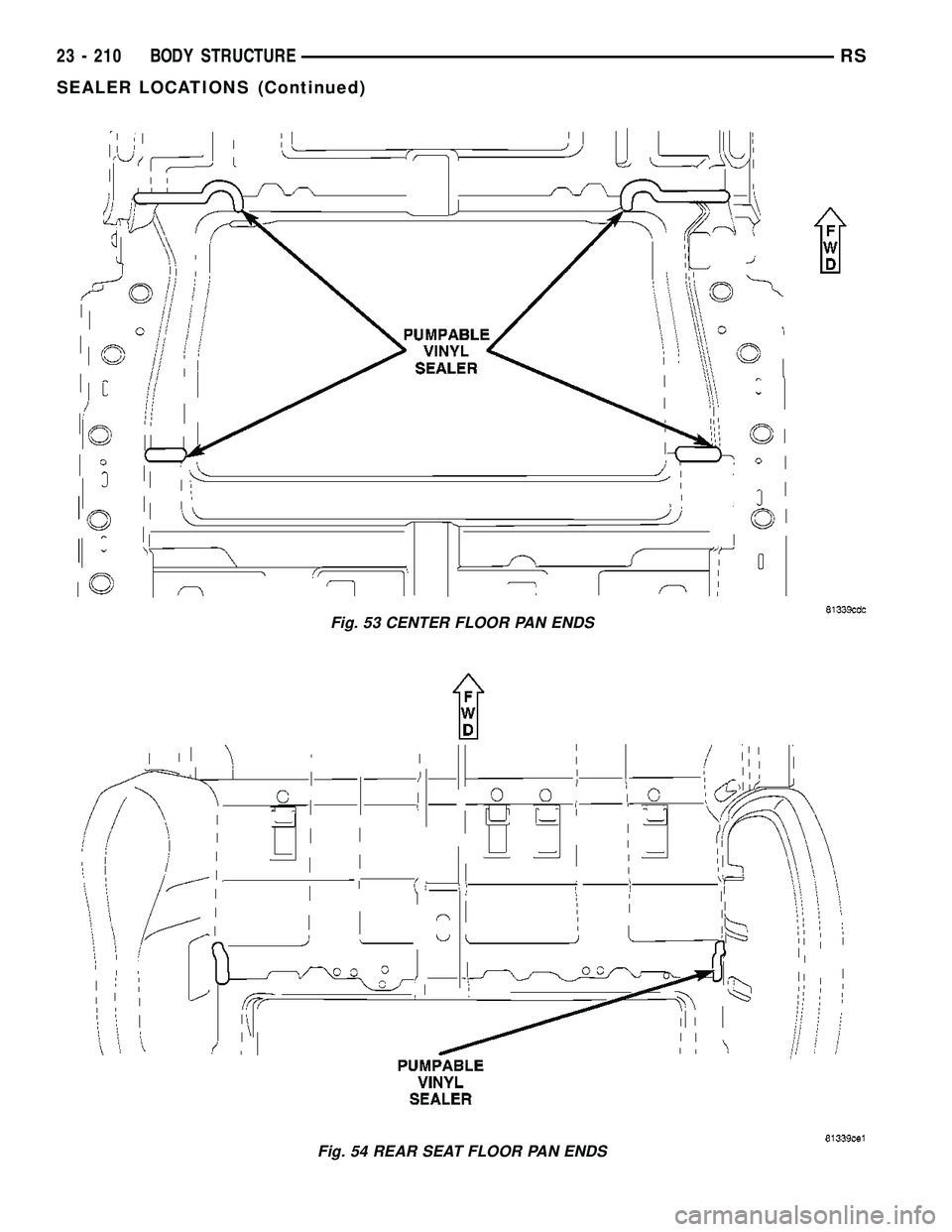

Fig. 53 CENTER FLOOR PAN ENDS
Fig. 54 REAR SEAT FLOOR PAN ENDS
23 - 210 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

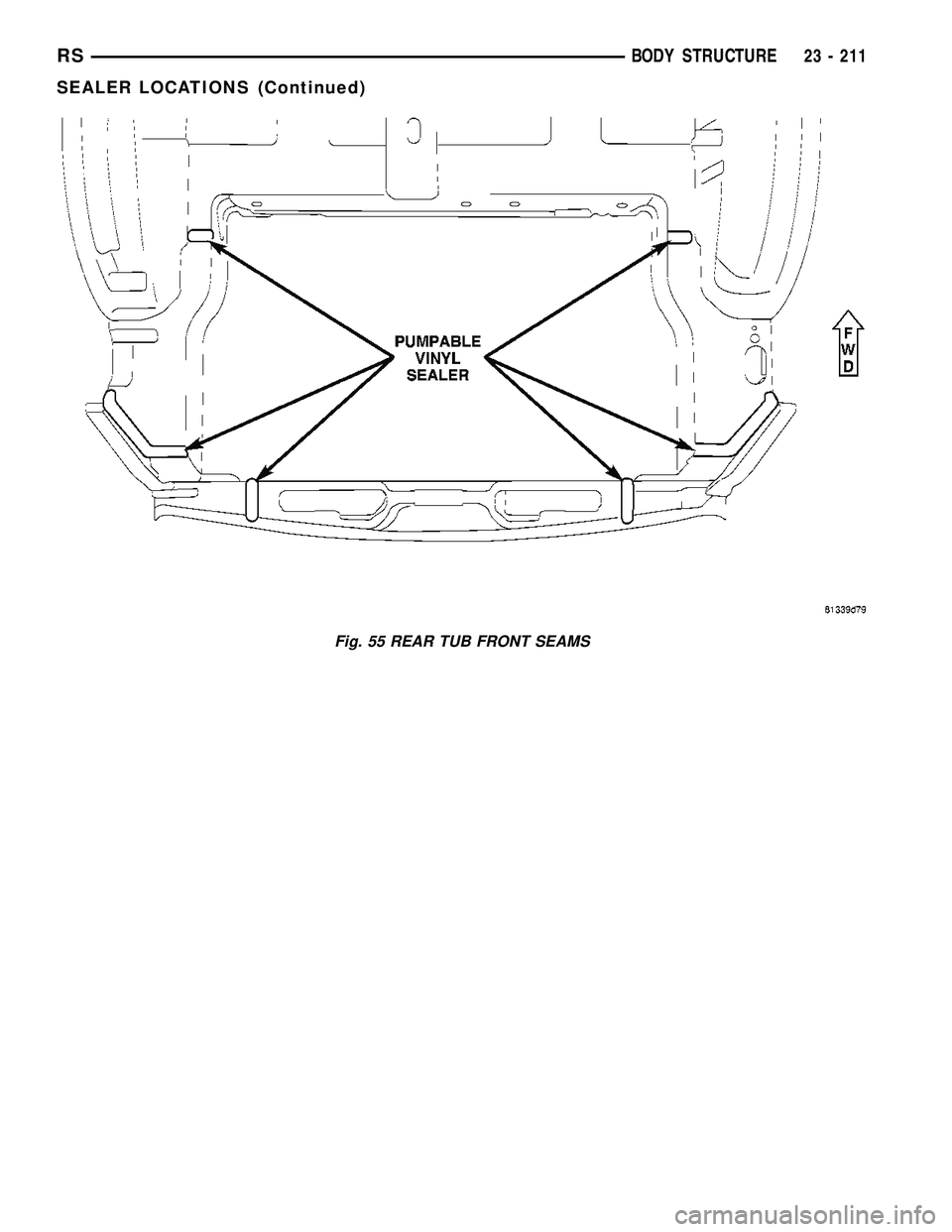

Fig. 55 REAR TUB FRONT SEAMS
RSBODY STRUCTURE23 - 211
SEALER LOCATIONS (Continued)

Fig. 56 LEFT REAR WHEELHOUSE SEAM - FLOOR PAN
23 - 212 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 57 RIGHT REAR WHEELHOUSE SEAM - FLOOR PAN
RSBODY STRUCTURE23 - 213
SEALER LOCATIONS (Continued)

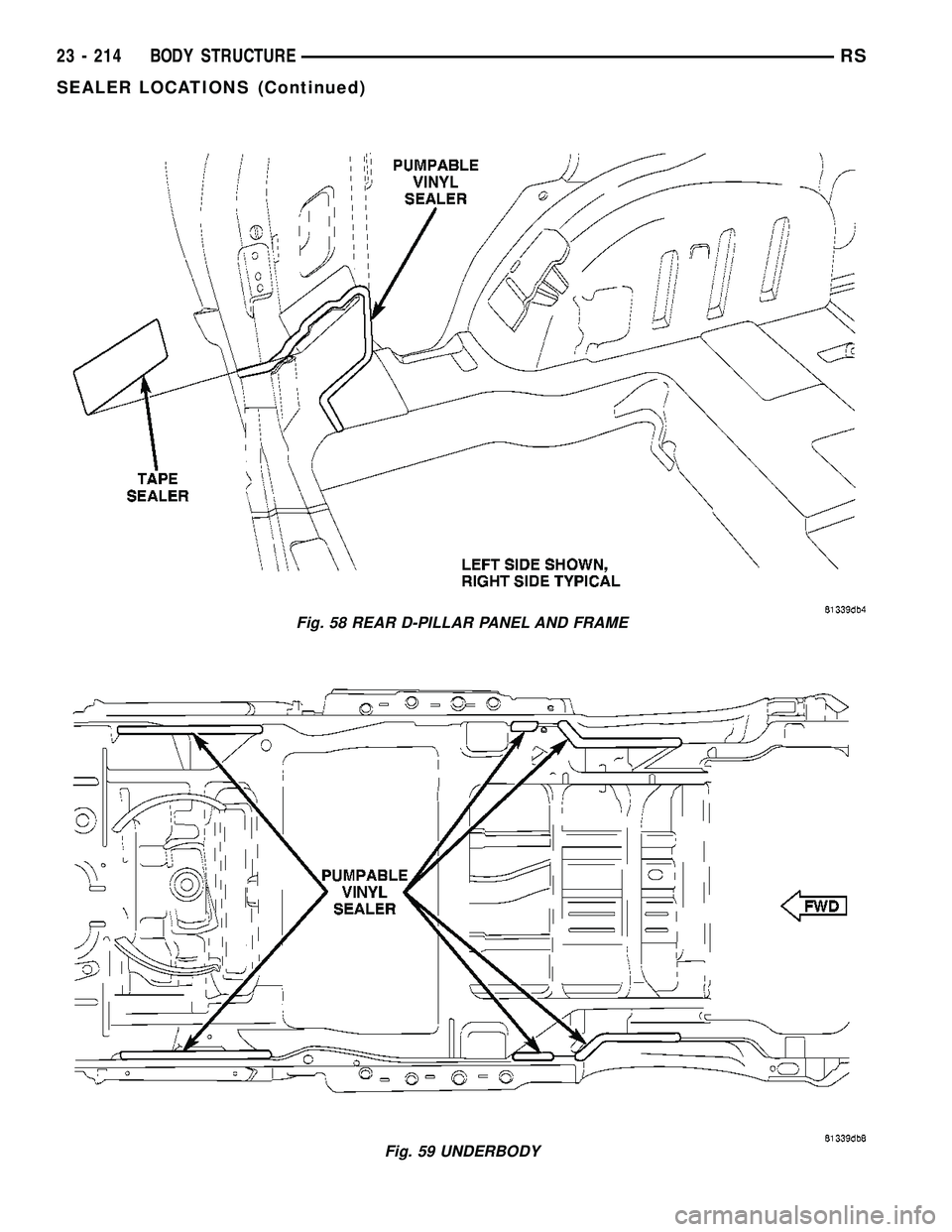

Fig. 58 REAR D-PILLAR PANEL AND FRAME
Fig. 59 UNDERBODY
23 - 214 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

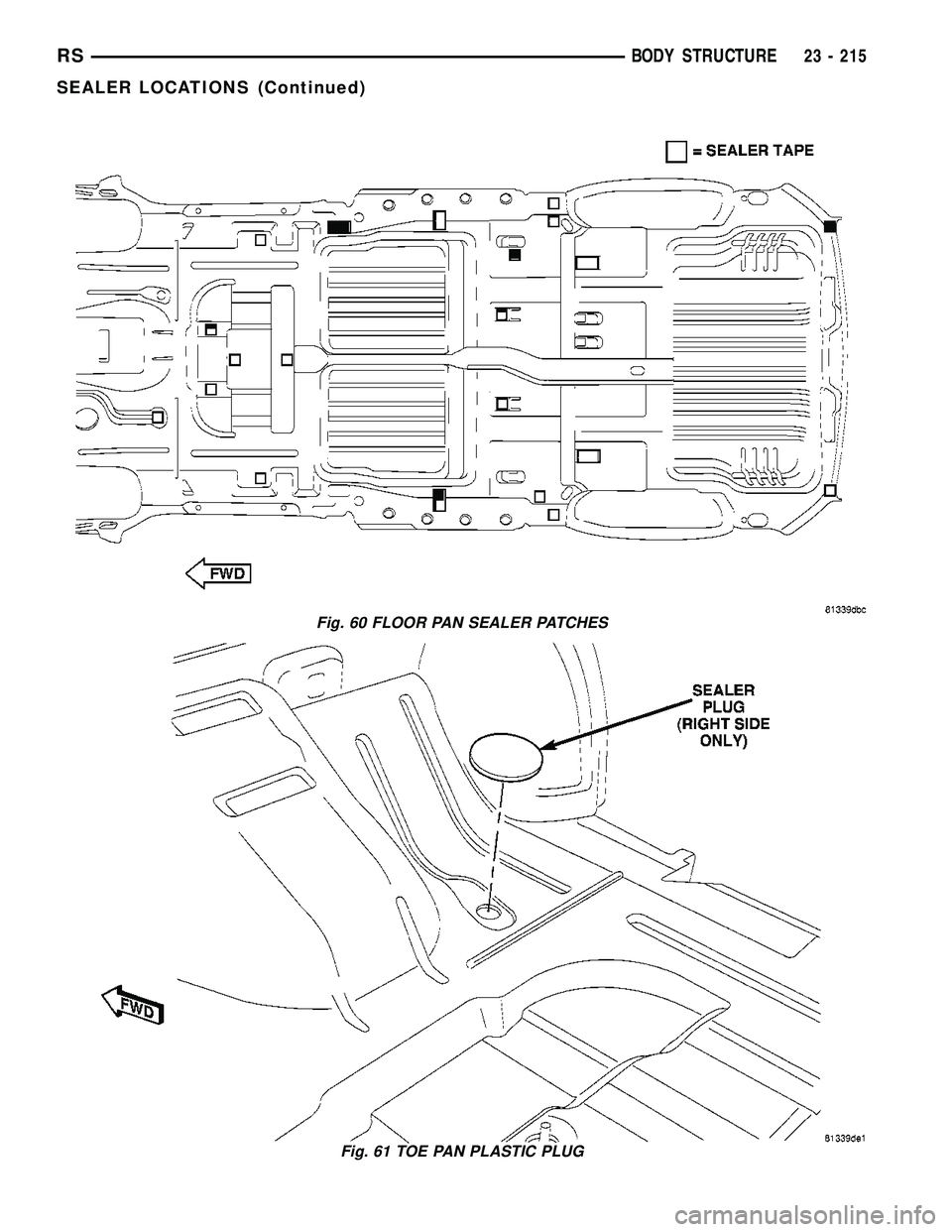

Fig. 60 FLOOR PAN SEALER PATCHES
Fig. 61 TOE PAN PLASTIC PLUG
RSBODY STRUCTURE23 - 215
SEALER LOCATIONS (Continued)

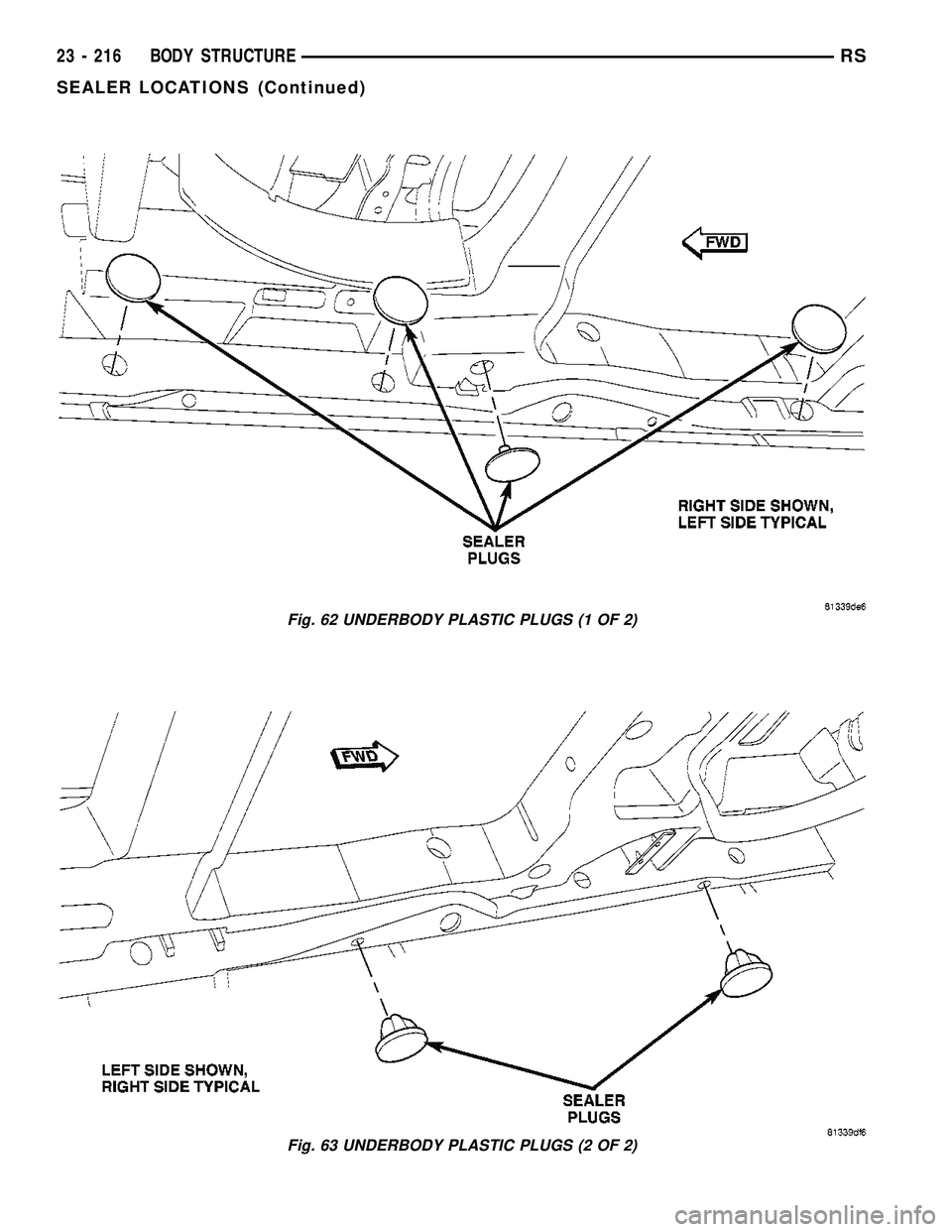

Fig. 62 UNDERBODY PLASTIC PLUGS (1 OF 2)
Fig. 63 UNDERBODY PLASTIC PLUGS (2 OF 2)
23 - 216 BODY STRUCTURERS
SEALER LOCATIONS (Continued)
