The rear power outlet is located in the right rear
cargo area.
Rear Power Outlet
Power Outlet Fuse Locations

Power Inverter — If Equipped
There is a 115 Volt, 150 Watt Power Inverter
outlet located on the right side of the vehicle,
before the third row of seats to convert DC
current to AC current. The Power Inverter can
power cellular phones, electronics and other
low power devices requiring up to 150 Watts.
1 — F95A-F95B USB IP 10A
2 — F85 Cigar Lighter 20A
3 — F60 RR Cargo Power Outlet 20A
WARNING!
To avoid serious injury or death:
Only devices designed for use in this type of
outlet should be inserted into any 12 Volt
outlet.
Do not touch with wet hands.
Close the lid when not in use and while
driving the vehicle.
If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
Many accessories that can be plugged in
draw power from the vehicle's battery, even
when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the
vehicle's battery will discharge sufficiently
to degrade battery life and/or prevent the
engine from starting.
Accessories that draw higher power (i.e.,
coolers, vacuum cleaners, lights, etc.) will
degrade the battery even more quickly.
Only use these intermittently and with
greater caution.
After the use of high power draw accesso -
ries, or long periods of the vehicle not being
started (with accessories still plugged in),
the vehicle must be driven a sufficient
length of time to allow the generator to
recharge the vehicle's battery.
CAUTION! (Continued)
2

20_RU_OM_EN_US_t.book Page 119

120GETTING TO KNOW YOUR VEHICLE
Certain high-end video game consoles will
exceed this power limit, as will most power
tools.

Power Inverter

The Power Inverter turns on when the device is
plugged in, and the ignition is in ON/RUN
position. It turns off when the device is
unplugged or the ignition is no longer in ON/
RUN position.
The Power Inverter is designed with built-in
overload protection. If the power rating of
150 Watts is exceeded, the Power Inverter
shuts down. Once the electrical device has
been removed from the Power Inverter, it
resets. To avoid overloading the circuit, check
the power ratings on electrical devices prior to
using the Power Inverter.
Cigar Lighter — If Equipped
NOTE:
Cigar lighters can be purchased at an autho -
rized dealer through Mopar parts.
The cigar lighter is located at the bottom of the
instrument panel. Push lighter inward to heat.
After a few seconds, the lighter automatically
returns to its initial position and is ready to be
used.
Smoker's Package Kit — If Equipped
With the optional authorized dealer-installed
Smoker's Package Kit, a removable ash
receiver is inserted into one of the two
cupholders in the center floor console. To install
the ash receiver, align the receiver so the thumb
grip on the lid is facing rearward. Push the ash
receiver into either of the cup wells to secure.
Pull upward on the ash receiver to remove for
cleaning and/or storage.
The left rear trim panel cupholder is designed to
accommodate a second ash receiver, if desired.
Overhead Sunglass Storage
At the front of the overhead console, a
compartment is provided for the storage of one
pair of sunglasses.
WARNING!
To avoid serious injury or death:

Do not insert any objects into the receptacles.

Do not touch with wet hands.
Close the lid when not in use.
If this outlet is mishandled, it may cause an
electric shock and failure.
WARNING!
When the cigar lighter is in use it becomes
very hot. To avoid serious injury, handle the
cigar lighter with care. Always check that the
cigar lighter has turned off.
CAUTION!
Do not connect devices with power higher
than 180 Watts (15 Amps) to the socket. Do
not damage the socket by using unsuitable
adaptors. If the 180 Watt (15 Amp) power
rating is exceeded the fuse protecting the
system will need to be replaced.

20_RU_OM_EN_US_t.book Page 120

GETTING TO KNOW YOUR VEHICLE121
From the closed position, push the intention to
open the compartment.

Overhead Sunglass Door Latch

The door will slowly rotate to the full open
position.

Full Open Position
STOW ‘N PLACE ROOF RACK — IF EQUIPPED
The crossbars and side rails are designed to
carry weight on vehicles equipped with a
luggage rack. The load must not exceed 150 lbs
(68 kg), and should be uniformly distributed
over the luggage rack crossbars.
The crossbars on your vehicle are delivered
stowed within the roof rack side rails. Crossbars
should always be used whenever cargo is
placed on the roof rack. Check the straps
frequently to be sure that the load remains
securely attached.

Roof Rack
The Stow ‘N Place roof rack does not increase
the total load carrying capacity of the vehicle.
Be sure the total load of cargo inside the vehicle
plus that on the external rack does not exceed
the maximum vehicle load capacity.
Deploying The Crossbars

1. To deploy the crossbars, completely loosen
the thumb screws at both ends of the
crossbar and lift the crossbar from its
stowed position in the side rail. Repeat
with crossbar on the opposite side.

Thumb Screw

1 — Side Rail
2 — Crossbar
2

20_RU_OM_EN_US_t.book Page 121

122GETTING TO KNOW YOUR VEHICLE
NOTE:
The thumb screws cannot be fully removed.

Removing Crossbars
2. Bend the crossbar supports at each end,
taking care to keep hand clear of pivoting
joint. Slide the thumb screw down.

Bending Pivot

3. Position the crossbars across the roof making sure the letters on the crossbars
align with the matching letters on the side
rail.
Positioning Crossbars

4. Once the crossbar is in place, tighten both thumb screws completely.

Installing Crossbars

CAUTION!
Use care when removing and handling the
crossbars to prevent damage to the vehicle.

20_RU_OM_EN_US_t.book Page 122

GETTING TO KNOW YOUR VEHICLE123
5. Deploy and tighten the second crossbar to
complete the deployment of the crossbars.
NOTE:
The crossbars are not identical and have fixed
deployment positions. The rear crossbar can be
deployed in two different positions.
Stowing The Crossbars

1. Starting with one crossbar, completely loosen the thumb screws at both ends. Lift
the crossbar away from the matching letter
to remove it from the deployed position.
Repeat with the other crossbar.
2. Starting with the one crossbar, bend up the
pivot supports at each end.

Crossbar Pivot

3. Then, position the crossbar along the correct side rail. Make sure the letters on
the crossbar align with the matching letters
on the side rail.

Stowing Crossbars 4. The crossbar will nest fully within the side rail.
Crossbar To Side Rail

5. Once the driver’s side crossbar is in place, tighten the thumb screws completely.

Tightening Crossbar

CAUTION!
Use care when removing and handling the
crossbars to prevent damage to the vehicle.
2

20_RU_OM_EN_US_t.book Page 123

124GETTING TO KNOW YOUR VEHICLE
(Continued)
6. Repeat the procedure to stow the second crossbar on the opposite side.

Stowed Crossbars

NOTE:
To help control wind noise, stow the cross -
bars in the side rails when they are not in use.
If any metallic object is placed over the satel -
lite radio antenna (if equipped), you may
experience interruption of satellite radio
reception.
WARNING!

Cargo must be securely tied down before
driving your vehicle. Improperly secured loads
can fly off the vehicle, particularly at high
speeds, resulting in personal injury or property
damage. Follow the roof rack cautions when
carrying cargo on your roof rack.

CAUTION!
To prevent damage to the roof of your
vehicle, DO NOT carry any loads on the roof
rack without the crossbars deployed. The
load should be secured and placed on top
of the crossbars, not directly on the roof. If
it is necessary to place the load on the roof,
place a blanket or other protective layer
between the load and the roof surface.
To avoid damage to the roof rack and
vehicle, do not exceed the maximum roof
rack load capacity of 150 lb (68 kg). Always
distribute heavy loads as evenly as possible
and secure the load appropriately.
Load should always be secured to cross
bars first, with tie down loops used as addi -
tional securing points if needed. Tie loops
are intended as supplementary tie down
points only. Do not use ratcheting mecha -
nisms with the tie loops. Check the straps
and thumb wheels frequently to be sure
that the load remains securely attached.
Long loads that extend over the windshield,
such as wood panels or surfboards, or
loads with large frontal area should be
secured to both the front and rear of the
vehicle.
Travel at reduced speeds and turn corners
carefully when carrying large or heavy loads
on the roof rack. Wind forces, due to
natural causes or nearby truck traffic, can
add sudden upward lift to a load. This is
especially true on large flat loads and may
result in damage to the cargo or your
vehicle.
CAUTION! (Continued)

20_RU_OM_EN_US_t.book Page 124

125
GETTING TO KNOW YOUR INSTRUMENT PANEL
INSTRUMENT CLUSTER

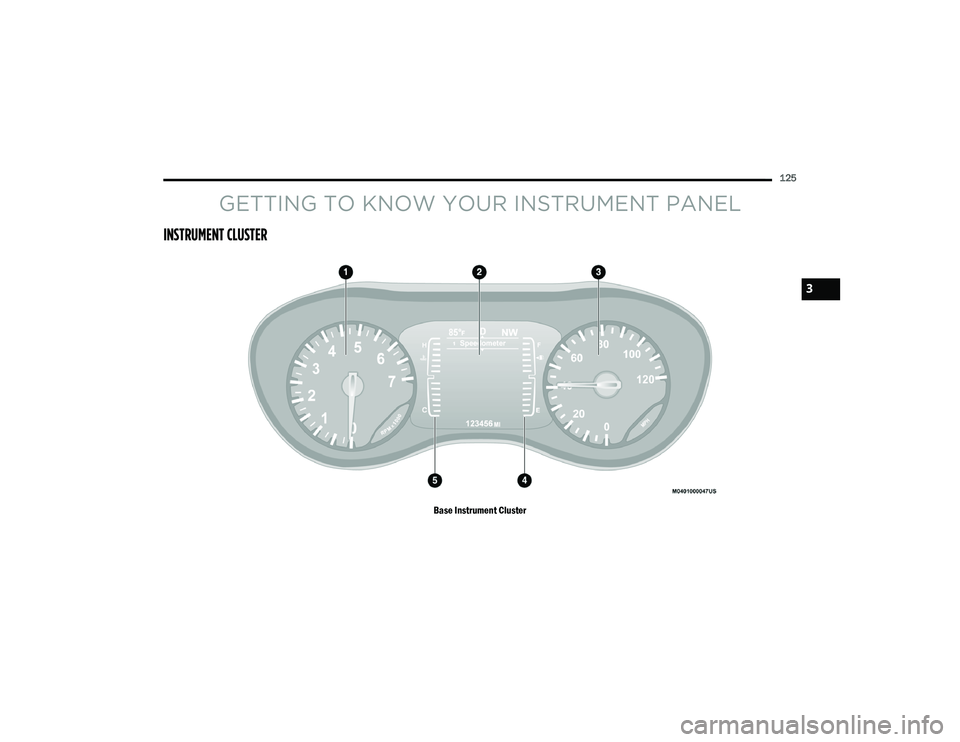

Base Instrument Cluster
3

20_RU_OM_EN_US_t.book Page 125

126GETTING TO KNOW YOUR INSTRUMENT PANEL
Premium Instrument Cluster
Instrument Cluster Descriptions

1. Tachometer

Indicates the engine speed in revolutions
per minute (RPM x 1000).2. Instrument Cluster Display
When the appropriate conditions exist,
this display shows the instrument cluster
display messages. Refer to “Instrument
Cluster Display” located in this chapter
for further information.3. SpeedometerIndicates vehicle speed.

20_RU_OM_EN_US_t.book Page 126

GETTING TO KNOW YOUR INSTRUMENT PANEL127
4. Fuel Gauge
The gauge shows the level of fuel in the
fuel tank when the ignition switch is in
the ON/RUN position.
 The fuel pump symbol points
to the side of the vehicle where
the fuel door is located.
5. Temperature Gauge
The temperature gauge shows engine
coolant temperature. Any reading within
the normal range indicates that the
engine cooling system is operating satis -
factorily.
The gauge can indicate a higher tempera -
ture when driving in hot weather or up
mountain grades. It should not be
allowed to exceed the upper limits of the
normal operating range. NOTE:
The hard telltales will illuminate for a bulb check
when the ignition is first cycled.
INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an instrument
cluster display, which offers useful information
to the driver. With the ignition in the OFF
position (and the key removed, for vehicles with
mechanical key), opening/closing of a door will
activate the display for viewing, and display the
total miles or kilometers in the odometer. Your
instrument cluster display is designed to display
important information about your vehicle’s
systems and features. Using a driver interactive
display located on the instrument panel, your
instrument cluster display can show you how
systems are working and give you warnings
when they are not. The steering wheel mounted
controls allow you to scroll through and enter
the main menus and submenus. You can
access the specific information you want and
make selections and adjustments.
WARNING!
Driving with a hot engine cooling system
could damage your vehicle. If the
temperature gauge reaches “H” pull over and
stop the vehicle. Idle the vehicle with the air
conditioner turned off until the gauge drops
back into the normal range and is no longer
red. If the gauge remains on the “H”, turn the
engine off immediately and call an authorized
dealer for service.
WARNING!
A hot engine cooling system is dangerous.
You or others could be badly burned by steam
or boiling coolant. You may want to call an
authorized dealer for service if your vehicle
overheats. If you decide to look under the
hood yourself, refer to “Cooling System
Pressure Cap” in “Servicing And
Maintenance” for further information.
3

20_RU_OM_EN_US_t.book Page 127

128GETTING TO KNOW YOUR INSTRUMENT PANEL
Instrument Cluster Display Location And
Controls
The vehicle’s instrument cluster is equipped
with an instrument cluster display (base or
premium cluster), which offers useful
information to the driver.

Instrument Cluster Display

The instrument cluster display controls allows
the driver to select information by pushing the
directional buttons mounted on the steering
wheel:
Up Arrow Button
Push and release the up arrow
button to scroll upward through the
Main Menu items.
Down Arrow Button
Push and release the down arrow
button to scroll downward through
the Main Menu items.
Right Arrow Button
Push and release the right arrow
button to access the information
screens or submenu screens of a
main menu item.
Back / Left Arrow Button
Push and release the left arrow
button to access the information
screens or submenu screens of a
main menu item.
OK Button
Push the OK button to access/select the
information screens or submenu screens of a
Main Menu item. Push and hold the OK
button for two seconds to reset displayed/
selected features that can be reset. The instrument cluster display (base/premium
cluster) features a driver-interactive display that
is located in the center of the instrument
cluster, and may include the following menu/
submenu items:
Speedometer
Vehicle Info
Driver Assist — If Equipped
Fuel Economy
Trip (Trip A / Trip B)
Stop / Start — If Equipped
Audio
Messages
Screen Setup

20_RU_OM_EN_US_t.book Page 128
