GETTING TO KNOW YOUR VEHICLE79

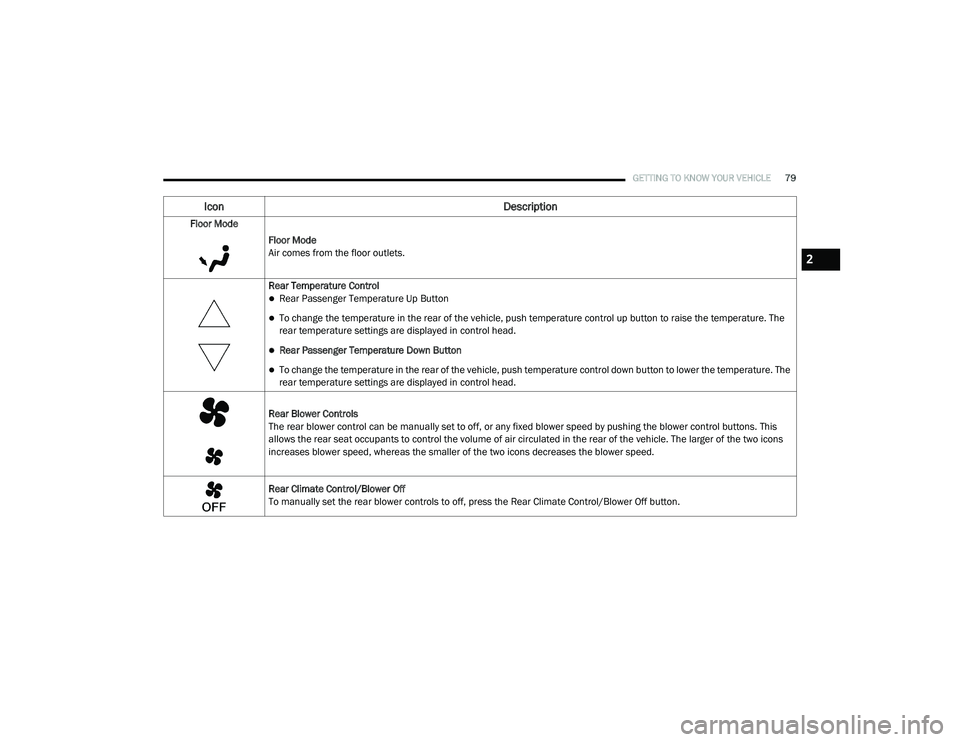

Floor Mode
Floor Mode
Air comes from the floor outlets.
Rear Temperature Control
Rear Passenger Temperature Up Button
To change the temperature in the rear of the vehicle, push temperature control up button to raise the temperature. The
rear temperature settings are displayed in control head.
Rear Passenger Temperature Down Button
To change the temperature in the rear of the vehicle, push temperature control down button to lower the temperature. The
rear temperature settings are displayed in control head.
Rear Blower Controls
The rear blower control can be manually set to off, or any fixed blower speed by pushing the blower control buttons. This
allows the rear seat occupants to control the volume of air circulated in the rear of the vehicle. The larger of the two icons
increases blower speed, whereas the smaller of the two icons decreases the blower speed.
Rear Climate Control/Blower Off
To manually set the rear blower controls to off, press the Rear Climate Control/Blower Off button.
Icon Description
2

20_RU_OM_EN_US_t.book Page 79

80GETTING TO KNOW YOUR VEHICLE
Automatic Climate Control Overview

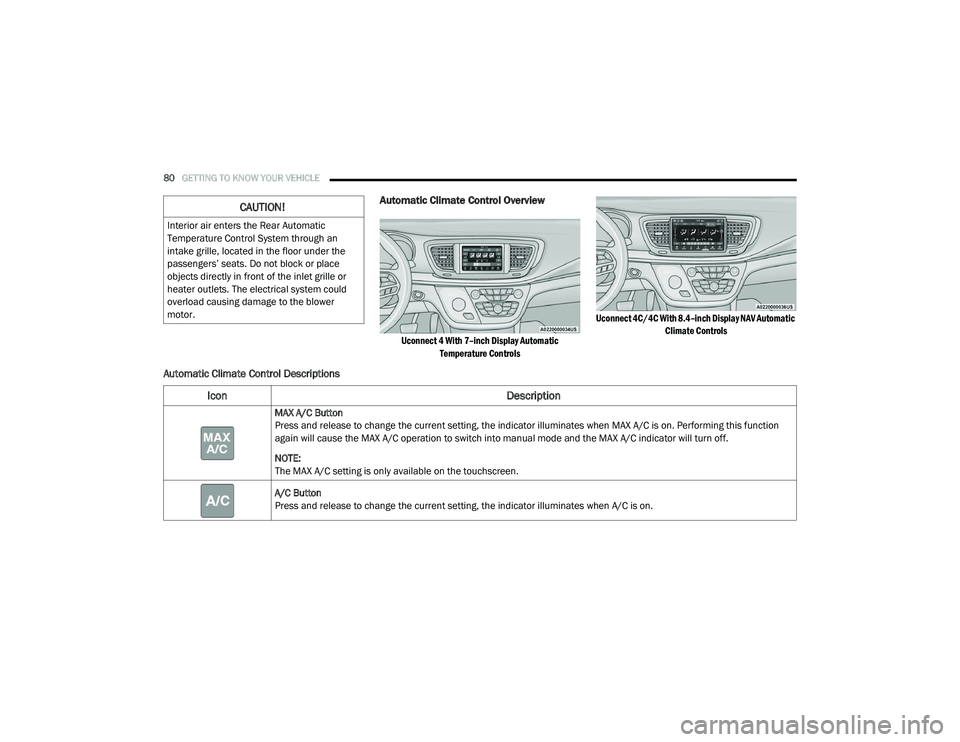

Uconnect 4 With 7–inch Display Automatic
Temperature Controls Uconnect 4C/4C With 8.4–inch Display NAV Automatic
Climate Controls

Automatic Climate Control Descriptions
CAUTION!
Interior air enters the Rear Automatic
Temperature Control System through an
intake grille, located in the floor under the
passengers’ seats. Do not block or place
objects directly in front of the inlet grille or
heater outlets. The electrical system could
overload causing damage to the blower
motor.
Icon Description
MAX A/C Button
Press and release to change the current setting, the indicator illuminates when MAX A/C is on. Performing this function
again will cause the MAX A/C operation to switch into manual mode and the MAX A/C indicator will turn off.
NOTE:
The MAX A/C setting is only available on the touchscreen.
A/C Button
Press and release to change the current setting, the indicator illuminates when A/C is on.

20_RU_OM_EN_US_t.book Page 80

GETTING TO KNOW YOUR VEHICLE81

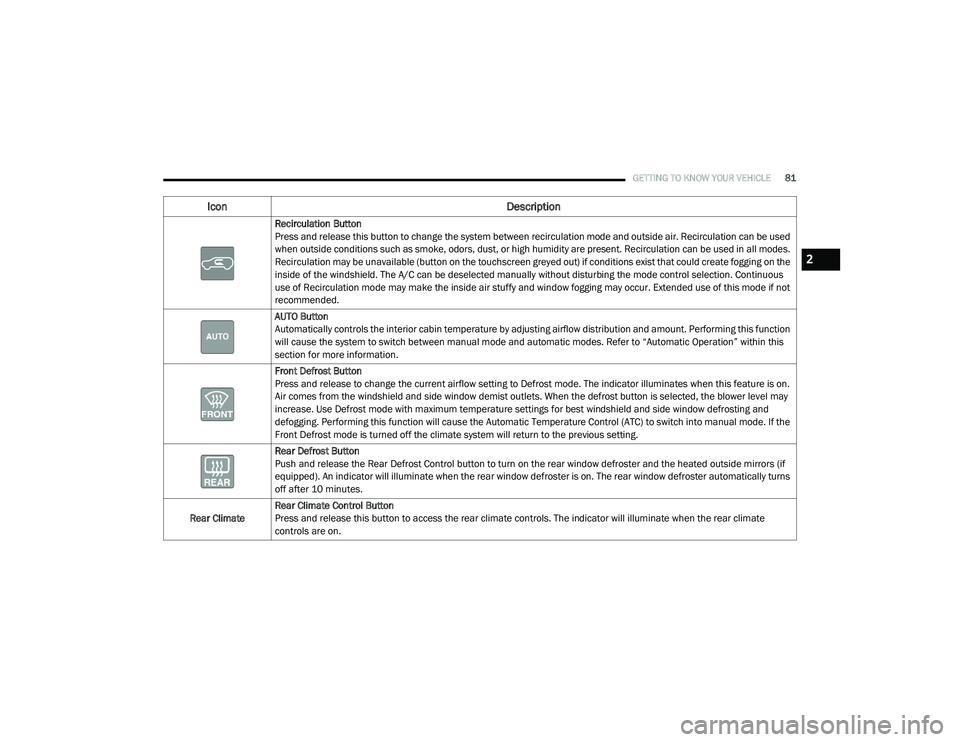

Recirculation Button
Press and release this button to change the system between recirculation mode and outside air. Recirculation can be used
when outside conditions such as smoke, odors, dust, or high humidity are present. Recirculation can be used in all modes.
Recirculation may be unavailable (button on the touchscreen greyed out) if conditions exist that could create fogging on the
inside of the windshield. The A/C can be deselected manually without disturbing the mode control selection. Continuous
use of Recirculation mode may make the inside air stuffy and window fogging may occur. Extended use of this mode if not
recommended.
AUTO Button
Automatically controls the interior cabin temperature by adjusting airflow distribution and amount. Performing this function
will cause the system to switch between manual mode and automatic modes. Refer to “Automatic Operation” within this
section for more information.
Front Defrost Button
Press and release to change the current airflow setting to Defrost mode. The indicator illuminates when this feature is on.
Air comes from the windshield and side window demist outlets. When the defrost button is selected, the blower level may
increase. Use Defrost mode with maximum temperature settings for best windshield and side window defrosting and
defogging. Performing this function will cause the Automatic Temperature Control (ATC) to switch into manual mode. If the
Front Defrost mode is turned off the climate system will return to the previous setting.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the heated outside mirrors (if
equipped). An indicator will illuminate when the rear window defroster is on. The rear window defroster automatically turns
off after 10 minutes.
Rear Climate Rear Climate Control Button
Press and release this button to access the rear climate controls. The indicator will illuminate when the rear climate
controls are on.
Icon
Description
2

20_RU_OM_EN_US_t.book Page 81

82GETTING TO KNOW YOUR VEHICLE
Driver And Passenger Temperature UP And DOWN Buttons
Provides the driver and passenger with independent temperature control. Push the red button on the faceplate or
touchscreen or press and slide the temperature bar towards the red arrow button on the touchscreen for warmer
temperature settings. Push the blue button on the faceplate or touchscreen or press and slide the temperature bar towards
the blue arrow button on the touchscreen for cooler temperature settings.
SYNC Button
Press the Sync button on the touchscreen to toggle the Sync feature On/Off. The Sync indicator is illuminated when this
feature is enabled. SYNC is used to synchronize the front and rear passenger temperature settings. Changing the front or
rear passenger temperature setting while in SYNC will automatically exit this feature.
NOTE:
The SYNC setting is only available on the touchscreen.
Faceplate Knob
Touchscreen Buttons Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There are seven blower speeds
available. The speeds can be selected using either the blower control knob on the faceplate or the buttons on the
touchscreen.
Faceplate: The blower speed increases as you turn the blower control knob clockwise from the lowest blower setting. The
blower speed decreases as you turn the blower control knob counterclockwise.
Touchscreen:
Use the small blower icon to reduce the blower setting and the large blower icon to increase the blower
setting. Blower speed can also be selected by pressing the blower bar area between the icons.
Icon Description

20_RU_OM_EN_US_t.book Page 82

GETTING TO KNOW YOUR VEHICLE83

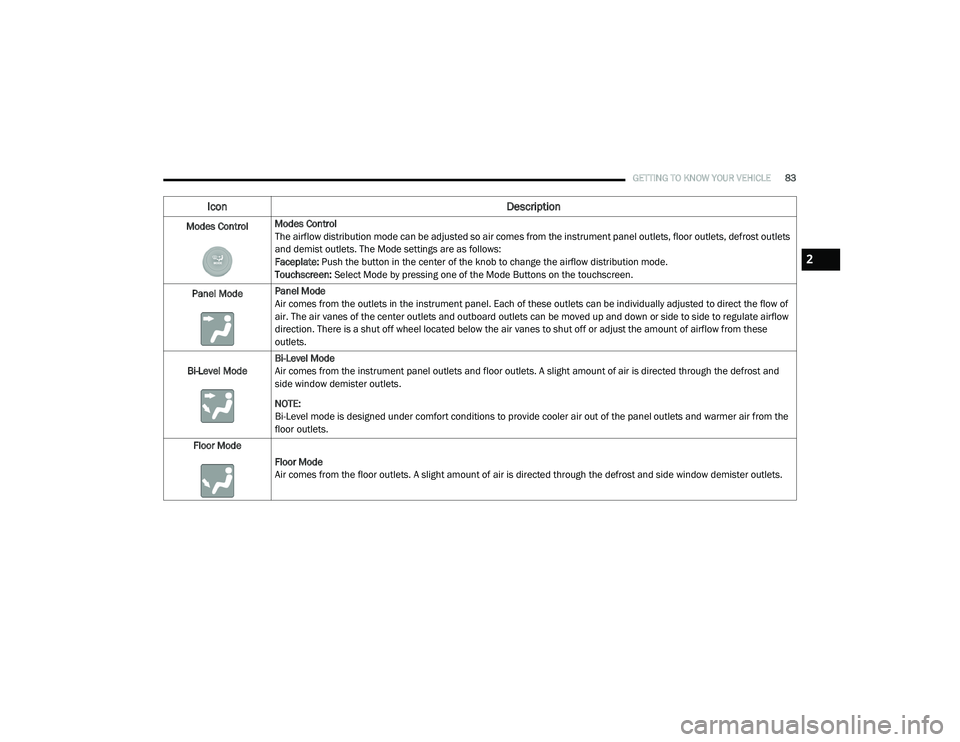

Modes ControlModes Control
The airflow distribution mode can be adjusted so air comes from the instrument panel outlets, floor outlets, defrost outlets
and demist outlets. The Mode settings are as follows:
Faceplate: Push the button in the center of the knob to change the airflow distribution mode.
Touchscreen:
Select Mode by pressing one of the Mode Buttons on the touchscreen.
Panel Mode Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually adjusted to direct the flow of
air. The air vanes of the center outlets and outboard outlets can be moved up and down or side to side to regulate airflow
direction. There is a shut off wheel located below the air vanes to shut off or adjust the amount of airflow from these
outlets.
Bi-Level Mode Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed through the defrost and
side window demister outlets.
NOTE:
Bi-Level mode is designed under comfort conditions to provide cooler air out of the panel outlets and warmer air from the
floor outlets.
Floor Mode
Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side window demister outlets.
Icon Description
2

20_RU_OM_EN_US_t.book Page 83

84GETTING TO KNOW YOUR VEHICLE
Controlling The Rear Climate Controls From
The Front ATC Panel—If Equipped
The Three-Zone Automatic Temperature Control
(ATC) system allows for adjustment of the rear
climate controls from the front ATC panel.
To change the rear system settings:
Press the "Rear Climate" button on the touch -
screen to change control to rear control
mode, the rear display appears. Control func -
tions now operate rear system.
To return to the Front screen on the Uconnect
system, press the "Front Climate" or “Done”
button on the touchscreen.

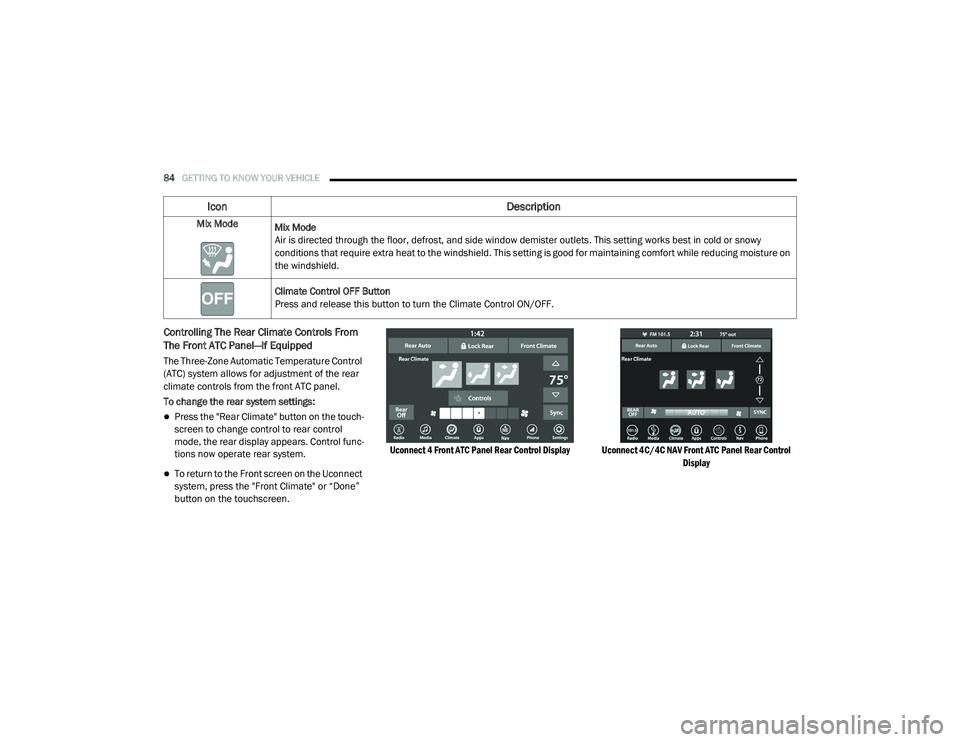

Uconnect 4 Front ATC Panel Rear Control Display Uconnect 4C/4C NAV Front ATC Panel Rear Control
Display

Mix Mode
Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works best in cold or snowy
conditions that require extra heat to the windshield. This setting is good for maintaining comfort while reducing moisture on
the windshield.
Climate Control OFF Button
Press and release this button to turn the Climate Control ON/OFF.
Icon Description

20_RU_OM_EN_US_t.book Page 84

GETTING TO KNOW YOUR VEHICLE85
Icon Description

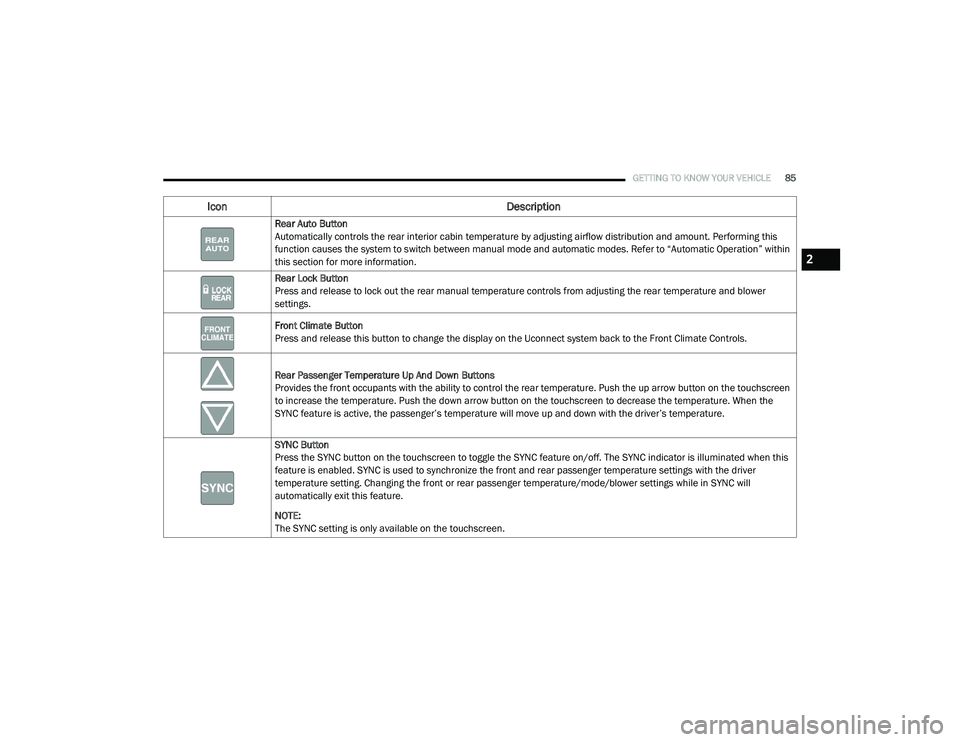

Rear Auto Button
Automatically controls the rear interior cabin temperature by adjusting airflow distribution and amount. Performing this
function causes the system to switch between manual mode and automatic modes. Refer to “Automatic Operation” within
this section for more information.
Rear Lock Button
Press and release to lock out the rear manual temperature controls from adjusting the rear temperature and blower
settings.
Front Climate Button
Press and release this button to change the display on the Uconnect system back to the Front Climate Controls.
Rear Passenger Temperature Up And Down Buttons
Provides the front occupants with the ability to control the rear temperature. Push the up arrow button on the touchscreen
to increase the temperature. Push the down arrow button on the touchscreen to decrease the temperature. When the
SYNC feature is active, the passenger’s temperature will move up and down with the driver’s temperature.
SYNC Button
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indicator is illuminated when this
feature is enabled. SYNC is used to synchronize the front and rear passenger temperature settings with the driver
temperature setting. Changing the front or rear passenger temperature/mode/blower settings while in SYNC will
automatically exit this feature.
NOTE:
The SYNC setting is only available on the touchscreen.
2

20_RU_OM_EN_US_t.book Page 85

86GETTING TO KNOW YOUR VEHICLE

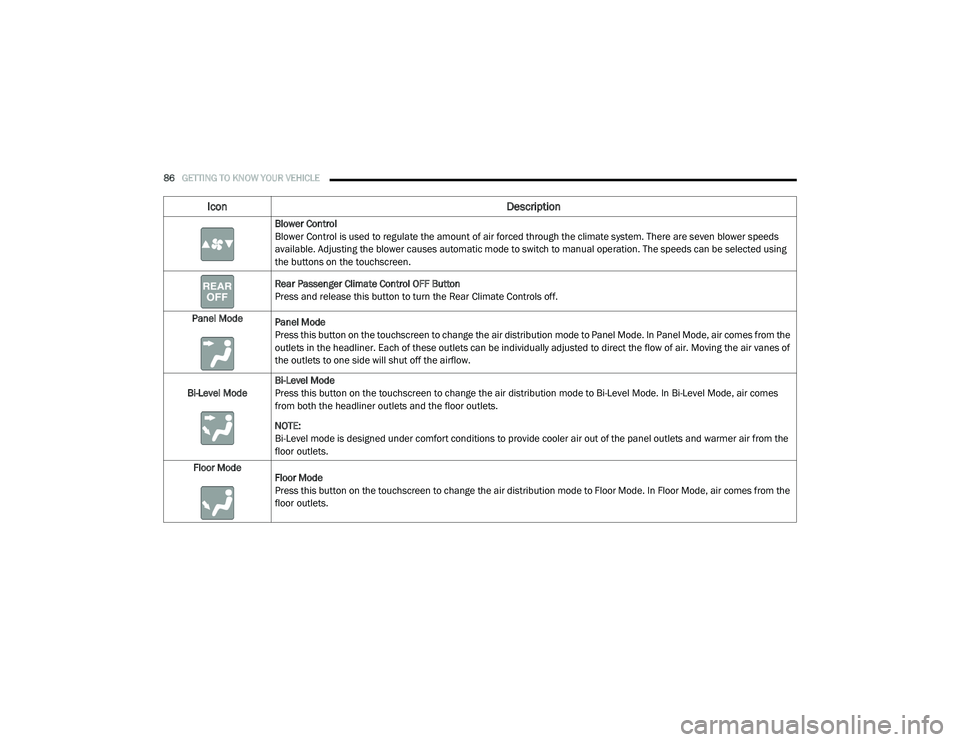

Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There are seven blower speeds
available. Adjusting the blower causes automatic mode to switch to manual operation. The speeds can be selected using
the buttons on the touchscreen.
Rear Passenger Climate Control OFF Button
Press and release this button to turn the Rear Climate Controls off.
Panel Mode Panel Mode
Press this button on the touchscreen to change the air distribution mode to Panel Mode. In Panel Mode, air comes from the
outlets in the headliner. Each of these outlets can be individually adjusted to direct the flow of air. Moving the air vanes of
the outlets to one side will shut off the airflow.
Bi-Level Mode Bi-Level Mode
Press this button on the touchscreen to change the air distribution mode to Bi-Level Mode. In Bi-Level Mode, air comes
from both the headliner outlets and the floor outlets.
NOTE:
Bi-Level mode is designed under comfort conditions to provide cooler air out of the panel outlets and warmer air from the
floor outlets.
Floor Mode Floor Mode
Press this button on the touchscreen to change the air distribution mode to Floor Mode. In Floor Mode, air comes from the
floor outlets.
Icon Description

20_RU_OM_EN_US_t.book Page 86

GETTING TO KNOW YOUR VEHICLE87
Rear Automatic Temperature Control (ATC) —
If Equipped
The rear Automatic Temperature Control (ATC)
system has floor air outlets underneath the
passengers’ seats, and overhead outlets at
each outboard rear seating position. The
system provides heated air through the floor
outlets or cool, dehumidified air through the
headliner outlets.
Rear second row occupants can only adjust the
rear ATC control when the Rear Temperature
Lock button is turned off.
The rear ATC system is located in the headliner,
on the passenger side of the vehicle.

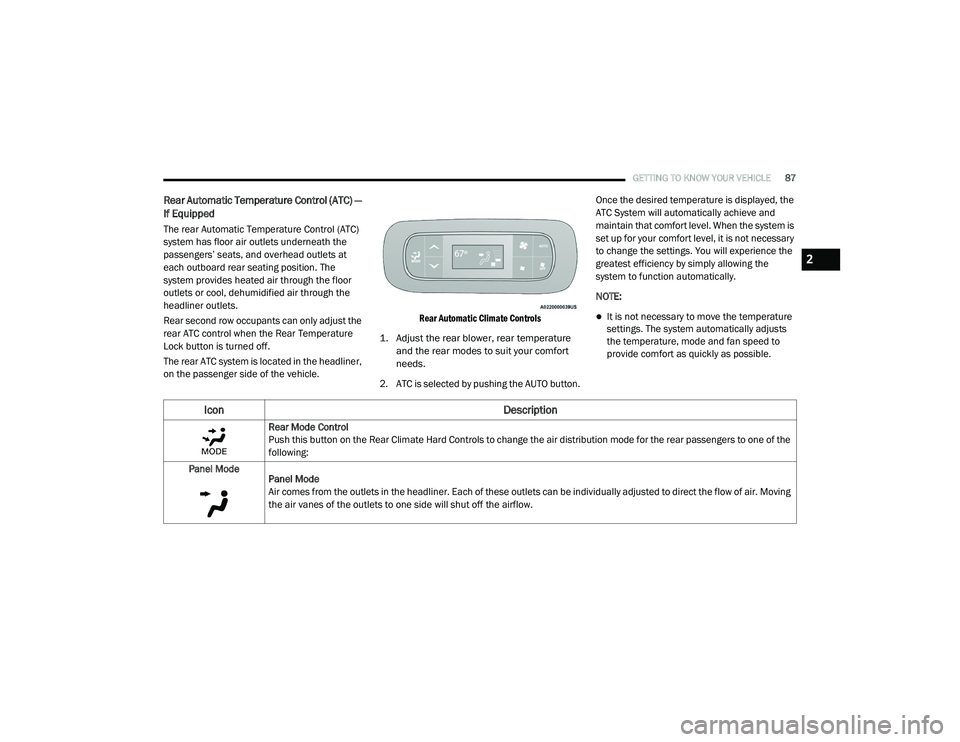

Rear Automatic Climate Controls

1. Adjust the rear blower, rear temperature and the rear modes to suit your comfort
needs.

2. ATC is selected by pushing the AUTO button. Once the desired temperature is displayed, the
ATC System will automatically achieve and
maintain that comfort level. When the system is
set up for your comfort level, it is not necessary
to change the settings. You will experience the
greatest efficiency by simply allowing the
system to function automatically.
NOTE:
It is not necessary to move the temperature
settings. The system automatically adjusts
the temperature, mode and fan speed to
provide comfort as quickly as possible.
Icon
Description
Rear Mode Control
Push this button on the Rear Climate Hard Controls to change the air distribution mode for the rear passengers to one of the
following:
Panel Mode Panel Mode
Air comes from the outlets in the headliner. Each of these outlets can be individually adjusted to direct the flow of air. Moving
the air vanes of the outlets to one side will shut off the airflow.
2

20_RU_OM_EN_US_t.book Page 87

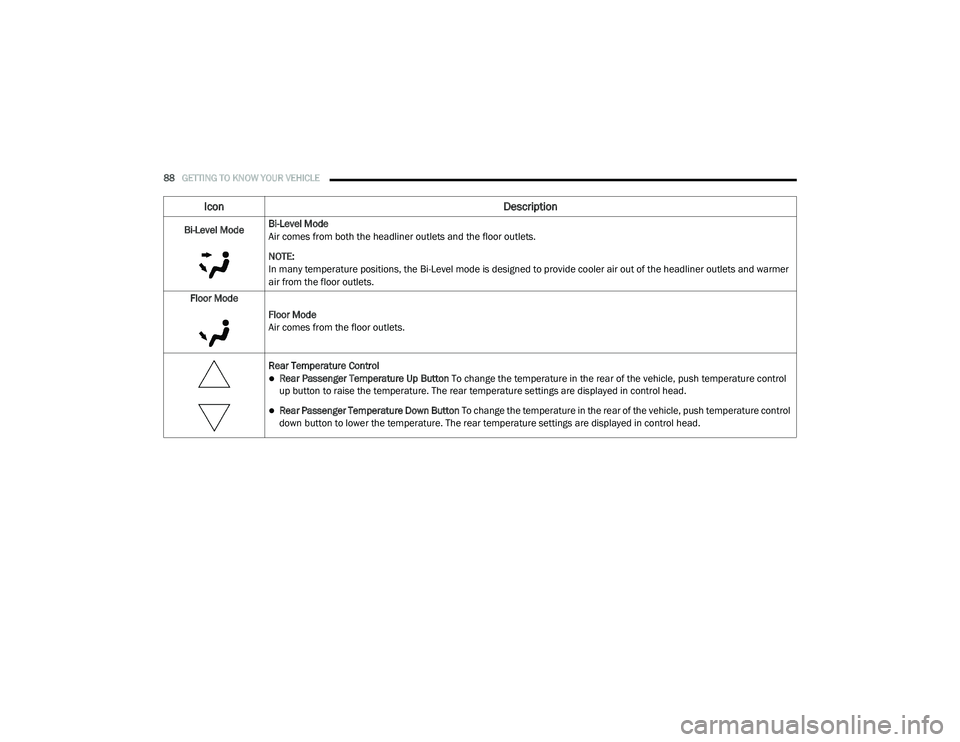

88GETTING TO KNOW YOUR VEHICLE
Bi-Level ModeBi-Level Mode
Air comes from both the headliner outlets and the floor outlets.
NOTE:
In many temperature positions, the Bi-Level mode is designed to provide cooler air out of the headliner outlets and warmer
air from the floor outlets.
Floor Mode
Floor Mode
Air comes from the floor outlets.
Rear Temperature Control
Rear Passenger Temperature Up Button To change the temperature in the rear of the vehicle, push temperature control
up button to raise the temperature. The rear temperature settings are displayed in control head.
Rear Passenger Temperature Down Button To change the temperature in the rear of the vehicle, push temperature control
down button to lower the temperature. The rear temperature settings are displayed in control head.
Icon Description

20_RU_OM_EN_US_t.book Page 88
