Windshield Wiper Operation
Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.
Windshield Washers
To use the washer, pull the lever rearward toward you and
hold while spray is desired. If the lever is pulled while on
the intermittent setting, the wipers will turn on and operate
for several wipe cycles after the lever is released, and then
resume the intermittent interval previously selected. If the
lever is pulled while the wipers are in the off position, the
wipers will operate several wipe cycles, then turn off.
Mist Feature
Use the Mist feature when weather conditions make occa-
sional usage of the wipers necessary. Push the lever up-
ward to the Mist position and release for a single wiping
cycle.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Rear Wiper And Washer
Rear Windshield Wiper Operation
Rotate the windshield wiper lever center ring upwards to
operate one of two modes for the rear window wiper:
• First detent — intermittent mode.
• Second detent — continuous mode.
Rear Windshield Washer Operation
Pushing the windshield wiper lever forward activates the
rear window washer. If the lever is pushed while on the
intermittent setting, the wipers will turn on and operate for
several wipe cycles after the lever is released, and then
resume the intermittent interval previously selected. If the
lever is pushed while the wipers are in the off position, the
wipers will operate several wipe cycles, then turn off.
Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and auto-
matically activates the wipers for the driver. This feature is
especially useful for road splash or overspray from the
windshield washers of the vehicle ahead. Rotate the end of
the multifunction lever to one of the four intermittent
wiper sensitivity settings to activate this feature.
102 GETTING TO KNOW YOUR VEHICLE
Page 182 of 592
LaneSense Failure Indicator Light — If Equipped
Yellow TelltaleLight What It Means
LaneSense Failure Indicator Light
This light will turn on when the LaneSense system is not operating and needs service. Please see
your authorized dealer.
Low Fuel Warning Light
Yellow Telltale
Light What It Means
Low Fuel Indicator Light
When the fuel level reaches approximately 2.4 gal (9.1 L) this light will turn on, and remain on
until fuel is added.
Low Washer Fluid Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Low Washer Fluid Indicator Light — If Equipped
This indicator will illuminate when the windshield washer fluid is low.
180 GETTING TO KNOW YOUR INSTRUMENT PANEL
Page 429 of 592
SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................429
▫ Maintenance Plan ...................... .430
▫ Heavy Duty Use Of The Vehicle ............432
ENGINE COMPARTMENT — HYBRID ........433
▫ Checking Oil Level .....................434
▫ Adding Washer Fluid ...................434
▫ Maintenance-Free Battery .................435
DEALER SERVICE ...................... .436
▫ Engine Oil .......................... .436
▫ Engine Oil Filter ...................... .438
▫ Engine Air Cleaner Filter .................438
▫ Accessory Drive Belt Inspection ............439
▫ Air Conditioner Maintenance ..............440
▫ Body Lubrication ..................... .441▫
Windshield Wiper Blades .................441
▫ Exhaust System ....................... .446
▫ Cooling System ....................... .447
▫ Brake System ........................ .453
▫ Automatic Transmission ..................454
RAISING THE VEHICLE ..................455
TIRES ............................... .455
▫ Tire Safety Information ..................455
▫ Tires — General Information ..............463
▫ Tire Types ........................... .469
▫ Spare Tires — If Equipped ................470
▫ Wheel And Wheel Trim Care ..............472
▫ T
ire Chains (Traction Devices) .............474
▫ Tire Rotation Recommendations ............475
8
Page 431 of 592
SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, or extremely hot or cold ambient
temperatures will influence when the “Oil Change Re-
quired” message is displayed. Severe Operating Condi-
tions can cause the change oil message to illuminate as
early as 3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next
500 miles (805 km).
NOTE:Even though the vehicle may not have been driven,
both the fuel in the tank and oil in the engine will still
degrade over time. Additionally, there will be a notification
to the driver if the engine is being run to maintain the oil
and fuel systems.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by referring to “Vehicle Info” in “Instrument Cluster Display”
in “Getting To Know Your Instrument Panel”.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or 350
hours of engine run time, whichever comes first. The 350
hours of engine run or idle time is generally only a concern
for fleet customers.
Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns on.
• Check the fluid levels of the coolant reservoir and brake
master cylinder, fill as needed.
• Check function of all interior and exterior lights.
Required Maintenance Intervals
Refer to the maintenance schedules on the following page
for the required maintenance intervals.
8
SERVICING AND MAINTENANCE 429
Page 435 of 592
ENGINE COMPARTMENT — HYBRID
1 — Battery Coolant Reservoir*6 — Power Distribution Center (Fuses)
2 — Engine Coolant Reservoir 7 — Engine Air Cleaner
3 — Engine Oil Fill 8 — Engine Oil Dipstick
4 — Brake Fluid Reservoir 9 — Power Electronics Coolant Reservoir*
5 — Remote Jump Start Positive Terminal 10 — Washer Fluid Reservoir
* See your authorized dealer for service.
8
SERVICING AND MAINTENANCE 433
Page 436 of 592
Checking Oil Level
To assure proper engine lubrication, the engine oil must be
maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after a fully
warmed engine is shut OFF.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Maintain the
oil level between the MIN and MAX markings on the
dipstick. Adding one quart of oil when the reading is at the
MIN mark will result in a MAX reading on these engines.
CAUTION!
Overfilling or underfilling will cause oil aeration, or
loss of oil pressure. This could damage your engine.
Adding Washer Fluid
The fluid reservoir is located in the front of the engine
compartment. Be sure to check the fluid level in the
reservoir at regular intervals. Fill the reservoir with wind-
shield washer solvent (not radiator antifreeze) and operate
the system for a few seconds to flush out the residual
washer fluid.
When refilling the washer fluid reservoir, take some
washer fluid, apply it to a cloth or towel, and wipe clean
the wiper blades; this will help blade performance.
Windshield Washer Fluid Cap
434 SERVICING AND MAINTENANCE
Page 437 of 592

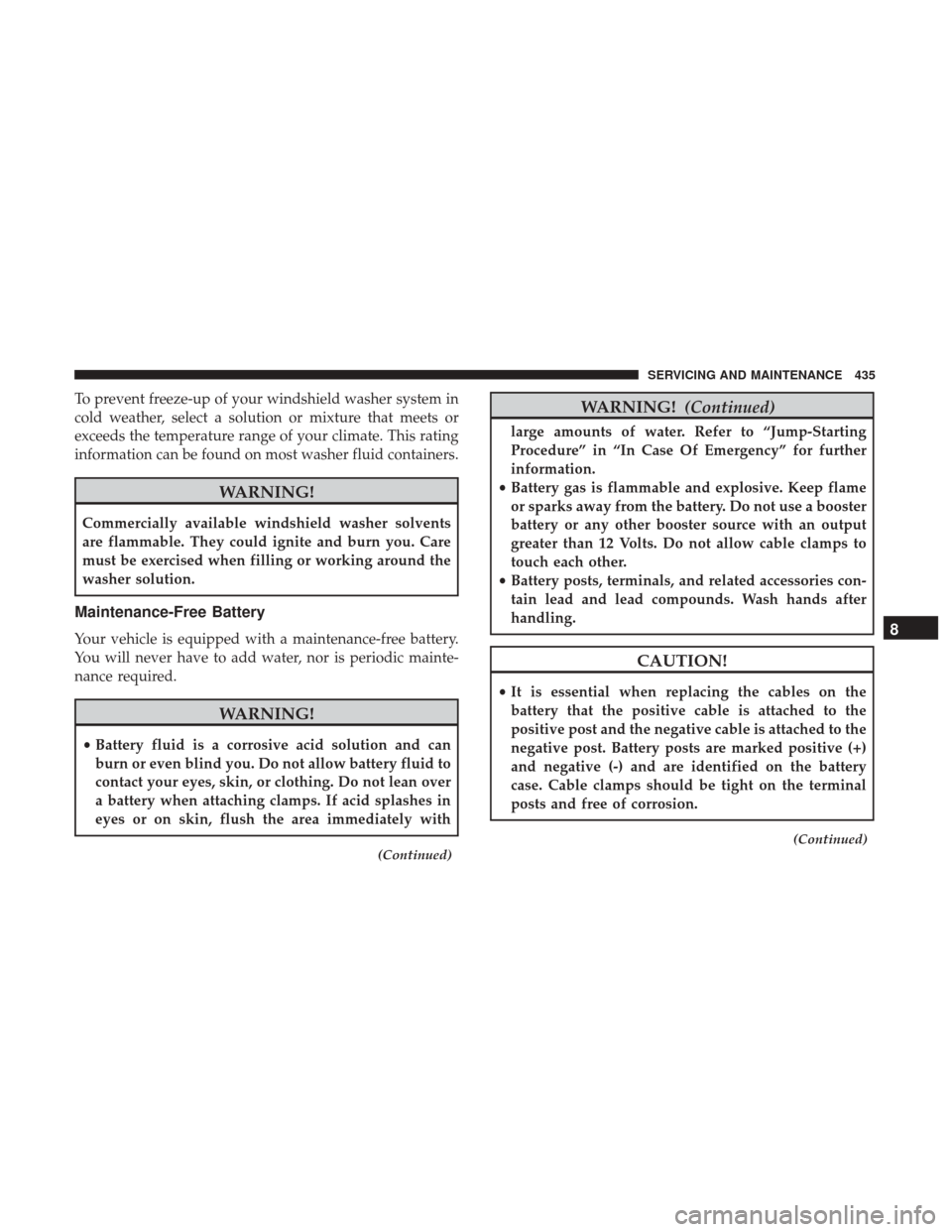

To prevent freeze-up of your windshield washer system in
cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This rating
information can be found on most washer fluid containers.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around the
washer solution.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic mainte-
nance required.
WARNING!
•Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid to
contact your eyes, skin, or clothing. Do not lean over
a battery when attaching clamps. If acid splashes in
eyes or on skin, flush the area immediately with
(Continued)
WARNING! (Continued)
large amounts of water. Refer to “Jump-Starting
Procedure” in “In Case Of Emergency” for further
information.
• Battery gas is flammable and explosive. Keep flame
or sparks away from the battery. Do not use a booster
battery or any other booster source with an output
greater than 12 Volts. Do not allow cable clamps to
touch each other.
• Battery posts, terminals, and related accessories con-
tain lead and lead compounds. Wash hands after
handling.
CAUTION!
• It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to the
negative post. Battery posts are marked positive (+)
and negative (-) and are identified on the battery
case. Cable clamps should be tight on the terminal
posts and free of corrosion.
(Continued)
8
SERVICING AND MAINTENANCE 435
Page 443 of 592
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
MOPAR Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
The wiper blades and wiper arms should be inspected
periodically, not just when wiper performance problems
are experienced. This inspection should include the follow-
ing points:
• Wear Or Uneven Edges
• Foreign Material
• Hardening Or Cracking
• Deformation Or Fatigue
8
SERVICING AND MAINTENANCE 441
Page 582 of 592
FlashersHazard Warning ........................ .386
Turn Signal ..................... .185, 278, 395
Flash-To-Pass ..............................97
Fluid, Brake ............................. .492
Fluid Capacities ........................... .489
Fluid Leaks .............................. .278
Fluid Level Checks Brake ................................ .453
Fog Lights ............................ .96, 396
Fog Light Service .......................... .396
Forward Collision Warning ....................210
Freeing A Stuck Vehicle ..................... .422
Front Position Light ........................ .396
Fuel ................................... .486
Additives ............................. .486
Clean Air ............................. .486
Ethanol .............................. .487
Filler Cap (Gas Cap) ..................... .374
Gasoline .............................. .486
Light ................................ .180
Materials Added ........................ .486
Methanol ............................. .487
Octane Rating ....................... .486, 490
Requirements .......................... .486Specifications
.......................... .490
Tank Capacity .......................... .489
Gas Cap (Fuel Filler Cap) .....................374
Gasoline, Clean Air ........................ .486
Gasoline, Reformulated ..................... .486
Glass Cleaning ........................... .482
GVWR ................................. .378
Hazard Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .382
Hazard Warning Flasher ..................... .386
Headlights Bulb Replacement ....................... .394
Cleaning .............................. .478
Lights
On Reminder .......................95
Passing ................................97
Replacing ............................. .394
Time Delay ..............................95
Washers ................................94
Head Restraints ............................84
Heated Mirrors .............................91
High Beam/Low Beam Select (Dimmer) Switch ......97
Hill Start Assist ........................... .201
580 INDEX
Page 590 of 592
Wheel And Wheel Trim Care..................472
Wind Buffeting ........................... .125
Window Fogging ...........................118
Windshield Defroster ....................... .276
Windshield Washers .....................101, 434
Fluid ................................ .434
Windshield Wiper Blades .....................441
Wiper Blade Replacement .....................441
Wipers, Intermittent ........................ .101
Wrecker Towing .......................... .423
588 INDEX
