2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, a chime will
sound and the TPM Telltale Light will turn ON due to the
low tire.
3. After driving the vehicle for up to 10 minutes above 15
mph (25 km/h), the TPM Telltale Light will flash on and
off for 75 seconds and then remain on solid.
4. For each subsequent ignition key cycle, a chime will
sound and the TPM Telltale Light will flash on and off for
75 seconds and then remain on solid.
5. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically and the TPM Telltale
Light will turn OFF, as long no tire pressure is below the
low-pressure warning limit in any of the four active roadtires. The vehicle may need to be driven for up to 10
minutes above 15 mph (25 km/h) in order for the TPMS
to receive this information.
GENERAL INFORMATIONThis device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:•
This device may not cause harmful interference.
•
This device must accept any interference received,
including interference that may cause undesired op-
eration.
The tire pressure sensors are covered under one of the
following licenses:
United States ..................... KR5S120123
Canada ........................ 2671-S120123
336 STARTING AND OPERATING

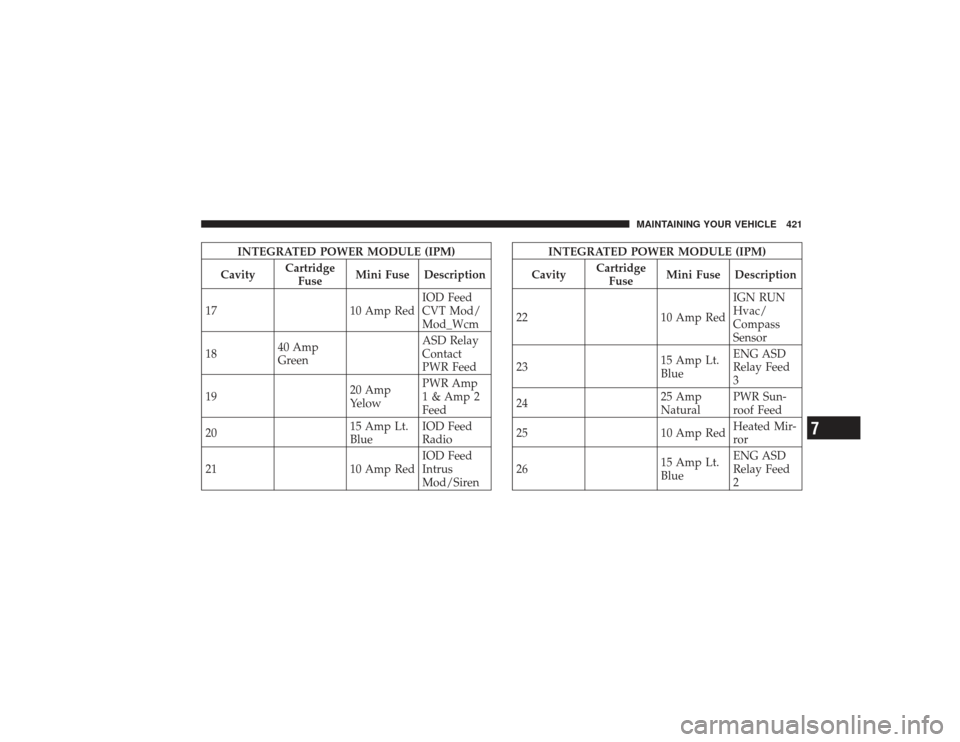

INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
17 10 Amp Red IOD Feed
CVT Mod/
Mod_Wcm
18 40 Amp
Green ASD Relay
Contact
PWR Feed
19 20 Amp
YelowPWR Amp
1 & Amp 2
Feed
20 15 Amp Lt.
BlueIOD Feed
Radio
21 10 Amp RedIOD Feed
Intrus
Mod/Siren
INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
22 10 Amp Red IGN RUN
Hvac/
Compass
Sensor
23 15 Amp Lt.
BlueENG ASD
Relay Feed
3
24 25 Amp
NaturalPWR Sun-
roof Feed
25 10 Amp RedHeated Mir-
ror
26 15 Amp Lt.
BlueENG ASD
Relay Feed
2
