Your phone must be turned on and paired to the
UConnect™ system to allow use of this vehicle feature in
emergency situations when the cell phone has network
coverage and stays paired to the UConnect™ system.Towing AssistanceIf you need towing assistance,•
Press the ’Phone’ button to begin.
•
After theReadyprompt and the following beep, say
Towing Assistance.
NOTE: The Towing Assistance number dialed is based
on the Country where the vehicle is purchased (1-800-
528-2069 for USA, 1-877-213-4525 for Canada, 55-14-3454
for Mexico city and 1-800-712-3040 for outside Mexico
city in Mexico).
Please refer to the 24-Hour “Towing Assistance” cover-
age details in the Warranty information booklet and on
the 24–Hour Towing Assistance Card.
PagingTo learn how to page, refer to Working with Automated
Systems. Paging works properly except for pagers of
certain companies which time-out a little too soon to
work properly with the UConnect™ system.Voice Mail CallingTo learn how to access your voice mail, refer to Working
with Automated Systems.Working with Automated SystemsThis method is designed to be used in instances where
one generally has to press numbers on the cellular phone
keypad while navigating through an automated tele-
phone system.
You can use your UConnect™ system to access a voice-
mail system or an automated service, such as, paging
service or automated customer service. Some services
require immediate response selection, in some instances,
that may be too quick for use of UConnect™ system.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

When calling a number with your UConnect™ system
that normally requires you to enter in a touch-tone
sequence on your cellular phone keypad, you can push
the ’Voice Recognition’ button and say the sequence you
wish to enter followed by the wordSend.For example,
if required to enter your pin number followed with a
pound3746#,youcanpressthe’V oice Recognition’
button and say 3746#Send. Saying a number, or
sequence of numbers, followed by Sendis also to be
used to navigate through an automated customer service
center menu structure and to leave a number on a pager.Barge In - Overriding PromptsThe ’Voice Recognition’ button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is playing Would you like to pair a phone, clear
a, you could press the ’Voice Recognition’ button and
say Pair a Phone to select that option without having to
listen to the rest of the voice prompt.
Turning Confirmation Prompts On/OffTurning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnect™
system will not repeat a phone number before you dial
it).•
Press the ’Phone’ button to begin.
•
After the Readyprompt and the following beep, say
Setup Confirmations. The UConnect™ system will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status IndicatorsIf available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnect™ system will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect™. The status is given for roaming net-
work signal strength, phone battery strength, etc.
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Dialing Using the Cellular Phone KeypadYou can dial a phone number with your cellular phone
keypad and still use the UConnect™ system (while
dialing via the cell phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetooth™ cellular
phone, the audio will be played through your vehicle’s
audio system. The UConnect™ system will work the
same as if you dial the number using voice recognition.
NOTE:Certain brands of mobile phones do not send the
dial ring to the UConnect™ system to play it on the
vehicle audio system, so you will not hear it. Under this
situation, after successfully dialing a number, the user
may feel that the call did not go through even though the
call is in progress. Once your call is answered, you will
hear the audio.
Mute/Un-mute (Mute off)When you mute the UConnect™ system, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the UConnect™ system:•
Press the ’Voice Recognition’ button.
•
After the Readyprompt and the following beep, say
Mute.
In order to un-mute the UConnect™ system:
•
Press the ’Voice Recognition’ button.
•
After the Readyprompt and the following beep, say
Mute-off.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

•
In a convertible vehicle, the system performance may
be compromised with roof top down.
•
Performance, such as audio clarity, echo, and loudness
to a large degree rely on the phone and network, and
not the UConnect™ system.
•
Echo at far end can sometime be reduced by lowering
the in-vehicle audio volume.
Bluetooth Communication LinkOccasionally, Cellular phones have been found to lose
connection to the UConnect™ system. When this hap-
pens, the connection can generally be re-established by
switching the phone off/on. Your cell phone is recom-
mended to remain in Bluetoothonmode.Power-UpAfter switching the ignition key from OFF to either ON
or ACC position, or after a reset, you must wait at least
five (5) seconds prior to using the system.
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

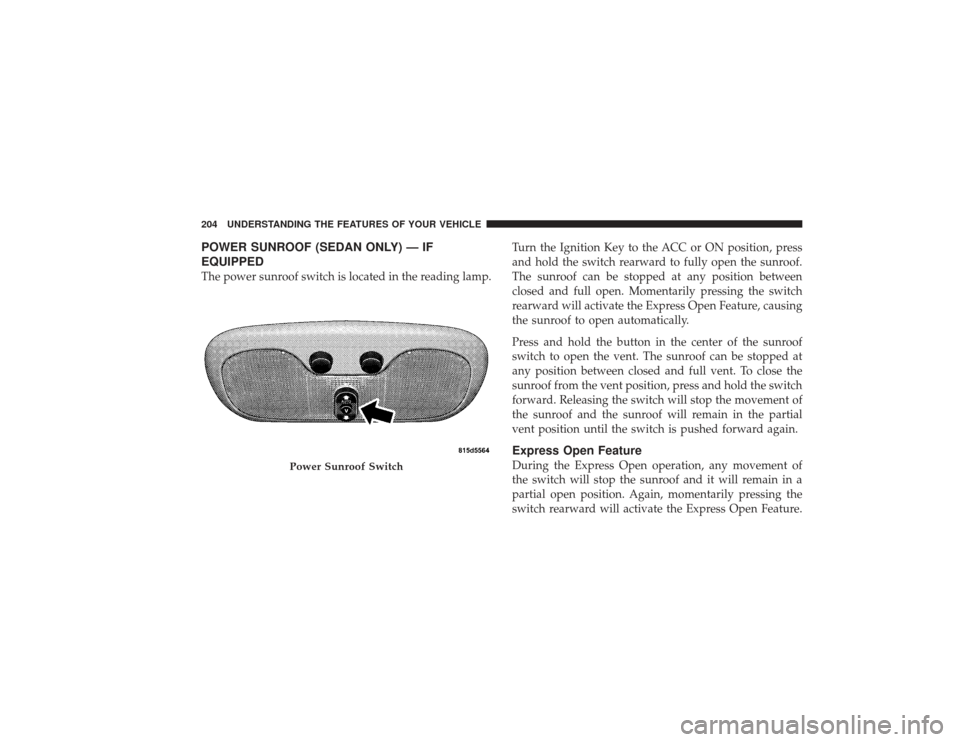

POWER SUNROOF (SEDAN ONLY) — IF
EQUIPPEDThe power sunroof switch is located in the reading lamp.Turn the Ignition Key to the ACC or ON position, press
and hold the switch rearward to fully open the sunroof.
The sunroof can be stopped at any position between
closed and full open. Momentarily pressing the switch
rearward will activate the Express Open Feature, causing
the sunroof to open automatically.
Press and hold the button in the center of the sunroof
switch to open the vent. The sunroof can be stopped at
any position between closed and full vent. To close the
sunroof from the vent position, press and hold the switch
forward. Releasing the switch will stop the movement of
the sunroof and the sunroof will remain in the partial
vent position until the switch is pushed forward again.
Express Open FeatureDuring the Express Open operation, any movement of
the switch will stop the sunroof and it will remain in a
partial open position. Again, momentarily pressing the
switch rearward will activate the Express Open Feature.
Power Sunroof Switch
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

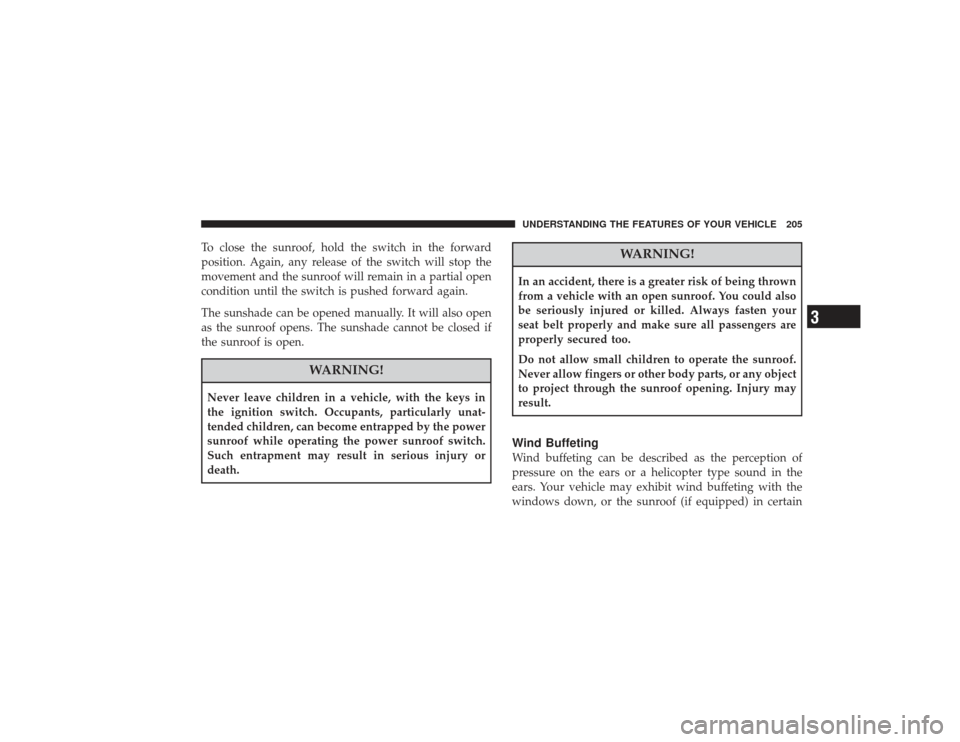

To close the sunroof, hold the switch in the forward
position. Again, any release of the switch will stop the
movement and the sunroof will remain in a partial open
condition until the switch is pushed forward again.
The sunshade can be opened manually. It will also open
as the sunroof opens. The sunshade cannot be closed if
the sunroof is open.
WARNING!
Never leave children in a vehicle, with the keys in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the power
sunroof while operating the power sunroof switch.
Such entrapment may result in serious injury or
death.
WARNING!
In an accident, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could also
be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are
properly secured too.
Do not allow small children to operate the sunroof.
Never allow fingers or other body parts, or any object
to project through the sunroof opening. Injury may
result.Wind BuffetingWind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certainUNDERSTANDING THE FEATURES OF YOUR VEHICLE 205
3

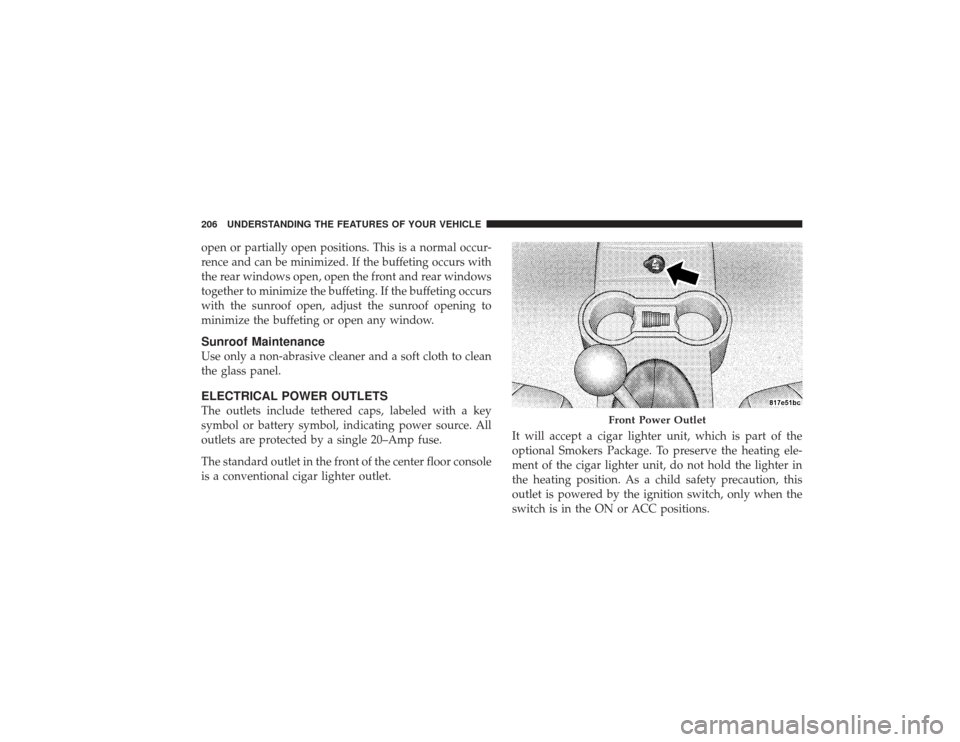

open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.Sunroof MaintenanceUse only a non-abrasive cleaner and a soft cloth to clean
the glass panel.ELECTRICAL POWER OUTLETSThe outlets include tethered caps, labeled with a key
symbol or battery symbol, indicating power source. All
outlets are protected by a single 20–Amp fuse.
The standard outlet in the front of the center floor console
is a conventional cigar lighter outlet.It will accept a cigar lighter unit, which is part of the
optional Smokers Package. To preserve the heating ele-
ment of the cigar lighter unit, do not hold the lighter in
the heating position. As a child safety precaution, this
outlet is powered by the ignition switch, only when the
switch is in the ON or ACC positions.
Front Power Outlet
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

8. Odometer/Trip Odometer
A vacuum fluorescent display indicates the total distance
the vehicle has been driven. Also, the cluster will display,
replacing the odometer/trip odometer, vehicle warning
messages such as: door/deck/hatch/gate ajar and loose
gas cap. Loose gas cap will be displayed from the
Odometer/Trip Odometer on all models.
NOTE:If vehicle is equipped with the optional Elec-
tronic Vehicle Information Center (EVIC) in the instru-
ment cluster, all warnings including “door”, “dECK”,
“hATCh”, and “gATE” will only be displayed in the
EVIC display. For additional information, refer to “Elec-
tronic Vehicle Information Center — If Equipped” in
Section 3.
U.S. federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. There-
fore, if the odometer reading is changed during repair or replacement, be sure to keep a record of the reading
before and after the service so that the correct mileage can
be determined.
9. Cruise Indicator — If Equipped
This indicator shows that the Speed Control
System is ON.
NOTE: The word “SET” will notilluminate when the
Speed Control System is on.
10. Malfunction Indicator Light This light is part of an onboard diagnostic system
called OBD that monitors emissions, engine, and
automatic transmission control systems. The light
will illuminate when the key is in the ON/RUN position
before engine start. If the bulb does not come on when
turning the key from OFF to ON/RUN, have the condi-
tion checked promptly.
UNDERSTANDING YOUR INSTRUMENT PANEL 229
4

will sound 10 times. After the chime turns off, the engine
will still be critically hot until the light goes out.
18. Low Fuel LightWhen the fuel level drops to 2 gallons, the fuel
symbol will light and a single chime will sound.
19. Theft Alarm Light — If Equipped
This light will flash rapidly for several seconds when the
alarm system is arming. The light will begin to flash
slowly indicating that the system is armed.
20. Front Fog Light Indicator — If Equipped This light shows when the front fog lights are ON.
21. Anti-Lock Warning Light (ABS) — If Equipped This light monitors the Anti-Lock Brake System
(ABS) described elsewhere in this manual. This light will come on when the ignition key is turned to the
ON position and may stay on for as long as four seconds.
If the ABS light remains on or comes on during driving,
it indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required, however,
the conventional brake system will continue to operate
normally provided that the BRAKE warning light is not
on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefit of Anti-Lock
Brakes.
The warning light should be checked frequently to assure
that it is operating properly. Turn the ignition key to the
on position, but do not start the vehicle. The light should
come on. If the light does not come on, have the system
checked by an authorized dealer.
UNDERSTANDING YOUR INSTRUMENT PANEL 233
4

When the appropriate conditions exist, the Electronic
Vehicle Information Center (EVIC) displays the following
messages.•
Turn Signal On (with a continuous warning chime)
•
Left Front Turn Signal Lamp Out (with a single chime)
•
Left Rear Turn Signal Lamp Out (with a single chime)
•
Right Front Turn Signal Lamp Out (with a single
chime)
•
Right Rear Turn Signal Lamp Out (with a single
chime)
•
RKE Battery Low (with a single chime)
•
Personal Settings Not Available – Vehicle Not in (au-
tomatic transmissions) or vehicle is in motion (manual
transmissions).
•
Left/Right Front Door Ajar (one or more, with a single
chime if speed is above 1 mph)
•
Left/Right Rear Door Ajar (one or more, with a single
chime if speed is above 1 mph)
•
Door (S) Ajar (with a single chime if vehicle is in
motion)
•
Trunk Ajar (with a single chime)
•
Headlamps On
•
Key In Ignition
UNDERSTANDING YOUR INSTRUMENT PANEL 241
4
