AUX CHRYSLER PT CRUISER 2008 1.G Owners Manual

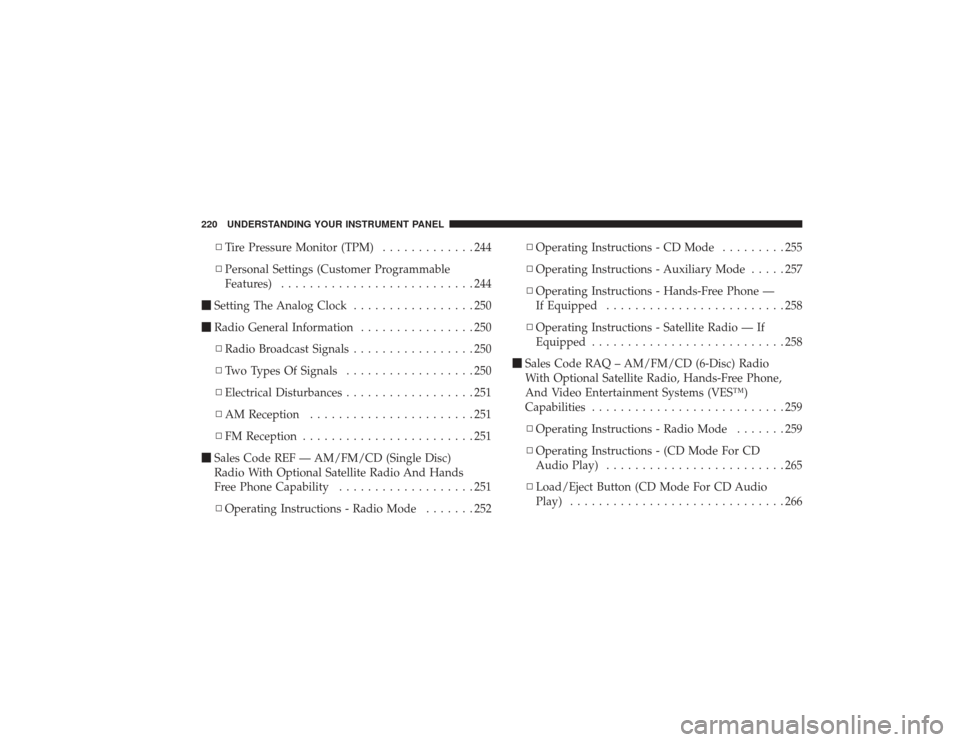

▫Tire Pressure Monitor (TPM) .............244
▫ Personal Settings (Customer Programmable
Features) ...........................244
 Setting The Analog Clock .................250
 Radio General Information ................250
▫ Radio Broadcast Signals .................250
▫ Two Types Of Signals ..................250
▫ Electrical Disturbances ..................251
▫ AM Reception .......................251
▫ FM Reception ........................251
 Sales Code REF — AM/FM/CD (Single Disc)
Radio With Optional Satellite Radio And Hands
Free Phone Capability ...................251
▫ Operating Instructions - Radio Mode .......252▫
Operating Instructions - CD Mode .........255
▫ Operating Instructions - Auxiliary Mode .....257
▫ Operating Instructions - Hands-Free Phone —
If Equipped .........................258
▫ Operating Instructions - Satellite Radio — If
Equipped ...........................258
 Sales Code RAQ – AM/FM/CD (6-Disc) Radio
With Optional Satellite Radio, Hands-Free Phone,
And Video Entertainment Systems (VES™)
Capabilities ...........................259
▫ Operating Instructions - Radio Mode .......259
▫ Operating Instructions - (CD Mode For CD
Audio Play) .........................265
▫ Load/Eject Button (CD Mode For CD Audio
Play) ..............................266
220 UNDERSTANDING YOUR INSTRUMENT PANEL

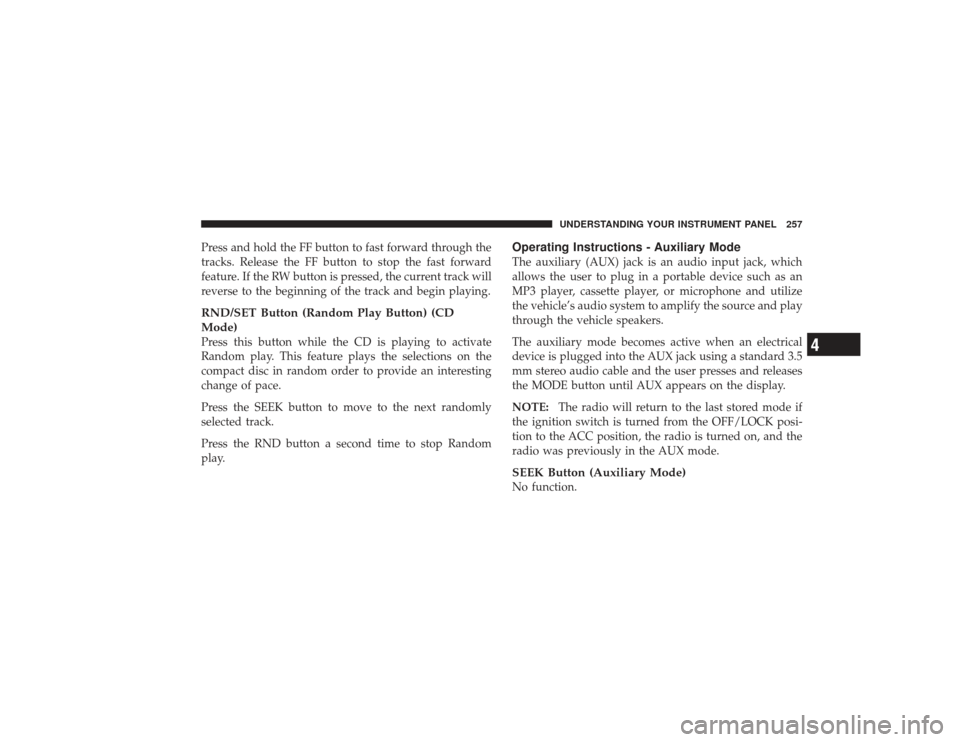

Press and hold the FF button to fast forward through the
tracks. Release the FF button to stop the fast forward
feature. If the RW button is pressed, the current track will
reverse to the beginning of the track and begin playing.RND/SET Button (Random Play Button) (CD
Mode)Press this button while the CD is playing to activate
Random play. This feature plays the selections on the
compact disc in random order to provide an interesting
change of pace.
Press the SEEK button to move to the next randomly
selected track.
Press the RND button a second time to stop Random
play.
Operating Instructions - Auxiliary ModeThe auxiliary (AUX) jack is an audio input jack, which
allows the user to plug in a portable device such as an
MP3 player, cassette player, or microphone and utilize
the vehicle’s audio system to amplify the source and play
through the vehicle speakers.
The auxiliary mode becomes active when an electrical
device is plugged into the AUX jack using a standard 3.5
mm stereo audio cable and the user presses and releases
the MODE button until AUX appears on the display.
NOTE:The radio will return to the last stored mode if
the ignition switch is turned from the OFF/LOCK posi-
tion to the ACC position, the radio is turned on, and the
radio was previously in the AUX mode.SEEK Button (Auxiliary Mode)No function.
UNDERSTANDING YOUR INSTRUMENT PANEL 257
4

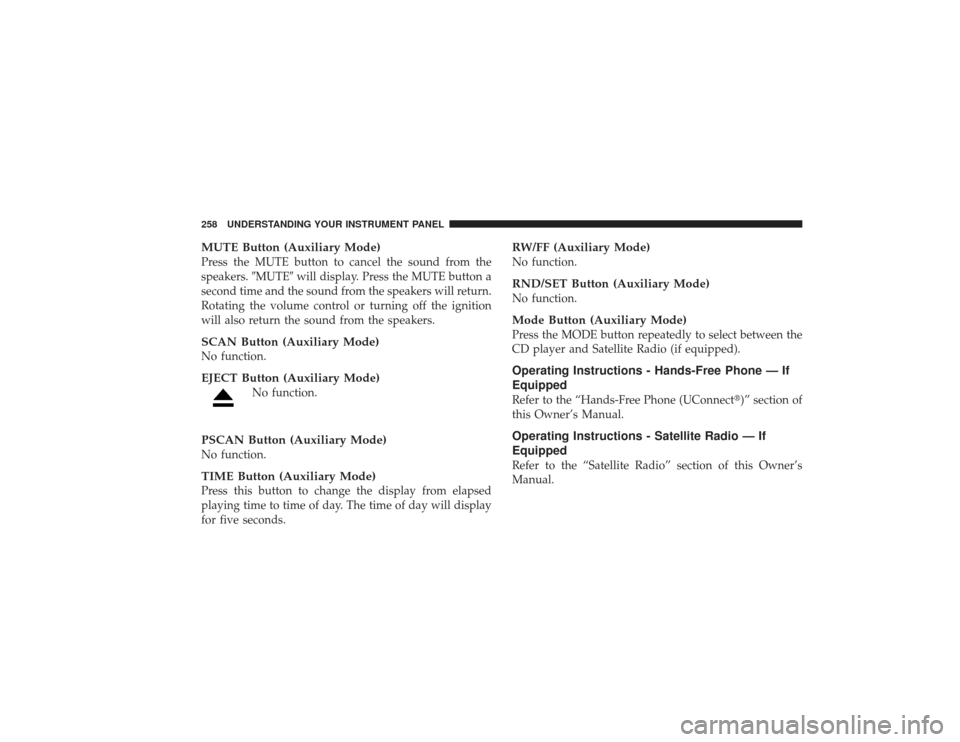

MUTE Button (Auxiliary Mode)Press the MUTE button to cancel the sound from the
speakers.MUTEwill display. Press the MUTE button a
second time and the sound from the speakers will return.
Rotating the volume control or turning off the ignition
will also return the sound from the speakers.SCAN Button (Auxiliary Mode)No function.EJECT Button (Auxiliary Mode)
No function.
PSCAN Button (Auxiliary Mode)No function.TIME Button (Auxiliary Mode)Press this button to change the display from elapsed
playing time to time of day. The time of day will display
for five seconds.
RW/FF (Auxiliary Mode)No function.RND/SET Button (Auxiliary Mode)No function.Mode Button (Auxiliary Mode)Press the MODE button repeatedly to select between the
CD player and Satellite Radio (if equipped).Operating Instructions - Hands-Free Phone — If
EquippedRefer to the “Hands-Free Phone (UConnect)” section of
this Owner’s Manual.Operating Instructions - Satellite Radio — If
EquippedRefer to the “Satellite Radio” section of this Owner’s
Manual.
258 UNDERSTANDING YOUR INSTRUMENT PANEL

Overheating, Engine...................... 358
Owner’s Manual (Operator Manual) .........4,465
Paint Care ............................. 411
Panel Rear Shelf ........................ 210
Panic Alarm .......................... 26,32
Parking Brake .......................... 305
Passenger Seat Back Tilt (Easy Entry System) .... 168
Passing Light ........................... 190
Personal Settings ........................ 244
Pets ............................... 80,114
Phone, Cellular ......................... 138
Phone, Hands-Free (UConnect™) ............ 138
Placard, Tire and Loading Information ......... 317
Power Deck Lid Release ....................... 39
Distribution Center (Fuses) ............... 419
Door Locks ........................... 20
Outlet (Auxiliary Electrical Outlet) .......... 206Seats
............................... 165
Steering .......................... 310,394
Steering, Checking ..................... 394
Sunroof ............................. 204
Windows ............................. 42
Power Steering Fluid .................. 394,431
Pregnant Women and Seat Belts ............54,89
Preparation for Jacking .................... 362
Pretensioners Seat Belts ........................... 53,88
Programmable Electronic Features ............ 244
Programming Transmitters (Remote Keyless
Entry) ............................... 27,33
Radial Ply Tires ......................... 324
Radiator Cap (Coolant Pressure Cap) .......... 400
Radio Broadcast Signals ................... 250
Radio Operation ................... 251,259,277
Radio, Satellite .......................... 273
INDEX 481
