REMOTE KEYLESS ENTRY (SEDAN)This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances a
minimum of 66 feet (20 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.NOTE:
The line of transmission must not be blocked
with metal objects.
TO UNLOCK THE DOORS AND LIFTGATE:Press and release the UNLOCK button on the keyfob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Personal Settings” in the Electronic Vehicle Information
Center (EVIC) section of this manual for details.
NOTE: The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
Three Button Key
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 491

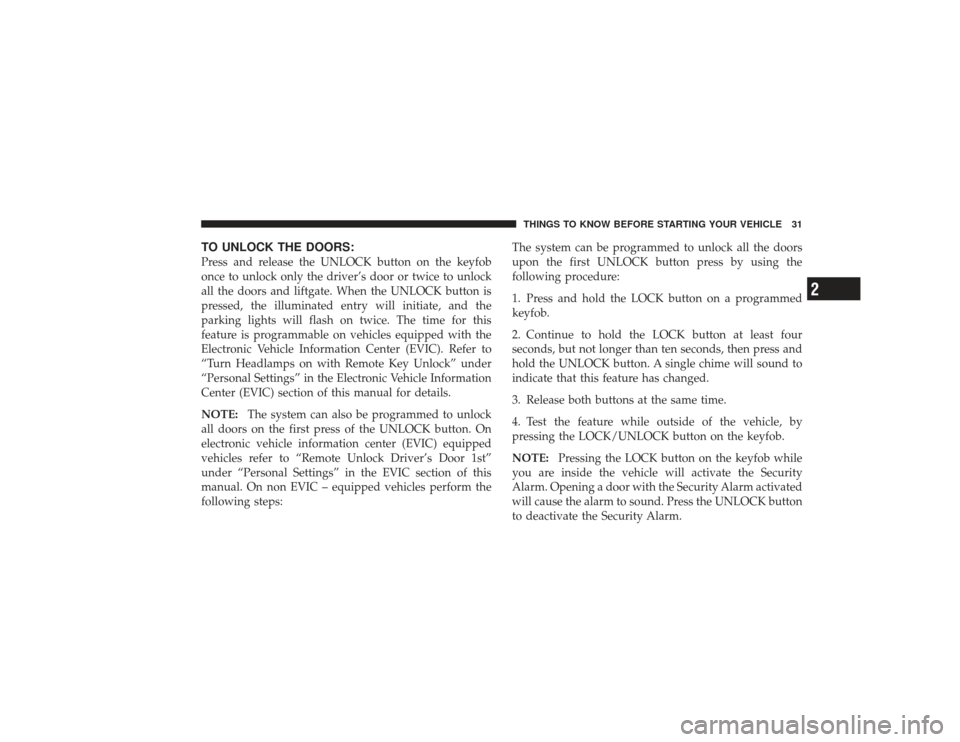

TO UNLOCK THE DOORS:Press and release the UNLOCK button on the keyfob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Personal Settings” in the Electronic Vehicle Information
Center (EVIC) section of this manual for details.
NOTE:The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
under “Personal Settings” in the EVIC section of this
manual. On non EVIC – equipped vehicles perform the
following steps: The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
1. Press and hold the LOCK button on a programmed
keyfob.
2. Continue to hold the LOCK button at least four
seconds, but not longer than ten seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.
NOTE:
Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 188 of 491

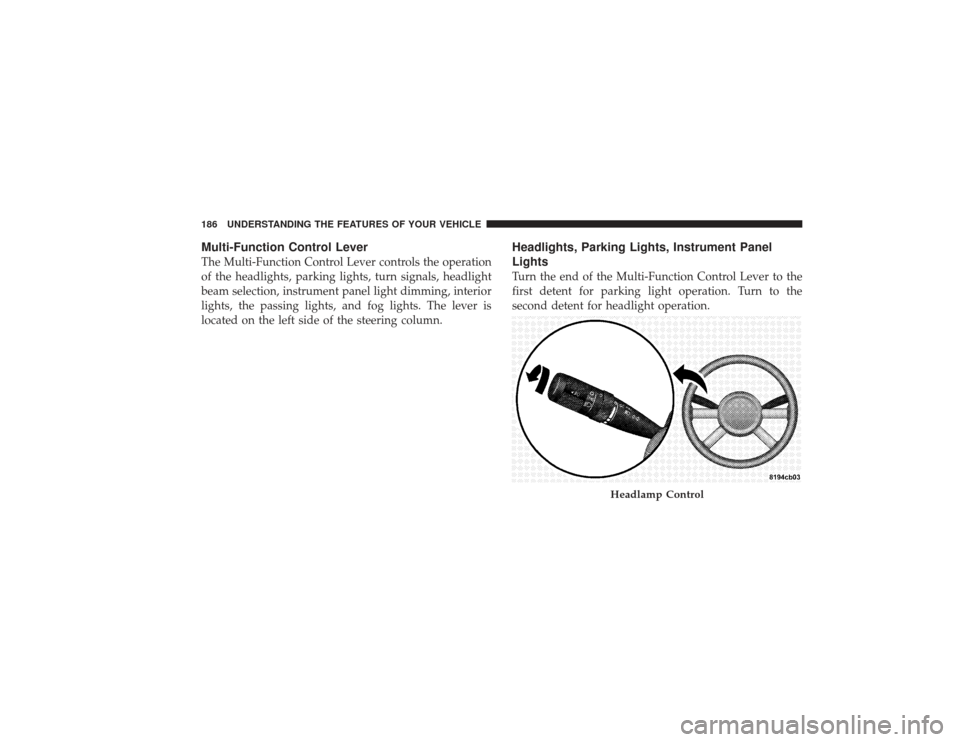

Multi-Function Control LeverThe Multi-Function Control Lever controls the operation
of the headlights, parking lights, turn signals, headlight
beam selection, instrument panel light dimming, interior
lights, the passing lights, and fog lights. The lever is
located on the left side of the steering column.
Headlights, Parking Lights, Instrument Panel
LightsTurn the end of the Multi-Function Control Lever to the
first detent for parking light operation. Turn to the
second detent for headlight operation.
Headlamp Control
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 243 of 491

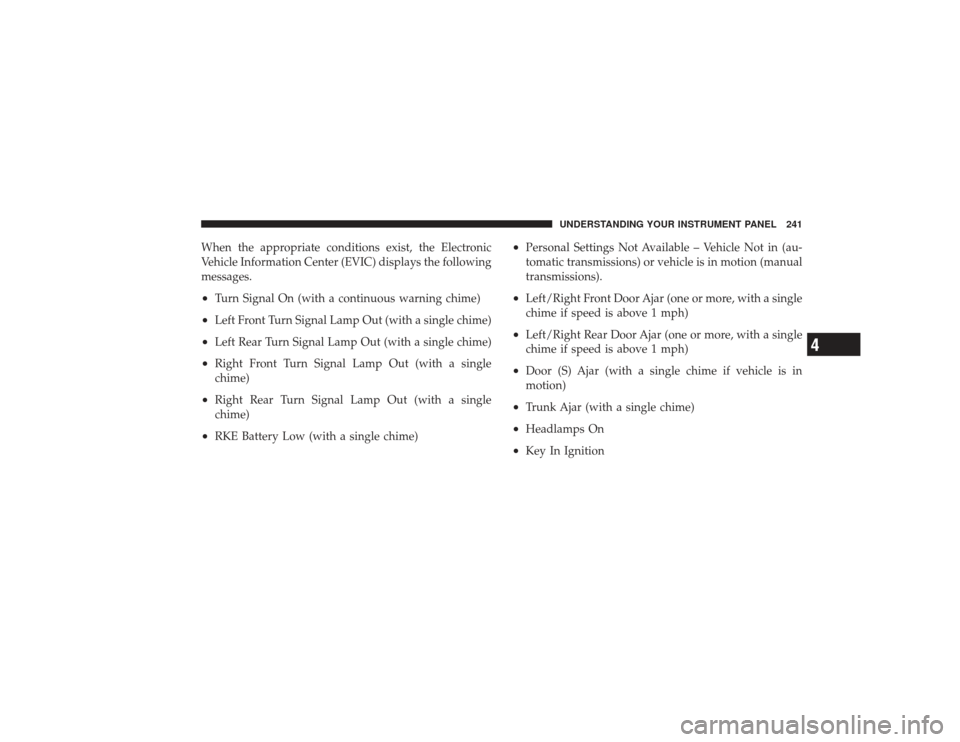

When the appropriate conditions exist, the Electronic
Vehicle Information Center (EVIC) displays the following
messages.•
Turn Signal On (with a continuous warning chime)
•
Left Front Turn Signal Lamp Out (with a single chime)
•
Left Rear Turn Signal Lamp Out (with a single chime)
•
Right Front Turn Signal Lamp Out (with a single
chime)
•
Right Rear Turn Signal Lamp Out (with a single
chime)
•
RKE Battery Low (with a single chime)
•
Personal Settings Not Available – Vehicle Not in (au-
tomatic transmissions) or vehicle is in motion (manual
transmissions).
•
Left/Right Front Door Ajar (one or more, with a single
chime if speed is above 1 mph)
•
Left/Right Rear Door Ajar (one or more, with a single
chime if speed is above 1 mph)
•
Door (S) Ajar (with a single chime if vehicle is in
motion)
•
Trunk Ajar (with a single chime)
•
Headlamps On
•
Key In Ignition
UNDERSTANDING YOUR INSTRUMENT PANEL 241
4
Page 247 of 491

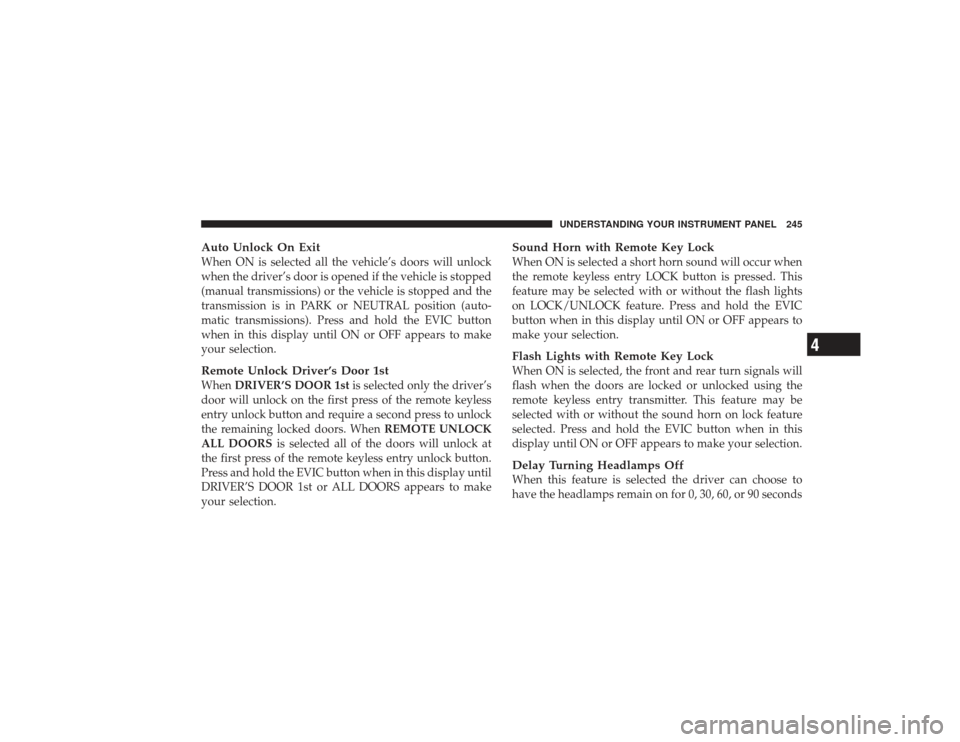

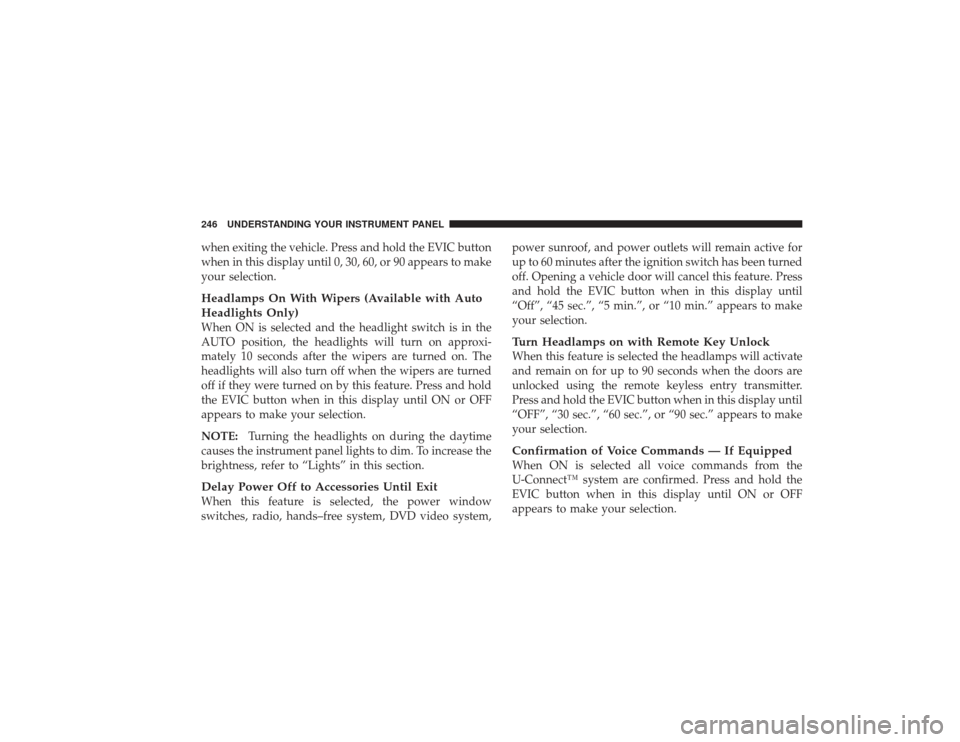

Auto Unlock On ExitWhen ON is selected all the vehicle’s doors will unlock
when the driver’s door is opened if the vehicle is stopped
(manual transmissions) or the vehicle is stopped and the
transmission is in PARK or NEUTRAL position (auto-
matic transmissions). Press and hold the EVIC button
when in this display until ON or OFF appears to make
your selection.Remote Unlock Driver’s Door 1stWhenDRIVER’S DOOR 1st is selected only the driver’s
door will unlock on the first press of the remote keyless
entry unlock button and require a second press to unlock
the remaining locked doors. When REMOTE UNLOCK
ALL DOORS is selected all of the doors will unlock at
the first press of the remote keyless entry unlock button.
Press and hold the EVIC button when in this display until
DRIVER’S DOOR 1st or ALL DOORS appears to make
your selection.
Sound Horn with Remote Key LockWhen ON is selected a short horn sound will occur when
the remote keyless entry LOCK button is pressed. This
feature may be selected with or without the flash lights
on LOCK/UNLOCK feature. Press and hold the EVIC
button when in this display until ON or OFF appears to
make your selection.Flash Lights with Remote Key LockWhen ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked using the
remote keyless entry transmitter. This feature may be
selected with or without the sound horn on lock feature
selected. Press and hold the EVIC button when in this
display until ON or OFF appears to make your selection.Delay Turning Headlamps OffWhen this feature is selected the driver can choose to
have the headlamps remain on for 0, 30, 60, or 90 seconds
UNDERSTANDING YOUR INSTRUMENT PANEL 245
4
Page 248 of 491
when exiting the vehicle. Press and hold the EVIC button
when in this display until 0, 30, 60, or 90 appears to make
your selection.Headlamps On With Wipers (Available with Auto
Headlights Only)When ON is selected and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. Press and hold
the EVIC button when in this display until ON or OFF
appears to make your selection.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in this section.Delay Power Off to Accessories Until ExitWhen this feature is selected, the power window
switches, radio, hands–free system, DVD video system, power sunroof, and power outlets will remain active for
up to 60 minutes after the ignition switch has been turned
off. Opening a vehicle door will cancel this feature. Press
and hold the EVIC button when in this display until
“Off”, “45 sec.”, “5 min.”, or “10 min.” appears to make
your selection.
Turn Headlamps on with Remote Key UnlockWhen this feature is selected the headlamps will activate
and remain on for up to 90 seconds when the doors are
unlocked using the remote keyless entry transmitter.
Press and hold the EVIC button when in this display until
“OFF”, “30 sec.”, “60 sec.”, or “90 sec.” appears to make
your selection.Confirmation of Voice Commands — If EquippedWhen ON is selected all voice commands from the
U-Connect™ system are confirmed. Press and hold the
EVIC button when in this display until ON or OFF
appears to make your selection.
246 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 424 of 491

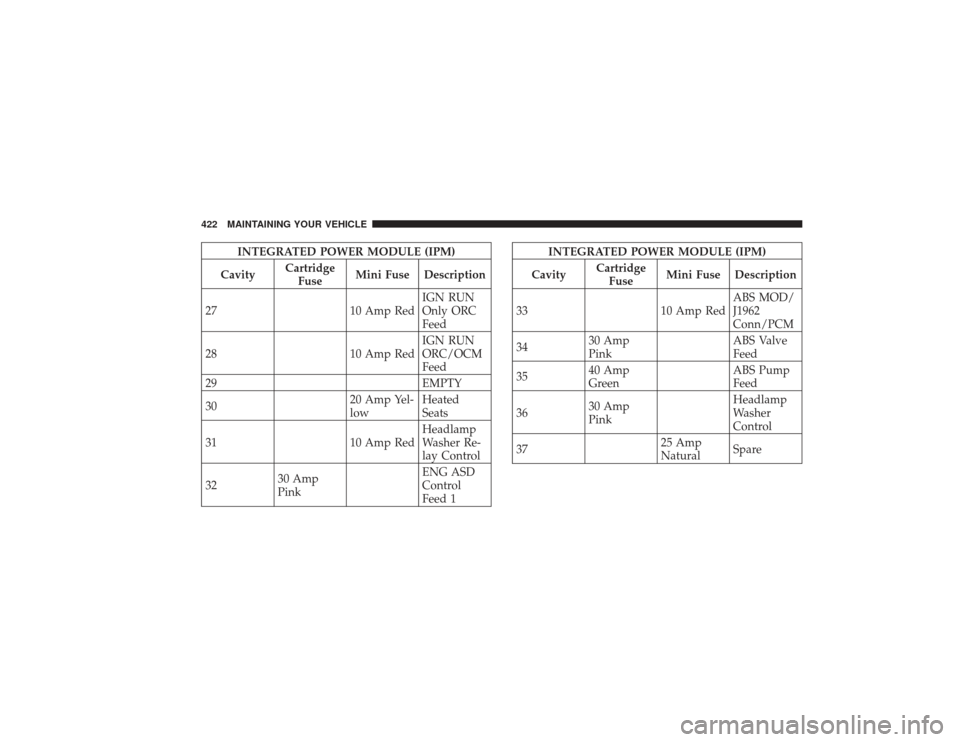

INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
27 10 Amp Red IGN RUN
Only ORC
Feed
28 10 Amp Red IGN RUN
ORC/OCM
Feed
29 EMPTY
30 20 Amp Yel-
lowHeated
Seats
31 10 Amp RedHeadlamp
Washer Re-
lay Control
32 30 Amp
Pink ENG ASD
Control
Feed 1
INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
33 10 Amp Red ABS MOD/
J1962
Conn/PCM
34 30 Amp
Pink ABS Valve
Feed
35 40 Amp
Green ABS Pump
Feed
36 30 Amp
Pink Headlamp
Washer
Control
37 25 Amp
NaturalSpare
422 MAINTAINING YOUR VEHICLE
