Page 320 of 444

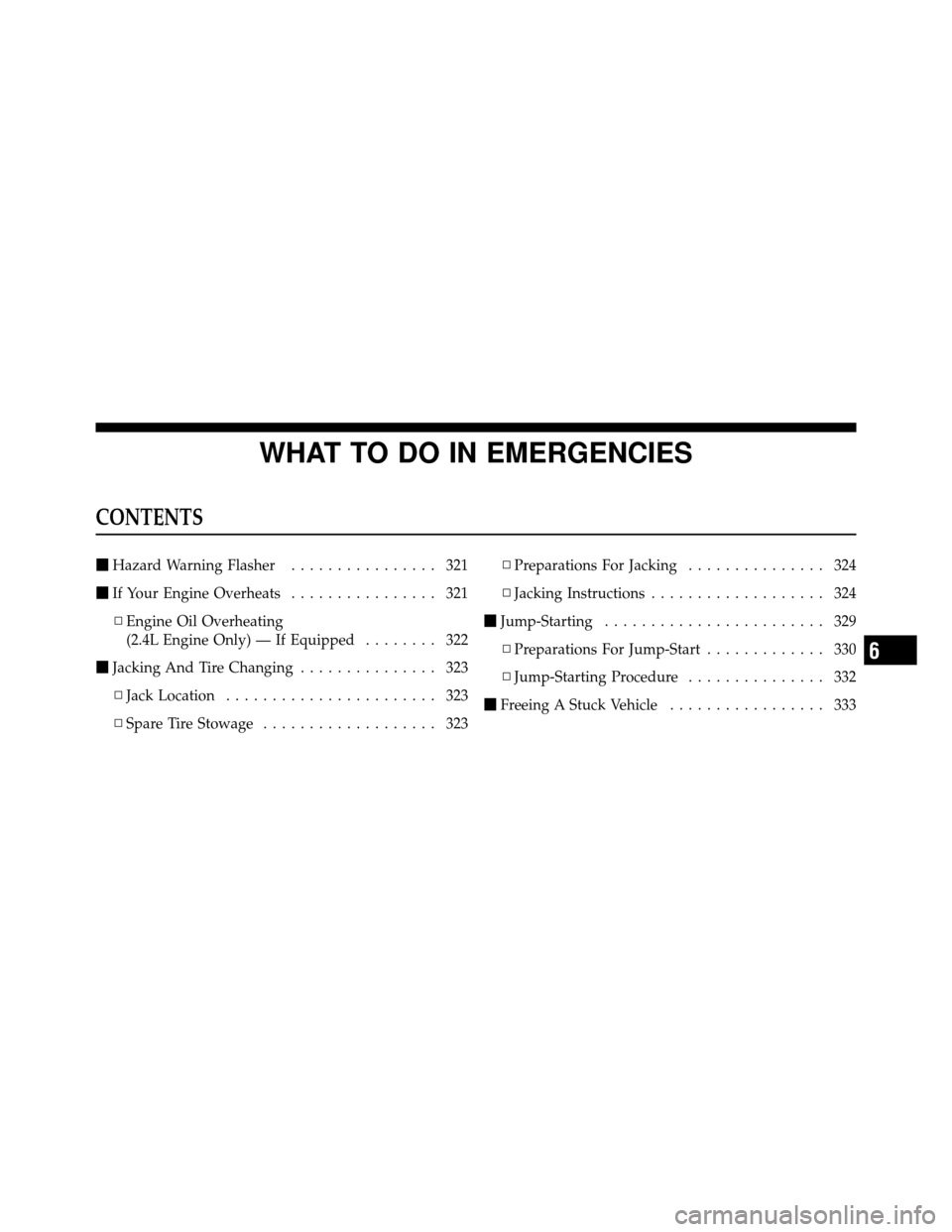

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flasher ................ 321
If Your Engine Overheats ................ 321
▫ Engine Oil Overheating
(2.4L Engine Only) — If Equipped ........ 322
Jacking And Tire Changing ............... 323
▫ Jack Location ....................... 323
▫ Spare Tire Stowage ................... 323 ▫
Preparations For Jacking ............... 324
▫ Jacking Instructions ................... 324
Jump-Starting ........................ 329
▫ Preparations For Jump-Start ............. 330
▫ Jump-Starting Procedure ............... 332
Freeing A Stuck Vehicle ................. 333
6
Page 324 of 444

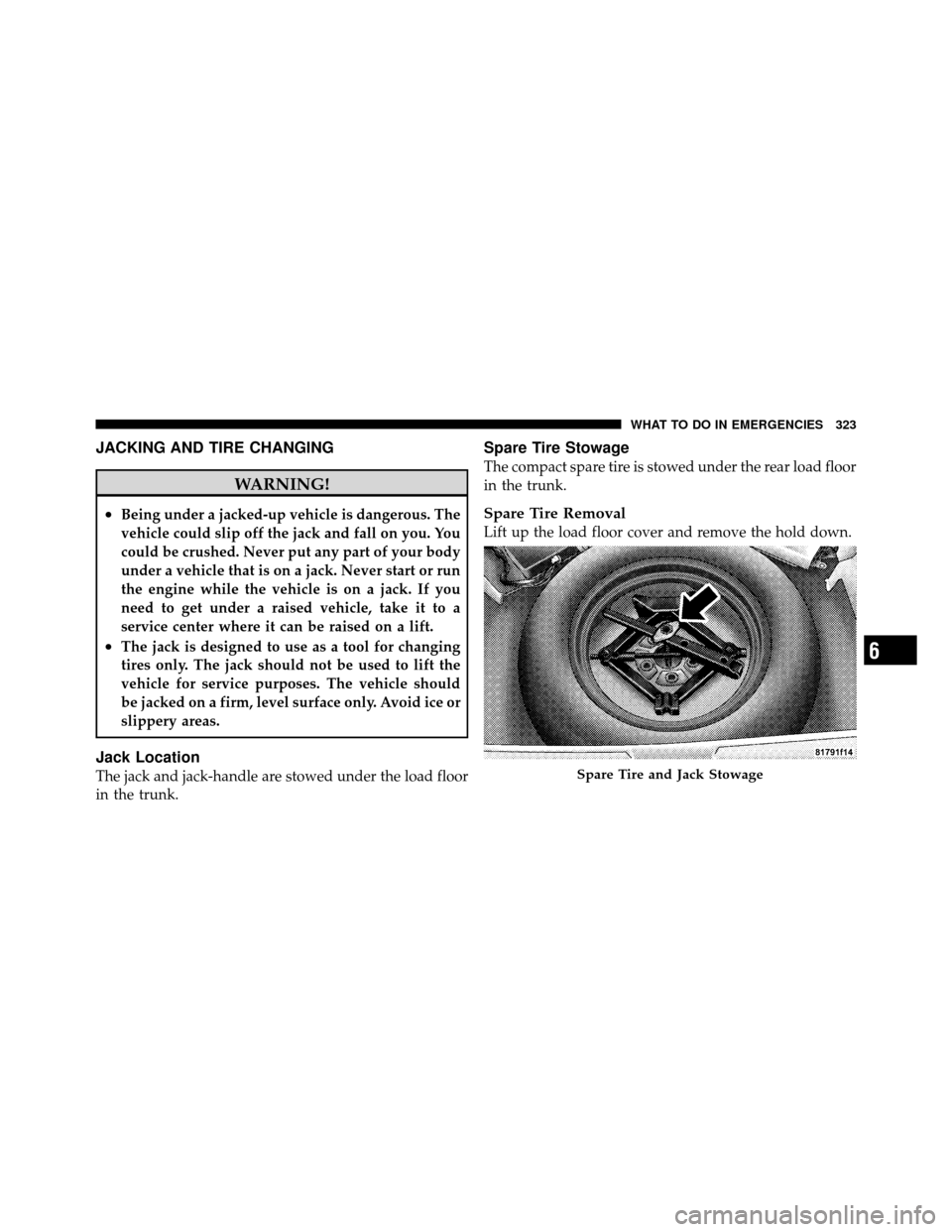

JACKING AND TIRE CHANGING
WARNING!
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. Never start or run
the engine while the vehicle is on a jack. If you
need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
•The jack is designed to use as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should
be jacked on a firm, level surface only. Avoid ice or
slippery areas.
Jack Location
The jack and jack-handle are stowed under the load floor
in the trunk.
Spare Tire Stowage
The compact spare tire is stowed under the rear load floor
in the trunk.
Spare Tire Removal
Lift up the load floor cover and remove the hold down.
Spare Tire and Jack Stowage
6
WHAT TO DO IN EMERGENCIES 323
Page 325 of 444

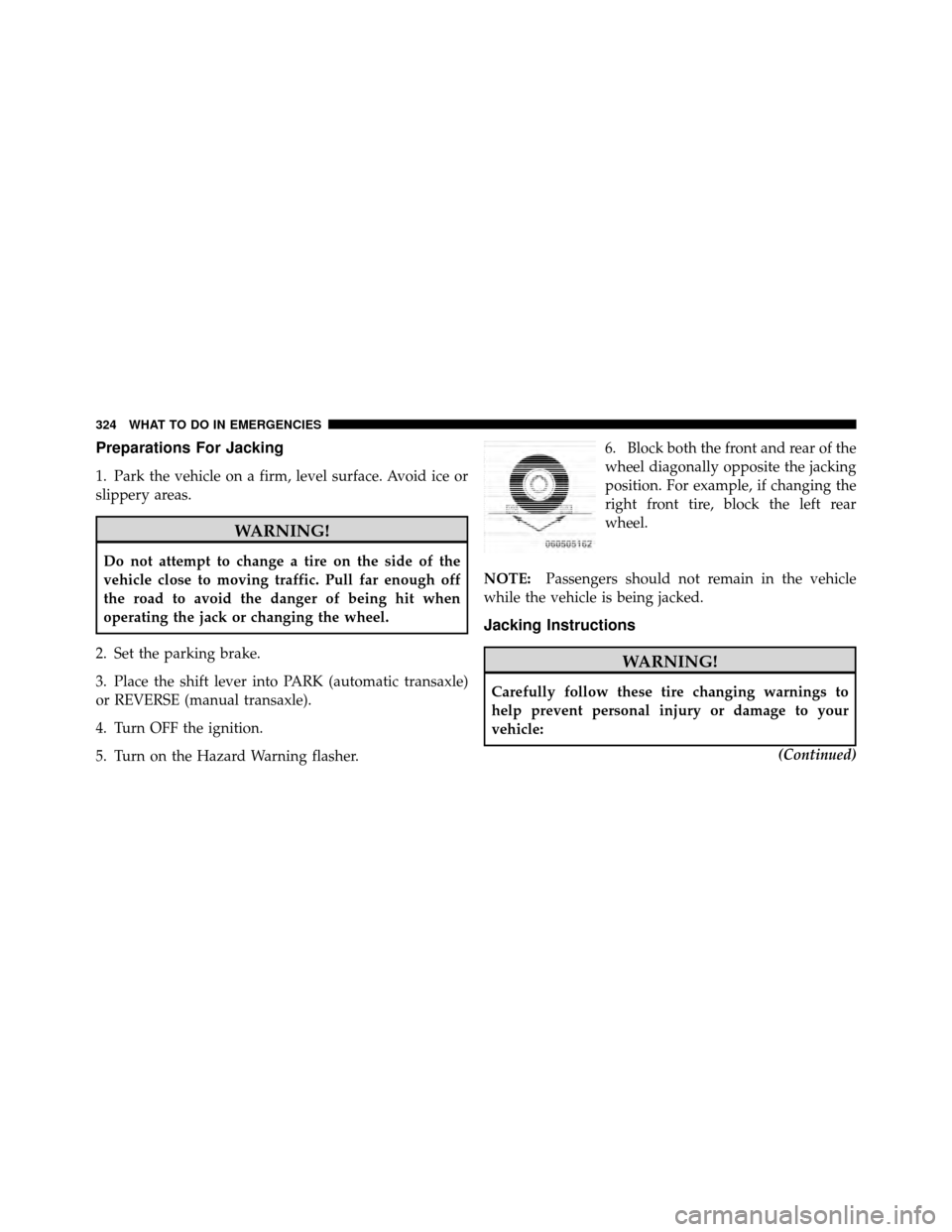

Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid ice or
slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
2. Set the parking brake.
3. Place the shift lever into PARK (automatic transaxle)
or REVERSE (manual transaxle).
4. Turn OFF the ignition.
5. Turn on the Hazard Warning flasher. 6. Block both the front and rear of the
wheel diagonally opposite the jacking
position. For example, if changing the
right front tire, block the left rear
wheel.
NOTE: Passengers should not remain in the vehicle
while the vehicle is being jacked.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
(Continued)
324 WHAT TO DO IN EMERGENCIES
Page 327 of 444
NOTE:The jack handle attaches to the side of the jack
with two attachment points. When the jack is partially
expanded, the tension between the two attachment
points holds the jack handle in place. 2. Loosen, but do not remove, the wheel nuts by turning
them to the left one turn while the wheel is still on the
ground.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in Step 3.
3. There are two front jacking locations and two rear
jacking locations on each side of the body (as pictured
above).
Removing Jack Handle From Jack
326 WHAT TO DO IN EMERGENCIES
Page 328 of 444

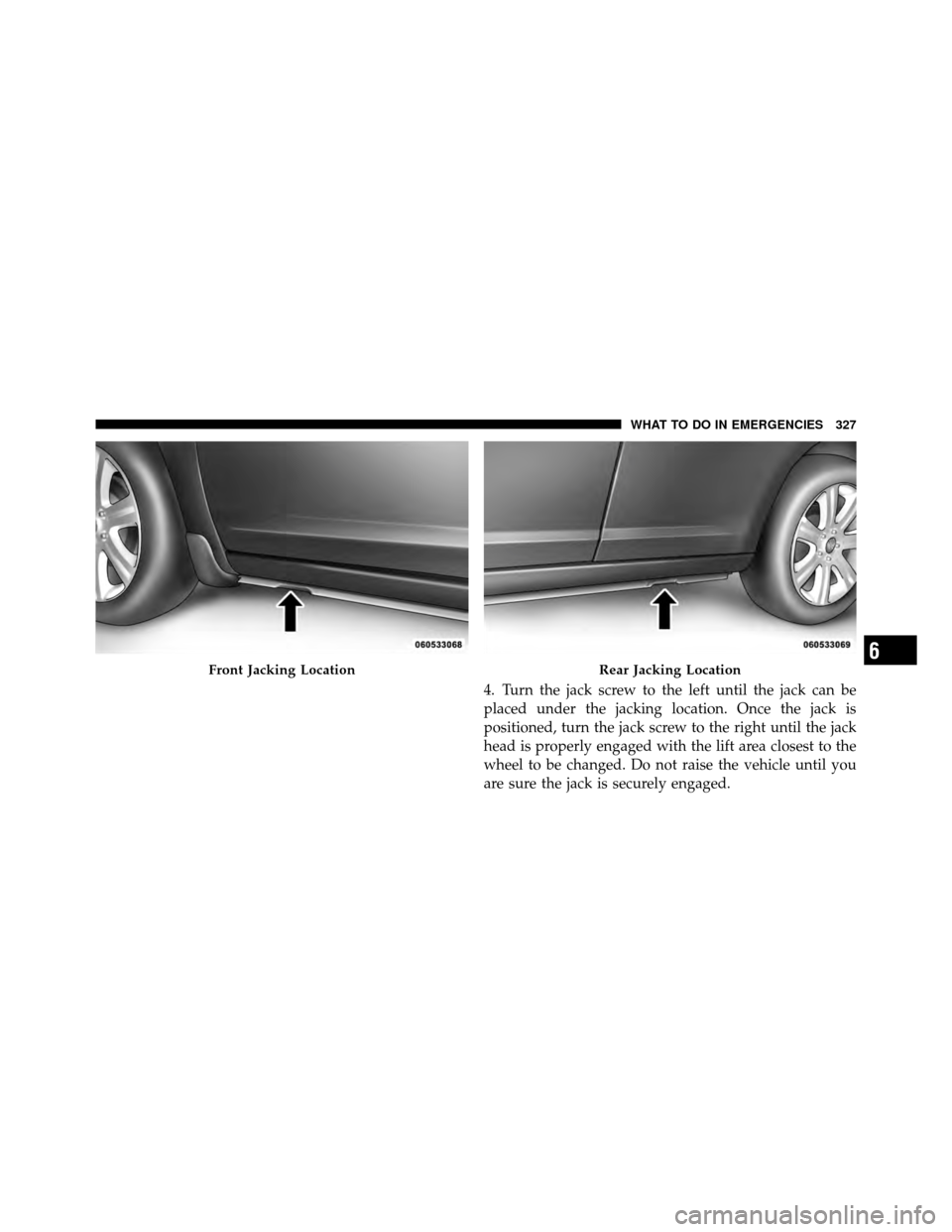

4. Turn the jack screw to the left until the jack can be
placed under the jacking location. Once the jack is
positioned, turn the jack screw to the right until the jack
head is properly engaged with the lift area closest to the
wheel to be changed. Do not raise the vehicle until you
are sure the jack is securely engaged.
Front Jacking LocationRear Jacking Location6
WHAT TO DO IN EMERGENCIES 327
Page 429 of 444
Door Locks, Automatic.................... 30
Door Opener, Garage ..................... 120
Driving On Slippery Surfaces ................... 250
Through Flowing, Rising, or Shallow
Standing Water ........................ 251
DVD Player (Video Entertainment System™) .... 214
E-85 Fuel ............................. 299
Electric Rear Window Defrost ............... 138
Electric Remote Mirrors .................... 90
Electrical Power Outlets ................... 129
Electronic Speed Control (Cruise Control) ....... 117
Electronic Stability Program (ESP) ............ 263
Electronic Vehicle Information Center (EVIC) .... 158
Emergency, In Case of Jacking ............................. 323
Jump Starting ......................... 329
Towing ............................. 335 Emergency Trunk Release
.................37,38
Emission Control System Maintenance ......345,396
Engine .......................... 341,342,343
Air Cleaner .......................... 352
Block Heater ......................... 241
Break-In Recommendations ................ 79
Checking Oil Level ..................... 348
Coolant (Antifreeze) ................. 361,393
Cooling ............................. 361
Exhaust Gas Caution .................. 81,298
Fails to Start .......................... 239
Flooded, Starting ...................... 239
Fuel Requirements .................. 294,392
Jump Starting ......................... 329
Oil ........................... 348,392,393
Oil Change Interval ............151,161,349,396
Oil Filler Cap ................ 341,342,343,350
Oil Filter ............................ 351
Oil Filter Disposal ..................... 351
428 INDEX

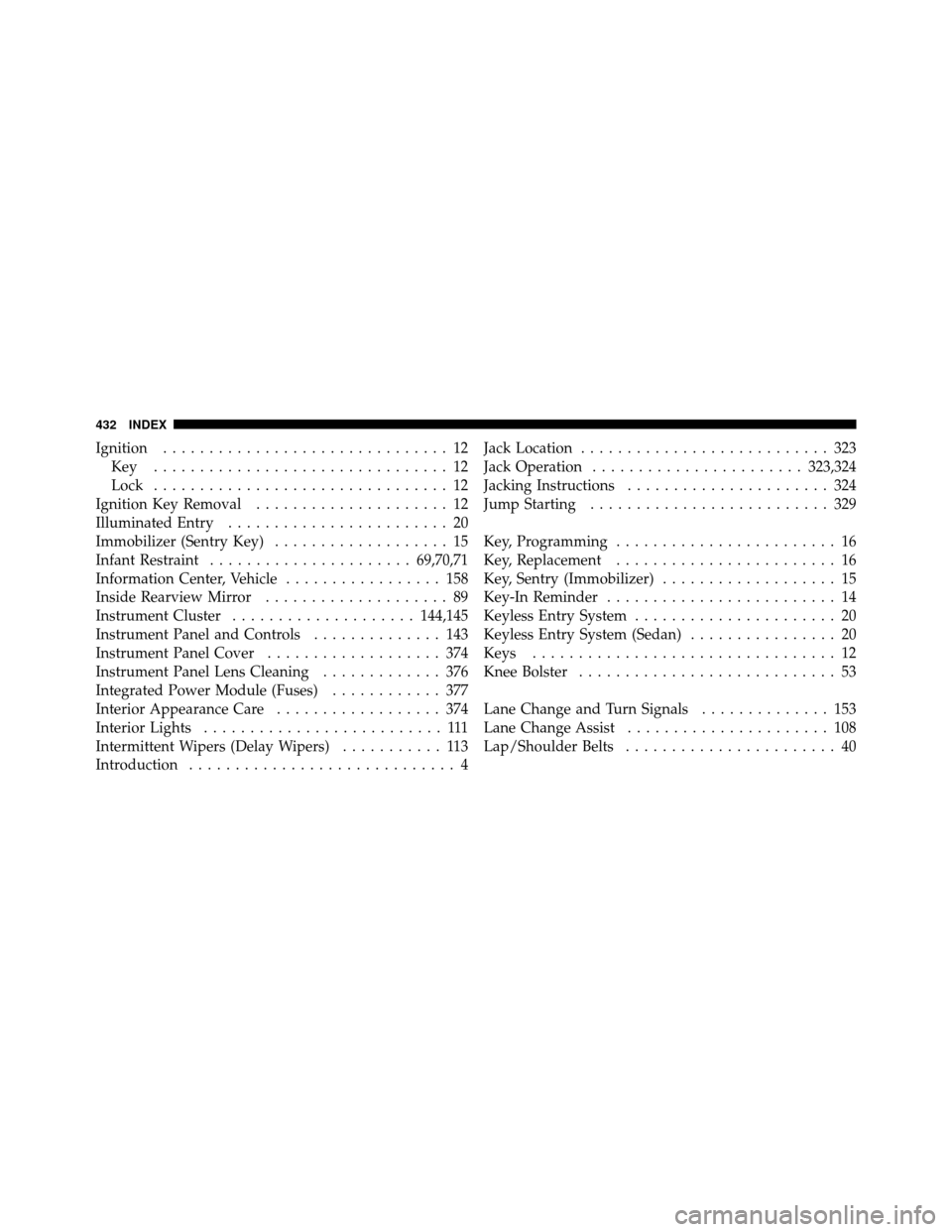

Page 433 of 444
Ignition............................... 12
Key ................................ 12
Lock ................................ 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 20
Immobilizer (Sentry Key) ................... 15
Infant Restraint ...................... 69,70,71
Information Center, Vehicle ................. 158
Inside Rearview Mirror .................... 89
Instrument Cluster .................... 144,145
Instrument Panel and Controls .............. 143
Instrument Panel Cover ................... 374
Instrument Panel Lens Cleaning ............. 376
Integrated Power Module (Fuses) ............ 377
Interior Appearance Care .................. 374
Interior Lights .......................... 111
Intermittent Wipers (Delay Wipers) ........... 113
Introduction ............................. 4 Jack Location
........................... 323
Jack Operation ....................... 323,324
Jacking Instructions ...................... 324
Jump Starting .......................... 329
Key, Programming ........................ 16
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Key-In Reminder ......................... 14
Keyless Entry System ...................... 20
Keyless Entry System (Sedan) ................ 20
Keys ................................. 12
Knee Bolster ............................ 53
Lane Change and Turn Signals .............. 153
Lane Change Assist ...................... 108
Lap/Shoulder Belts ....................... 40
432 INDEX

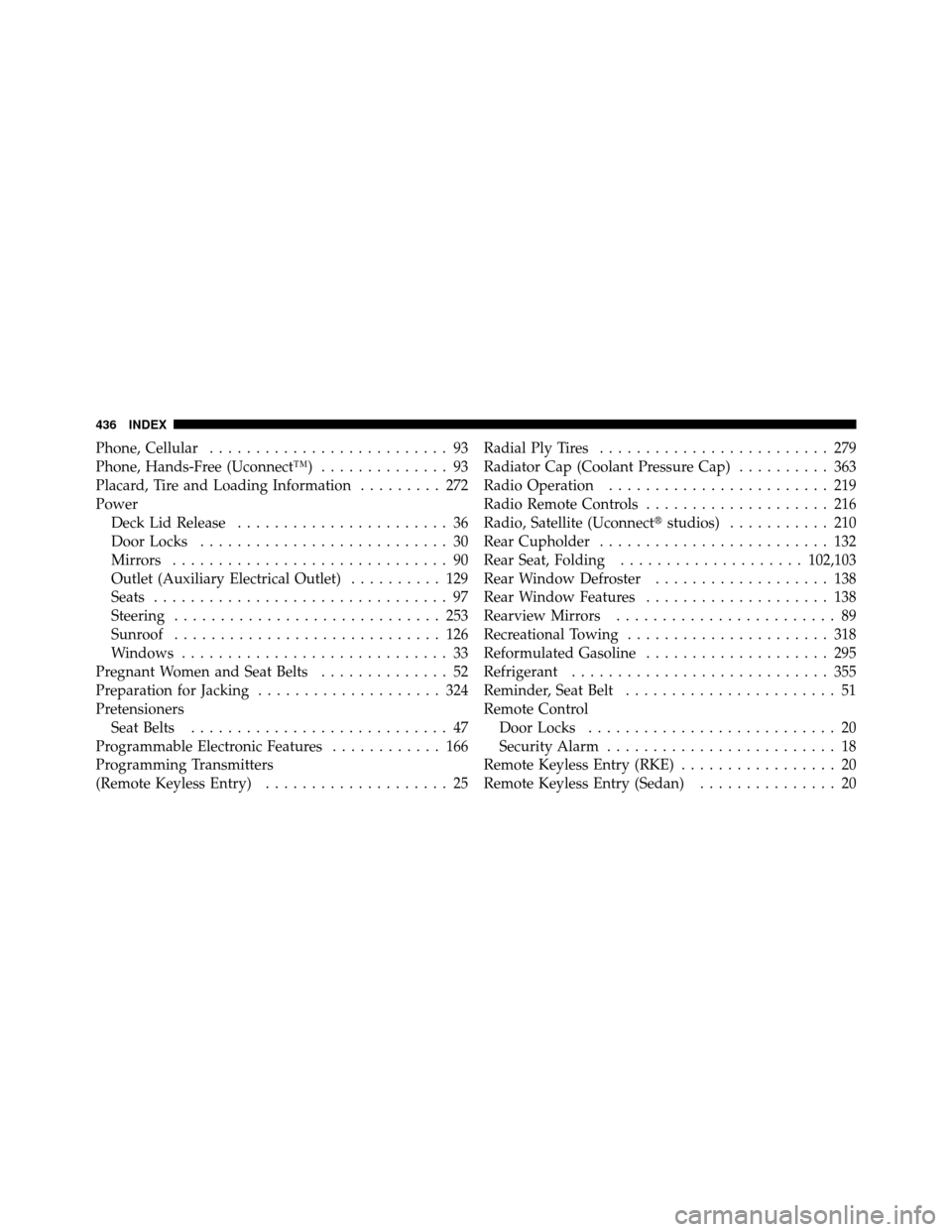

Page 437 of 444
Phone, Cellular.......................... 93
Phone, Hands-Free (Uconnect™) .............. 93
Placard, Tire and Loading Information ......... 272
Power Deck Lid Release ....................... 36
Door Locks ........................... 30
Mirrors .............................. 90
Outlet (Auxiliary Electrical Outlet) .......... 129
Seats ................................ 97
Steering ............................. 253
Sunroof ............................. 126
Windows ............................. 33
Pregnant Women and Seat Belts .............. 52
Preparation for Jacking .................... 324
Pretensioners Seat Belts ............................ 47
Programmable Electronic Features ............ 166
Programming Transmitters
(Remote Keyless Entry) .................... 25 Radial Ply Tires
......................... 279
Radiator Cap (Coolant Pressure Cap) .......... 363
Radio Operation ........................ 219
Radio Remote Controls .................... 216
Radio, Satellite (Uconnect studios)........... 210
Rear Cupholder ......................... 132
Rear Seat, Folding .................... 102,103
Rear Window Defroster ................... 138
Rear Window Features .................... 138
Rearview Mirrors ........................ 89
Recreational Towing ...................... 318
Reformulated Gasoline .................... 295
Refrigerant ............................ 355
Reminder, Seat Belt ....................... 51
Remote Control Door Locks ........................... 20
Security Alarm ......................... 18
Remote Keyless Entry (RKE) ................. 20
Remote Keyless Entry (Sedan) ............... 20
436 INDEX
Page 440 of 444
Starting Procedures...................... 238
Steering Power .............................. 253
Tilt Column .......................... 116
Wheel, Tilt ........................... 116
Steering Wheel Mounted Sound
System Controls ......................... 216
Storage ............................ 133,382
Storage, Vehicle ......................... 229
Stuck, Freeing .......................... 333
Sun Roof .............................. 126
Supplemental Restraint System - Airbag ........ 53
Synthetic Engine Oil ...................... 351
Tachometer ............................ 149
Taillights .............................. 387
Telescoping Steering Column ............... 116
Temperature Control, Automatic (ATC) ........ 223
Temperature Gauge, Engine Coolant .......145,321Tether Anchor, Child Restraint
............... 73
Theft Alarm (Security Alarm) ................ 18
Theft System (Security Alarm) ............... 18
Tilt Steering Column ..................... 116
Time Delay, Headlight .................... 107
Tire and Loading Information Placard ......... 272
Tire Identification Number (TIN) ............. 270
Tire Markings .......................... 266
Tire Safety Information .................... 266
Tires ............................ 84,276,421
Aging (Life of Tires) .................... 282
Air Pressure .......................... 276
Chains .............................. 283
Changing ............................ 323
Compact Spare ........................ 279
General Information .................... 276
High Speed .......................... 279
Inflation Pressures ..................... 277
Jacking ............................. 323
10
INDEX 439
