CHRYSLER SEBRING CONVERTIBLE 2009 3.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Ignition Key Removal.................. 13
▫Key-In-Ignition Reminder............... 14
Sentry Key.......................... 15
▫Replacement Keys..................... 16
▫Sentry KeyProgramming............... 17
▫General Information................... 18
Vehicle Security Alarm System — If Equipped . . 18
▫Rearming The System.................. 18▫To Arm The System................... 19
▫To Disarm The System................. 19
Illuminated Entry System — If Equipped...... 20
Remote Keyless Entry (RKE).............. 21
▫To Unlock The Doors.................. 22
▫To Lock The Doors.................... 24
▫Convertible Top Operation Button —
If Equipped......................... 25
▫To Unlatch The Trunk.................. 25
2

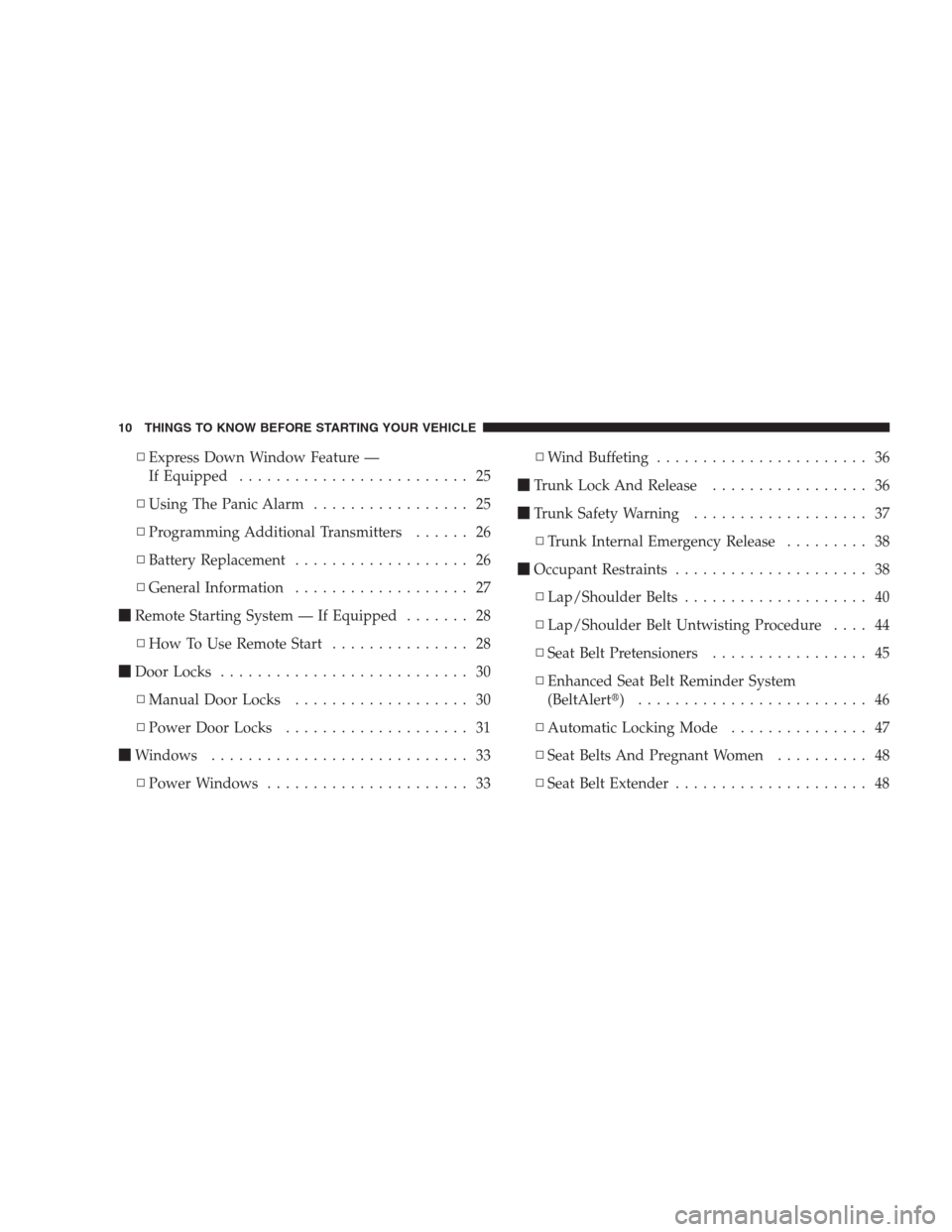

▫Express Down Window Feature —
If Equipped......................... 25
▫Using The Panic Alarm................. 25
▫Programming Additional Transmitters...... 26
▫Battery Replacement................... 26
▫General Information................... 27
Remote Starting System — If Equipped....... 28
▫How To Use Remote Start............... 28
Door Locks........................... 30
▫Manual Door Locks................... 30
▫Power Door Locks.................... 31
Windows............................ 33
▫Power Windows...................... 33▫Wind Buffeting....................... 36
Trunk Lock And Release................. 36
Trunk Safety Warning................... 37
▫Trunk Internal Emergency Release......... 38
Occupant Restraints..................... 38
▫Lap/Shoulder Belts.................... 40
▫Lap/Shoulder Belt Untwisting Procedure.... 44
▫Seat Belt Pretensioners................. 45
▫Enhanced Seat Belt Reminder System
(BeltAlert) ......................... 46
▫Automatic Locking Mode............... 47
▫Seat Belts And Pregnant Women.......... 48
▫Seat Belt Extender..................... 48
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

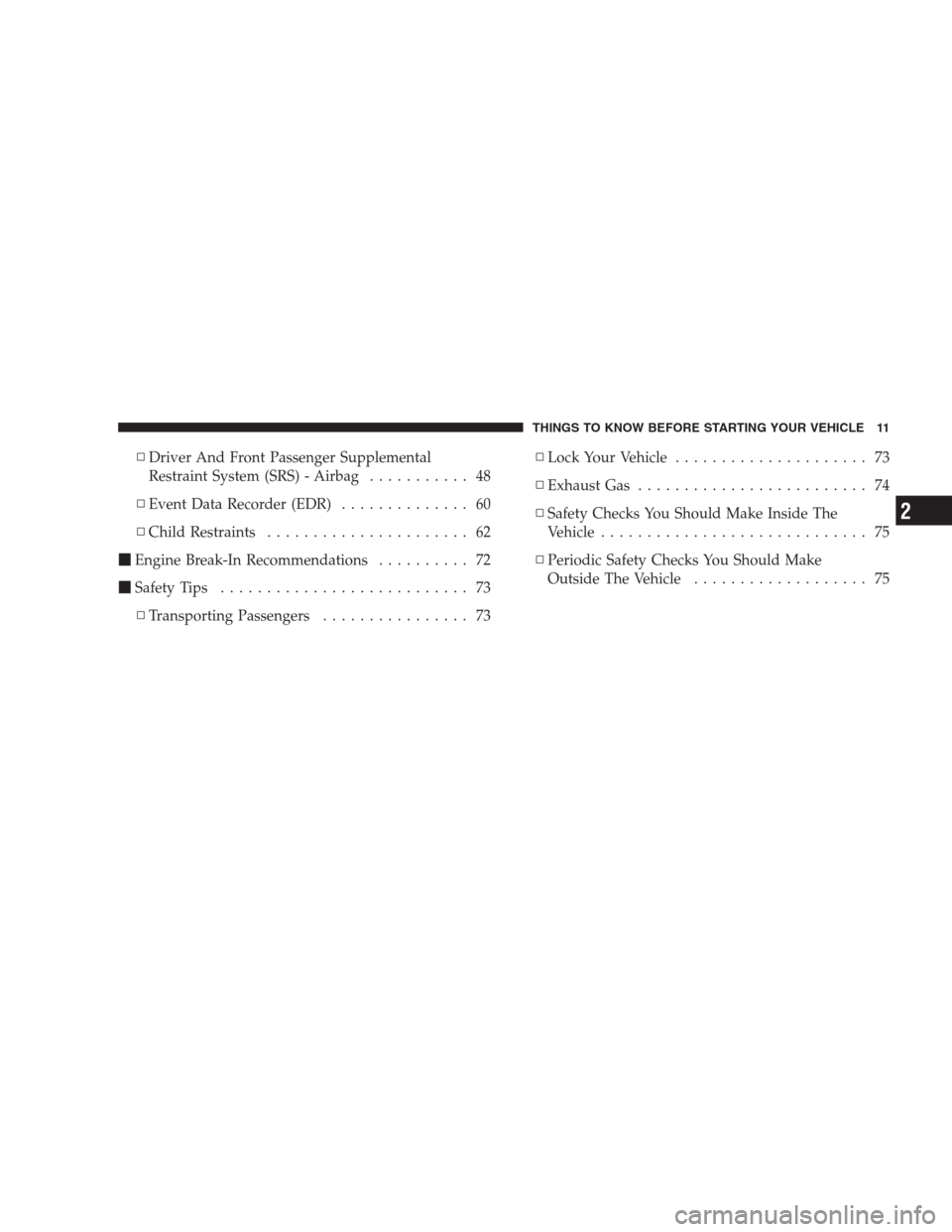

▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag........... 48
▫Event Data Recorder (EDR).............. 60
▫Child Restraints...................... 62
Engine Break-In Recommendations.......... 72
Safety Tips........................... 73
▫Transporting Passengers................ 73▫Lock Your Vehicle..................... 73
▫Exhaust Gas......................... 74
▫Safety Checks You Should Make Inside The
Vehicle............................. 75
▫Periodic Safety Checks You Should Make
Outside The Vehicle................... 75
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place.
You can insert the double-sided keys into the locks with
either side up.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Ignition Key Removal
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key slightly inward, rotate the
key to the LOCK position, and remove the key.NOTE:•If you try to remove the key before you place the shift
lever into PARK, the key may become trapped tempo-
rarily in the ignition switch lock cylinder. If this
occurs, rotate the key to the right slightly, then remove
the key as described. If a malfunction occurs, the
system will trap the key in the ignition switch lock
cylinder to warn you that this safety feature is inop-
erable. The engine can be started and stopped, but the
key cannot be removed until you obtain service.
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, hands–free system (if equipped), and
power outlets will remain active for 45 seconds after
the ignition switch is turned to the LOCK position.
Opening either door will cancel this feature.
Ignition Switch Positions
1 — LOCK 3 — ON
2 — ACC (ACCESSORY) 4 — STARTTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

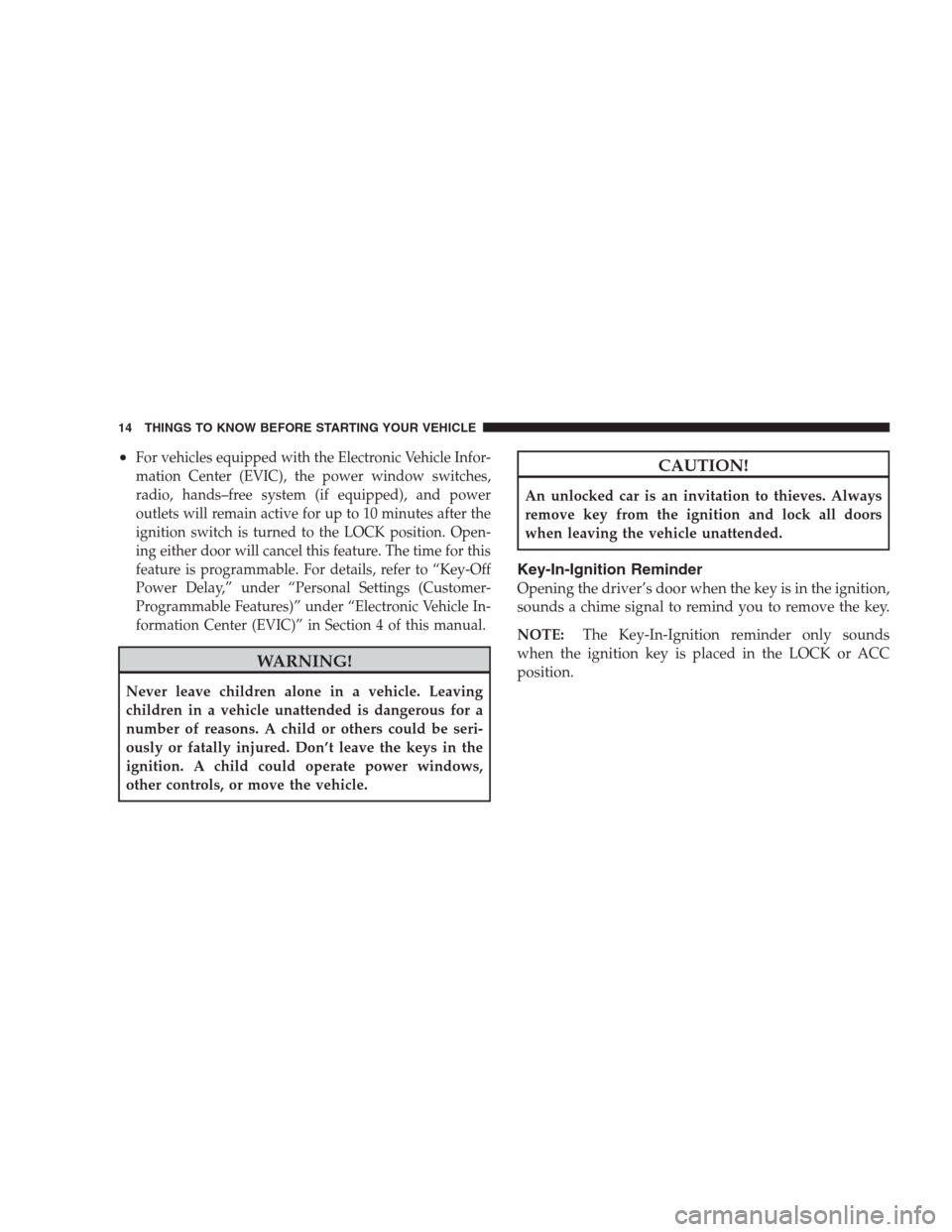

•For vehicles equipped with the Electronic Vehicle Infor-
mation Center (EVIC), the power window switches,
radio, hands–free system (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition switch is turned to the LOCK position. Open-
ing either door will cancel this feature. The time for this
feature is programmable. For details, refer to “Key-Off
Power Delay,” under “Personal Settings (Customer-
Programmable Features)” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4 of this manual.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition,
sounds a chime signal to remind you to remove the key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

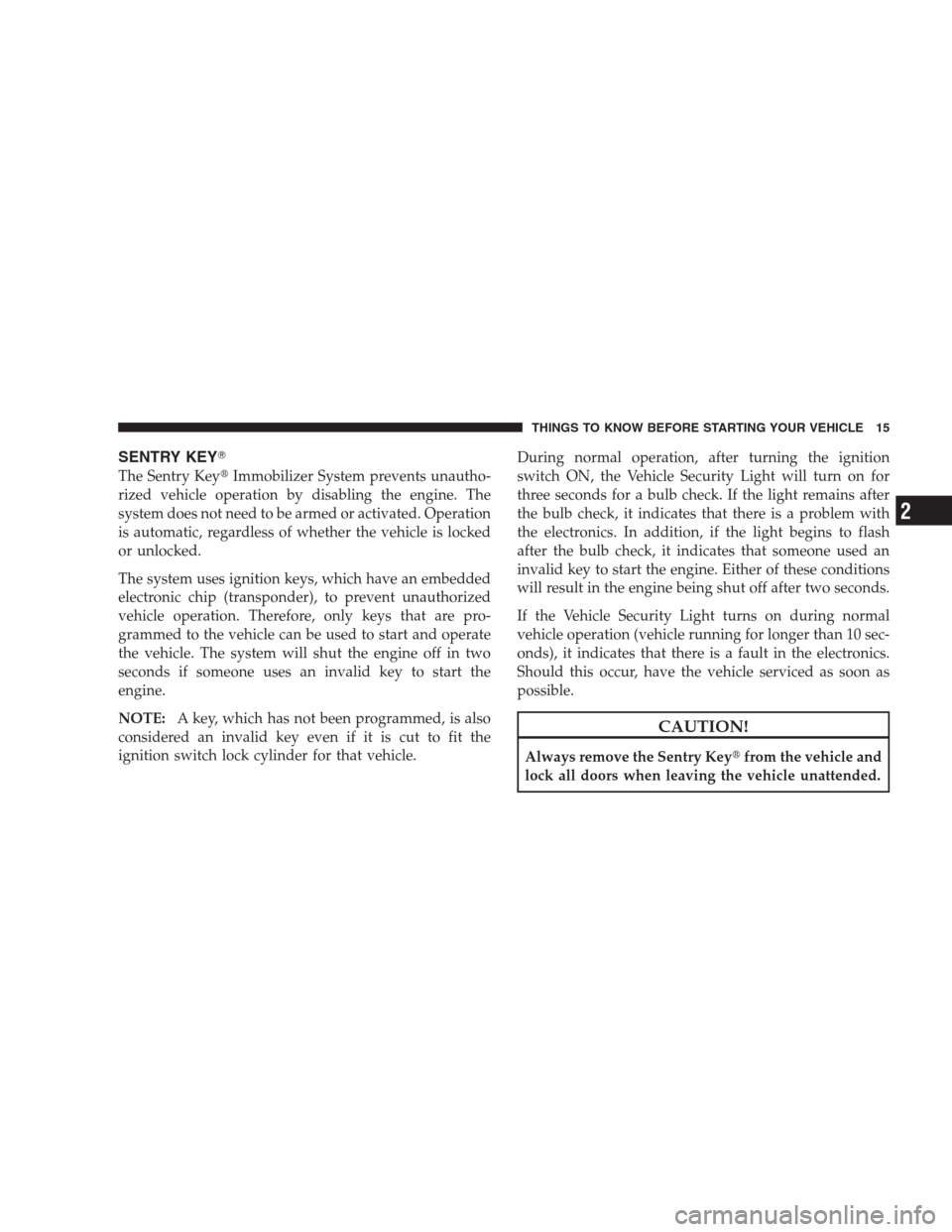

SENTRY KEY
The Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to start the
engine.
NOTE:A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.During normal operation, after turning the ignition
switch ON, the Vehicle Security Light will turn on for
three seconds for a bulb check. If the light remains after
the bulb check, it indicates that there is a problem with
the electronics. In addition, if the light begins to flash
after the bulb check, it indicates that someone used an
invalid key to start the engine. Either of these conditions
will result in the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
CAUTION!
Always remove the Sentry Keyfrom the vehicle and
lock all doors when leaving the vehicle unattended.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

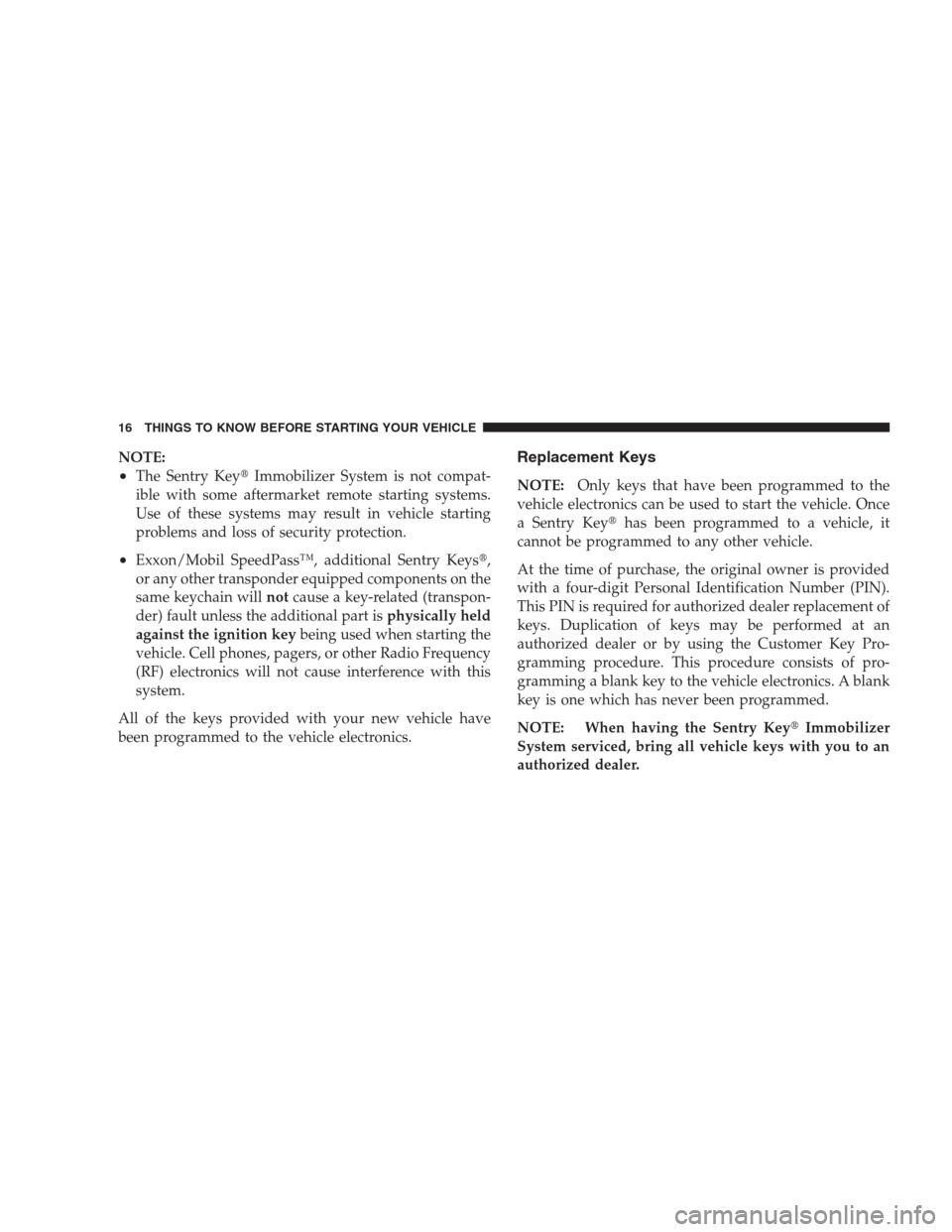

NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
•Exxon/Mobil SpeedPass™, additional Sentry Keys,
or any other transponder equipped components on the
same keychain willnotcause a key-related (transpon-
der) fault unless the additional part isphysically held
against the ignition keybeing used when starting the
vehicle. Cell phones, pagers, or other Radio Frequency
(RF) electronics will not cause interference with this
system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Keyhas been programmed to a vehicle, it
cannot be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
This PIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank key to the vehicle electronics. A blank
key is one which has never been programmed.
NOTE: When having the Sentry KeyImmobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Sentry KeyProgramming
You can program new keys to the system if you have two
valid Sentry Keysby performing the following proce-
dure:
1. Cut the additional Sentry KeyTransponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.Turn the ignition switch to the LOCK position and
remove the second key.
4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Keyis programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

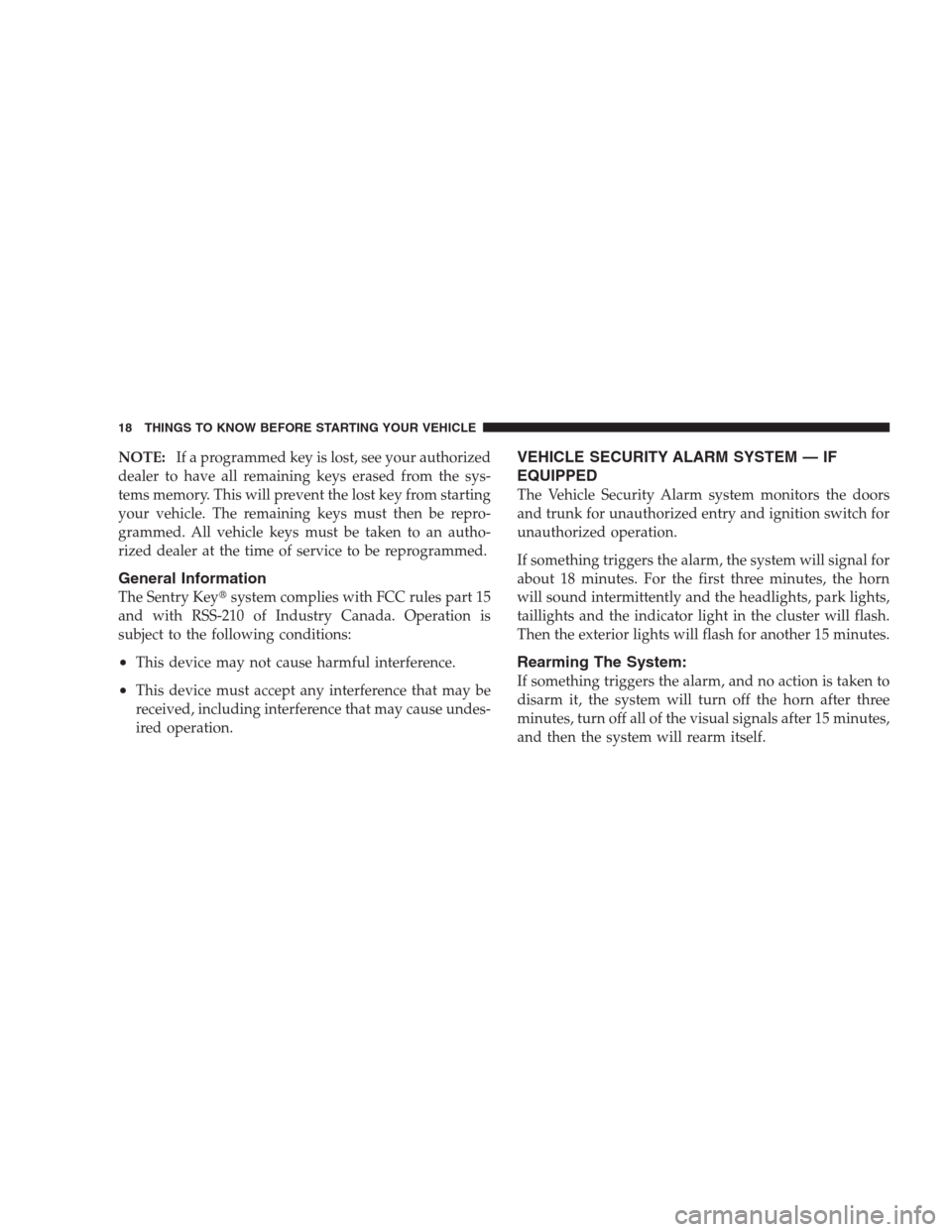

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tems memory. This will prevent the lost key from starting
your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to an autho-
rized dealer at the time of service to be reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
The Vehicle Security Alarm system monitors the doors
and trunk for unauthorized entry and ignition switch for
unauthorized operation.
If something triggers the alarm, the system will signal for
about 18 minutes. For the first three minutes, the horn
will sound intermittently and the headlights, park lights,
taillights and the indicator light in the cluster will flash.
Then the exterior lights will flash for another 15 minutes.
Rearming The System:
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after three
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
