CHRYSLER SEBRING CONVERTIBLE 2009 3.G Owner's Manual

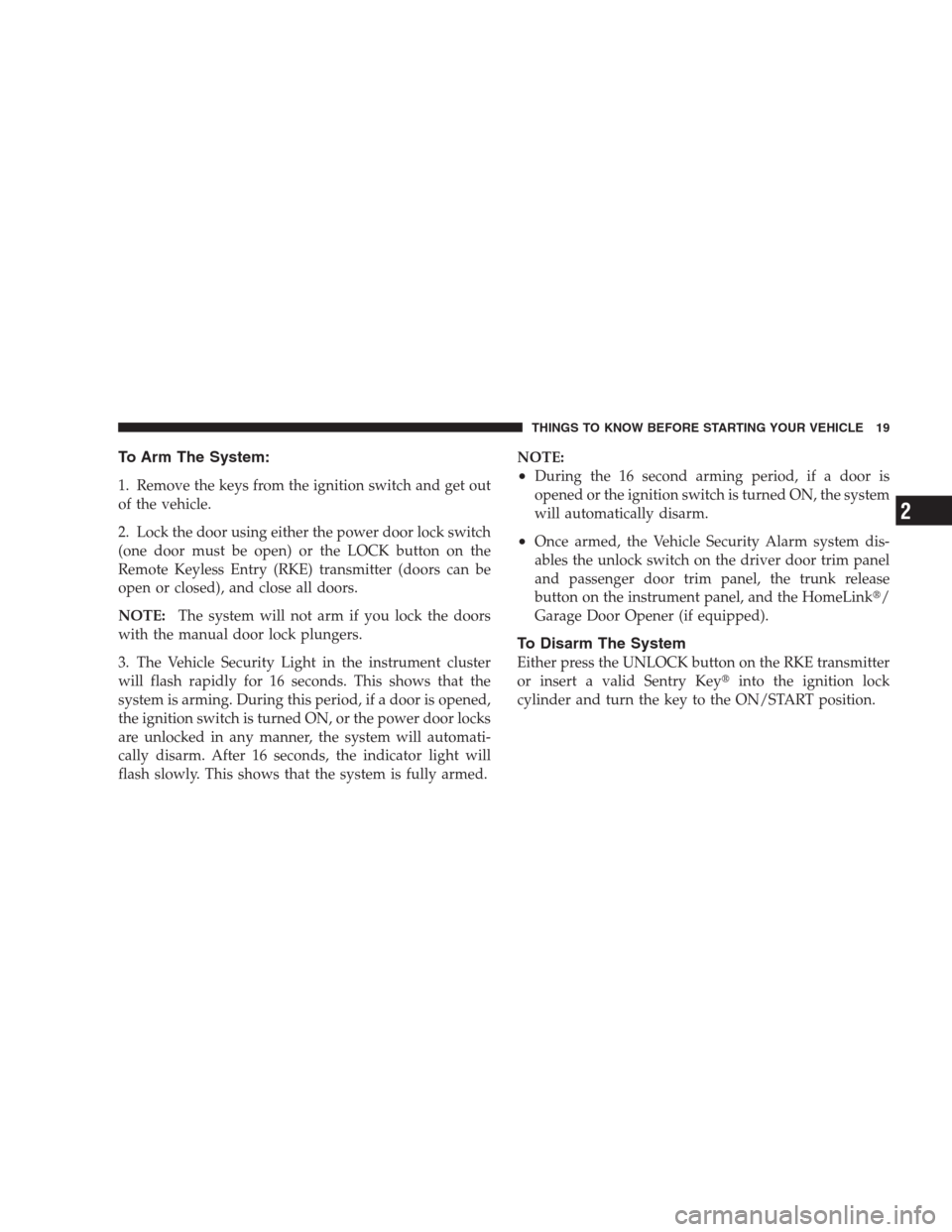

To Arm The System:
1. Remove the keys from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch
(one door must be open) or the LOCK button on the
Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE:The system will not arm if you lock the doors
with the manual door lock plungers.
3. The Vehicle Security Light in the instrument cluster
will flash rapidly for 16 seconds. This shows that the
system is arming. During this period, if a door is opened,
the ignition switch is turned ON, or the power door locks
are unlocked in any manner, the system will automati-
cally disarm. After 16 seconds, the indicator light will
flash slowly. This shows that the system is fully armed.NOTE:•During the 16 second arming period, if a door is
opened or the ignition switch is turned ON, the system
will automatically disarm.
•Once armed, the Vehicle Security Alarm system dis-
ables the unlock switch on the driver door trim panel
and passenger door trim panel, the trunk release
button on the instrument panel, and the HomeLink/
Garage Door Opener (if equipped).
To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Keyinto the ignition lock
cylinder and turn the key to the ON/START position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the system.
•The system remains armed during trunk entry. Press-
ing the trunk button will not disarm the system. If
someone enters the vehicle through the trunk and
opens any door, the alarm will sound.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will give you a false alarm. If one of the
previously described arming sequences has occurred, the
system will arm regardless of whether you are in the
vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
system.
If the Vehicle Security Alarm system is armed and the
battery becomes disconnected the system will remainarmed when the battery is reconnected. The exterior
lights will flash, and the horn will sound. If this occurs,
disarm the system.Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times
(instead of the normal twice), and the horn will chirp
three times, when unlocking the vehicle with a valid RKE
transmitter to alert the driver.
ILLUMINATED ENTRY SYSTEM — IF EQUIPPED
The courtesy/reading lights will turn on when you use
the Remote Keyless Entry (RKE) transmitter or open
either door.
This feature also turns on the approach lighting (if so
equipped). For details, refer to “Illuminated Approach,”
under “Personal Settings (Customer-Programmable Fea-
tures)” under “Electronic Vehicle Information Center
(EVIC)” in Section 4 of this manual.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The interior lights will fade to off after about 30 seconds
or they will immediately fade to off once the ignition
switch is turned ON.
NOTE:
•The illuminated entry system will not operate the
interior lights if the dimmer control is in the “defeat”
position (extreme downward position).
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors, open
the trunk, open the convertible top (if equipped), lower
both door and rear quarter windows (if equipped), or
activate the Panic Alarm from distances up to 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit-
ter. The RKE transmitter need not be pointed at the
vehicle to activate the system.NOTE:
•The line of transmission must not be blocked with
metal objects when using the RKE transmitter.
•Inserting the key into the ignition switch disables all
buttons on the RKE transmitter.
RKE Transmitter with Integrated Key
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

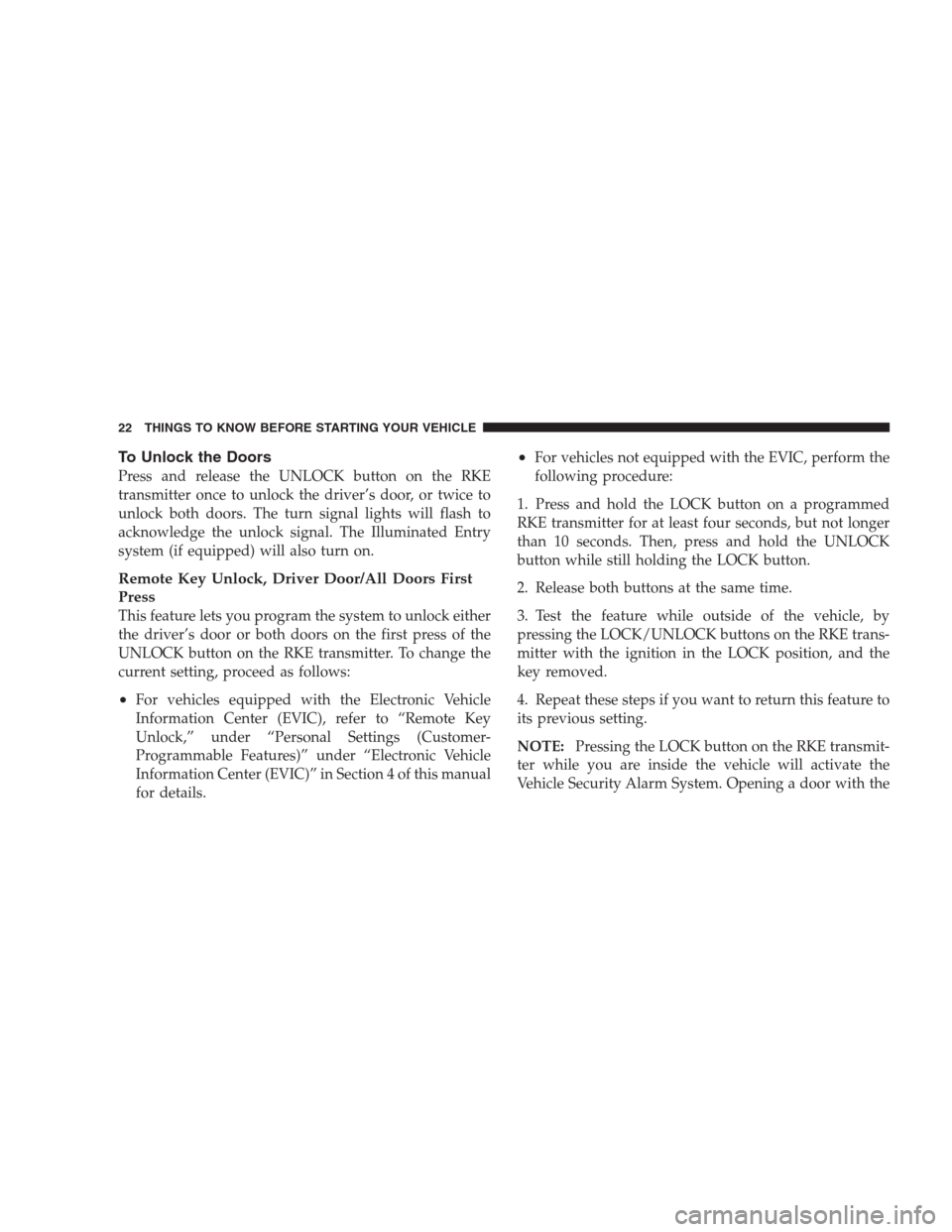

To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice to
unlock both doors. The turn signal lights will flash to
acknowledge the unlock signal. The Illuminated Entry
system (if equipped) will also turn on.
Remote Key Unlock, Driver Door/All Doors First
Press
This feature lets you program the system to unlock either
the driver’s door or both doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer-
Programmable Features)” under “Electronic Vehicle
Information Center (EVIC)” in Section 4 of this manual
for details.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter for at least four seconds, but not longer
than 10 seconds. Then, press and hold the UNLOCK
button while still holding the LOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the RKE trans-
mitter with the ignition in the LOCK position, and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm System. Opening a door with the
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

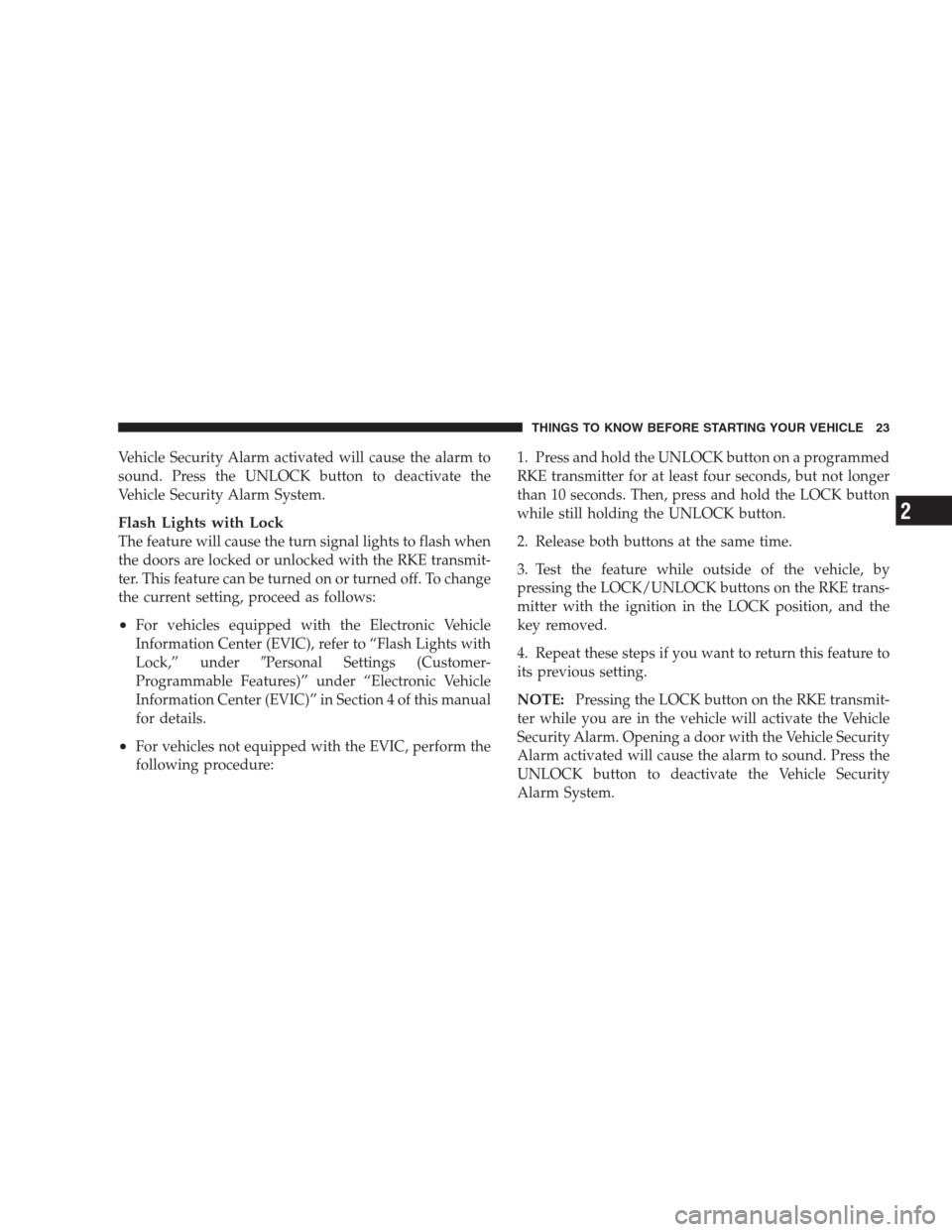

Vehicle Security Alarm activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
Flash Lights with Lock
The feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Flash Lights with
Lock,” underPersonal Settings (Customer-
Programmable Features)” under “Electronic Vehicle
Information Center (EVIC)” in Section 4 of this manual
for details.
•For vehicles not equipped with the EVIC, perform the
following procedure:1. Press and hold the UNLOCK button on a programmed
RKE transmitter for at least four seconds, but not longer
than 10 seconds. Then, press and hold the LOCK button
while still holding the UNLOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the RKE trans-
mitter with the ignition in the LOCK position, and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security
Alarm System.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

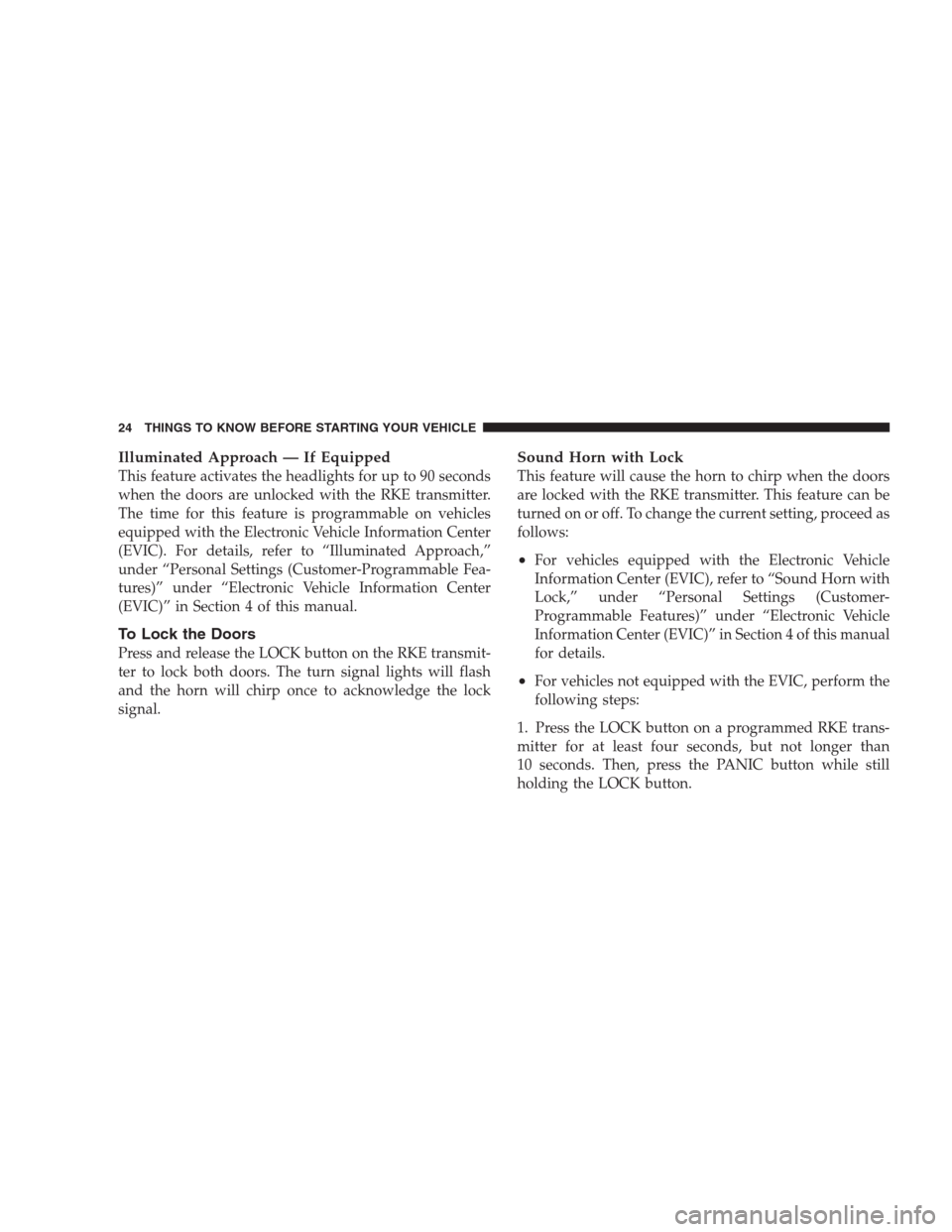

Illuminated Approach — If Equipped
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Illuminated Approach,”
under “Personal Settings (Customer-Programmable Fea-
tures)” under “Electronic Vehicle Information Center
(EVIC)” in Section 4 of this manual.
To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock both doors. The turn signal lights will flash
and the horn will chirp once to acknowledge the lock
signal.
Sound Horn with Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Sound Horn with
Lock,” under “Personal Settings (Customer-
Programmable Features)” under “Electronic Vehicle
Information Center (EVIC)” in Section 4 of this manual
for details.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least four seconds, but not longer than
10 seconds. Then, press the PANIC button while still
holding the LOCK button.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

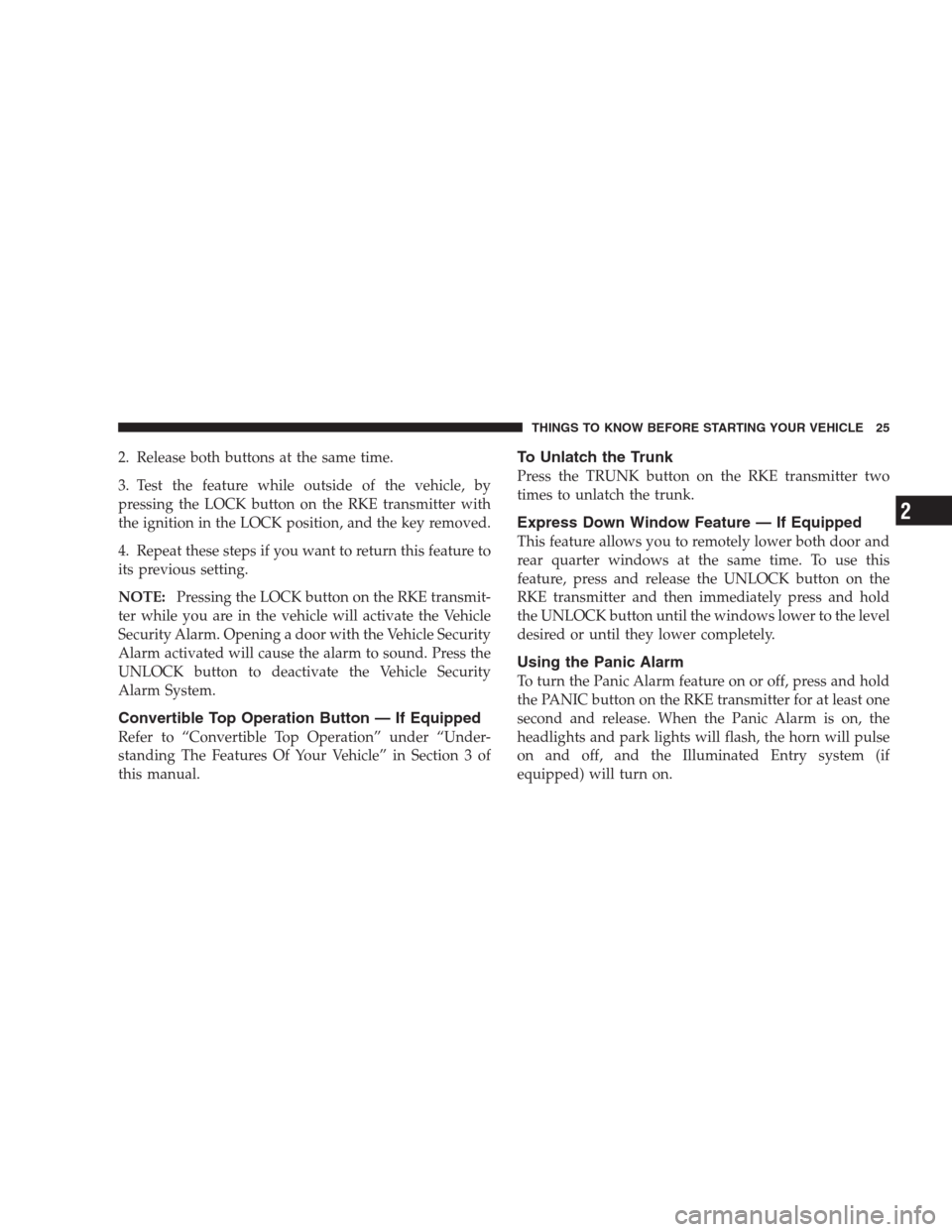

2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK button on the RKE transmitter with
the ignition in the LOCK position, and the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security
Alarm System.
Convertible Top Operation Button — If Equipped
Refer to “Convertible Top Operation” under “Under-
standing The Features Of Your Vehicle” in Section 3 of
this manual.
To Unlatch the Trunk
Press the TRUNK button on the RKE transmitter two
times to unlatch the trunk.
Express Down Window Feature — If Equipped
This feature allows you to remotely lower both door and
rear quarter windows at the same time. To use this
feature, press and release the UNLOCK button on the
RKE transmitter and then immediately press and hold
the UNLOCK button until the windows lower to the level
desired or until they lower completely.
Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the Illuminated Entry system (if
equipped) will turn on.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:You may need to be close to the vehicle when
using the RKE transmitter to turn off the Panic Alarm due
to the Radio Frequency (RF) noises emitted by the
system.
Programming Additional Transmitters
Refer to Sentry Key“Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. With the RKE transmitter buttons facing down, use a
flat blade tool to pry the two halves of the RKE transmit-
ter apart. Make sure not to damage the seal during
removal.
Battery Service
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

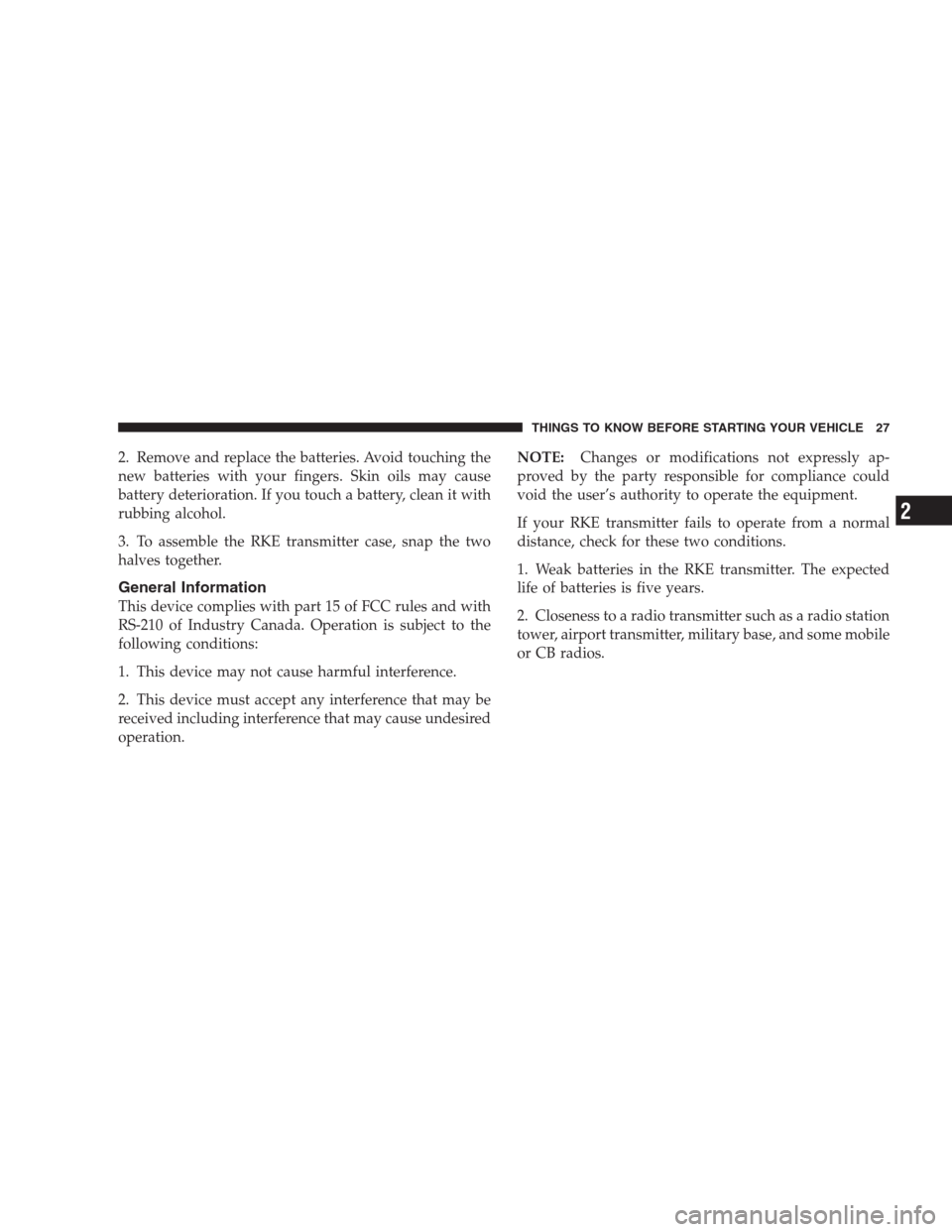

2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the RKE transmitter case, snap the two
halves together.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions.
1. Weak batteries in the RKE transmitter. The expected
life of batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry (RKE) trans-
mitter to start the engine conveniently from outside the
vehicle while still maintaining security. The system has a
targeted range up to 328 ft (100 m).NOTE:The vehicle must be equipped with an auto-
matic transaxle to be equipped with Remote Start.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Trunk closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level, and
•RKE PANIC button not pressed
Remote Start Button
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
