CHRYSLER SEBRING COUPE 2004 2.G Owners Manual

2. Pull the clip (A) and remove the light bulb from the
socket.Headlights (Type 2)
1. Loosen the bolt (A), move the horn (B) (left side only).
N10C1920N10C1760
EMERGENCIES 291
8

2. Turn the light socket counterclockwise and pull it out
and remove the light bulb.3. Pull the clip (A) and remove the light bulb from the
socket.
N10C1930N10C1940
292 EMERGENCIES

CAUTION!
²Never hold the halogen light bulb with a bare
hand, dirty glove, etc. The oil from your hand
could cause the bulb to break the next time the
headlights are operated.
If the glass surface is dirty, it should be cleaned
with alcohol and installed after drying thor-
oughly.
Adjustment of headlight aim
The alignment of the headlights should be checked by an
authorized dealer.

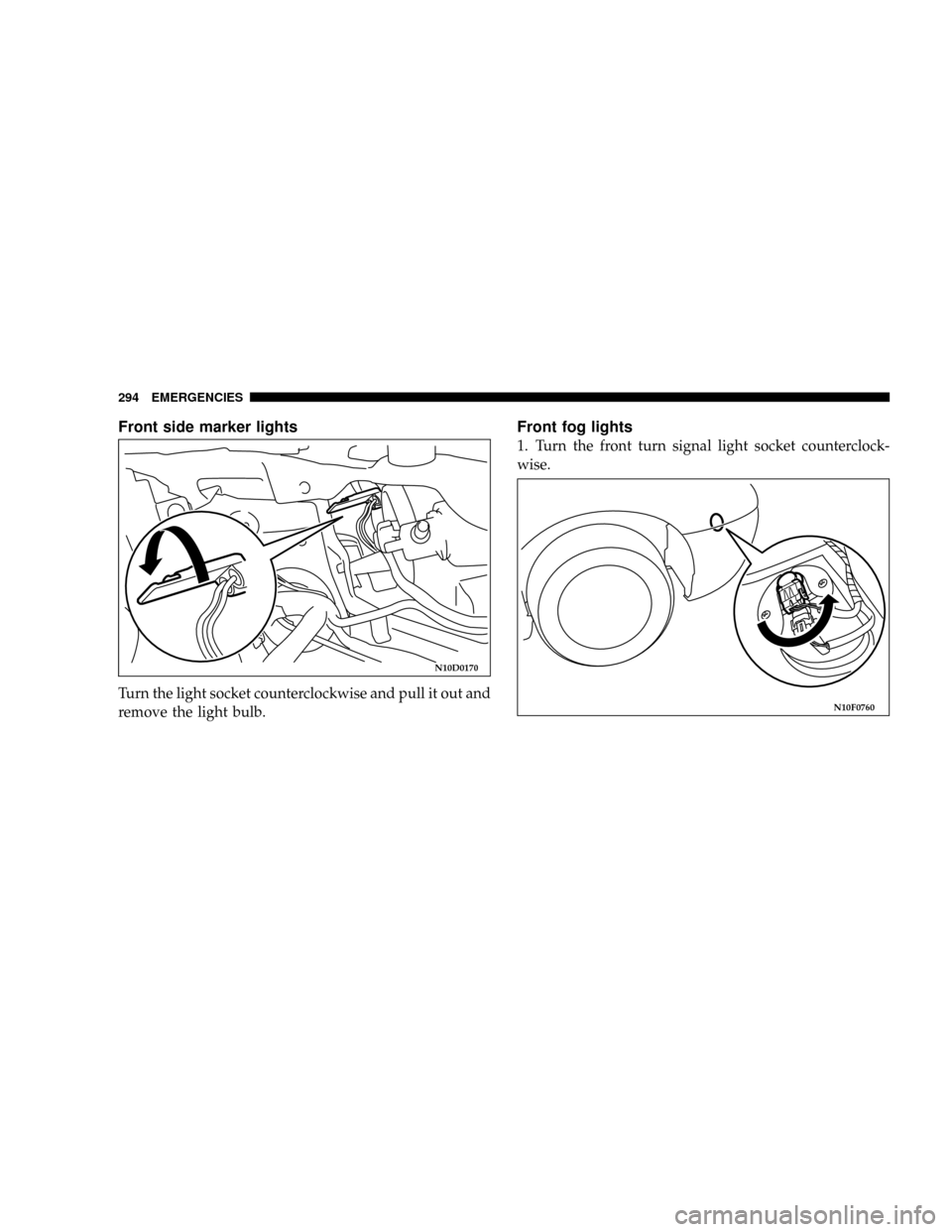

Front turn signal and parking lights
Turn the light socket counterclockwise and pull it out and
remove the light bulb.
N10C1840
N10F0760
EMERGENCIES 293
8

Front side marker lights
Turn the light socket counterclockwise and pull it out and
remove the light bulb.
Front fog lights

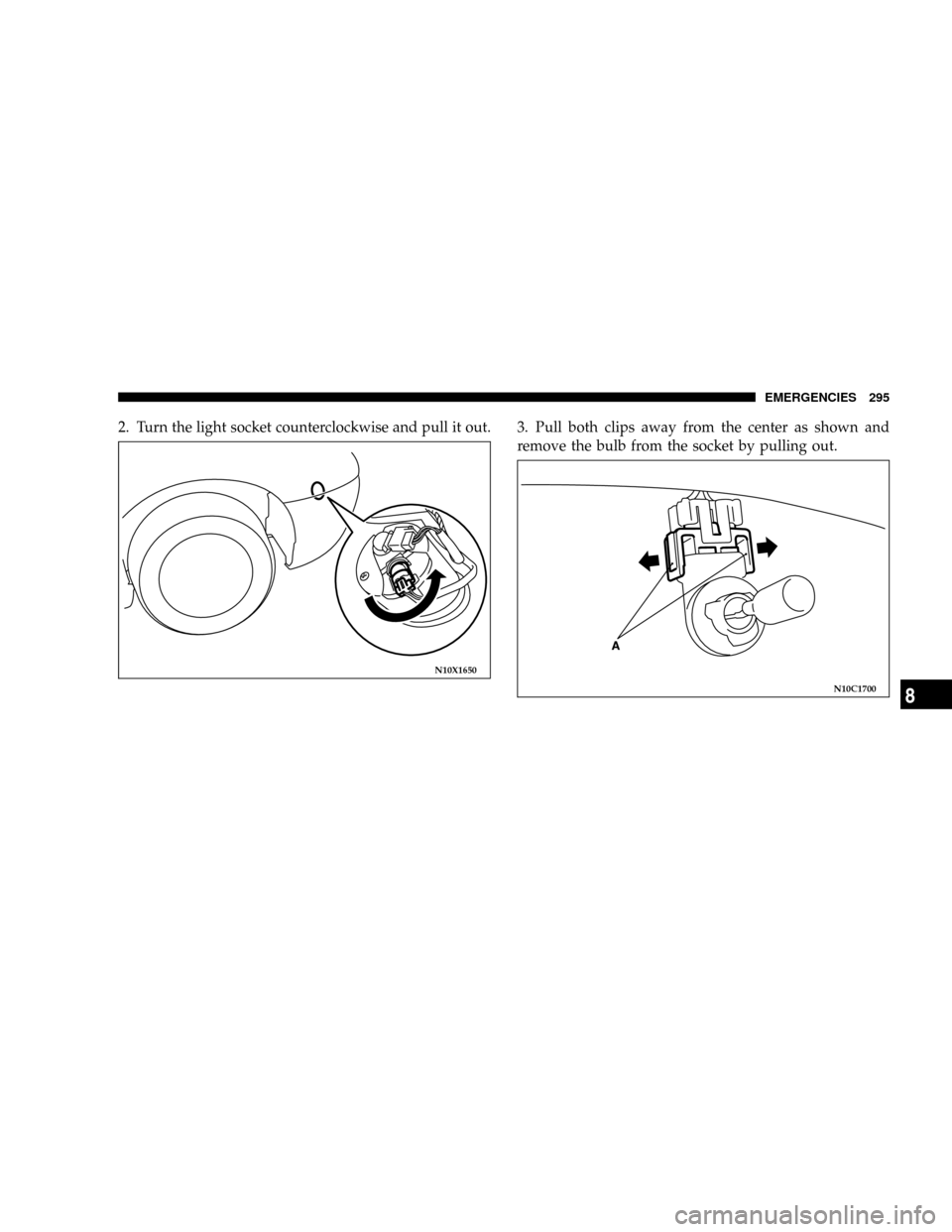

1. Turn the front turn signal light socket counterclock-
wise.
N10D0170
N10F0760
294 EMERGENCIES

2. Turn the light socket counterclockwise and pull it out. 3. Pull both clips away from the center as shown and
remove the bulb from the socket by pulling out.
N10X1650
N10C1700
EMERGENCIES 295
8

CAUTION!
²Never hold the halogen light bulb with a bare
hand, dirty glove, etc. The oil from your hand
could cause the bulb to break the next time the fog
lights are operated.
If the glass surface is dirty, it should be cleaned
with alcohol and installed after drying thor-
oughly.
Rear combination lights
1. Turn the trim cover clip (A) counterclockwise and
remove the trim cover clip. Partially remove the trim
cover in the trunk.
N10C1840
N20I0170
296 EMERGENCIES

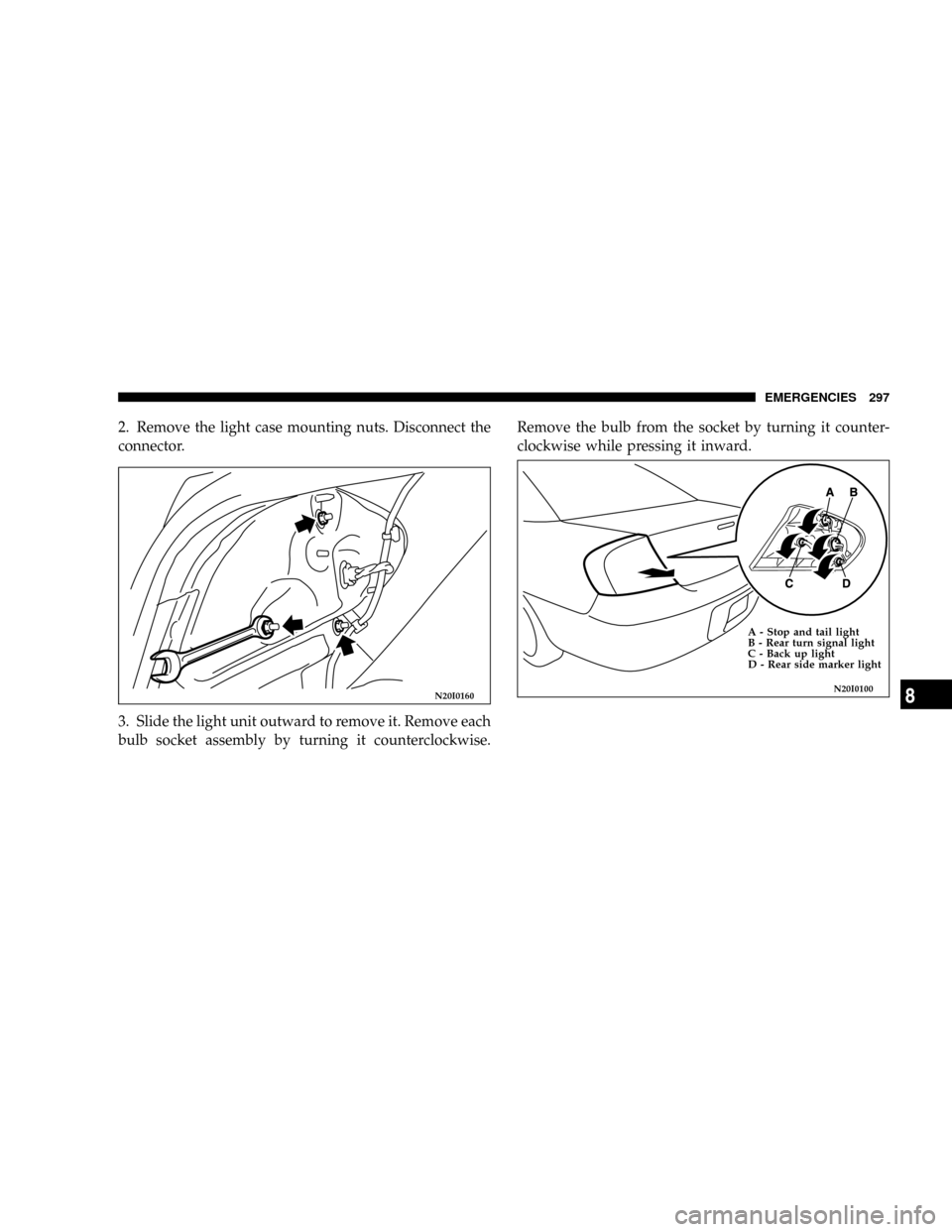

2. Remove the light case mounting nuts. Disconnect the
connector.
3. Slide the light unit outward to remove it. Remove each
bulb socket assembly by turning it counterclockwise.Remove the bulb from the socket by turning it counter-
clockwise while pressing it inward.
N20I0160N20I0100
A - Stop and tail light
B - Rear turn signal light
C - Back up light
D - Rear side marker light
EMERGENCIES 297
8

High-mounted stop light
Remove the socket assembly and bulb together by turn-
ing it counterclockwise.
Remove the bulb from the socket by pulling out.
License plate light
Remove the lens mounting screws, remove the socket
assembly and the bulb together by turning it counter-
clockwise. And remove the bulb by pulling out.
N10V0700N10J0310
298 EMERGENCIES

Trunk light
Pull both clips away from the center as shown and
remove the light unit. Then remove the bulb by pulling
out.
Dome light
1. Insert a flat blade screwdriver into the notch of the
light assembly and pry gently downward to remove it.
Type 1
NOTE
: Wrap a cloth around the tip of the screwdriver to
avoid scratching the light assembly.
N10O0230
Clips
N10M0380
EMERGENCIES 299
8

2. Remove the light bulb from the light holder.Reading lights
Insert a straight blade screwdriver into the notch of the
light assembly and pry gently to remove the lens.
Remove the light bulb from the light holder.
NOTE: Wrap a cloth around the tip of the straight blade
screwdriver in order to avoid scratching the lens.
N10M0410N11I0040
