CHRYSLER SEBRING SEDAN 2008 3.G Owners Manual

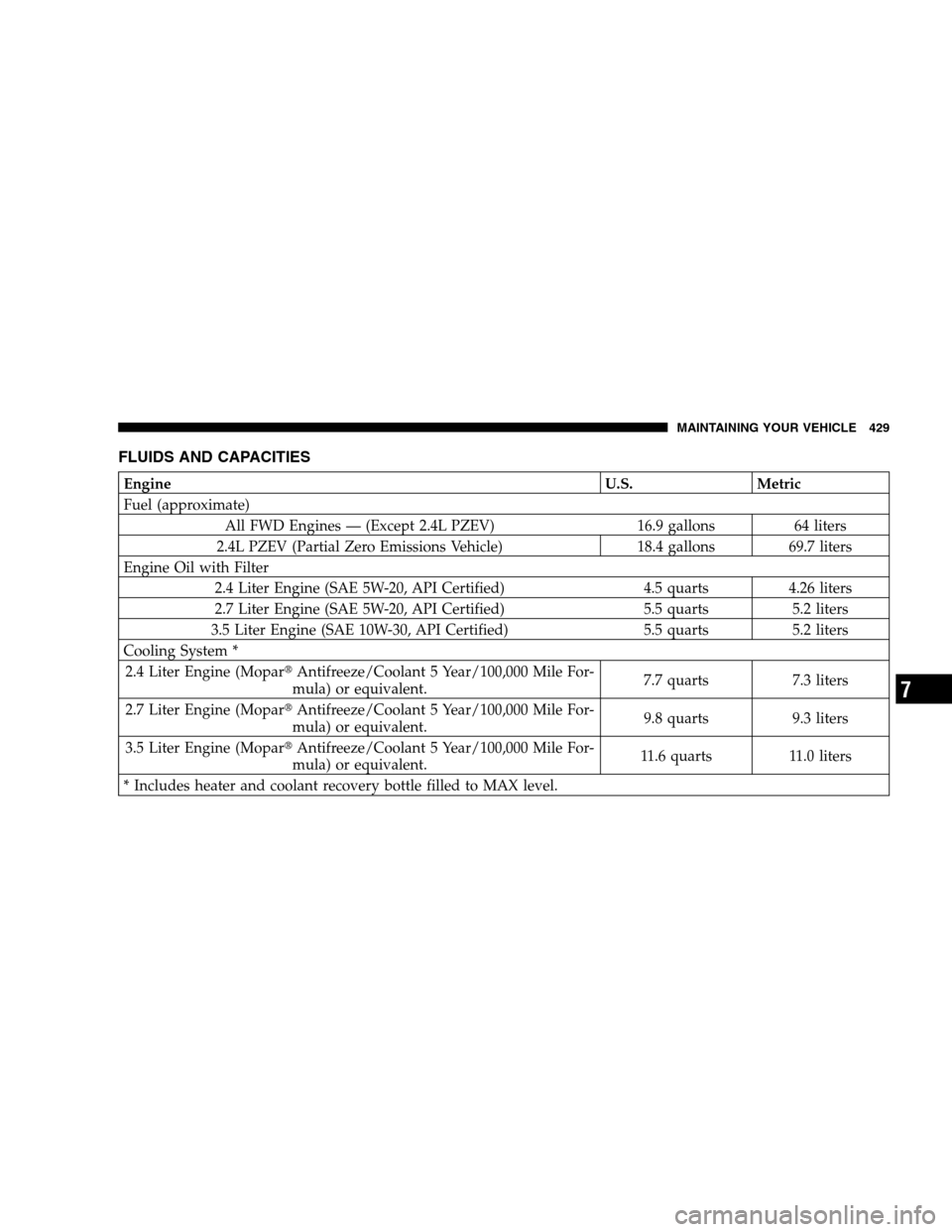

FLUIDS AND CAPACITIES
Engine U.S. Metric
Fuel (approximate)
All FWD Engines — (Except 2.4L PZEV) 16.9 gallons 64 liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.4 gallons 69.7 liters
Engine Oil with Filter
2.4 Liter Engine (SAE 5W-20, API Certified) 4.5 quarts 4.26 liters
2.7 Liter Engine (SAE 5W-20, API Certified) 5.5 quarts 5.2 liters
3.5 Liter Engine (SAE 10W-30, API Certified) 5.5 quarts 5.2 liters
Cooling System *
2.4 Liter Engine (MoparAntifreeze/Coolant 5 Year/100,000 Mile For-
mula) or equivalent.7.7 quarts 7.3 liters
2.7 Liter Engine (MoparAntifreeze/Coolant 5 Year/100,000 Mile For-
mula) or equivalent.9.8 quarts 9.3 liters
3.5 Liter Engine (MoparAntifreeze/Coolant 5 Year/100,000 Mile For-
mula) or equivalent.11.6 quarts 11.0 liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 429
7

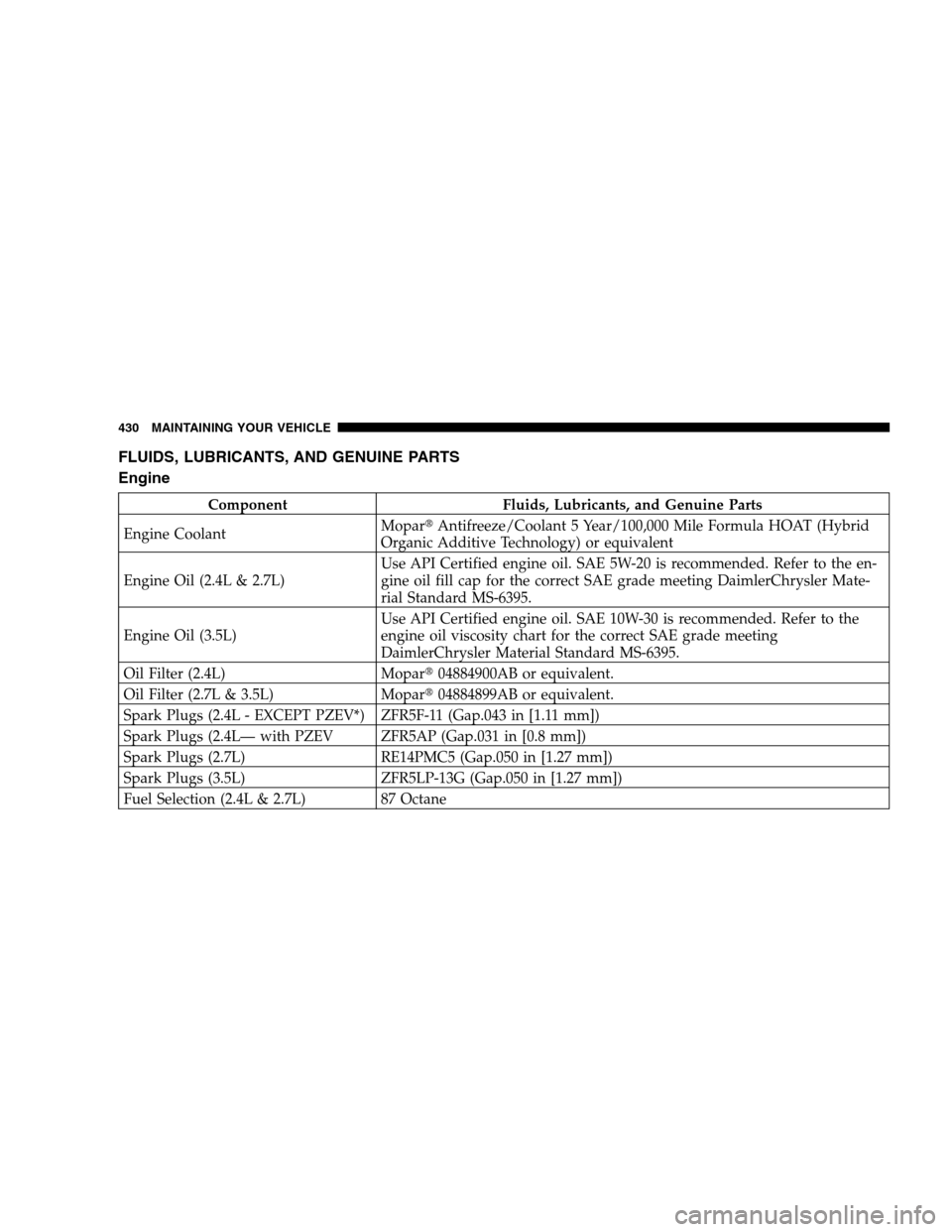

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluids, Lubricants, and Genuine Parts
Engine CoolantMoparAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent
Engine Oil (2.4L & 2.7L)Use API Certified engine oil. SAE 5W-20 is recommended. Refer to the en-
gine oil fill cap for the correct SAE grade meeting DaimlerChrysler Mate-
rial Standard MS-6395.
Engine Oil (3.5L)Use API Certified engine oil. SAE 10W-30 is recommended. Refer to the
engine oil viscosity chart for the correct SAE grade meeting
DaimlerChrysler Material Standard MS-6395.
Oil Filter (2.4L) Mopar04884900AB or equivalent.
Oil Filter (2.7L & 3.5L) Mopar04884899AB or equivalent.
Spark Plugs (2.4L - EXCEPT PZEV*) ZFR5F-11 (Gap.043 in [1.11 mm])
Spark Plugs (2.4L— with PZEV ZFR5AP (Gap.031 in [0.8 mm])
Spark Plugs (2.7L) RE14PMC5 (Gap.050 in [1.27 mm])
Spark Plugs (3.5L) ZFR5LP-13G (Gap.050 in [1.27 mm])
Fuel Selection (2.4L & 2.7L) 87 Octane
430 MAINTAINING YOUR VEHICLE

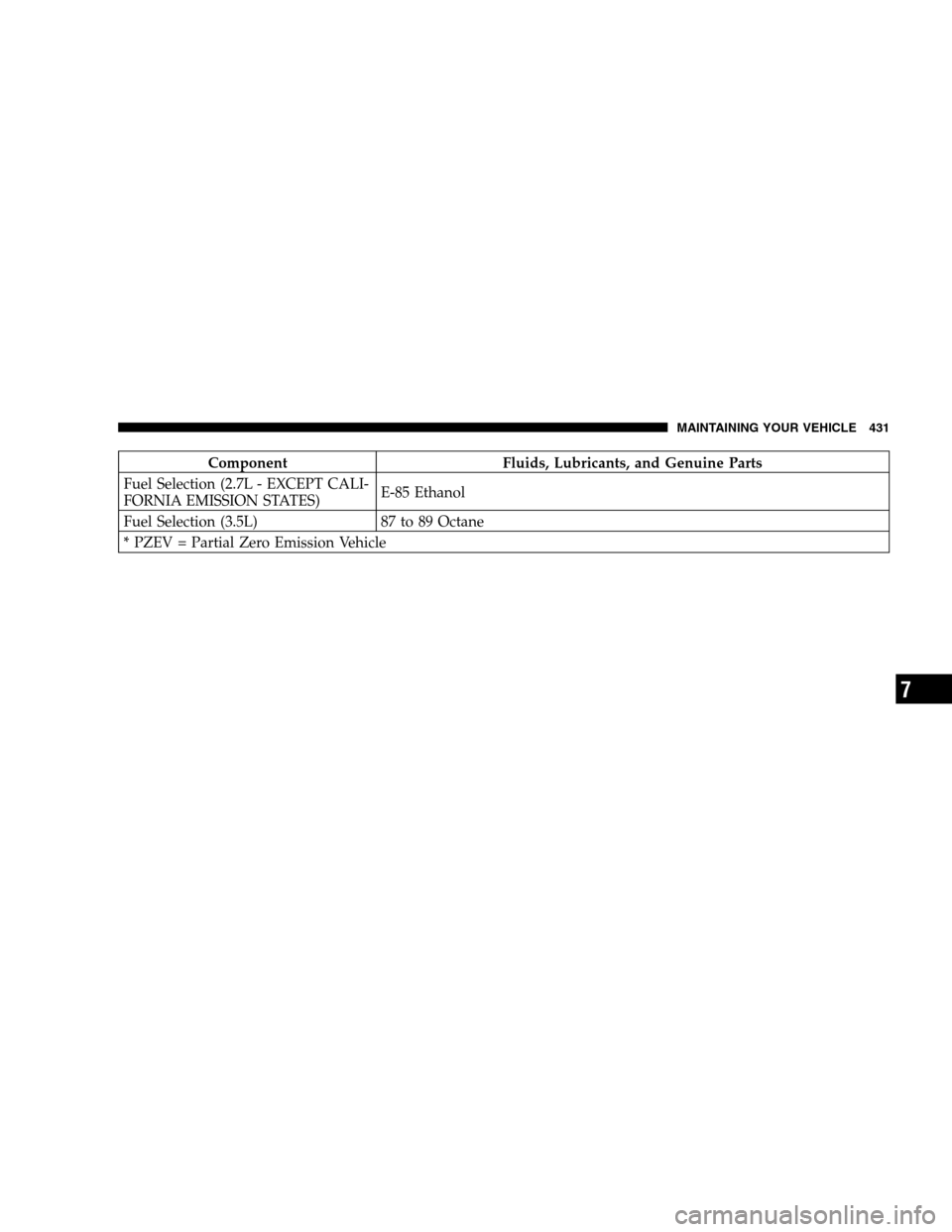

Component Fluids, Lubricants, and Genuine Parts
Fuel Selection (2.7L - EXCEPT CALI-
FORNIA EMISSION STATES)E-85 Ethanol
Fuel Selection (3.5L) 87 to 89 Octane
* PZEV = Partial Zero Emission Vehicle
MAINTAINING YOUR VEHICLE 431
7

Chassis
Component Fluids, Lubricants and Genuine Parts
Automatic Transaxle MoparATF+4 Automatic Transmission Fluid.
Brake Master CylinderMoparDOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is not
available, then DOT 4 is acceptable. Use only recommended brake fluids.
Power Steering Reservoir MoparATF+4 Automatic Transmission Fluid.
432 MAINTAINING YOUR VEHICLE

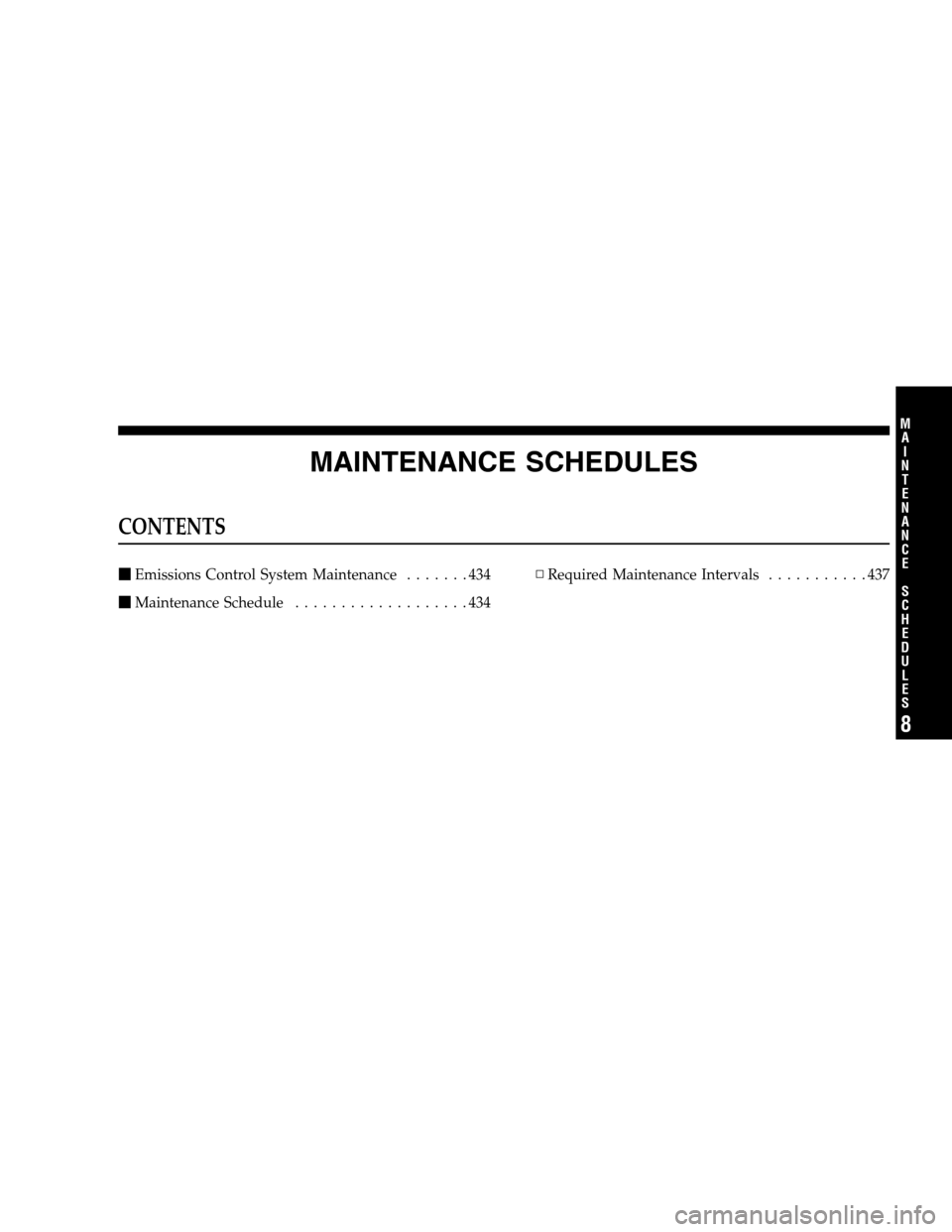

MAINTENANCE SCHEDULES
CONTENTS

Emissions Control System Maintenance.......434

Maintenance Schedule...................434▫Required Maintenance Intervals...........437
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

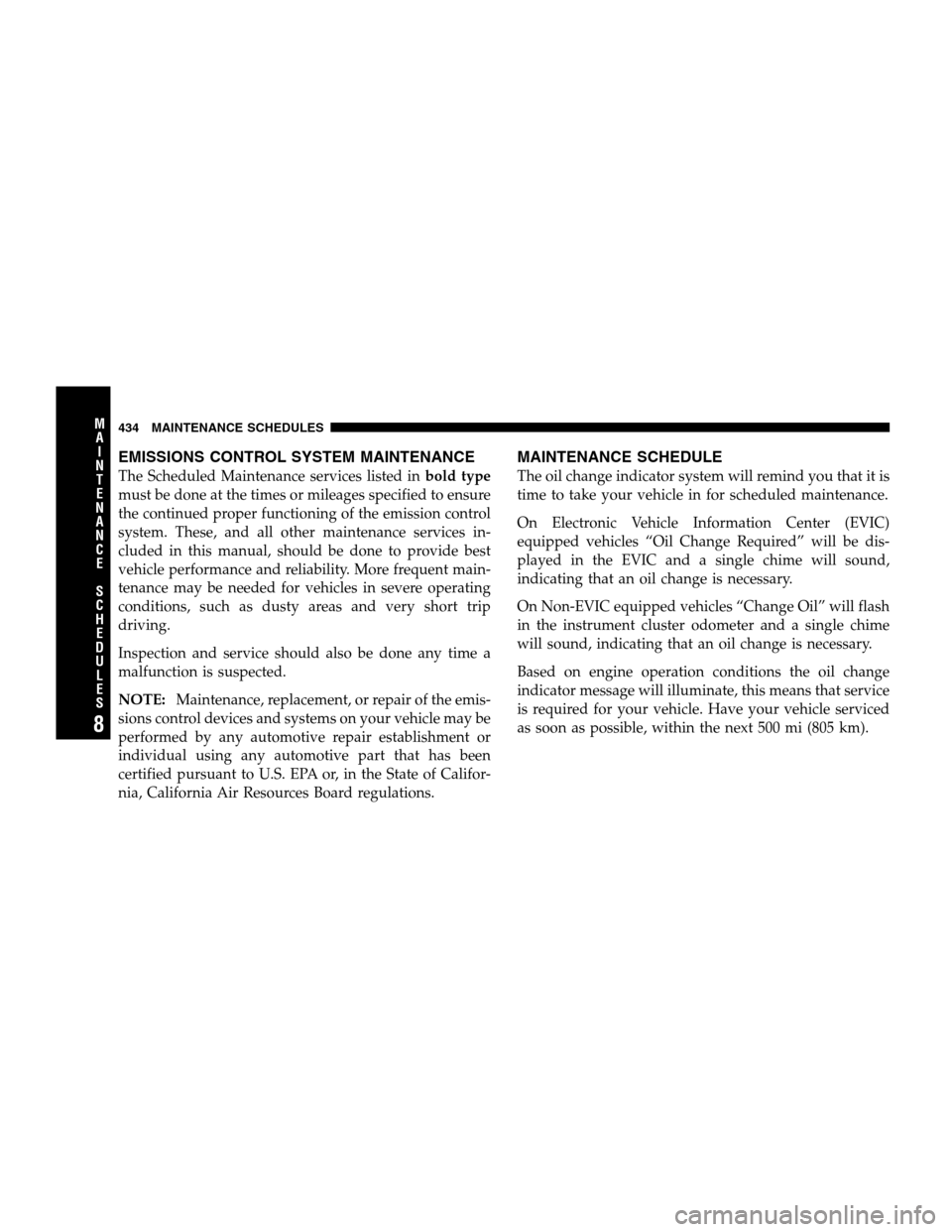

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emission control
system. These, and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done any time a
malfunction is suspected.
NOTE:Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or, in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 mi (805 km).
434 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

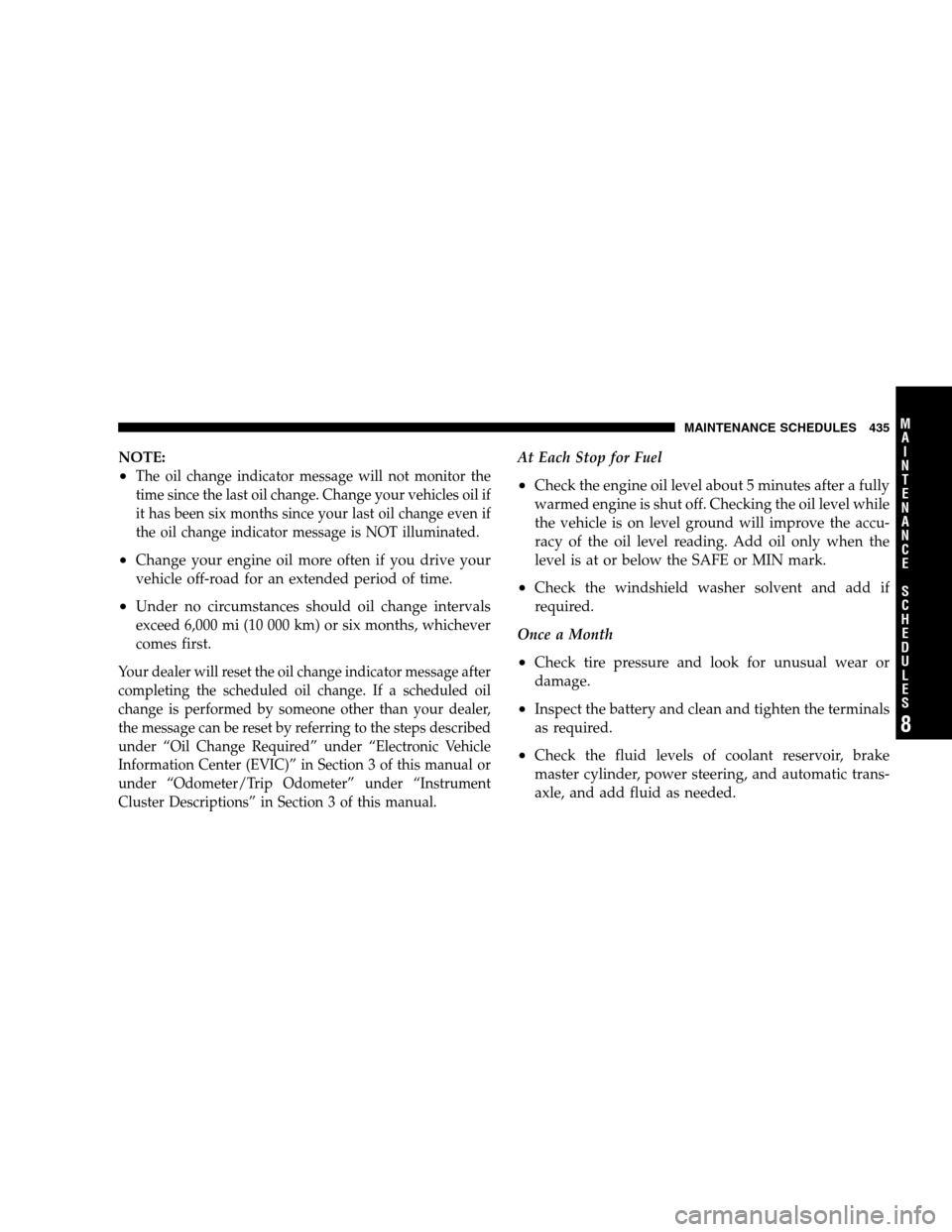

NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oil if
it has been six months since your last oil change even if
the oil change indicator message is NOT illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 mi (10 000 km) or six months, whichever
comes first.
Your dealer will reset the oil change indicator message after
completing the scheduled oil change. If a scheduled oil
change is performed by someone other than your dealer,
the message can be reset by referring to the steps described
under “Oil Change Required” under “Electronic Vehicle
Information Center (EVIC)” in Section 3 of this manual or
under “Odometer/Trip Odometer” under “Instrument
Cluster Descriptions” in Section 3 of this manual.
At Each Stop for Fuel
•Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the SAFE or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering, and automatic trans-
axle, and add fluid as needed.
MAINTENANCE SCHEDULES 435
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

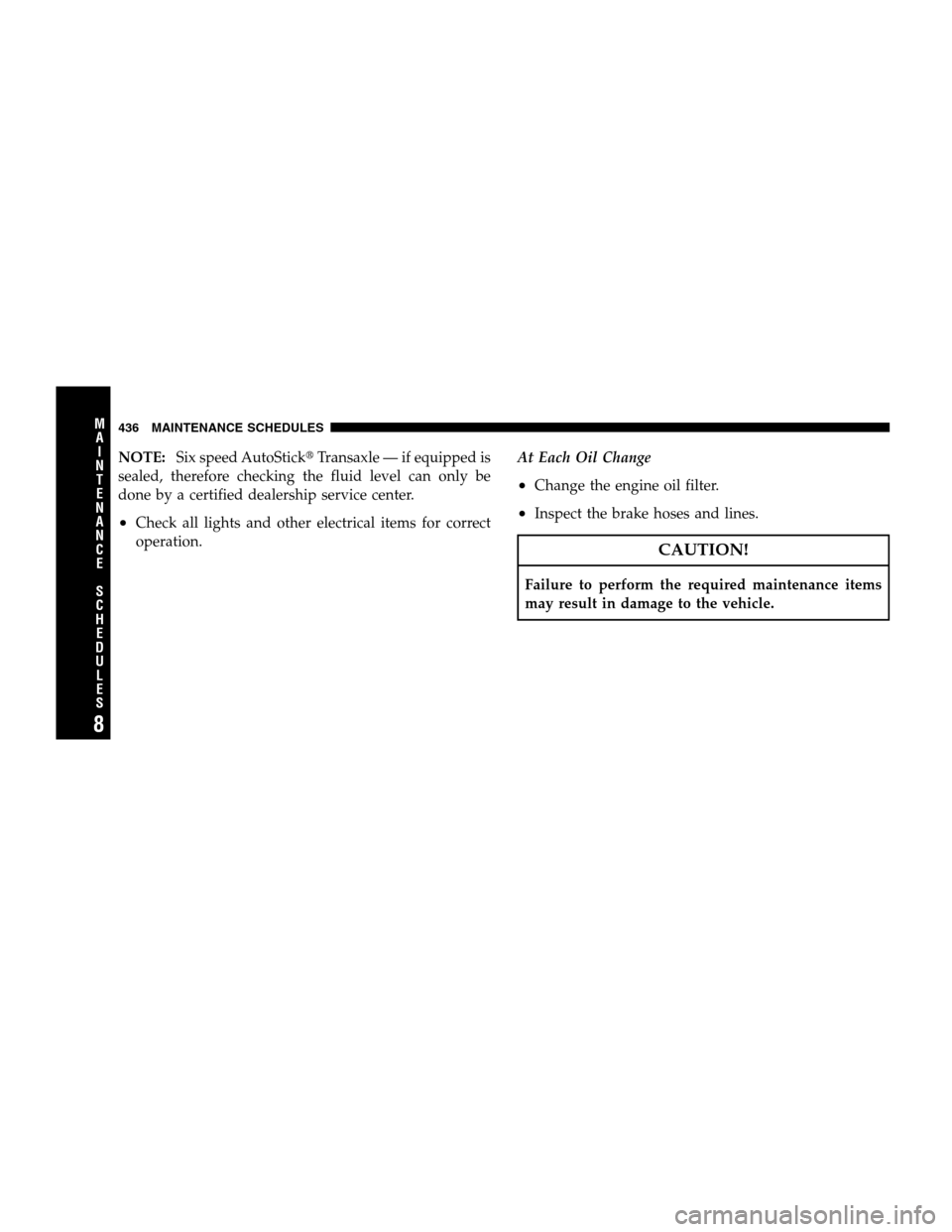

NOTE:Six speed AutoStickTransaxle — if equipped is
sealed, therefore checking the fluid level can only be
done by a certified dealership service center.
•Check all lights and other electrical items for correct
operation.At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
436 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Required Maintenance Intervals
Perform Maintenance Every(Where time and mileage
are listed, follow the interval that occurs first.)
Maintenance Items Miles Kilometers or Months
Change the engine oil and engine oil filter. 6,000 10 000 6
Rotate the tires. 6,000 10 000 6
If using your vehicle in dusty or off-road conditions,
inspect the engine air cleaner filter, and replace if nec-
essary.12,000 20 000 12
Inspect the brake linings, and replace if necessary. 12,000 20 000 12
Replace the air conditioning filter (if equipped). 12,000 20 000 12
Inspect the CV joints. Perform the first inspection at
12,000 miles (20 000 km) or 12 months.24,000 40 000 24
Inspect the exhaust system. Perform the first inspec-
tion at 12,000 miles (20 000 km) or 12 months.24,000 40 000 24
Inspect the front suspension, tie rod ends and boot
seals, and replace if necessary.24,000 40 000 24
Replace the engine air cleaner filter. 30,000 50 000 30
MAINTENANCE SCHEDULES 437
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Perform Maintenance Every(Where time and mileage
are listed, follow the interval that occurs first.)
Maintenance Items Miles Kilometers or Months
Replace the spark plugs on 2.4L engines (except
PZEV* engine).30,000 50 000 30
Inspect and adjust the power steering pump belt ten-
sion on 2.4L engines.30,000 50 000 30
Inspect the generator belt on 2.4L engines, and replace
if necessary.30,000 50 000 30
Change the automatic transaxle fluid & filter if using
your vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing.60,000 100 000 60
Inspect and replace the PCV valve if necessary.90,000 150 000 90
Flush and replace the engine coolant. 100,000 160 000 60
Replace the spark plugs on 2.4L PZEV*, 2.7L and
3.5L engines.102,000 170 000 102
Replace the power steering pump belt on 2.4L engines. 102,000 170 000 102
Replace the generator belt on 2.4L engines. 102,000 170 000 102
