CHRYSLER SEBRING SEDAN 2008 3.G Owners Manual

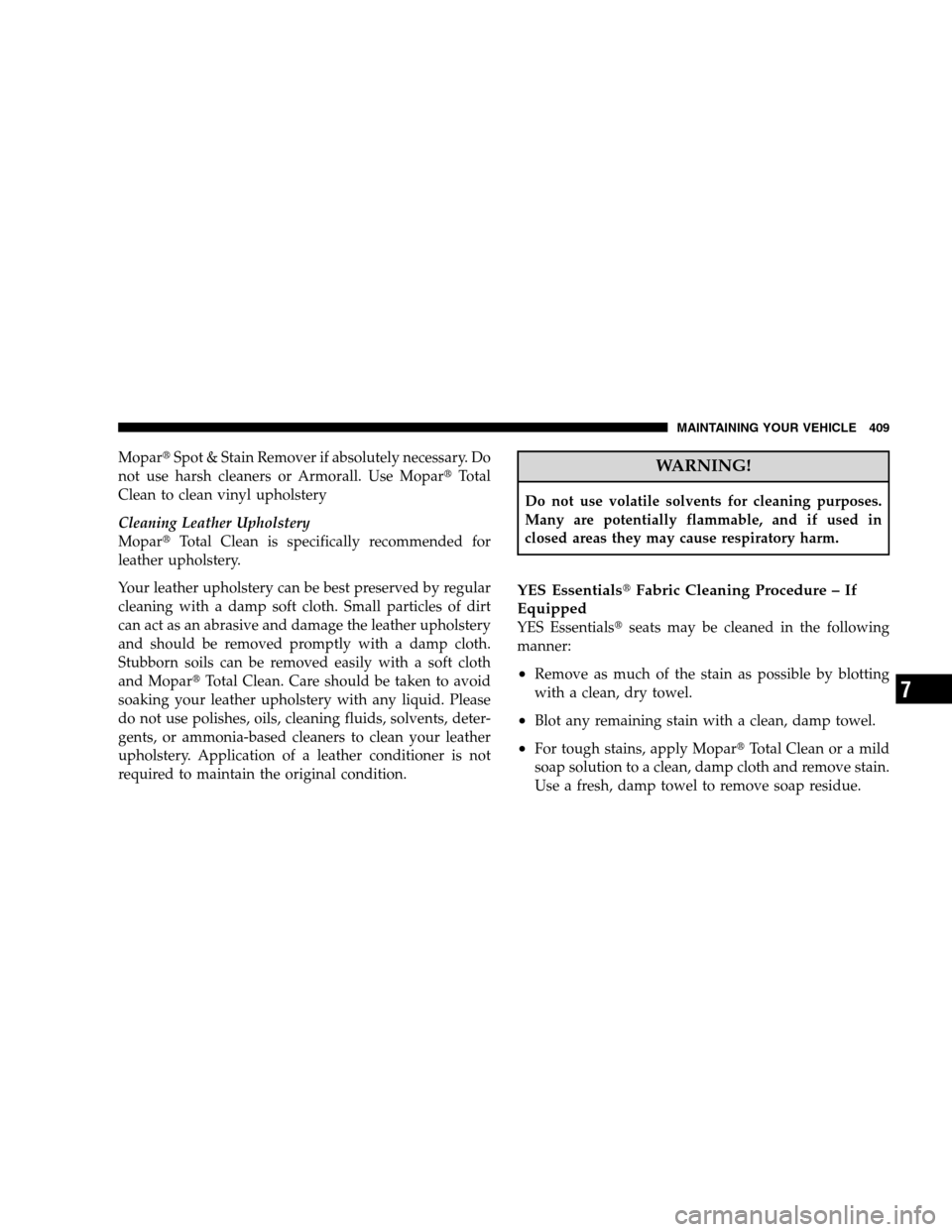

MoparSpot & Stain Remover if absolutely necessary. Do
not use harsh cleaners or Armorall. Use MoparTotal
Clean to clean vinyl upholstery
Cleaning Leather Upholstery
MoparTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MoparTotal Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
YES EssentialsFabric Cleaning Procedure – If
Equipped
YES Essentialsseats may be cleaned in the following
manner:
•Remove as much of the stain as possible by blotting
with a clean, dry towel.
•Blot any remaining stain with a clean, damp towel.
•For tough stains, apply MoparTotal Clean or a mild
soap solution to a clean, damp cloth and remove stain.
Use a fresh, damp towel to remove soap residue.
MAINTAINING YOUR VEHICLE 409
7

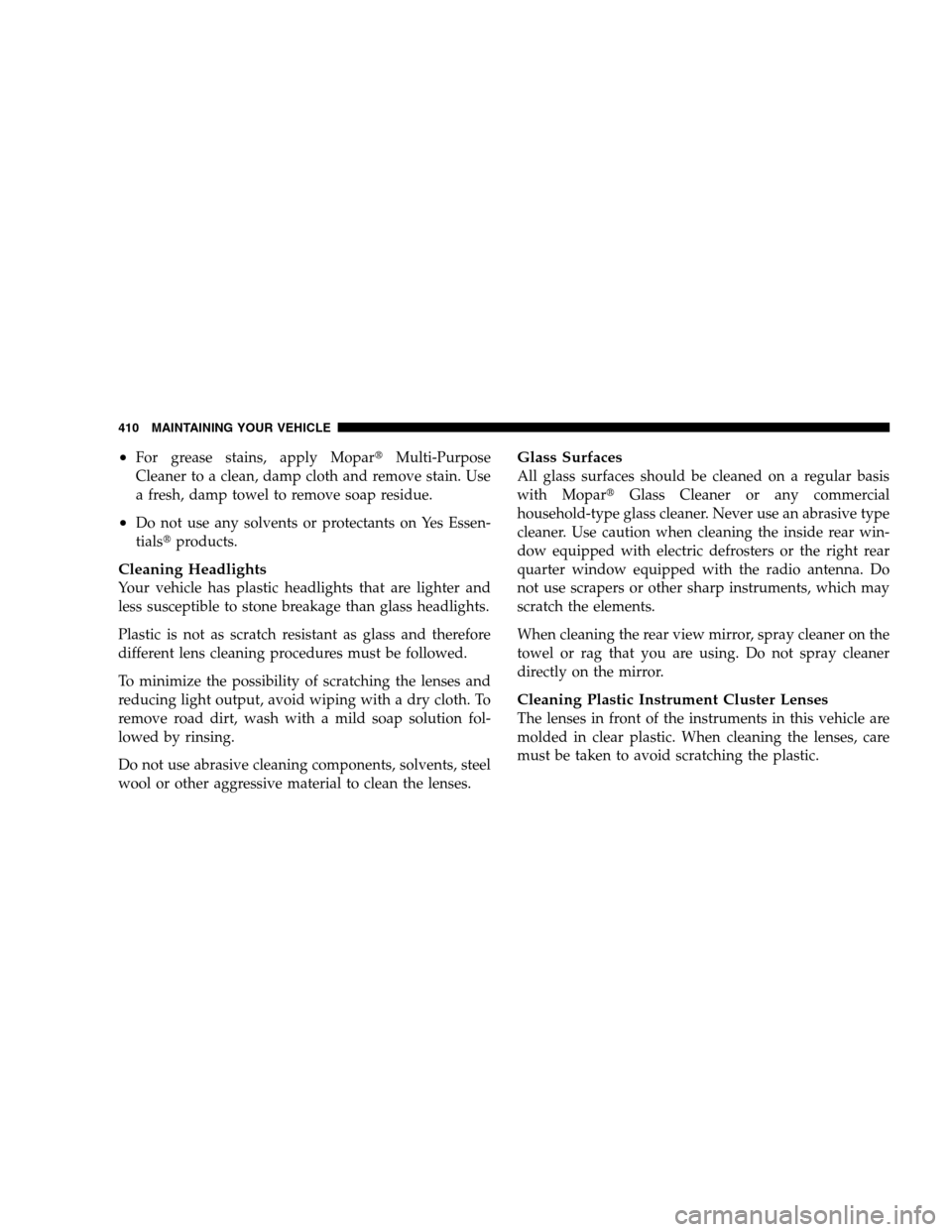

•For grease stains, apply MoparMulti-Purpose
Cleaner to a clean, damp cloth and remove stain. Use
a fresh, damp towel to remove soap residue.
•Do not use any solvents or protectants on Yes Essen-
tialsproducts.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MoparGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
410 MAINTAINING YOUR VEHICLE

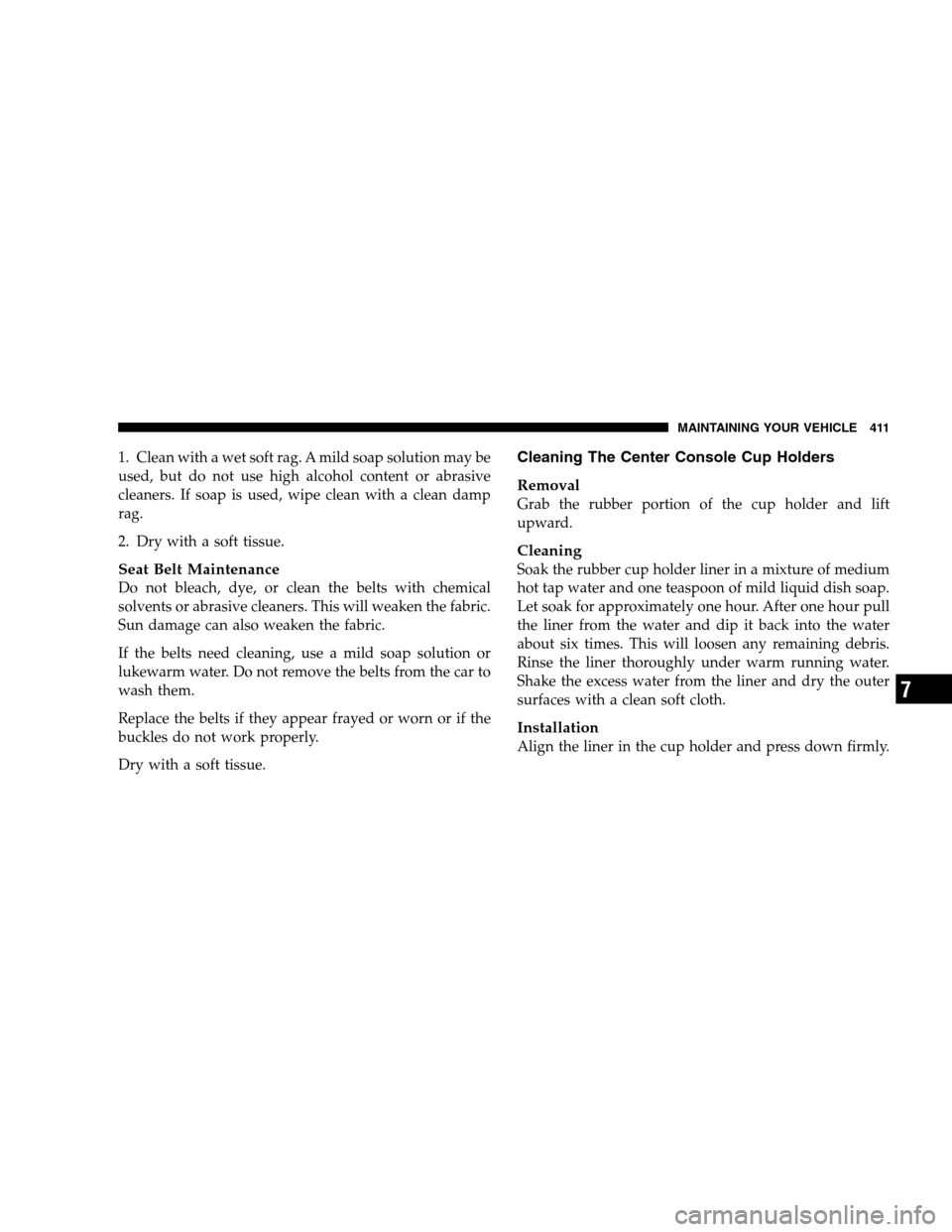

1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
Cleaning The Center Console Cup Holders
Removal
Grab the rubber portion of the cup holder and lift
upward.
Cleaning
Soak the rubber cup holder liner in a mixture of medium
hot tap water and one teaspoon of mild liquid dish soap.
Let soak for approximately one hour. After one hour pull
the liner from the water and dip it back into the water
about six times. This will loosen any remaining debris.
Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the outer
surfaces with a clean soft cloth.
Installation
Align the liner in the cup holder and press down firmly.
MAINTAINING YOUR VEHICLE 411
7

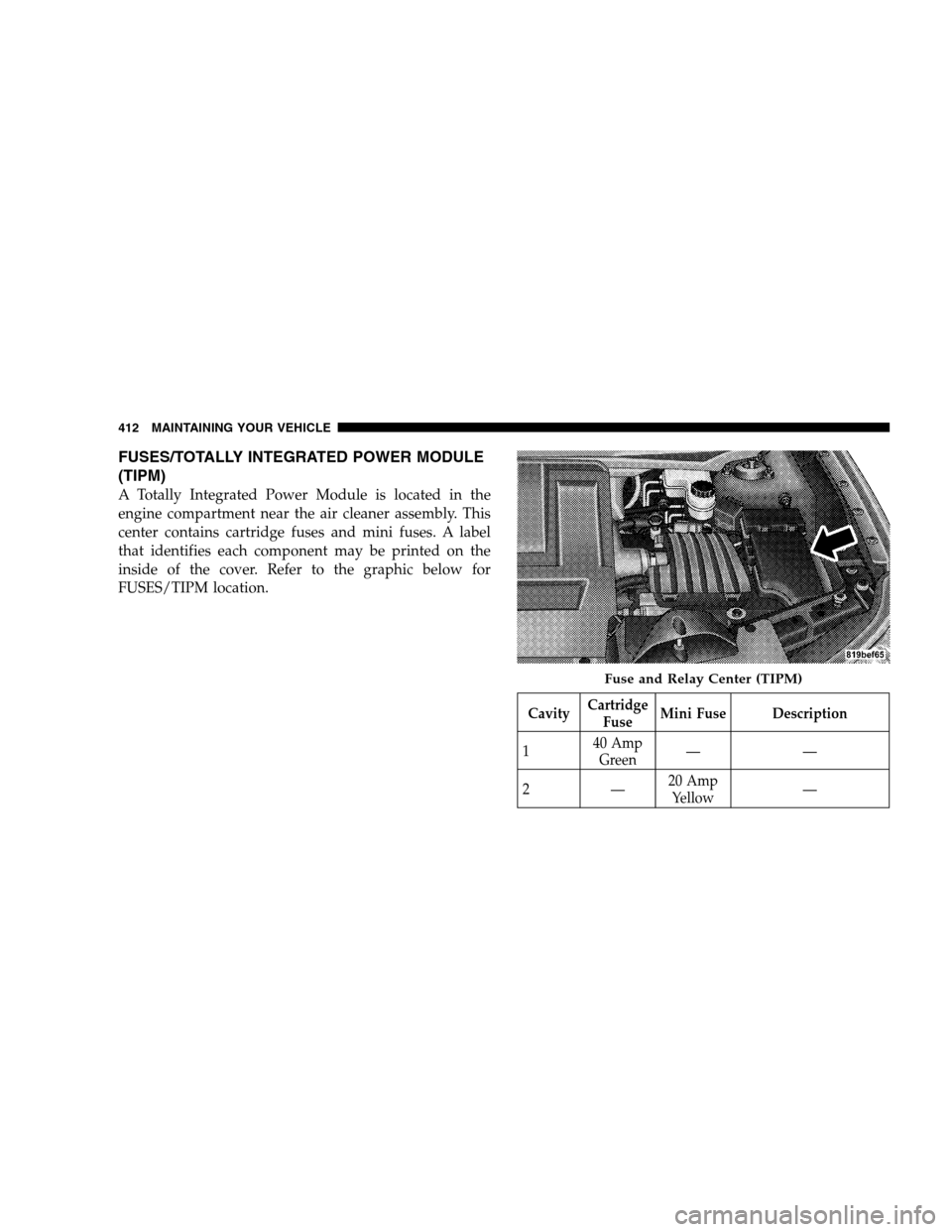

FUSES/TOTALLY INTEGRATED POWER MODULE
(TIPM)
A Totally Integrated Power Module is located in the
engine compartment near the air cleaner assembly. This
center contains cartridge fuses and mini fuses. A label
that identifies each component may be printed on the
inside of the cover. Refer to the graphic below for
FUSES/TIPM location.
CavityCartridge
FuseMini Fuse Description
140 Amp
Green——
2—20 Amp
Yellow—
Fuse and Relay Center (TIPM)
412 MAINTAINING YOUR VEHICLE

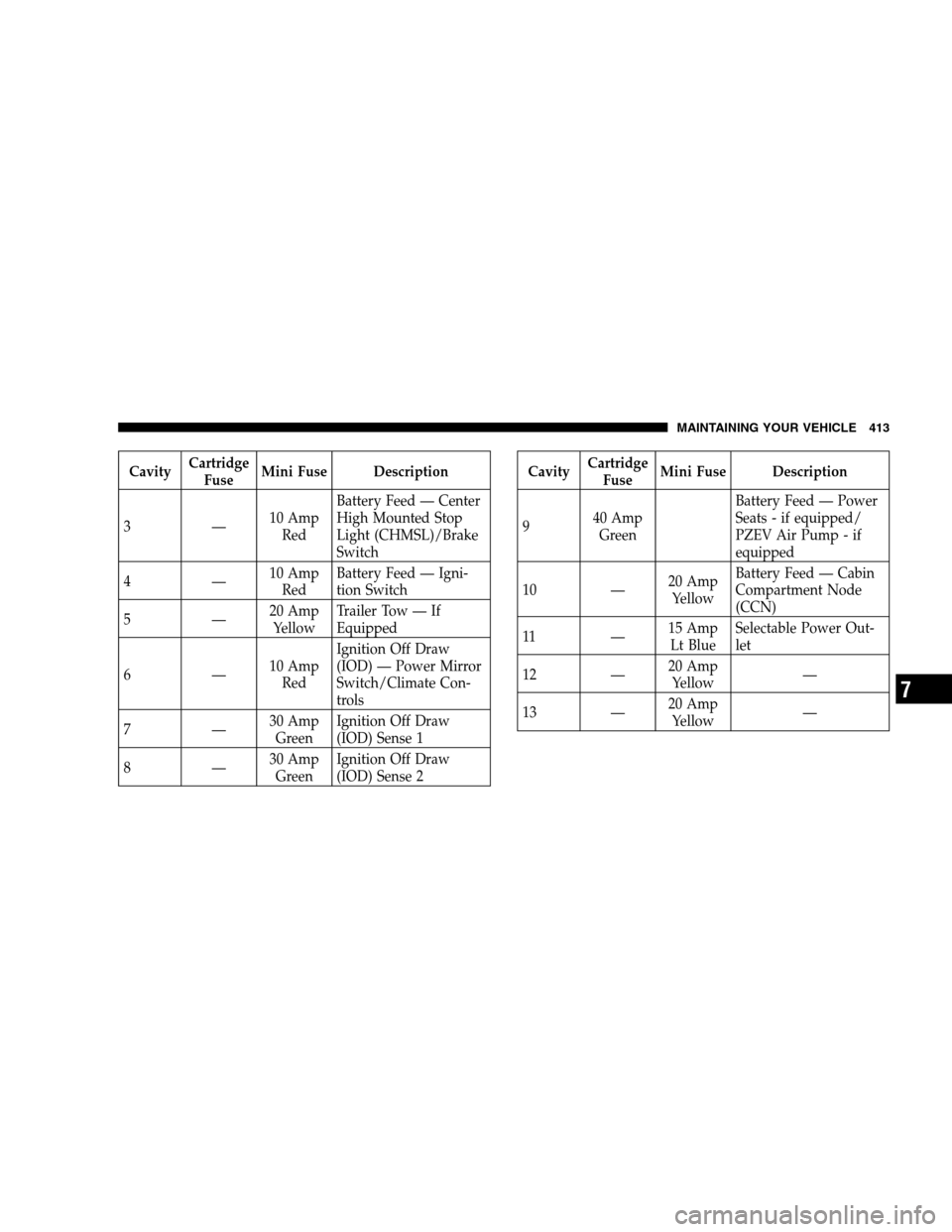

CavityCartridge
FuseMini Fuse Description
3—10 Amp
RedBattery Feed — Center
High Mounted Stop
Light (CHMSL)/Brake
Switch
4—10 Amp
RedBattery Feed — Igni-
tion Switch
5—20 Amp
YellowTrailer Tow — If
Equipped
6—10 Amp
RedIgnition Off Draw
(IOD) — Power Mirror
Switch/Climate Con-
trols
7—30 Amp
GreenIgnition Off Draw
(IOD) Sense 1
8—30 Amp
GreenIgnition Off Draw
(IOD) Sense 2CavityCartridge
FuseMini Fuse Description
940 Amp
GreenBattery Feed — Power
Seats - if equipped/
PZEV Air Pump - if
equipped
10 —20 Amp
YellowBattery Feed — Cabin
Compartment Node
(CCN)
11 —15 Amp
Lt BlueSelectable Power Out-
let
12 —20 Amp
Yellow—
13 —20 Amp
Yellow—
MAINTAINING YOUR VEHICLE 413
7

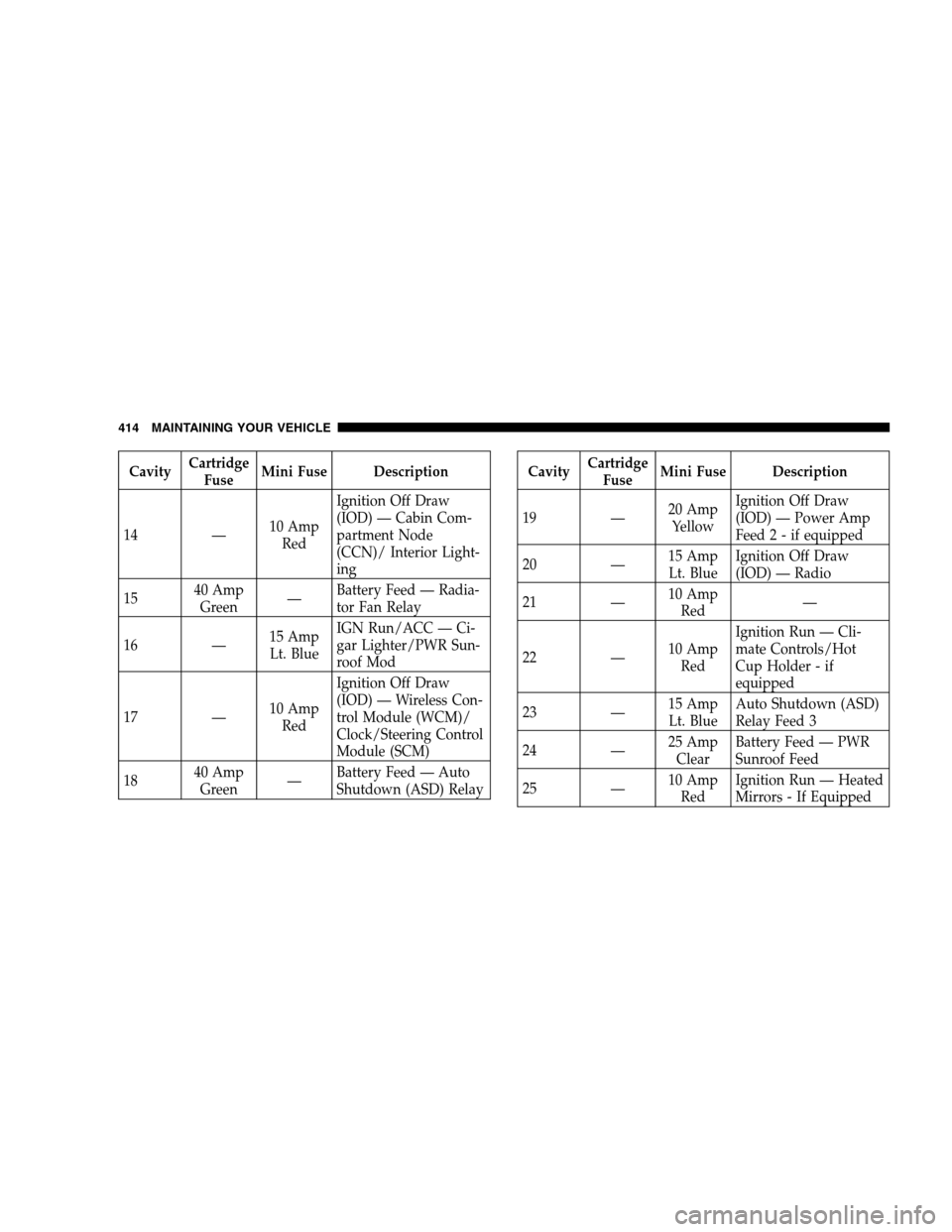

CavityCartridge
FuseMini Fuse Description
14 —10 Amp
RedIgnition Off Draw
(IOD) — Cabin Com-
partment Node
(CCN)/ Interior Light-
ing
1540 Amp
Green—Battery Feed — Radia-
tor Fan Relay
16 —15 Amp
Lt. BlueIGN Run/ACC — Ci-
gar Lighter/PWR Sun-
roof Mod
17 —10 Amp
RedIgnition Off Draw
(IOD) — Wireless Con-
trol Module (WCM)/
Clock/Steering Control
Module (SCM)
1840 Amp
Green—Battery Feed — Auto
Shutdown (ASD) RelayCavityCartridge
FuseMini Fuse Description
19 —20 Amp
YellowIgnition Off Draw
(IOD) — Power Amp
Feed2-ifequipped
20 —15 Amp
Lt. BlueIgnition Off Draw
(IOD) — Radio
21 —10 Amp
Red—
22 —10 Amp
RedIgnition Run — Cli-
mate Controls/Hot
Cup Holder - if
equipped
23 —15 Amp
Lt. BlueAuto Shutdown (ASD)
Relay Feed 3
24 —25 Amp
ClearBattery Feed — PWR
Sunroof Feed
25 —10 Amp
RedIgnition Run — Heated
Mirrors - If Equipped
414 MAINTAINING YOUR VEHICLE

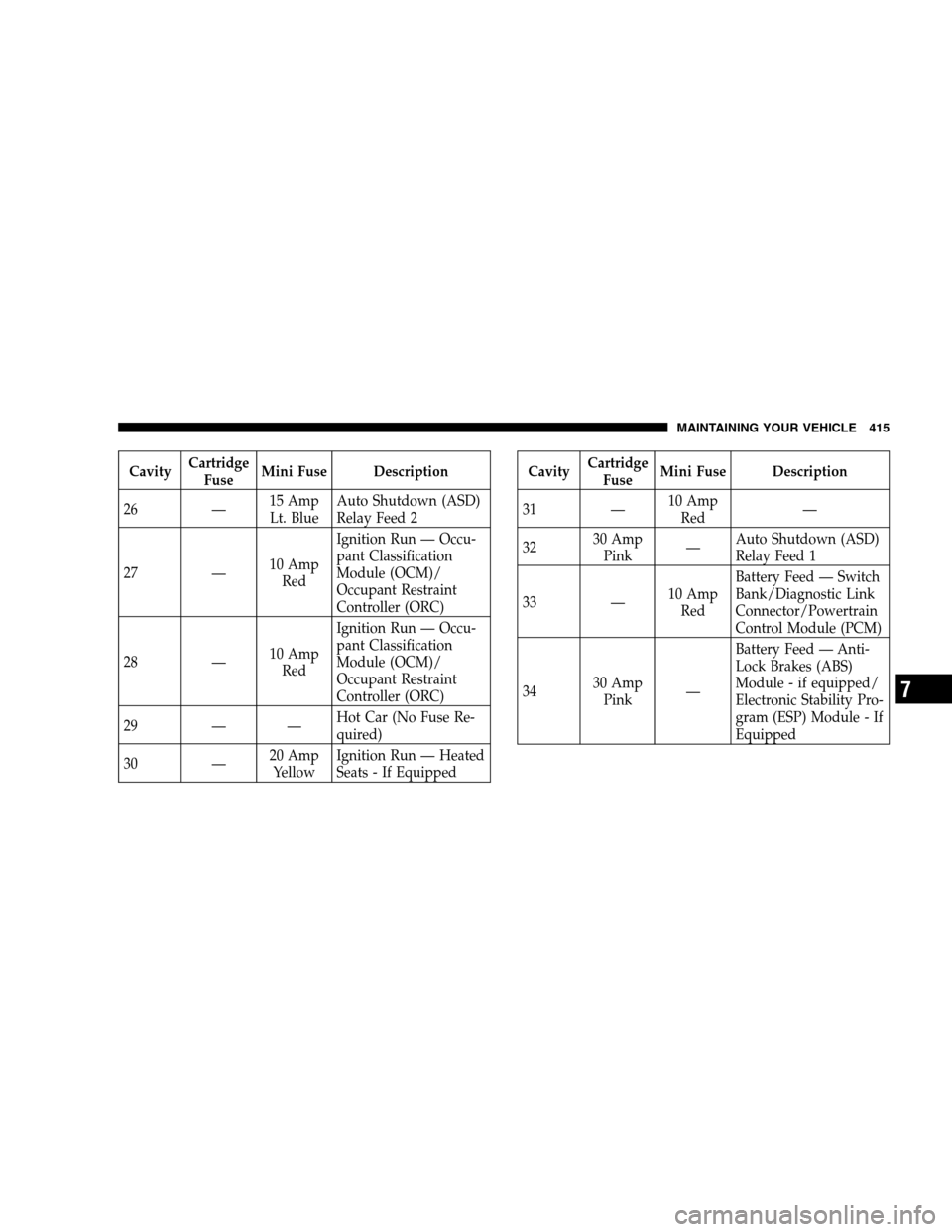

CavityCartridge
FuseMini Fuse Description
26 —15 Amp
Lt. BlueAuto Shutdown (ASD)
Relay Feed 2
27 —10 Amp
RedIgnition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
28 —10 Amp
RedIgnition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — —Hot Car (No Fuse Re-
quired)
30 —20 Amp
YellowIgnition Run — Heated
Seats - If EquippedCavityCartridge
FuseMini Fuse Description
31 —10 Amp
Red—
3230 Amp
Pink—Auto Shutdown (ASD)
Relay Feed 1
33 —10 Amp
RedBattery Feed — Switch
Bank/Diagnostic Link
Connector/Powertrain
Control Module (PCM)
3430 Amp
Pink—Battery Feed — Anti-
Lock Brakes (ABS)
Module - if equipped/
Electronic Stability Pro-
gram (ESP) Module - If
Equipped
MAINTAINING YOUR VEHICLE 415
7

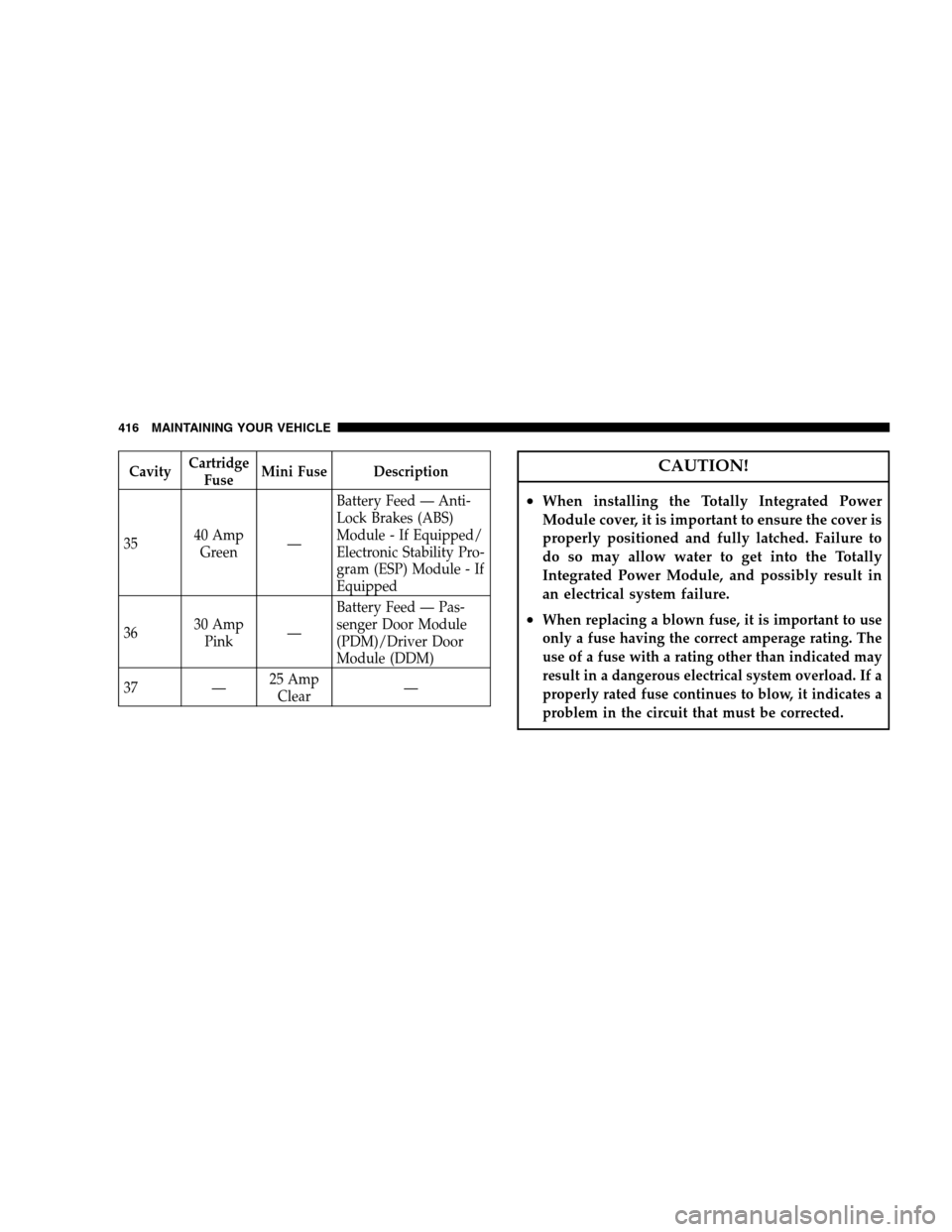

CavityCartridge
FuseMini Fuse Description
3540 Amp
Green—Battery Feed — Anti-
Lock Brakes (ABS)
Module - If Equipped/
Electronic Stability Pro-
gram (ESP) Module - If
Equipped
3630 Amp
Pink—Battery Feed — Pas-
senger Door Module
(PDM)/Driver Door
Module (DDM)
37 —25 Amp
Clear—CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
416 MAINTAINING YOUR VEHICLE

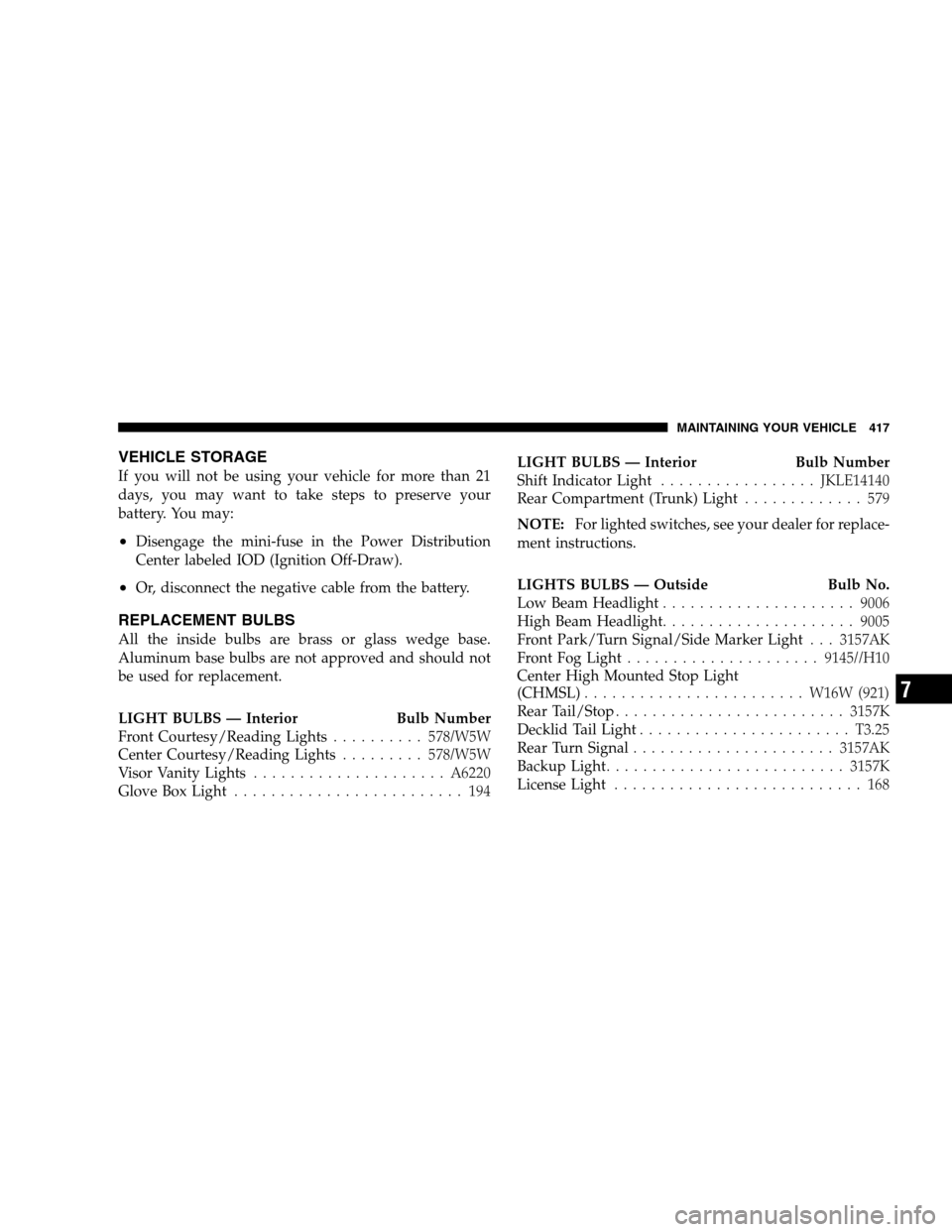

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery. You may:
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or, disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Front Courtesy/Reading Lights..........578/W5W
Center Courtesy/Reading Lights.........578/W5W
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194LIGHT BULBS — Interior Bulb Number
Shift Indicator Light................. JKLE14140
Rear Compartment (Trunk) Light............. 579
NOTE:For lighted switches, see your dealer for replace-
ment instructions.
LIGHTS BULBS — Outside Bulb No.
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Signal/Side Marker Light. . . 3157AK
Front Fog Light.....................9145//H10
Center High Mounted Stop Light
(CHMSL)........................ W16W(921)
Rear Tail/Stop.........................3157K
Decklid Tail Light....................... T3.25
Rear Turn Signal......................3157AK
Backup Light..........................3157K
License Light........................... 168
MAINTAINING YOUR VEHICLE 417
7

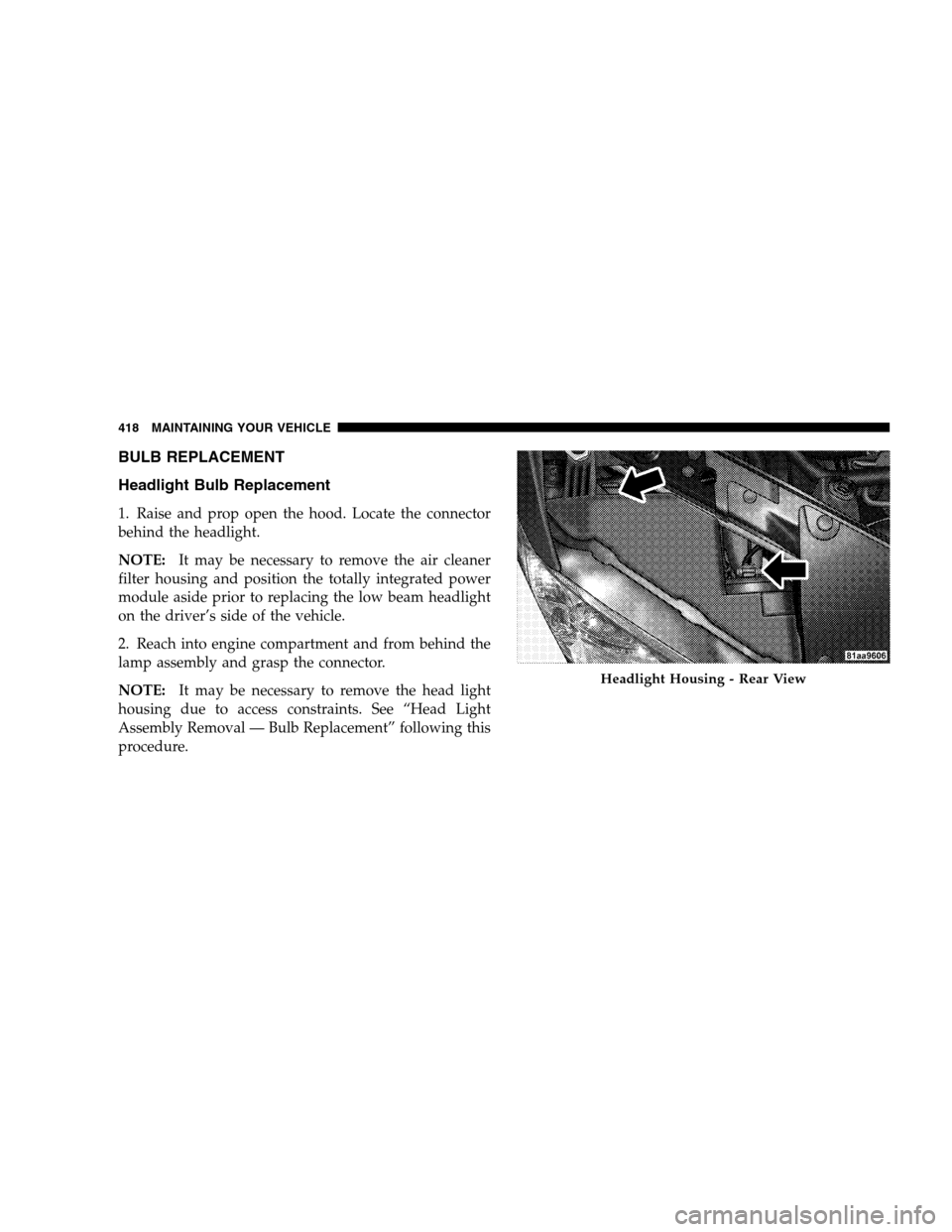

BULB REPLACEMENT
Headlight Bulb Replacement
1. Raise and prop open the hood. Locate the connector
behind the headlight.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlight
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
NOTE:It may be necessary to remove the head light
housing due to access constraints. See “Head Light
Assembly Removal — Bulb Replacement” following this
procedure.
Headlight Housing - Rear View
418 MAINTAINING YOUR VEHICLE
