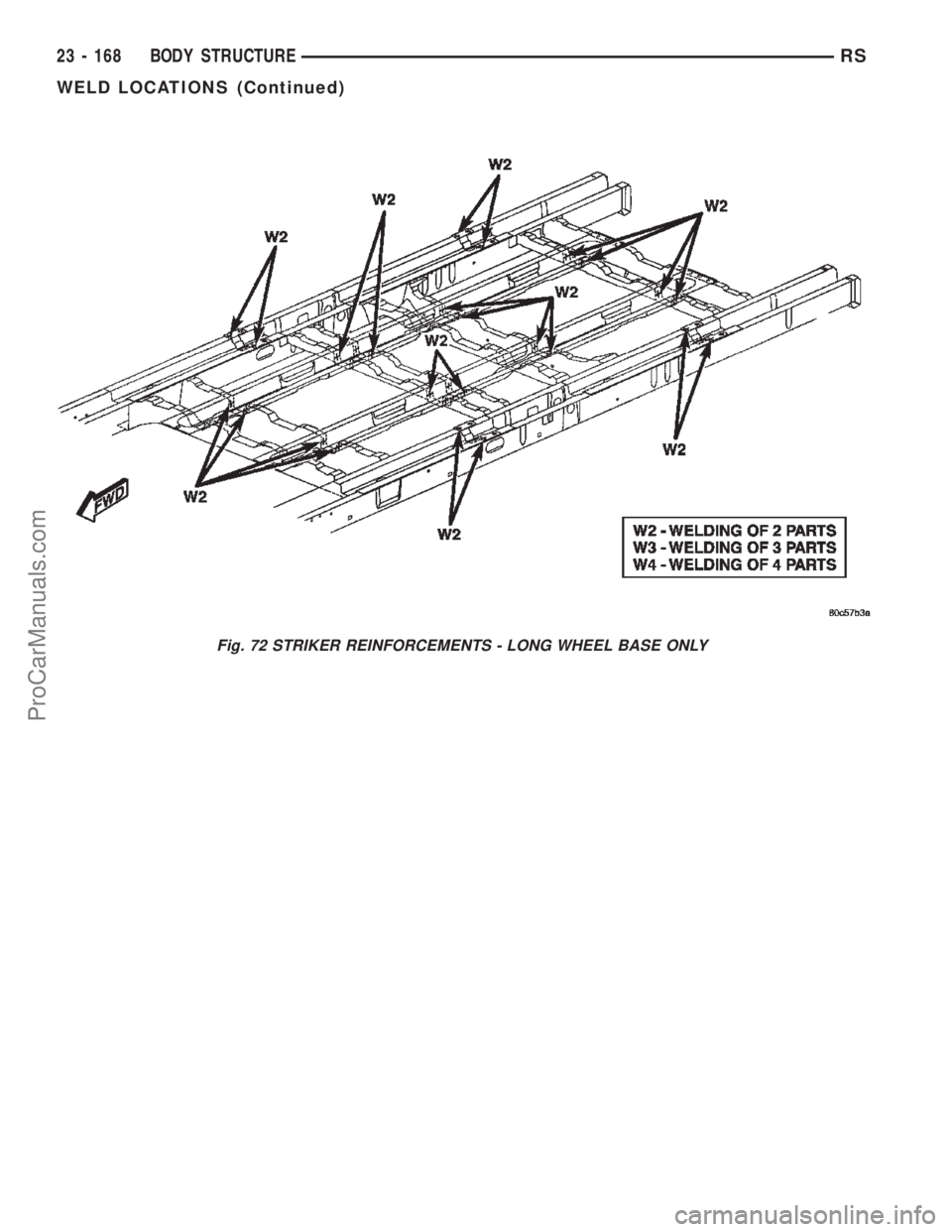

Fig. 72 STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY
23 - 168 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

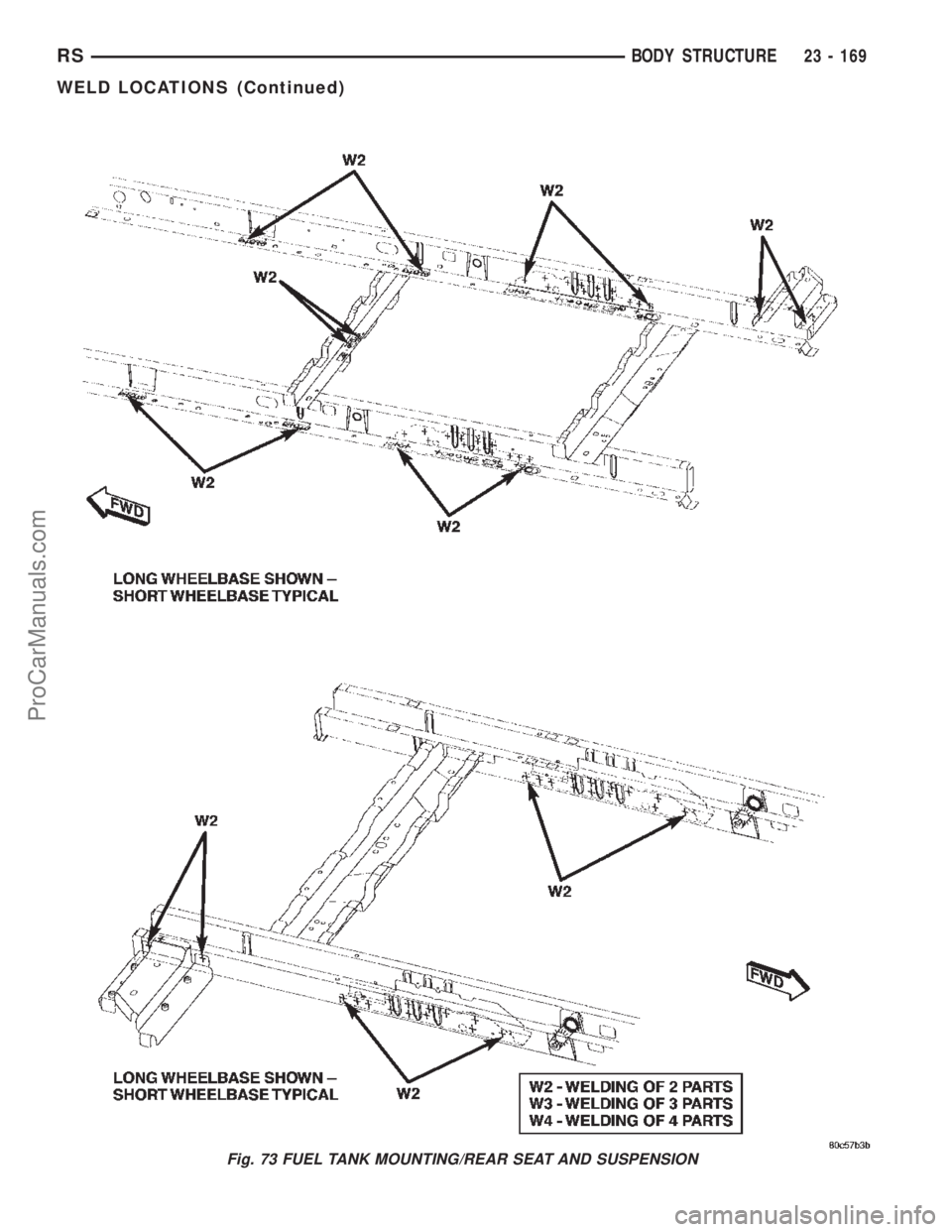

Fig. 73 FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION
RSBODY STRUCTURE23 - 169
WELD LOCATIONS (Continued)
ProCarManuals.com

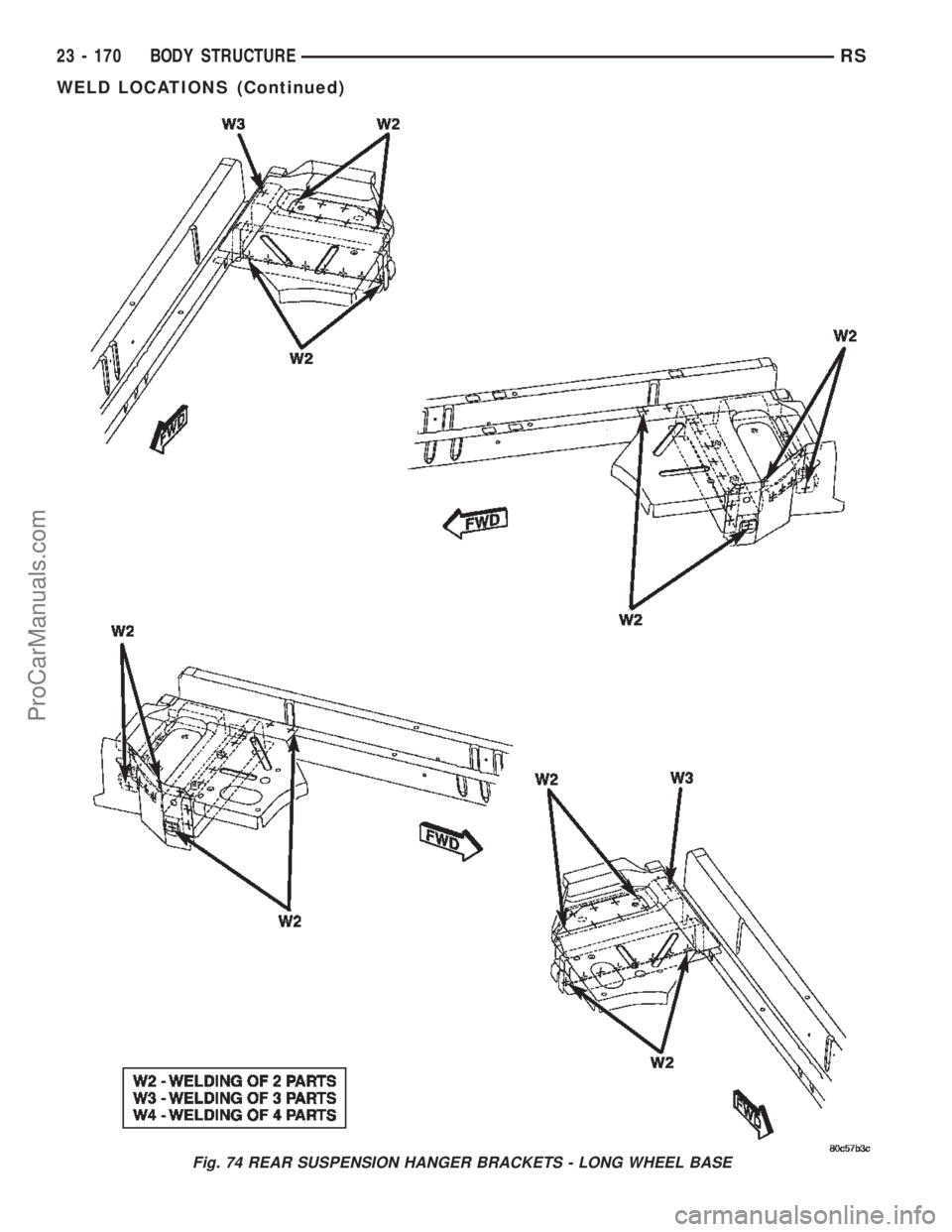

Fig. 74 REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE
23 - 170 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

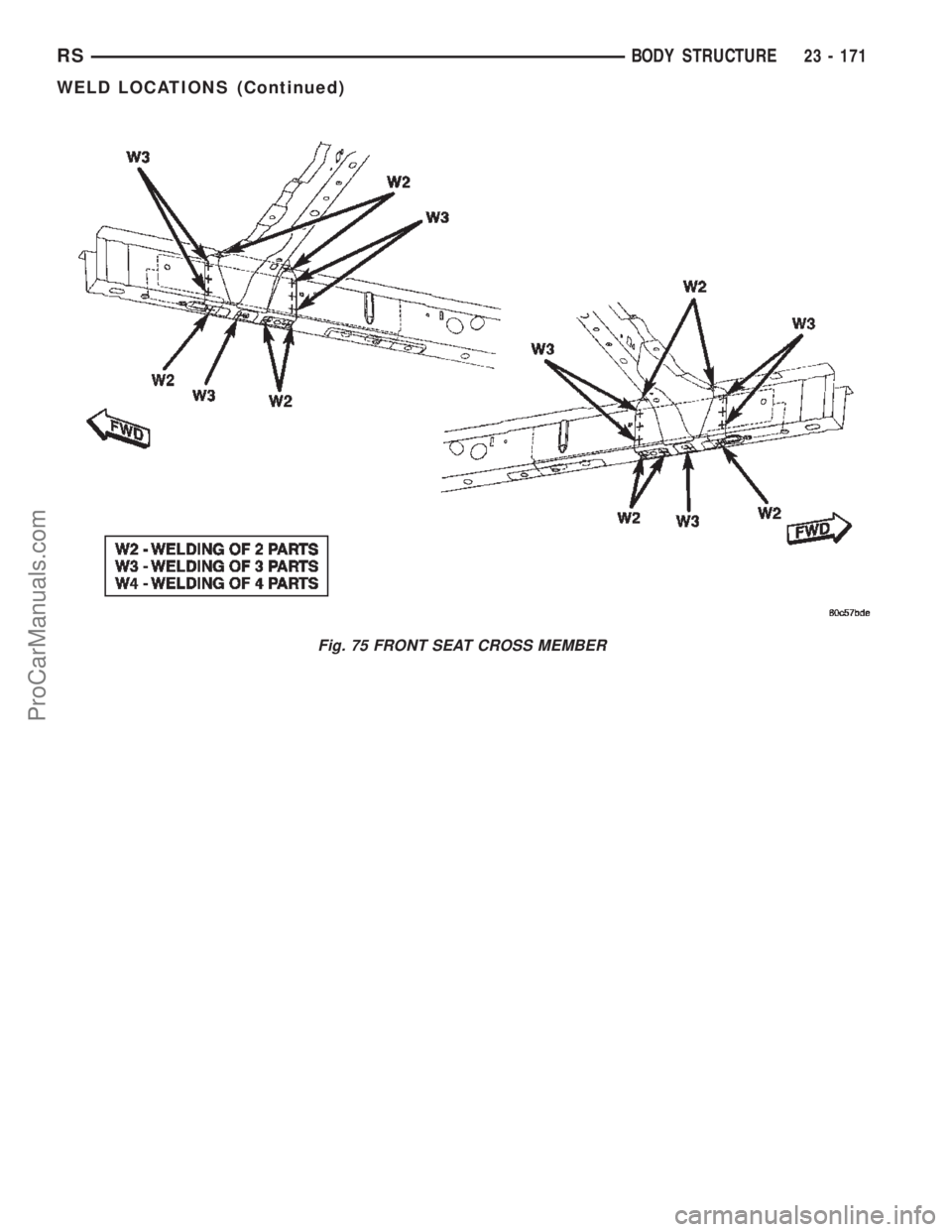

Fig. 75 FRONT SEAT CROSS MEMBER
RSBODY STRUCTURE23 - 171
WELD LOCATIONS (Continued)
ProCarManuals.com

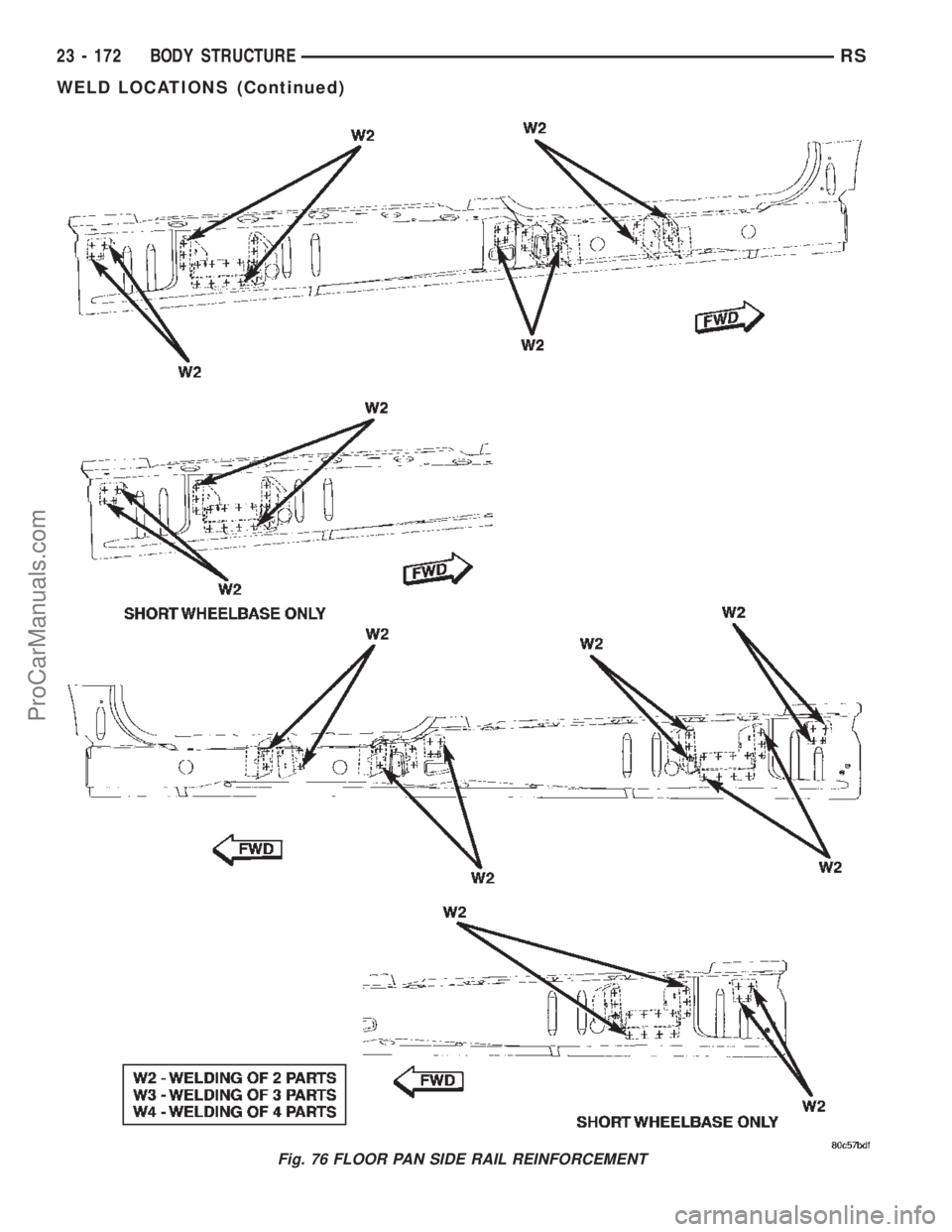

Fig. 76 FLOOR PAN SIDE RAIL REINFORCEMENT
23 - 172 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

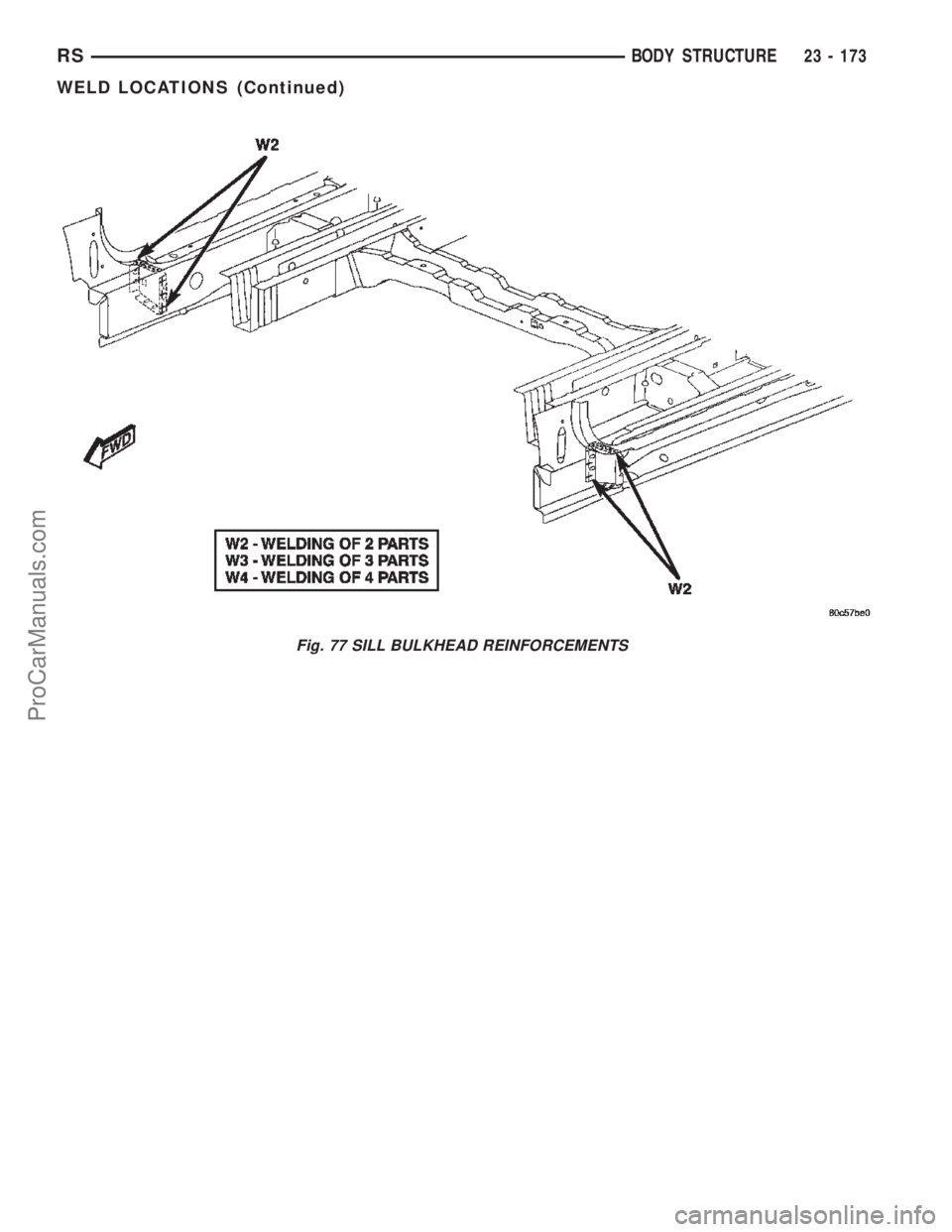

Fig. 77 SILL BULKHEAD REINFORCEMENTS
RSBODY STRUCTURE23 - 173
WELD LOCATIONS (Continued)
ProCarManuals.com

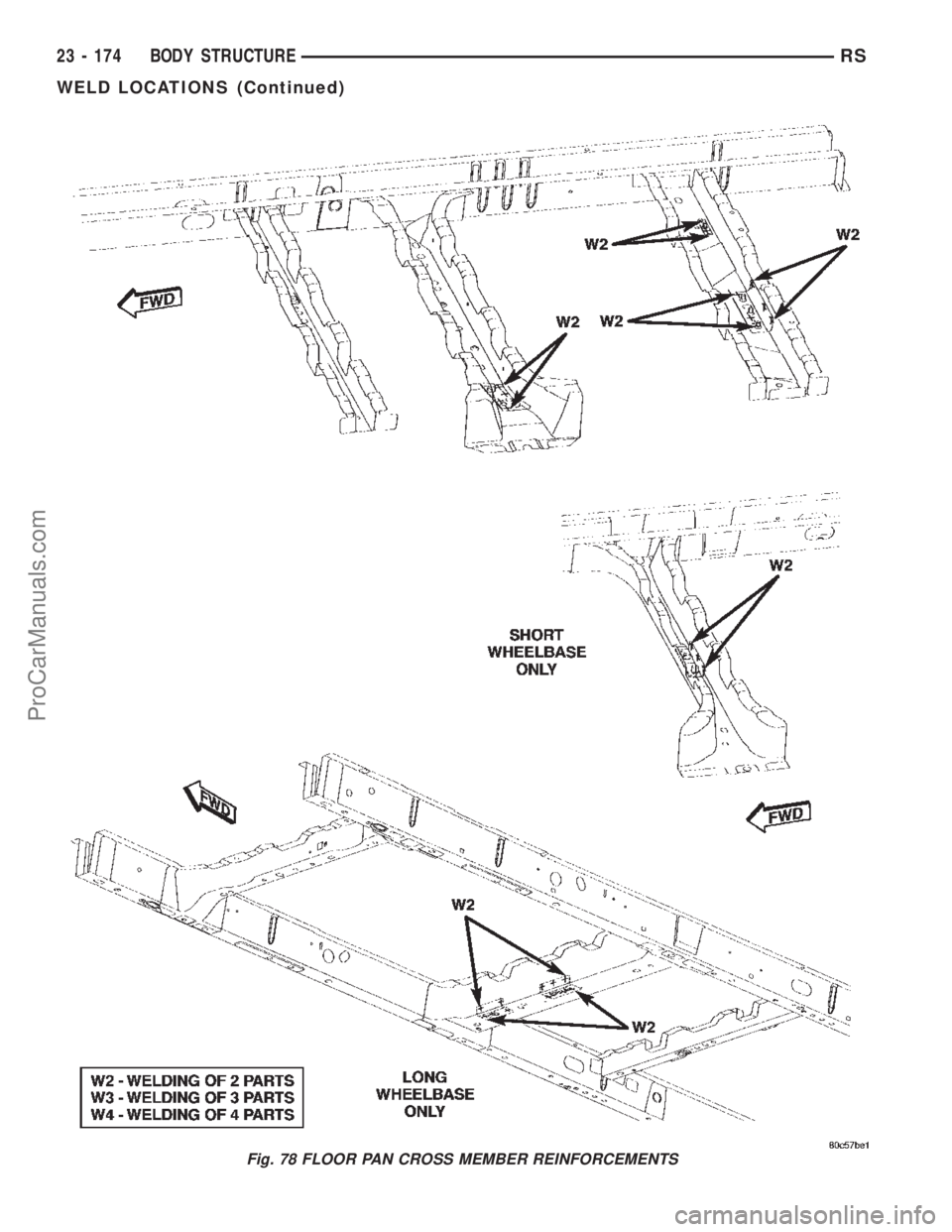

Fig. 78 FLOOR PAN CROSS MEMBER REINFORCEMENTS
23 - 174 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

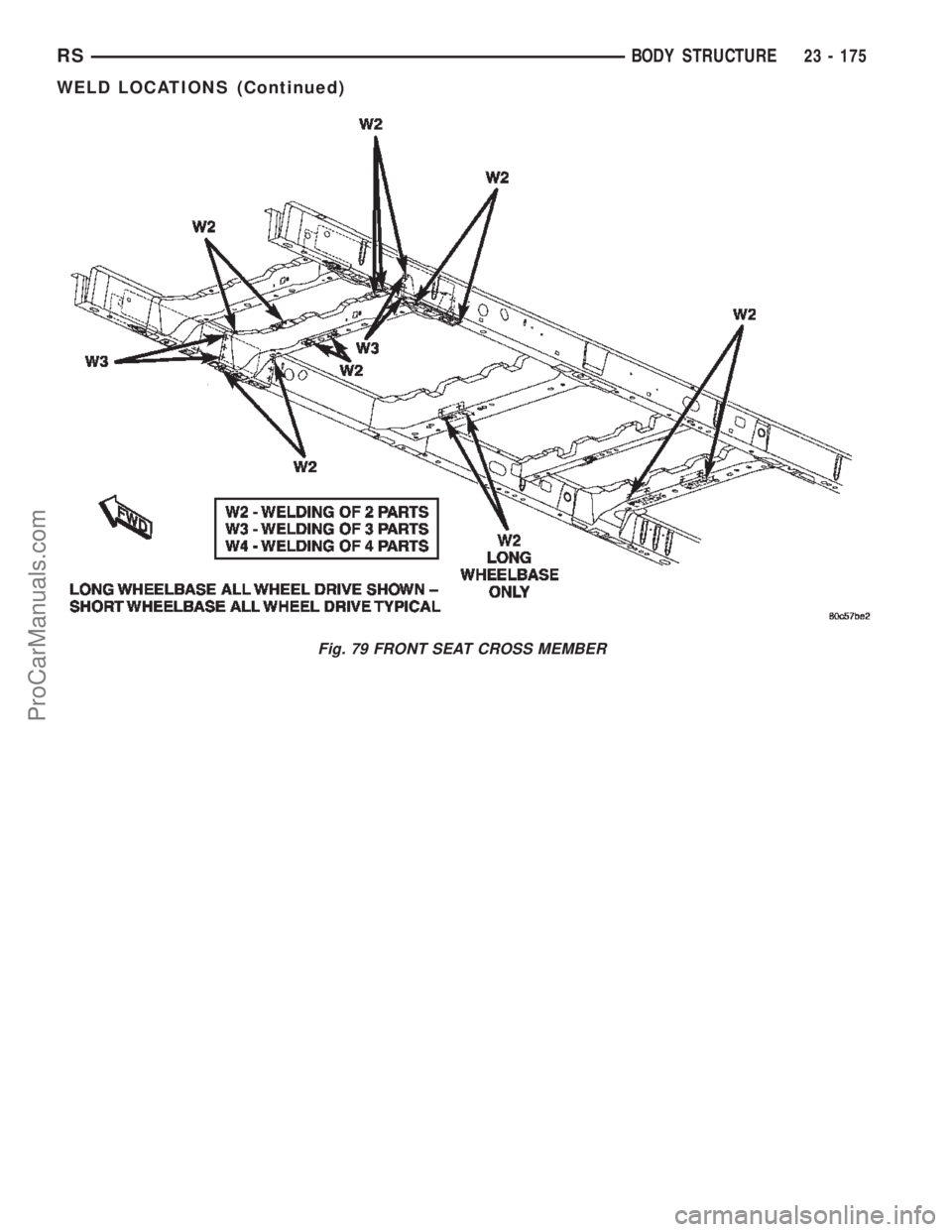

Fig. 79 FRONT SEAT CROSS MEMBER
RSBODY STRUCTURE23 - 175
WELD LOCATIONS (Continued)
ProCarManuals.com

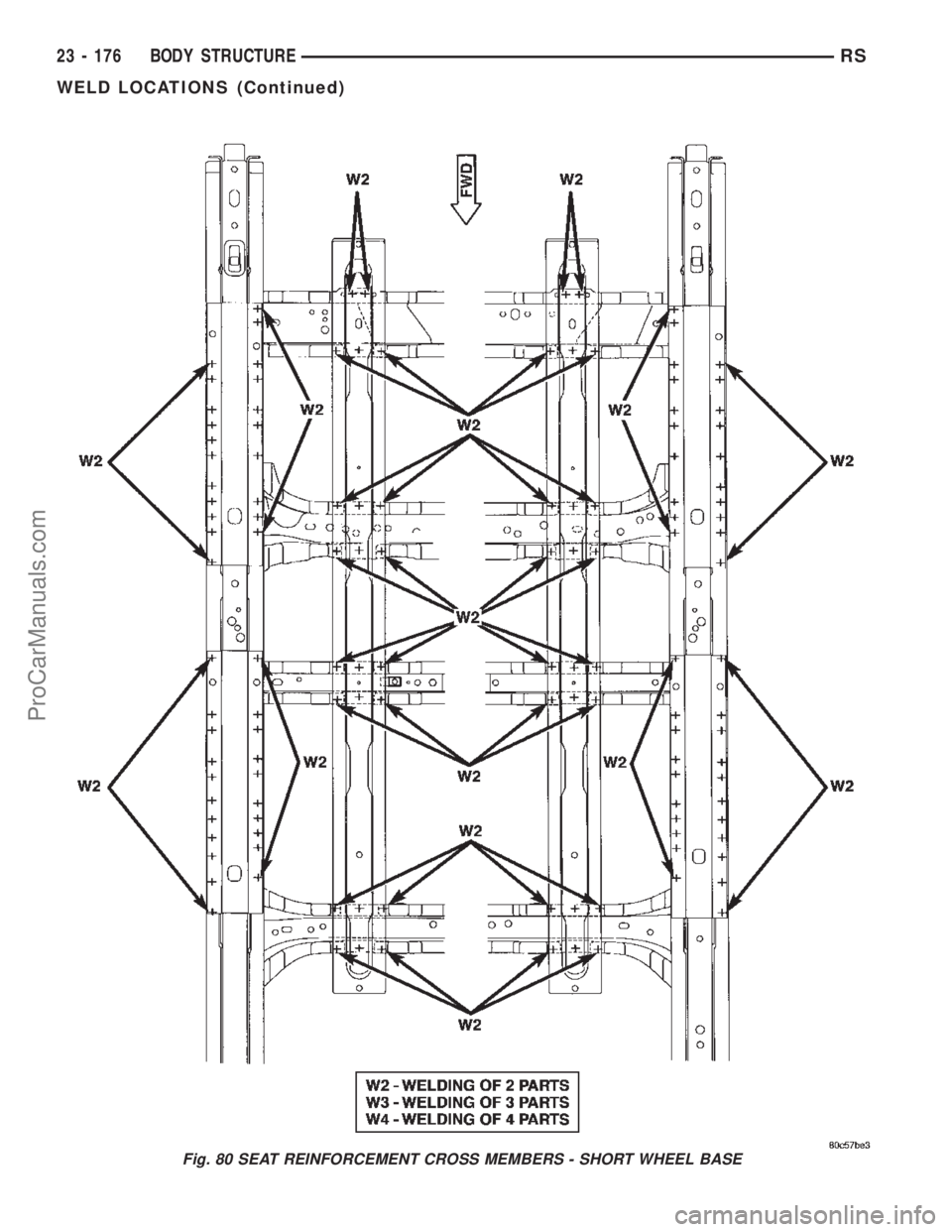

Fig. 80 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE
23 - 176 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

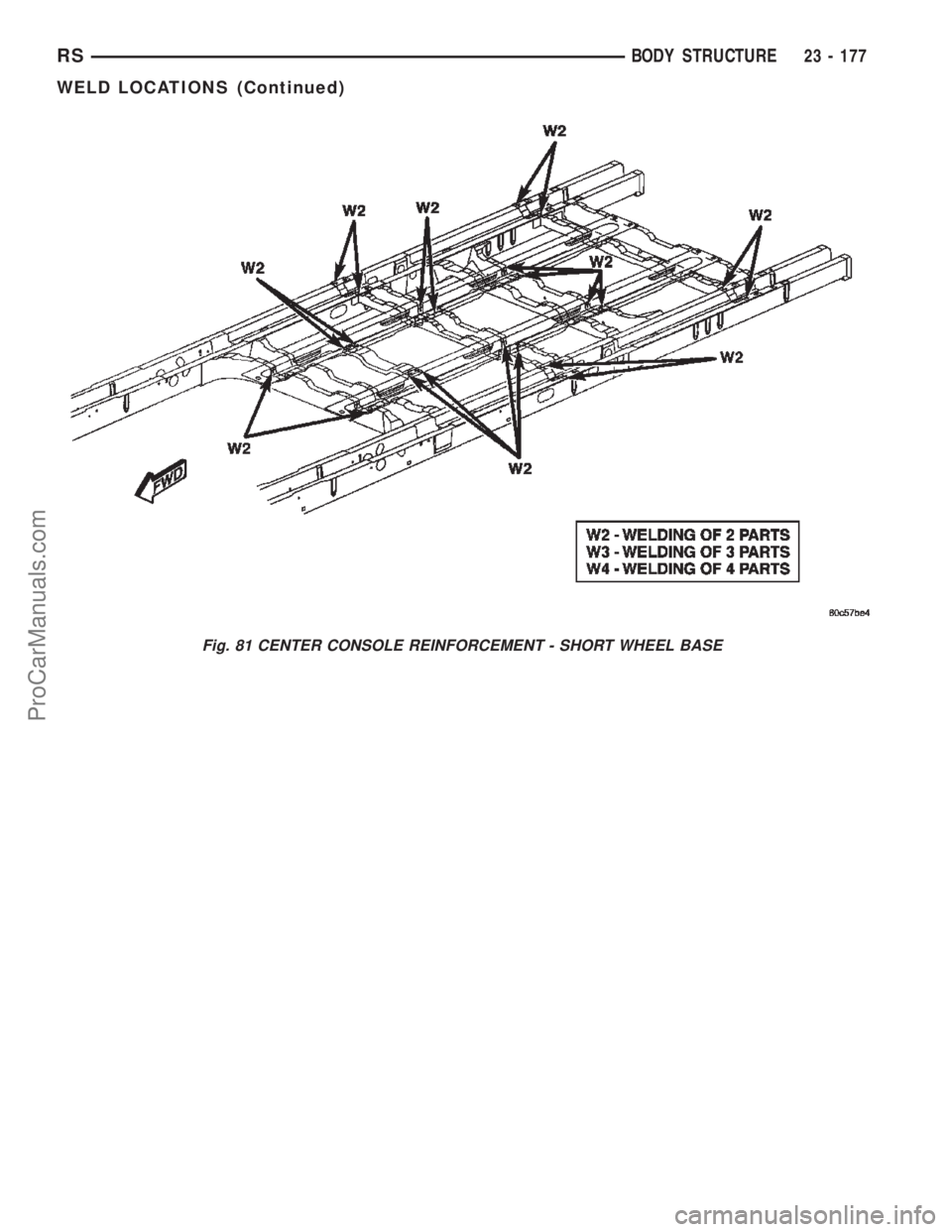

Fig. 81 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE
RSBODY STRUCTURE23 - 177
WELD LOCATIONS (Continued)
