CHRYSLER TOWN AND COUNTRY 2002 Service Manual

DESCRIPTION FIGURE
LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 137
D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 138
OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 139
LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 140
LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY 141
D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 142
OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 143
BODY SIDE APERTURE RIGHT SIDE- LONG WHEEL BASE ONLY 144
BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY 145
BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY 146
BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY 147
LOWER SLIDING DOOR TRACK 148
LIFTGATE UPPER FRAME 149
UPPER WINDSHIELD FRAME 150
FRONT FENDER SHIELD BEAM 151
FRONT FENDER SHIELD BEAM/COWL SIDE PANEL 152
HINGE PILLAR REINFORCEMENT 153
INNER SIDE SILL - LONG WHEEL BASE ONLY 154
INNER SIDE SILL/OUTER SIDE SILL - LONG WHEEL BASE ONLY 155
LOWER SLIDING DOOR TRACK REINFORCEMENT - LONG WHEEL BASE ONLY 156
UPPER WINDSHIELD FRAME/ROOF PANEL - LONG WHEEL BASE ONLY 157
ROOF BOWS/INNER ROOF SIDE RAILS 158
OUTER ROOF PANEL - LONG WHEEL BASE ONLY 159
INNER SIDE SILL - SHORT WHEEL BASE ONLY 160
INNER/OUTER SIDE SILLS - SHORT WHEEL BASE ONLY 161
LOWER SLIDING DOOR TRACK - SHORT WHEEL BASE ONLY 162
UPPER WINDSHIELD FRAME/OUTER ROOF PANEL - SHORT WHEEL BASE ONLY 163
REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE
TYPICAL164
FRONT LOWER LIFTGATE OPENING 165
REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY 166
INNER WHEELHOUSE - LONG WHEEL BASE ONLY 167
SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY 168
LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY 169
ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY 170
BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY 171
REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY 172
INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 173
SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY 174
LOWER LIFTGATE OPENING - SHORT WHEEL BASE ONLY 175
ROOF PANEL/ROOF RAIL - SHORT WHEEL BASE ONLY 176
23 - 158 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

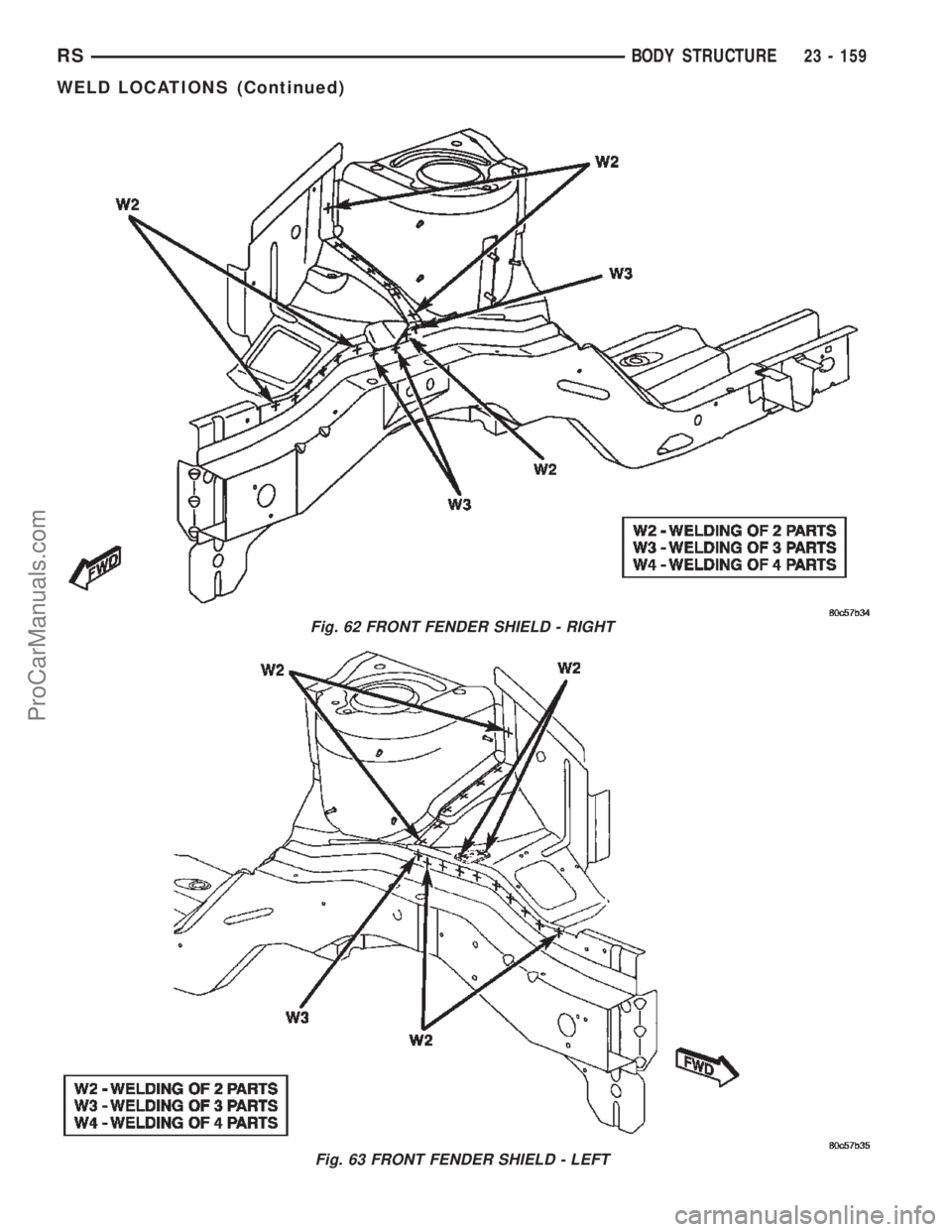

Fig. 62 FRONT FENDER SHIELD - RIGHT
Fig. 63 FRONT FENDER SHIELD - LEFT
RSBODY STRUCTURE23 - 159
WELD LOCATIONS (Continued)
ProCarManuals.com

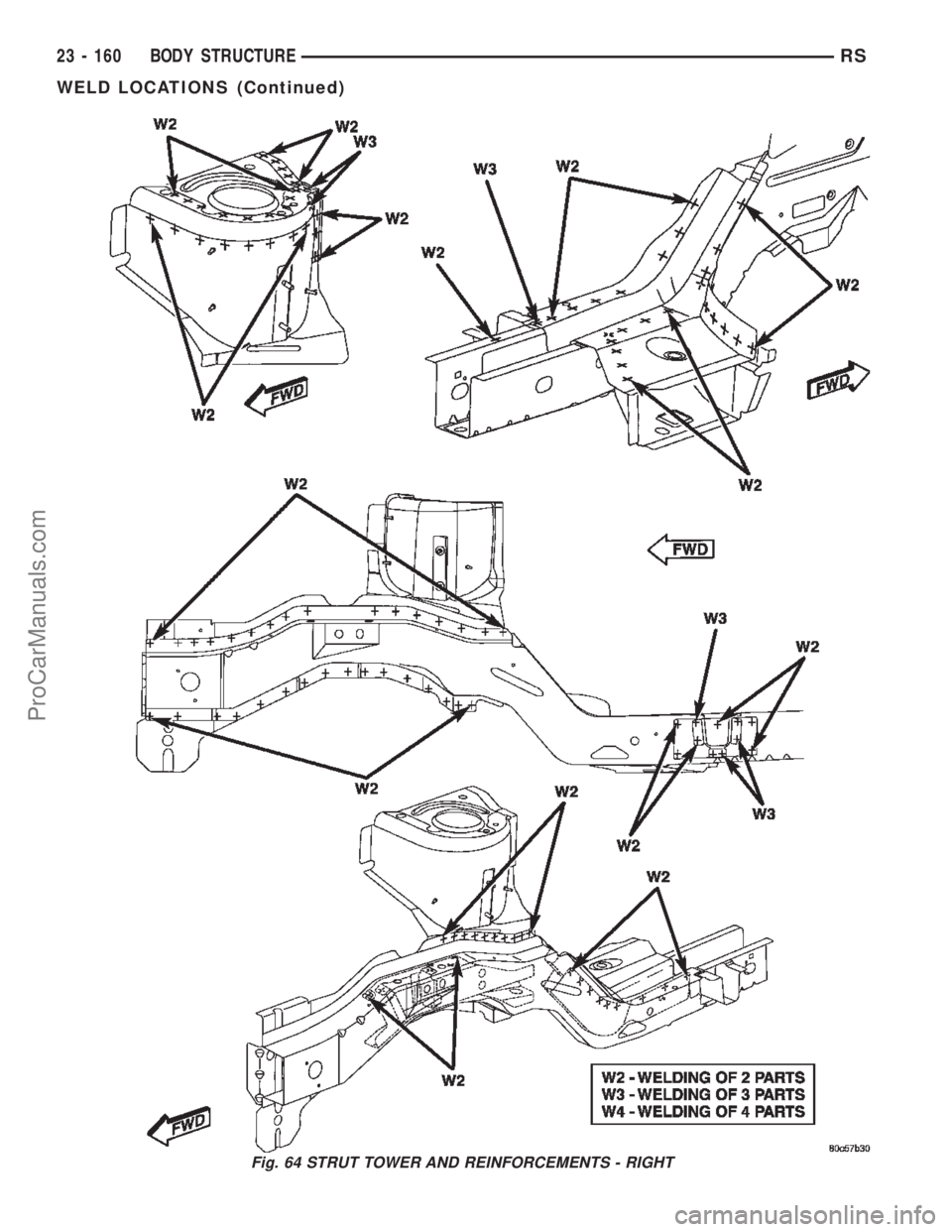

Fig. 64 STRUT TOWER AND REINFORCEMENTS - RIGHT
23 - 160 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

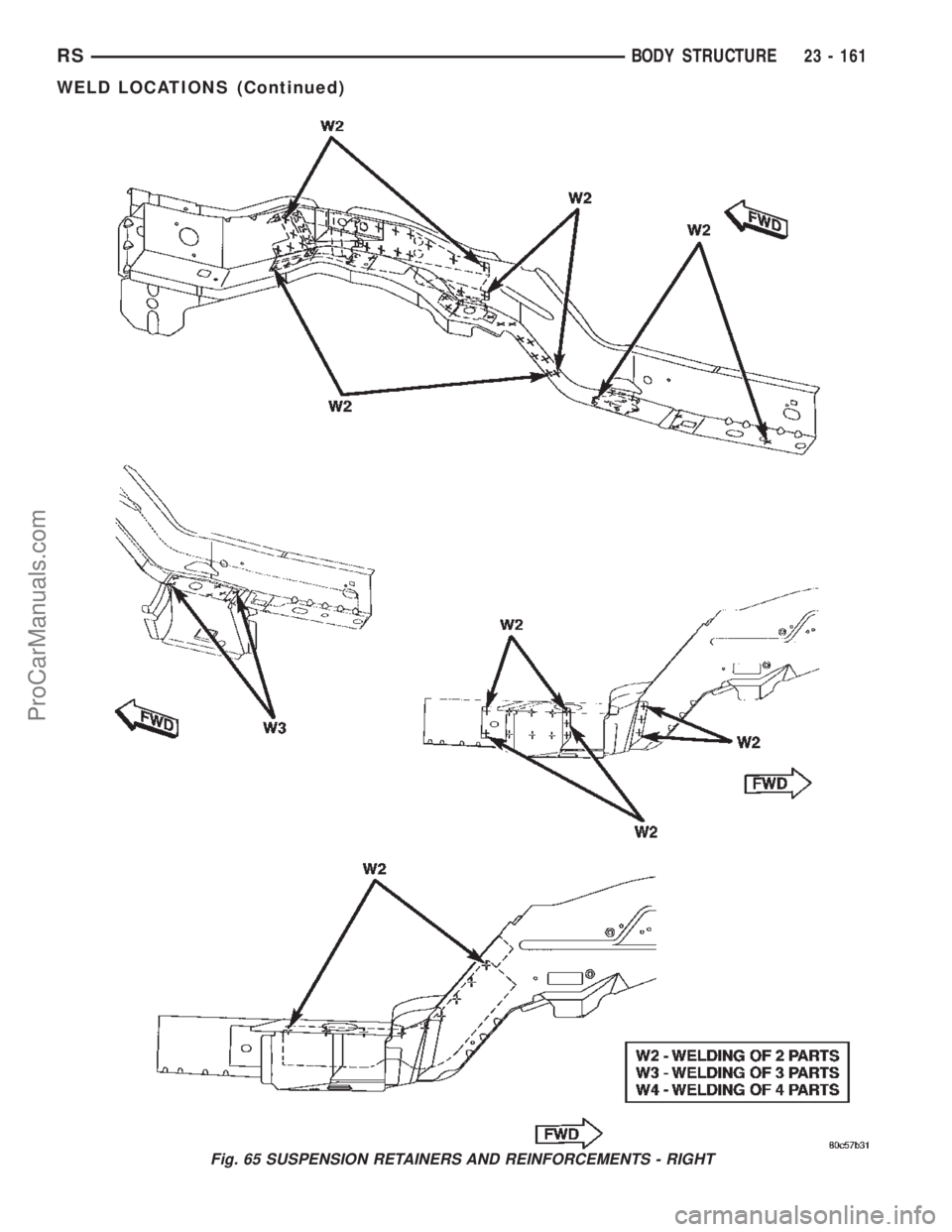

Fig. 65 SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT
RSBODY STRUCTURE23 - 161
WELD LOCATIONS (Continued)
ProCarManuals.com

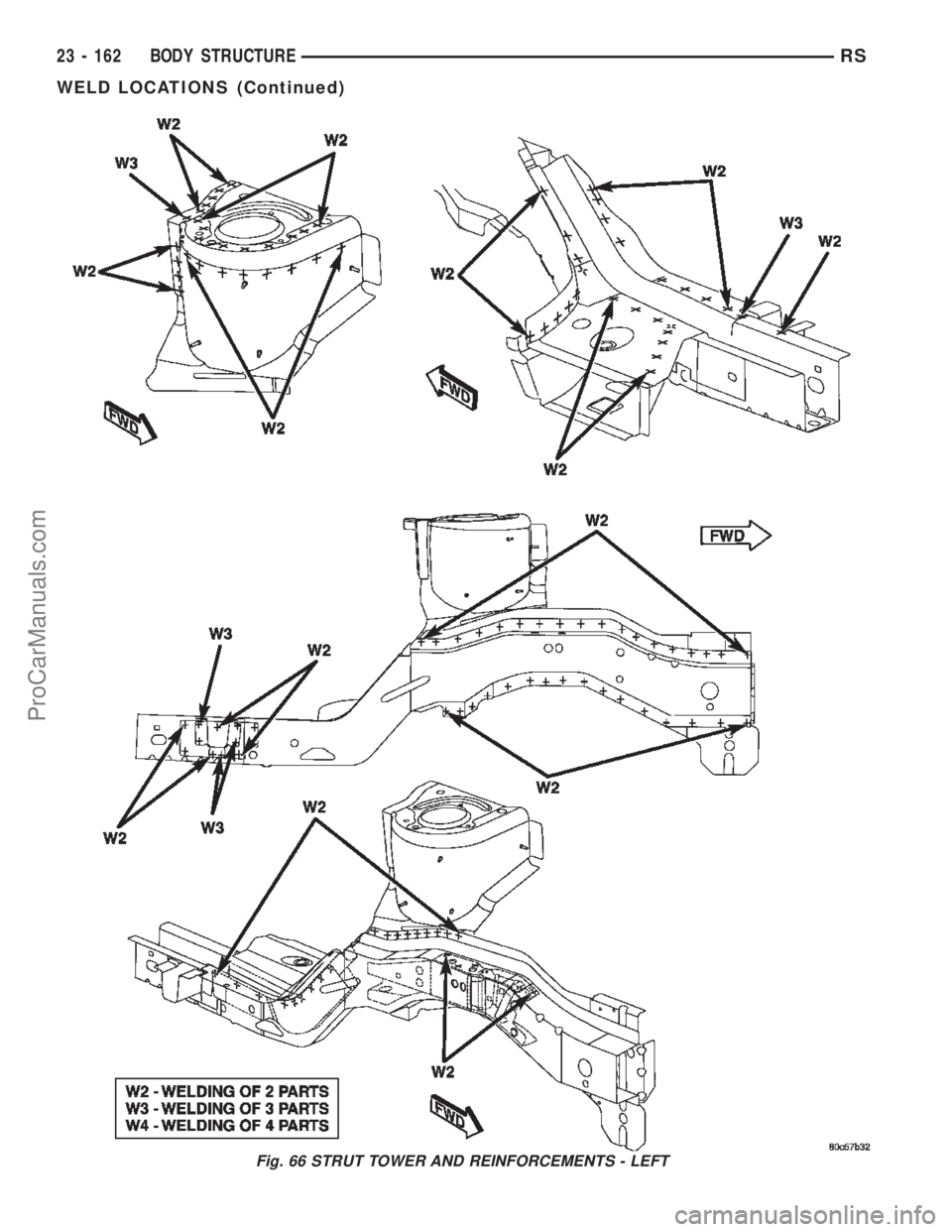

Fig. 66 STRUT TOWER AND REINFORCEMENTS - LEFT
23 - 162 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

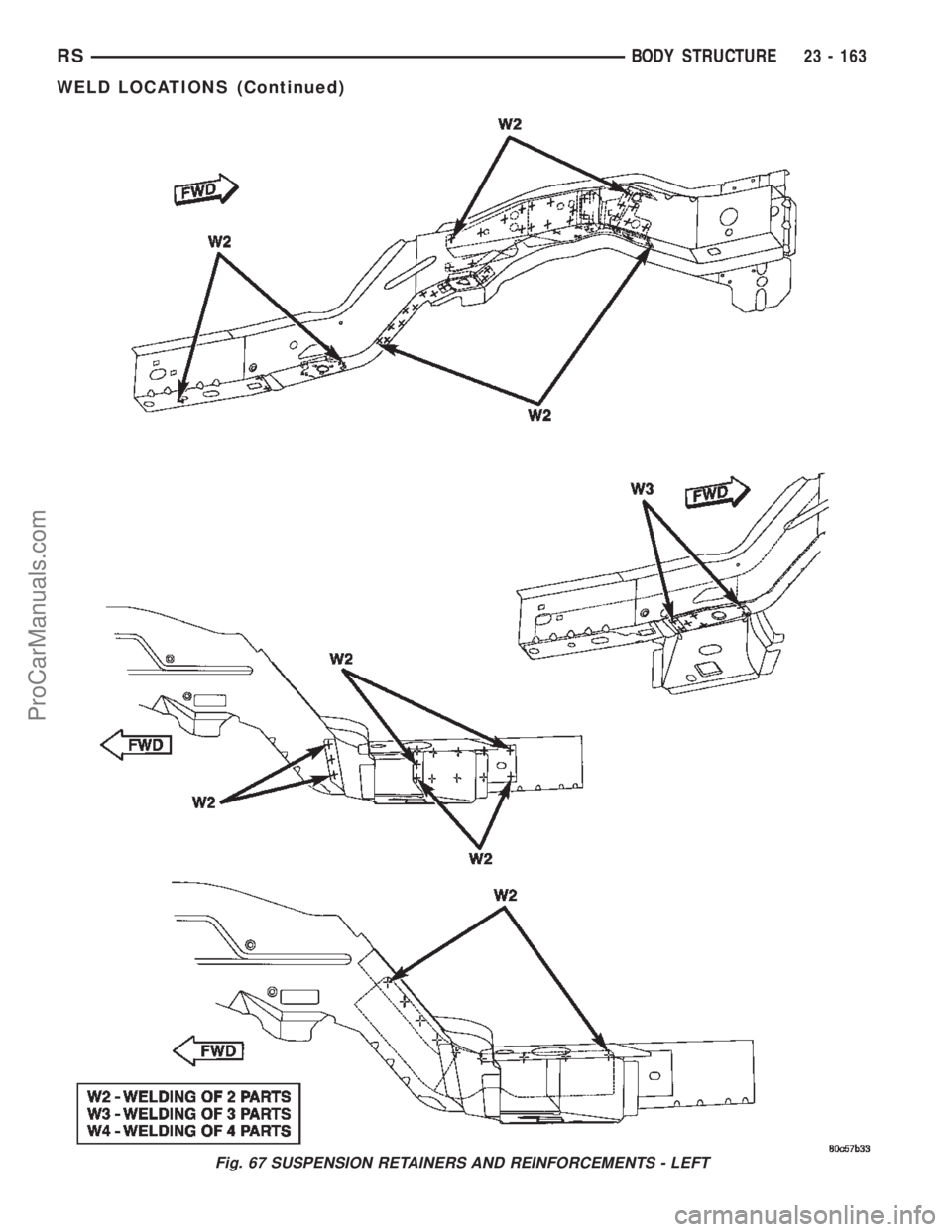

Fig. 67 SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT
RSBODY STRUCTURE23 - 163
WELD LOCATIONS (Continued)
ProCarManuals.com

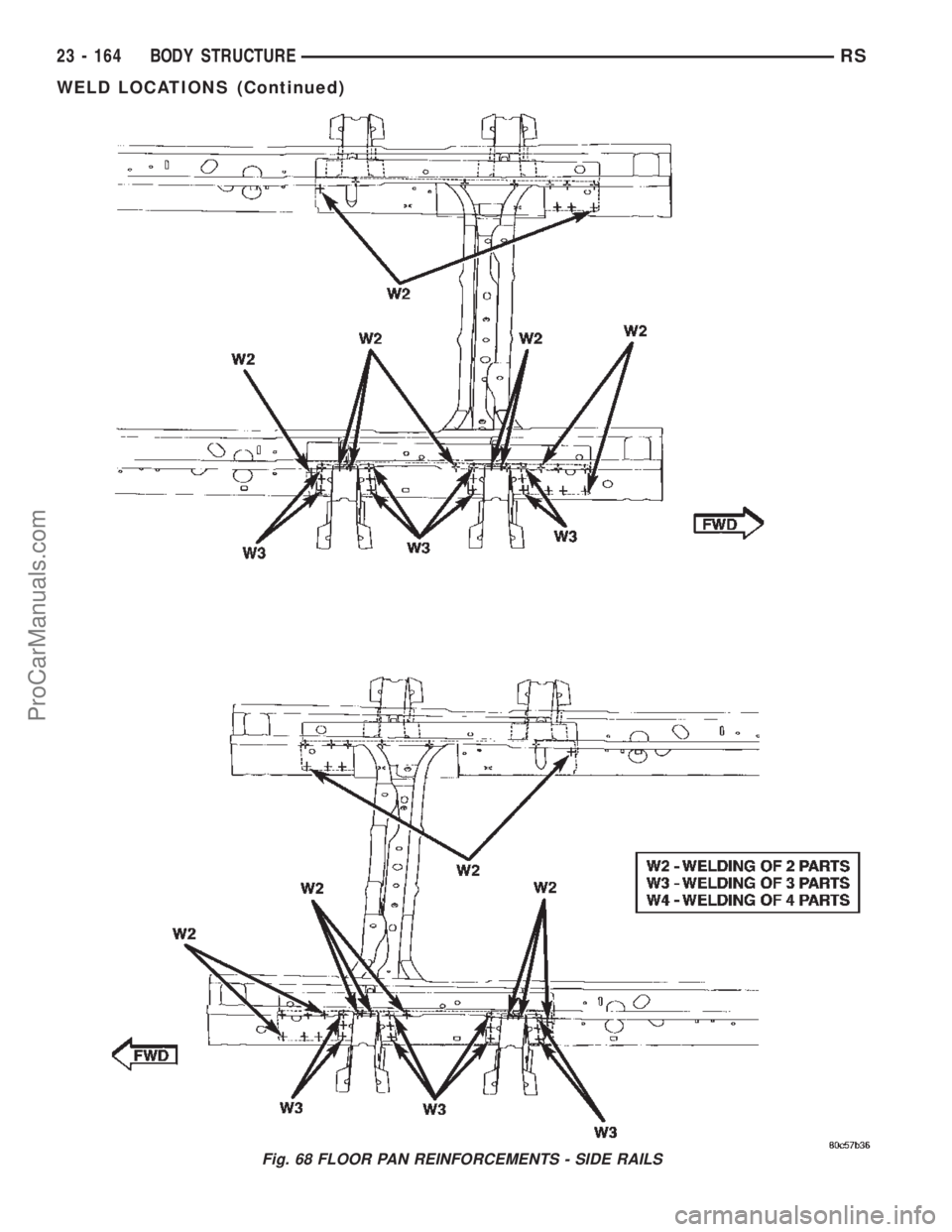

Fig. 68 FLOOR PAN REINFORCEMENTS - SIDE RAILS
23 - 164 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

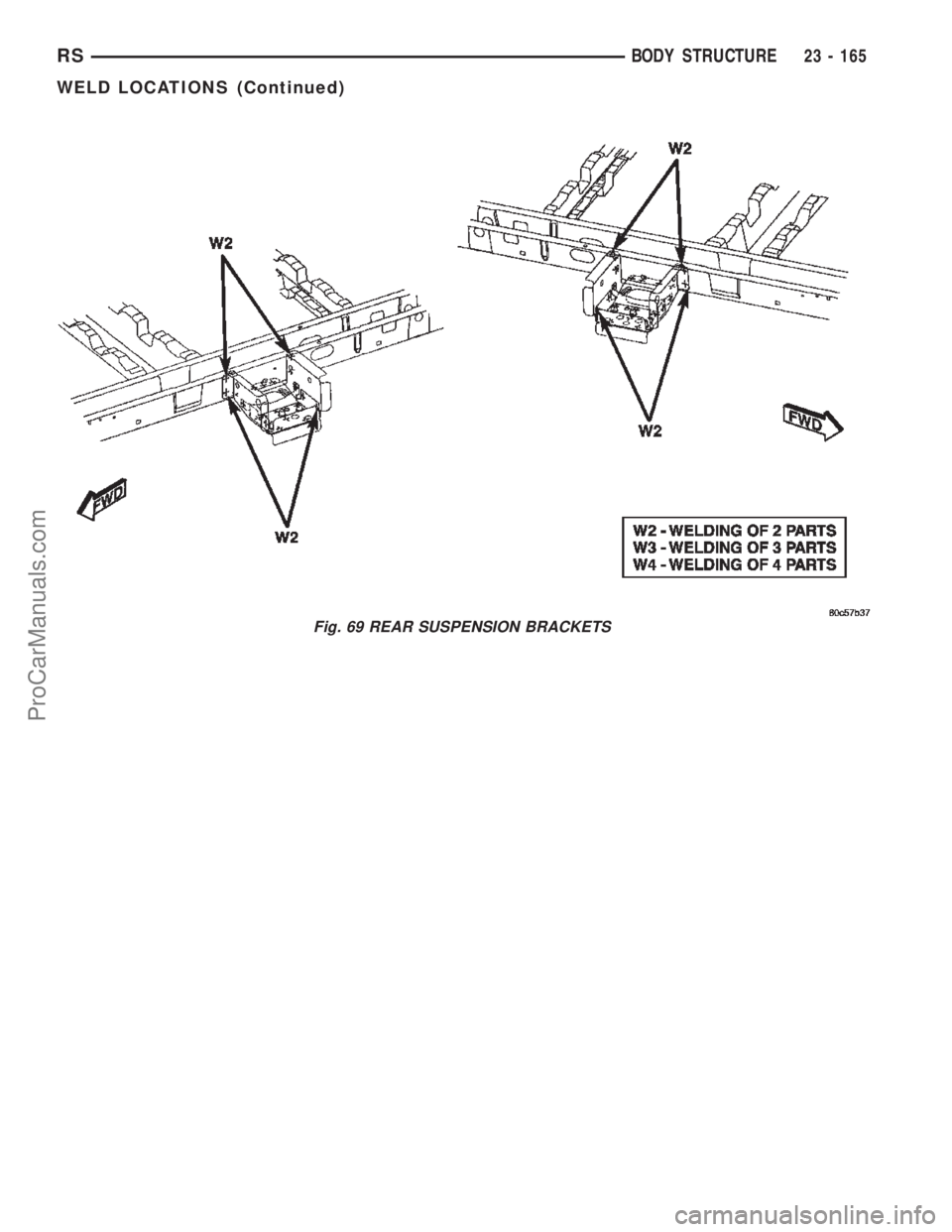

Fig. 69 REAR SUSPENSION BRACKETS
RSBODY STRUCTURE23 - 165
WELD LOCATIONS (Continued)
ProCarManuals.com

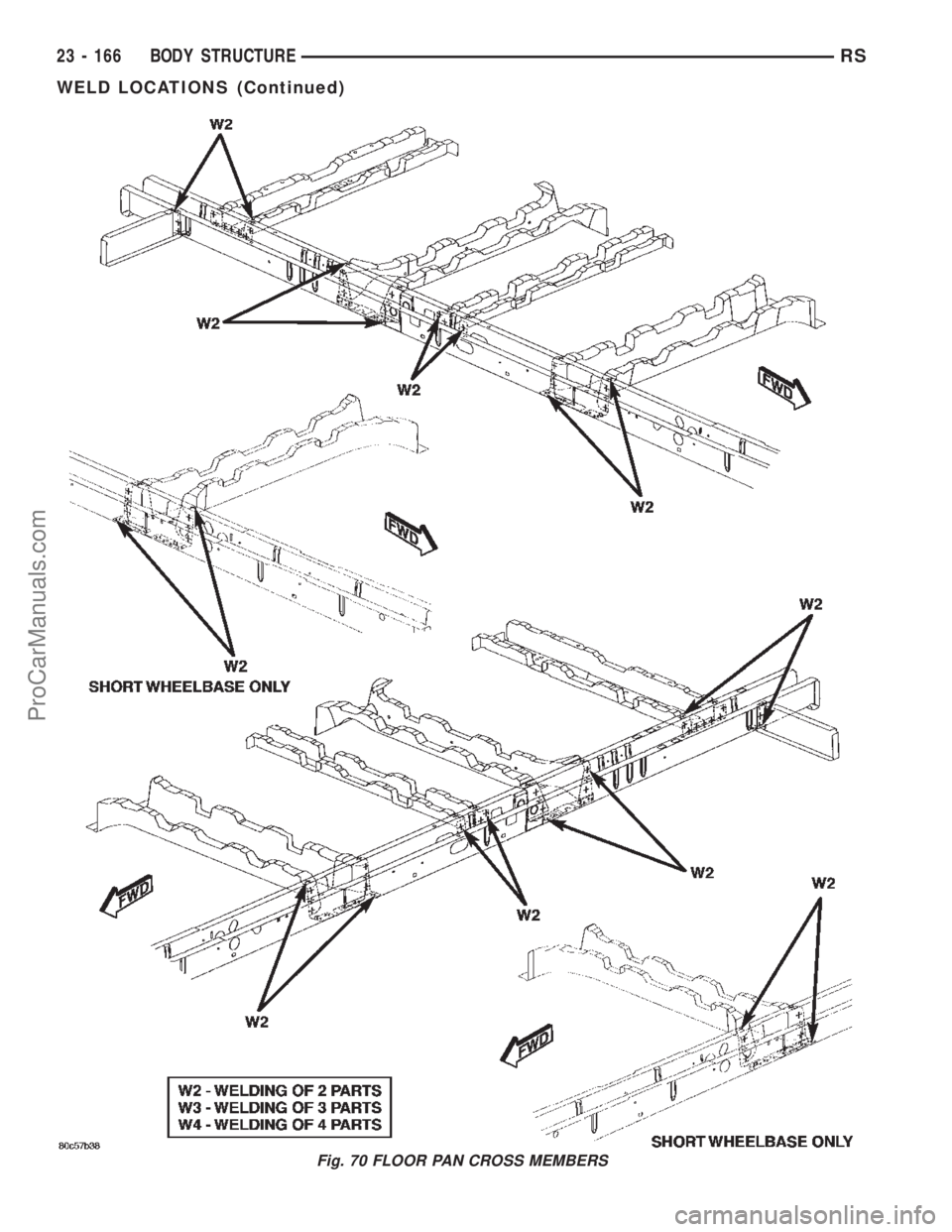

Fig. 70 FLOOR PAN CROSS MEMBERS
23 - 166 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

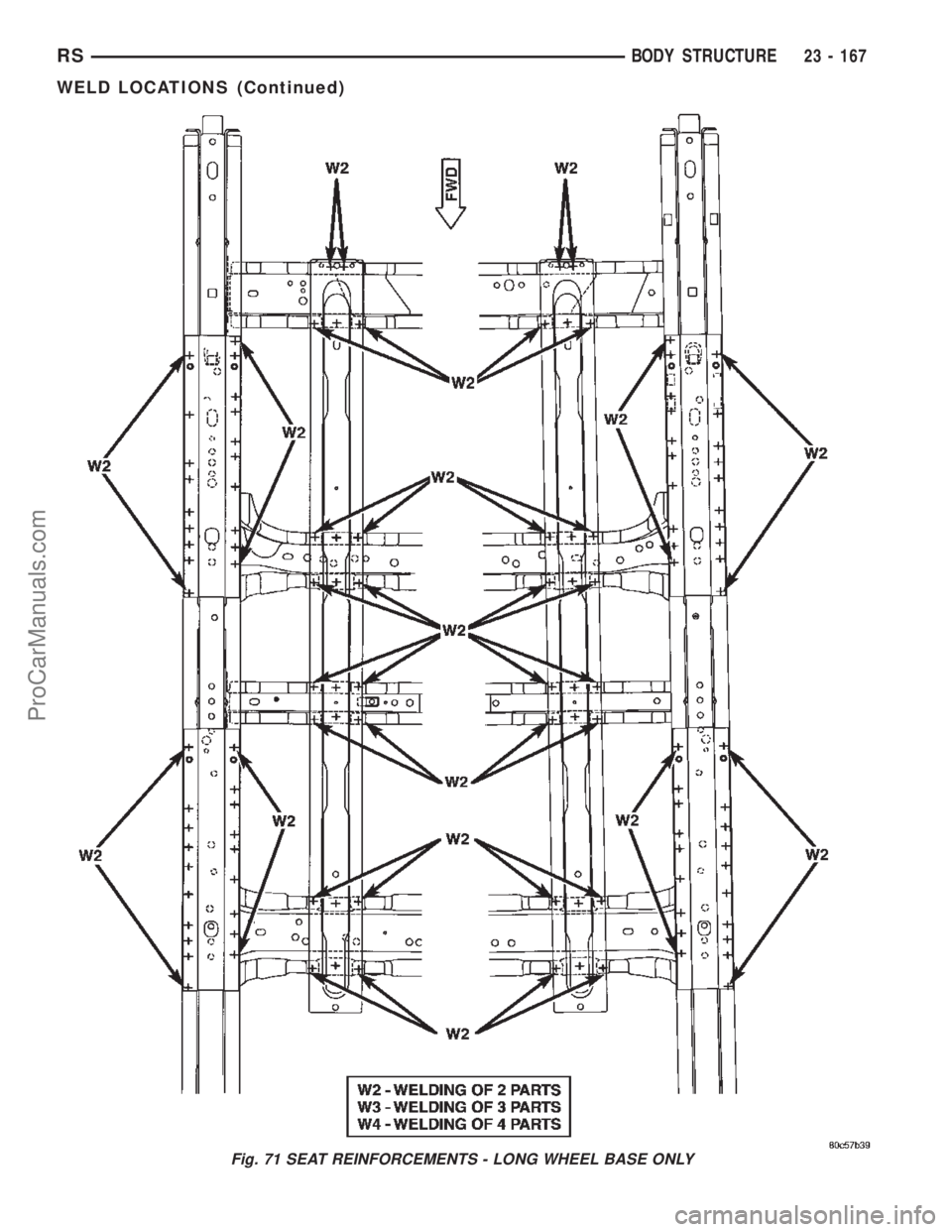

Fig. 71 SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 167
WELD LOCATIONS (Continued)
ProCarManuals.com
