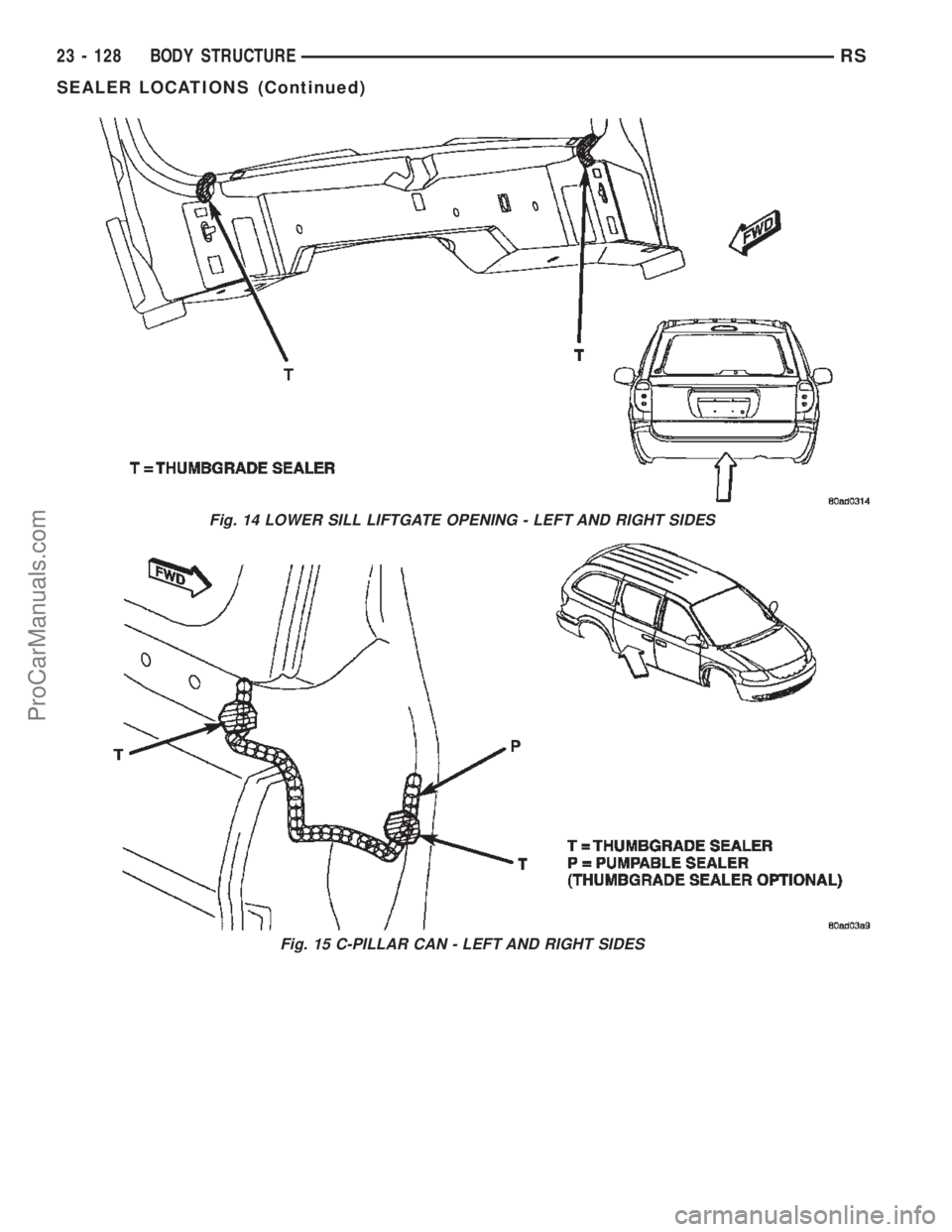

Fig. 14 LOWER SILL LIFTGATE OPENING - LEFT AND RIGHT SIDES
Fig. 15 C-PILLAR CAN - LEFT AND RIGHT SIDES
23 - 128 BODY STRUCTURERS
SEALER LOCATIONS (Continued)
ProCarManuals.com

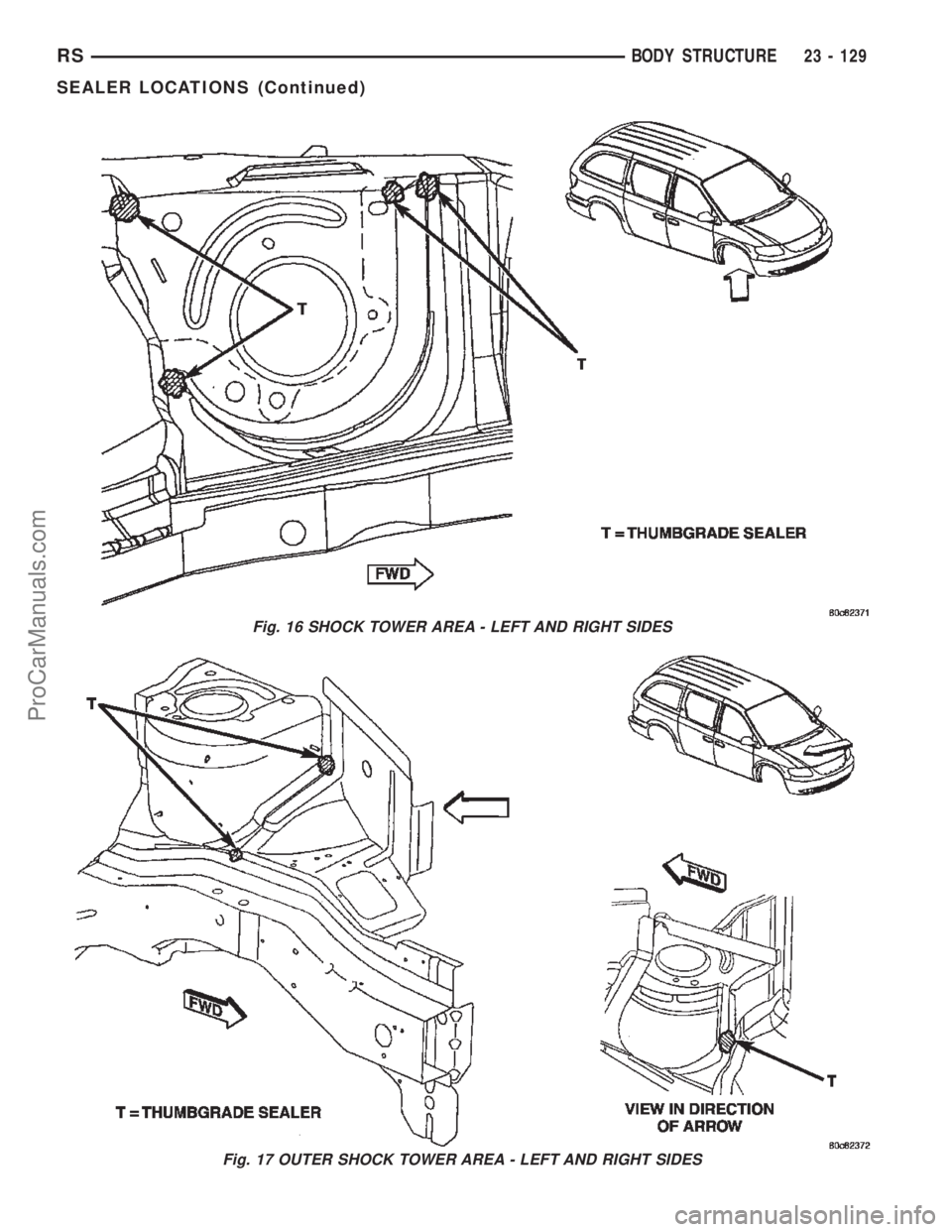

Fig. 16 SHOCK TOWER AREA - LEFT AND RIGHT SIDES
Fig. 17 OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 129
SEALER LOCATIONS (Continued)
ProCarManuals.com

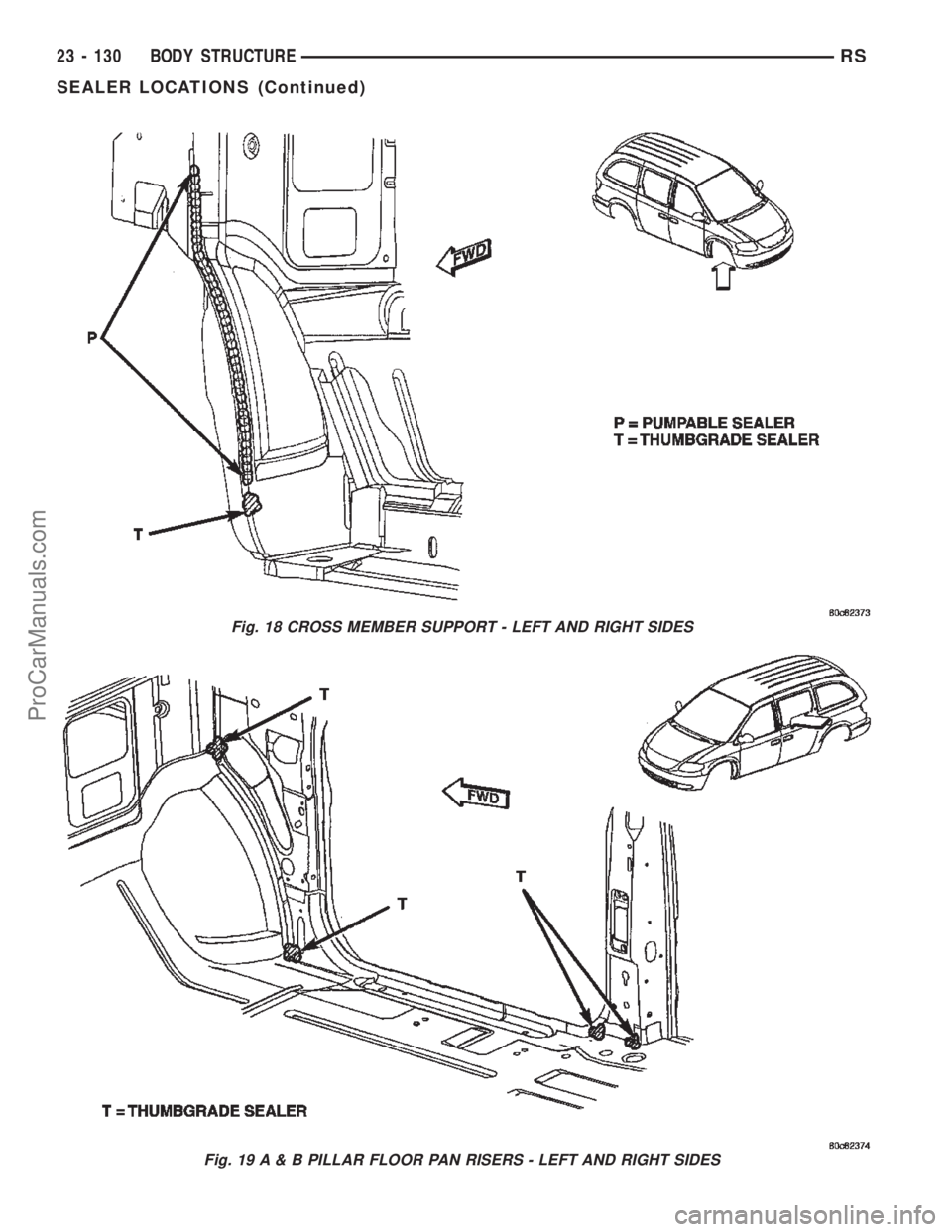

Fig. 18 CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES
Fig. 19 A & B PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES
23 - 130 BODY STRUCTURERS
SEALER LOCATIONS (Continued)
ProCarManuals.com

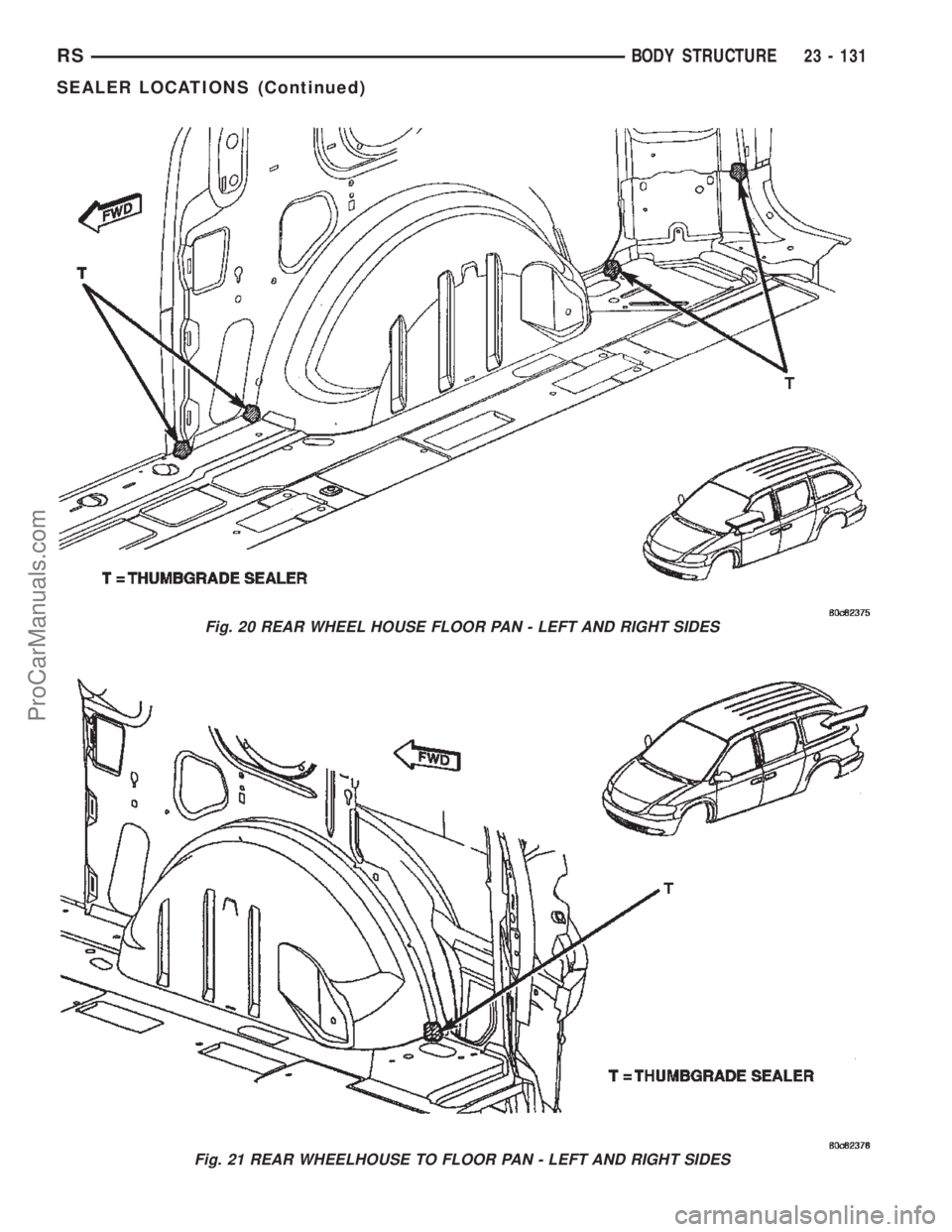

Fig. 20 REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES
Fig. 21 REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 131
SEALER LOCATIONS (Continued)
ProCarManuals.com

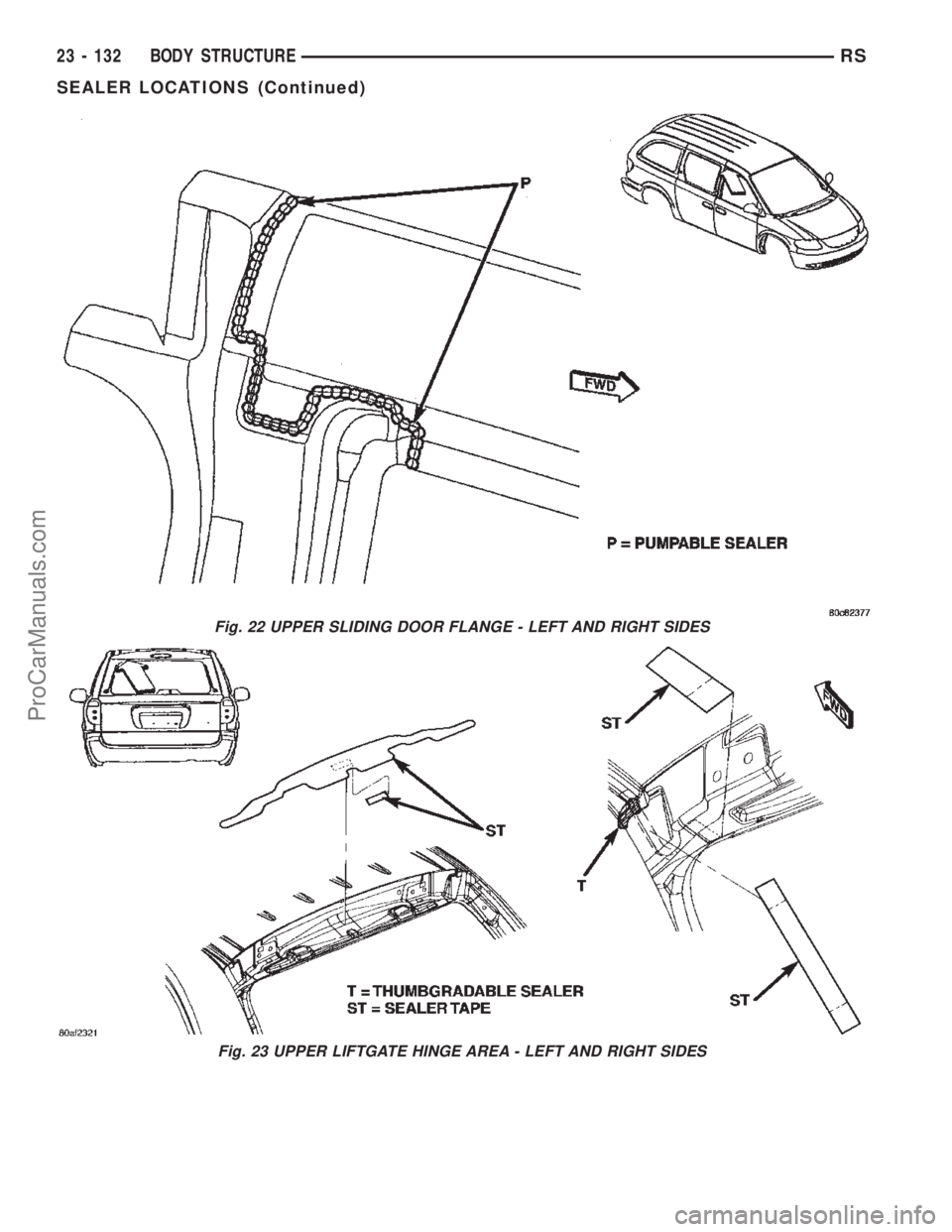

Fig. 22 UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES
Fig. 23 UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES
23 - 132 BODY STRUCTURERS
SEALER LOCATIONS (Continued)
ProCarManuals.com

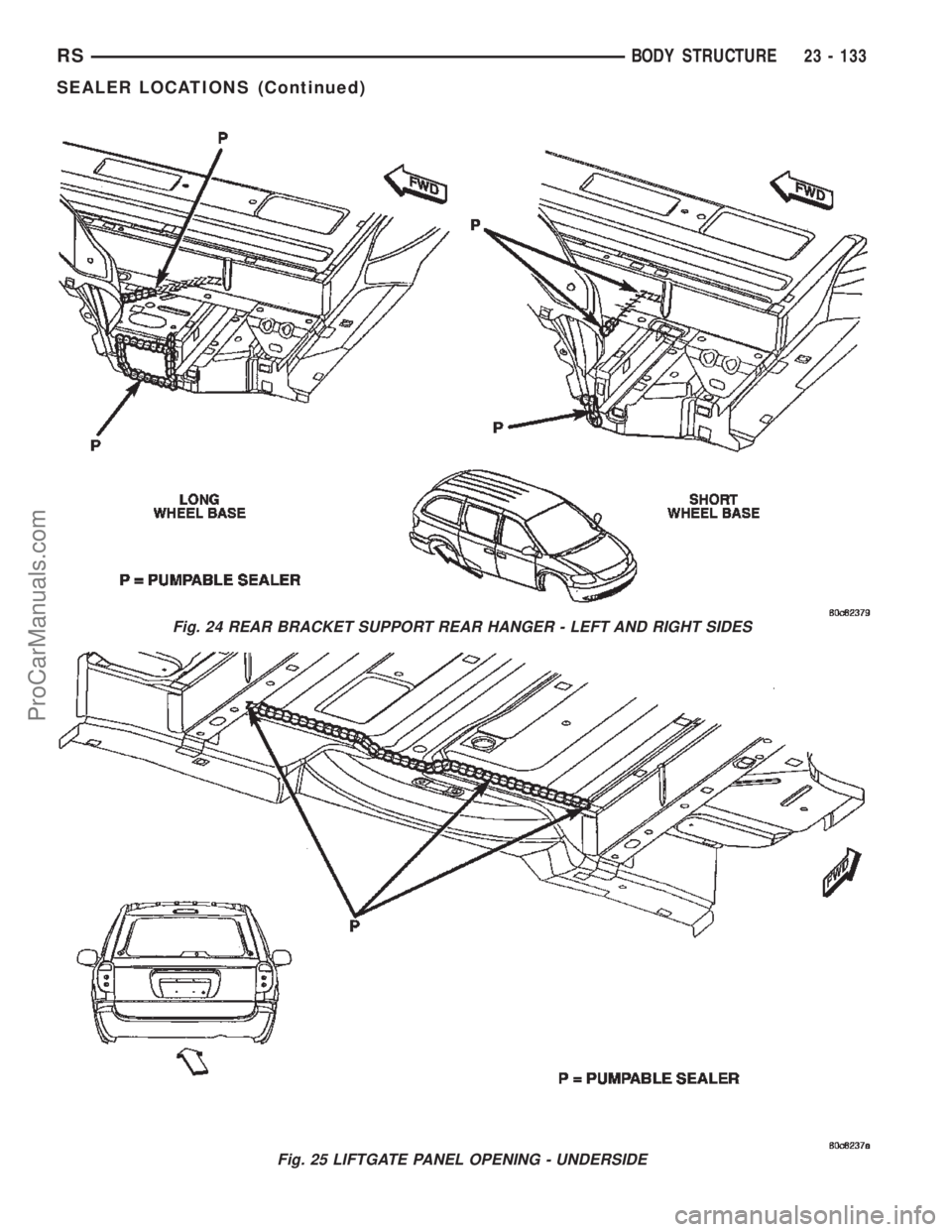

Fig. 24 REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES
Fig. 25 LIFTGATE PANEL OPENING - UNDERSIDE
RSBODY STRUCTURE23 - 133
SEALER LOCATIONS (Continued)
ProCarManuals.com

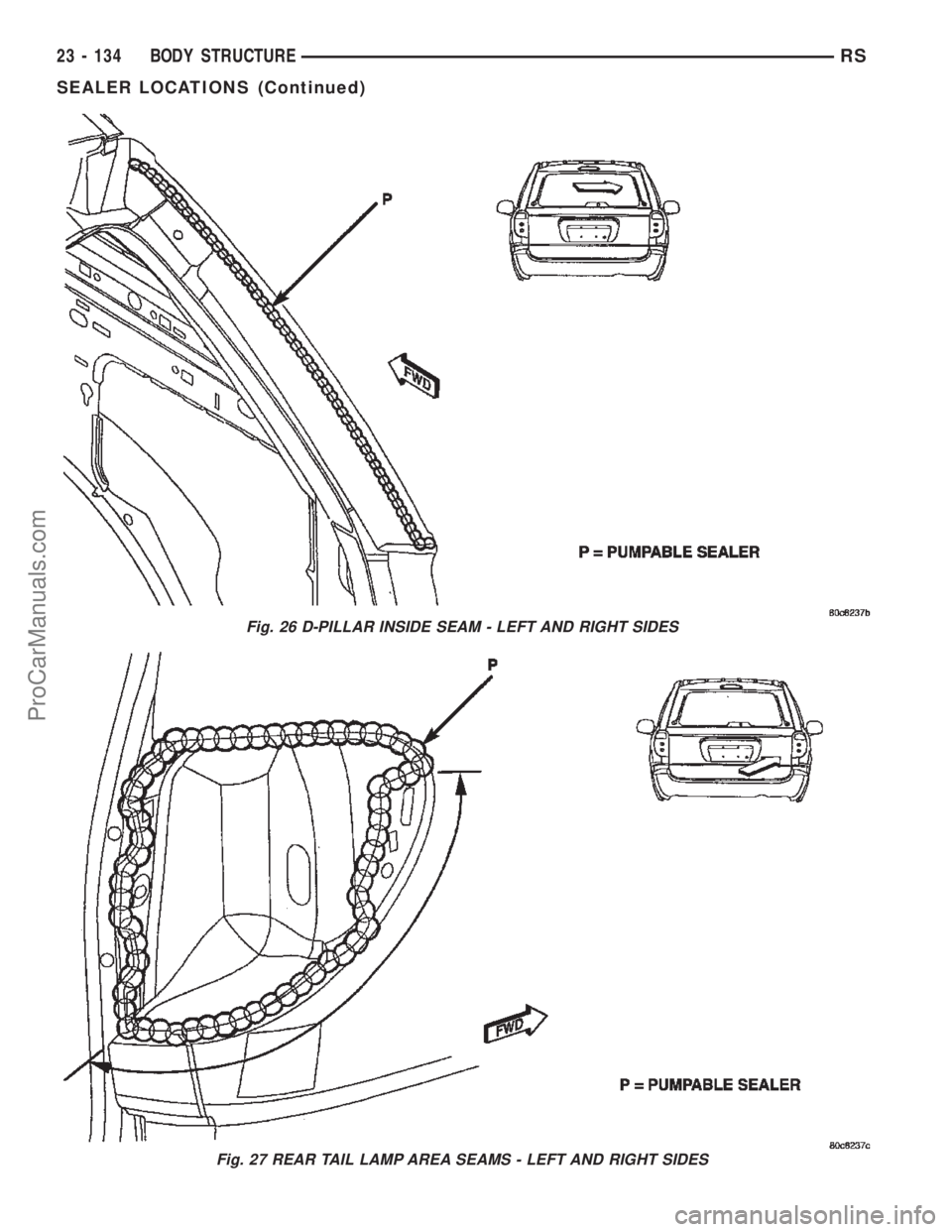

Fig. 26 D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES
Fig. 27 REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES
23 - 134 BODY STRUCTURERS
SEALER LOCATIONS (Continued)
ProCarManuals.com

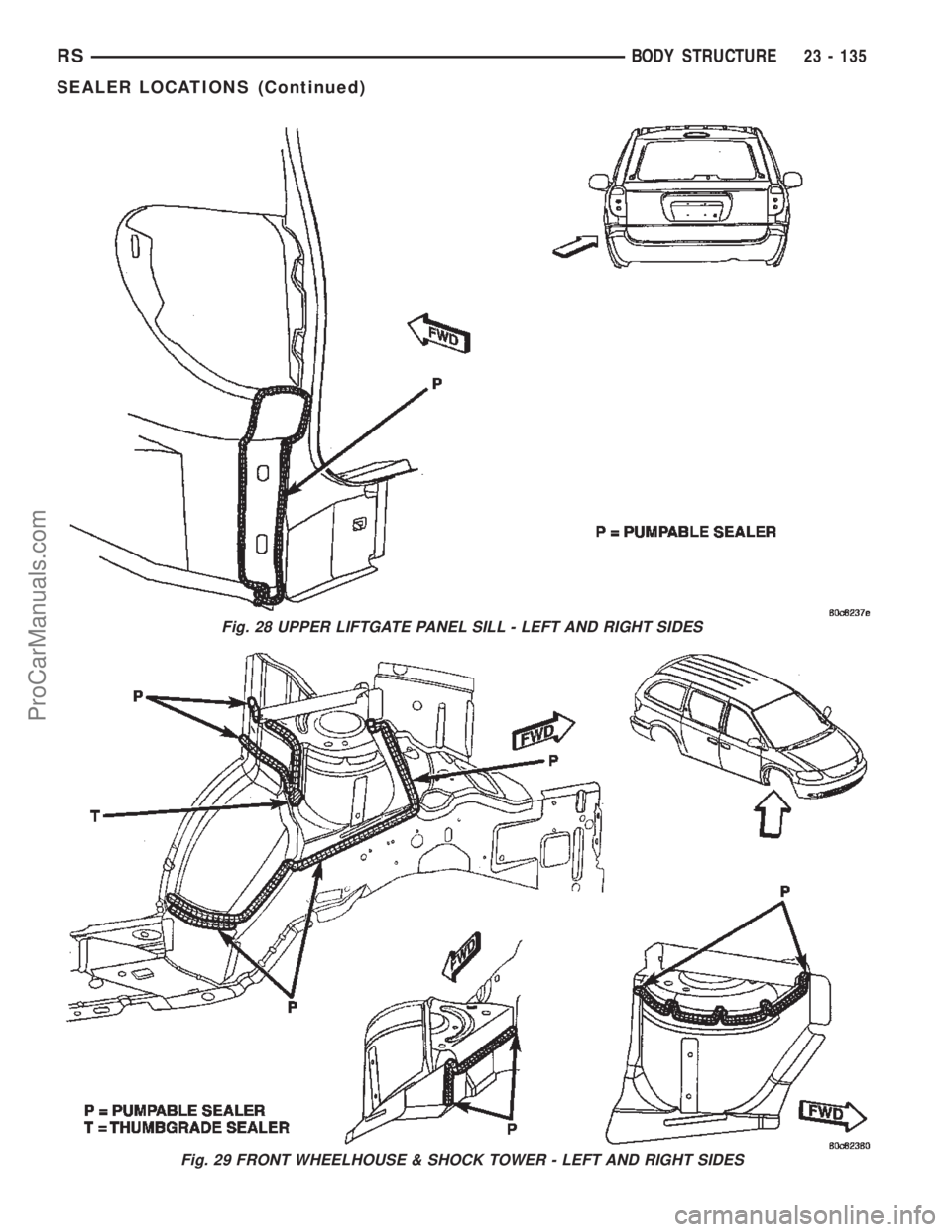

Fig. 28 UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES
Fig. 29 FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 135
SEALER LOCATIONS (Continued)
ProCarManuals.com

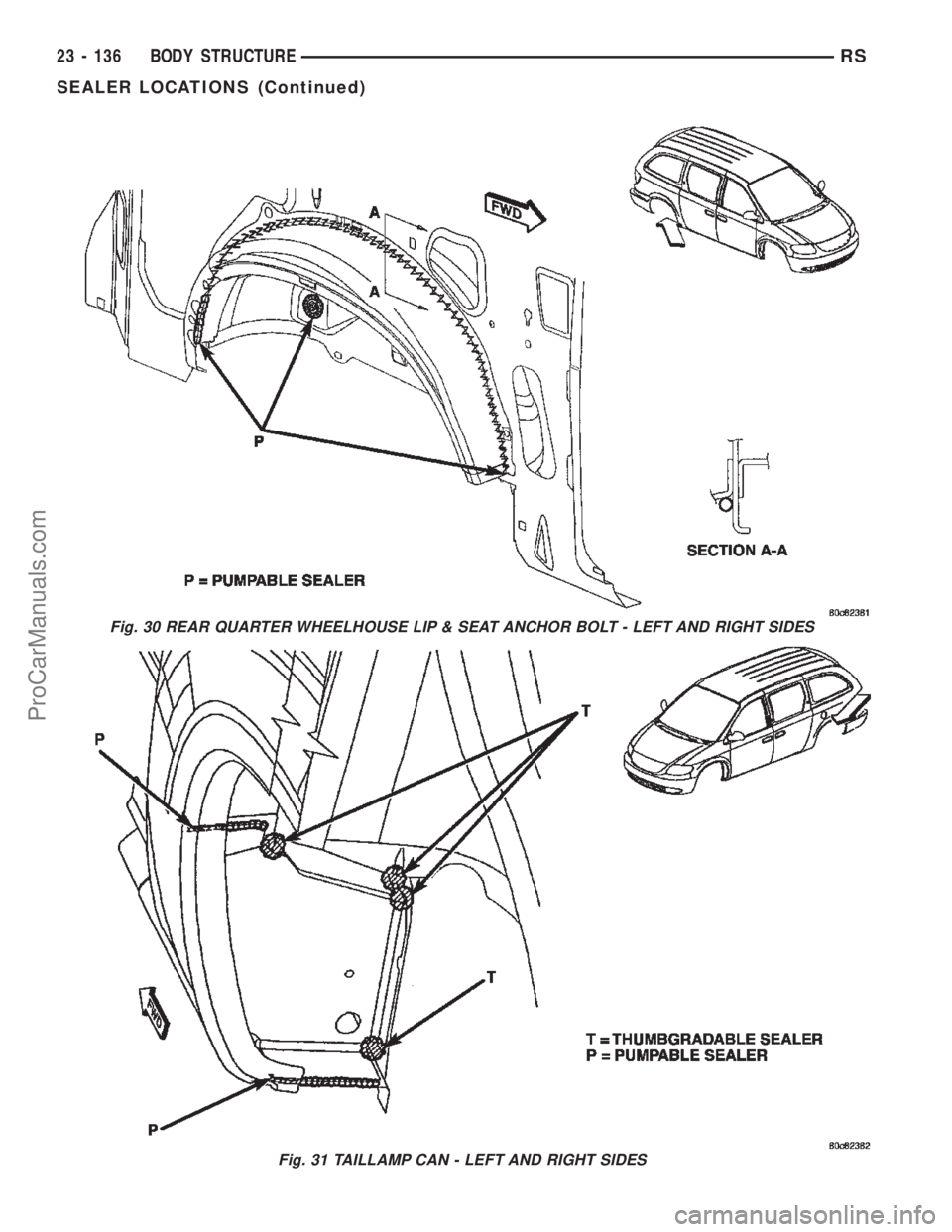

Fig. 30 REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT SIDES
Fig. 31 TAILLAMP CAN - LEFT AND RIGHT SIDES
23 - 136 BODY STRUCTURERS
SEALER LOCATIONS (Continued)
ProCarManuals.com

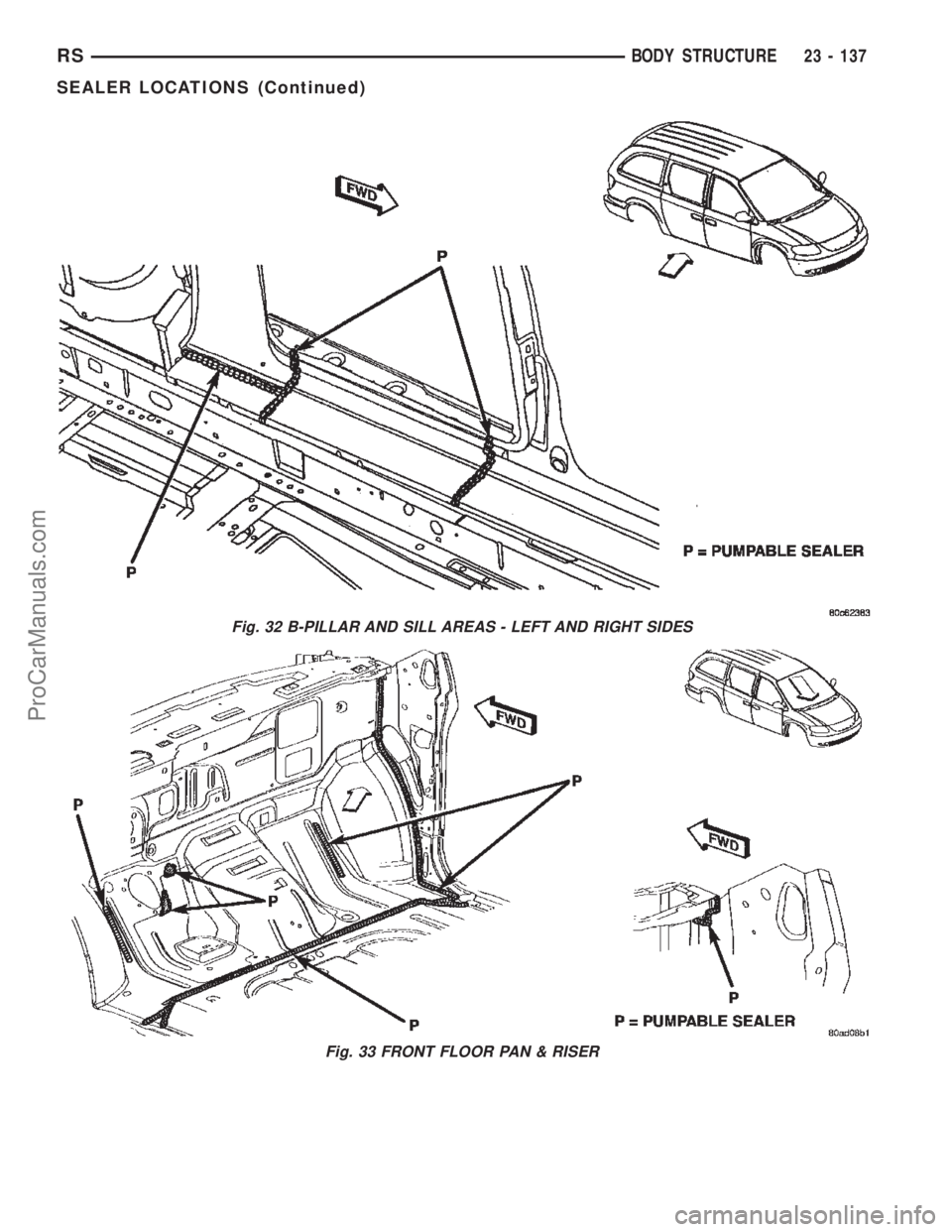

Fig. 32 B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES
Fig. 33 FRONT FLOOR PAN & RISER
RSBODY STRUCTURE23 - 137
SEALER LOCATIONS (Continued)
