sensor CHRYSLER VOYAGER 1996 Service Manual

(CONTINUED)
T60 18BR T59 18PK G7 18WT/OR
Z13 16BK/RD A5 18RD/DB T54 18VT/LG Z14 16BK/YL T52 18RD/BK
K4 18BK/LB T50 18DG T47 18YL/BK D6 18PK/LB D1 18VT/BR T42 18VT/WT T41 18BK/WT
60 59
58 57 56
55 54 53
52 51 50
49 48 47
46 45 44
43 42 41 CAV OVERDRIVE SOLENOID CONTROL
UNDERDRIVE SOLENOID CONTROL
VEHICLE SPEED SENSOR SIGNAL
EATX GROUND FUSED B(+) EATX GROUND INPUT SPEED SENSOR SIGNAL
SENSOR GROUND LOW/REVERSE PRESSURE SWITCH SENSE 2/4 PRESSURE SWITCH SENSE SCI RECEIVE CCD BUS(+) TRANSMISSION RANGE SWITCH T42 SENSE TRANSMISSION RANGE SWITCH T41 SENSE
- - - - - CIRCUIT
- - - - - FUNCTION
RANGE SENSORTRANSMISSION
5
10
61BLACK
T41 18BR/YL T42 18VT/WT
T3 18VT T1 18LG/BK L1 18VT/BK
T41 18BK/WT T54 18VT/LG T13 18DB/BK F20 18WT
109 8
7
6 5 4
3 2 1 CAV TRANSMISSION RANGE SENSOR T41 SENSE
TRANSMISSION RANGE SENSOR T42 SENSE TRANSMISSION RANGE SENSOR T3 SENSE TRANSMISSION RANGE SENSOR T1 SENSE
BACK-UP LAMP FEED TRANSMISSION RANGE SENSOR T41 SENSE TRANSMISSION TEMPERATURE SENSOR SIGNAL
SPEED SENSOR GROUND FUSED IGNITION SWITCH OUTPUT
- CIRCUIT
- FUNCTION 5 634 8 721 BLACK
T19 18WT T20 18LB T60 18BR
T59 18PK T16 18RD T9 18OR/BK
T50 18DG T47 18YL/BK
8 7
6 5 4
3 2 1 CAV 2/4 SOLENOID CONTROL LOW/REVERSE SOLENOID CONTROL OVERDRIVE SOLENOID CONTROL
UNDERDRIVE PRESSURE SWITCH SENSE TRANSMISSION CONTROL RELAY OUTPUT OVERDRIVE PRESSURE SWITCH SENSE
LOW/REVERSE PRESSURE SWITCH SENSE 2/4 PRESSURE SWITCH SENSE CIRCUIT
FUNCTION
TRANSMISSION
CONTROL SOLENOIDS
TRANSMISSION TEMPERATURE SENSOR SIGNAL
8W - 80 - 86 8W-80 CONNECTOR PIN-OUTSNS/GS
J988W-3NSGS8086

CONTROL SERVOVEHICLE SPEED
41BLACK
Z1 18BK V30 18DB/RD V35 18LG/RD
V36 18TN/RD
4 3
2 1 CAV GROUND STOP LAMP SWITCH OUTPUT SPEED CONTROL VENT SOLENOID CONTROL
SPEED CONTROL VACUM SOLENOID CONTROL CIRCUIT
FUNCTION
OXYGEN SENSOR UPSTREAM HEATED
4 32
K41 18BK/DG K4 18BK/LB A142 18DG/OR
Z1 18BK
4 3
2 1 CAV UPSTREAM HEATED OXYGEN SENSOR SIGNAL SENSOR GROUND ASD RELAY OUTPUT
GROUND CIRCUIT
FUNCTION GRAY
1BOOST PRESSURE SIGNAL K1 18DG/RD
4
4 1
TURBO BOOST
PRESSURE SENSOR
(DIESEL)
K9 18LB
3K21 18BK/RD INTAKE AIR TEMPERATURE SIGNALSENSOR GROUND K4 18BK/LB
21
CAV FUNCTION CIRCUIT FUNCTION
CIRCUIT
SPEED SENSOR GROUND
INPUT SPEED SENSOR SIGNALCAV
1
2T13 18DB/BK
T52 18RD/BK
GRAY
1 2
TURBINE
SPEED SENSOR
5 VOLT SUPPLY
NS/GS8W-80 CONNECTOR PIN-OUTS 8W - 80 - 87
NSGS8087J988W-3

(EXCEPT BUILT-UP-EXPORT)MODULEWIPER- - - - - - - -
BLACK
GROUND WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
WIPER PARK SWITCH SENSE WIPER HIGH/LOW RELAY LOW SPEED OUTPUT105
6 1Z1 14BK V4 12RD/YL
V7 20DG/WT V3 12BR/WT
109
8 7 6
5 4 3
2 1 CAV
- - CIRCUIT - - FUNCTION
1
14
GROUND Z1 14BK(BUILT-UP-EXPORT)MODULEWIPER
CAV CIRCUIT FUNCTION
1 V3 12BR/WT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
2 V7 20DG/WT WIPER PARK SWITCH SENSE
3 V4 12RD/YL WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
4
(EXCEPT 3.3L/3.8L)SENSOR VEHICLE SPEED3 28 VOLT SUPPLY K7 18OR
G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL K4 20BK/LB* SENSOR GROUNDFUSED IGNITION (ST-RUN)
CAV CIRCUIT FUNCTION
1
F87 18WT/BK* 1
K4 18BK/LB SENSOR GROUND
2
* DIESEL BLACK
BLACK
1 3
8W - 80 - 88 8W-80 CONNECTOR PIN-OUTSNS/GS
J988W-3NSGS8088

8W-90 CONNECTOR/GROUND LOCATIONS
INDEX
page page

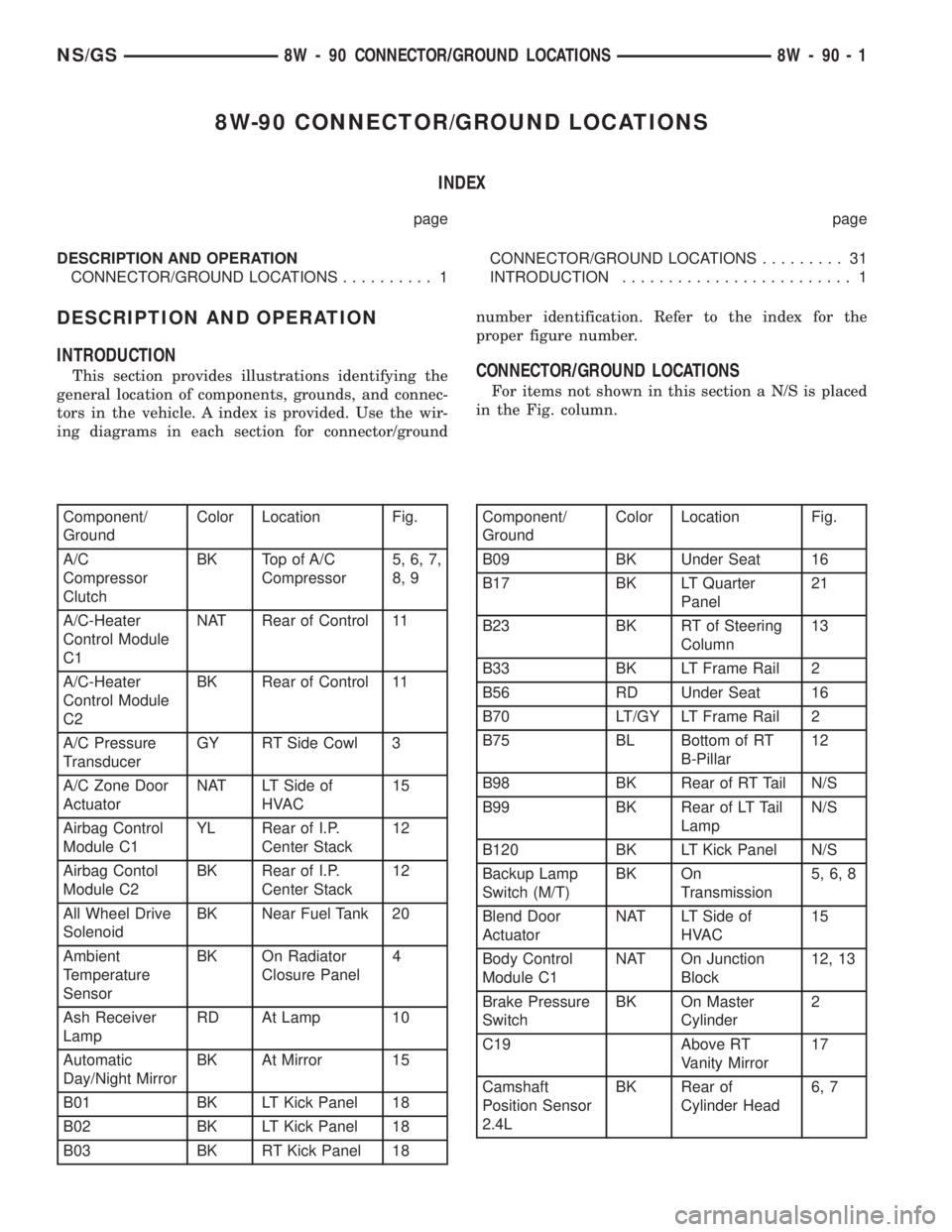

DESCRIPTION AND OPERATION
CONNECTOR/GROUND LOCATIONS.......... 1CONNECTOR/GROUND LOCATIONS......... 31
INTRODUCTION......................... 1
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the
general location of components, grounds, and connec-
tors in the vehicle. A index is provided. Use the wir-
ing diagrams in each section for connector/groundnumber identification. Refer to the index for the
proper figure number.CONNECTOR/GROUND LOCATIONS
For items not shown in this section a N/S is placed
in the Fig. column.
Component/
GroundColor Location Fig.
A/C
Compressor
ClutchBK Top of A/C
Compressor5, 6, 7,
8, 9
A/C-Heater
Control Module
C1NAT Rear of Control 11
A/C-Heater
Control Module
C2BK Rear of Control 11
A/C Pressure
TransducerGY RT Side Cowl 3
A/C Zone Door
ActuatorNAT LT Side of
HVAC15
Airbag Control
Module C1YL Rear of I.P.
Center Stack12
Airbag Contol
Module C2BK Rear of I.P.
Center Stack12
All Wheel Drive
SolenoidBK Near Fuel Tank 20
Ambient
Temperature
SensorBK On Radiator
Closure Panel4
Ash Receiver
LampRD At Lamp 10
Automatic
Day/Night MirrorBK At Mirror 15
B01 BK LT Kick Panel 18
B02 BK LT Kick Panel 18
B03 BK RT Kick Panel 18Component/
GroundColor Location Fig.
B09 BK Under Seat 16
B17 BK LT Quarter
Panel21
B23 BK RT of Steering
Column13
B33 BK LT Frame Rail 2
B56 RD Under Seat 16
B70 LT/GY LT Frame Rail 2
B75 BL Bottom of RT
B-Pillar12
B98 BK Rear of RT Tail N/S
B99 BK Rear of LT Tail
LampN/S
B120 BK LT Kick Panel N/S
Backup Lamp
Switch (M/T)BK On
Transmission5, 6, 8
Blend Door
ActuatorNAT LT Side of
HVAC15
Body Control
Module C1NAT On Junction
Block12, 13
Brake Pressure
SwitchBK On Master
Cylinder2
C19 Above RT
Vanity Mirror17
Camshaft
Position Sensor
2.4LBK Rear of
Cylinder Head6, 7
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 1

Component/
GroundColor Location Fig.
Camshaft
Position Sensor
3.3L, 3.8LBK RT Side of
Engine9
Center Dome
LampBK At Lamp N/S
CHMSL RD Rear of CHMSL 21
Cigar Lighter BK Rear of Lighter 9
Clockspring C1 YL Rear of
Clockspring11
Clockspring C2 NAT Rear of
Clockspring11
Clutch Interlock
SwitchBK Top of Clutch
Pedal13
Controller
Anti-Lock BrakeBK RT Side of
Engine
CompartmentN/S
Crankcase Vent
HeaterAt Heater N/S
Crankshaft
Position SensorBK Rear of Engine 5, 6, 7,
9
D01 BK On Kick Panel 18
D02 BK On Kick Panel 18
Data Link
ConnectorBK LT of Steering
Column12
Downstream
Heated Oxygen
SensorBK Front Center of
Floor Pan16
Driver Airbag YL Rear of Airbag 11
E36 BK LT Frame Rail 2
E40 BK At Radiator Fan
ModuleN/S
E43 LT/GY LT Frame Rail 2
E69 BK LT Side of
Intake6, 7
E78 BK Near Throttle
Body9
EC1 Above RT
Vanity Mirror17
EGR Solenoid BK LT Rear of
Engine6, 9
Electric Wiper
De-Icer C1BK At Left Base of
Windshield11
Electric Wiper
De-Icer C2BK At Right Base
of Windshield11Component/
GroundColor Location Fig.
Engine Coolant
Temp Sensor
2.4LBK On Cylinder
BlockN/S
Engine Coolant
Temp Sensor
2.5BK On Cylinder
Head8
Engine Coolant
Temp Sensor
3.3L, 3.8LBK On Cylinder
BlockN/S
Engine Oil
Pressure SwitchGN On Cylinder
Block5, 6, 7,
8, 9
Engine Starter
MotorRear of Starter 5, 6, 7,
8, 9
EVAP/Purge
SolenoidBK RT Motor
Mount3
Evaporator
Temperature
SensorBK RT Side of
HVACN/S
F02 BK Near Throttle
Body9
F09 BK LT Side of
Intake6, 7
Front Blower
MotorBK At Motor 10
Front Blower
Motor Resistor
BlockBK RT Side Cowl 4
Front Cigar
LighterBK Rear of Lighter 9
Front Reading
Lamps/SwitchRD At Lamp 15
Front Washer
MotorBK Bottom of
Reservior4
Fuel Injection
PumpBK Near Pump 8
Fuel Injector #1 BK At Injector N/S
Fuel Injector #2 BK At Injector N/S
Fuel Injector #3 BK At Injector N/S
Fuel Injector #4 BK At Injector N/S
Fuel Injector #5 BK At injector N/S
Fuel Injector #6 BK At Injector N/S
Fuel Injectors
(2.0L)BK At Injectors 5
Fuel Pump
HeaterBK At Heater N/S
Fuel Pump
ModuleLT/GY Side of Fuel
Tank20
8W - 90 - 2 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)

Component/
GroundColor Location Fig.
G100 LT Frame Rail 3
G101 2.4L Rear of
Cylinder Head6, 7
G101 3.3L, 3.8L Rear of
Cylinder Block9
G102 LT Frame Rail 3
G103 2.4L Rear of
Cylinder Head6, 7
G103 3.3L, 3.8L Rear of
Cylinder Block9
G104 Rear of Right
Headlamp4
G200 Right of I.P.
Center Stack10
G201 I.P. Center
Support10
G202 I.P. Center
Support10
G204 I.P. Center
Support10
G300 LT Kick Panel 13
G301 RT Kick Panel 14
G302 LT Quarter
Panel21
G400 In Liftgate 23
Generator BK Rear of
Generator5, 6, 7,
8, 9
Glove Box
LampBL Rear of Glove
Box11
Glow #1 BK At Glow Plug 8
Glow #2 BK At Glow Plug 8
Glow #3 BK At Glow Plug 8
Glow #4 BK At Glow Plug 8
Headlamp
Dimmer SwitchBK Part of
Multifunction
Switch11
Headlamp
Switch C1NAT Rear of Switch 11
Headlamp
Switch C2BK Rear of Switch 11
Headlamp
Washer PumpBK At Pump N/S
High Note Horn BK LT Frame Rail 4
Hood Ajar
SwitchNAT LT Fender 2Component/
GroundColor Location Fig.
Horn Switch Rear of Driver
Airbag11
Idle Air Control
MotorBK On Throttle
Body5, 6, 7,
8, 9
Ignition Coil
Pack 2.0LBK Top of Valve
Cover5
Ignition Coil
Pack 2.4LBK Top of Valve
Cover6, 7
Ignition Coil
Pack 3.3L, 3.8LBK RT Side of
Engine9
Ignition Switch
C1GY Rear of Switch 11
Ignition Switch
C2GN Rear of Switch 11
Ignition Switch
C3BK Rear of Switch 11
Instrument
ClusterRD Rear of Cluster 11
Intake Air Temp
SensorGY On Intake 6, 7
J01D BK RT Side of
HVAC15
J02A BK Top of Liftgate 23
JO3A BK Top of Liftgate 23
Junction Block
C1GY On Junction
Block13
Junction Block
C2GY On Junction
Block13
Junction Block
C3GY On Junction
Block12
Junction Block
C4GY On Junction
Block12
Key-In Halo
LampWT Rear of Lamp 11
Knock Sensor
2.0LGY Front of
Cylinder Block5
Knock Sensor
2.4LGY Front of
Cylinder Block6, 7
Knock Sensor
3.3L, 3.8LGY Front of
Cylinder BlockN/S
L15 BK Top of Liftgate 23
L16 BK Top of Liftgate 23
Left Flasher
RelayBK LT Rear
Quarter PanelN/S
Left Door Ajar
SwitchBK LT B-PIllar 14
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 3
DESCRIPTION AND OPERATION (Continued)

Component/
GroundColor Location Fig.
Left Door
Arm/Disarm
SwitchBK At Switch 19
Left Door
Courtesy LampBK At Lamp 19
Left Door
SpeakerBK At Speaker 19
Left Front Fog
LampBK At Lamp 4
Left Front Door
Lock MotorBK At Motor 19
Left Front Panel
SpeakerBK At Speaker 11
Left Front
Park/Turn
Signal LampBK At Lamp 4
Left Front
Wheel Speed
SensorBK LT Fender Side
Shield2
Left Front
Window MotorRD At Motor 19
Left Headlamp BK At Lamp 2
Left Headlamp
Leveling MotorBK At Motor N/S
Left Liftgate
Flood LampBK At Lamp 21
Left Mid
Reading LampGY At Lamp 15
Left Power Door
Lock SwitchBK At Switch 19
Left Power
Mirror C1RD At Mirror 11
Left Power
Mirror C2BL At Mirror 11
Left Power
Window SwitchBK At Switch 19
Left Rear Door
Ajar SwitchBK LT C-Pillar 21
Left Rear Lamp
AssemblyBK At Lamp 21
Left Rear Pillar
SpeakerBK At Speaker 21
Left Rear
Reading LampBK At Lamp 15
Left Rear
Sliding Door
ContactsBK LT B-Pillar 14Component/
GroundColor Location Fig.
Left Rear
Sliding Door
Lock MotorBK At Motor N/S
Left Rear
SpeakerBK At Speaker 21
Left Rear Vent
MotorNAT At Motor 21
Left Rear Wheel
Speed SensorBK Center Rear of
Floor Pan16
Left Repeater
LampGY At Lamp N/S
Left Speed
Control SwitchLeft Side of
Steering Wheel
Pad11
Left Stop/Turn
Signal RelayBK LT Quarter
PanelN/S
Left Visor/Vanity
LampBK At Lamp 15
License Lamp GY At Lamps 21
Liftgate Ajar
SwitchBK At Latch 21
Liftgate
Arm/Disarm
SwitchBK At Key Cylinder 21
Liftgate Door
Lock MotorBK At Motor 21
LJ01 BK LT Quarter
Panel21
Low Coolant
SwitchBK At Reservior 8
Low Note Horn BK LT Frame Rail 4
Low Washer
Fluid Level
SwitchBK Bottom of
ReserviorN/S
MAP Sensor
2.0LBK On Intake 5
MAP Sensor
2.4LBK On Intake N/S
MAP Sensor
3.3L, 3.8LBK Near Throttle
Body9
Memory
Seat/Mirror
ModuleBK Under Seat 16
Memory Set
SwitchBL At Switch 19
8W - 90 - 4 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)

Component/
GroundColor Location Fig.
Message Center BL Rear of
Message
Center11
Mode Door
ActuatorBK LT Side of
HVAC15
Multi Function
SwitchBK Rear of Switch 11
Name Brand
Speaker RelayLT/GY LT of Steering
Column11
Needle
Movement
SensorBK Back of
Generator8
Output Shaft
Speed SensorGY Front of
Transmission7, 9
Overhead
ConsoleRD Front of
Console15
P18 GY RT of Steering
Column12
P25 BK RT of I.P
Center Stack10
P30 BK RT Side of
HVAC10
P34 GY RT of Steering
Column12
P50 NAT Right Side of
HVAC Unit
Taped to
Harness10
Park Brake
SwitchBK Top of Park
Brake13
Park/Neutral
Positon SwitchBK Front of
TransmissionN/S
Passenger
AirbagYL Rear of Airbag 11
PDC C1 NAT Bottom of PDC 2
PDC C2 OR Bottom of PDC 2
PDC C3 DK/
GNBottom of PDC 2
PDC C4 BK Bottom of PDC 2
PDC C5 LT/GY Bottom of PDC 2
PDC C6 LT/GN Bottom of PDC 3
PDC C7 LT/GY Bottom of PDC 3
PDC C8 BL Bottom of PDC 3
Power Folding
Mirror SwitchBK At Switch N/SComponent/
GroundColor Location Fig.
Power Mirror
SwitchBK Rear of Switch 11
Power Steering
Pressure SwitchBK RT Side of
Engine
CompartmentN/S
Powertrain
Control Module
C1BK LT Fender Side
Shield3
Powertrain
Control Module
C2BK LT Fender Side
Shield3
Radiator Fan
No.1BK At Motor N/S
Radiator Fan
No.2BK At Motor N/S
Radiator Fan
Solid State
RelayBK LT Front Frame
Rail3
Radio C1 GY Rear of Radio 11
Radio C2 BK Rear of Radio 11
Radio C3 BK Rear of Radio 11
Radio Choke LT/GY Rear of Radio N/S
Rear A/C-
Heater UnitLT/GN RT Quarter
Panel22
Rear Blower
Front Control
SwitchBK Rear of Switch 11
Rear Blower
Rear Control
SwitchBK At Switch N/S
Rear Cigar
Lighter/Power
OutletBK LT Quarter
Panel21
Rear Dome
LampBK At Lamp N/S
Rear Washer
MotorBK Bottom of
Reservior4
Rear Window
DefoggerBK On Liftgate 21
Rear Wiper
MotorBK At Motor 21
Recirculation
Door ActuatorNAT RT Side of
HVAC15
Remote Keyless
Entry ModuleRD Top Left of I.P. 11
RF3 BK At Radiator Fan N/S
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 5
DESCRIPTION AND OPERATION (Continued)

Component/
GroundColor Location Fig.
Right Door
Arm/Disarm
SwitchBK At Switch 17
Right Door
Courtesy LampBK At Lamp 17
Right Door
SpeakerBK At Speaker 17
Right Flasher
RelayBK LT Quarter
PanelN/S
Right Front Fog
LampBK At Lamp 4
Right Front
Door Ajar
SwitchBK RT B-Pillar 12
Right Front
Door Lock
MotorBK At Motor 17
Right Front
Panel SpeakerBK At Speaker 11
Right Front
Park/Turn
Signal LampBK At Lamp 4
Right Front
Wheel Speed
SensorBK Right Fender
Side Shield4
Right Front
Window MotorRD At Motor 19
Right Headlamp BK At Lamp 4
Right Headlamp
Leveling MotorBK At Motor N/S
Right Liftgate
Flood LampBK At Lamp 23
Right Mid
Reading LampGY At Lamp 17
Right Power
Door Lock
SwitchBK At Switch 19
Right Power
Mirror C1RD At Mirror 11
Right Power
Mirror C2BL At Mirror 11
Right Power
Window SwitchBK At Switch 19
Right Rear
Lamp AssemblyBK At Lamp 22
Right Rear Door
Ajar SwitchBK RT C-Pillar 22Component/
GroundColor Location Fig.
Right Rear Pillar
SpeakerBK At Speaker 22
Right Rear
Reading LampGY At Lamp 17
Right Rear
Sliding Door
ContactBK RT B-Pillar 14
Right Rear
Sliding Door
Lock MotorBK At Motor N/S
Right Rear
SpeakerBK At Speaker 22
Right Rear Vent
MotorNAT At Motor 22
Right Rear
Wheel Speed
SensorBK Center Rear of
Floor Pan16
Right Repeater
LampGY At Lamp N/S
Right Speed
Control SwitchRight Side of
Steering Wheel
Pad11
Right Stop/Turn
Signal RelayBK LT Quarter
PanelN/S
Right Visor/
Vanity LampBK At Lamp 17
S02 BK Under Seat N/S
Seat Belt Switch BK LT B-Pillar N/S
Sentry Key
Immobilizer
ModuleBK Near Steering
at Module11
Stop Lamp
SwitchGY Top of Brake
Pedal13
T05 BK LT Quarter
PanelN/S
T08 BK LT Quarter
PanelN/S
Throttle Position
SensorNAT On Throttle
Body5, 6, 7,
8, 9
Trailer Tow
ConnectorBK LT Quarter
PanelN/S
Transmission
Control ModuleBK RT Fender Side
Shield3
Transmission
Range SensorBK Top of
Transmission7, 9
8W - 90 - 6 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)

Component/
GroundColor Location Fig.
Transmission
Control
SolenoidsBK Front of
Transmission7, 9
Turbine Speed
SensorGY Front of
Transmission7, 9
Turn Signal/
Hazard SwitchBK Part of
Multifunction
Switch11
Upstream
Heated Oxygen
SensorGY Rear of Engine 5, 6, 7,
8, 9Component/
GroundColor Location Fig.
Vehicle Speed
Control ServoBK LT Rear of
Engine
Compartment5, 6, 7,
8, 9
Vehicle Speed
SensorBK Rear of
Transmission5, 6, 8
Windshield
Wiper SwitchBK Part of
Multifunction
Switch11
Wiper Module BK LT Side of
Engine2
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 7
DESCRIPTION AND OPERATION (Continued)
