sensor CHRYSLER VOYAGER 2001 Service Manual

TEST ACTION APPLICABILITY

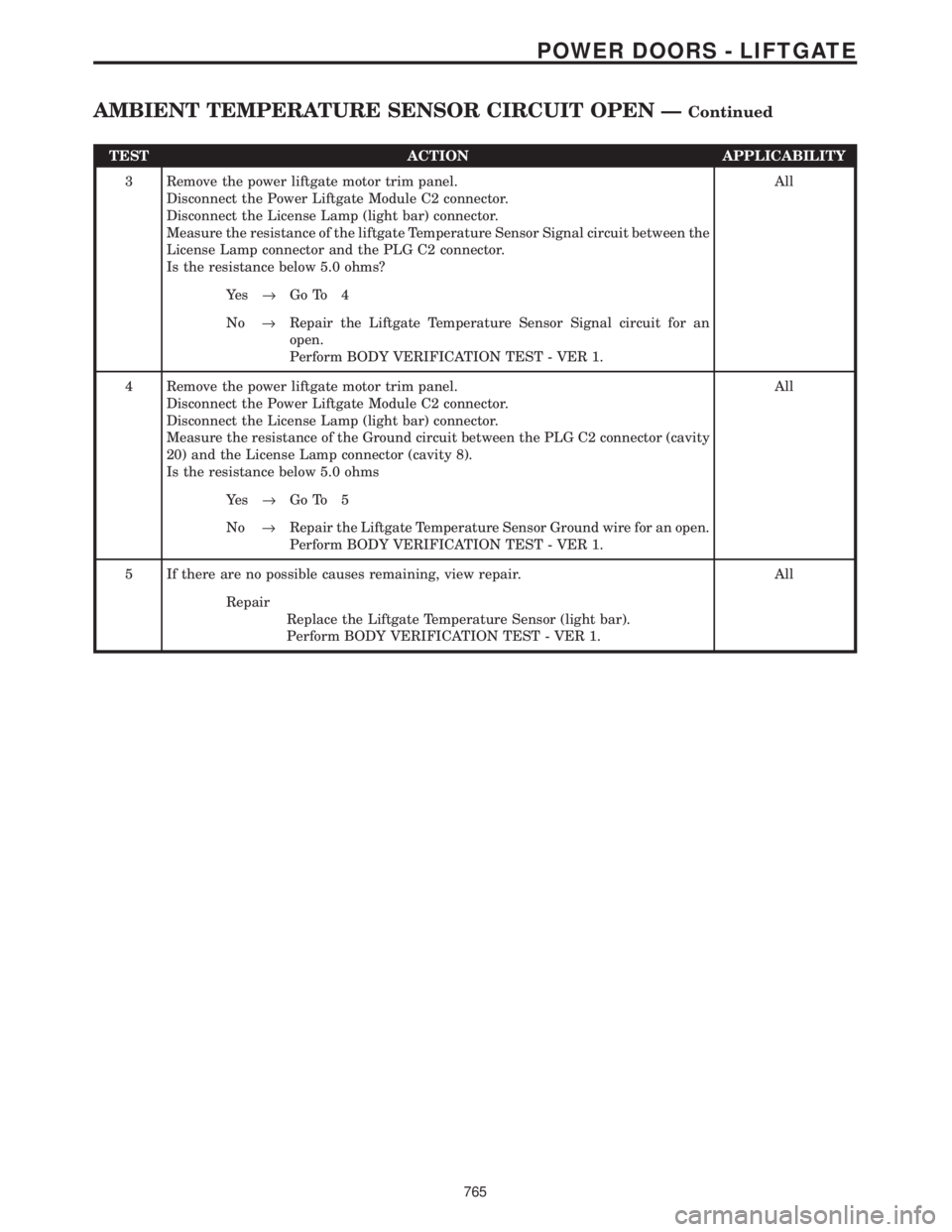

3 Remove the power liftgate motor trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the License Lamp (light bar) connector.
Measure the resistance of the liftgate Temperature Sensor Signal circuit between the
License Lamp connector and the PLG C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the Liftgate Temperature Sensor Signal circuit for an
open.
Perform BODY VERIFICATION TEST - VER 1.
4 Remove the power liftgate motor trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the License Lamp (light bar) connector.
Measure the resistance of the Ground circuit between the PLG C2 connector (cavity
20) and the License Lamp connector (cavity 8).
Is the resistance below 5.0 ohmsAll
Ye s®Go To 5
No®Repair the Liftgate Temperature Sensor Ground wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 If there are no possible causes remaining, view repair. All
Repair
Replace the Liftgate Temperature Sensor (light bar).
Perform BODY VERIFICATION TEST - VER 1.
765
POWER DOORS - LIFTGATE
AMBIENT TEMPERATURE SENSOR CIRCUIT OPEN ÐContinued

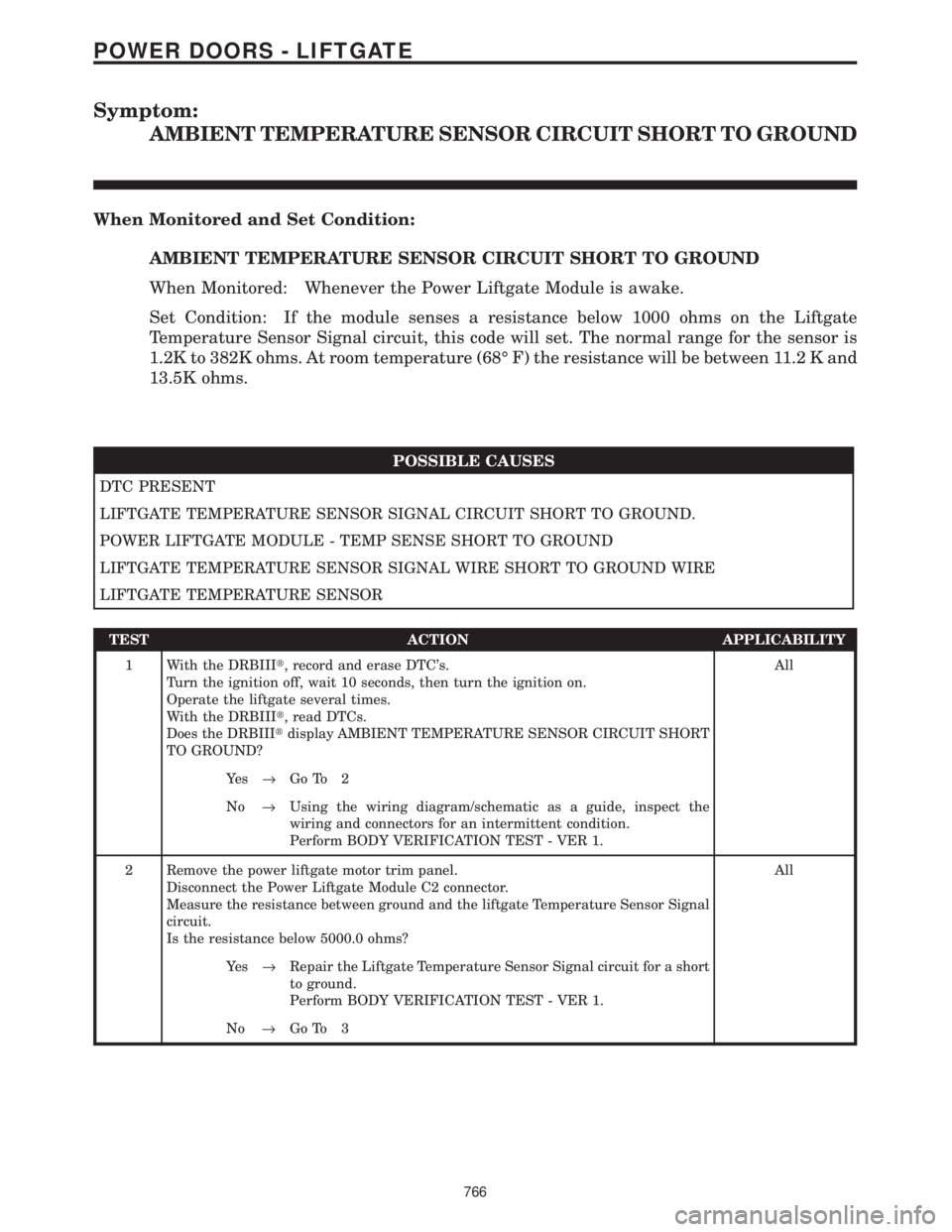

Symptom:
AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT TO GROUND
When Monitored and Set Condition:
AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT TO GROUND
When Monitored: Whenever the Power Liftgate Module is awake.
Set Condition: If the module senses a resistance below 1000 ohms on the Liftgate
Temperature Sensor Signal circuit, this code will set. The normal range for the sensor is
1.2K to 382K ohms. At room temperature (68É F) the resistance will be between 11.2 K and
13.5K ohms.
POSSIBLE CAUSES
DTC PRESENT
LIFTGATE TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND.
POWER LIFTGATE MODULE - TEMP SENSE SHORT TO GROUND
LIFTGATE TEMPERATURE SENSOR SIGNAL WIRE SHORT TO GROUND WIRE
LIFTGATE TEMPERATURE SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT
TO GROUND?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Remove the power liftgate motor trim panel.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between ground and the liftgate Temperature Sensor Signal
circuit.
Is the resistance below 5000.0 ohms?All
Ye s®Repair the Liftgate Temperature Sensor Signal circuit for a short
to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
766
POWER DOORS - LIFTGATE

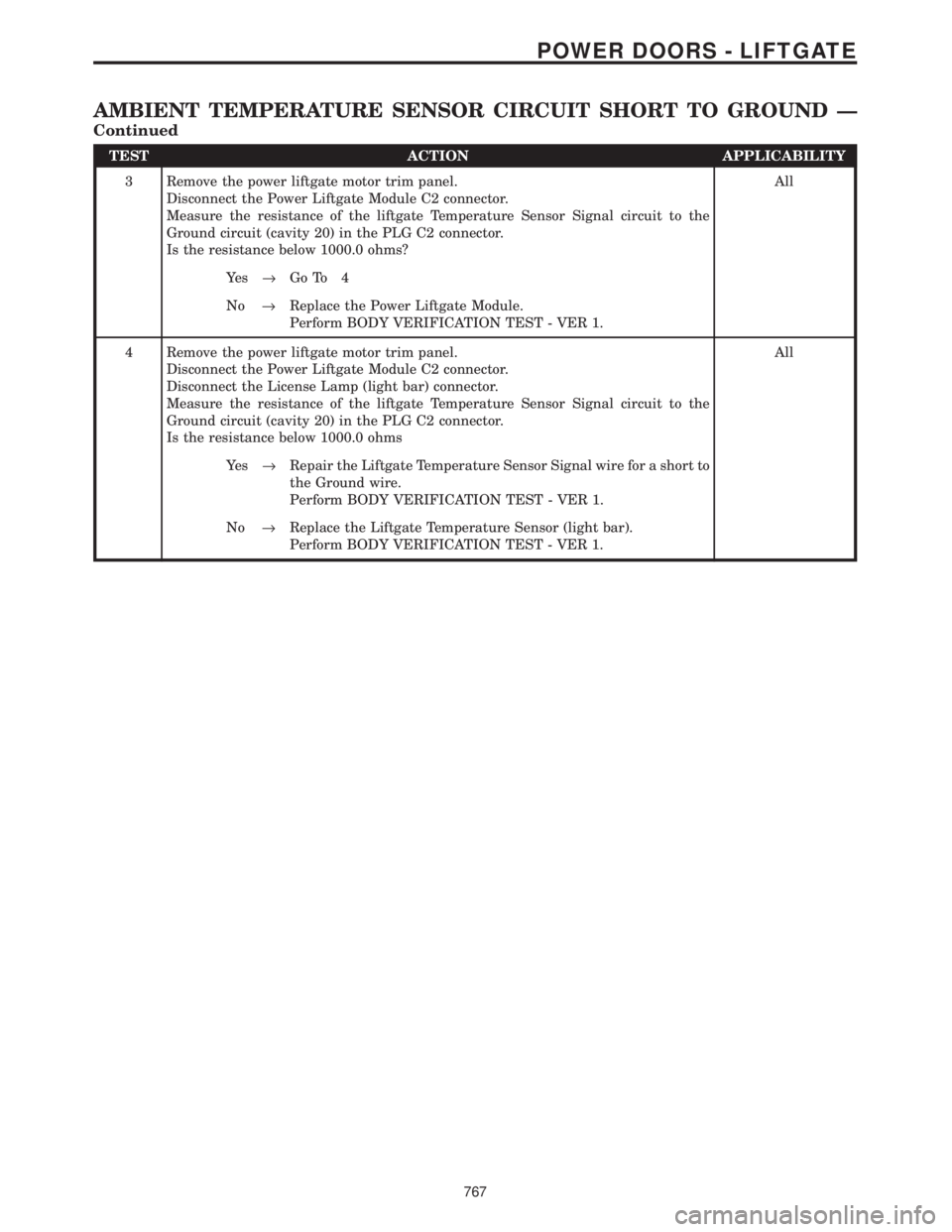

TEST ACTION APPLICABILITY
3 Remove the power liftgate motor trim panel.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the liftgate Temperature Sensor Signal circuit to the
Ground circuit (cavity 20) in the PLG C2 connector.
Is the resistance below 1000.0 ohms?All
Ye s®Go To 4
No®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
4 Remove the power liftgate motor trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the License Lamp (light bar) connector.
Measure the resistance of the liftgate Temperature Sensor Signal circuit to the
Ground circuit (cavity 20) in the PLG C2 connector.
Is the resistance below 1000.0 ohmsAll
Ye s®Repair the Liftgate Temperature Sensor Signal wire for a short to
the Ground wire.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Liftgate Temperature Sensor (light bar).
Perform BODY VERIFICATION TEST - VER 1.
767
POWER DOORS - LIFTGATE
AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT TO GROUND Ð
Continued

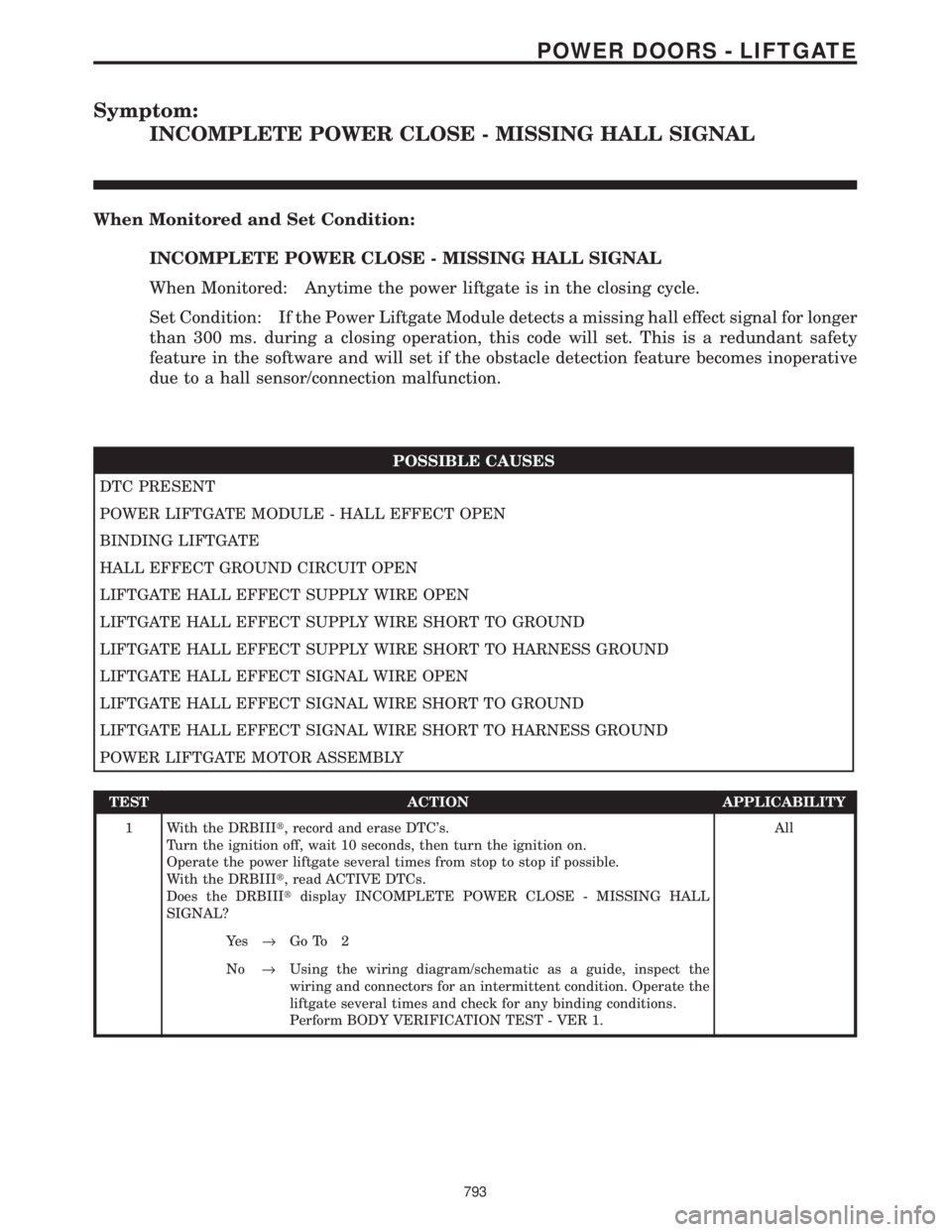

Symptom:
INCOMPLETE POWER CLOSE - MISSING HALL SIGNAL
When Monitored and Set Condition:
INCOMPLETE POWER CLOSE - MISSING HALL SIGNAL
When Monitored: Anytime the power liftgate is in the closing cycle.
Set Condition: If the Power Liftgate Module detects a missing hall effect signal for longer
than 300 ms. during a closing operation, this code will set. This is a redundant safety
feature in the software and will set if the obstacle detection feature becomes inoperative
due to a hall sensor/connection malfunction.
POSSIBLE CAUSES
DTC PRESENT
POWER LIFTGATE MODULE - HALL EFFECT OPEN
BINDING LIFTGATE
HALL EFFECT GROUND CIRCUIT OPEN
LIFTGATE HALL EFFECT SUPPLY WIRE OPEN
LIFTGATE HALL EFFECT SUPPLY WIRE SHORT TO GROUND
LIFTGATE HALL EFFECT SUPPLY WIRE SHORT TO HARNESS GROUND
LIFTGATE HALL EFFECT SIGNAL WIRE OPEN
LIFTGATE HALL EFFECT SIGNAL WIRE SHORT TO GROUND
LIFTGATE HALL EFFECT SIGNAL WIRE SHORT TO HARNESS GROUND
POWER LIFTGATE MOTOR ASSEMBLY
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times from stop to stop if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE POWER CLOSE - MISSING HALL
SIGNAL?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
liftgate several times and check for any binding conditions.
Perform BODY VERIFICATION TEST - VER 1.
793
POWER DOORS - LIFTGATE

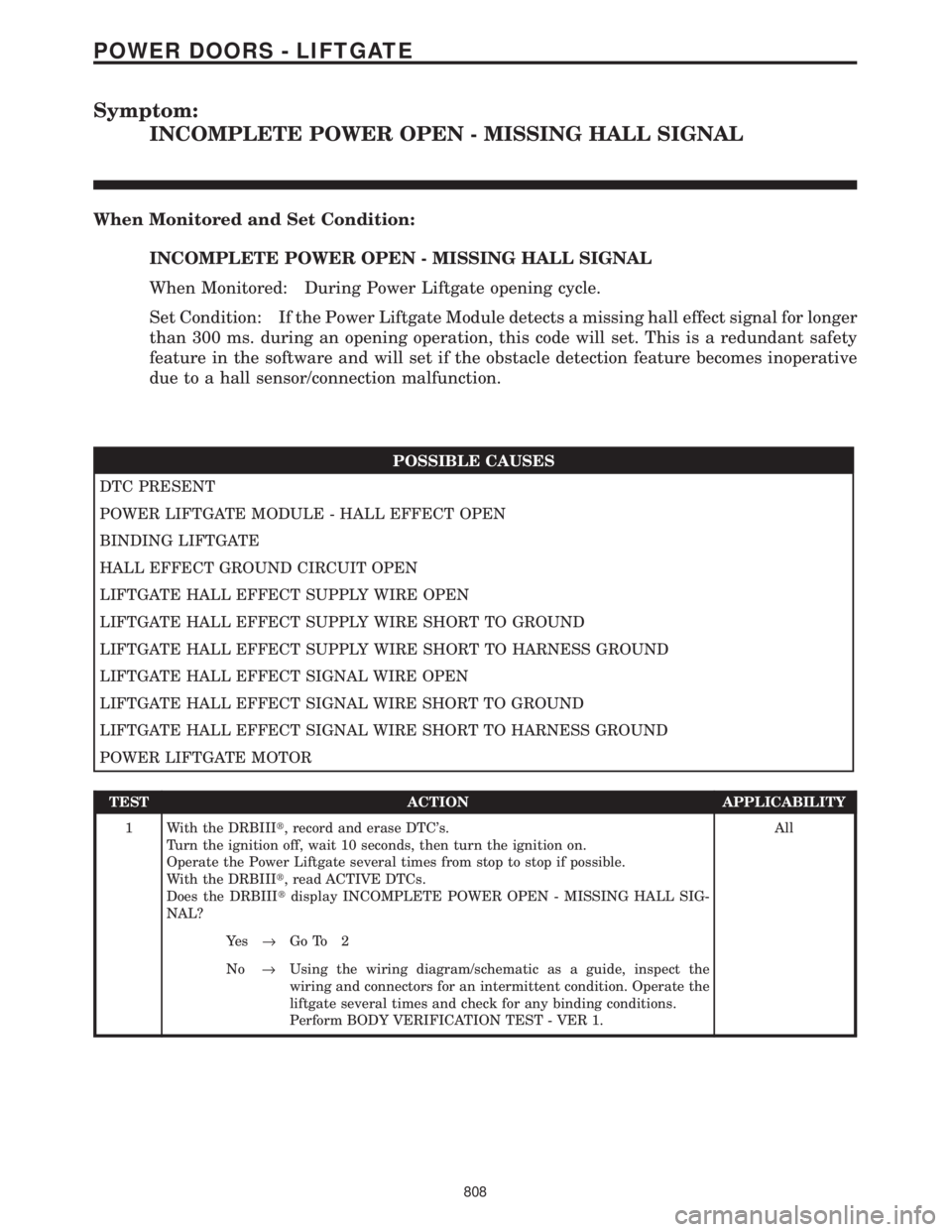

Symptom:
INCOMPLETE POWER OPEN - MISSING HALL SIGNAL
When Monitored and Set Condition:
INCOMPLETE POWER OPEN - MISSING HALL SIGNAL
When Monitored: During Power Liftgate opening cycle.
Set Condition: If the Power Liftgate Module detects a missing hall effect signal for longer
than 300 ms. during an opening operation, this code will set. This is a redundant safety
feature in the software and will set if the obstacle detection feature becomes inoperative
due to a hall sensor/connection malfunction.
POSSIBLE CAUSES
DTC PRESENT
POWER LIFTGATE MODULE - HALL EFFECT OPEN
BINDING LIFTGATE
HALL EFFECT GROUND CIRCUIT OPEN
LIFTGATE HALL EFFECT SUPPLY WIRE OPEN
LIFTGATE HALL EFFECT SUPPLY WIRE SHORT TO GROUND
LIFTGATE HALL EFFECT SUPPLY WIRE SHORT TO HARNESS GROUND
LIFTGATE HALL EFFECT SIGNAL WIRE OPEN
LIFTGATE HALL EFFECT SIGNAL WIRE SHORT TO GROUND
LIFTGATE HALL EFFECT SIGNAL WIRE SHORT TO HARNESS GROUND
POWER LIFTGATE MOTOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the Power Liftgate several times from stop to stop if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE POWER OPEN - MISSING HALL SIG-
NAL?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
liftgate several times and check for any binding conditions.
Perform BODY VERIFICATION TEST - VER 1.
808
POWER DOORS - LIFTGATE

Symptom:

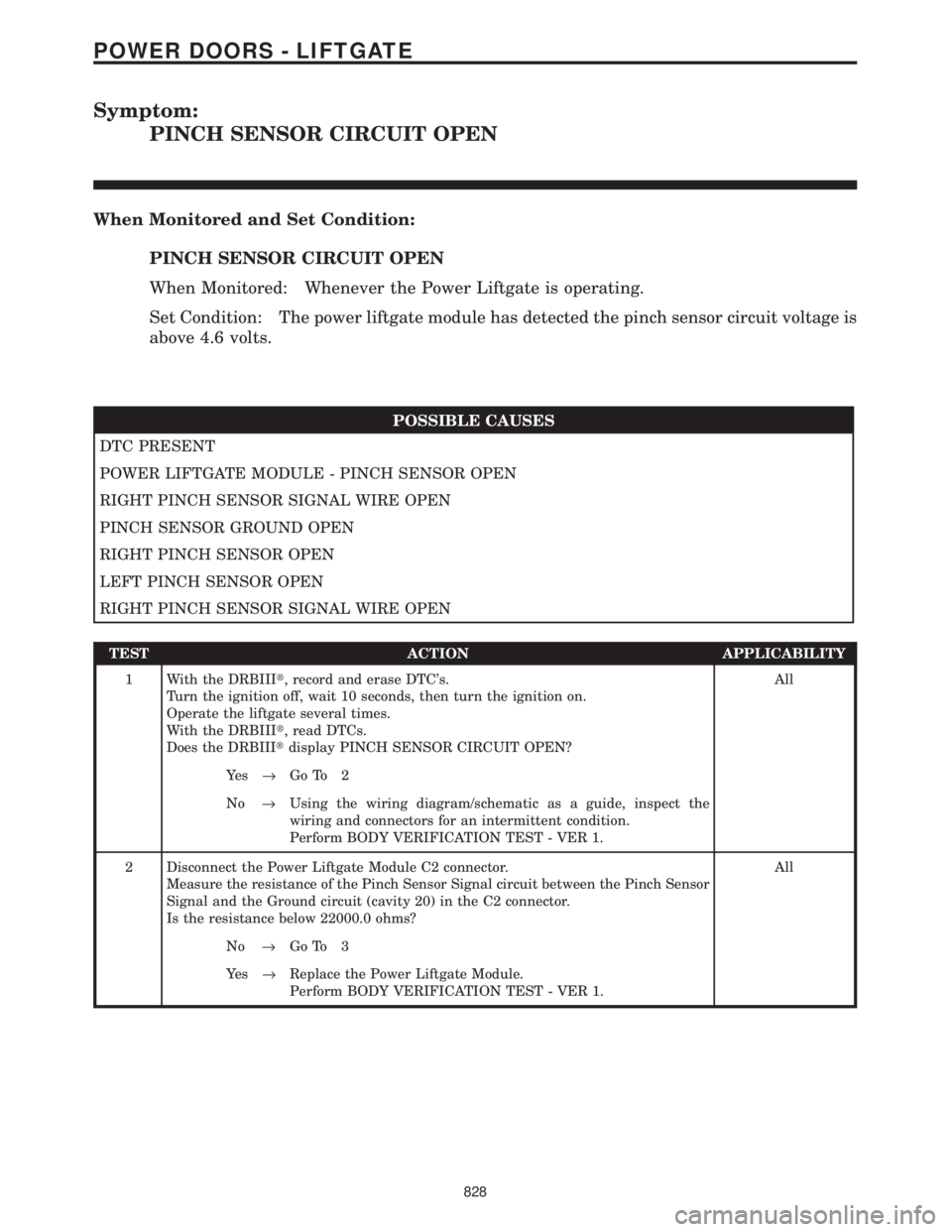

PINCH SENSOR CIRCUIT OPEN
When Monitored and Set Condition:
PINCH SENSOR CIRCUIT OPEN
When Monitored: Whenever the Power Liftgate is operating.
Set Condition: The power liftgate module has detected the pinch sensor circuit voltage is
above 4.6 volts.
POSSIBLE CAUSES
DTC PRESENT
POWER LIFTGATE MODULE - PINCH SENSOR OPEN
RIGHT PINCH SENSOR SIGNAL WIRE OPEN
PINCH SENSOR GROUND OPEN
RIGHT PINCH SENSOR OPEN
LEFT PINCH SENSOR OPEN
RIGHT PINCH SENSOR SIGNAL WIRE OPEN
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay PINCH SENSOR CIRCUIT OPEN?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the Pinch Sensor Signal circuit between the Pinch Sensor
Signal and the Ground circuit (cavity 20) in the C2 connector.
Is the resistance below 22000.0 ohms?All
No®Go To 3
Ye s®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
828
POWER DOORS - LIFTGATE

TEST ACTION APPLICABILITY

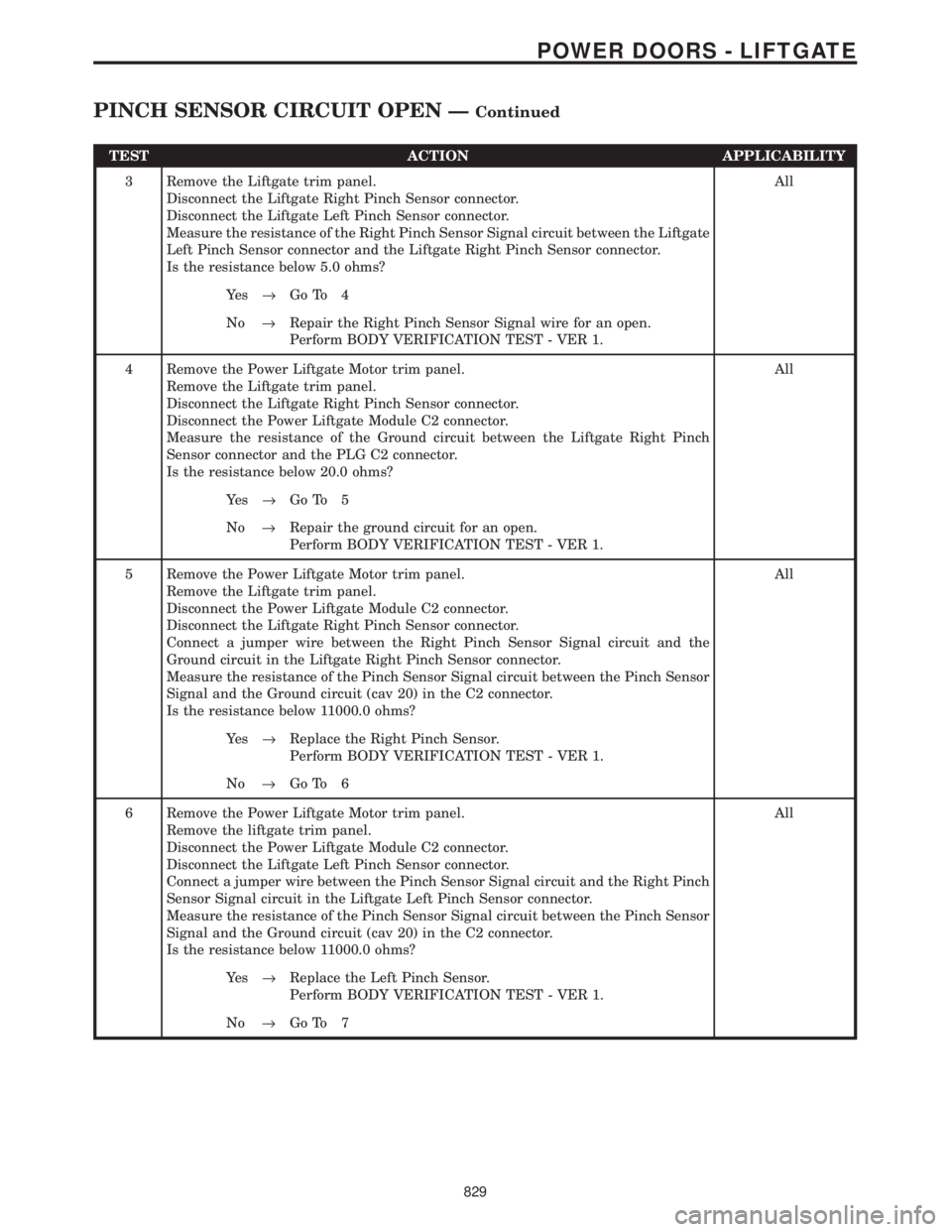

3 Remove the Liftgate trim panel.
Disconnect the Liftgate Right Pinch Sensor connector.
Disconnect the Liftgate Left Pinch Sensor connector.
Measure the resistance of the Right Pinch Sensor Signal circuit between the Liftgate
Left Pinch Sensor connector and the Liftgate Right Pinch Sensor connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the Right Pinch Sensor Signal wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
4 Remove the Power Liftgate Motor trim panel.
Remove the Liftgate trim panel.
Disconnect the Liftgate Right Pinch Sensor connector.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the Ground circuit between the Liftgate Right Pinch
Sensor connector and the PLG C2 connector.
Is the resistance below 20.0 ohms?All
Ye s®Go To 5
No®Repair the ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 Remove the Power Liftgate Motor trim panel.
Remove the Liftgate trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Right Pinch Sensor connector.
Connect a jumper wire between the Right Pinch Sensor Signal circuit and the
Ground circuit in the Liftgate Right Pinch Sensor connector.
Measure the resistance of the Pinch Sensor Signal circuit between the Pinch Sensor
Signal and the Ground circuit (cav 20) in the C2 connector.
Is the resistance below 11000.0 ohms?All
Ye s®Replace the Right Pinch Sensor.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 Remove the Power Liftgate Motor trim panel.
Remove the liftgate trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Left Pinch Sensor connector.
Connect a jumper wire between the Pinch Sensor Signal circuit and the Right Pinch
Sensor Signal circuit in the Liftgate Left Pinch Sensor connector.
Measure the resistance of the Pinch Sensor Signal circuit between the Pinch Sensor
Signal and the Ground circuit (cav 20) in the C2 connector.
Is the resistance below 11000.0 ohms?All
Ye s®Replace the Left Pinch Sensor.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 7
829
POWER DOORS - LIFTGATE
PINCH SENSOR CIRCUIT OPEN ÐContinued

TEST ACTION APPLICABILITY

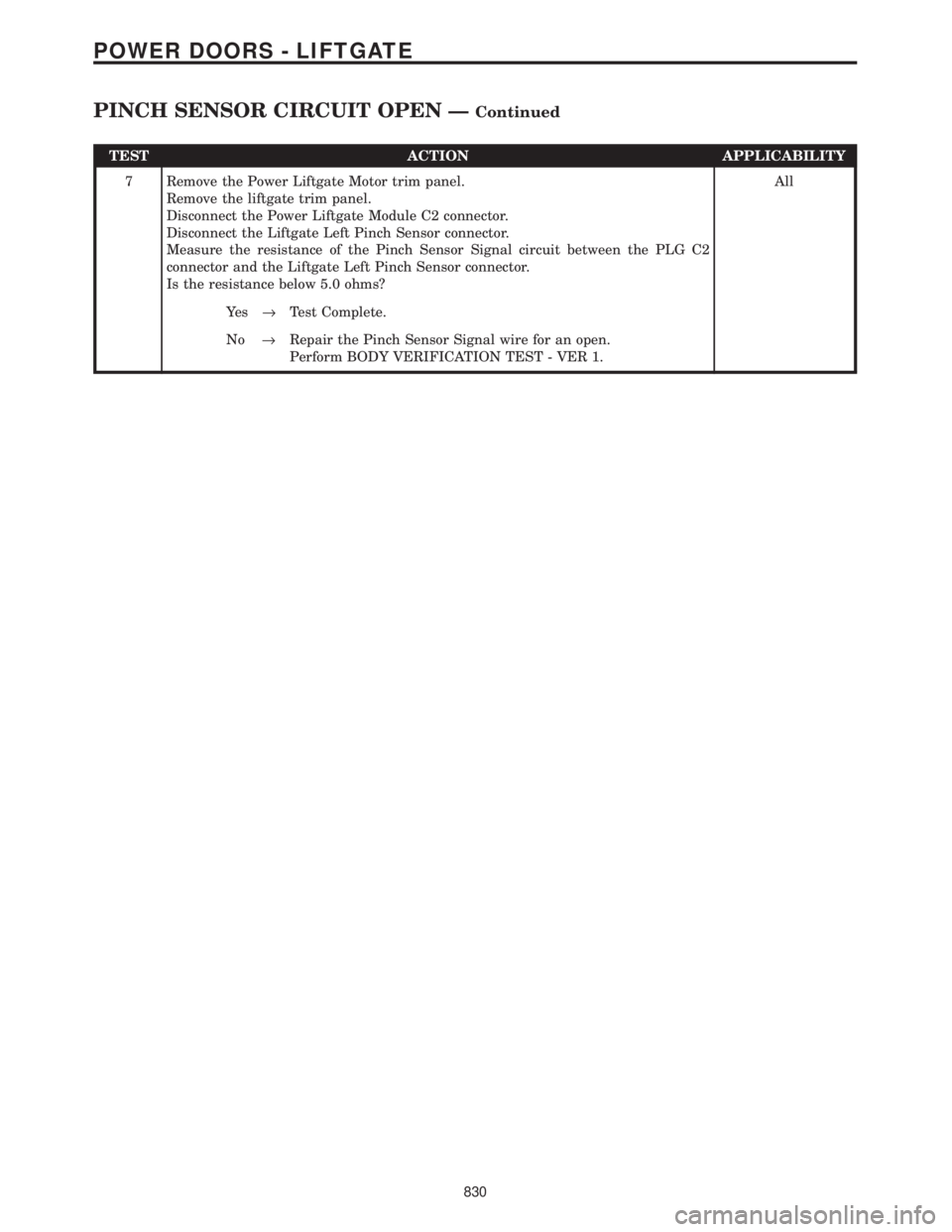

7 Remove the Power Liftgate Motor trim panel.
Remove the liftgate trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Liftgate Left Pinch Sensor connector.
Measure the resistance of the Pinch Sensor Signal circuit between the PLG C2
connector and the Liftgate Left Pinch Sensor connector.
Is the resistance below 5.0 ohms?All
Ye s®Test Complete.
No®Repair the Pinch Sensor Signal wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
830
POWER DOORS - LIFTGATE
PINCH SENSOR CIRCUIT OPEN ÐContinued

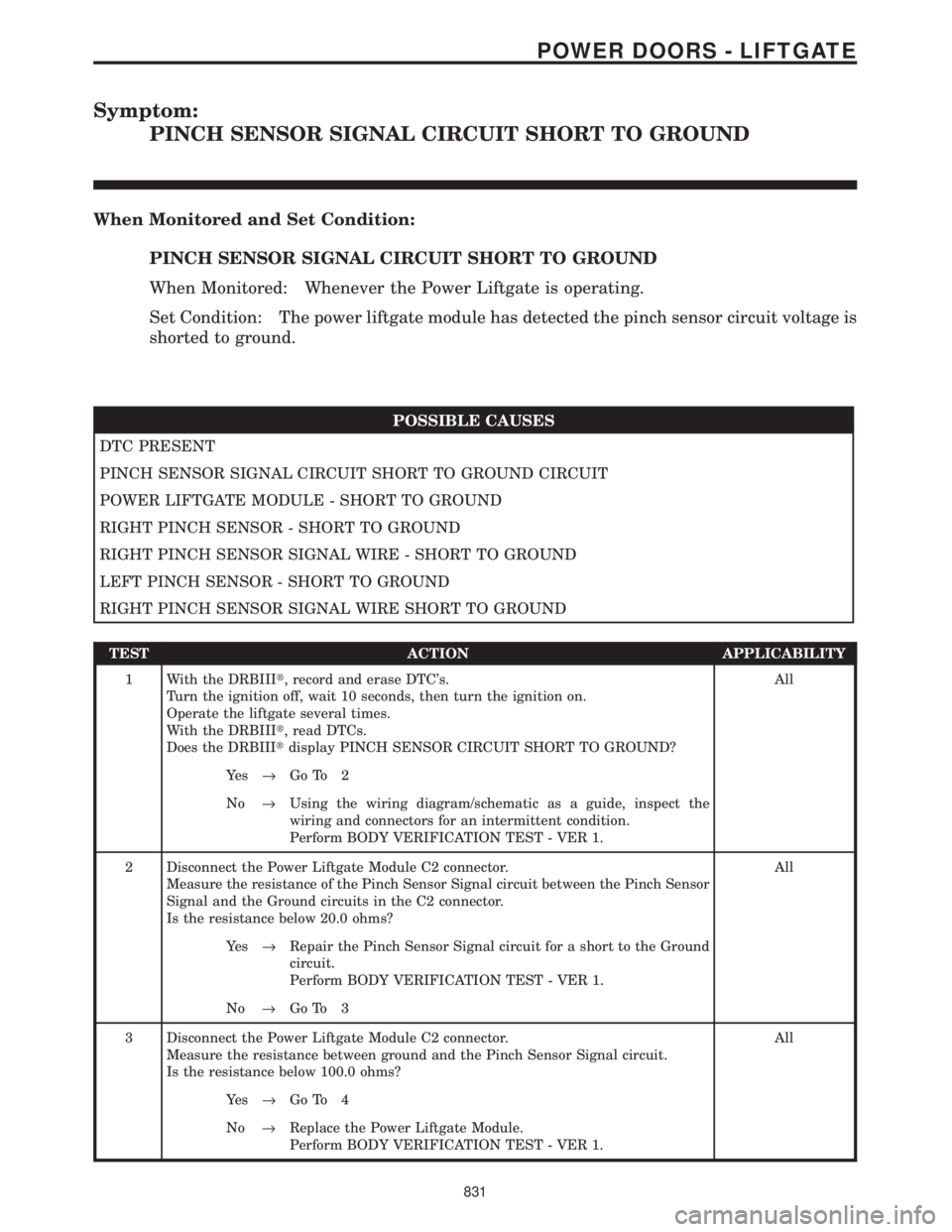

Symptom:
PINCH SENSOR SIGNAL CIRCUIT SHORT TO GROUND
When Monitored and Set Condition:
PINCH SENSOR SIGNAL CIRCUIT SHORT TO GROUND
When Monitored: Whenever the Power Liftgate is operating.
Set Condition: The power liftgate module has detected the pinch sensor circuit voltage is
shorted to ground.
POSSIBLE CAUSES
DTC PRESENT
PINCH SENSOR SIGNAL CIRCUIT SHORT TO GROUND CIRCUIT
POWER LIFTGATE MODULE - SHORT TO GROUND
RIGHT PINCH SENSOR - SHORT TO GROUND
RIGHT PINCH SENSOR SIGNAL WIRE - SHORT TO GROUND
LEFT PINCH SENSOR - SHORT TO GROUND
RIGHT PINCH SENSOR SIGNAL WIRE SHORT TO GROUND
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay PINCH SENSOR CIRCUIT SHORT TO GROUND?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the Pinch Sensor Signal circuit between the Pinch Sensor
Signal and the Ground circuits in the C2 connector.
Is the resistance below 20.0 ohms?All
Ye s®Repair the Pinch Sensor Signal circuit for a short to the Ground
circuit.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between ground and the Pinch Sensor Signal circuit.
Is the resistance below 100.0 ohms?All
Ye s®Go To 4
No®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
831

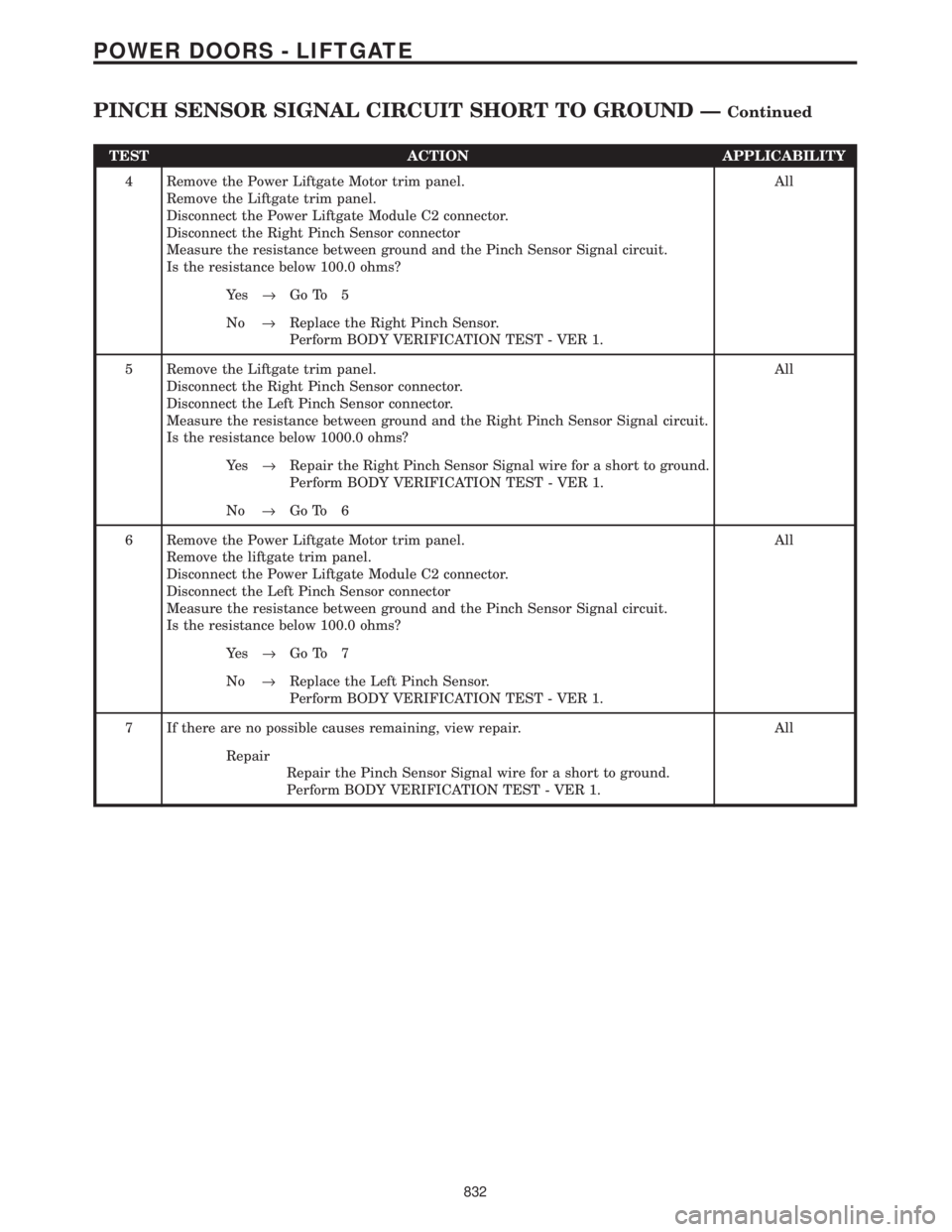

POWER DOORS - LIFTGATE

TEST ACTION APPLICABILITY
4 Remove the Power Liftgate Motor trim panel.
Remove the Liftgate trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Right Pinch Sensor connector
Measure the resistance between ground and the Pinch Sensor Signal circuit.
Is the resistance below 100.0 ohms?All
Ye s®Go To 5
No®Replace the Right Pinch Sensor.
Perform BODY VERIFICATION TEST - VER 1.
5 Remove the Liftgate trim panel.
Disconnect the Right Pinch Sensor connector.
Disconnect the Left Pinch Sensor connector.
Measure the resistance between ground and the Right Pinch Sensor Signal circuit.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Right Pinch Sensor Signal wire for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 Remove the Power Liftgate Motor trim panel.
Remove the liftgate trim panel.
Disconnect the Power Liftgate Module C2 connector.
Disconnect the Left Pinch Sensor connector
Measure the resistance between ground and the Pinch Sensor Signal circuit.
Is the resistance below 100.0 ohms?All
Ye s®Go To 7
No®Replace the Left Pinch Sensor.
Perform BODY VERIFICATION TEST - VER 1.
7 If there are no possible causes remaining, view repair. All
Repair
Repair the Pinch Sensor Signal wire for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
832
POWER DOORS - LIFTGATE
PINCH SENSOR SIGNAL CIRCUIT SHORT TO GROUND ÐContinued
