CHRYSLER VOYAGER 2001  Service Manual STARTING
TABLE OF CONTENTS
page page
STARTING
DESCRIPTION...........................27
OPERATION.............................27
DIAGNOSIS AND TESTING.................27
STARTING SYSTEM TEST...........

Page 1882 of 4284

CHRYSLER VOYAGER 2001  Service Manual ²Battery- Visually inspect the battery for indi-
cations of physical damage and loose or corroded
cable connections. Determine the state-of-charge and
cranking capacity of the battery. Charge or repl

Page 1883 of 4284

CHRYSLER VOYAGER 2001  Service Manual CONDITION POSSIBLE CAUSE CORRECTION
3. STARTER ASSEMBLY
FAULTY.3. IF ALL OTHER STARTING SYSTEM COMPONENTS AND
CIRCUITS CHECK OK, REPLACE STARTER ASSEMBLY.
4. ENGINE SEIZED. 4. REFER TO THE ENGINE SECT

Page 1884 of 4284

CHRYSLER VOYAGER 2001  Service Manual (5) Connect a remote starter switch or a jumper
wire between the remote battery positive post and
terminal 87 of the starter relay connector.
(a) If engine cranks, starter/starter solenoid is
good. Go

Page 1885 of 4284

CHRYSLER VOYAGER 2001  Service Manual (5) The coil ground terminal (85) is connected to
the electromagnet in the relay. It is grounded
through the transmission range sensor only when the
gearshift selector lever is in the Park or Neutral

Page 1886 of 4284

CHRYSLER VOYAGER 2001  Service Manual (1) Check battery before performing this test. Bat-
tery must be fully charged.
(2) Connect a volt-ampere tester to the battery ter-
minals. Refer to the operating instructions provided
with the teste

Page 1887 of 4284

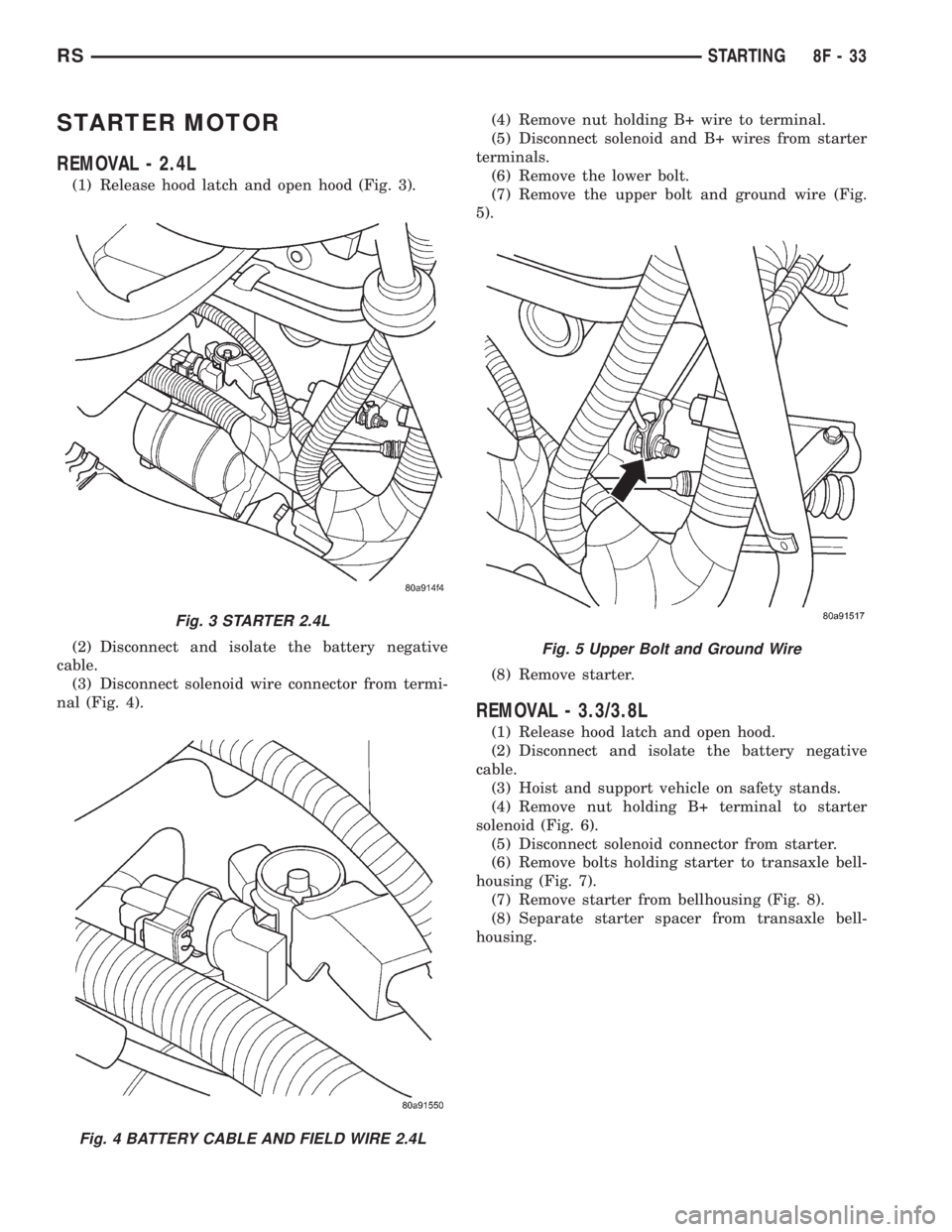

CHRYSLER VOYAGER 2001  Service Manual STARTER MOTOR
REMOVAL - 2.4L
(1) Release hood latch and open hood (Fig. 3).
(2) Disconnect and isolate the battery negative
cable.
(3) Disconnect solenoid wire connector from termi-
nal (Fig. 4).(4) R

Page 1888 of 4284

CHRYSLER VOYAGER 2001  Service Manual INSTALLATION - 2.4L
(1) Place starter in position on vehicle.
(2) Install the lower bolts to hold starter to tran-
saxle bellhousing.(3) Install the upper bolt and ground wire (Fig. 5).
(4) Place sole

Page 1889 of 4284

CHRYSLER VOYAGER 2001  Service Manual ENGINE SYSTEMS
TABLE OF CONTENTS
page page
BATTERY SYSTEM - RG ONLY................ 1
CHARGING............................... 5STARTING................................ 7
BATTERY SYSTEM - RG ONLY
TABLE

Page 1890 of 4284

CHRYSLER VOYAGER 2001  Service Manual Spiral plate technology is the process by which the
plates holding the active material in the battery are
wound tightly in coils instead of hanging flat, like
conventional batteries. This design has a
Trending: brake pads replacement, wheelbase, hood open, set clock, keyless, jacking points, remove seats
