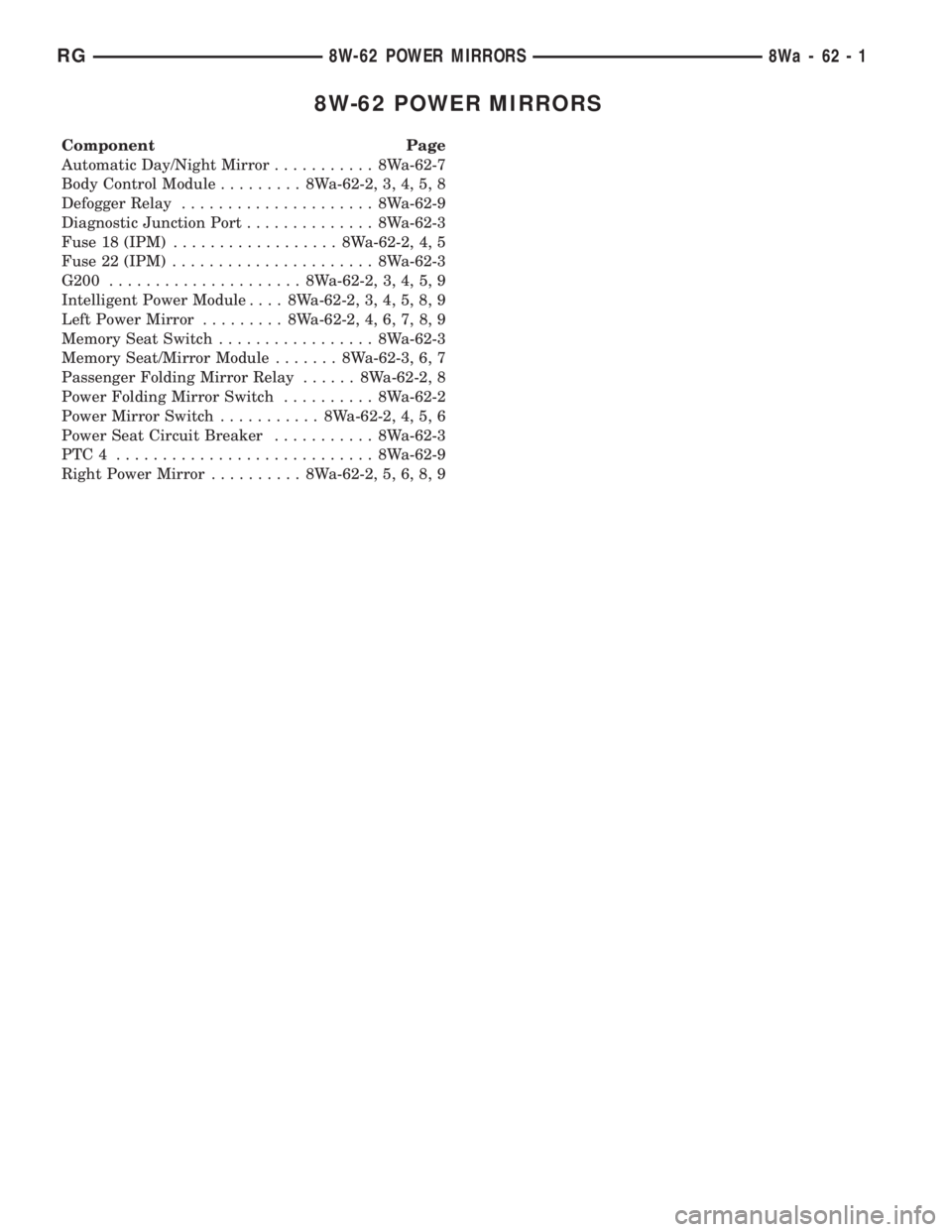

8W-62 POWER MIRRORS
Component Page
Automatic Day/Night Mirror........... 8Wa-62-7
Body Control Module......... 8Wa-62-2, 3, 4, 5, 8
Defogger Relay..................... 8Wa-62-9
Diagnostic Junction Port.............. 8Wa-62-3
Fuse 18 (IPM).................. 8Wa-62-2, 4, 5
Fuse 22 (IPM)...................... 8Wa-62-3
G200..................... 8Wa-62-2, 3, 4, 5, 9
Intelligent Power Module.... 8Wa-62-2, 3, 4, 5, 8, 9
Left Power Mirror......... 8Wa-62-2, 4, 6, 7, 8, 9
Memory Seat Switch................. 8Wa-62-3
Memory Seat/Mirror Module....... 8Wa-62-3, 6, 7
Passenger Folding Mirror Relay...... 8Wa-62-2, 8
Power Folding Mirror Switch.......... 8Wa-62-2
Power Mirror Switch........... 8Wa-62-2, 4, 5, 6
Power Seat Circuit Breaker........... 8Wa-62-3
PTC4 ............................ 8Wa-62-9
Right Power Mirror.......... 8Wa-62-2, 5, 6, 8, 9
RG8W-62 POWER MIRRORS8Wa-62-1

Component Page
C326............................. 8W-80-41
C327............................. 8W-80-41
C327............................. 8W-80-41
C329 (Diesel)....................... 8W-80-42
C329 (Diesel)....................... 8W-80-42
C330 (Diesel)....................... 8W-80-42
C330 (Diesel)....................... 8W-80-42
C331 (Diesel)....................... 8W-80-42
C331 (Diesel)....................... 8W-80-43
C332 (ATC)........................ 8W-80-43
C332 (ATC)........................ 8W-80-43
Cabin Heater Assist C1 (Diesel)........ 8W-80-43
Cabin Heater Assist C2 (Diesel)........ 8W-80-44
Camshaft Position Sensor (Gas)........ 8W-80-44
Camshaft Position Sensor (Diesel)...... 8W-80-44
CD Changer....................... 8W-80-44
Center Dome Lamp (Base/High Line).... 8W-80-45
Center High Mounted Stop Lamp....... 8W-80-45
Clockspring C1..................... 8W-80-45
Clockspring C2..................... 8W-80-45
Clockspring C3..................... 8W-80-45
Clockspring C4..................... 8W-80-46
Clockspring C5..................... 8W-80-46
Clutch Departure Switch (Diesel)....... 8W-80-46
Clutch Interlock/Upstop Switch (MTX) . . . 8W-80-46
Controller Antilock Brake............. 8W-80-47
Crank Case Ventilation Heater (Diesel) . . 8W-80-47
Crankshaft Position Sensor (Diesel)..... 8W-80-48
Crankshaft Position Sensor (Gas)....... 8W-80-48
Data Link Connector................. 8W-80-48
Diagnostic Junction Port.............. 8W-80-49
Dosing Pump....................... 8W-80-49
Driver Airbag C1.................... 8W-80-49
Driver Airbag C2.................... 8W-80-49
Driver Blend Door Actuator (ATC)...... 8W-80-50
Driver Blend Door Actuator (MTC)...... 8W-80-50
Driver Door Courtesy Lamp........... 8W-80-50
Driver Door Lock Switch.............. 8W-80-50
Driver Heated Seat Back............. 8W-80-50
Driver Heated Seat Cushion........... 8W-80-51
Driver Heated Seat Module C1......... 8W-80-51
Driver Heated Seat Module C2......... 8W-80-51
Driver Heated Seat Module C3......... 8W-80-51
Driver Power Seat Front Riser Motor.... 8W-80-52
Driver Power Seat Horizontal Motor..... 8W-80-52
Driver Power Seat Rear Riser Motor.... 8W-80-52
Driver Power Seat Recliner Motor...... 8W-80-52
Driver Power Seat Switch............. 8W-80-52
Driver Power Window Motor........... 8W-80-53
Driver Power Window Switch (LHD)..... 8W-80-53
Driver Power Window Switch (RHD).... 8W-80-53
Driver Seat Belt Switch.............. 8W-80-54
Driver Seat Belt Tensioner............ 8W-80-54
EGR Solenoid (Diesel)................ 8W-80-54Component Page
EGR Solenoid (Gas)................. 8W-80-54
Electric Wiper De-Icer C1............. 8W-80-54
Electric Wiper De-Icer C2............. 8W-80-55
Engine Control Module C1 (Diesel)...... 8W-80-55
Engine Control Module C2 (Diesel)...... 8W-80-57
Engine Coolant Temp Sensor (Diesel).... 8W-80-57
Engine Coolant Temp Sensor (Gas)...... 8W-80-58
Engine Oil Pressure Sensor (Diesel)..... 8W-80-58
Engine Oil Pressure Switch (Gas)....... 8W-80-58
Engine Oil Temperature Sensor (Diesel) . . 8W-80-58
EVAP/Purge Solenoid (Gas)............ 8W-80-58
Evaporator Temperature Sensor........ 8W-80-59
Floor Console Lamp................. 8W-80-59
Floor Console Power Outlet........... 8W-80-59
Front Blower Module C1 (ATC)......... 8W-80-59
Front Blower Module C2 (ATC)......... 8W-80-59
Front Cigar Lighter................. 8W-80-60
Front Reading Lamps/Switch.......... 8W-80-60
Front Washer Pump Motor............ 8W-80-60
Fuel Heater (Diesel)................. 8W-80-60
Fuel Injector No. 1 (2.4L/3.3L/3.8L)..... 8W-80-60
Fuel Injector No. 1 (Diesel)............ 8W-80-61
Fuel Injector No. 2 (2.4L/3.3L/3.8L)..... 8W-80-61
Fuel Injector No. 2 (Diesel)............ 8W-80-61
Fuel Injector No. 3 (2.4L/3.3L/3.8L)..... 8W-80-61
Fuel Injector No. 3 (Diesel)............ 8W-80-61
Fuel Injector No. 4 (2.4L/3.3L/3.8L)..... 8W-80-62
Fuel Injector No. 4 (Diesel)............ 8W-80-62
Fuel Injector No. 5 (3.3L/3.8L)......... 8W-80-62
Fuel Injector No. 6 (3.3L/3.8L)......... 8W-80-62
Fuel Pressure Sensor (Diesel).......... 8W-80-62
Fuel Pressure Solenoid (Diesel)......... 8W-80-63
Fuel Pump Module.................. 8W-80-63
Generator......................... 8W-80-63
Glove Box Lamp.................... 8W-80-63
Glow Plug Relay (Diesel).............. 8W-80-63
Halo Lamp........................ 8W-80-64
Headlamp Switch................... 8W-80-64
Headlamp Washer Pump Motor
(Built-Up-Export)................. 8W-80-64
High Note Horn.................... 8W-80-64
Hood Ajar Switch................... 8W-80-65
Idle Air Control Motor (2.4L).......... 8W-80-65
Idle Air Control Motor (3.3L/3.8L)....... 8W-80-65
Ignition Coil (2.4L).................. 8W-80-65
Ignition Coil (3.3L/3.8L).............. 8W-80-65
Ignition Switch..................... 8W-80-66
Inlet Air Temperature Sensor.......... 8W-80-66
Instrument Cluster.................. 8W-80-66
Instrument Panel Switch Bank......... 8W-80-67
Intelligent Power Module C1.......... 8W-80-67
Intelligent Power Module C2.......... 8W-80-68
Intelligent Power Module C3 (Diesel).... 8W-80-68
Intelligent Power Module C3 (Gas)...... 8W-80-69
8Wa - 80 - 2 8W-80 CONNECTOR PIN-OUTSRG

Component Page
Intelligent Power Module C4.......... 8W-80-69
Intelligent Power Module C5.......... 8W-80-69
Intelligent Power Module C6.......... 8W-80-70
Intelligent Power Module C7.......... 8W-80-70
Intelligent Power Module C8.......... 8W-80-71
Intelligent Power Module C9.......... 8W-80-71
Knock Sensor (2.4L)................. 8W-80-71
Knock Sensor (3.3L/3.8L)............. 8W-80-71
Leak Detection Pump
(Except Built-Up-Export)........... 8W-80-72
Left B-Pillar Switch................. 8W-80-72
Left Cinch/Release Motor
(Power Sliding Door)............... 8W-80-72
Left Combination Relay (Trailer Tow).... 8W-80-72
Left Cylinder Lock Switch............. 8W-80-72
Left Door Speaker................... 8W-80-73
Left Fog Lamp..................... 8W-80-73
Left Front Door Ajar Switch (Base)...... 8W-80-73
Left Front Door Lock Motor/Ajar Switch
(Except Base).................... 8W-80-73
Left Front Park/Turn Signal Lamp (Except
Built-Up-Export).................. 8W-80-74
Left Front Wheel Speed Sensor......... 8W-80-74
Left Full Open Switch (Power Sliding Door). 8W-80-74
Left Headlamp (Except Built-Up-Export) . 8W-80-74
Left Headlamp Leveling Motor
(Built-Up-Export)................. 8W-80-74
Left High Beam Lamp (Built-Up-Export) . 8W-80-75
Left Instrument Panel Speaker......... 8W-80-75
Left Liftgate Flood Lamp............. 8W-80-75
Left Low Beam Lamp (Built-Up-Export) . . 8W-80-75
Left Mid Reading Lamp
(Premium/Luxury)................. 8W-80-75
Left Park Lamp (Built-Up-Export)...... 8W-80-76
Left Power Mirror................... 8W-80-76
Left Rear Lamp Assembly............. 8W-80-76
Left Rear Pillar Speaker.............. 8W-80-77
Left Rear Reading Lamp (Luxury)...... 8W-80-77
Left Rear Speaker................... 8W-80-77
Left Rear Vent Motor................ 8W-80-77
Left Rear Wheel Speed Sensor......... 8W-80-77
Left Remote Radio Switch............. 8W-80-78
Left Repeater Lamp (Built-Up-Export) . . . 8W-80-78
Left Seat Airbag.................... 8W-80-78
Left Side Impact Airbag Control Module . . 8W-80-78
Left Sliding Door Control Module C1
(Power Sliding Door)............... 8W-80-78
Left Sliding Door Control Module C2
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Latch Sensing Switch
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor/Ajar Switch
(Manual Sliding Door).............. 8W-80-80Component Page
Left Sliding Door Motor
(Power Sliding Door)............... 8W-80-80
Left Speed Control Switch............ 8W-80-80
Left Stop/Turn Signal Relay (Trailer Tow) . 8W-80-80
Left Turn Signal Lamp
(Built-Up-Export)................. 8W-80-81
Left Visor/Vanity Lamp
(Premium/Luxury)................. 8W-80-81
License Lamp (Manual Release)........ 8W-80-81
License Lamp (Power Liftgate)......... 8W-80-81
License Lamp (Power Release)......... 8W-80-82
Liftgate Ajar Switch (Manual Release) . . . 8W-80-82
Liftgate Ajar Switch (Power Release).... 8W-80-82
Liftgate Cinch/Release Motor
(Power Liftgate).................. 8W-80-82
Liftgate Cylinder Lock Switch.......... 8W-80-82
Liftgate Left Pinch Sensor
(Power Liftgate).................. 8W-80-83
Liftgate Right Pinch Sensor
(Power Liftgate).................. 8W-80-83
Lift Pump Motor (Diesel)............. 8W-80-83
Low Note Horn..................... 8W-80-83
Manifold Absolute Pressure
Sensor (Gas)..................... 8W-80-83
Mass Air Flow Sensor (Diesel)......... 8W-80-84
Memory Power Seat Switch........... 8W-80-84
Memory Seat/Mirror Module C1........ 8W-80-84
Memory Seat/Mirror Module C2........ 8W-80-85
Memory Seat/Mirror Module C3........ 8W-80-85
Memory Seat/Mirror Module C4........ 8W-80-86
Memory Seat Front Vertical Motor...... 8W-80-86
Memory Seat Front Vertical
Position Sensor................... 8W-80-86
Memory Seat Horizontal Motor......... 8W-80-86
Memory Seat Horizontal
Position Sensor................... 8W-80-86
Memory Seat Rear Vertical Motor....... 8W-80-87
Memory Seat Rear Vertical
Position Sensor................... 8W-80-87
Memory Seat Recliner Motor.......... 8W-80-87
Memory Seat Recliner Position Sensor . . . 8W-80-87
Memory Seat Switch................. 8W-80-87
Message Center (High Line)........... 8W-80-88
Mode Door Actuator (ATC)............ 8W-80-88
Mode Door Actuator (MTC)............ 8W-80-88
Multi-Function Switch............... 8W-80-88
Occupant Restraint Controller......... 8W-80-89
Overhead Console (Except Base)........ 8W-80-89
Oxygen Sensor 1/1 Upstream (Gas)...... 8W-80-90
Oxygen Sensor 1/2 Downstream (Gas) . . . 8W-80-90
Park/Neutral Position Switch (ATX)..... 8W-80-90
Passenger Airbag................... 8W-80-90
Passenger Blend Door Actuator (ATC) . . . 8W-80-90
Passenger Blend Door Actuator (MTC) . . . 8W-80-91
Passenger Door Courtesy Lamp........ 8W-80-91
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-3

Component Page
Passenger Door Lock Switch........... 8W-80-91
Passenger Folding Mirror Relay
(Built-Up-Export)................. 8W-80-91
Passenger Heated Seat Back........... 8W-80-92
Passenger Heated Seat Cushion........ 8W-80-92
Passenger Heated Seat Module C1...... 8W-80-92
Passenger Heated Seat Module C2...... 8W-80-92
Passenger Heated Seat Module C3...... 8W-80-93
Passenger Power Seat Front Riser Motor . 8W-80-93
Passenger Power Seat Horizontal Motor . . 8W-80-93
Passenger Power Seat Rear Riser Motor . . 8W-80-93
Passenger Power Seat Recliner Motor.... 8W-80-93
Passenger Power Seat Switch.......... 8W-80-94
Passenger Power Window Motor........ 8W-80-94
Passenger Power Window Switch....... 8W-80-94
Passenger Seat Belt Switch........... 8W-80-94
Passenger Seat Belt Tensioner......... 8W-80-95
Power Folding Mirror Switch
(Built-Up-Export)................. 8W-80-95
Power Liftgate Module C1............ 8W-80-95
Power Liftgate Module C2............ 8W-80-96
Power Liftgate Motor................ 8W-80-96
Power Mirror Switch................. 8W-80-97
Power Outlet....................... 8W-80-97
Power Seat Circuit Breaker (30A)....... 8W-80-97
Powertrain Control Module C1
(2.4L/3.3L/3.8L)................... 8W-80-98
Powertrain Control Module C2
(2.4L/3.3L/3.8L)................... 8W-80-99
Power Window Circuit Breaker (25A) . . . 8W-80-100
Radiator Fan No. 1 (Diesel)........... 8W-80-100
Radiator Fan No. 1 (Gas)............ 8W-80-100
Radiator Fan No. 2 (Diesel)........... 8W-80-100
Radiator Fan No. 2 (Gas)............ 8W-80-100
Radiator Fan Relay (Gas)............ 8W-80-101
Radiator Fan Relay No. 1 (Diesel)...... 8W-80-101
Radiator Fan Relay No. 2 (Diesel)...... 8W-80-101
Radiator Fan Relay No. 3 (Diesel)...... 8W-80-102
Radio C1......................... 8W-80-102
Radio C2......................... 8W-80-102
Radio C3......................... 8W-80-102
Radio C4......................... 8W-80-103
Radio Choke...................... 8W-80-103
Rear A/C-Heater Unit (3 Zone HVAC) . . . 8W-80-103
Rear Auto Temp Control Switch (ATC) . . 8W-80-104
Rear Blower Front Control Switch
(3 Zone HVAC).................. 8W-80-104
Rear Blower Motor Power Module
C1(ATC) ....................... 8W-80-104
Rear Blower Motor Power Module
C2(ATC) ....................... 8W-80-104
Rear Blower Rear Control Switch
C1 (3 Zone HVAC)................ 8W-80-105
Rear Blower Rear Control Switch C2
(3 Zone HVAC).................. 8W-80-105Component Page
Rear Dome Lamp (Except Luxury)..... 8W-80-105
Rear Mode Motor (ATC)............. 8W-80-105
Rear Power Outlet................. 8W-80-105
Rear Temperature Motor (ATC)........ 8W-80-106
Rear Washer Pump Motor............ 8W-80-106
Rear Wiper Motor.................. 8W-80-106
Recirculation Door Actuator (ATC)..... 8W-80-106
Recirculation Door Actuator (MTC)..... 8W-80-106
Remote Keyless Entry Antenna
(Japan)........................ 8W-80-107
Remote Keyless Entry Module........ 8W-80-107
Right B-Pillar Switch............... 8W-80-107
Right Cinch/Release Motor
(Power Sliding Door).............. 8W-80-107
Right Combination Relay
(Trailer Tow).................... 8W-80-107
Right Cylinder Lock Switch.......... 8W-80-108
Right Door Speaker................. 8W-80-108
Right Fog Lamp................... 8W-80-108
Right Front Door Ajar Switch (Base).... 8W-80-108
Right Front Door Lock Motor/Ajar Switch
(Except Base)................... 8W-80-108
Right Front Park/Turn Signal Lamp
(Except Built-Up-Export).......... 8W-80-109
Right Front Wheel Speed Sensor...... 8W-80-109
Right Full Open Switch
(Power Sliding Door).............. 8W-80-109
Right Headlamp (Except
Built-Up-Export)................. 8W-80-109
Right Headlamp Leveling Motor
(Built-Up-Export)................ 8W-80-110
Right High Beam Lamp
(Built-Up-Export)................ 8W-80-110
Right Instrument Panel Speaker....... 8W-80-110
Right Liftgate Flood Lamp........... 8W-80-110
Right Low Beam Lamp
(Built-Up-Export)................ 8W-80-110
Right Mid Reading Lamp
(Premium/Luxury)................ 8W-80-111
Right Park Lamp (Built-Up-Export).... 8W-80-111
Right Power Mirror................. 8W-80-111
Right Rear Lamp Assembly........... 8W-80-111
Right Rear Pillar Speaker............ 8W-80-112
Right Rear Reading Lamp (Luxury).... 8W-80-112
Right Rear Speaker................. 8W-80-112
Right Rear Vent Motor.............. 8W-80-112
Right Rear Wheel Speed Sensor....... 8W-80-112
Right Remote Radio Switch........... 8W-80-113
Right Repeater Lamp (Built-Up-Export) . 8W-80-113
Right Seat Airbag.................. 8W-80-113
Right Side Impact Airbag
Control Module.................. 8W-80-113
Right Sliding Door Control Module C1
(Power Sliding Door).............. 8W-80-113
8Wa - 80 - 4 8W-80 CONNECTOR PIN-OUTSRG

Component Page
Right Sliding Door Control Module C2
(Power Sliding Door).............. 8W-80-114
Right Sliding Door Latch Sensing Switch
(Power Sliding Door).............. 8W-80-114
Right Sliding Door Lock Motor
(Power Sliding Door).............. 8W-80-114
Right Sliding Door Lock Motor/
Ajar Switch (Manual Sliding Door) . . . 8W-80-115
Right Sliding Door Motor
(Power Sliding Door).............. 8W-80-115
Right Speed Control Switch.......... 8W-80-115
Right Stop/Turn Signal Relay
(Trailer Tow).................... 8W-80-115
Right Turn Signal Lamp
(Built-Up-Export)................ 8W-80-116
Right Visor/Vanity Lamp
(Premium/Luxury)................ 8W-80-116
Sentry Key Immobilizer Module....... 8W-80-116
Siren (United Kingdom)............. 8W-80-116
Solenoid/Pressure Switch Assy (EATX) . . 8W-80-117Component Page
Speed Control Servo (Gas)............ 8W-80-117
Speed Sensor-Input (EATX)........... 8W-80-117
Speed Sensor-Output (EATX)......... 8W-80-117
Thatcham Alarm Module C1
(United Kingdom)................ 8W-80-118
Thatcham Alarm Module C2
(United Kingdom)................ 8W-80-118
Throttle Position Sensor (Gas)......... 8W-80-118
Torque Converter Clutch Solenoid
(ATX).......................... 8W-80-118
Traction Control Switch.............. 8W-80-119
Trailer Tow Connector (Except
Built-Up-Export)................. 8W-80-119
Transmission Control Module (EATX) . . . 8W-80-119
Transmission Range Sensor (EATX).... 8W-80-120
TXV Solenoid (ATC)................ 8W-80-121
Vehicle Speed Sensor (MTX/ATX)...... 8W-80-121
Washer Fluid Level Switch........... 8W-80-121
Water In Fuel Sensor (Diesel)......... 8W-80-121
Wiper Module..................... 8W-80-121
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-5

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND
A/C-HEATER CONTROL C1 (MTC) - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Z24 18BK/OR GROUND
2 C121 20DB/DG SENSOR GROUND
3 C22 20LB/WT (3 ZONE HVAC) REAR TEMPERATURE FEEDBACK SIGNAL
4- -
5 F850 20LB/PK (3 ZONE HVAC) 5 VOLT SUPPLY
6 C900 18LB/VT WIPER DE-ICER DRIVER
7 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
8 C54 20LB/YL (3 ZONE HVAC) REAR BLEND DOOR DRIVER
9 C34 20DB/LB COMMON DOOR DRIVER (B)
10 D25 20WT/VT PCI BUS
11 - -
12 C121 20DB/DG (3 ZONE HVAC) REAR TEMPERATURE RETURN
13 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
14 E12 20OR/GY PANEL LAMPS DRIVER
15 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
16 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
17 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
18 C35 20LB/OR MODE DOOR DRIVER (A)
19 C53 20LB (3 ZONE HVAC) REAR MODE DOOR DRIVER
20 C154 20LB/OR (3 ZONE HVAC) REAR COMMON DOOR DRIVER
A/C-HEATER CONTROL C2 (MTC) - BLACK/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
3 C74 12DB/WT BLOWER MOTOR M3 DRIVER
4 Z134 12BK/OR GROUND
5 C71 16DB/BR BLOWER MOTOR LOW DRIVER
6- -
7- -
8- -
9 C73 14DB/VT BLOWER MOTOR M2 DRIVER
10 C72 16DB/OR BLOWER MOTOR M1 DRIVER
8Wa - 80 - 6 8W-80 CONNECTOR PIN-OUTSRG

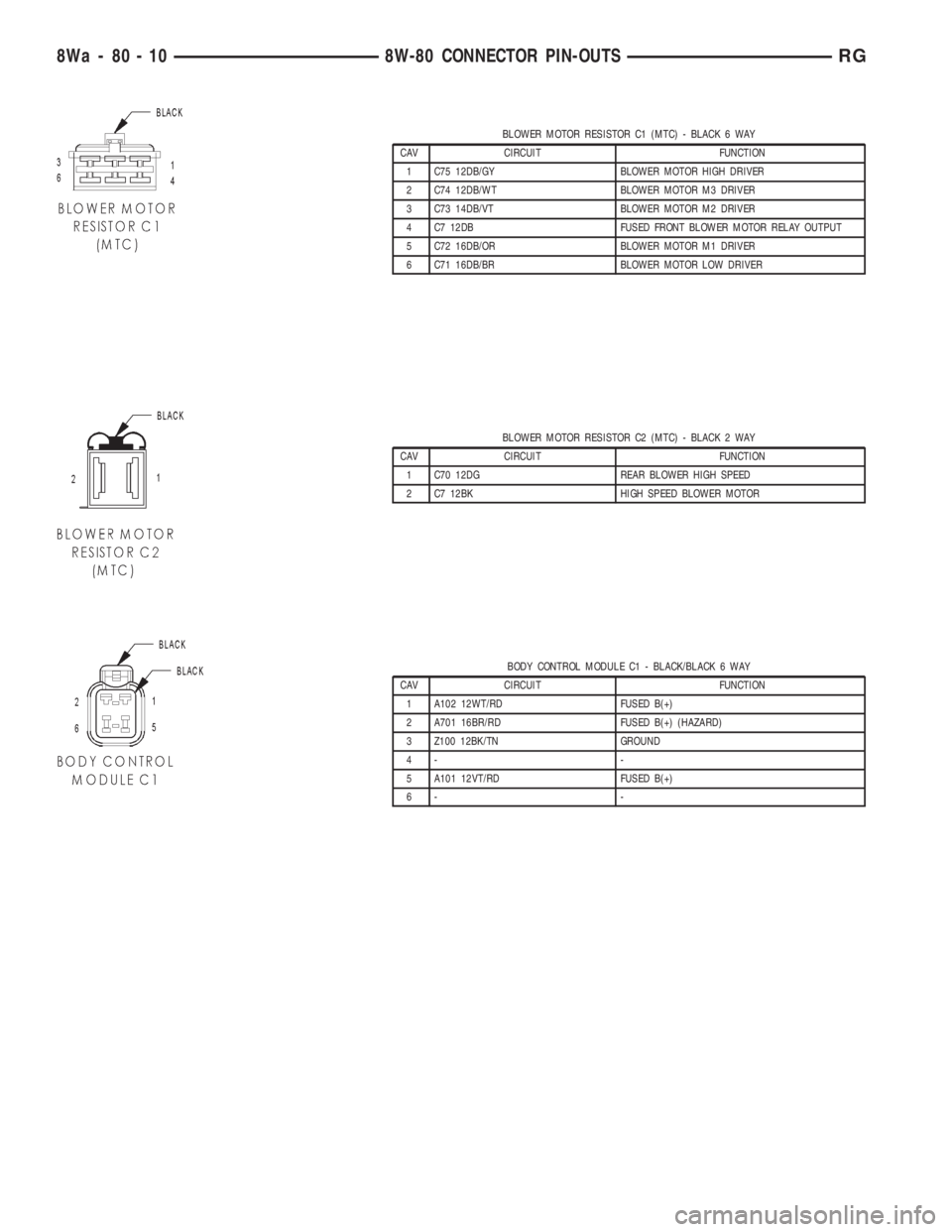

BLOWER MOTOR RESISTOR C1 (MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
2 C74 12DB/WT BLOWER MOTOR M3 DRIVER
3 C73 14DB/VT BLOWER MOTOR M2 DRIVER
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
5 C72 16DB/OR BLOWER MOTOR M1 DRIVER
6 C71 16DB/BR BLOWER MOTOR LOW DRIVER
BLOWER MOTOR RESISTOR C2 (MTC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C70 12DG REAR BLOWER HIGH SPEED
2 C7 12BK HIGH SPEED BLOWER MOTOR
BODY CONTROL MODULE C1 - BLACK/BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A102 12WT/RD FUSED B(+)
2 A701 16BR/RD FUSED B(+) (HAZARD)
3 Z100 12BK/TN GROUND
4- -
5 A101 12VT/RD FUSED B(+)
6- -
8Wa - 80 - 10 8W-80 CONNECTOR PIN-OUTSRG

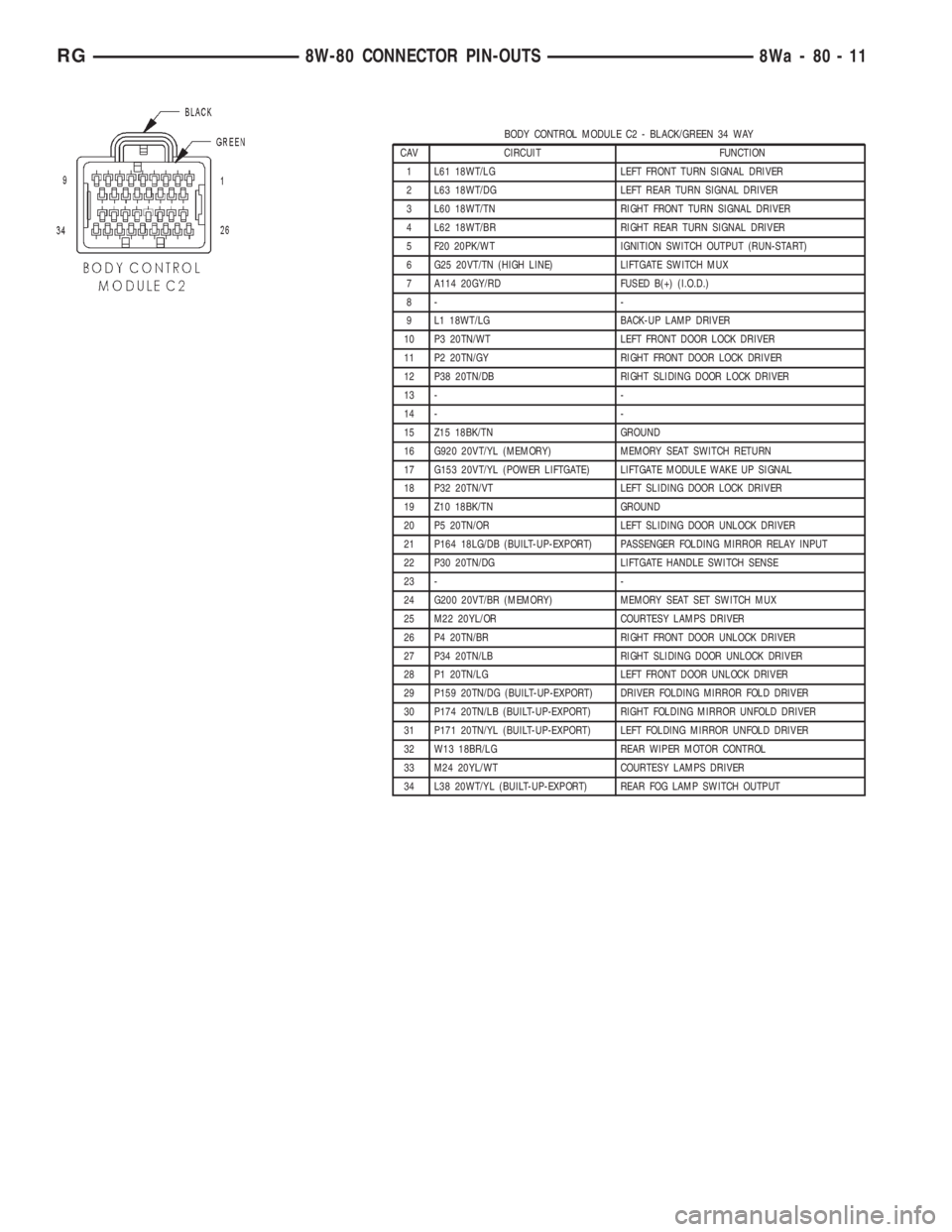

BODY CONTROL MODULE C2 - BLACK/GREEN 34 WAY
CAV CIRCUIT FUNCTION
1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER
2 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
4 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
5 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
6 G25 20VT/TN (HIGH LINE) LIFTGATE SWITCH MUX
7 A114 20GY/RD FUSED B(+) (I.O.D.)
8- -
9 L1 18WT/LG BACK-UP LAMP DRIVER
10 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
11 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
12 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER
13 - -
14 - -
15 Z15 18BK/TN GROUND
16 G920 20VT/YL (MEMORY) MEMORY SEAT SWITCH RETURN
17 G153 20VT/YL (POWER LIFTGATE) LIFTGATE MODULE WAKE UP SIGNAL
18 P32 20TN/VT LEFT SLIDING DOOR LOCK DRIVER
19 Z10 18BK/TN GROUND
20 P5 20TN/OR LEFT SLIDING DOOR UNLOCK DRIVER
21 P164 18LG/DB (BUILT-UP-EXPORT) PASSENGER FOLDING MIRROR RELAY INPUT
22 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
23 - -
24 G200 20VT/BR (MEMORY) MEMORY SEAT SET SWITCH MUX
25 M22 20YL/OR COURTESY LAMPS DRIVER
26 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
27 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER
28 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
29 P159 20TN/DG (BUILT-UP-EXPORT) DRIVER FOLDING MIRROR FOLD DRIVER
30 P174 20TN/LB (BUILT-UP-EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
31 P171 20TN/YL (BUILT-UP-EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
32 W13 18BR/LG REAR WIPER MOTOR CONTROL
33 M24 20YL/WT COURTESY LAMPS DRIVER
34 L38 20WT/YL (BUILT-UP-EXPORT) REAR FOG LAMP SWITCH OUTPUT
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-11

BODY CONTROL MODULE C4 - BLACK/GRAY 34 WAY
CAV CIRCUIT FUNCTION
1 E18 20OR/LB (POWER MIRRORS) PANEL LAMPS DRIVER (MIRROR SWITCH)
2 E12 20OR/GY PANEL LAMPS DRIVER (HVAC)
3 E19 20OR/BR PANEL LAMPS DRIVER (HEADLAMP SWITCH)
4 D9 20WT/GY RKE MODULE PROGRAM ENABLE
5 G150 20VT/BR INSTRUMENT CLUSTER WAKE UP SENSE
6 E17 20OR/YL (EXCEPT BUILT-UP-EX-
PORT)PARADE MODE SIGNAL (RADIO)
7 P162 20LG/DG (BUILT-UP-EXPORT) PASSENGER FOLDING MIRROR RELAY CONTROL
8 G69 20VT/WT (HIGH LINE) VTSS INDICATOR DRIVER
9 L161 20WT/LG LEFT TURN INDICATOR DRIVER
10 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
11 E14 20OR/TN PANEL LAMPS DRIVER (RADIO)
12 E13 20OR/YL PANEL LAMPS DRIVER (INSTRUMENT CLUSTER)
13 X920 20GY/OR RADIO CONTROL MUX RETURN
14 G900 20VT/OR IGNITION SWITCH SENSE RETURN
15 - -
16 - -
17 L160 20WT/TN RIGHT TURN INDICATOR DRIVER
18 M26 20YL/DB HALO LAMP DRIVER
19 - -
20 - -
21 - -
22 G902 20VT/OR MULTI-FUNCTION SWITCH MUX RETURN
23 - -
24 - -
25 - -
26 M28 20YL/TN GLOVE BOX LAMP DRIVER
27 - -
28 - -
29 - -
30 - -
31 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
32 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
33 P136 20TN/YL (BUILT-UP-EXPORT) FOLDING MIRROR SWITCH SENSE
34 G26 20VT/OR CHIME DRIVER
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-13

CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND
2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 24GY/WT (BUILT-UP-EXPORT) AUDIO OUT RIGHT
1 X40 20GY/WT (EXCEPT BUILT-UP-EX-
PORT)AUDIO OUT RIGHT
2 E14 24OR/TN (BUILT-UP-EXPORT) PANEL LAMPS DRIVER
2 E14 18OR/TN (EXCEPT BUILT-UP-EX-
PORT)PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT BUILT-UP-EX-
PORT)PCI BUS
3 D25 24VT/YL (BUILT-UP-EXPORT) PCI BUS
4 X112 24RD (BUILT-UP-EXPORT) IGNITION SWITCH OUTPUT
4 X112 20RD (EXCEPT BUILT-UP-EX-
PORT)IGNITION SWITCH OUTPUT
5 X41 20DG/WT (EXCEPT BUILT-UP-EX-
PORT)AUDIO OUT LEFT
5 X41 24DG/WT (BUILT-UP-EXPORT) AUDIO OUT LEFT
6 Z140 24BK/OR (BUILT-UP-EXPORT) GROUND
6 Z140 18BK/OR (EXCEPT BUILT-UP-
EXPORT)GROUND
7 Z141 18BK/TN (EXCEPT BUILT-UP-
EXPORT)GROUND
7 Z141 22BK/TN (BUILT-UP-EXPORT) GROUND
8 X160 22GY/YL (BUILT-UP-EXPORT) B(+)
8 X160 20GY/YL (EXCEPT BUILT-UP-
EXPORT)B(+)
8Wa - 80 - 44 8W-80 CONNECTOR PIN-OUTSRG
