Fig. 25 CENTER INSTRUMENT PANEL RHD
8W - 91 - 40 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

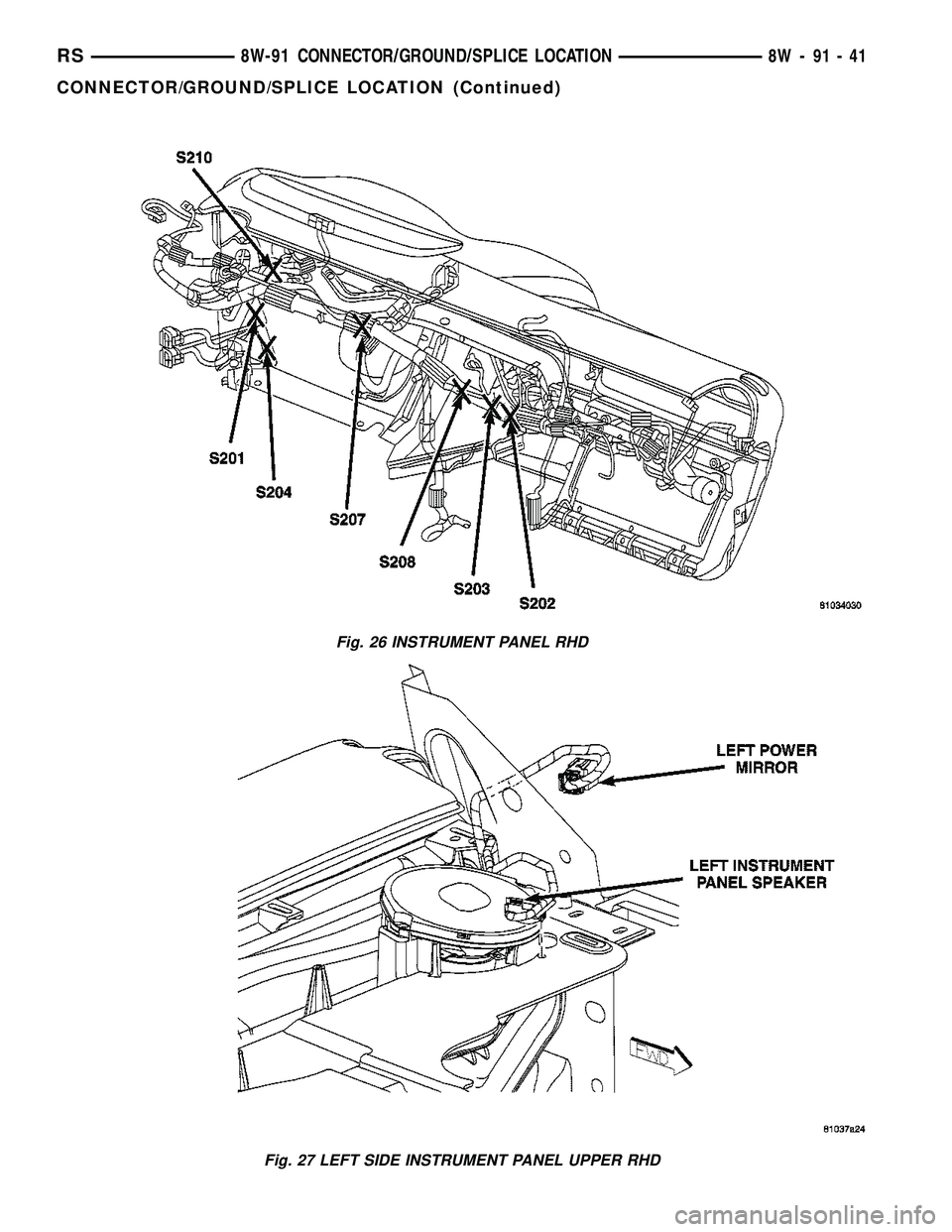

Fig. 26 INSTRUMENT PANEL RHD
Fig. 27 LEFT SIDE INSTRUMENT PANEL UPPER RHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-41
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

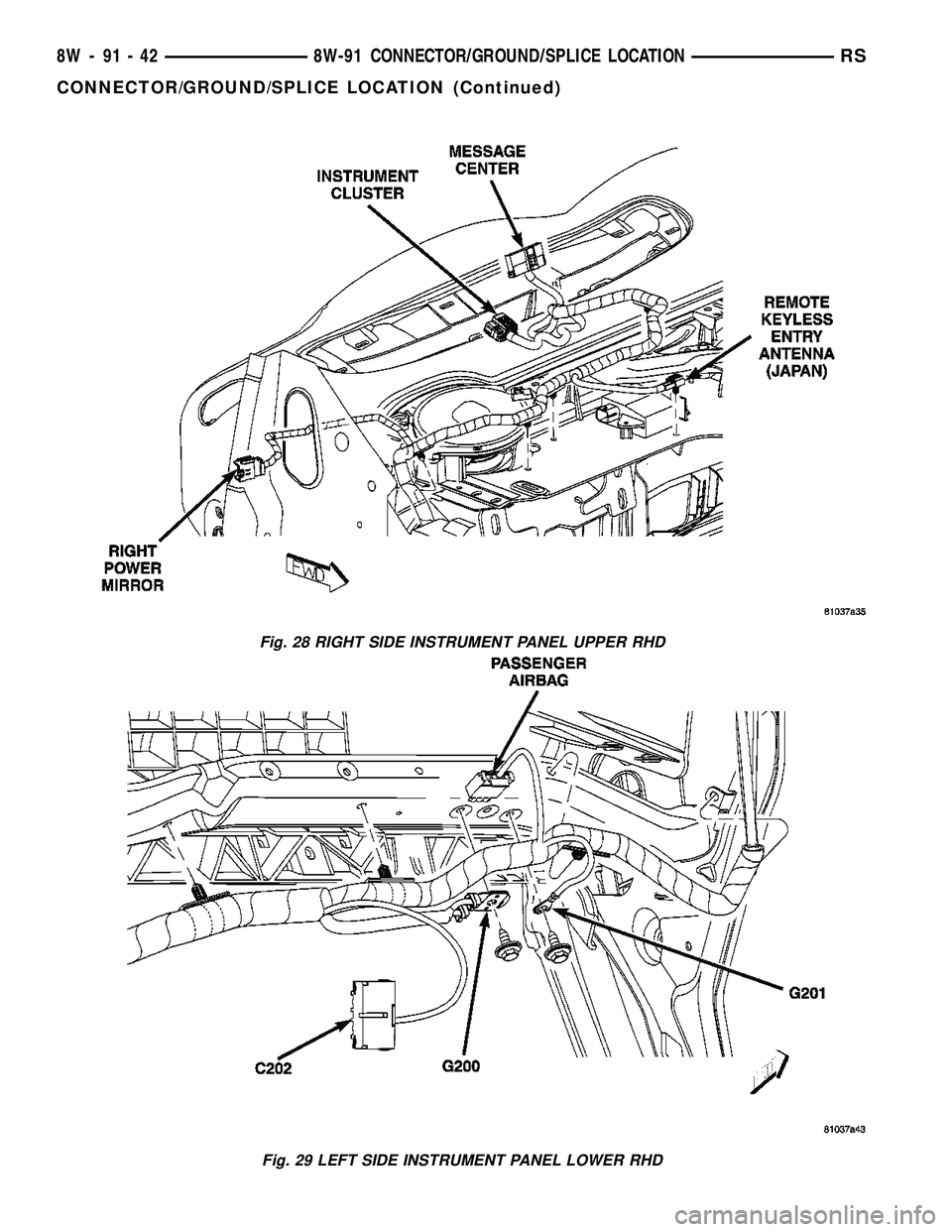

Fig. 28 RIGHT SIDE INSTRUMENT PANEL UPPER RHD
Fig. 29 LEFT SIDE INSTRUMENT PANEL LOWER RHD
8W - 91 - 42 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

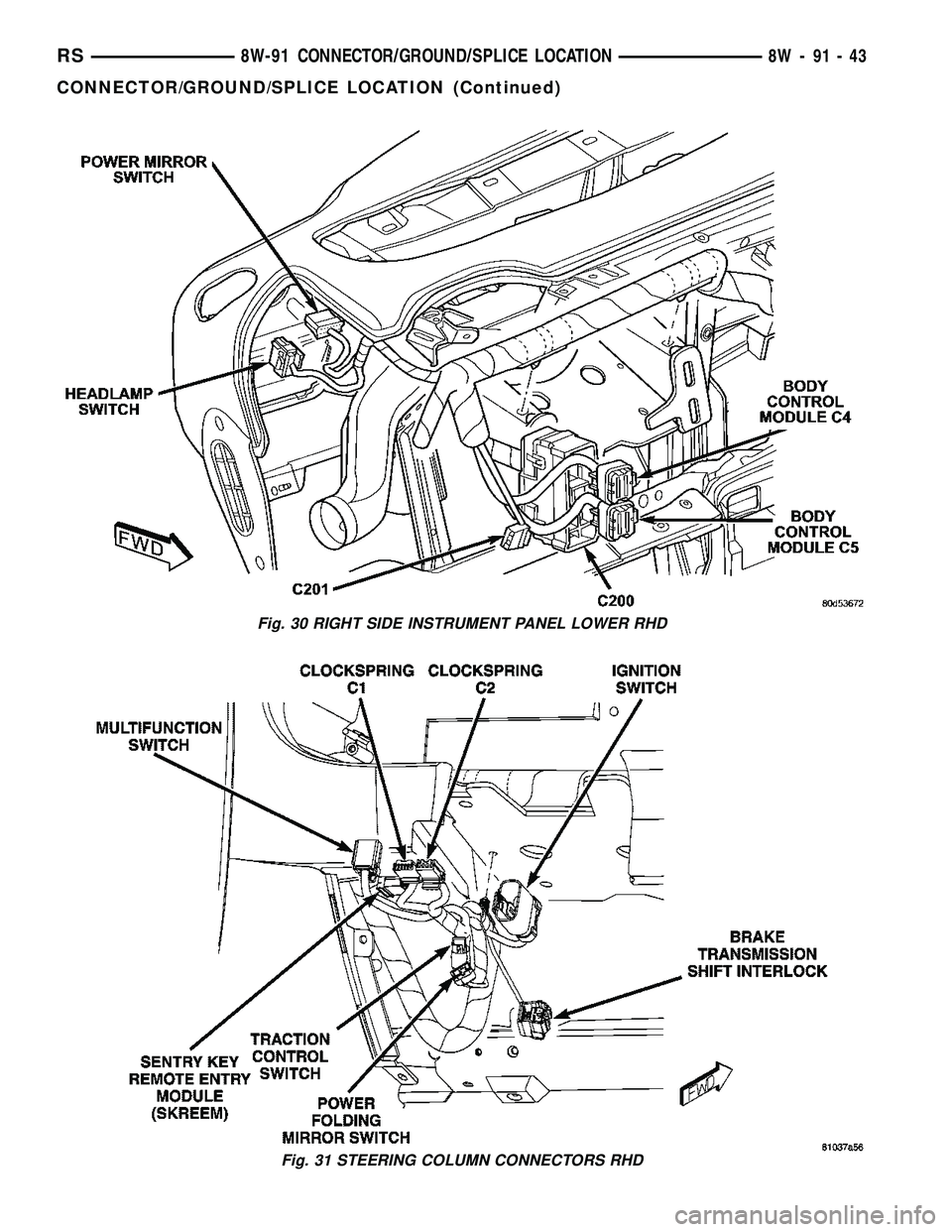

Fig. 30 RIGHT SIDE INSTRUMENT PANEL LOWER RHD
Fig. 31 STEERING COLUMN CONNECTORS RHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-43
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

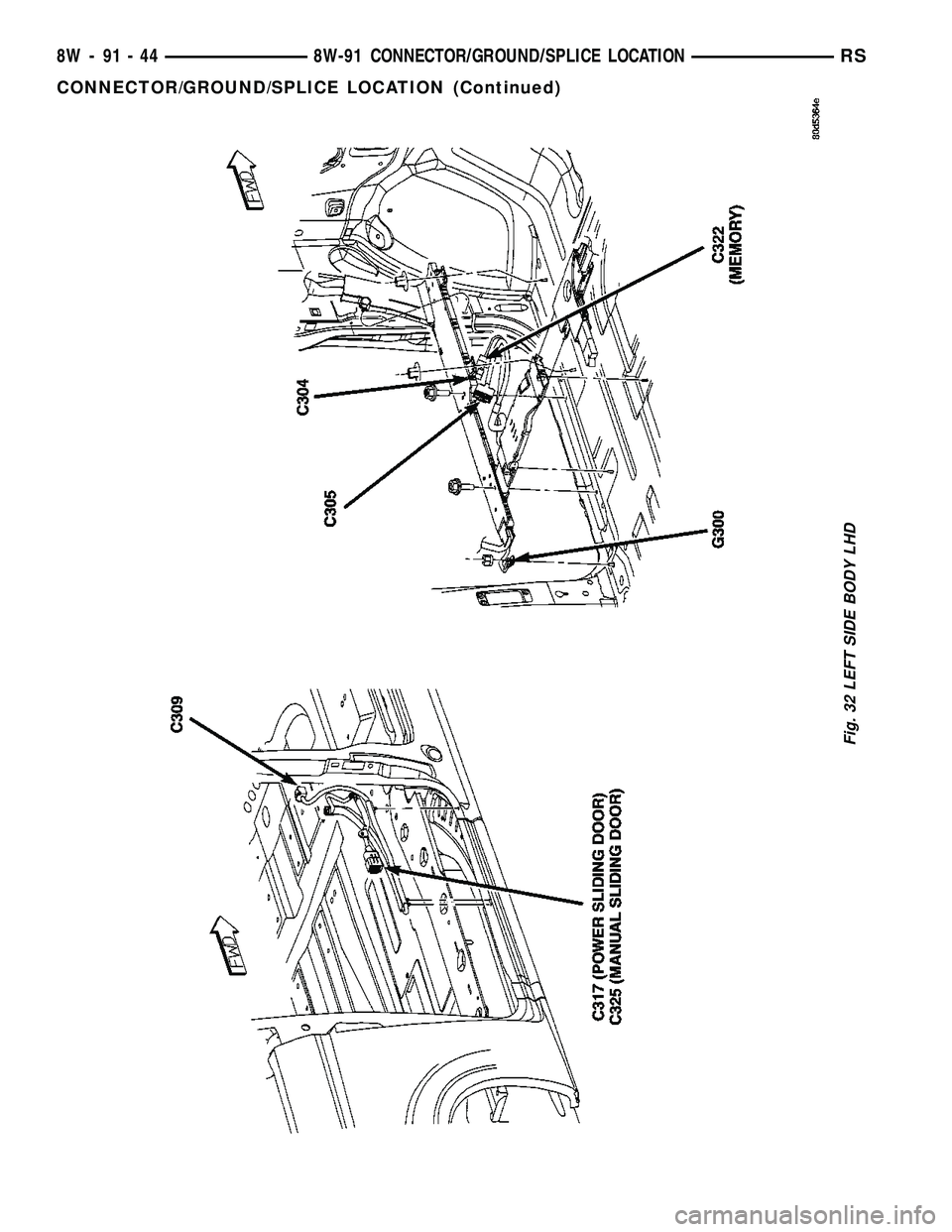

Fig. 32 LEFT SIDE BODY LHD
8W - 91 - 44 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

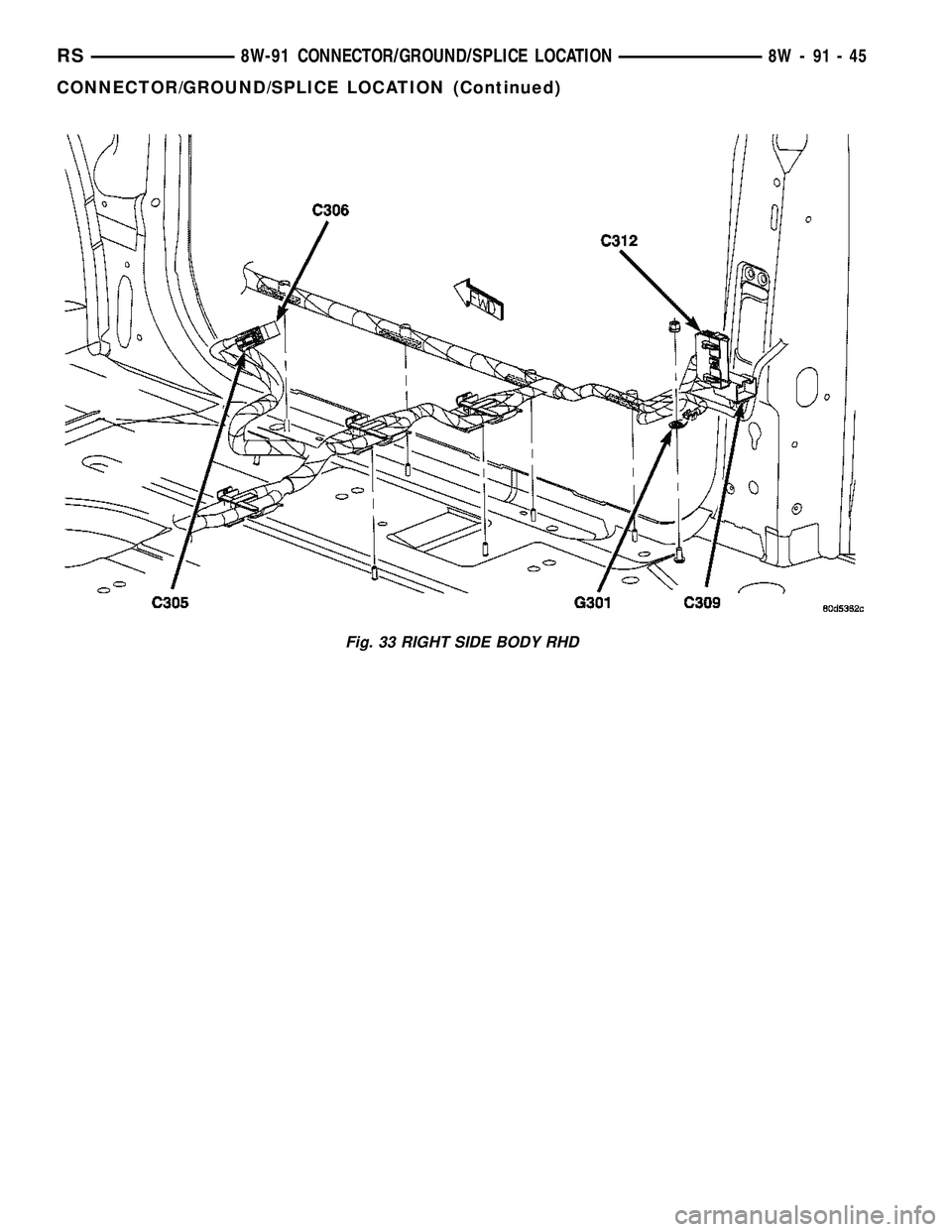

Fig. 33 RIGHT SIDE BODY RHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-45
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

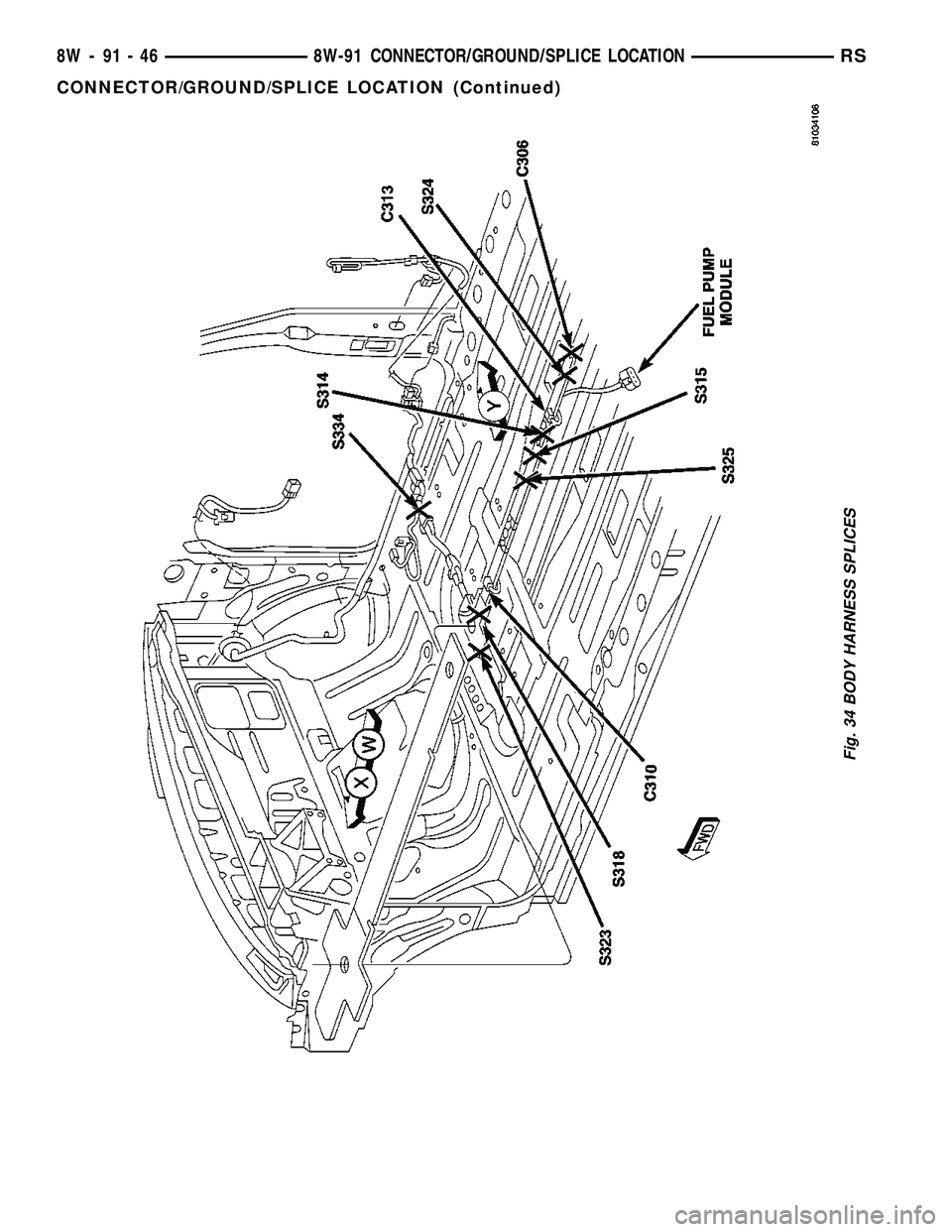

Fig. 34 BODY HARNESS SPLICES
8W - 91 - 46 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

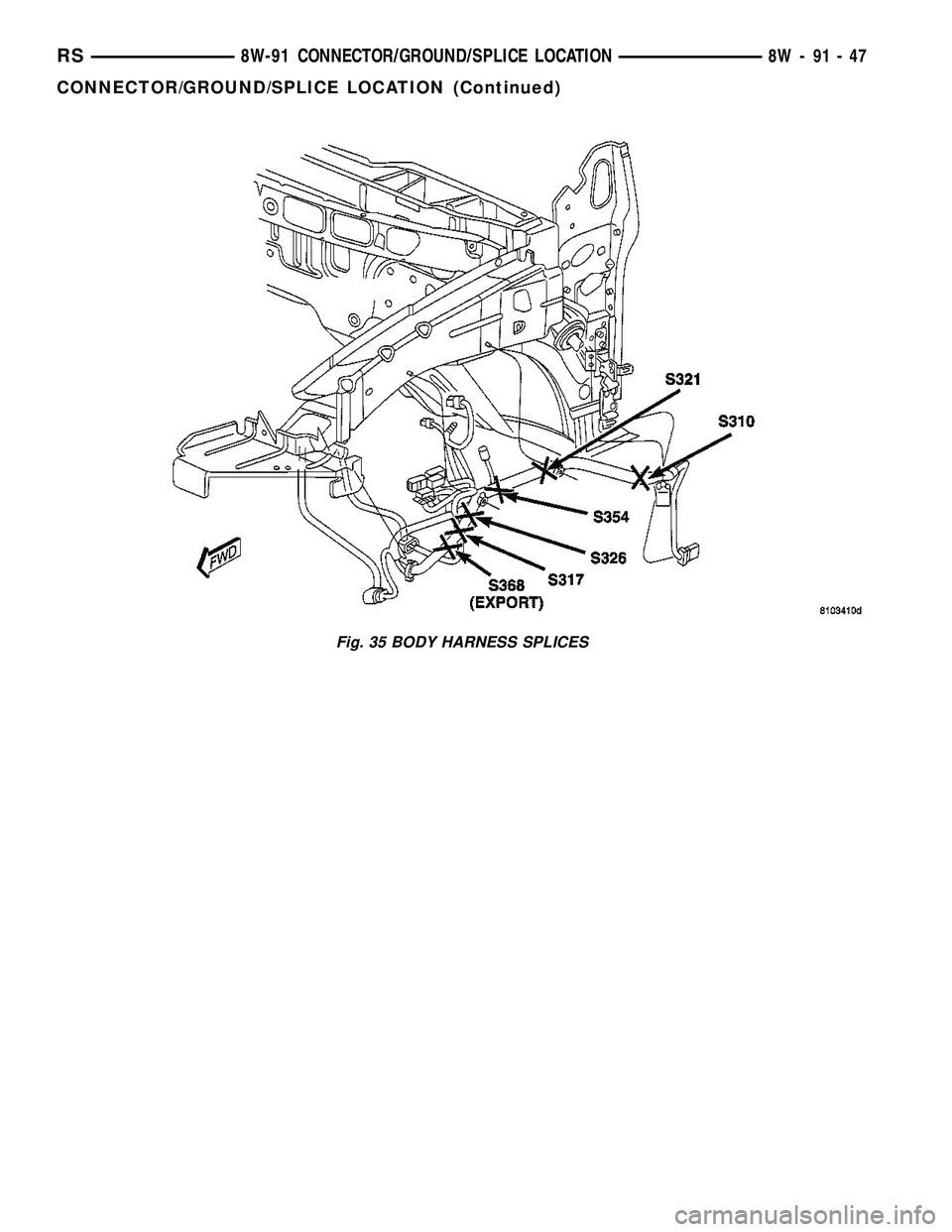

Fig. 35 BODY HARNESS SPLICES
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-47
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

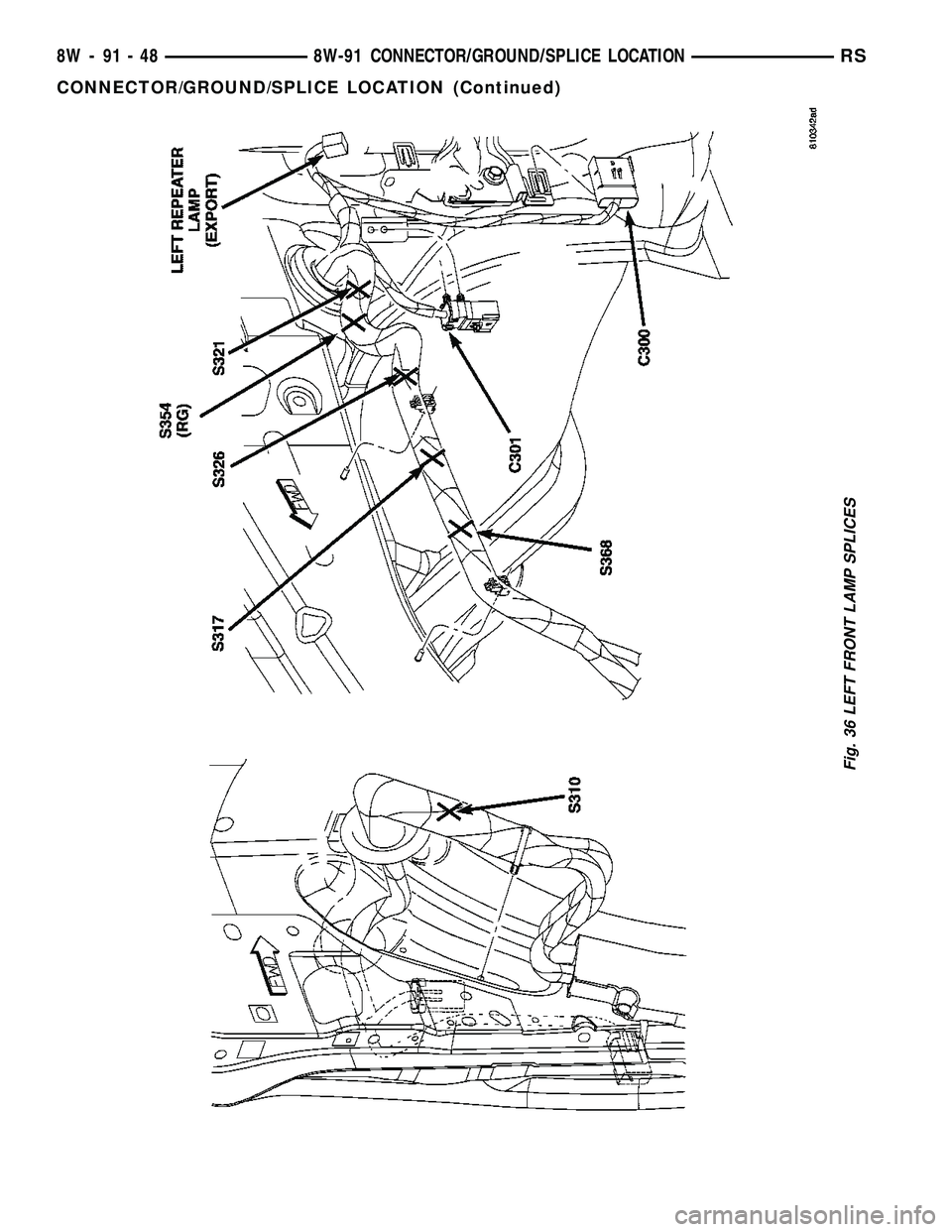

Fig. 36 LEFT FRONT LAMP SPLICES
8W - 91 - 48 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

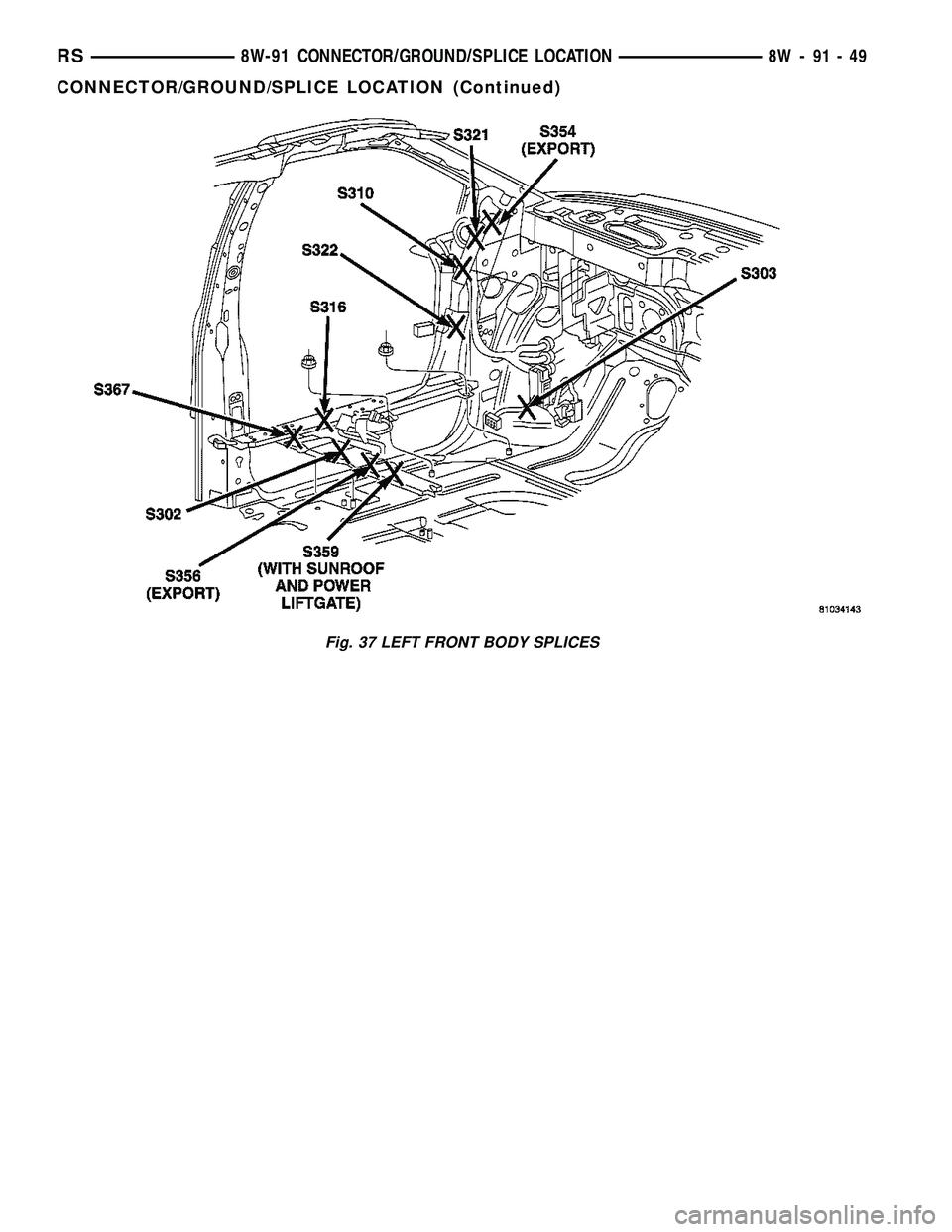

Fig. 37 LEFT FRONT BODY SPLICES
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-49
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
