Fig. 15 2.5 LITER DIESEL ENGINE FRONT
8W - 91 - 30 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 16 2.5 LITER DIESEL ENGINE REAR
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-31
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 17 3.3-3.8 LITER ENGINE REAR
8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 18 3.3-3.8 LITER ENGINE FRONT
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-33
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

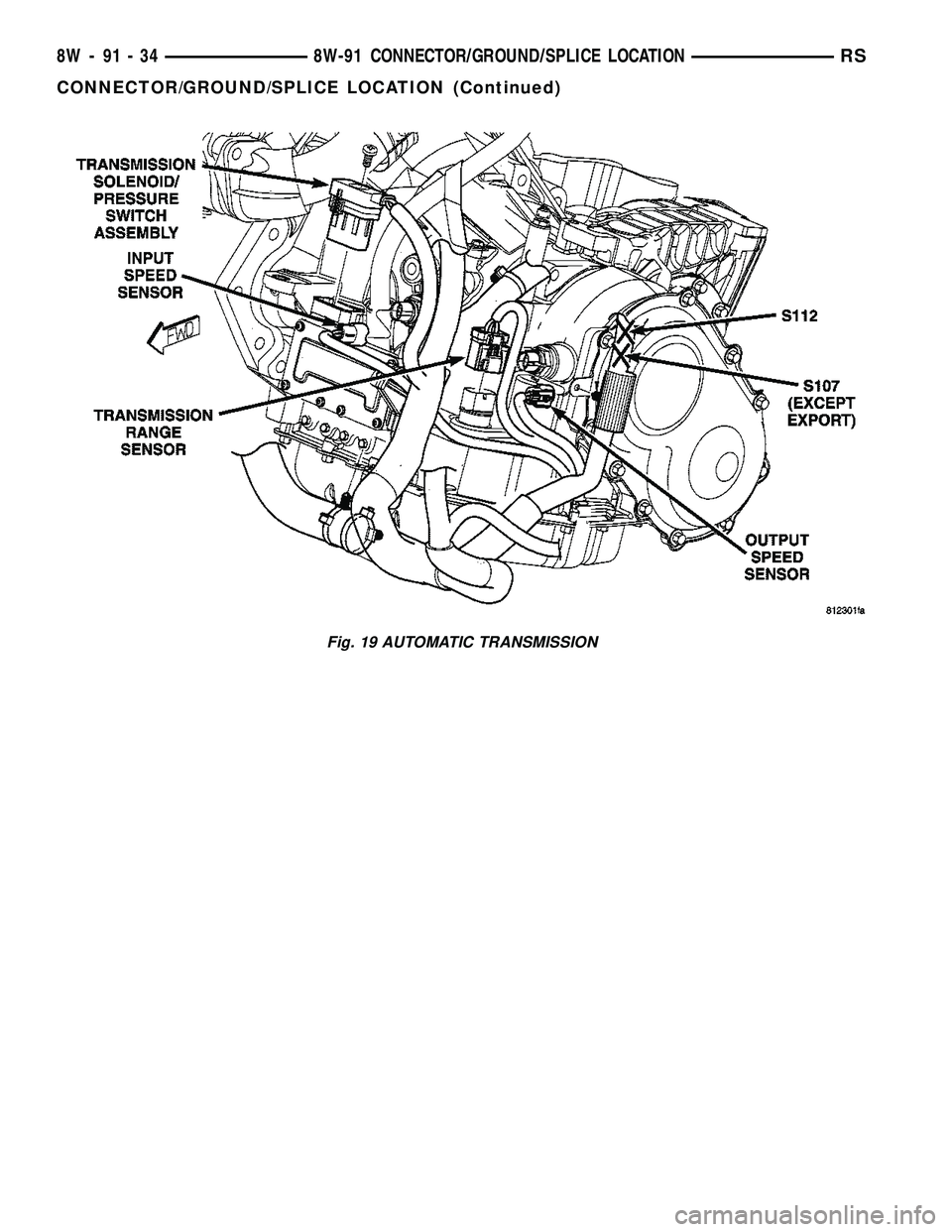

Fig. 19 AUTOMATIC TRANSMISSION
8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

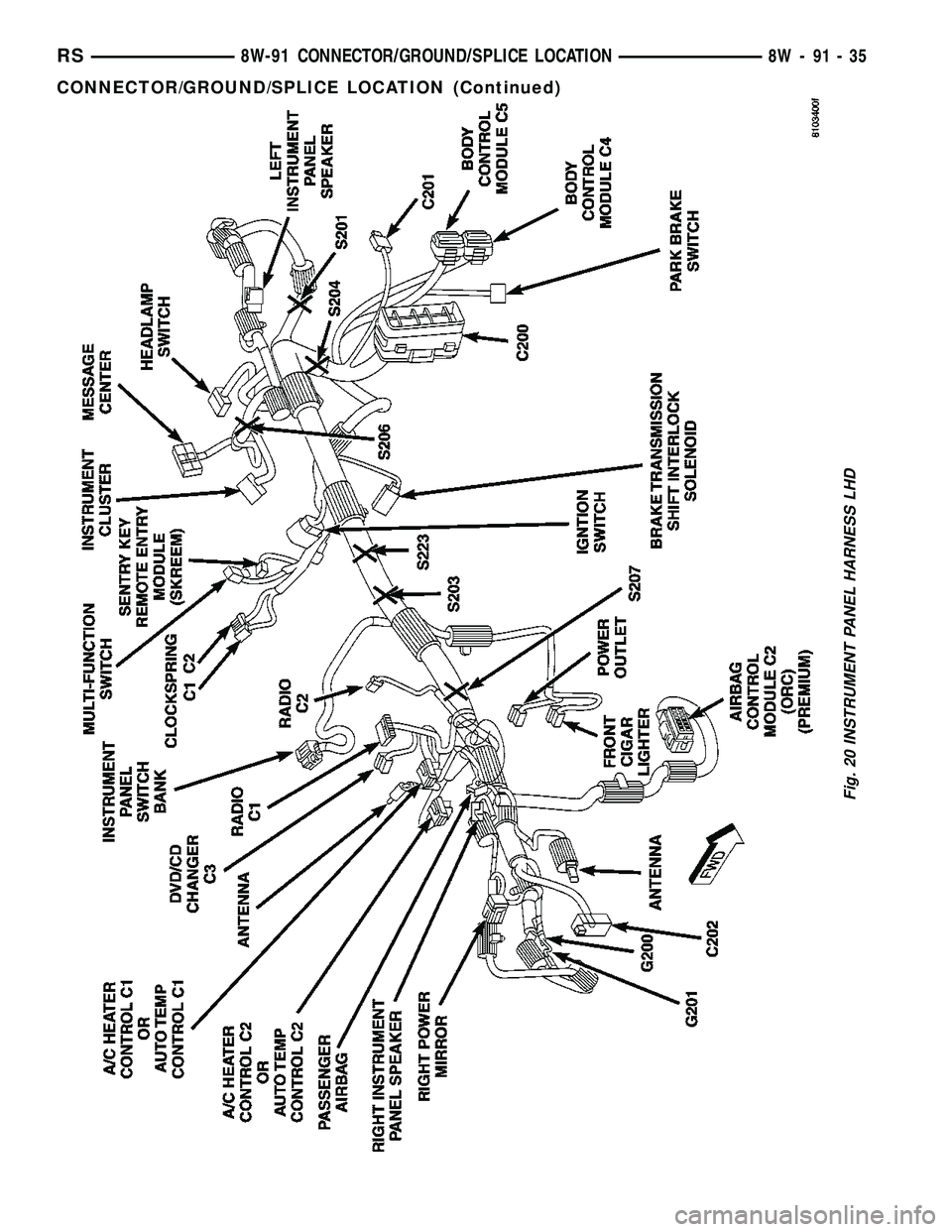

Fig. 20 INSTRUMENT PANEL HARNESS LHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-35
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

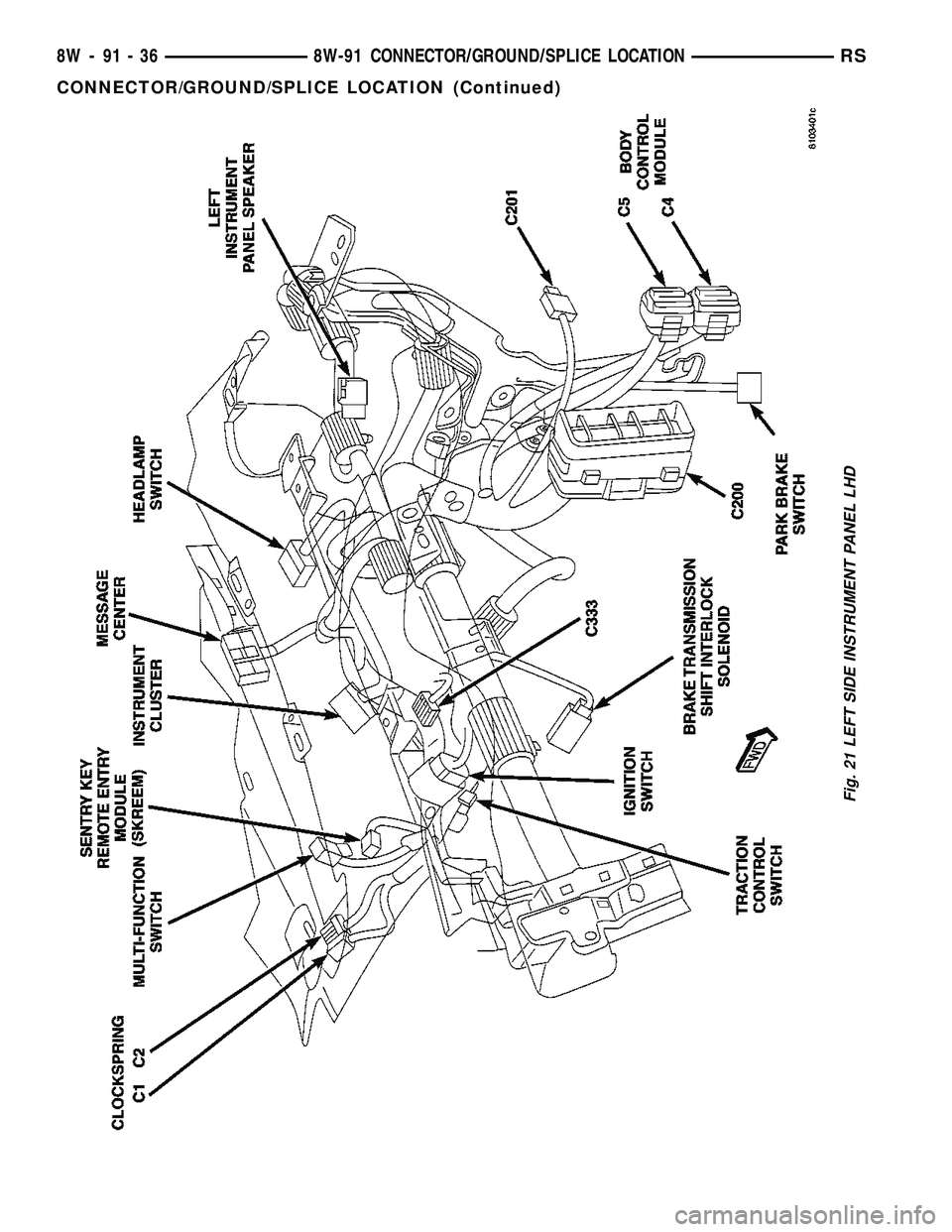

Fig. 21 LEFT SIDE INSTRUMENT PANEL LHD
8W - 91 - 36 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

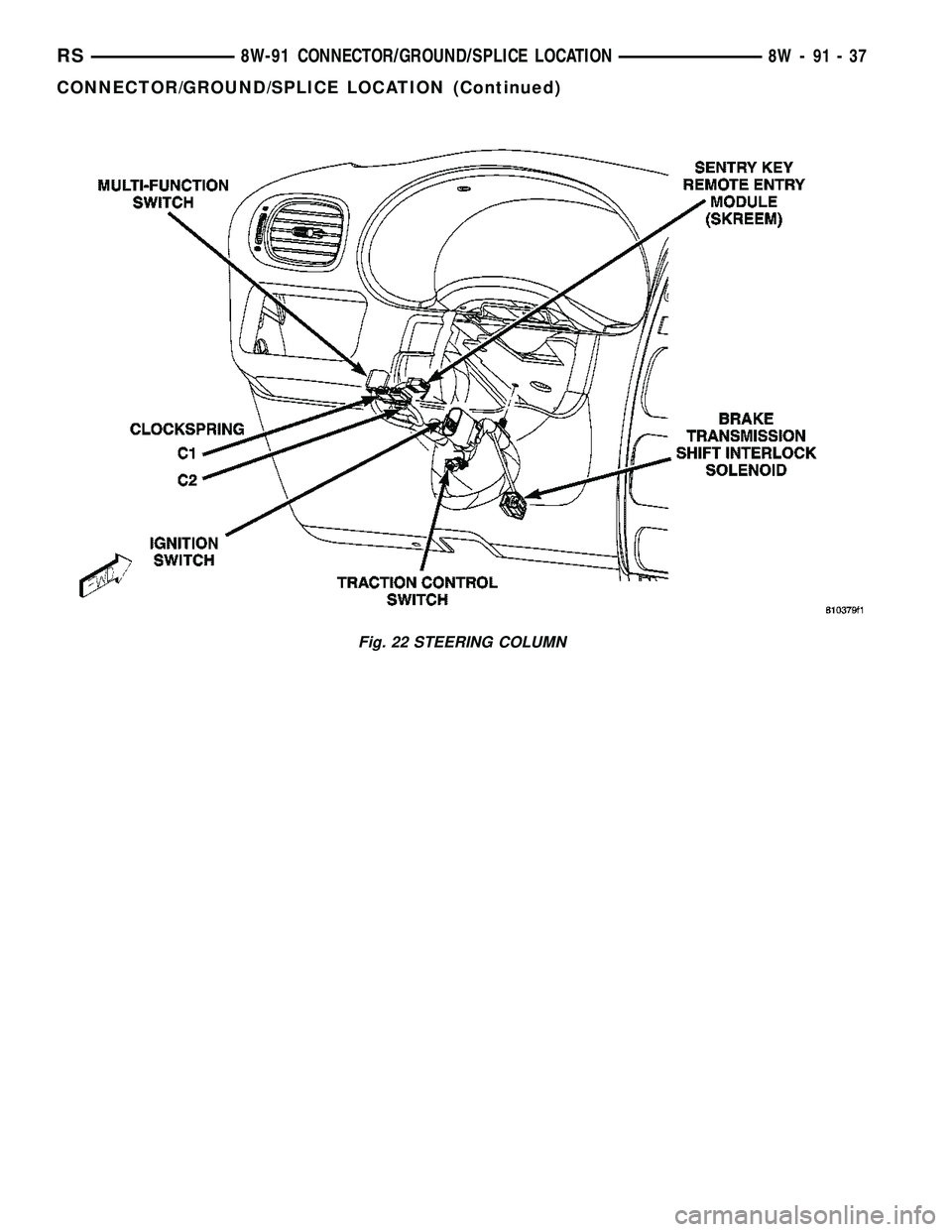

Fig. 22 STEERING COLUMN
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-37
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

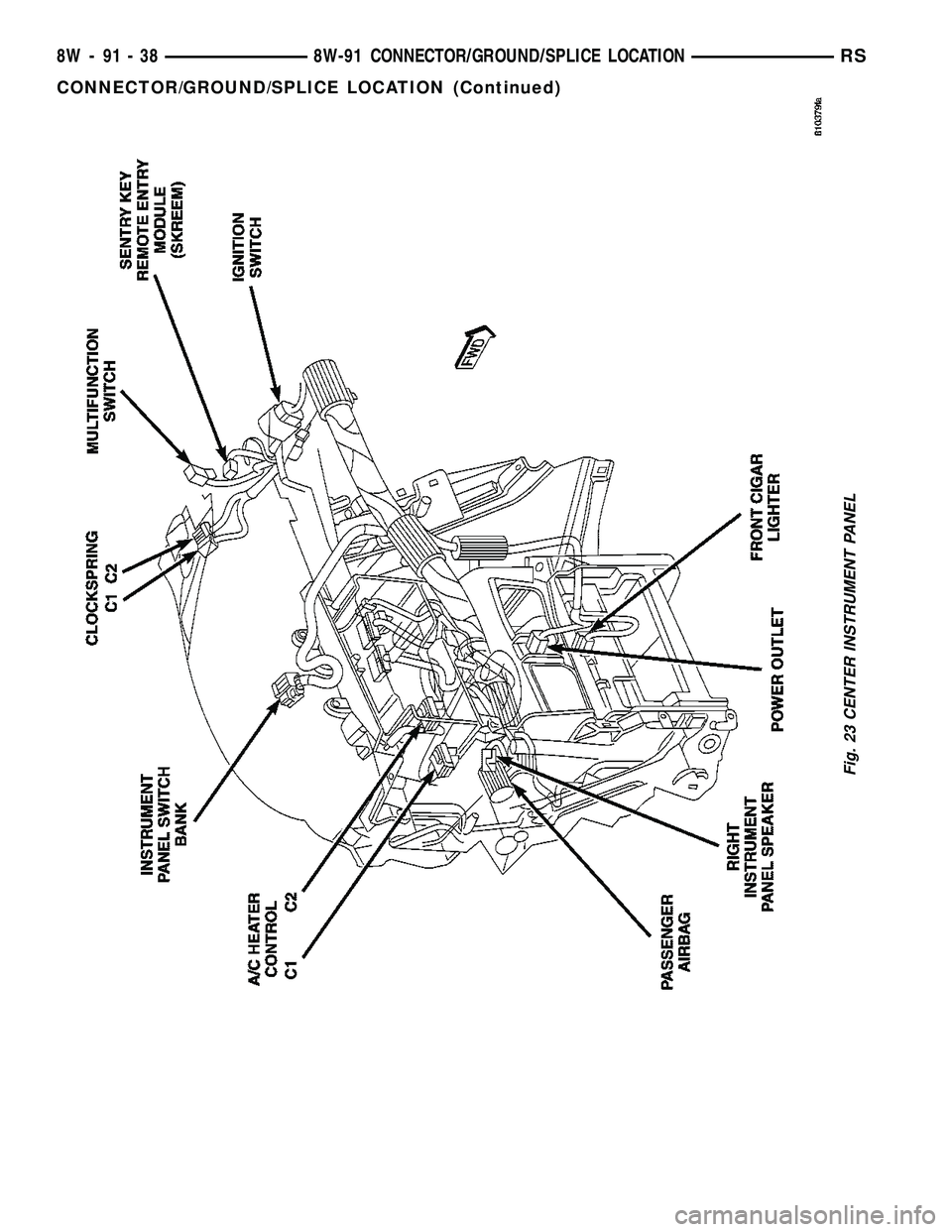

Fig. 23 CENTER INSTRUMENT PANEL
8W - 91 - 38 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

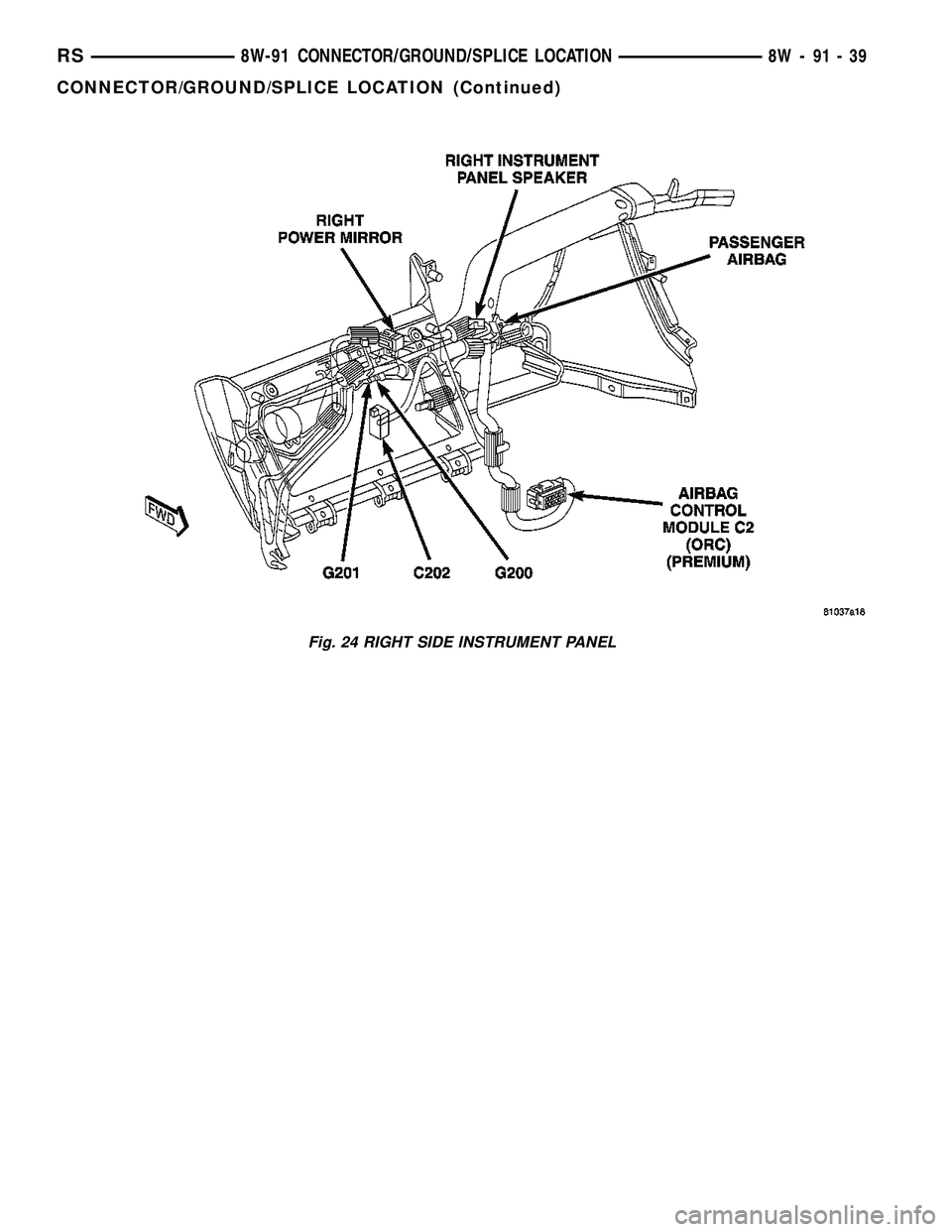

Fig. 24 RIGHT SIDE INSTRUMENT PANEL
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-39
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
