LEFT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
LEFT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P171 20TN/YL (EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 22TN/OR (EXCEPT EXPORT/
MEMORY)MIRROR B(+)
3 P114 22TN/WT (EXCEPT EXPORT/
MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P159 20TN/DG (LHD EXPORT) DRIVER FOLDING MIRROR FOLD DRIVER
7 P160 20TN/LG (RHD) PASSENGER FOLDING MIRROR RELAY OUTPUT
8 Z215 22BK/LG GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED DEFOGGER RELAY OUTPUT
10 P73 20TN/YL LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR UP DRIVER
12 P75 20TN/LG LEFT MIRROR LEFT DRIVER
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 L63 18WT/DG (EXCEPT EXPORT) LEFT REAR TURN SIGNAL DRIVER
1 Z363 18BK/DG (EXPORT) GROUND
2 L63 18WT/DG (EXPORT) LEFT REAR TURN SIGNAL DRIVER
3 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
3 L77 18WT/BR (EXCEPT EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L50 18WT/TN (GAS EXPORT) BRAKE LAMP SWITCH OUTPUT
4 L1 18WT/LG (EXCEPT TRAILER TOW) BACK-UP LAMP FEED
4 L1 18WT/BR (TRAILER TOW) BACK-UP LAMP FEED
5 Z363 18BK/DG (EXCEPT EXPORT) GROUND
5 L38 20WT/YL (EXPORT) REAR FOG LAMP SWITCH OUTPUT
6 L77 18WT/BR (EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
RS8W-80 CONNECTOR PIN-OUTS8W-80-91

LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
LEFT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X10 22RD/DB RADIO CONTROL MUX
2 X20 22RD/BK RADIO CONTROL MUX RETURN
LEFT REPEATER LAMP (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+)
2 L163 20WT/BR LEFT SIDE REPEATER LAMP FEED
LEFT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R31 18LG/OR (EXCEPT EXPORT) LEFT SEAT SQUIB LINE 2
1 R33 18WT/BK (EXPORT) LEFT SEAT SQUIB LINE 1
2 R33 18LG/WT (EXCEPT EXPORT) LEFT SEAT SQUIB LINE 1
2 R31 18DG/WT (EXPORT) LEFT SEAT SQUIB LINE 2
RS8W-80 CONNECTOR PIN-OUTS8W-80-93

LEFT SIDE IMPACT SENSOR 1 (PREMIUM ORC) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 R15 20DB (EXCEPT RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
1 R15 20LB (RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
2 R13 20LB LEFT SIDE IMPACT SENSOR 1 SIGNAL
LEFT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z123 14BK/WT GROUND
LEFT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - 20 WAY
CAV CIRCUIT FUNCTION
1 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY
2- -
3 Q35 20OR/GY LEFT DOOR LOCK SENSE
4 Q55 20OR/BR LEFT DOOR IN/OUT HANDLE SWITCH SENSE
5- -
6- -
7 Q63 18OR/TN LEFT DOOR MOTOR CLUTCH DRIVER
8 Q47 18TN/GY LEFT CINCH/RELEASE MOTOR LATCH DRIVER
9 Q49 18TN/WT LEFT CINCH/RELEASE MOTOR UNLATCH DRIVER
10 - -
11 D25 20WT/VT PCI BUS
12 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SENSE
13 Q59 20OR/YL LEFT PAWL SWITCH SENSE
14 Q53 20OR LEFT FULL OPEN SWITCH SENSE
15 Z25 20BK/TN GROUND-DRIVER SIDE IDENTIFIER (LHD/RHD)
16 - -
17 Q73 20TN/YL LEFT DOOR MOTOR HALL EFFECT SIGNAL
18 - -
19 G151 20VT/BR LEFT SLIDING DOOR WAKE UP SIGNAL
20 Z25 20BK/TN GROUND
8W - 80 - 94 8W-80 CONNECTOR PIN-OUTSRS

LEFT SPEED CONTROL SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
A V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL
A V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL
B Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND
LEFT TURN SIGNAL LAMP (EXPORT) - ORANGE 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L61 16YL LEFT FRONT TURN SIGNAL DRIVER
LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
LICENSE LAMP (MANUAL RELEASE) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
8W - 80 - 96 8W-80 CONNECTOR PIN-OUTSRS

LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
LIFT PUMP MOTOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N2 18OR LIFT PUMP RELAY OUTPUT
2 Z201 18OR GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
LIFTGATE AJAR SWITCH (POWER RELEASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 20TN/YL LIFTGATE RELEASE DRIVER
4 Z231 20BK/YL GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-97

MEMORY SEAT/MIRROR MODULE C2 - GRAY 16 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 P73 18TN/LB LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
4 P75 18DB LEFT MIRROR LEFT DRIVER
5 P71 18TN/GY LEFT MIRROR UP DRIVER
6 P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
7- -
8- -
9- -
10 - -
11 P70 18LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
12 P74 18TN/DB RIGHT MIRROR LEFT DRIVER
13 P72 18GY RIGHT MIRROR UP DRIVER
14 - -
15 - -
16 P28 20LG/BR SEAT POSITION SENSOR GROUND
MEMORY SEAT/MIRROR MODULE C3 - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 P111 14LG/YL SEAT REAR UP DRIVER
2 P115 14LG SEAT HORIZONTAL FORWARD DRIVER
3 P119 14LG/DG SEAT FRONT UP DRIVER
4 P113 14LG/WT SEAT REAR DOWN DRIVER
5 P121 14LG/DB SEAT FRONT DOWN DRIVER
6- -
7 P43 14LG/VT (EXCEPT EXPORT) SEAT RECLINER UP DRIVER
7 P143 14LG/GY (EXPORT) SEAT RECLINER UP DRIVER
8 P9 20LG/OR SEAT SWITCH B(+) SUPPLY
9- -
10 P41 14LG/GY (EXCEPT EXPORT) SEAT RECLINER DOWN DRIVER
10 P141 14LG/BR (EXPORT) SEAT RECLINER DOWN DRIVER
11 P117 14LG/LB SEAT HORIZONTAL REARWARD DRIVER
12 - -
MEMORY SEAT/MIRROR MODULE C4 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR GROUND
2 A210 14OR/RD FUSED B(+)
8W - 80 - 100 8W-80 CONNECTOR PIN-OUTSRS

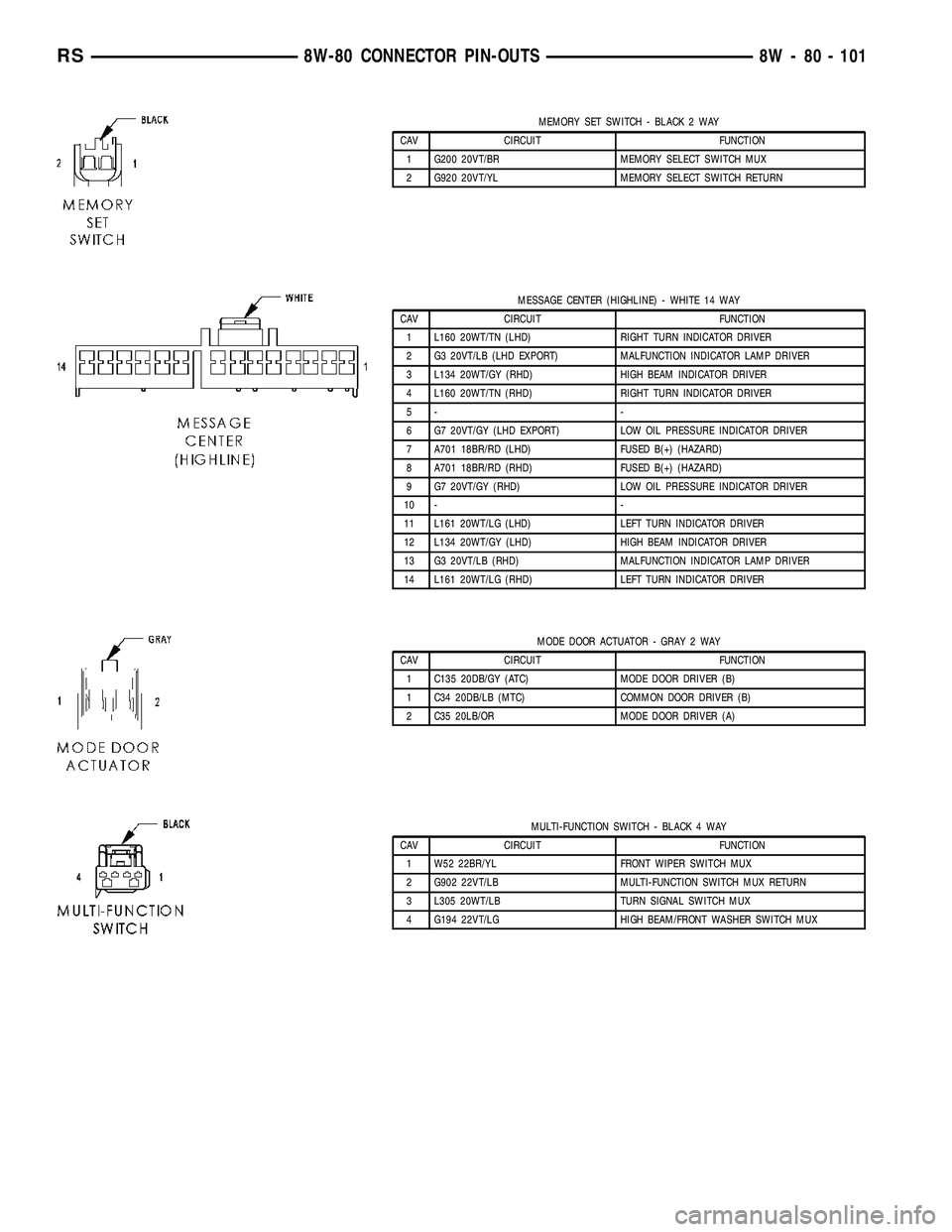

MEMORY SET SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G200 20VT/BR MEMORY SELECT SWITCH MUX
2 G920 20VT/YL MEMORY SELECT SWITCH RETURN
MESSAGE CENTER (HIGHLINE) - WHITE 14 WAY
CAV CIRCUIT FUNCTION
1 L160 20WT/TN (LHD) RIGHT TURN INDICATOR DRIVER
2 G3 20VT/LB (LHD EXPORT) MALFUNCTION INDICATOR LAMP DRIVER
3 L134 20WT/GY (RHD) HIGH BEAM INDICATOR DRIVER
4 L160 20WT/TN (RHD) RIGHT TURN INDICATOR DRIVER
5- -
6 G7 20VT/GY (LHD EXPORT) LOW OIL PRESSURE INDICATOR DRIVER
7 A701 18BR/RD (LHD) FUSED B(+) (HAZARD)
8 A701 18BR/RD (RHD) FUSED B(+) (HAZARD)
9 G7 20VT/GY (RHD) LOW OIL PRESSURE INDICATOR DRIVER
10 - -
11 L161 20WT/LG (LHD) LEFT TURN INDICATOR DRIVER
12 L134 20WT/GY (LHD) HIGH BEAM INDICATOR DRIVER
13 G3 20VT/LB (RHD) MALFUNCTION INDICATOR LAMP DRIVER
14 L161 20WT/LG (RHD) LEFT TURN INDICATOR DRIVER
MODE DOOR ACTUATOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C135 20DB/GY (ATC) MODE DOOR DRIVER (B)
1 C34 20DB/LB (MTC) COMMON DOOR DRIVER (B)
2 C35 20LB/OR MODE DOOR DRIVER (A)
MULTI-FUNCTION SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 W52 22BR/YL FRONT WIPER SWITCH MUX
2 G902 22VT/LB MULTI-FUNCTION SWITCH MUX RETURN
3 L305 20WT/LB TURN SIGNAL SWITCH MUX
4 G194 22VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 101

NATURAL VACUUM LEAK DETECTION ASSEMBLY (EXCEPT EXPORT) - LT. GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z166 18BK/WT GROUND
2 K107 18VT/WT NVLD SWITCH SIGNAL
3 K106 18VT/LB NVLD SOL CONTROL
OUTPUT SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 T13 18DG/VT SPEED SENSOR GROUND
2 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 G23 22VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 22VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT EXPORT/PRE-
MIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/LUXURY) BACK-UP LAMP FEED
OXYGEN SENSOR 1/1 UPSTREAM (GAS)-4WAY
CAV CIRCUIT FUNCTION
1 Z42 18BK/LG GROUND
2 K99 18BR/LG O2 1/1 HEATER CONTROL
3 K902 18BR/DG O2 RETURN (UP)
4 K41 18DB/LB O2 1/1 SIGNAL
8W - 80 - 102 8W-80 CONNECTOR PIN-OUTSRS

PASSENGER FOLDING MIRROR RELAY (EXPORT) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 20LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
PASSENGER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18WT (LHD) SEAT BACK HEATER B(+) DRIVER
A S2 18GY (RHD) SEAT BACK HEATER GROUND
B S2 18GY (LHD) SEAT BACK HEATER GROUND
B S1 18WT (RHD) SEAT BACK HEATER B(+) DRIVER
PASSENGER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16LG/OR SEAT TEMP SENSOR INPUT
2 P89 20LG/BR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR GROUND
4 P88 16LG/LB SEAT CUSHION HEATER B(+) DRIVER
PASSENGER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z848 18BK/OR GROUND
2 P8 20LG/WT PASSENGER HEATED SEAT SWITCH MUX
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED B(+)
8W - 80 - 104 8W-80 CONNECTOR PIN-OUTSRS

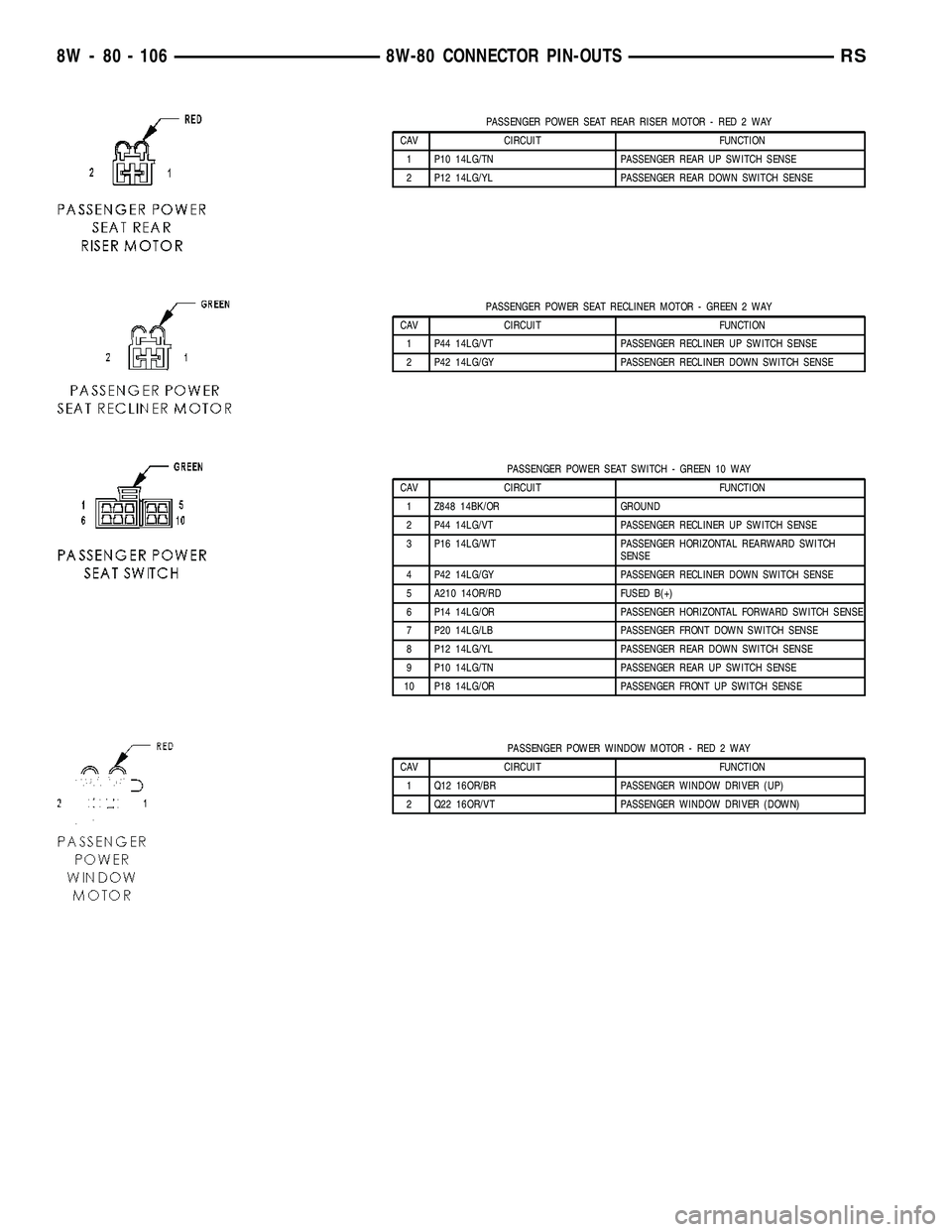

PASSENGER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
2 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
PASSENGER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE
2 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE
PASSENGER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z848 14BK/OR GROUND
2 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE
3 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
4 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD FUSED B(+)
6 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
7 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
8 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
9 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
10 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
PASSENGER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q12 16OR/BR PASSENGER WINDOW DRIVER (UP)
2 Q22 16OR/VT PASSENGER WINDOW DRIVER (DOWN)
8W - 80 - 106 8W-80 CONNECTOR PIN-OUTSRS
