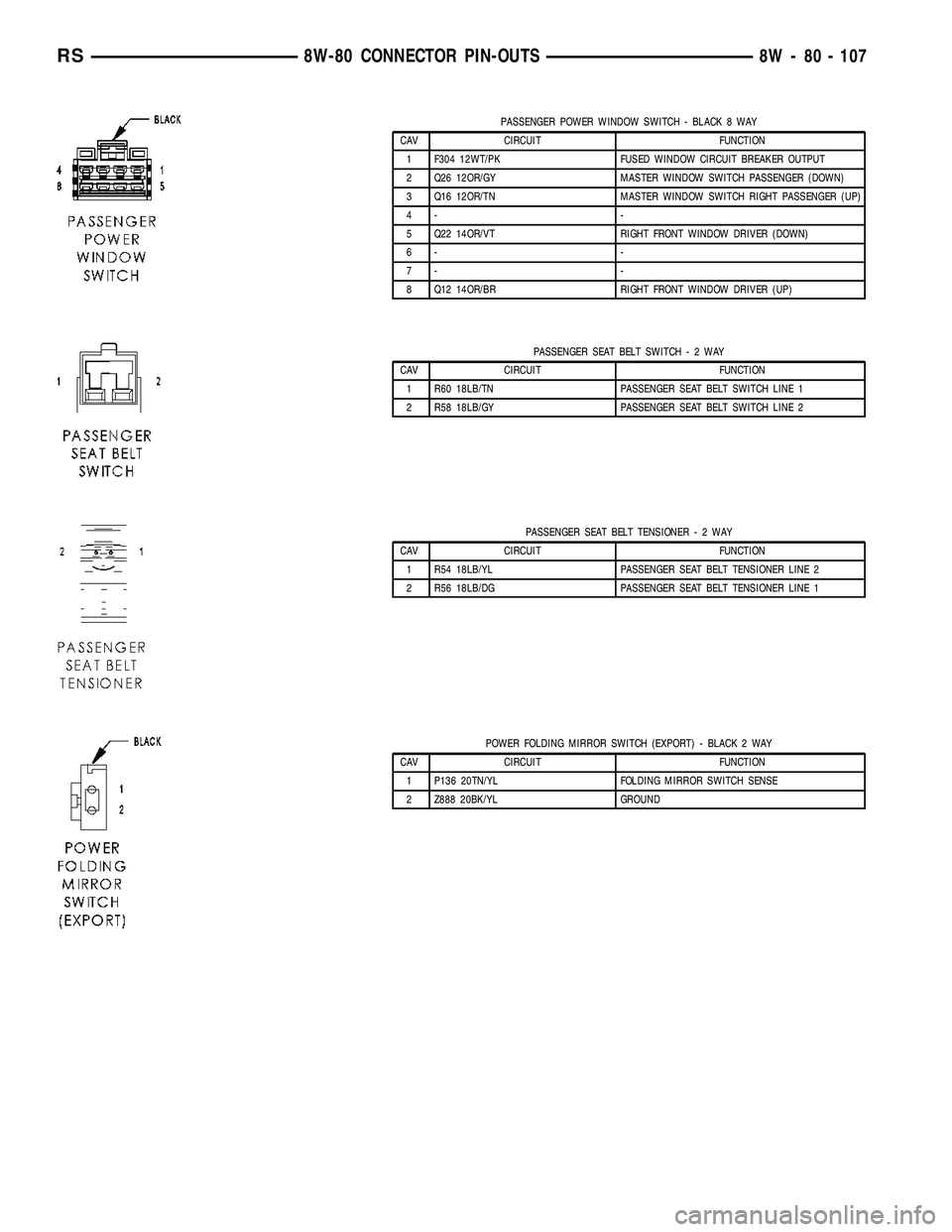

PASSENGER POWER WINDOW SWITCH - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
3 Q16 12OR/TN MASTER WINDOW SWITCH RIGHT PASSENGER (UP)
4- -
5 Q22 14OR/VT RIGHT FRONT WINDOW DRIVER (DOWN)
6- -
7- -
8 Q12 14OR/BR RIGHT FRONT WINDOW DRIVER (UP)
PASSENGER SEAT BELT SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
2 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
PASSENGER SEAT BELT TENSIONER-2WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
POWER FOLDING MIRROR SWITCH (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
2 Z888 20BK/YL GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 107

POWER LIFTGATE MODULE C1 - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 14TN/BR LIFTGATE OPEN DRIVER
3 Q89 14TN/OR LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
POWER LIFTGATE MODULE C2 - 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
2- -
3 Q151 22TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 22OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
18 Q94 22TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/DG LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
POWER LIFTGATE MOTOR - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 Z87 20BK/LG GROUND
2 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 22TN/DB (EXCEPT EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
3 Q151 20TN/DB (EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 14TN/BR LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 14TN/OR LIFTGATE CLOSE DRIVER
8W - 80 - 108 8W-80 CONNECTOR PIN-OUTSRS

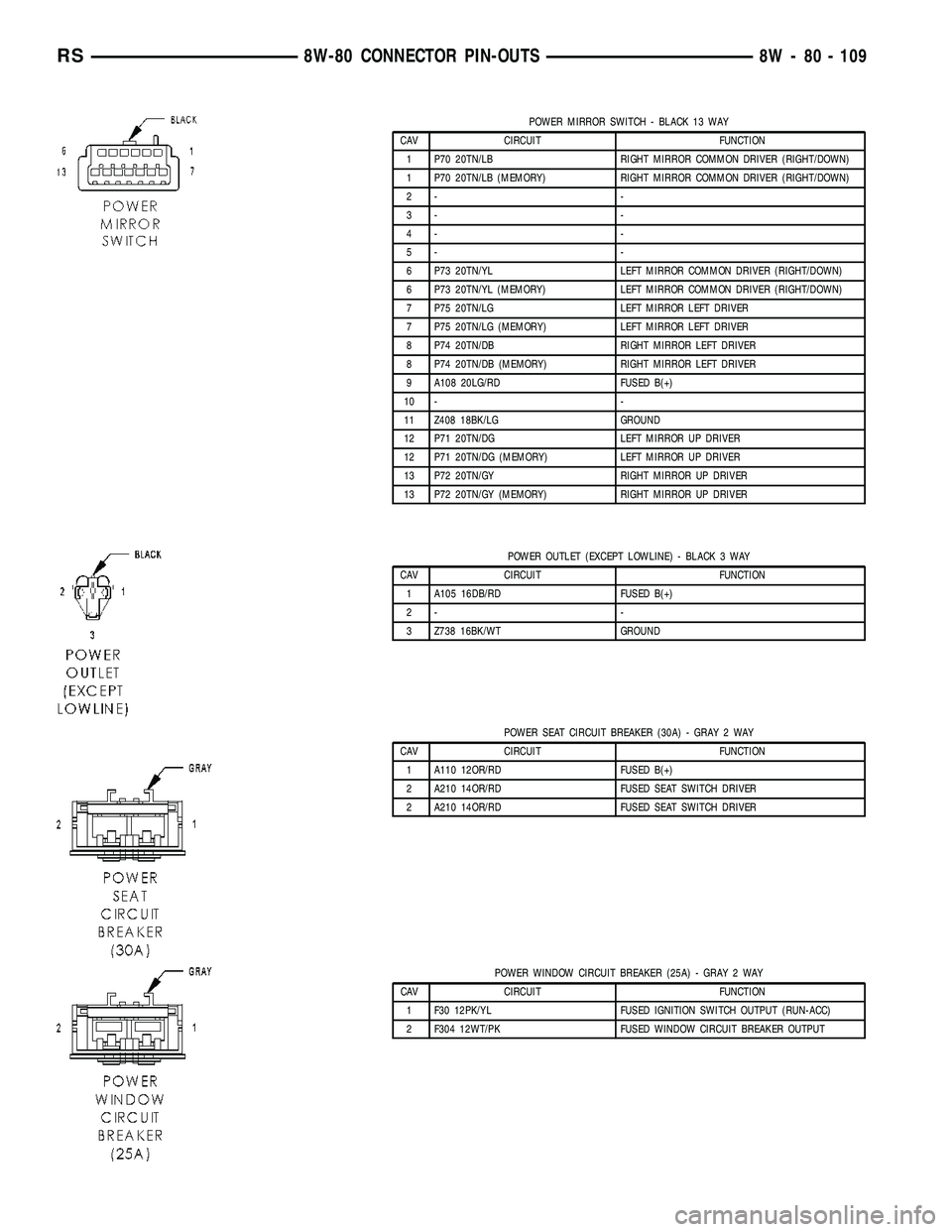

POWER MIRROR SWITCH - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
1 P70 20TN/LB (MEMORY) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
2- -
3- -
4- -
5- -
6 P73 20TN/YL LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
6 P73 20TN/YL (MEMORY) LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
7 P75 20TN/LG LEFT MIRROR LEFT DRIVER
7 P75 20TN/LG (MEMORY) LEFT MIRROR LEFT DRIVER
8 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
8 P74 20TN/DB (MEMORY) RIGHT MIRROR LEFT DRIVER
9 A108 20LG/RD FUSED B(+)
10 - -
11 Z408 18BK/LG GROUND
12 P71 20TN/DG LEFT MIRROR UP DRIVER
12 P71 20TN/DG (MEMORY) LEFT MIRROR UP DRIVER
13 P72 20TN/GY RIGHT MIRROR UP DRIVER
13 P72 20TN/GY (MEMORY) RIGHT MIRROR UP DRIVER
POWER OUTLET (EXCEPT LOWLINE) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 A105 16DB/RD FUSED B(+)
2- -
3 Z738 16BK/WT GROUND
POWER SEAT CIRCUIT BREAKER (30A) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A110 12OR/RD FUSED B(+)
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
POWER WINDOW CIRCUIT BREAKER (25A) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 F30 12PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 109

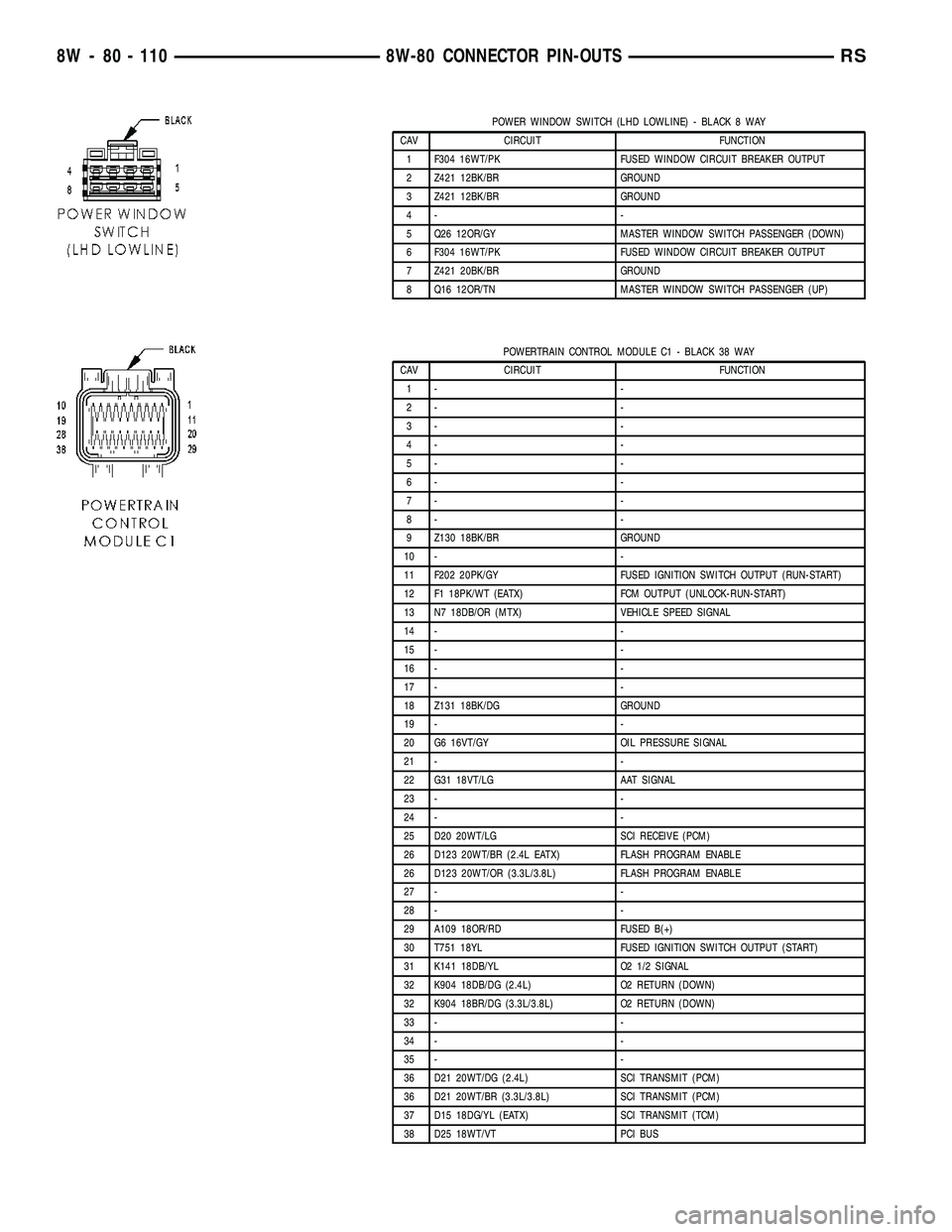

POWER WINDOW SWITCH (LHD LOWLINE) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 Z421 12BK/BR GROUND
3 Z421 12BK/BR GROUND
4- -
5 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
6 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
7 Z421 20BK/BR GROUND
8 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
POWERTRAIN CONTROL MODULE C1 - BLACK 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9 Z130 18BK/BR GROUND
10 - -
11 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 F1 18PK/WT (EATX) FCM OUTPUT (UNLOCK-RUN-START)
13 N7 18DB/OR (MTX) VEHICLE SPEED SIGNAL
14 - -
15 - -
16 - -
17 - -
18 Z131 18BK/DG GROUND
19 - -
20 G6 16VT/GY OIL PRESSURE SIGNAL
21 - -
22 G31 18VT/LG AAT SIGNAL
23 - -
24 - -
25 D20 20WT/LG SCI RECEIVE (PCM)
26 D123 20WT/BR (2.4L EATX) FLASH PROGRAM ENABLE
26 D123 20WT/OR (3.3L/3.8L) FLASH PROGRAM ENABLE
27 - -
28 - -
29 A109 18OR/RD FUSED B(+)
30 T751 18YL FUSED IGNITION SWITCH OUTPUT (START)
31 K141 18DB/YL O2 1/2 SIGNAL
32 K904 18DB/DG (2.4L) O2 RETURN (DOWN)
32 K904 18BR/DG (3.3L/3.8L) O2 RETURN (DOWN)
33 - -
34 - -
35 - -
36 D21 20WT/DG (2.4L) SCI TRANSMIT (PCM)
36 D21 20WT/BR (3.3L/3.8L) SCI TRANSMIT (PCM)
37 D15 18DG/YL (EATX) SCI TRANSMIT (TCM)
38 D25 18WT/VT PCI BUS
8W - 80 - 110 8W-80 CONNECTOR PIN-OUTSRS

POWERTRAIN CONTROL MODULE C3 - BLACK 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 K51 18BR/WT ASD RELAY CONTROL
4- -
5 V35 18VT/OR S/C VENT CONTROL
6 K173 18BR/VT CONDENSER FAN RELAY CONTROL
7 V32 18VT/YL SPEED CONTROL SUPPLY
8 K106 20VT/LB (EXCEPT EXPORT) NVLD SOL CONTROL
9 K299 18BR/WT O2 1/2 HEATER CONTROL
10 - -
11 C13 18LB/OR A/C CLUTCH RELAY CONTROL
12 V36 18VT/YL S/C VACUUM CONTROL
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 K342 16BR/WT ASD RELAY OUTPUT
20 K52 18DB/WT EVAP PURGE CONTROL
21 T141 18YL (MTX EXPORT) FUSED IGNITION SWITCH OUTPUT (START)
22 - -
23 B29 18DG/WT BRAKE SWITCH SIGNAL
24 - -
25 - -
26 - -
27 - -
28 K342 16BR/WT ASD RELAY OUTPUT
29 K70 18DB/BR EVAP PURGE SIGNAL
30 - -
31 C18 18LB/BR A/C PRESSURE SIGNAL
32 K91 18DB/YL BATTERY TEMP SIGNAL
33 - -
34 V37 18VT S/C SWITCH NO. 1 SIGNAL
35 K107 20VT/WT (EXCEPT EXPORT) NVLD SWITCH SIGNAL
36 - -
37 K31 18BR FUEL PUMP RELAY CONTROL
38 T752 18DG/OR STARTER RELAY CONTROL
8W - 80 - 112 8W-80 CONNECTOR PIN-OUTSRS

RADIATOR FAN RELAY (GAS)-4WAY
CAV CIRCUIT FUNCTION
1 A112 12OR/RD FUSED B(+)
2 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
3 Z723 18BK/DG GROUND
4 N173 18DB/VT CONDENSER FAN RELAY CONTROL
RADIATOR FAN RELAY NO. 1 (DIESEL) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT
3- -
4 K342 16BR/WT ECM/PCM RELAY OUTPUT
5- -
6 N210 18DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
7- -
8 A201 12RD/LG FUSED B(+)
9- -
RADIATOR FAN RELAY NO. 2 (DIESEL) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2 N112 12DB/OR RADIATOR FAN RELAY NO. 2 AND NO. 3 COMMON
OUTPUT
3- -
4 K342 16BR/WT ECM/PCM RELAY OUTPUT
5- -
6 N122 18DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
7- -
8 A112 12OR/RD FUSED B(+)
9- -
RADIATOR FAN RELAY NO. 3 (DIESEL) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z823 12BK/DG GROUND
3- -
4 K342 16BR/WT ECM/PCM RELAY OUTPUT
5 N112 12DB/OR RADIATOR FAN RELAY NO. 2 AND NO. 3 COMMON
OUTPUT
6 N122 18DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
7- -
8 N202 12DB/OR RADIATOR FAN NO. 1 CONTROL
9- -
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 115

RADIO C1 - 22 WAY
CAV CIRCUIT FUNCTION
1 A114 16GY/RD FUSED B(+) (I.O.D.)
2 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
3 E14 20OR/TN PANEL LAMPS DRIVER
4- -
5- -
6- -
7 X54 20GY (EXCEPT LOWLINE 1) RIGHT FRONT SPEAKER (+)
7 X154 20GY/YL (LOWLINE 1) RIGHT INSTRUMENT PANEL SPEAKER (+)
8 X56 20GY/BR (EXCEPT LOWLINE 1) RIGHT FRONT SPEAKER (-)
8 X156 20GY/LB (LOWLINE 1) RIGHT INSTRUMENT PANEL SPEAKER (-)
9 X55 20DG/BR (EXCEPT LOWLINE 1) LEFT FRONT SPEAKER (-)
9 X155 20DG/LB (LOWLINE 1) LEFT INSTRUMENT PANEL SPEAKER (-)
10 X53 20DG (EXCEPT LOWLINE 1) LEFT FRONT SPEAKER (+)
10 X153 20DG/YL (LOWLINE 1) LEFT INSTRUMENT PANEL SPEAKER (+)
11 Z514 16BK/LG GROUND
12 A114 16GY/RD FUSED B(+) (I.O.D.)
13 X60 20GY/YL RADIO 12 VOLT OUTPUT
14 D25 20WT/VT PCI BUS
15 - -
16 - -
17 - -
18 X51 22DG/DB LEFT REAR SPEAKER (+)
19 X57 22DG/OR LEFT REAR SPEAKER (-)
20 X58 22GY/OR RIGHT REAR SPEAKER (-)
21 X52 22GY/DB RIGHT REAR SPEAKER (+)
22 Z515 16BK GROUND
RADIO C2 (CD CHANGER)-8WAY
CAV CIRCUIT FUNCTION
1 X40 22GY/WT (EXCEPT EXPORT) AUDIO OUT RIGHT
1 X40 20GY/WT (EXPORT) AUDIO OUT RIGHT
2 X140 22GY/OR (EXCEPT EXPORT) COMMON AUDIO
2 Z140 18BK/OR (EXPORT) GROUND
3 X235 20GY/LB (EXCEPT EXPORT) SHIELD
4 D25 20WT/VT (EXCEPT EXPORT) PCI BUS
4 D25 20VT/YL (EXPORT) PCI BUS
5 X112 20DG/GY (EXCEPT EXPORT) IGNITION SWITCH SIGNAL
5 X112 20RD (EXPORT) IGNITION SWITCH SIGNAL
6 X41 22DG/WT (EXCEPT EXPORT) AUDIO OUT LEFT
6 X41 20DG/WT (EXPORT) AUDIO OUT LEFT
7 Z141 20BK/TN (EXCEPT EXPORT) GROUND
7 Z141 18BK/TN (EXPORT) GROUND
8- -
9 E14 22OR/TN (EXCEPT EXPORT) PANEL LAMPS DRIVER
9 E14 18OR/TN (EXPORT) PANEL LAMPS DRIVER
10 X160 20GY/YL FUSED B(+)
8W - 80 - 116 8W-80 CONNECTOR PIN-OUTSRS

RADIO C2 (DVD/CD CHANGER) - DK. GRAY 10 WAY
CAV CIRCUIT FUNCTION
1 X40 22GY/WT AUDIO OUT RIGHT
2 X140 22GY/OR COMMON AUDIO
3 X235 20GY/LB SHIELD
4 D25 20WT/VT PCI BUS
5 X112 20DG/GY IGNITION SWITCH SIGNAL
6 X41 22DG/WT AUDIO OUT LEFT
7- -
8- -
9 E14 22OR/TN PANEL LAMPS DRIVER
10 - -
REAR A/C-HEATER UNIT (3 ZONE MTC) - LT. GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 C53 20LB REAR MODE DOOR DRIVER
2 C154 20LB/OR REAR COMMON DOOR DRIVER
3 C51 12LB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
4 C152 16LB/LG REAR BLOWER MOTOR MED
5 C151 18LB/DG REAR BLOWER MOTOR LOW
6 C153 12DB/OR REAR BLOWER MOTOR HIGH
7 C54 20LB/YL REAR BLEND DOOR DRIVER
8 C154 20LB/OR REAR COMMON DOOR DRIVER
9- -
10 - -
REAR AUTO TEMP CONTROL SWITCH (3 ZONE ATC) - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z27 18BK/DG GROUND
3 D22 22WT/TN KDB CLOCK
4 D17 22WT/DG KDB DATA
5 E10 20OR/DG PANEL LAMPS DRIVER
6- -
7- -
8- -
9- -
10 - -
11 - -
12 - -
13 - -
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 117

REAR BLOWER FRONT CONTROL SWITCH (3 ZONE MTC) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z440 12BK/LG GROUND
3- -
4 C153 12DB/BR REAR BLOWER MOTOR HIGH
5- -
6 C152 16LB/LG REAR BLOWER MOTOR MED
7 C151 18LB/DG REAR BLOWER MOTOR LOW
8 C50 12DB/OR REAR BLOWER FRONT CONTROL FEED
REAR BLOWER MOTOR POWER MODULE C1 (3 ZONE ATC) - RED/BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C51 12DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
2 C59 18DB/LB BLOWER MOTOR CONTROL
3 Z135 12BK/LB GROUND
4- -
REAR BLOWER MOTOR POWER MODULE C2 (3 ZONE ATC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 12BK GROUND
2 12DG POWER FEED
REAR BLOWER REAR CONTROL SWITCH C1 (3 ZONE MTC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C153 12DB/BR REAR BLOWER MOTOR HIGH
2 C152 16LB/LG REAR BLOWER MOTOR MED
3 C151 18LB/DG REAR BLOWER MOTOR LOW
4 C50 12DB/OR REAR BLOWER FRONT CONTROL FEED
8W - 80 - 118 8W-80 CONNECTOR PIN-OUTSRS

REAR BLOWER REAR CONTROL SWITCH C2 (3 ZONE MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 C22 20LB/DB REAR TEMPERATURE FEEDBACK SIGNAL
3 E10 20OR/DG PANEL LAMPS DRIVER
4 F850 20LB/PK 5 VOLT SUPPLY
5 C121 20DB/DG REAR TEMPERATURE RETURN
6 Z409 20BK/OR GROUND
REAR DOME LAMP (EXCEPT LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3- -
REAR INTRUSION SENSOR (UNITED KINGDOM)-3WAY
CAV CIRCUIT FUNCTION
1 A645 20RD/VT REAR INTRUSION SENSOR SIGNAL
2- -
3 G945 20VT/DG SENSOR GROUND
REAR MODE MOTOR (3 ZONE ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C154 18LB/GY REAR MODE DOOR DRIVER (B)
2 C53 18LB REAR MODE DOOR DRIVER (A)
REAR POWER OUTLET - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 F307 18LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 18LB/PK (BATTERY POSITION) FUSED B(+)
2- -
3 Z737 18BK/LB GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 119
