CHRYSLER VOYAGER 2005 Service Manual

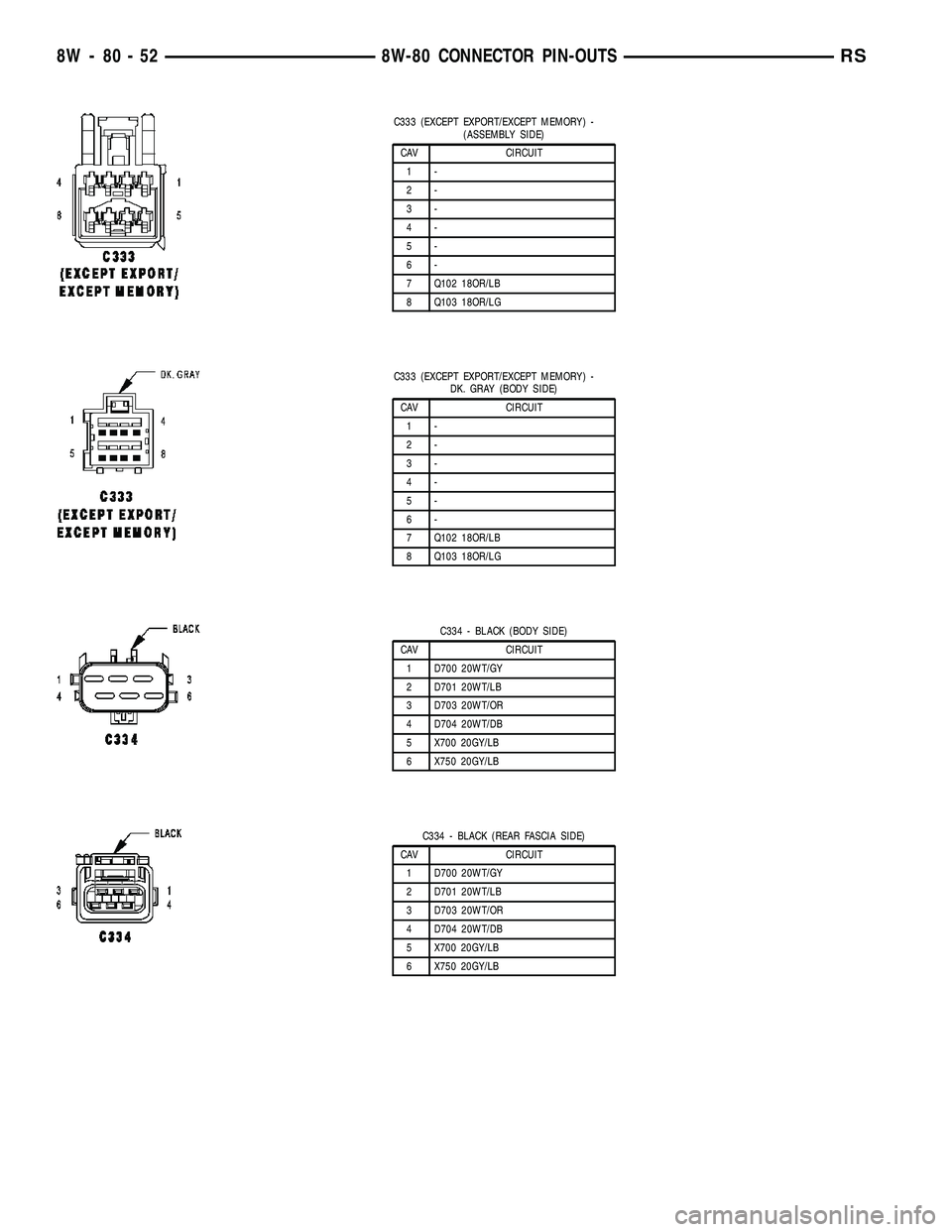

C333 (EXCEPT EXPORT/EXCEPT MEMORY) -
(ASSEMBLY SIDE)
CAV CIRCUIT
1-
2-
3-
4-
5-
6-
7 Q102 18OR/LB
8 Q103 18OR/LG
C333 (EXCEPT EXPORT/EXCEPT MEMORY) -
DK. GRAY (BODY SIDE)
CAV CIRCUIT
1-
2-
3-
4-
5-
6-
7 Q102 18OR/LB
8 Q103 18OR/LG
C334 - BLACK (BODY SIDE)
CAV CIRCUIT
1 D700 20WT/GY
2 D701 20WT/LB
3 D703 20WT/OR
4 D704 20WT/DB
5 X700 20GY/LB
6 X750 20GY/LB
C334 - BLACK (REAR FASCIA SIDE)
CAV CIRCUIT
1 D700 20WT/GY
2 D701 20WT/LB
3 D703 20WT/OR
4 D704 20WT/DB
5 X700 20GY/LB
6 X750 20GY/LB
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSRS

C335 (FOLD-IN-FLOOR) - LT. GRAY (BODY
SIDE)
CAV CIRCUIT
1 Z201 18BK/OR
2 Z201 20BK/DB
3 N4 20DB/WT
4 N1 18DB/OR
C335 (FOLD-IN-FLOOR) - LT. GRAY (FUEL
PUMP JUMPER SIDE)
CAV CIRCUIT
1 Z201 18BK/OR
2 Z201 20BK/DB
3 N4 20DB/WT
4 N1 18DB/OR
CABIN HEATER ASSIST C1 (DIESEL) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D21 20WT/DB SCI TRANSMIT
3- -
4- -
5 C41 20DB/OR CABIN HEATER ASSIST CONTROL
6 18RD DOSING PUMP CONTROL
CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND
2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W-80-53

CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
1 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K44 18DB/GY CMP SIGNAL
CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 22GY/WT (EXCEPT EXPORT) AUDIO OUT RIGHT
1 X40 20GY/WT (EXPORT) AUDIO OUT RIGHT
2 E14 22OR/TN (EXCEPT EXPORT) PANEL LAMPS DRIVER
2 E14 18OR/TN (EXPORT) PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT EXPORT) PCI BUS
3 D25 20VT/YL (EXPORT) PCI BUS
4 X112 20DG/GY (EXCEPT EXPORT) IGNITION SWITCH SIGNAL
4 X112 20RD (EXPORT) IGNITION SWITCH SIGNAL
5 X41 22DG/WT (EXCEPT EXPORT) AUDIO OUT LEFT
5 X41 20DG/WT (EXPORT) AUDIO OUT LEFT
6 X140 22GY/OR (EXCEPT EXPORT) COMMON AUDIO
6 Z140 18BK/OR (EXPORT) GROUND
7 Z141 20BK/TN (EXCEPT EXPORT) GROUND
7 Z141 18BK/TN (EXPORT) GROUND
8 X160 20GY/YL FUSED B(+)
CENTER HIGH MOUNTED STOP LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z350 20BK/TN GROUND
2 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
2 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
CLOCKSPRING C1 - WHITE 6 WAY
CAV CIRCUIT FUNCTION
1 X920 22GY/OR (REMOTE AUDIO) RADIO CONTROL MUX RETURN
2 X20 22GY/WT (REMOTE AUDIO) RADIO CONTROL MUX
3 X3 22DG/VT HORN SWITCH SENSE
4 V37 22VT SPEED CONTROL SWITCH SIGNAL
5 K900 20DB/DG SENSOR GROUND
6- -
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSRS

CLOCKSPRING C2 - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R61 20LG/VT (EXCEPT EXPORT) DRIVER SQUIB 2 LINE 2
1 R61 20LB/VT (EXPORT) DRIVER SQUIB 2 LINE 2
2 R63 20LG/WT DRIVER SQUIB 2 LINE 1
3 R43 20LG/BR DRIVER SQUIB 1 LINE 2
4 R45 20LG/OR DRIVER SQUIB 1 LINE 1
CLOCKSPRING C3 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND
2 Z23 20BK/VT RIGHT SPEED CONTROL SWITCH GROUND
3 V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL
3 V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL
3 V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL
3 V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL
4 X3 20DG/VT HORN SWITCH SENSE
CLOCKSPRING C4 (REMOTE AUDIO)-2WAY
CAV CIRCUIT FUNCTION
1 X10 20RD/DB RADIO CONTROL MUX
2 X20 20RD/BK RADIO CONTROL MUX RETURN
CLUTCH PEDAL INTERLOCK SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 20YL/OR FUSED IGNITION SWITCH OUTPUT (START)
2 T751 20YL (DIESEL) FUSED IGNITION SWITCH OUTPUT (START)
2 Z429 20BK/OR (GAS) GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-55

CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY
CAV CIRCUIT FUNCTION
1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
2 Z150 20BK/LG GROUND
CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z107 12BK/DG GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
18 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
23 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
24 A107 12TN/RD FUSED B(+)
8W - 80 - 56 8W-80 CONNECTOR PIN-OUTSRS

CRANK CASE VENTILATION HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z153 18BK/GY GROUND
2 N1 18DB/OR FUEL HEATER RELAY OUTPUT
CRANKSHAFT POSITION SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
2 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
CRANKSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
1 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K24 18BR/LB CKP SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 20BK/LG GROUND
5 Z111 20BK/WT GROUND
6- -
7 D21 20WT/DG (DIESEL) SCI TRANSMIT (ECM)
7 D21 20WT/DG (GAS) SCI TRANSMIT (PCM)
8- -
9 D123 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 D20 20WT/LG (GAS) SCI RECEIVE (PCM)
13 - -
14 - -
15 D15 20DG/YL (EATX) SCI TRANSMIT (TCM)
16 A105 20DB/RD FUSED B(+)
RS8W-80 CONNECTOR PIN-OUTS8W-80-57

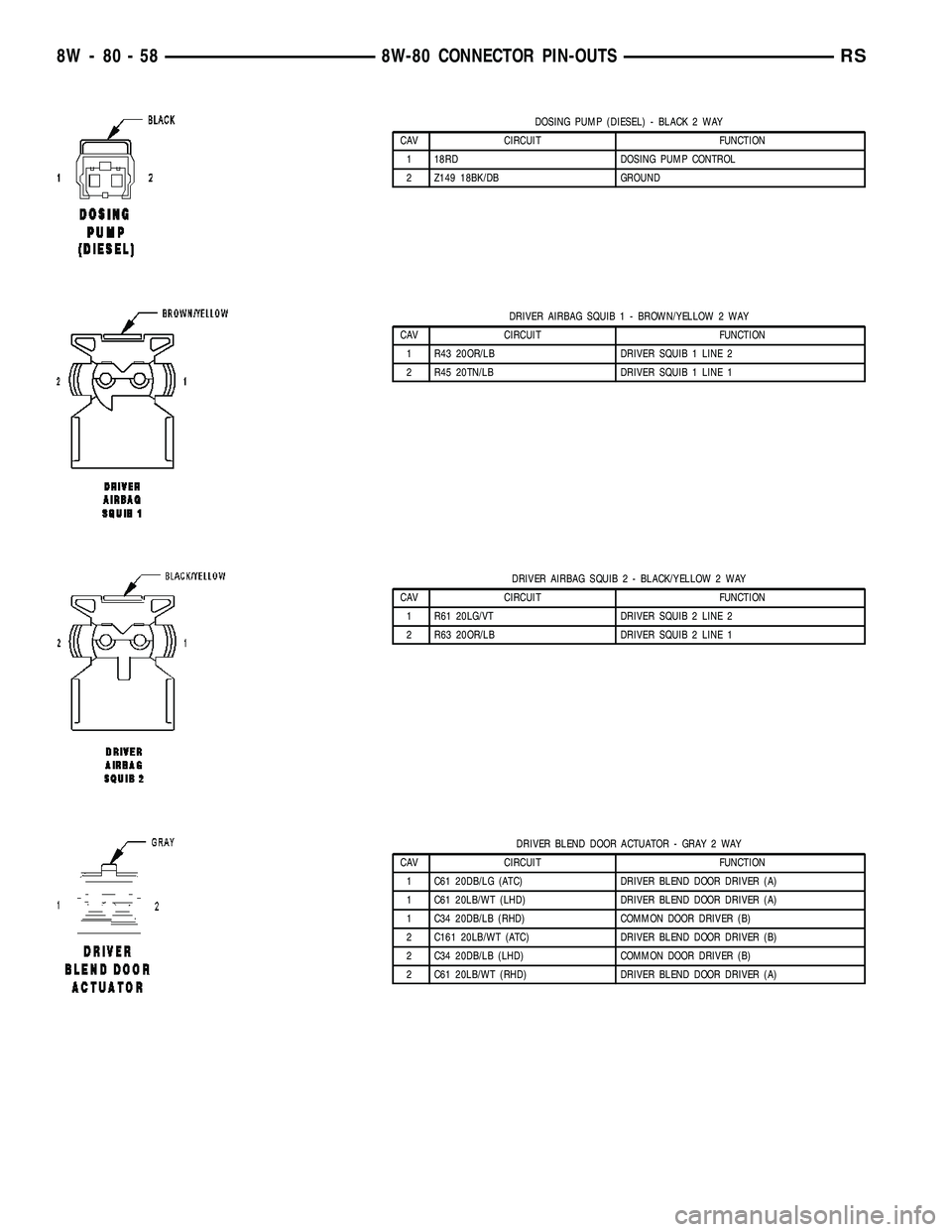

DOSING PUMP (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 18RD DOSING PUMP CONTROL
2 Z149 18BK/DB GROUND
DRIVER AIRBAG SQUIB 1 - BROWN/YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R43 20OR/LB DRIVER SQUIB 1 LINE 2
2 R45 20TN/LB DRIVER SQUIB 1 LINE 1
DRIVER AIRBAG SQUIB 2 - BLACK/YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R61 20LG/VT DRIVER SQUIB 2 LINE 2
2 R63 20OR/LB DRIVER SQUIB 2 LINE 1
DRIVER BLEND DOOR ACTUATOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C61 20DB/LG (ATC) DRIVER BLEND DOOR DRIVER (A)
1 C61 20LB/WT (LHD) DRIVER BLEND DOOR DRIVER (A)
1 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
2 C161 20LB/WT (ATC) DRIVER BLEND DOOR DRIVER (B)
2 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
2 C61 20LB/WT (RHD) DRIVER BLEND DOOR DRIVER (A)
8W - 80 - 58 8W-80 CONNECTOR PIN-OUTSRS

DRIVER DOOR COURTESY LAMP (LUXURY/EXPORT) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z321 20BK/BR (LHD) GROUND
1 Z322 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
3 Z461 20BK/DG (LHD) GROUND
3 Z460 20BK/LG (RHD) GROUND
DRIVER HEATED SEAT BACK - LT. GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER
A S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER
B S2 18DG (LHD) SEAT BACK HEATER GROUND
B S2 18BK (RHD) SEAT BACK HEATER GROUND
DRIVER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD SEAT TEMP SENSOR INPUT
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z849 18BK/OR GROUND
4 P88 16GR SEAT CUSHION HEATER B(+) DRIVER
DRIVER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z849 18BK/OR GROUND
2 P7 20LG/DG DRIVER SEAT HEATER MUX SWITCH
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED B(+)
RS8W-80 CONNECTOR PIN-OUTS8W-80-59

DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER
1 S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER
2 S2 18DG (LHD) SEAT BACK HEATER GROUND
2 S2 18BK (RHD) SEAT BACK HEATER GROUND
DRIVER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD SEAT TEMP SENSOR INPUT
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z849 18BK/OR GROUND
4 P88 16GR SEAT CUSHION HEATER B(+) DRIVER
DRIVER KNEE BLOCKER AIRBAG SQUIB (LHD) - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1-
2-
3 R9 20LB/YL DRIVER KNEE BLOCKER SQUIB LINE 1
4 R11 20LB/DB DRIVER KNEE BLOCKER SQUIB LINE 2
DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P19 14LG/LB (EXCEPT MEMORY) DRIVER FRONT UP SWITCH SENSE
1 P121 14LG/DB (MEMORY EXCEPT
EXPORT)SEAT FRONT DOWN DRIVER
1 P119 14LG/DG (MEMORY EXPORT) SEAT FRONT UP DRIVER
2 P21 14LG/TN (EXCEPT MEMORY) DRIVER FRONT DOWN SWITCH SENSE
2 P121 14LG/DB (MEMORY EXCEPT
EXPORT)SEAT FRONT DOWN DRIVER
2 P119 14LG/DG (MEMORY EXPORT) SEAT FRONT UP DRIVER
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTSRS

DRIVER POWER SEAT FRONT RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P17 14LG/DG (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
1 P117 14LG/LB (MEMORY EXCEPT
EXPORT)SEAT HORIZONTAL REARWARD DRIVER
1 P115 14LG (MEMORY EXPORT) SEAT HORIZONTAL FORWARD DRIVER
2 P15 14LG/WT (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
2 P115 14LG/OR (MEMORY EXCEPT
EXPORT)SEAT HORIZONTAL FORWARD DRIVER
2 P117 14LG/LB (MEMORY EXPORT) SEAT HORIZONTAL REARWARD DRIVER
DRIVER POWER SEAT HORIZONTAL POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P25 20LG/VT SEAT HORIZONTAL POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P11 14LG/YL (EXCEPT MEMORY) DRIVER SEAT REAR UP SWITCH SENSE
1 P111 14LG/YL (MEMORY EXCEPT
EXPORT)SEAT REAR UP DRIVER
1 P113 14LG/WT (MEMORY EXPORT) SEAT REAR DOWN DRIVER
2 P13 14LG/OR (EXCEPT MEMORY) DRIVER SEAT REAR DOWN SWITCH SENSE
2 P113 14LG/VT (MEMORY EXCEPT
EXPORT)SEAT REAR DOWN DRIVER
2 P111 14LG/YL (MEMORY EXPORT) SEAT REAR UP DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W-80-61
