CHRYSLER VOYAGER 2005 Service Manual

LEFT REAR PILLAR SPEAKER (HIGHLINE AUDIO) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X214 18DG/DB (EXCEPT EXPORT) AMPLIFIED LEFT REAR TWEETER (-)
1 X214 20DG/DB (EXPORT) AMPLIFIED LEFT REAR TWEETER (-)
2 X284 18DG/TN (EXCEPT EXPORT) AMPLIFIED LEFT REAR TWEETER (+)
2 X284 20DG/TN (EXPORT) AMPLIFIED LEFT REAR TWEETER (+)
LEFT REAR READING LAMP (LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT REAR SPEAKER-3WAY
CAV CIRCUIT FUNCTION
1 X295 18GY/DG (HIGHLINE EXCEPT
EXPORT)AMPLIFIED LEFT REAR SPEAKER (-)
1 X295 20GY/DG (HIGHLINE EXPORT) AMPLIFIED LEFT REAR SPEAKER (-)
1 X57 20DG/OR (LOWLINE) LEFT REAR SPEAKER (-)
2- -
3 X205 18GY/LG (HIGHLINE EXCEPT
EXPORT)AMPLIFIED LEFT REAR SPEAKER (+)
3 X205 20GY/LG (HIGHLINE EXPORT) AMPLIFIED LEFT REAR SPEAKER (+)
3 X51 20DG/DB (LOWLINE) LEFT REAR SPEAKER (+)
LEFT REAR VENT MOTOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 Q13 16OR/DB (LHD) DRIVER SIDE REAR WINDOW CLOSE
1 Q14 16OR/BR (RHD) PASSENGER SIDE REAR WINDOW CLOSE
2 Q23 16OR/LB (LHD) DRIVER SIDE REAR WINDOW OPEN
2 Q24 16OR/DG (RHD) PASSENGER SIDE REAR WINDOW OPEN
3- -
8W - 80 - 92 8W-80 CONNECTOR PIN-OUTSRS

LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
LEFT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X10 22RD/DB RADIO CONTROL MUX
2 X20 22RD/BK RADIO CONTROL MUX RETURN
LEFT REPEATER LAMP (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+)
2 L163 20WT/BR LEFT SIDE REPEATER LAMP FEED
LEFT SIDE IMPACT SENSOR 1 (EXCEPT EXPORT)-2WAY
CAV CIRCUIT FUNCTION
1 R15 20DB LEFT SIDE IMPACT SENSOR 1 GROUND
2 R13 20LB LEFT SIDE IMPACT SENSOR 1 SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W-80-93

LEFT SIDE IMPACT SENSOR 1 (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R15 20DB (EXCEPT RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
1 R15 20LB (RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
2 R13 20LB LEFT SIDE IMPACT SENSOR 1 SIGNAL
LEFT SIDE IMPACT SENSOR2-2WAY
CAV CIRCUIT FUNCTION
1 R19 18LG/WT LEFT SIDE IMPACT SENSOR 2 GROUND
2 R17 18LG LEFT SIDE IMPACT SENSOR 2 SIGNAL
LEFT SIDE IMPACT SENSOR 3 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R23 20LB/YL LEFT SIDE IMPACT SENSOR 3 GROUND
2 R21 20LB/WT LEFT SIDE IMPACT SENSOR 3 SIGNAL
LEFT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z123 14BK/WT GROUND
8W - 80 - 94 8W-80 CONNECTOR PIN-OUTSRS

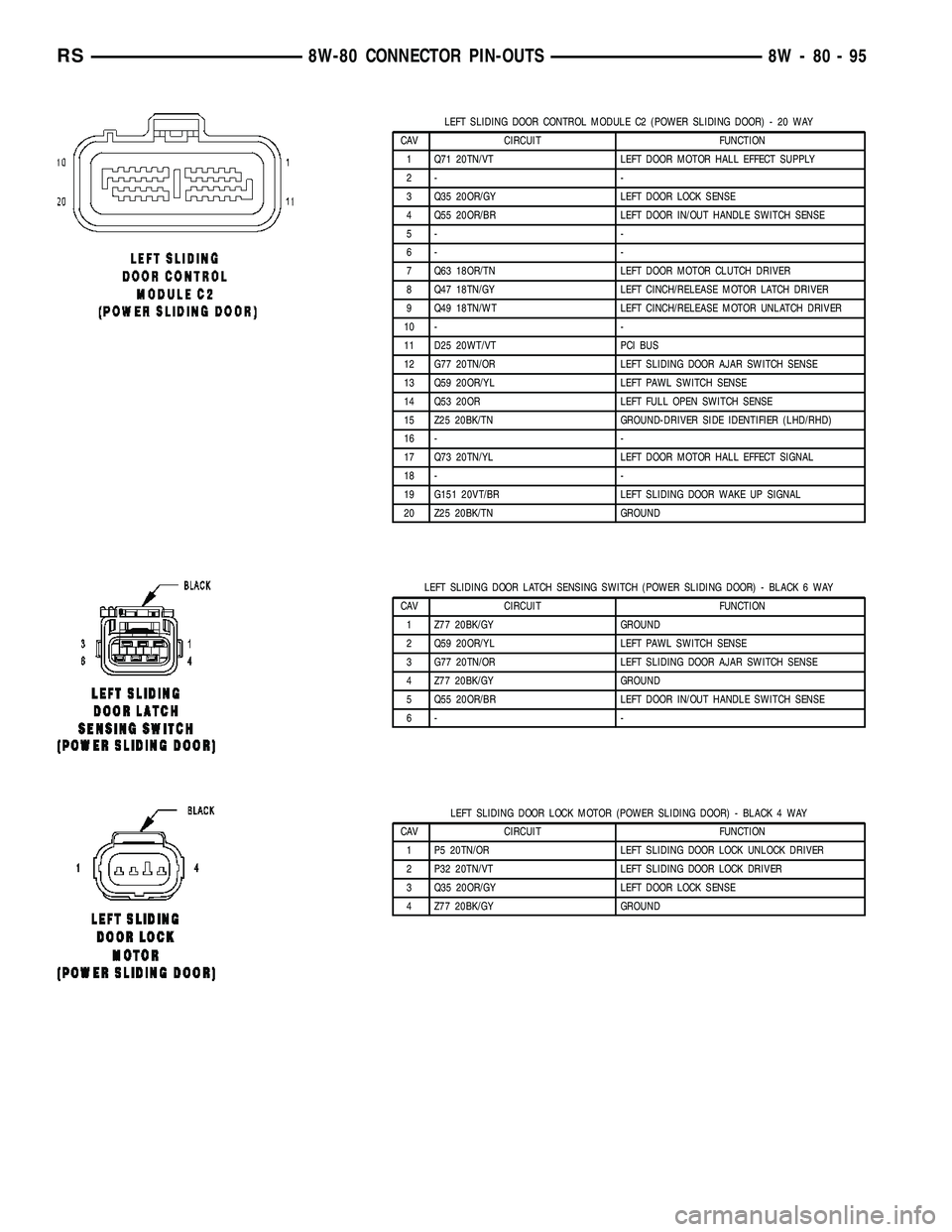

LEFT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - 20 WAY
CAV CIRCUIT FUNCTION
1 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY
2- -
3 Q35 20OR/GY LEFT DOOR LOCK SENSE
4 Q55 20OR/BR LEFT DOOR IN/OUT HANDLE SWITCH SENSE
5- -
6- -
7 Q63 18OR/TN LEFT DOOR MOTOR CLUTCH DRIVER
8 Q47 18TN/GY LEFT CINCH/RELEASE MOTOR LATCH DRIVER
9 Q49 18TN/WT LEFT CINCH/RELEASE MOTOR UNLATCH DRIVER
10 - -
11 D25 20WT/VT PCI BUS
12 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SENSE
13 Q59 20OR/YL LEFT PAWL SWITCH SENSE
14 Q53 20OR LEFT FULL OPEN SWITCH SENSE
15 Z25 20BK/TN GROUND-DRIVER SIDE IDENTIFIER (LHD/RHD)
16 - -
17 Q73 20TN/YL LEFT DOOR MOTOR HALL EFFECT SIGNAL
18 - -
19 G151 20VT/BR LEFT SLIDING DOOR WAKE UP SIGNAL
20 Z25 20BK/TN GROUND
LEFT SLIDING DOOR LATCH SENSING SWITCH (POWER SLIDING DOOR) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z77 20BK/GY GROUND
2 Q59 20OR/YL LEFT PAWL SWITCH SENSE
3 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SENSE
4 Z77 20BK/GY GROUND
5 Q55 20OR/BR LEFT DOOR IN/OUT HANDLE SWITCH SENSE
6- -
LEFT SLIDING DOOR LOCK MOTOR (POWER SLIDING DOOR) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P5 20TN/OR LEFT SLIDING DOOR LOCK UNLOCK DRIVER
2 P32 20TN/VT LEFT SLIDING DOOR LOCK DRIVER
3 Q35 20OR/GY LEFT DOOR LOCK SENSE
4 Z77 20BK/GY GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-95

LEFT SLIDING DOOR LOCK MOTOR/AJAR SWITCH (MANUAL SLIDING DOOR) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P5 20BK/DB LEFT SLIDING DOOR UNLOCK DRIVER
2 P32 20BK/TN LEFT SLIDING DOOR LOCK DRIVER
3 G77 20BK/DG LEFT SLIDING DOOR AJAR SWITCH SENSE
4 Z77 20BK GROUND
LEFT SLIDING DOOR MOTOR (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1- -
2 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4 Z163 18BK/TN GROUND
5 Q63 18OR/TN LEFT DOOR MOTOR CLUTCH DRIVER
6 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
7 Z33 20BK/TN GROUND
8 Q73 20TN/YL LEFT DOOR MOTOR HALL EFFECT SIGNAL
LEFT SPEED CONTROL SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
A V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL
A V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL
B Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND
LEFT TURN SIGNAL LAMP (EXPORT) - ORANGE 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L61 16YL LEFT FRONT TURN SIGNAL DRIVER
8W - 80 - 96 8W-80 CONNECTOR PIN-OUTSRS

LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
LICENSE LAMP (MANUAL RELEASE) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-97

LIFT PUMP MOTOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N2 18OR LIFT PUMP RELAY OUTPUT
2 Z201 18OR GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
LIFTGATE AJAR SWITCH (POWER RELEASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 20TN/YL LIFTGATE RELEASE DRIVER
4 Z231 20BK/YL GROUND
LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
4 Z245 18BK/GY GROUND
5 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
6 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
7 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
8W - 80 - 98 8W-80 CONNECTOR PIN-OUTSRS

LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Z78 20BK/OR GROUND
MANIFOLD ABSOLUTE PRESSURE SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K1 18VT/BR MAP SIGNAL
2 K900 18DB/DG SENSOR GROUND
3 F855 18PK/YL 5 VOLT SUPPLY
MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY
CAV CIRCUIT FUNCTION
1- -
2 K342 16BR/WT ECM/PCM RELAY OUTPUT
3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
5 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W-80-99

MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C1 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1 P205 14LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2- -
3 P69 22TN/DB (LHD) LEFT MIRROR SENSOR GROUND
3 P66 20TN/LG (RHD) RIGHT MIRROR SENSOR GROUND
4- -
5 P64 22TN (LHD) LEFT MIRROR VERTICAL POSITION SIGNAL
5 P67 22TN/OR (RHD) RIGHT MIRROR VERTICAL POSITION SIGNAL
6 Q103 18OR/LG (EXCEPT EXPORT) ADJUSTABLE PEDALS SWITCH FORWARD
7 Q102 18OR/LB (EXCEPT EXPORT) ADJUSTABLE PEDALS SWITCH REARWARD
8 P65 22TN/VT (LHD) LEFT MIRROR HORIZONTAL POSITION SIGNAL
8 P68 20TN/YL (RHD) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
9 P73 20TN/YL (LHD) LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
9 P70 20TN/LB (RHD) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
10 - -
11 D25 20WT/VT PCI BUS
12 - -
13 P206 14LG/TN (EXCEPT EXPORT) ADJUSTABLE PEDALS MOTOR REARWARD
14 - -
15 - -
16 G11 20VT/TN (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR FEED
17 P75 20TN/LG (LHD) LEFT MIRROR LEFT DRIVER
17 P74 20TN/DB (RHD) RIGHT MIRROR LEFT DRIVER
18 P71 20TN/DG (LHD) LEFT MIRROR UP DRIVER
18 P72 20TN/GY (RHD) RIGHT MIRROR UP DRIVER
19 G12 22VT/BR (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR SIGNAL
20 G912 20VT/WT (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR RETURN
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C2 - GRAY 16 WAY
CAV CIRCUIT FUNCTION
1 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
2 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
3 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
4 P47 20LG/LB DRIVER SEAT RECLINER POSITION SIGNAL
5 P26 20LG DRIVER SEAT FRONT RISER POSITION SIGNAL
6 P27 20LG/DB DRIVER SEAT REAR RISER POSITION SIGNAL
7 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
8 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
9 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
10 P43 20LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
11 P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
12 P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
13 - -
14 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
15 P41 20LG/DB DRIVER SEAT RECLINER DOWN SWITCH SENSE
16 - -
8W - 80 - 100 8W-80 CONNECTOR PIN-OUTSRS

MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C3 - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 P141 14LG/BR DRIVER SEAT RECLINER DOWN DRIVER
2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER
3 P117 14LG/LB DRIVER SEAT HORIZONTAL REARWARD DRIVER
4 P111 14LG/YL DRIVER SEAT REAR UP DRIVER
5 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER
6- -
7- -
8 P143 14LG/GY DRIVER SEAT RECLINER UP DRIVER
9 P9 20LG/OR DRIVER SEAT SWITCH B(+) SUPPLY
10 - -
11 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER
12 P121 14LG/DB DRIVER SEAT FRONT DOWN DRIVER
MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C4 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A210 14OR/RD FUSED B(+)
2 Z849 14BK/OR GROUND
MEMORY SET SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G200 20VT/BR (EXCEPT EXPORT) MEMORY SELECT SWITCH MUX
1 G200 22VT/BR (EXPORT) MEMORY SELECT SWITCH MUX
2 G920 20VT/YL (EXCEPT EXPORT) MEMORY SELECT SWITCH RETURN
2 G920 22VT/YL (EXPORT) MEMORY SELECT SWITCH RETURN
MESSAGE CENTER (EXPORT) - WHITE 14 WAY
CAV CIRCUIT FUNCTION
1 L160 20WT/TN (LHD) RIGHT TURN INDICATOR DRIVER
1 G700 20VT/YL (RHD DIESEL) SUPPLEMENTAL HEAT INDICATOR SENSE
2 G3 20VT/LB (LHD) MALFUNCTION INDICATOR LAMP DRIVER
3 L134 20WT/GY (RHD) HIGH BEAM INDICATOR DRIVER
4 L160 20WT/TN (RHD) RIGHT TURN INDICATOR DRIVER
5- -
6 G7 20VT/GY (LHD) LOW OIL PRESSURE INDICATOR DRIVER
7 A701 18BR/RD (LHD) FUSED B(+) (HAZARD)
8 A701 18BR/RD (RHD) FUSED B(+) (HAZARD)
9 G7 20VT/GY (RHD) LOW OIL PRESSURE INDICATOR DRIVER
10 - -
11 L161 20WT/LG (LHD) LEFT TURN INDICATOR DRIVER
12 L134 20WT/GY (LHD) HIGH BEAM INDICATOR DRIVER
13 G3 20VT/LB (RHD) MALFUNCTION INDICATOR LAMP DRIVER
14 G700 20VT/YL (LHD DIESEL) SUPPLEMENTAL HEAT INDICATOR SENSE
14 L161 20WT/LG (RHD) LEFT TURN INDICATOR DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 101
