CHRYSLER VOYAGER 2005 Service Manual

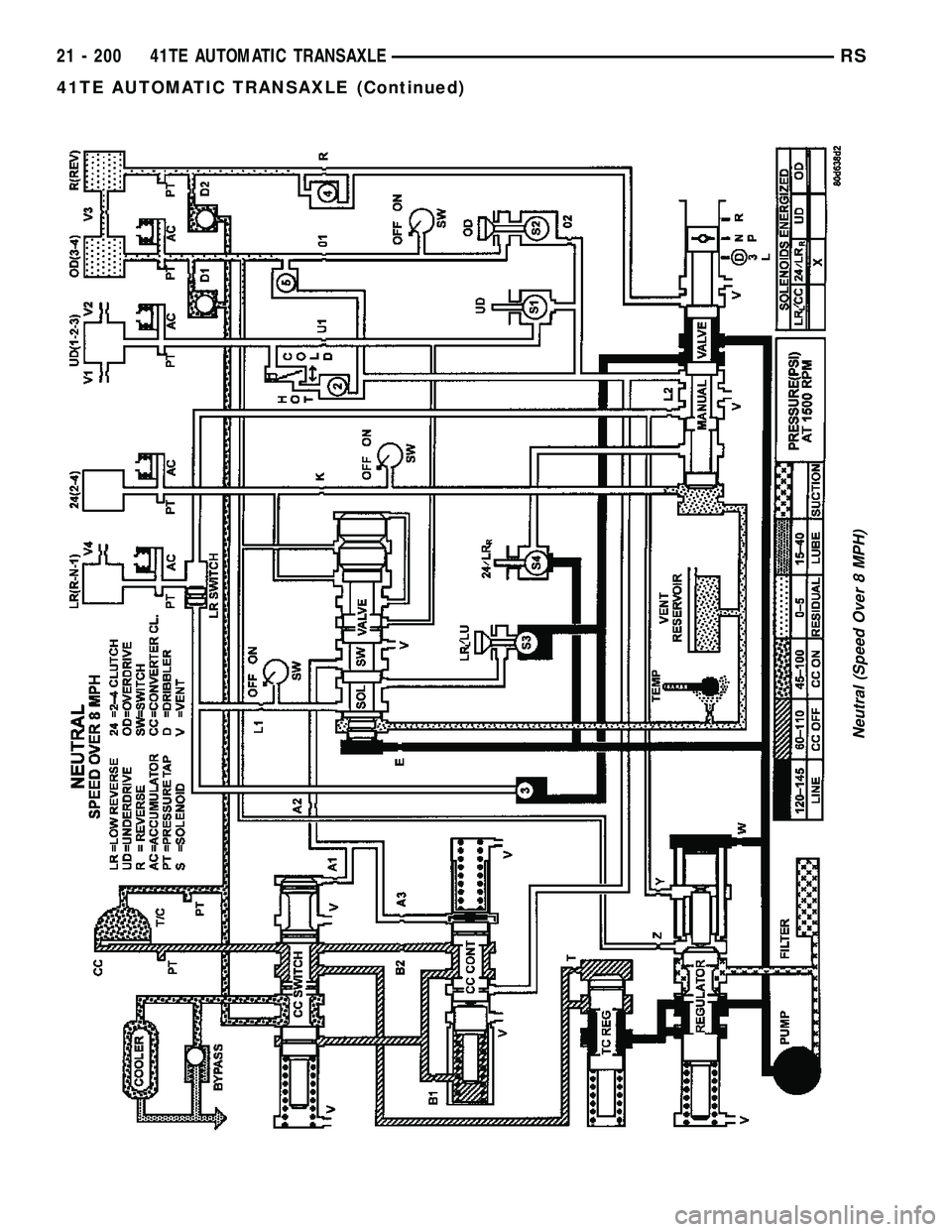

Neutral (Speed Over 8 MPH)
21 - 200 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)

Reverse
RS41TE AUTOMATIC TRANSAXLE21 - 201
41TE AUTOMATIC TRANSAXLE (Continued)

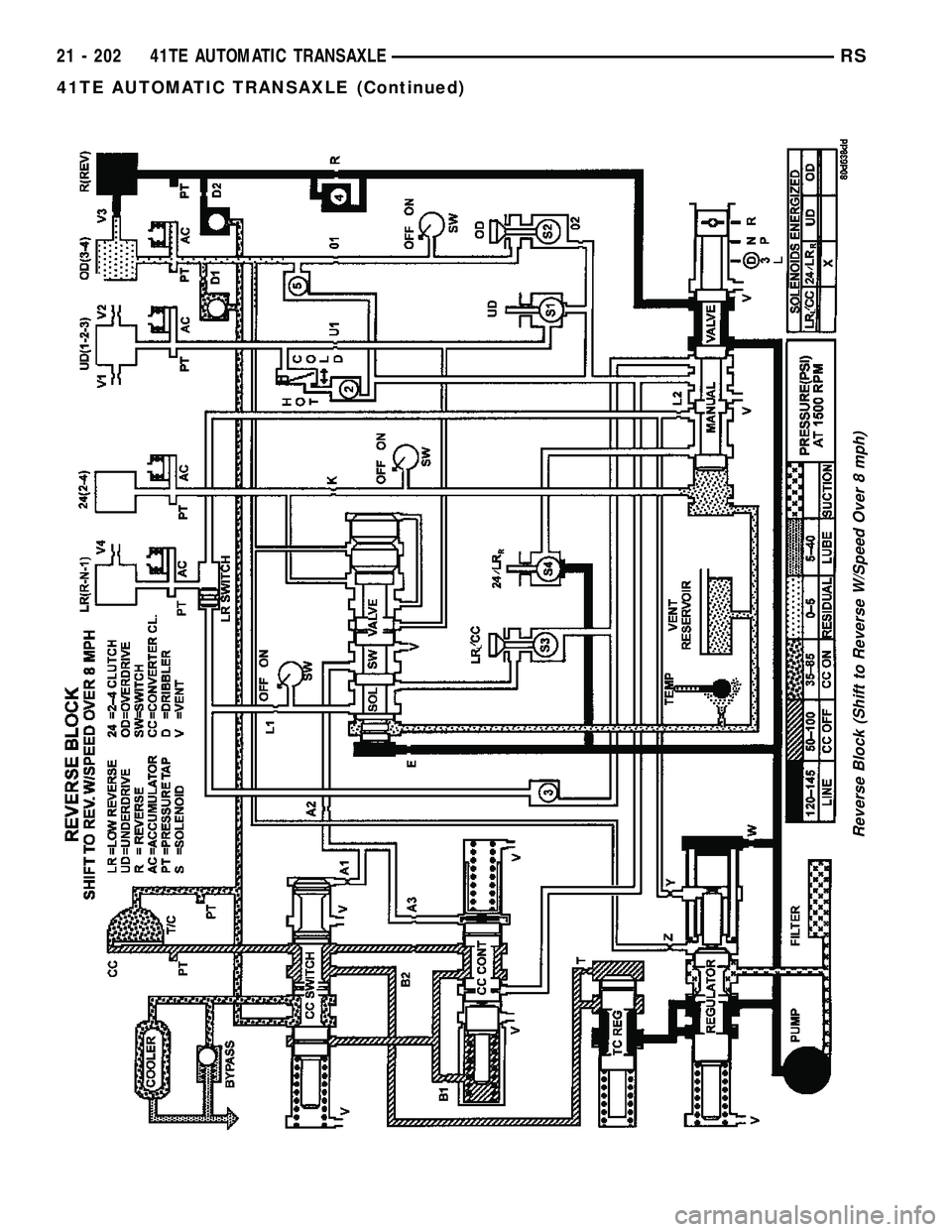

Reverse Block (Shift to Reverse W/Speed Over 8 mph)
21 - 202 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)

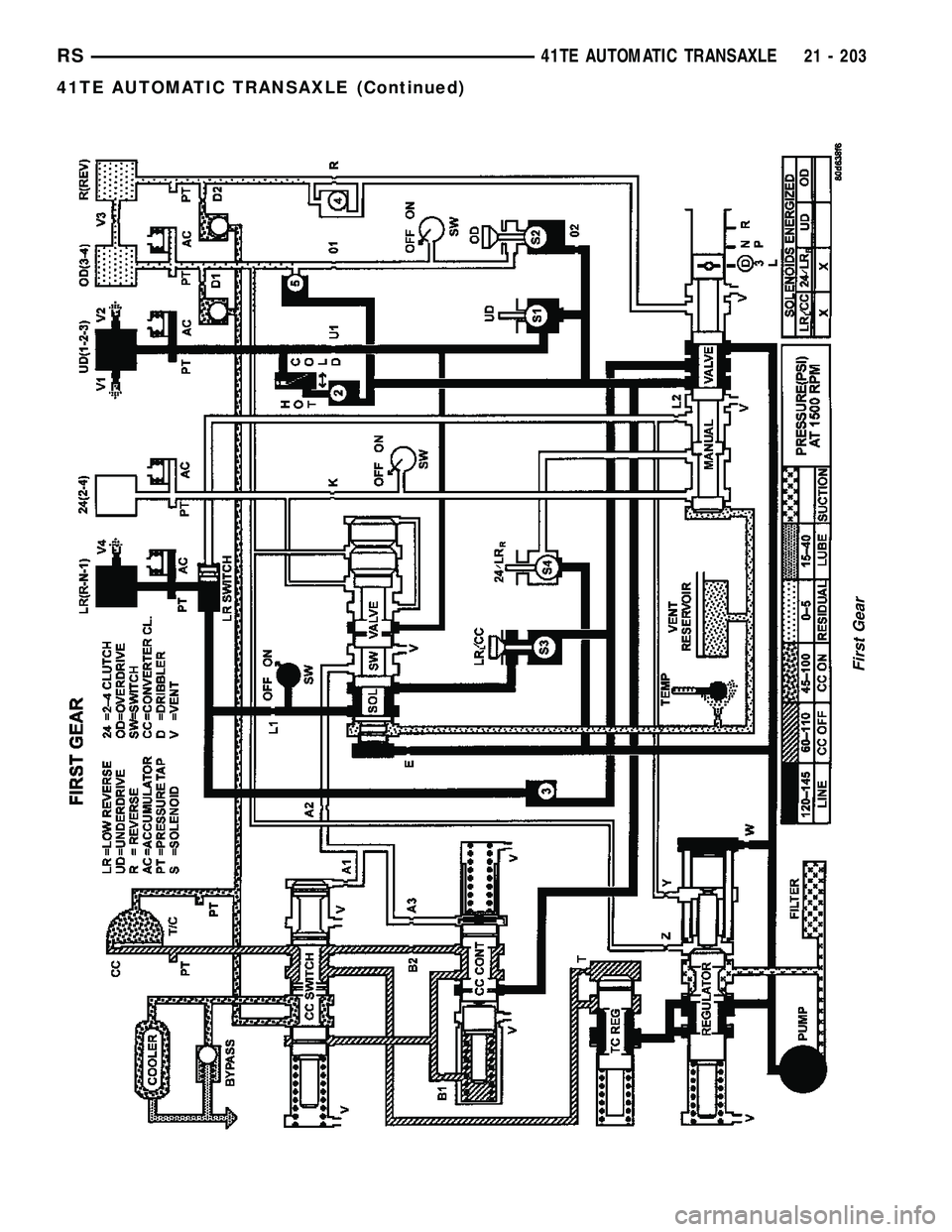

First Gear
RS41TE AUTOMATIC TRANSAXLE21 - 203
41TE AUTOMATIC TRANSAXLE (Continued)

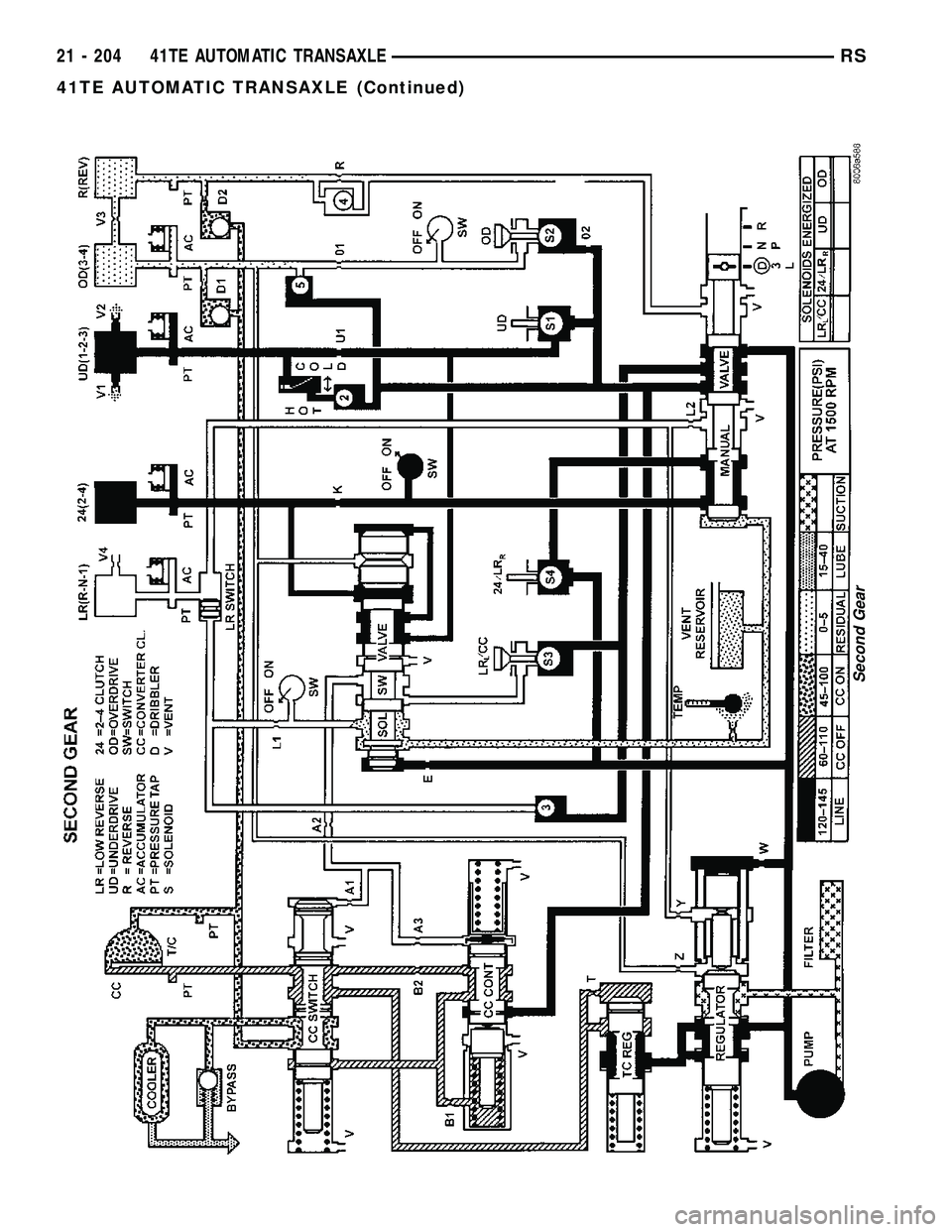

Second Gear
21 - 204 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)

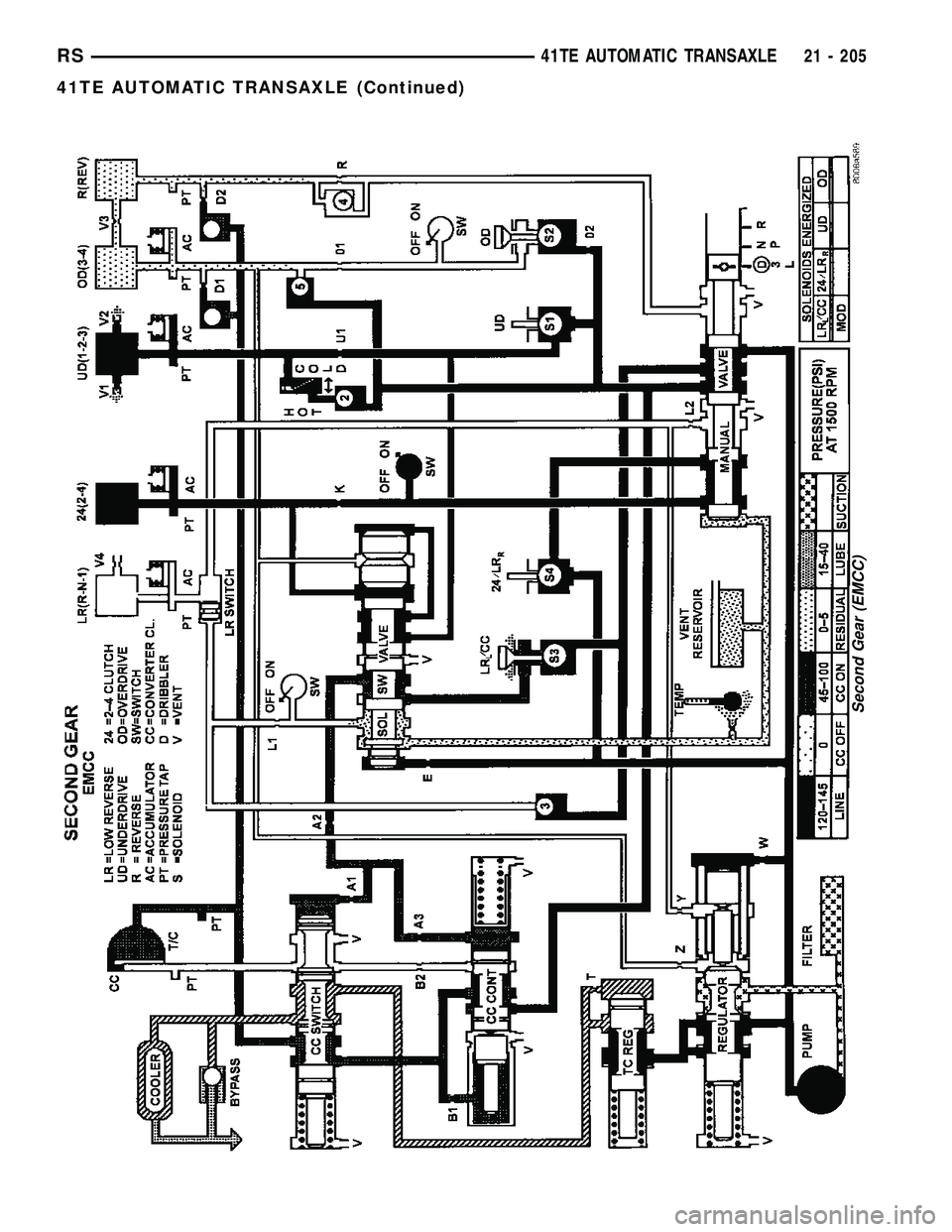

Second Gear (EMCC)
RS41TE AUTOMATIC TRANSAXLE21 - 205
41TE AUTOMATIC TRANSAXLE (Continued)

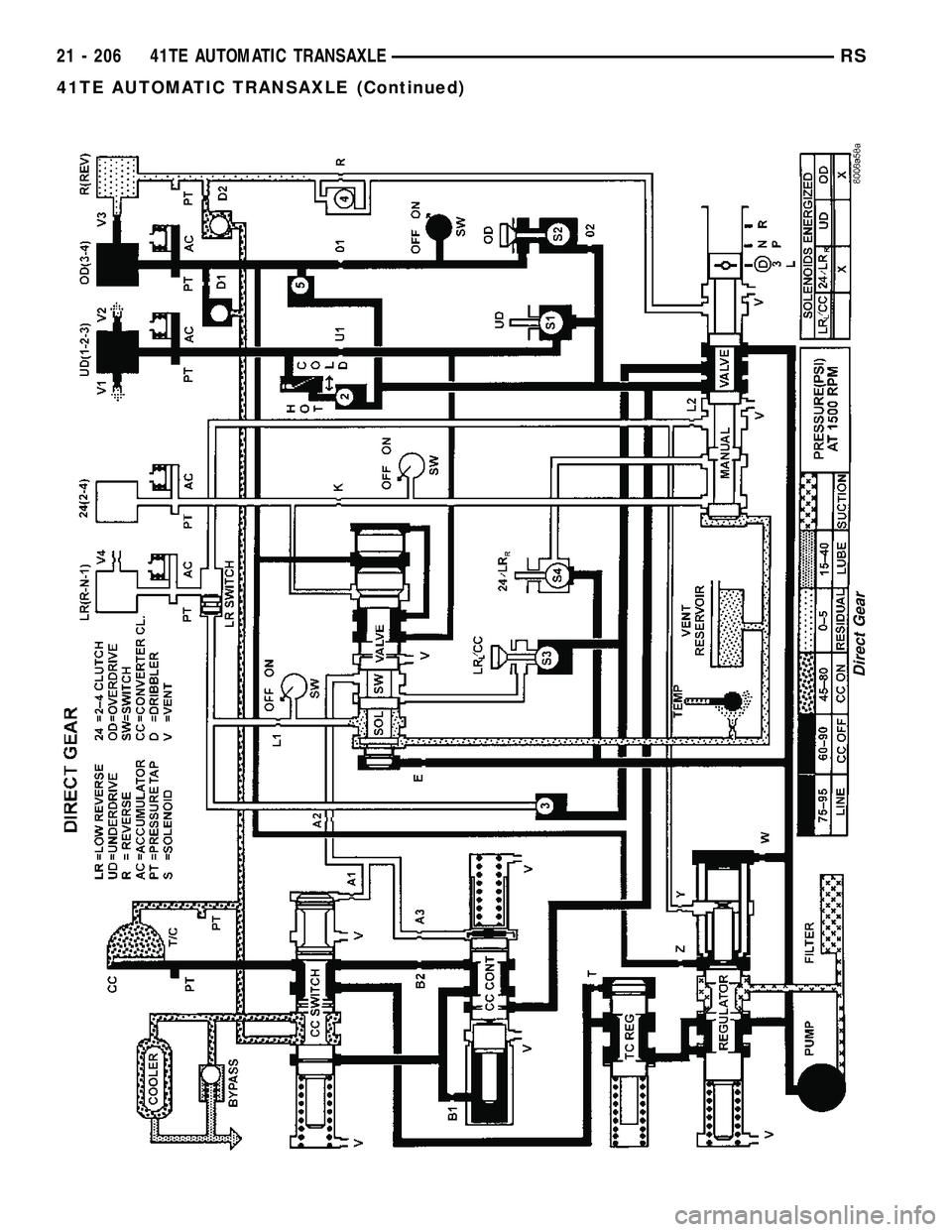

Direct Gear
21 - 206 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)

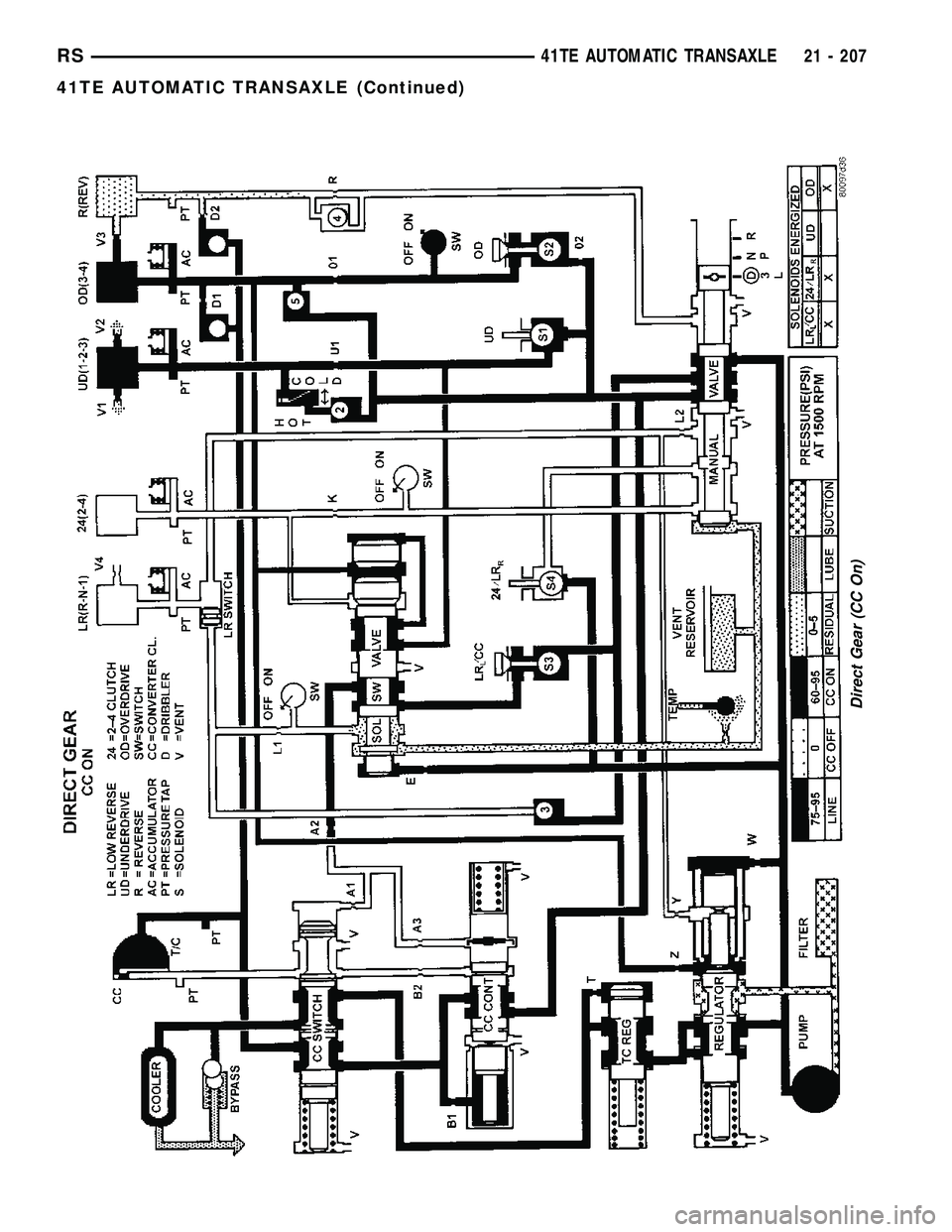

Direct Gear (CC On)
RS41TE AUTOMATIC TRANSAXLE21 - 207
41TE AUTOMATIC TRANSAXLE (Continued)

Overdrive
21 - 208 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)

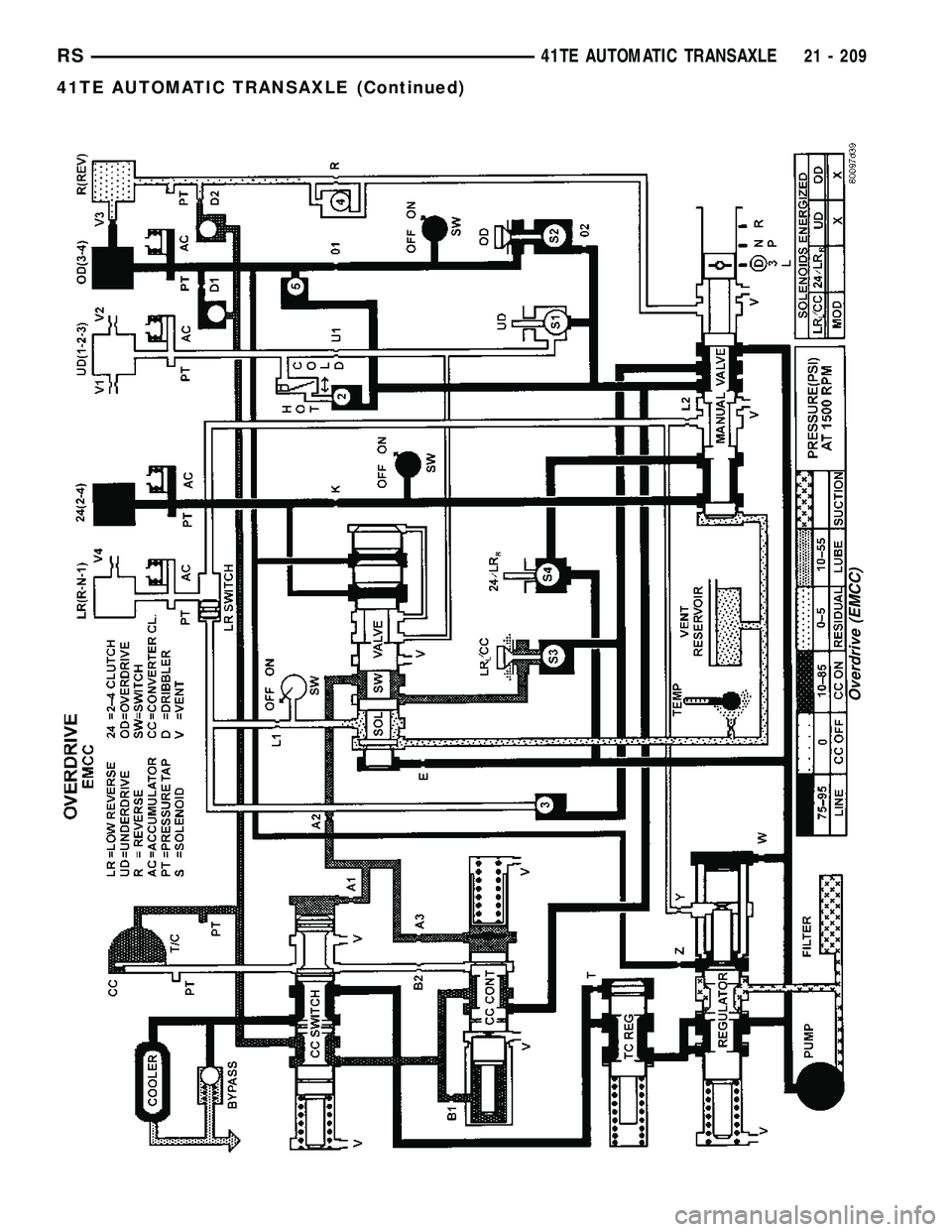

Overdrive (EMCC)
RS41TE AUTOMATIC TRANSAXLE21 - 209
41TE AUTOMATIC TRANSAXLE (Continued)
