Fig. 70 ROOF AND REAR QUARTER PANELS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 223
STRUCTURAL ADHESIVE LOCATIONS (Continued)

Fig. 71 FLOOR PAN - SHORT WHEEL BASE ONLY
23 - 224 BODY STRUCTURERS
STRUCTURAL ADHESIVE LOCATIONS (Continued)

WELD LOCATIONS
SPECIFICATIONS
SPECIFICATIONS - WELD LOCATIONS
INDEX
DESCRIPTION FIGURE
FRONT FENDER SHIELD - RIGHT 85
FRONT FENDER SHIELD - LEFT 86
STRUT TOWER AND REINFORCEMENTS - RIGHT 87
SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT 88
STRUT TOWER AND REINFORCEMENTS - LEFT 89
SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT 90
FLOOR PAN REINFORCEMENTS - SIDE RAILS 91
REAR SUSPENSION BRACKETS 92
FLOOR PAN CROSS MEMBERS 93
SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY 94
STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY 95
FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION 96
REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE 97
FRONT SEAT CROSS MEMBER 98
FLOOR PAN SIDE RAIL REINFORCEMENT 99
SILL BULKHEAD REINFORCEMENTS 100
FLOOR PAN CROSS MEMBER REINFORCEMENTS 101
FRONT SEAT CROSS MEMBER 102
SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE 103
CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE 104
REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE 105
LOWER LIFTGATE PANEL LATCH REINFORCEMENT 106
ENGINE MOUNTING PLATE AND TOW BRACKET 107
HEADLAMP MOUNTING PLATE 108
LOWER RADIATOR CROSS MEMBER BRACKETS 109
CROSS MEMBER EXTENSIONS 110
JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR 111
FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY 112
FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY 113
FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY 114
REAR SUPPORT AND TIRE STOWAGE CROSS MEMBERS - LONG WHEEL BASE
ONLY11 5
INNER SIDE SILLS - LONG WHEEL BASE ONLY 116
WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY 117
REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY 118
23 - 234 BODY STRUCTURERS

DESCRIPTION FIGURE
FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY 119
INNER SIDE SILLS - SHORT WHEEL BASE ONLY 120
REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY 121
CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY 122
WHEELHOUSES - SHORT WHEEL BASE ONLY 123
FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY 124
FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY 125
INNER BODY SIDE SILL REINFORCEMENTS 126
TOE BOARD CROSS MEMBER 127
FRONT SIDE RAIL - SHORT WHEEL BASE ONLY 128
DASH PANEL REINFORCEMENT 129
LOWER COWL PLENUM 130
UPPER COWL PLENUM SUPPORT 131
UPPER DASH PANEL 132
COWL SIDE PANELS 133
INSTRUMENT PANEL ATTACHMENT TAPPING PLATES 134
INSTRUMENT PANEL, DASH PANEL, ACM MODULE AND ACCELERATOR PEDAL 135
STRUT TOWER BRACKET AND COWL PLENUM 136
FRONT SIDE RAILS TO LOWER DASH PANEL 137
INNER BODY SIDE SILL TO LOWER DASH PANEL 138
FRONT HINGE TAPPING PLATE 139
FRONT HINGE PILLAR 140
INNER WINDSHIELD FRAME 141
WINDSHIELD FRAME 142
FENDER BRACKET 143
INNER B-PILLAR 144
STRIKER LATCH AND TAPPING PLATES 145
RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY 146
RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE
ONLY147
RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY 148
STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY 149
BELT TAPPING PLATE - LONG WHEEL BASE ONLY 150
C-PILLAR REINFORCEMENT - LONG WHEEL BASE ONLY 151
OUTER WHEELHOUSE - LONG WHEEL BASE ONLY 152
C AND D-PILLAR INNER REINFORCEMENTS - LONG WHEEL BASE ONLY 153
LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY 154
OUTER WHEELHOUSE EXTENSION - LONG WHEEL BASE ONLY 155
TAIL LAMP - LONG WHEEL BASE ONLY 156
SLIDING DOOR LATCH - LONG WHEEL BASE ONLY 157
ROOF BOW EXTENSION - LONG WHEEL BASE ONLY 158
RIGHT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 159
RSBODY STRUCTURE23 - 235
WELD LOCATIONS (Continued)

DESCRIPTION FIGURE
LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 160
D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 161
OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 162
LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 163
LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY 164
D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 165
OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 166
BODY SIDE APERTURE RIGHT SIDE- LONG WHEEL BASE ONLY 167
BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY 168
BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY 169
BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY 170
LOWER SLIDING DOOR TRACK 171
LIFTGATE UPPER FRAME 172
UPPER WINDSHIELD FRAME 173
FRONT FENDER SHIELD BEAM 174
FRONT FENDER SHIELD BEAM/COWL SIDE PANEL 175
HINGE PILLAR REINFORCEMENT 176
INNER SIDE SILL - LONG WHEEL BASE ONLY 177
INNER SIDE SILL/OUTER SIDE SILL - LONG WHEEL BASE ONLY 178
LOWER SLIDING DOOR TRACK REINFORCEMENT - LONG WHEEL BASE ONLY 179
UPPER WINDSHIELD FRAME/ROOF PANEL - LONG WHEEL BASE ONLY 180
ROOF BOWS/INNER ROOF SIDE RAILS 181
OUTER ROOF PANEL - LONG WHEEL BASE ONLY 182
INNER SIDE SILL - SHORT WHEEL BASE ONLY 183
INNER/OUTER SIDE SILLS - SHORT WHEEL BASE ONLY 184
LOWER SLIDING DOOR TRACK - SHORT WHEEL BASE ONLY 185
UPPER WINDSHIELD FRAME/OUTER ROOF PANEL - SHORT WHEEL BASE ONLY 186
REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE
TYPICAL187
FRONT LOWER LIFTGATE OPENING 188
REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY 189
INNER WHEELHOUSE - LONG WHEEL BASE ONLY 190
SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY 191
LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY 192
ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY 193
BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY 194
REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY 195
INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 196
SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY 197
LOWER LIFTGATE OPENING - SHORT WHEEL BASE ONLY 198
ROOF PANEL/ROOF RAIL - SHORT WHEEL BASE ONLY 199
RIGHT SIDE OUTER REAR WHEELHOUSE, EXTENSION AND BODY SIDE APERTURE
- SHORT WHEEL BASE ONLY200
23 - 236 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 94 SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY
23 - 246 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 95 STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 247
WELD LOCATIONS (Continued)

Fig. 97 REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE
RSBODY STRUCTURE23 - 249
WELD LOCATIONS (Continued)

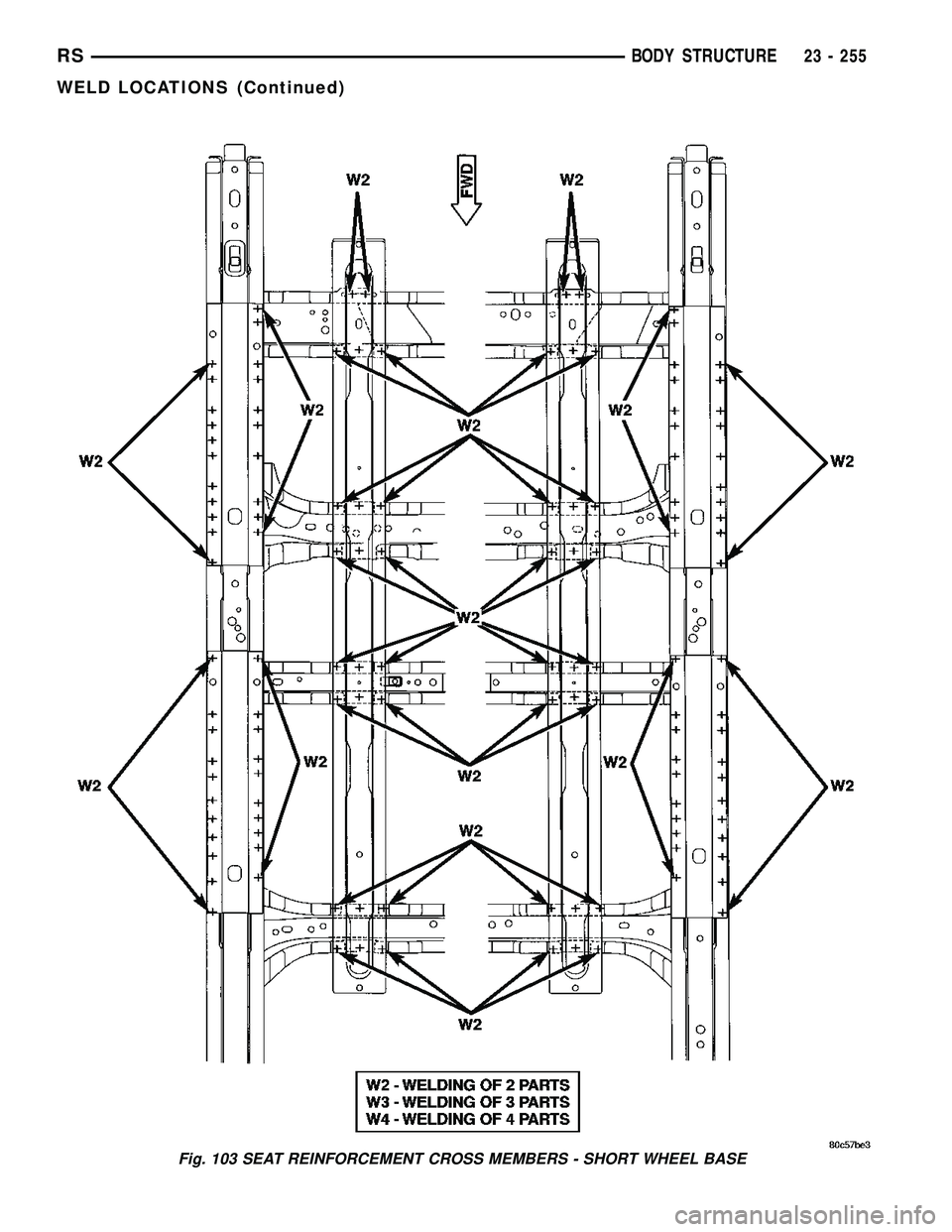

Fig. 103 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE
RSBODY STRUCTURE23 - 255
WELD LOCATIONS (Continued)

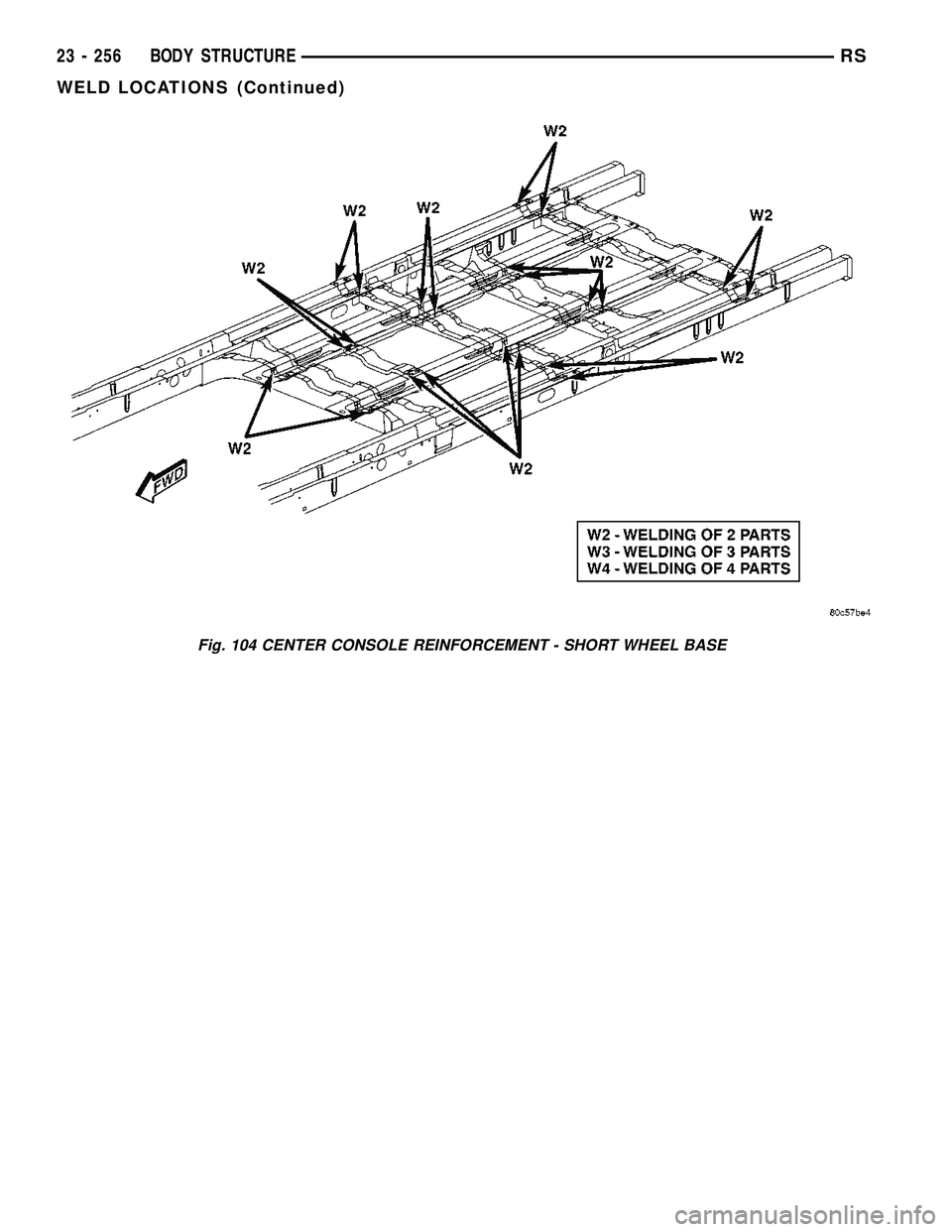

Fig. 104 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE
23 - 256 BODY STRUCTURERS
WELD LOCATIONS (Continued)
