C200 - GRAY (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
40 Z109 20BK/GY (RHD)
41 R81 20LB/WT (LHD)
41 A645 20RD/VT (RHD)
42 R82 20WT/LB (LHD)
42 G945 20VT/DG (RHD)
43 A128 18RD/OR (EXCEPT EXPORT/EXCEPT MEMORY)
44 P70 20/LB (RHD MEMORY)
45 P71 20TN/DG (LHD MEMORY)
46 P72 20TN/LG (RHD MEMORY)
47 P73 20TN/YL (LHD MEMORY)
48 P74 20TN/DB (RHD MEMORY)
49 P75 20TN/LG (LHD MEMORY)
49 R80 20VT/LB (RHD)
50 P112 22TN/OR (LUXURY/EXCEPT EXPORT)
50 R82 20WT/LB (RHD)
51 P171 20TN/YL (EXPORT)
51 P114 22TN/WT (LUXURY/EXCEPT EXPORT)
52 P7 20LG/DG (HEATED SEATS)
53 P8 20LG/WT (HEATED SEATS)
54 C154 22LB/OR (3 ZONE ATC)
54 C154 20LB/OR (3 ZONE MTC)
55 X156 20GY/LB (EXPORT)
55 X156 18GY/LB (HIGHLINE AUDIO EXCEPT EXPORT)
56 X154 20GY/YL (EXPORT)
56 X154 18GY/YL (HIGHLINE AUDIO EXCEPT EXPORT)
57 P162 20LG/DG (EXPORT)
58 T751 20YL
59 X15 16GY/DG (EXPORT)
60 A701 18BR/RD
61 X3 22DG/VT
62 X153 20DG/YL (LOWLINE AUDIO)
62 X53 20DG (LOWLINE AUDIO/EXPORT)
63 X154 20GY/YL (LOWLINE AUDIO)
63 X54 20GY (LOWLINE AUDIO/EXPORT)
64 X155 20DG/LB (LOWLINE AUDIO)
64 X55 20DG/BR (LOWLINE AUDIO/EXPORT)
65 X156 20GY/BR (LOWLINE AUDIO)
65 X56 20GY/BR (LOWLINE AUDIO/EXPORT)
66 C54 22LB/YL (3 ZONE HVAC)
67 V37 22VT
68 X51 22DG/DB
69 X52 22GY/DB
70 X57 22DG/OR
71 X58 22GY/OR
72 X153 20DG/YL (EXPORT)
72 X153 18DG/YL (HIGHLINE AUDIO EXCEPT EXPORT)
73 K900 20DB/DG
74 X155 20DG/LB (EXPORT)
74 X155 22DG/LB (HIGHLINE AUDIO EXCEPT EXPORT)
8W - 80 - 26 8W-80 CONNECTOR PIN-OUTSRS

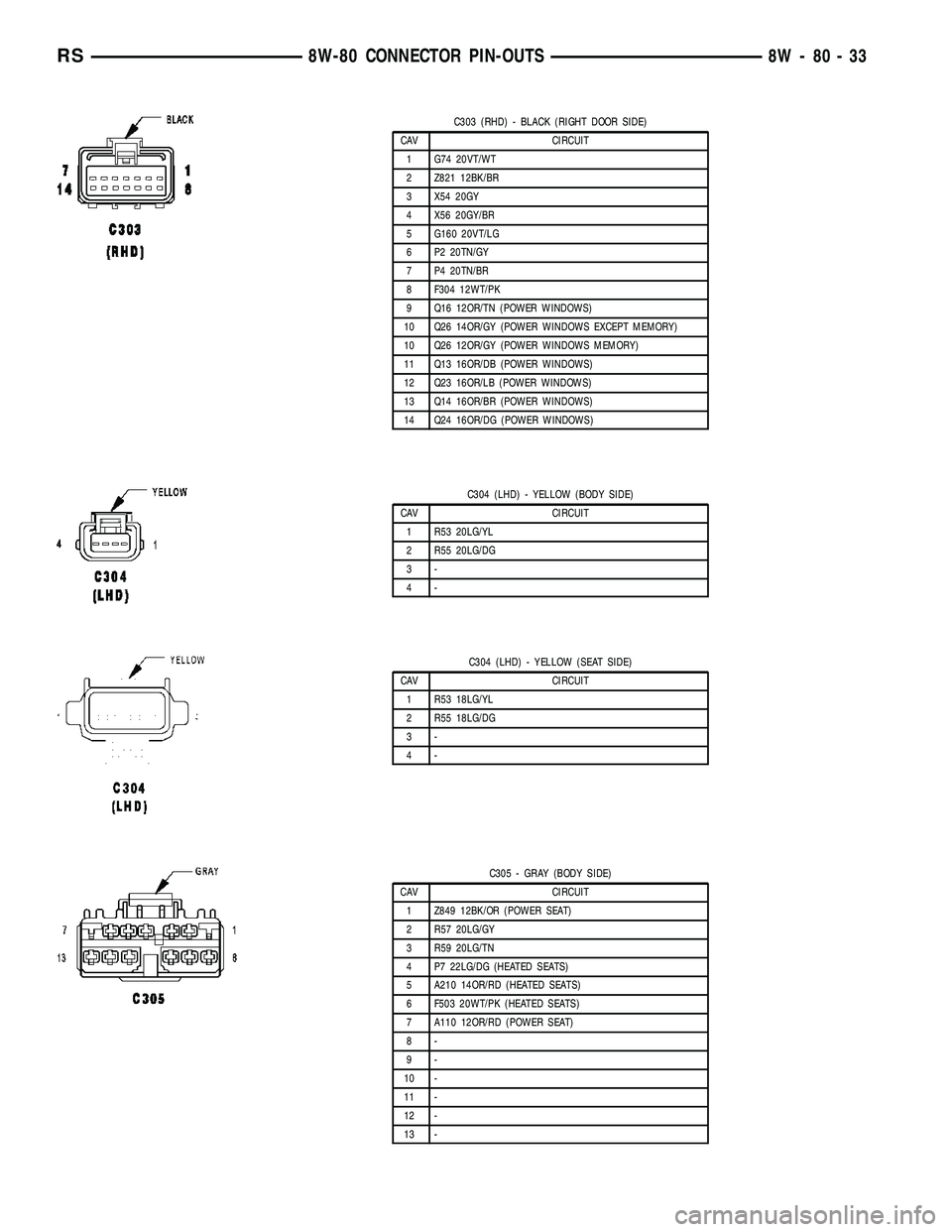

C303 (RHD) - BLACK (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS EXCEPT MEMORY)
10 Q26 12OR/GY (POWER WINDOWS MEMORY)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
C304 (LHD) - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R53 20LG/YL
2 R55 20LG/DG
3-
4-
C304 (LHD) - YELLOW (SEAT SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3-
4-
C305 - GRAY (BODY SIDE)
CAV CIRCUIT
1 Z849 12BK/OR (POWER SEAT)
2 R57 20LG/GY
3 R59 20LG/TN
4 P7 22LG/DG (HEATED SEATS)
5 A210 14OR/RD (HEATED SEATS)
6 F503 20WT/PK (HEATED SEATS)
7 A110 12OR/RD (POWER SEAT)
8-
9-
10 -
11 -
12 -
13 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-33

C307 - YELLOW (SEAT SIDE)
CAV CIRCUIT
1 Z848 14BK/OR (POWER SEAT)
2 P8 20LG/DG (HEATED SEAT)
3 F201 20PK/OR (OCCUPANT SENSING/EXCEPT EXPORT)
4 R54 18LB/YL
5 R56 18LB/DG
6 R986 20LG/BR (OCCUPANT SENSING/EXCEPT EXPORT)
7 D105 20LG/LB (OCCUPANT SENSING/EXCEPT EXPORT)
8 A210 14OR/RD
9 R60 16LB/TN
10 D25 20WT/VT (OCCUPANT SENSING/EXCEPT EXPORT)
11 Z104 20BK/LG (OCCUPANT SENSING/EXCEPT EXPORT)
12 -
13 -
14 R86 20LG/LB (OCCUPANT SENSING/EXCEPT EXPORT)
15 F503 20WT/PK (HEATED SEAT)
16 R58 16LB/GY
C308 (EXCEPT SIDE AIRBAG) - GREEN (BODY SIDE)
CAV CIRCUIT
1 Z77 22BK/GY (MANUAL SLIDING DOOR)
1 Z825 14BK/WT (POWER SLIDING DOOR)
2 P32 20TN/VT
3 G77 22VT/GY
4 P5 20TN/OR
5 G151 22VT/BR (POWER SLIDING DOOR)
6 D25 20WT/VT (MEMORY)
6 D25 20WT/VT (POWER SLIDING DOOR)
7-
8 A113 12WT/RD (POWER SLIDING DOOR)
C308 (EXCEPT SIDE AIRBAG) - GREEN (LEFT DOOR WIRE TRACK
ASSEMBLY SIDE)
CAV CIRCUIT
1 Z76 20BK (MANUAL SLIDING DOOR)
1 Z824 14BK (POWER SLIDING DOOR)
2 P34 20BK/DB
3 G77 20BK/DG
4 P38 20BK/DB
5 G151 20BK/GY (POWER SLIDING DOOR)
6 D25 20BK/VT (MEMORY)
6 D25 20BK/VT (POWER SLIDING DOOR)
7-
8 A113 14BK/RD (POWER SLIDING DOOR)
RS8W-80 CONNECTOR PIN-OUTS8W-80-35

C321 - DK. GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z848 18BK/OR
2 A210 14OR/RD
C321 - DK. GRAY (POWER SEAT SIDE)
CAV CIRCUIT
1 Z848 14BK/OR
2 A210 14OR/RD
C322 (MEMORY) - BLACK (BODY SIDE)
CAV CIRCUIT
1 P69 22TN/DB (LHD)
1 P66 22TN/LG (RHD)
2-
3 P64 22TN (LHD)
3 P67 22TN/OR (RHD)
4-
5-
6 P65 22TN/VT (LHD)
6 P68 22TN/YL (RHD)
7 D25 20WT/VT
8 P73 20TN/YL (LHD)
8 P70 20TN/LB (RHD)
9 P75 20TN/LG (LHD)
9 P74 20TN/DB (RHD)
10 P71 20TN/DG (LHD)
10 P72 20TN/GY (RHD)
11 -
12 -
13 -
14 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-47

C322 (MEMORY) - BLACK (POWER SEAT SIDE)
CAV CIRCUIT
1 P69 22TN/WT (LHD)
1 P66 22WT (RHD)
2-
3 P64 22TN/OR (LHD)
3 P67 22OR (RHD)
4-
5-
6 P65 22TN/YL (LHD)
6 P68 22YL (RHD)
7 D25 20WT/VT
8 P73 18TN/LB (LHD)
8 P70 18LB (RHD)
9 P75 18DB (LHD)
9 P74 18TN/DB (RHD)
10 P71 18TN/GY (LHD)
10 P72 18GY (RHD)
11 -
12 -
13 -
14 -
C324 (MANUAL SLIDING DOOR) - BLACK (LEFT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z76 20BK
C324 (MANUAL SLIDING DOOR) - BLACK (LEFT
MANUAL SLIDING DOOR SIDE)
CAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z77 20BK
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSRS

DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER
1 S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER
2 S2 18DG (LHD) SEAT BACK HEATER GROUND
2 S2 18BK (RHD) SEAT BACK HEATER GROUND
DRIVER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD SEAT TEMP SENSOR INPUT
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z849 18BK/OR GROUND
4 P88 16GR SEAT CUSHION HEATER B(+) DRIVER
DRIVER KNEE BLOCKER AIRBAG SQUIB (LHD) - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1-
2-
3 R9 20LB/YL DRIVER KNEE BLOCKER SQUIB LINE 1
4 R11 20LB/DB DRIVER KNEE BLOCKER SQUIB LINE 2
DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P19 14LG/LB (EXCEPT MEMORY) DRIVER FRONT UP SWITCH SENSE
1 P121 14LG/DB (MEMORY EXCEPT
EXPORT)SEAT FRONT DOWN DRIVER
1 P119 14LG/DG (MEMORY EXPORT) SEAT FRONT UP DRIVER
2 P21 14LG/TN (EXCEPT MEMORY) DRIVER FRONT DOWN SWITCH SENSE
2 P121 14LG/DB (MEMORY EXCEPT
EXPORT)SEAT FRONT DOWN DRIVER
2 P119 14LG/DG (MEMORY EXPORT) SEAT FRONT UP DRIVER
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTSRS

DRIVER POWER SEAT FRONT RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P17 14LG/DG (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
1 P117 14LG/LB (MEMORY EXCEPT
EXPORT)SEAT HORIZONTAL REARWARD DRIVER
1 P115 14LG (MEMORY EXPORT) SEAT HORIZONTAL FORWARD DRIVER
2 P15 14LG/WT (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
2 P115 14LG/OR (MEMORY EXCEPT
EXPORT)SEAT HORIZONTAL FORWARD DRIVER
2 P117 14LG/LB (MEMORY EXPORT) SEAT HORIZONTAL REARWARD DRIVER
DRIVER POWER SEAT HORIZONTAL POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P25 20LG/VT SEAT HORIZONTAL POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P11 14LG/YL (EXCEPT MEMORY) DRIVER SEAT REAR UP SWITCH SENSE
1 P111 14LG/YL (MEMORY EXCEPT
EXPORT)SEAT REAR UP DRIVER
1 P113 14LG/WT (MEMORY EXPORT) SEAT REAR DOWN DRIVER
2 P13 14LG/OR (EXCEPT MEMORY) DRIVER SEAT REAR DOWN SWITCH SENSE
2 P113 14LG/VT (MEMORY EXCEPT
EXPORT)SEAT REAR DOWN DRIVER
2 P111 14LG/YL (MEMORY EXPORT) SEAT REAR UP DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W-80-61

DRIVER POWER SEAT REAR RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
DRIVER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P41 14LG/GY (EXCEPT MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
1 P141 14LG/BR (MEMORY EXCEPT
EXPORT)SEAT RECLINER DOWN DRIVER
1 P143 14LG/GY (MEMORY EXPORT) SEAT RECLINER UP DRIVER
2 P43 14LG/VT (EXCEPT MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
2 P143 14LG/GY (MEMORY EXCEPT
EXPORT)SEAT RECLINER UP DRIVER
2 P141 14LG/BR (MEMORY EXPORT) SEAT RECLINER DOWN DRIVER
DRIVER POWER SEAT RECLINER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P47 20LG/LB RECLINER POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR (EXCEPT MEMORY) GROUND
1 Z849 20BK/OR (MEMORY) GROUND
2 P43 14LG/VT (EXCEPT MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
2 P43 14LG/VT (MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
3 P17 14LG/DG (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
3 P17 20LG/DG (MEMORY) DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
4 P41 14LG/GY (EXCEPT MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
4 P41 14LG/GY (MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD (EXCEPT MEMORY) FUSED SEAT SWITCH DRIVER
5 P9 20LG/OR (MEMORY) SEAT SWITCH B(+) SUPPLY
6 P15 14LG/WT (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
6 P15 20LG/WT (MEMORY) DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
7 P19 14LG/LB (EXCEPT MEMORY) DRIVER SEAT FRONT UP SWITCH SENSE
7 P19 20LG/LB (MEMORY) DRIVER SEAT FRONT UP SWITCH SENSE
8 P11 14LG/YL (EXCEPT MEMORY) DRIVER SEAT REAR UP SWITCH SENSE
8 P11 20LG/YL (MEMORY) DRIVER SEAT REAR UP SWITCH SENSE
9 P13 14LG/OR (EXCEPT MEMORY) DRIVER SEAT REAR DOWN SWITCH SENSE
9 P13 20LG/OR (MEMORY) DRIVER SEAT REAR DOWN SWITCH SENSE
10 P21 14LG/TN (EXCEPT MEMORY) DRIVER SEAT FRONT DOWN SWITCH SENSE
10 P21 20LG/TN (MEMORY) DRIVER SEAT FRONT DOWN SWITCH SENSE
8W - 80 - 62 8W-80 CONNECTOR PIN-OUTSRS

DRIVER POWER WINDOW SWITCH (RHD) - NATURAL 14 WAY
CAV CIRCUIT FUNCTION
1 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
2 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER (UP)
3 Q14 16OR/BR PASSENGER SIDE REAR WINDOW CLOSE
4 Q26 14OR/GY (EXCEPT MEMORY) MASTER WINDOW SWITCH PASSENGER (DOWN)
4 Q26 12OR/GY (MEMORY) MASTER WINDOW SWITCH PASSENGER (DOWN)
5 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
6 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
7 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
8 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
9 Z421 12BK/BR GROUND
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
14 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER (DOWN)
DRIVER SEAT BELT SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 R57 18LG/GY DRIVER SEAT BELT SWITCH SENSE
2 R59 18LG/TN DRIVER SEAT BELT SWITCH GROUND
DRIVER SEAT BELT TENSIONER - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
2 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTSRS

INTEGRATED POWER MODULE C5 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 A1 4RD B(+)
2- -
3- -
4- -
INTEGRATED POWER MODULE C6 - NATURAL 10 WAY
CAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 Z117 16BK/WT GROUND
3 Z118 16BK/WT (LWB/EXPORT) GROUND
3 Z118 16BK/YL (SWB/EXCEPT EXPORT) GROUND
4 A110 12OR/RD (POWER SEAT) FUSED B(+)
5- -
6- -
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 F307 18LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESSORY RELAY OUTPUT
8 F307 18LB/PK (BATTERY POSITION) FUSED B(+)
9 A113 12WT/RD (POWER SLIDING
DOOR)FUSED B(+)
10 - -
INTEGRATED POWER MODULE C7 - 20 WAY
CAV CIRCUIT FUNCTION
1 C16 20DB/GY FUSED DEFOGGER RELAY OUTPUT
2 T141 20YL/OR (DIESEL) FUSED IGNITION SWITCH OUTPUT (START)
2 T751 20YL (GAS) FUSED IGNITION SWITCH OUTPUT (START)
3 D25 20WT/VT PCI BUS
4 L13 20WT/YL (EXPORT) HEADLAMP ADJUST SIGNAL
5 K32 18DB/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
6- -
7 W7 20BR/GY WIPER PARK SWITCH SENSE
8 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
9 F201 20PK/OR ORC RUN-START DRIVER
10 - -
11 A106 20LB/RD FUSED B(+)
12 P201 20LG/DB (EXCEPT EXPORT/EX-
CEPT MEMORY)ADJUSTABLE PEDALS RELAY CONTROL
13 F2 18PK/YL FCM OUTPUT (UNLOCK-RUN-START)
14 - -
15 A114 16GY/RD FUSED B(+) (I.O.D.)
16 D123 20WT/BR FLASH PROGRAM ENABLE
17 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
17 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
18 - -
19 X3 20DG/VT HORN SWITCH SENSE
20 F100 18PK/VT ORC RUN ONLY DRIVER
8W - 80 - 84 8W-80 CONNECTOR PIN-OUTSRS
