CHRYSLER VOYAGER 2005 Service Manual

8W-43 OCCUPANT RESTRAINT SYSTEM
Component Page
Belt Tension Sensor.................. 8W-43-8
Clockspring........................ 8W-43-4
Driver Airbag Squib 1................ 8W-43-4
Driver Airbag Squib 2................ 8W-43-4
Driver Knee Blocker Airbag Squib....... 8W-43-4

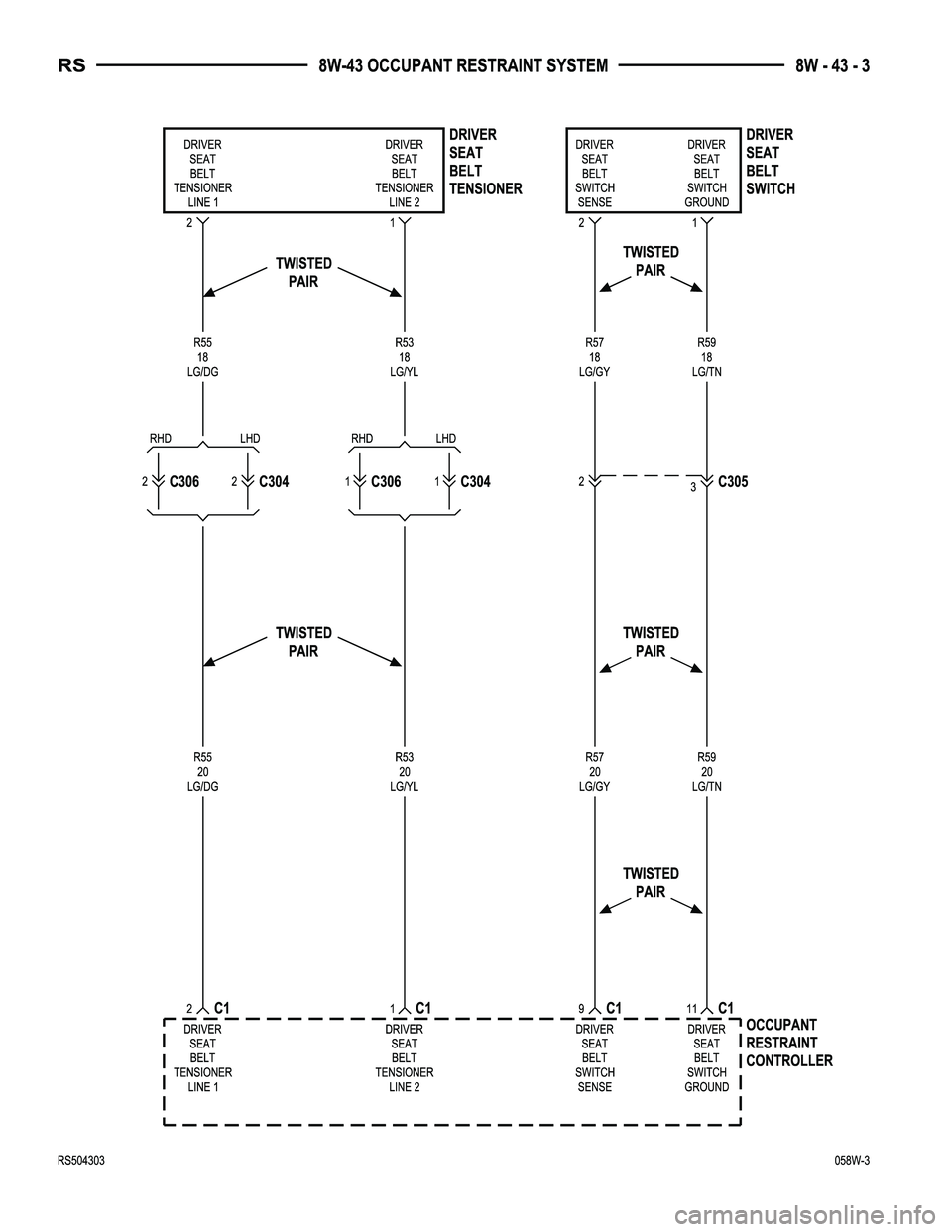

Driver Seat Belt Switch............... 8W-43-3
Driver Seat Belt Tensioner............. 8W-43-3

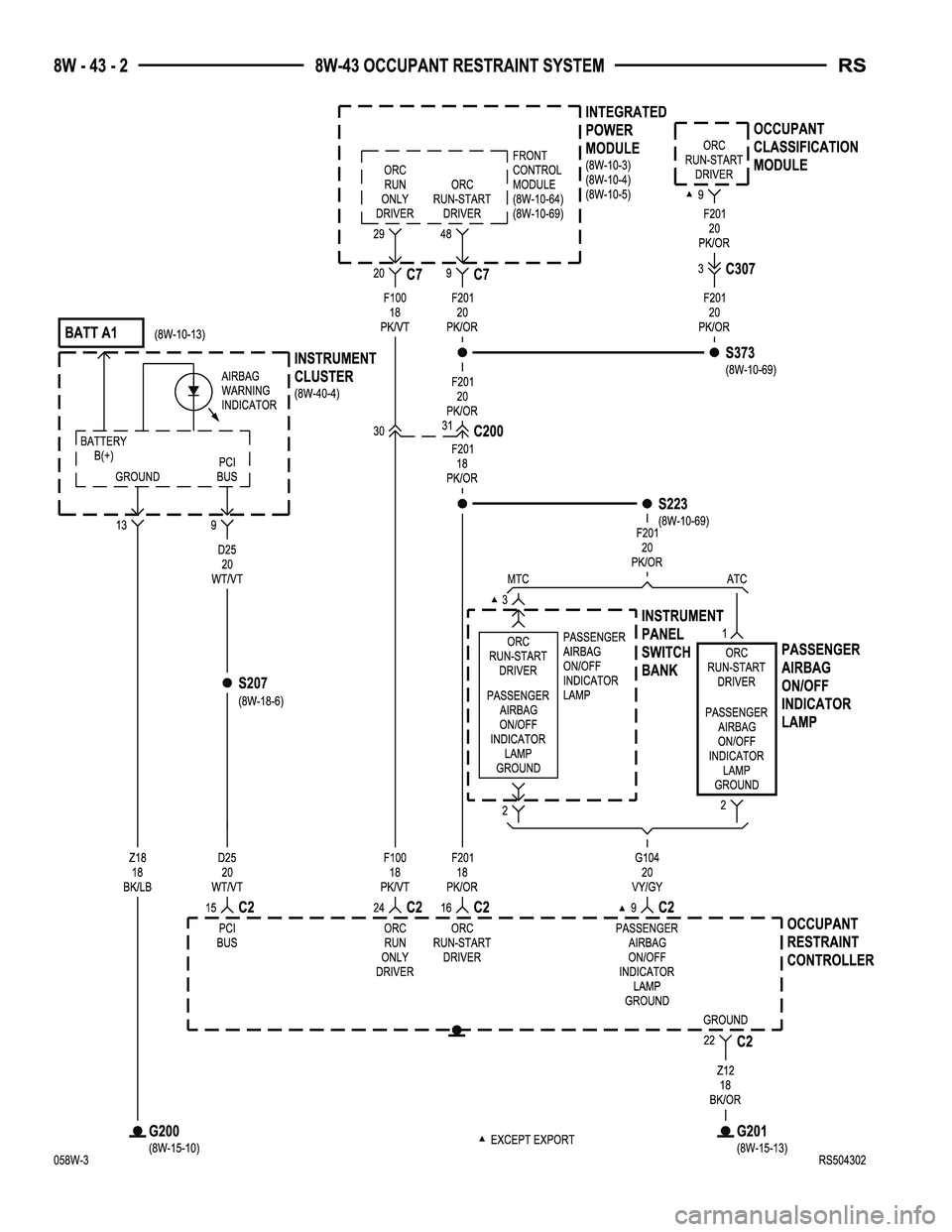

Front Control Module............... 8W-43-2, 8
G200.............................. 8W-43-2
G201.............................. 8W-43-2
G301.............................. 8W-43-8
Instrument Cluster................... 8W-43-2
Instrument Panel Switch Bank......... 8W-43-2
Integrated Power Module............ 8W-43-2, 8
Left Curtain Airbag Squib............. 8W-43-6
Left Front Impact Sensor.............. 8W-43-6Component Page
Left Side Impact Sensor 1............. 8W-43-6
Left Side Impact Sensor 2............. 8W-43-6
Left Side Impact Sensor 3............. 8W-43-6
Occupant Classification Module....... 8W-43-2, 8
Occupant Restraint
Controller............ 8W-43-2, 3, 4, 5, 6, 7, 8
Passenger Airbag.................... 8W-43-5
Passenger Airbag On/Off Indicator Lamp . . 8W-43-2
Passenger Seat Belt Switch............ 8W-43-5
Passenger Seat Belt Tensioner.......... 8W-43-5
Passenger Seat Weight Sensor.......... 8W-43-8
Right Curtain Airbag Squib............ 8W-43-7
Right Front Impact Sensor............. 8W-43-7
Right Side Impact Sensor 1............ 8W-43-7
Right Side Impact Sensor 2............ 8W-43-7
Right Side Impact Sensor 3............ 8W-43-7
RS8W-43 OCCUPANT RESTRAINT SYSTEM8W-43-1
