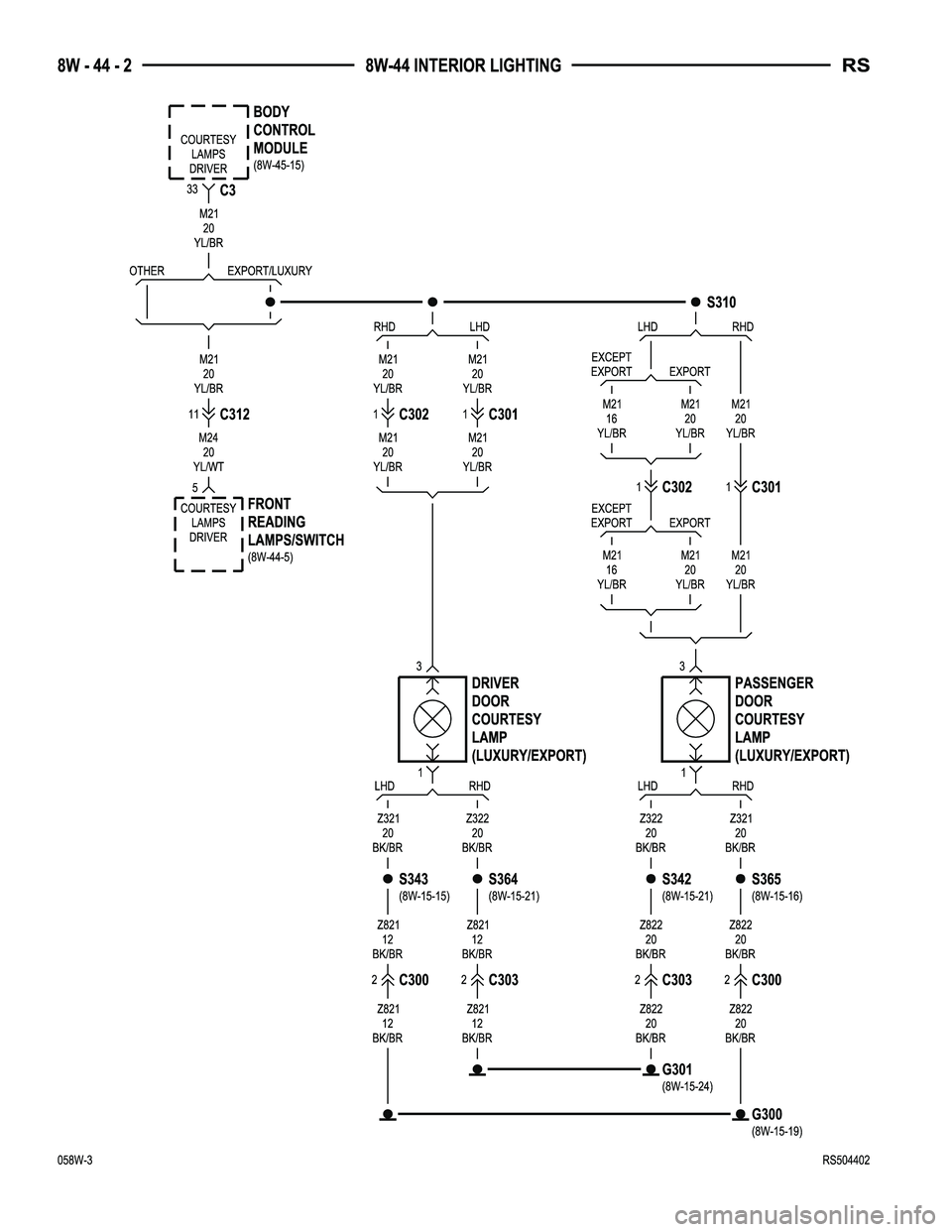

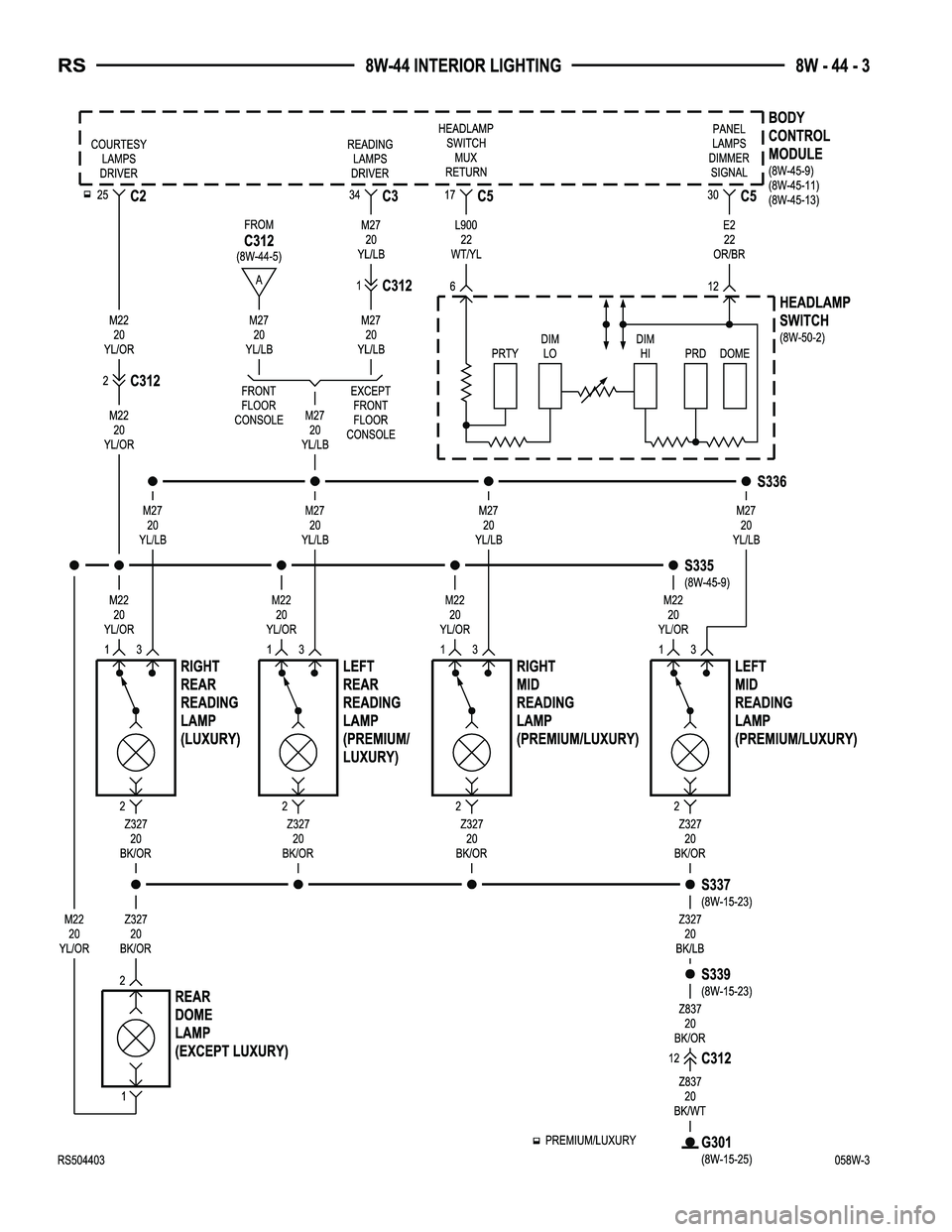

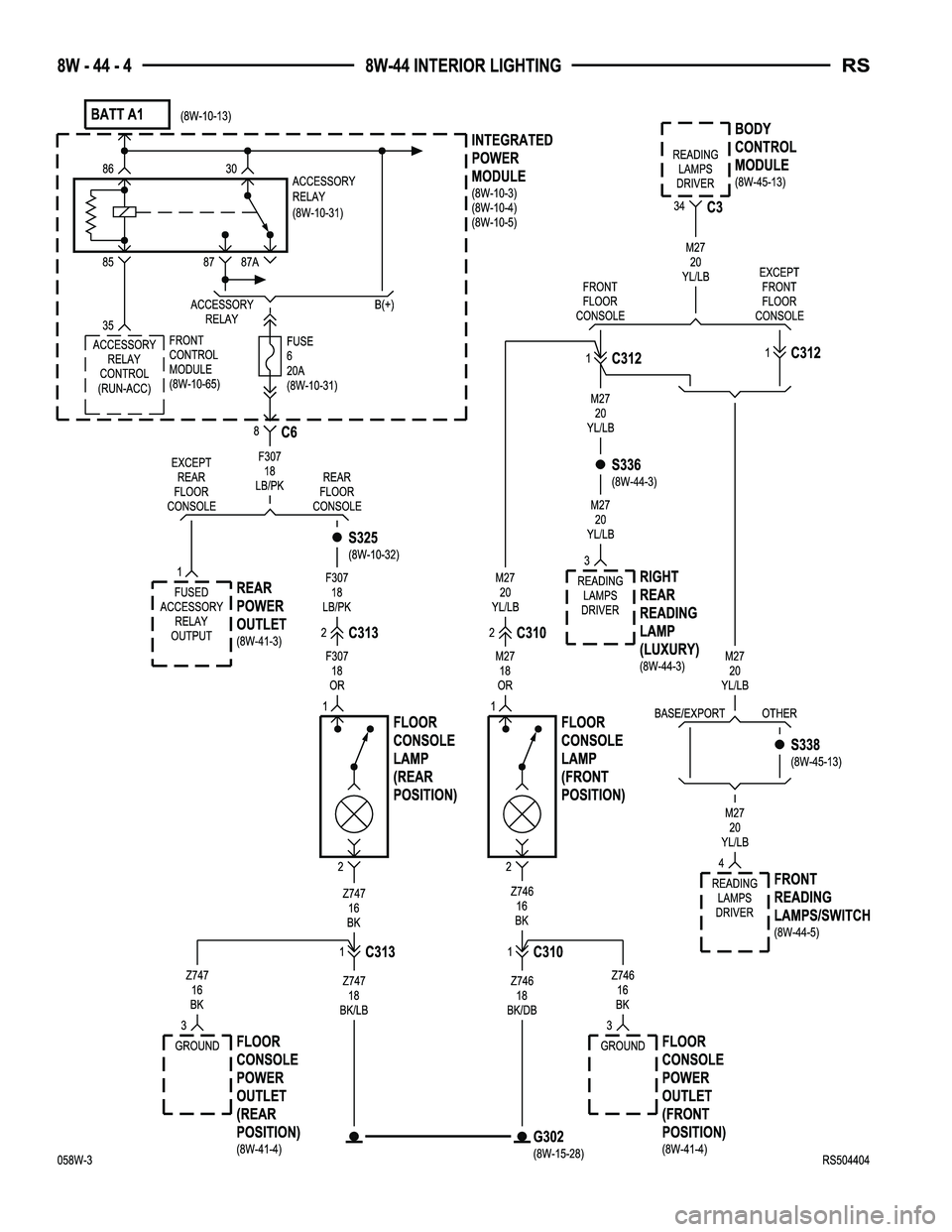

8W-44 INTERIOR LIGHTING
Component Page
A/C-Heater Control................... 8W-44-8
Accessory Relay..................... 8W-44-4
Auto Temp Control................... 8W-44-8
Body Control Module . . . 8W-44-2, 3, 4, 5, 7, 8, 9, 10
Driver Door Courtesy Lamp............ 8W-44-2
Floor Console Lamp................ 8W-44-4, 5
Floor Console Power Outlet............ 8W-44-4
Front Control Module................. 8W-44-4
Front Reading Lamps/Switch....... 8W-44-2, 4, 5
Fuse 6............................ 8W-44-4
G200............................ 8W-44-7, 8
G300............................ 8W-44-2, 8
G301........................ 8W-44-2, 3, 5, 6
G302.............................. 8W-44-4
G303........................... 8W-44-9, 10
Headlamp Switch.................... 8W-44-3
Instrument Cluster................... 8W-44-7Component Page
Instrument Panel Switch Bank......... 8W-44-7
Integrated Power Module.............. 8W-44-4
Left Liftgate Flood Lamp........... 8W-44-9, 10
Left Mid Reading Lamp............... 8W-44-3
Left Rear Reading Lamp.............. 8W-44-3
Left Visor/Vanity Lamp............. 8W-44-5, 6
Overhead Console.................... 8W-44-5
Passenger Door Courtesy Lamp......... 8W-44-2
Radio............................. 8W-44-7
Rear Auto Temp Control Switch......... 8W-44-8
Rear Blower Rear Control Switch........ 8W-44-8
Rear Dome Lamp.................. 8W-44-3, 5
Rear Power Outlet................... 8W-44-4
Right Liftgate Flood Lamp.......... 8W-44-9, 10
Right Mid Reading Lamp.............. 8W-44-3
Right Rear Reading Lamp........... 8W-44-3, 4
Right Visor/Vanity Lamp............ 8W-44-5, 6
RS8W-44 INTERIOR LIGHTING8W-44-1
