CHRYSLER VOYAGER 2023 Owners Manual

SERVICING AND MAINTENANCE209

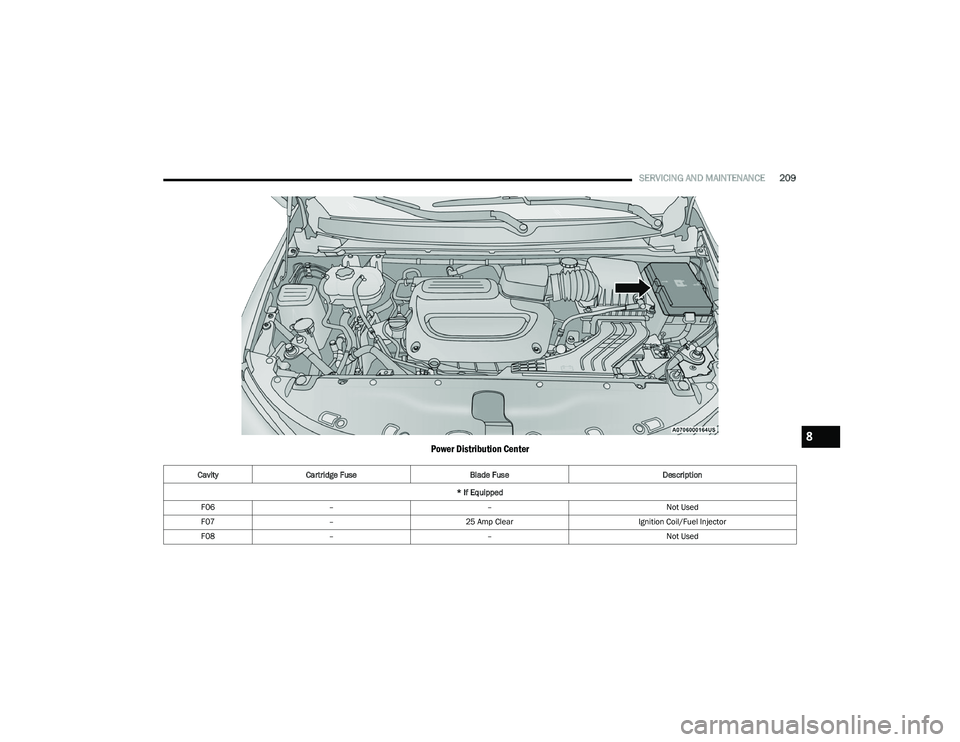

Power Distribution Center
CavityCartridge Fuse Blade Fuse Description
* If Equipped
F06 – – Not Used
F07 – 25 Amp Clear Ignition Coil/Fuel Injector
F08 – – Not Used
8

23_RUV_OM_EN_US_t.book Page 209

210SERVICING AND MAINTENANCE
F09 – 25 Amp Clear Amplifier/Active Noise Control *
F10 – – Not Used
F11 – – Not Used
F12 – 5 Amp Tan Battery Sensor (IBS)
F13 – 10 Amp Red ECM (S)*
F14 – 10 Amp Red ECM
F15 40 Amp Green –CBC Feed #3 (Power Locks)
F16 – 20 Amp Yellow ECM
F17 30 Amp Pink – Starter
F18 40 Amp Green –CBC Feed #4 (Exterior Lighting #1)
F19 25 Amp Clear –2nd Row Folding Seats Solenoid LT *
F20 – 10 Amp Red A/C Compressor Clutch
F21 25 Amp Clear –2nd Row Folding Seat Solenoid RT *
F22 – – Not Used
F23 – – Not used
F24 – 20 Amp Yellow RR Wiper
F25 – 10 Amp RedHands-free Door Mod / Active Grill Shutter/ PWR Mirror / VRM
F26 40 Amp Green –Front HVAC Blower Motor
F27 25 Amp Clear –RR Slide Door Module-RT *
F28 – 10 Amp RedDiagnostic Port / USB+ (IP) / Video USB Port /
Overhead DVD Player (Aftermarket)
F29 – – Not Used
Cavity
Cartridge Fuse Blade Fuse Description
* If Equipped

23_RUV_OM_EN_US_t.book Page 210

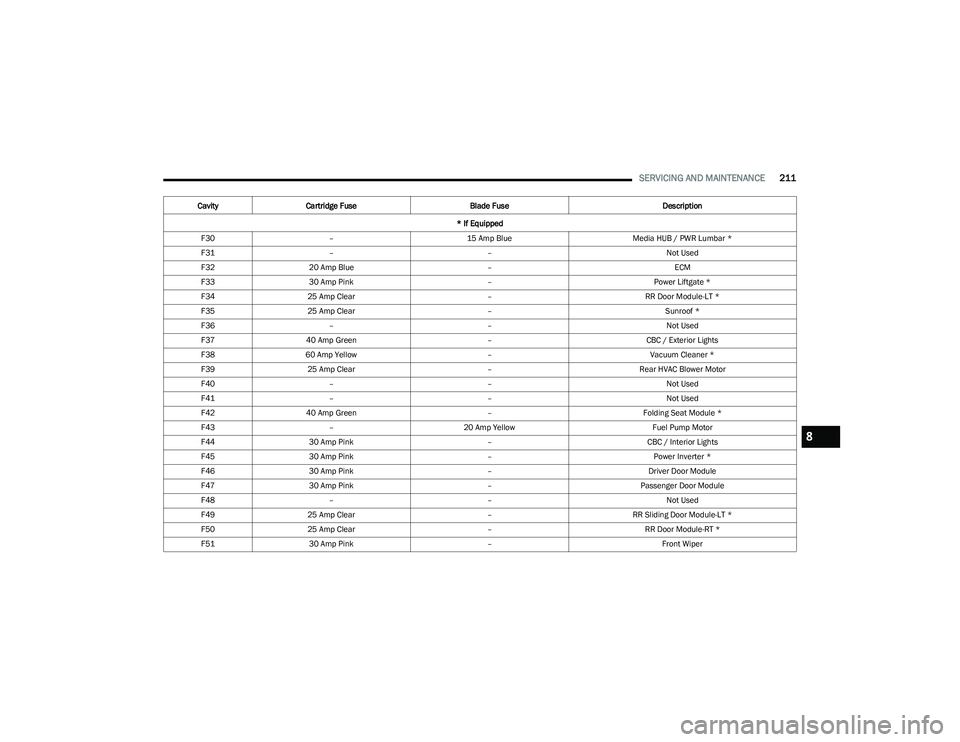

SERVICING AND MAINTENANCE211
F30 – 15 Amp Blue Media HUB / PWR Lumbar *
F31 – – Not Used
F32 20 Amp Blue – ECM
F33 30 Amp Pink –Power Liftgate *
F34 25 Amp Clear –RR Door Module-LT *
F35 25 Amp Clear –Sunroof *
F36 – – Not Used
F37 40 Amp Green –CBC / Exterior Lights
F38 60 Amp Yellow –Vacuum Cleaner *
F39 25 Amp Clear –Rear HVAC Blower Motor
F40 – – Not Used
F41 – – Not Used
F42 40 Amp Green –Folding Seat Module *
F43 – 20 Amp Yellow Fuel Pump Motor
F44 30 Amp Pink –CBC / Interior Lights
F45 30 Amp Pink –Power Inverter *
F46 30 Amp Pink –Driver Door Module
F47 30 Amp Pink –Passenger Door Module
F48 – – Not Used
F49 25 Amp Clear –RR Sliding Door Module-LT *
F50 25 Amp Clear –RR Door Module-RT *
F51 30 Amp Pink –Front Wiper
Cavity
Cartridge Fuse Blade Fuse Description
* If Equipped
8

23_RUV_OM_EN_US_t.book Page 211

212SERVICING AND MAINTENANCE
F5230 Amp Pink –Brake Vacuum Pump
F53 – – Not Used
F54 40 Amp Green –ESP-ECU & Valves
F55 – 15 Amp Blue RF HUB/ KIN / ESL / DVD
F56 – 10 Amp RedFront & Rear HVAC Control / OCM / ESL / ESP / ESC
F57 – – Not Used
F58 – 10 Amp RedDrivetrain Control Mod / Power Transfer Unit *
F59 30 Amp Pink –Trailer Tow Receptacle *
F60 – 20 Amp Yellow Rear Cargo APO
F61 – 20 Amp Yellow Trailer Tow Right Stop/Turn *
F62 – 20 Amp Yellow Power Transfer Unit *
F63 – 20 Amp Yellow Trailer Tow Left Stop/Turn *
F64 – 15 Amp Blue RT HID Headlamp *
F65 – – Not Used
F66 – 15 Amp Blue Cluster
F67 – 10 Amp Red DASM / Parktronic / HALF
F68 – – Not Used
F69 – – Not Used
F70 – – Not Used
F71 – 20 Amp Yellow Horn
F72 – 10 Amp Red Heated Mirrors *
F73 30 Amp Pink –Rear Defroster (EBL)
Cavity
Cartridge Fuse Blade Fuse Description
* If Equipped

23_RUV_OM_EN_US_t.book Page 212

SERVICING AND MAINTENANCE213
F7420 Amp Blue –Trailer Tow Back-up Lights *
F75 – 5 Amp Tan Overhead Console / RR ISC
F76 – 20 Amp Yellow Uconnect / Center Display / Telematics
F77 – 10 Amp RedRR Entertainment / Media Hub / USB (S) / Rain Sensor /
Sunroof / RR View Mirror / Overhead DVD Player / Int Monitoring Camera / Wireless Charging Pad
F78 – 15 Amp Blue TCM (ZF) / E-Shifter / Cluster
F79 – 10 Amp Red ICS / HVAC / EPB SW / Strg Column Cntrl
F80 – – Not Used
F81 – – Not Used
F82 – – Not Used
F83 20 Amp Blue
–TT Park Lights *
30 Amp Pink –Headlamp Washer Pump *
F84 30 Amp Pink –Drivetrain Control MOD *
F85 – 20 Amp Yellow Cigar Lighter
F86 – – Not Used
F87 – – Not Used
F88 – 20 Amp Yellow Front Heated Seats *
F89 – 20 Amp Yellow Rear Heated Seats *
F90 – – Not Used
F91 – 15 Amp BlueFront Ventilated Seats / Heated Steering Wheel *
F92 – 5 Amp Tan Security Gateway
F93 – – Not Used
Cavity
Cartridge Fuse Blade Fuse Description
* If Equipped
8

23_RUV_OM_EN_US_t.book Page 213

214SERVICING AND MAINTENANCE
** 30 Amp mini fuse is substituted for 25 Amp Circuit Breaker.F94
40 Amp Green –ESC Motor Pump
F95A – 10 Amp Red USB IP (Run/ACC)
F95B – 10 Amp RedSelectable Fuse Location – USB IP (Direct B+)
F96 – 10 Amp Red Airbag
F97 – 10 Amp Red Airbag
F98 – 15 Amp Blue Left HID Headlamp *
F99 30 Amp Pink –Trailer Tow Electric Brake Mod *
F100 – 10 Amp RedHeadlamp Level / RR Camera / Blindspot / Humidity Snsr / In
Car Temp Snsr / Headlamp SW *
Circuit Breakers
CB1 25 Amp Power Seats (Driver)
CB2 25 Amp ** Power Seats (Pass)
CB3 25 AmpFRT PWR Window W/O Door Nodes + RR PWR Window Lockout
Cavity
Cartridge Fuse Blade Fuse Description
* If Equipped

23_RUV_OM_EN_US_t.book Page 214

SERVICING AND MAINTENANCE215
BULB REPLACEMENT
Replacement Bulbs, Names, And Part Numbers
In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers. Some of the inside bulbs are brass or glass-wedge base. Aluminum
base bulbs are not approved.
NOTE:See an authorized dealer for LED bulb replacement.
Interior Bulbs
LampsBulb Number
Center & Rear Dome Lamp LED
Center & Rear Reading Lamps LED
Front Door Courtesy Lamp LED
Front Header Reading Lamps – If Equipped LED
Instrument Cluster Lamps LED
Liftgate Lamp(s) LED
Overhead Console Reading Lamps LED
Removable Console Lamp – If Equipped LED
Visor Vanity Lamps 6501966
Exterior Bulbs
Lamps Bulb Number
Halogen Head Lamp Reflector Low Beam — H11LL
Reflector High Beam — 9005LL
Front Turn Signal Lamp PWY24WNA
Front Side Marker Lamp W3W
8

23_RUV_OM_EN_US_t.book Page 215

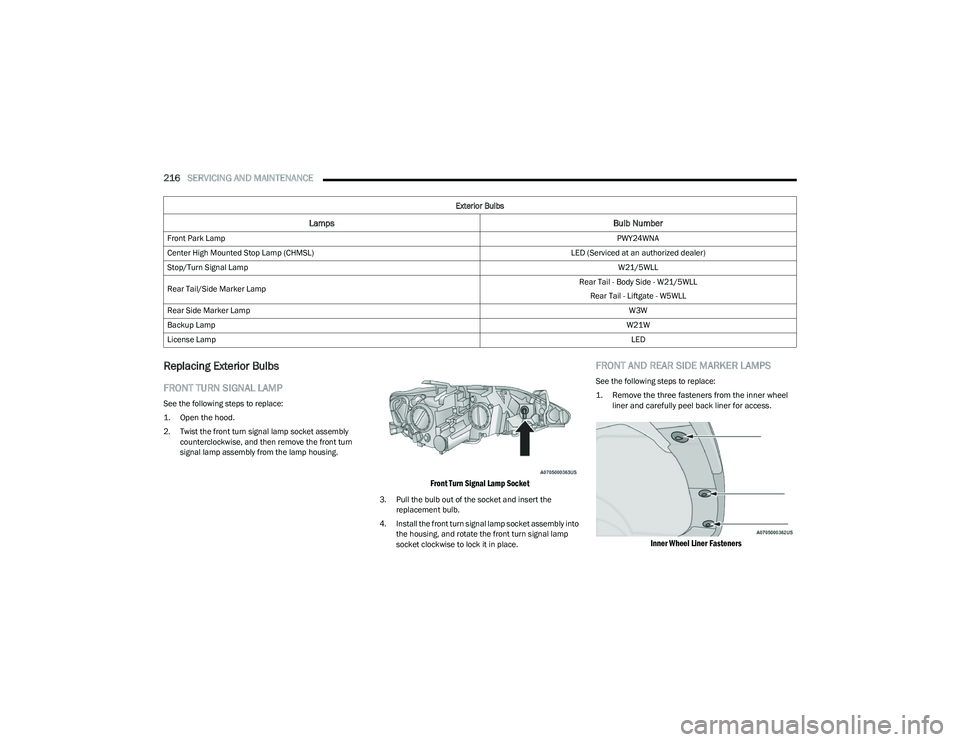

216SERVICING AND MAINTENANCE
Replacing Exterior Bulbs
FRONT TURN SIGNAL LAMP
See the following steps to replace:

1. Open the hood.

2. Twist the front turn signal lamp socket assembly
counterclockwise, and then remove the front turn
signal lamp assembly from the lamp housing.

Front Turn Signal Lamp Socket

3. Pull the bulb out of the socket and insert the replacement bulb.
4. Install the front turn signal lamp socket assembly into the housing, and rotate the front turn signal lamp
socket clockwise to lock it in place.
FRONT AND REAR SIDE MARKER LAMPS
See the following steps to replace:

1. Remove the three fasteners from the inner wheel liner and carefully peel back liner for access.

Inner Wheel Liner Fasteners

Front Park Lamp PWY24WNA
Center High Mounted Stop Lamp (CHMSL) LED (Serviced at an authorized dealer)
Stop/Turn Signal Lamp W21/5WLL
Rear Tail/Side Marker Lamp Rear Tail - Body Side - W21/5WLL
Rear Tail - Liftgate - W5WLL
Rear Side Marker Lamp W3W
Backup Lamp W21W
License Lamp LED
Exterior Bulbs
Lamps
Bulb Number

23_RUV_OM_EN_US_t.book Page 216

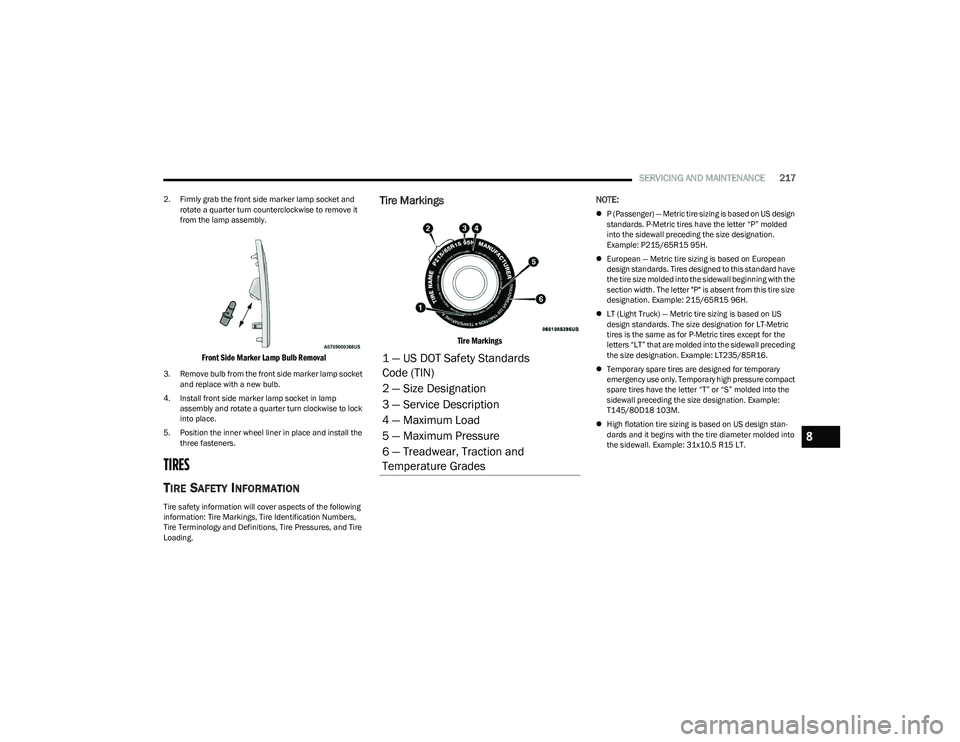

SERVICING AND MAINTENANCE217
2. Firmly grab the front side marker lamp socket and
rotate a quarter turn counterclockwise to remove it
from the lamp assembly.

Front Side Marker Lamp Bulb Removal

3. Remove bulb from the front side marker lamp socket and replace with a new bulb.
4. Install front side marker lamp socket in lamp assembly and rotate a quarter turn clockwise to lock
into place.
5. Position the inner wheel liner in place and install the three fasteners.
TIRES
TIRE SAFETY INFORMATION
Tire safety information will cover aspects of the following
information: Tire Markings, Tire Identification Numbers,
Tire Terminology and Definitions, Tire Pressures, and Tire
Loading.
Tire Markings

Tire Markings
NOTE:

P (Passenger) — Metric tire sizing is based on US design
standards. P-Metric tires have the letter “P” molded
into the sidewall preceding the size designation.
Example: P215/65R15 95H.
 European — Metric tire sizing is based on European
design standards. Tires designed to this standard have
the tire size molded into the sidewall beginning with the
section width. The letter "P" is absent from this tire size
designation. Example: 215/65R15 96H.
 LT (Light Truck) — Metric tire sizing is based on US
design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the
letters “LT” that are molded into the sidewall preceding
the size designation. Example: LT235/85R16.
 Temporary spare tires are designed for temporary
emergency use only. Temporary high pressure compact
spare tires have the letter “T” or “S” molded into the
sidewall preceding the size designation. Example:
T145/80D18 103M.
 High flotation tire sizing is based on US design stan -
dards and it begins with the tire diameter molded into
the sidewall. Example: 31x10.5 R15 LT.
1 — US DOT Safety Standards
Code (TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and
Temperature Grades
8

23_RUV_OM_EN_US_t.book Page 217

218SERVICING AND MAINTENANCE

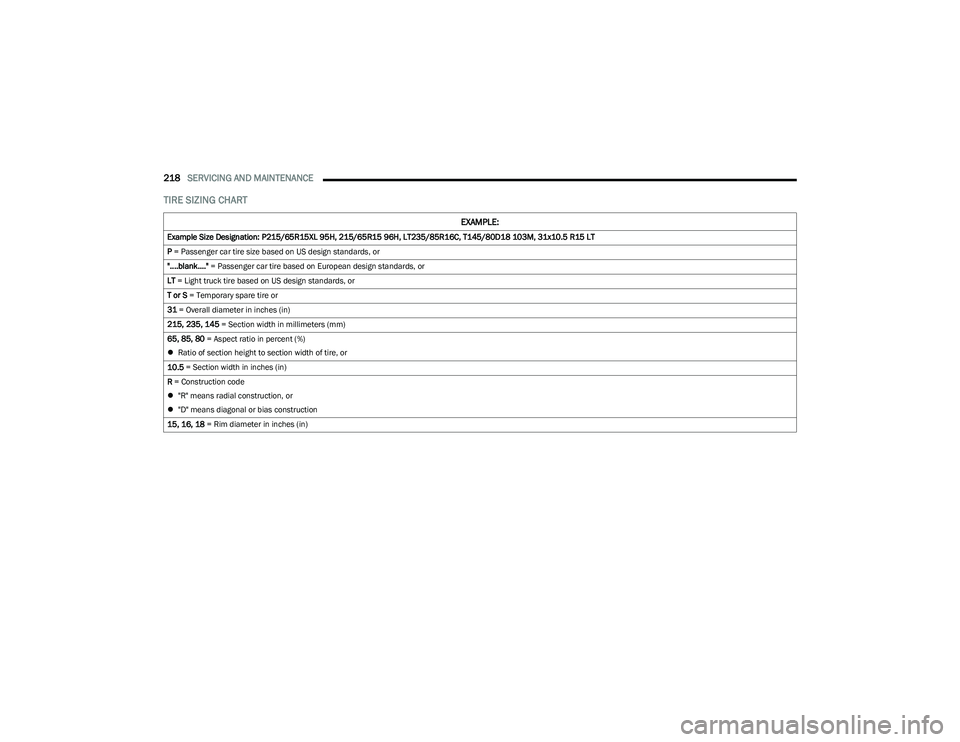

TIRE SIZING CHART
EXAMPLE:
Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)
 Ratio of section height to section width of tire, or
10.5 = Section width in inches (in)
R = Construction code
 "R" means radial construction, or
 "D" means diagonal or bias construction
15, 16, 18 = Rim diameter in inches (in)

23_RUV_OM_EN_US_t.book Page 218
