CHRYSLER VOYAGER 2023 Owner's Manual

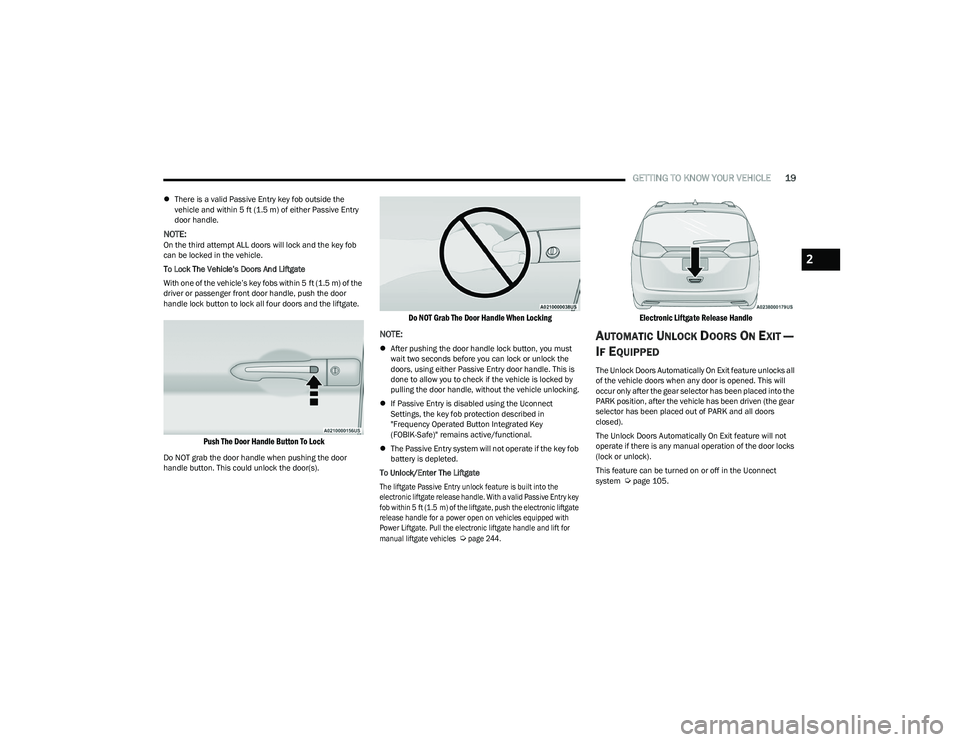

GETTING TO KNOW YOUR VEHICLE19
There is a valid Passive Entry key fob outside the
vehicle and within 5 ft (1.5 m) of either Passive Entry
door handle.
NOTE:On the third attempt ALL doors will lock and the key fob
can be locked in the vehicle.
To Lock The Vehicle’s Doors And Liftgate
With one of the vehicle’s key fobs within 5 ft (1.5 m) of the
driver or passenger front door handle, push the door
handle lock button to lock all four doors and the liftgate.

Push The Door Handle Button To Lock

Do NOT grab the door handle when pushing the door
handle button. This could unlock the door(s).

Do NOT Grab The Door Handle When Locking

NOTE:
 After pushing the door handle lock button, you must
wait two seconds before you can lock or unlock the
doors, using either Passive Entry door handle. This is
done to allow you to check if the vehicle is locked by
pulling the door handle, without the vehicle unlocking.
 If Passive Entry is disabled using the Uconnect
Settings, the key fob protection described in
"Frequency Operated Button Integrated Key
(FOBIK-Safe)" remains active/functional.
 The Passive Entry system will not operate if the key fob
battery is depleted.
To Unlock/Enter The Liftgate

The liftgate Passive Entry unlock feature is built into the
electronic liftgate release handle. With a valid Passive Entry key
fob within 5 ft (1.5 m) of the liftgate, push the electronic liftgate
release handle for a power open on vehicles equipped with
Power Liftgate. Pull the electronic liftgate handle and lift for
manual liftgate vehicles

Ú
page 244.

Electronic Liftgate Release Handle

AUTOMATIC UNLOCK DOORS ON EXIT —
I
F EQUIPPED
The Unlock Doors Automatically On Exit feature unlocks all
of the vehicle doors when any door is opened. This will
occur only after the gear selector has been placed into the
PARK position, after the vehicle has been driven (the gear
selector has been placed out of PARK and all doors
closed).
The Unlock Doors Automatically On Exit feature will not
operate if there is any manual operation of the door locks
(lock or unlock).
This feature can be turned on or off in the Uconnect
system
Úpage 105.
2

23_RUV_OM_EN_US_t.book Page 19

20GETTING TO KNOW YOUR VEHICLE
MANUAL SLIDING SIDE DOOR
The sliding door may be opened from the inside or the
outside. Pull outward on the exterior handle to open the
sliding door. The sliding door inside handle functions by
rocking forward and back. Rocking the handle backwards
opens the door and rocking forward releases the hold
open latch in order to close the door.
NOTE:If equipped with power sliding doors, using the manual
door handle will activate the power opening/closing
function. Allow the door to open or close fully on its own,
without forcing it.

Side Door Handle And Lock Functions

To keep your door operating properly, observe the
following guidelines:
Always open the door smoothly.
 Avoid high impacts against the door stop when opening
the door. This is very important when your vehicle is
parked on an incline as the door will slide faster in the
downhill direction.
 There is a hold-open latch that is activated when the
sliding door is fully opened. This latch will keep your
sliding door open on any incline. To close the sliding
door after the hold-open latch is activated, you must
rock the inside handle forward or pull outward on the
exterior handle.
Always make sure that the sliding door is fully latched
anytime the vehicle is in motion.
NOTE:The left side sliding door cannot be opened while the fuel
door is open.
POWER SLIDING SIDE DOOR —
I
F EQUIPPED
The power sliding door may be power opened or closed in
several ways:
 Key fob
 Inside or outside handles
 Buttons located:
 In the overhead console
 Just inside the sliding door
 On the outside handle Push the button on the key fob twice within
five seconds to open, close, or reverse a power
sliding door.

The key fob and the overhead console button will operate the
door when the door is locked. All other ways require the sliding
door to be unlocked. If the vehicle is equipped with Passive
Entry, pressing the button on the outside handle will unlock and
open the sliding door, with a valid Passive Entry key fob within
5 ft (1.5 m) of the door handle.

Overhead Console Power Switches

There are power sliding side door switches located on the
B-pillar trim panel, just in front of the power sliding door for
the rear seat passengers.
1 — Door Handle
2 — Door Lock
1 — Liftgate
2 — Left Sliding Door
3 — Sliding Door Power Off
4 — Right Sliding Door

23_RUV_OM_EN_US_t.book Page 20

GETTING TO KNOW YOUR VEHICLE21
To operate the sliding door manually with the handles or
to avoid unintentional operation of the power sliding doors
from the rear seats, push the power sliding door power off
button, located in the overhead console, to remove power
to the handles and buttons just inside the sliding doors.
The power off LED, in the overhead console, will be lit
when the handles are manual. When the LED is lit,
pushing the power sliding door power off button will return
the handles to power operation.
NOTE:
If anything obstructs the power sliding side door while
it is closing or opening, the door will automatically
reverse to the closed or open position and an audible
tone will sound, provided it meets sufficient resistance.
The turn signals will flash with sliding door movements.
 If the power sliding door stops in the middle due to
obstacles, it will power open on the next command.

Power Sliding Side Door Switch (Left Side Shown)

CHILD PROTECTION DOOR LOCK
S
YSTEM — REAR DOORS
To provide a safer environment for small children riding in
the rear seats, the sliding doors are equipped with a Child
Protection Door Lock system.
To Engage The Child Protection Door Lock

1. Open the sliding side door.

2. On the rear of the sliding door, slide the Child
Protection Door Lock control inward (toward the
vehicle) to engage the Child Protection Door Lock.

Child Protection Door Locks

3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:
After engaging the Child Protection Door Lock, always
test the inside door handle with the sliding door closed
to make certain the Child Protection Door Lock is in the
locked position.
 After disengaging the Child Protection Door Lock,
always test the inside door handle with the sliding door
closed to make certain the Child Protection Door Lock
is in the unlocked position.
 The inside door handle will not open the sliding door
when the Child Protection Door Lock is engaged.
 The power sliding door will operate from the switch
located just inside the sliding door, regardless of the
Child Protection Door Lock lever position.
WARNING!
Personal injury or cargo damage may occur if caught
in the path of the sliding door. Make sure the door
path is clear before closing the door.
 Before driving off, check the instrument cluster for a
sliding door or door open message or warning indi -
cator. Failure to do this could result in unintentionally
leaving the sliding door open while driving.
2

23_RUV_OM_EN_US_t.book Page 21

22GETTING TO KNOW YOUR VEHICLE
To avoid unintentional operation of the power sliding
door from the rear seats, push the Sliding Door Power
Off button, located in the overhead console. When the
overhead console power OFF LED is lit, the sliding door
may not be power opened or closed when pushing the
buttons just inside the sliding doors, or when pulling on
the handles.
To Disengage The Child Protection Door Lock

1. Open the sliding side door.

2. Slide the Child Protection Door Lock control outward (away from the vehicle) to disengage the Child
Protection Door Lock.
3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:After disengaging (or engaging) the Child Protection Door
Lock, always test the inside door handle with the sliding
door closed to make certain the Child Protection Door
Lock is in the desired position. The inside door handle will
open the sliding door when the Child Protection Door Lock
is disengaged.
STEERING WHEEL
TILT/TELESCOPING STEERING COLUMN
This feature allows you to tilt the steering column upward
or downward. It also allows you to lengthen or shorten the
steering column. The tilt/telescoping lever is located left
of the steering wheel at the end of the steering column.

Tilt/Telescoping Lever

To unlock the steering column, push the lever downward
(toward the floor). To tilt the steering column, move the steering
wheel upward or downward as desired. To lengthen or shorten
the steering column, pull the steering wheel outward or push it
inward as desired. To lock the steering column in position, push
the lever upward until fully engaged.

HEATED STEERING WHEEL —
I
F EQUIPPED

The steering wheel contains a heating element that
helps warm your hands in cold weather. The heated
steering wheel has only one temperature setting.
Once the heated steering wheel has been turned
on, it will stay on for an average of 80 minutes before
automatically shutting off. This time will vary based on
environmental temperatures. The heated steering wheel can
shut off early or may not turn on when the steering wheel is
already warm.

The heated steering wheel button is located within the
Uconnect system. You can access the button through the
Comfort screen.
 Press the heated steering wheel button once to turn
the heating element on.
 Press the heated steering wheel button a second time
to turn the heating element off.
NOTE:The engine must be running for the heated steering wheel
to operate.
For information on use with the Remote Start system, see
Úpage 15.
WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the sliding doors cannot be opened
from the inside door handle when the Child Protection
Door Locks are engaged.
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driving
with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow this
warning may result in serious injury or death.

23_RUV_OM_EN_US_t.book Page 22

GETTING TO KNOW YOUR VEHICLE23
SEATS
Seats are a part of the Occupant Restraint system of the
vehicle.
MANUAL ADJUSTMENT
(F
RONT SEATS) — IF EQUIPPED
Manual Front Adjuster
If equipped with manual front seats, they are adjustable
forward or rearward. The manual seat adjustment handle
is located under the seat cushion at the front edge of
each seat.

Manual Seat Adjustment

While sitting in the seat, pull up on the handle and slide
the seat forward or rearward. Release the bar once you
have reached the desired position. Then, using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
WARNING!
 Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus -
tion, or other physical conditions must exercise care
when using the steering wheel heater. It may cause
burns even at low temperatures, especially if used
for long periods.
 Do not place anything on the steering wheel that
insulates against heat, such as a blanket or steering
wheel covers of any type or material. This may cause
the steering wheel heater to overheat.
WARNING!
It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
 Do not allow people to ride in any area of your vehicle
that is not equipped with seats and seat belts. In a
collision, people riding in these areas are more likely
to be seriously injured or killed.
 Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
 Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
1 — Forward/Rearward Adjustment Handle
2 — Height Adjustment (if equipped)
3 — Recline Lever
WARNING!
Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

 Seats should be adjusted before fastening the seat belts
and while the vehicle is parked. Serious injury or death
could result from a poorly adjusted seat belt.

2

23_RUV_OM_EN_US_t.book Page 23

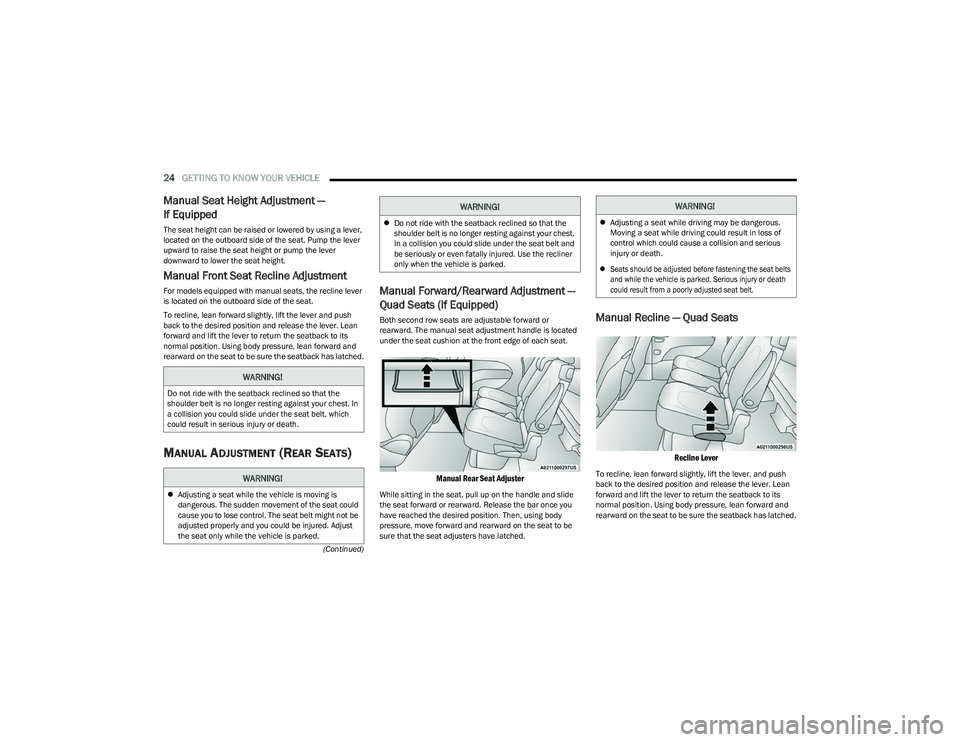

24GETTING TO KNOW YOUR VEHICLE
(Continued)
Manual Seat Height Adjustment —
If Equipped
The seat height can be raised or lowered by using a lever,
located on the outboard side of the seat. Pump the lever
upward to raise the seat height or pump the lever
downward to lower the seat height.
Manual Front Seat Recline Adjustment
For models equipped with manual seats, the recline lever
is located on the outboard side of the seat.
To recline, lean forward slightly, lift the lever and push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
MANUAL ADJUSTMENT (REAR SEATS)
Manual Forward/Rearward Adjustment —
Quad Seats (If Equipped)
Both second row seats are adjustable forward or
rearward. The manual seat adjustment handle is located
under the seat cushion at the front edge of each seat.

Manual Rear Seat Adjuster

While sitting in the seat, pull up on the handle and slide
the seat forward or rearward. Release the bar once you
have reached the desired position. Then, using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
Manual Recline — Quad Seats

Recline Lever

To recline, lean forward slightly, lift the lever, and push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest. In
a collision you could slide under the seat belt, which
could result in serious injury or death.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
WARNING!WARNING!
Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

 Seats should be adjusted before fastening the seat belts
and while the vehicle is parked. Serious injury or death
could result from a poorly adjusted seat belt.

23_RUV_OM_EN_US_t.book Page 24

GETTING TO KNOW YOUR VEHICLE25
Second Row Removable 8th Seat —
If Equipped
While the 8th seat does not stow in the floor, it is foldable
and removable for added cargo space.

Second Row 8th Seat Fold Flat Strap

The release strap is located on the front of the seat, near
the floor. To remove the seat, pull the release strap to
release the rear latches. The seat assembly can now be
removed from the vehicle by moving it in a rearward
direction from the detent positions in the floor.

Release Strap

NOTE:
Seat can be removed easier with one outboard seat
stowed in the load floor.
To reinstall the seat, align the seat into the detent
positions on the floor. Tilt seat rearward to lock the
seatback into its original position.

In Floor Detent Guides

Fold-Flat Quad Seats And Stow ‘n Go Seats
NOTE:
 You may experience deformation in the seat cushion
from the seat belt buckles, or wrinkling of the seat
fabric if the seats are left folded for an extended period
of time. This is normal and by simply unfolding the
seats to the open position, over time the seat cushion
may return to its normal shape. Having an occupant sit
in the seat, or massaging the fabric by hand may
smooth away any excess wrinkling.
 Permanent wrinkles may still result.
To fold the seat, lift the recliner lever to the full upward
position and push the seatback forward until it rests on
the seat cushion.

Fold-Flat Seat Recline Lever

WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt, which
could result in serious injury or death.
WARNING!
If not properly latched, the seat could become loose.
Personal injuries could result.
2

23_RUV_OM_EN_US_t.book Page 25

26GETTING TO KNOW YOUR VEHICLE
NOTE:
The seatback may lock into the fold-flat position.
Use the recline lever to unlock the seatback.
 If equipped with Stow ‘n Go seating: when returning the
seat to the original position, the headrest must be
folded back to the original position.

Stow ‘n Go Seating Head Restraint

Easy Entry
Easy Tilt Seat — With Or Without Child Seat Installed
The second row seats can be tilted forward for easy entry
into the third row with or without a child seat installed.

1. Located in the seatback of the second row seat is a
lever (or handle for Stow ‘n Go seats) that provides
easier access to the third row by tilting the seat
forward.
2. Slide the lever upwards, or if equipped, pull the
handle forward, to unlock the seatback.

Lift Easy Tilt Seat Lever (If Equipped)
Pull Easy Tilt Seat Handle (If Equipped)

3. Push on seatback to slide seat forward to access the third row.

Easy Tilt Seat
Easy Tilt With Child Seat Installed

4. To put the seat back into original position, just pull back on the seatback and lock the seat into position.
WARNING!
Do not use this feature with a child in seat. Serious
injury or death may occur.

23_RUV_OM_EN_US_t.book Page 26

GETTING TO KNOW YOUR VEHICLE27
Easy Entry — With The Seat Folded Flat
The seats can be folded and tilted for more accessibility
for passengers to enter and exit the third row.

1. Without a child seat installed, you can fold the seat
by pulling the recliner handle on the bottom part of
the seat. Before pulling the recliner lever, make sure
the arm rests are folded up.

Recliner Lever

2. To put it back into position, pull back on the folded seat and make sure that it locks into position. Then,
pull the seatback toward the back and fold down the
arm rests. Exit For Third Row Passengers — Stow ‘n Go Seats Only
If the second row is equipped with Stow ‘n Go, third row
passengers can pull the strap and push the seat forward
to fold the seatback down and tilt the seat to the floor for
an easy exit.

Pull Strap For Third Row Passengers

NOTE:
This process is for when there is no child seat installed.
Use the easy entry lever if a child seat is installed.
Second Row Removable Quad Seat
The second row quad seats, not equipped with the Stow ‘n
Go feature, are removable for added cargo space.
Removing Seat

1. Adjust seat to the full rearward position.

2. Lift the recline lever to fold the seatback flat against the seat cushion.

Fold-Flat Seat Recline Lever

NOTE:
Push downward on the seatback to make sure it is in the
locked position.
3. The release strap is located on the front of the seat, near the floor.

Seat Release Strap

2

23_RUV_OM_EN_US_t.book Page 27

28GETTING TO KNOW YOUR VEHICLE
4. To remove the seat, pull the release strap to release
the rear latches.
5. Tilt the back of the seat to the upward position.

Tilt Seat Forward

6. The seat assembly can now be removed from the vehicle. Grab the front seatback edge located near
the head restraint and the grab the bar on the rear
side of the seat cushion for easy removal.

Seat Removal

Reinstalling Seat

1. To reinstall the seat: With the seat tilted forward, align the seat’s front attachments into the detent
positions on the floor.

In Floor Seat Detents
Installing Seat

2. Tilt seat rearward to lock the seat back into its original position.
NOTE:Push downward to ensure the rear latches are in the
locked position.
3. Lift the recline handle and return the seat back to the seating position.
Manually Folding Third Row Seats —
If Equipped
NOTE:
You may experience deformation in the seat cushion
from the seat belt buckles, or wrinkling of the seat
fabric if the seats are left folded for an extended period
of time. This is normal and by simply unfolding the
seats to the open position, over time the seat cushion
may return to its normal shape. Having an occupant sit
in the seat, or massaging the fabric by hand may
smooth away any excess wrinkling.
 Permanent wrinkles may still result.
WARNING!
If not properly latched, the seat could become loose.
Personal injuries could result.

23_RUV_OM_EN_US_t.book Page 28
