TROUBLESHOOTING
8
Changing a fuse
FUSES UNDER THE BONNET
A f t e r o p e n i n g t h e b o n n e t , u n c l i p a n d t i l t
t h e b o x t o g a i n a c c e s s t o t h e f u s e s . Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 F r o n t a n d r e a r w a s h - w i p e p u m p
4 20 H e a d l a m p w a s h p u m p
5 15 E n g i n e c o m p o n e n t s
6 10 Steering wheel angle sensor, ESP
7 10 B r a k e s w i t c h , c l u t c h s w i t c h
8 25 Starter
9 10 H e a d l a m p b e a m m o t o r ,
p a r c m a n a g e m e n t u n i t
10 30 E n g i n e c o m p o n e n t s
11 40 S p a r e
12 30 W i p e r s
13 40 Built-in systems interface
14 30 P u m p
15 10 R i g h t - h a n d m a i n b e a m h e a d l a m p
16 10 L e f t - h a n d m a i n b e a m h e a d l a m p
17 15 R i g h t - h a n d d i p p e d h e a d l a m p
18 15 L e f t - h a n d d i p p e d h e a d l a m p
Page 142 of 153
1 3 6
Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching o f f t h e i g n i t i o n , p r e s s t h e w i p e r s
s t a l k d o w n w a r d s t o p o s i t i o n t h e
w i p e r b l a d e s a l o n g t h e w i n d s c r e e n
u p r i g h t s ( s p e c i a l p o s i t i o n ) . Changing a front wiper blade
- L i f t t h e w i p e r a r m .
- U n c l i p t h e b l a d e a n d r e m o v e i t .
- Fit the new blade.
- P u s h b a c k t h e w i p e r a r m .
T o r e t u r n t h e w i n d s c r e e n w i p e r s t o t h e i r
n o r m a l p o s i t i o n , s w i t c h o n t h e i g n i t i o n
a n d o p e r a t e t h e w i p e r s s t a l k . Changing the rear wiper blade
- L i f t t h e w i p e r a r m , t h e n u n c l i p t h e
blade and remove it.
- F i t t h e n e w b l a d e a n d p u s h b a c k t h e w i p e r a r m .
CHANGING A WINDSCREEN WIPER BLADE
Page 143 of 153
1 3 7
TROUBLESHOOTING
8
Having your vehicle towed
Without lifting
(4 wheels on the road)
You should always use a towbar.
BEING TOWED From the front
- U n c l i p t h e c o v e r b y p r e s s i n g t h e b o t t o m p a r t .
- Screw in the removable towing eye u n t i l i t l o c k s .
From the rear
- U n c l i p t h e c o v e r u s i n g a c o i n o r t h e fl a t p a r t o f t h e t o w i n g e y e ,
- Screw in the removable towing eye u n t i l i t l o c k s . When towing with the engine
s w i t c h e d o f f , t h e r e i s n o b r a k i n g o r
steering assistance.
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
be in neutral, failure to observe this
s p e c i a l c o n d i t i o n m a y r e s u l t i n d a m a g e
t o c e r t a i n b r a k i n g c o m p o n e n t s a n d t h e
a b s e n c e o f b r a k i n g a s s i s t a n c e w h e n
the engine is started again.
Lifting (2 wheels on the road only)
I t i s p r e f e r a b l e t o r a i s e t h e v e h i c l e
u s i n g p r o f e s s i o n a l l i f t i n g e q u i p m e n t .
T h e t o w i n g e y e i s s t o r e d i n t h e t o o l k i t ,
located under the right-hand seat.
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
b e i n t h e n e u t r a l p o s i t i o n , f a i l u r e t o
o b s e r v e t h i s s p e c i a l c o n d i t i o n m a y
r e s u l t i n d a m a g e t o c e r t a i n b r a k i n g
c o m p o n e n t s a n d t h e a b s e n c e o f
b r a k i n g a s s i s t a n c e w h e n t h e e n g i n e i s
started again.
Page 144 of 153
138

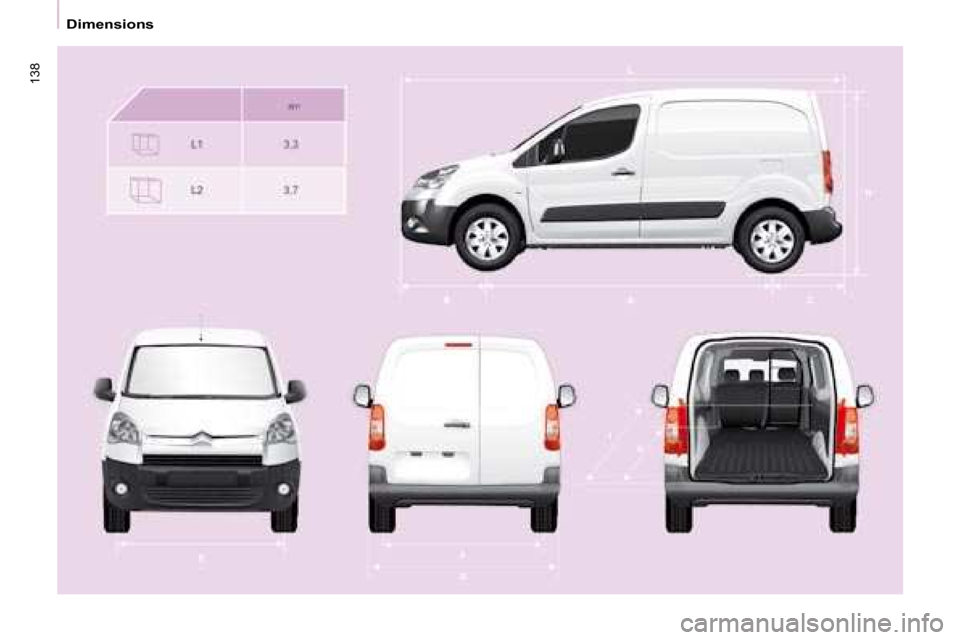

Dimensions
Page 145 of 153
139
Dimensions
TECHNICAL DATA
9
VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 4 380 4 628
H Overall height 1 805-1 834
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727 975
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505
F Width of rear tracks 1 554
G U s e f u l l e n g t h o f r e a r fl o o r 1 800 2 050
I Useful length with front passenger seat folded 3 000 3 250
DIMENSIONS DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:
Page 146 of 153
140
Dimensions

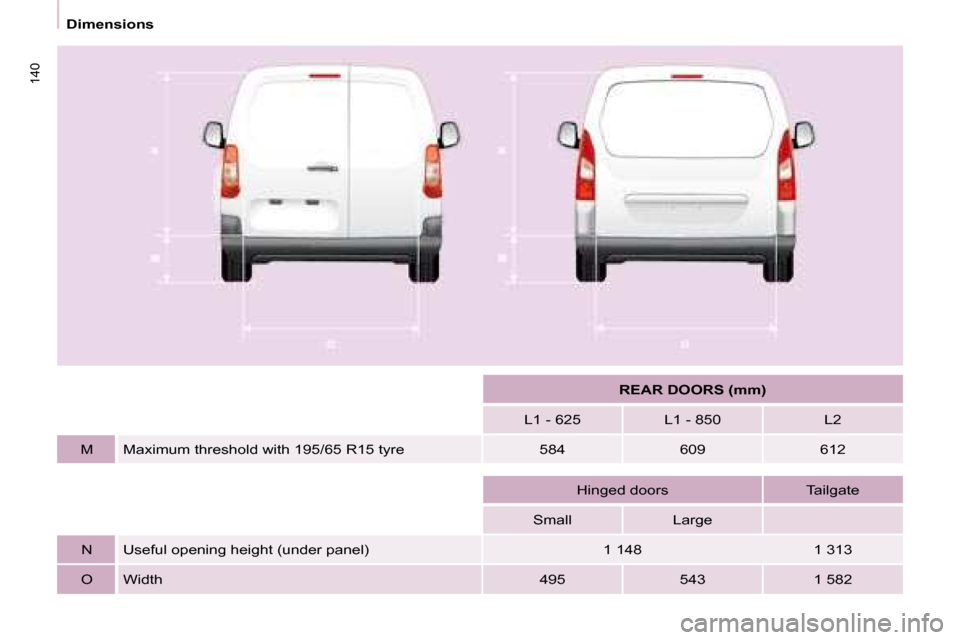

REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum threshold with 195/65 R15 tyre 584 609 612
Hinged doors Tailgate
Small Large
N Useful opening height (under panel) 1 148 1 313
O Width 495 543 1 582
Page 147 of 153
Dimensions
TECHNICAL DATA
9
SLIDING SIDE DOOR (mm)
L1 L2
P Useful height 1 100
Q Useful width 650
- Height under raised tailgate 1 892
Page 148 of 153
142
Dimensions

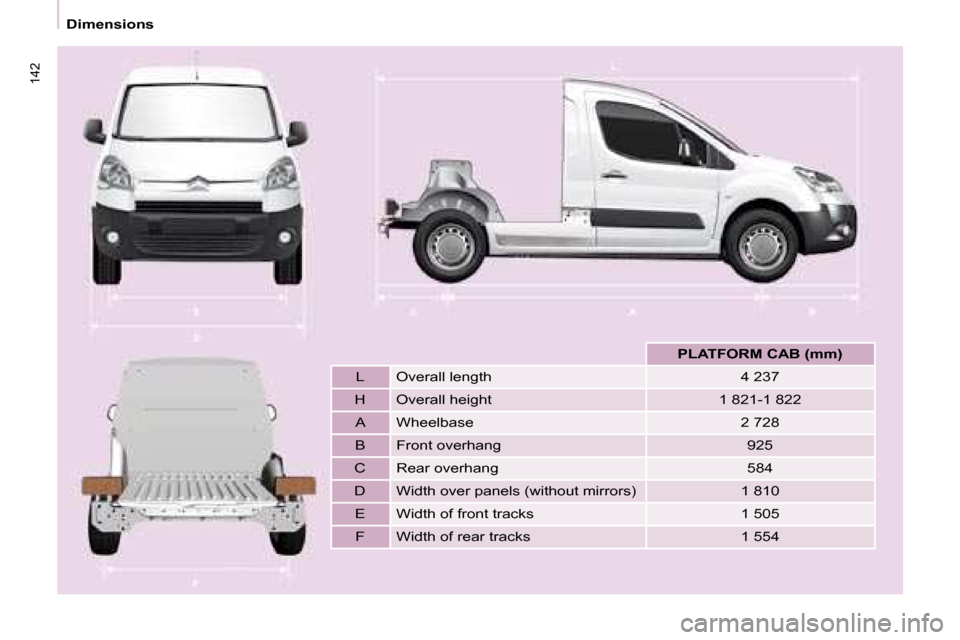

PLATFORM CAB (mm)
L Overall length 4 237
H Overall height 1 821-1 822 A Wheelbase 2 728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1 810 E Width of front tracks 1 505
F Width of rear tracks 1 554
Page 149 of 153
143
TECHNICAL DATA
9
Weights
WEIGHTS AND TOWED LOADS (KG)
General points The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
GTW: gross train weight
GVW: gross vehicle weight
MOM: kerb weight
CVA: vertical load on the towbar
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi l l e d t o 9 0 % .
For further information, consult your
r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that
the towed loads authorised by local
l e g i s l a t i o n a r e c o m p l i e d w i t h . T o fi n d
out your vehicle’s towing capacities
and its gross train weight, consult a
CITROËN dealer.
Page 150 of 153
144
Weights
Weights

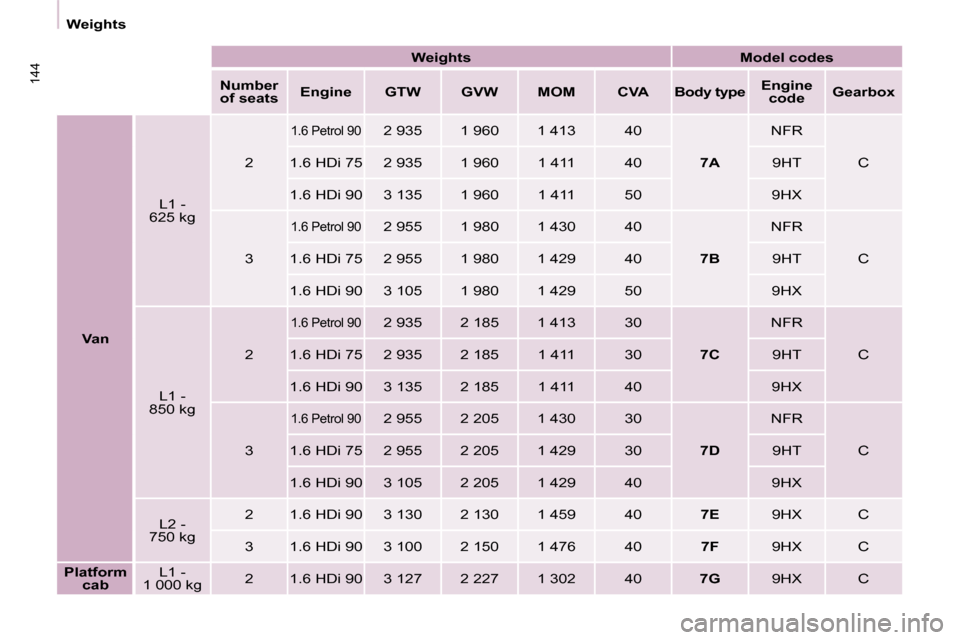

Model codes
Number
of seats
Engine GTW GVW MOM CVA Body type
Engine
code
Gearbox
Van L1 -
625 kg 2
1.6 Petrol 90 2 935 1 960 1 413 40
7A NFR
C
1.6 HDi 75 2 935 1 960 1 411 40 9H T
1.6 HDi 90 3 135 1 960 1 411 50 9H X
3
1.6 Petrol 90 2 955 1 980 1 430 40
7B NFR
C
1.6 HDi 75 2 955 1 980 1 429 40 9H T
1.6 HDi 90 3 105 1 980 1 429 50 9H X
L1 -
850 kg 2
1.6 Petrol 90 2 935 2 185 1 413 30
7C NFR
C
1.6 HDi 75 2 935 2 185 1 411 30 9H T
1.6 HDi 90 3 135 2 185 1 411 40 9H X
3
1.6 Petrol 90 2 955 2 205 1 430 30
7D NFR
C
1.6 HDi 75 2 955 2 205 1 429 30 9H T
1.6 HDi 90 3 105 2 205 1 429 40 9H X
L2 -
750 kg 2 1.6 HDi 90 3 130 2 130 1 459 40
7E 9HX C
3 1.6 HDi 90 3 100 2 150 1 476 40 7F 9HX C
Platform
cab L1 -
1 000 kg 2 1.6 HDi 90 3 127 2 227 1 302 40
7G 9HX C
