Page 121 of 176
Dimensions
TECHNICAL DATA
8
SLIDING SIDE DOOR (mm)
L1 L2
P Useful height 1 100
Q Useful width 650
- Height under raised tailgate 1 892
Page 122 of 176
126
Dimensions
PLATFORM CAB (mm)
L Overall length 4 237
H Overall height 1 821 - 1 822 A Wheelbase 2 728
B Front overhang 925
C Rear overhang 584
D
Width over panels (without mirrors) 1 810
E Width of front tracks 1 505
F Width of rear tracks 1 554
Page 123 of 176
127
TECHNICAL DATA
8
Weights
WEIGHTS AND TOWED LOADS (KG)
General points The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
GTW: gross train weight
GVW: gross vehicle weight
MOM: kerb weight
CVA: vertical load on the towbar
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi l l e d t o 9 0 % .
For further information, consult your
r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that
the towed loads authorised by local
l e g i s l a t i o n a r e c o m p l i e d w i t h . T o fi n d
out your vehicle's towing capacities
and its gross train weight, consult a
CITROËN dealer.

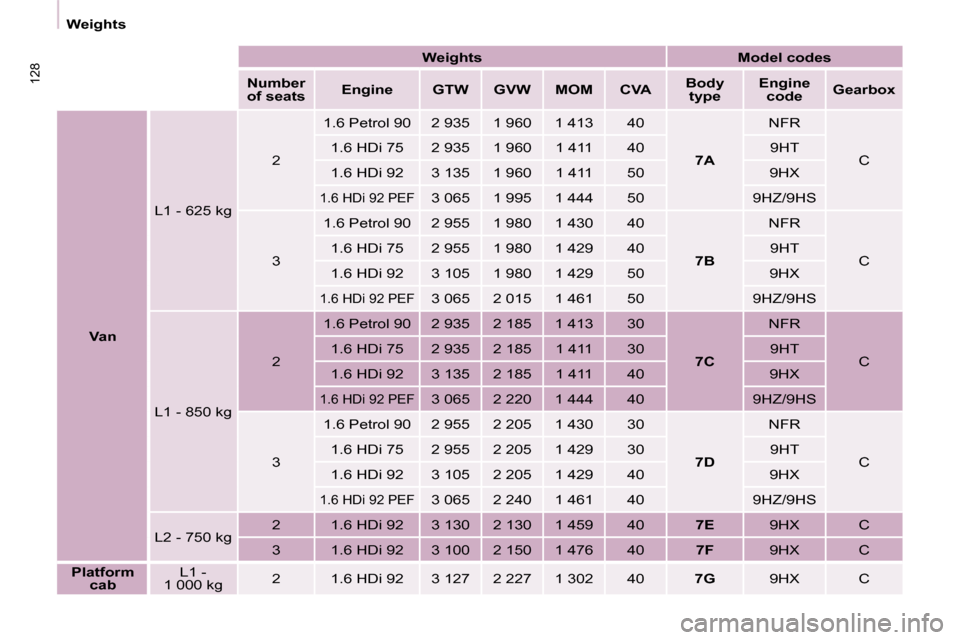

Page 124 of 176
128
Weights
Weights Model codes
Number
of seats
Engine GTW GVW MOM CVA
Body
type
Engine
code
Gearbox
Van L1 - 625 kg
2
1.6 Petrol 90 2 935 1 960 1 413 40
7A NFR
C
1.6 HDi 75 2 935 1 960 1 411 40 9H
T
1.6 HDi 92 3 135 1 960 1 411 50 9H X
1.6 HDi 92 PEF 3 065 1 995 1 444 50 9HZ/9HS
3 1.6 Petrol 90 2 955 1 980 1 430 40
7B NFR
C
1.6 HDi 75 2 955 1 980 1 429 40 9H
T
1.6 HDi 92 3 105 1 980 1 429 50 9H X
1.6 HDi 92 PEF 3 065 2 015 1 461 50 9HZ/9HS
L1 - 850 kg 2
1.6 Petrol 90 2 935 2 185 1 413 30
7C NFR
C
1.6 HDi 75 2 935 2 185 1 411 30 9H
T
1.6 HDi 92 3 135 2 185 1 411 40 9H X
1.6 HDi 92 PEF 3 065 2 220 1 444 40 9HZ/9HS
3 1.6 Petrol 90 2 955 2 205 1 430 30
7D NFR
C
1.6 HDi 75 2 955 2 205 1 429 30 9H
T
1.6 HDi 92 3 105 2 205 1 429 40 9H X
1.6 HDi 92 PEF 3 065 2 240 1 461 40 9HZ/9HS
L2 - 750 kg 2 1.6 HDi 92 3 130 2 130 1 459 40
7E 9HX C
3 1.6 HDi 92 3 100 2 150 1 476 40 7F 9HX C
Platform
cab L1 -
1 000 kg 2 1.6 HDi 92 3 127 2 227 1 302 40
7G 9HX C
Page 125 of 176
129
TECHNICAL DATA
8
Diesel - Petrol engines
ENGINES AND GEARBOXES
Petrol Diesel
TVV NFR 9HT 9HX 9HZ/9HS
Name 1.6 PETROL 1.6 HDi 1.6 HDi 1.6 HDi PEF
Power (bhp) 90 75 92
EU standard maximum power (kW/DIN) 66 55 66
Engine speed (rpm) 6 000 3 500 4 000
Cubic capacity (cm 3
) 1 587 1 560 1 560
Gearbox - manual 5 5 5
Bore x stroke (mm) 78.5 x 82 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 185 215
Max power engine speed (rpm) 2 500 1 750 1 750
Fuel Unleaded Diesel
P a r t i c l e e m i s s i o n fi l t e r / No No Yes
Catalytic converter Yes Yes Yes
Page 126 of 176
130
Diesel - Petrol engines
Consumption values correct at time of printing. These consumptio n values were established in accordance with Directive
8 0 / 1 2 6 8 / C E E . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e
vehicle, the maintenance of the vehicle and the use of the accessories.
FUEL CONSUMPTION
Petrol
Diesel
TVV NFR 9HT 9HX
Name 1.6 Petrol 1.6 HDi 1.6 HDi
Power (hp) 90 75 92
Body type Short - L1 Short - L1 Short - L1 Long -
L2 Crew cab Platform
cab
kg 625 850 625 800 850 625 800 850 750 - 1 000
Urban [mpg (l/100 km)] 26.2 (10.8) 40.4 (7.0) 40.4 (7 .0) 40.4
(7.0) 39.2
(7.2) 37.7
(7.6)
Extra-urban [mpg (l/100 km)] 41.5 (6.8) 55.4 (5.1) 55.4 (5.1) 55.4
(5.1) 53.3
(5.3) 48.7
(5.8)
Mixed [mpg (l/100 km)] 34.4 (8.2) 48.7 (5.8) 48.7 (5.8 ) 48.7
(5.8) 42.1
(6.0) 43.5
(6.5)
Emission of CO 2 by weight (g/km) 195 153 153 153 157 1
73
Page 127 of 176
TECHNICAL DATA
8
Diesel - Petrol engines
FUEL CONSUMPTION
Diesel
TVV 9HZ/9HS
Name 1.6 HDi PEF
Power (hp) 92
Body type Short - L1 Long - L2 Crew cab
kg 625 800 850 750 -
Urban [mpg (l/100 km)] 40.4 (7.0) 40.4 (7.0) 39.2 (7. 2)
Extra-urban [mpg (l/100 km)] 55.4 (5.1) 55.4 (5.1) 54.3 (5.2)
Mixed [mpg (l/100 km)] 48.7 (5.8) 48.7 (5.8) 47.9 (5.9 )
Emission of CO 2 by weight (g/km) 151 151 155
Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with E5 type pet
rol biofuels (containing 5 % ethanol), conforming to Europea n standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of fuel (BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (diesel fuel which complies with standard EN 590 mixed with a biofue l which complies with standard EN 14214) which can be distributed at the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio) fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel circuit).
Page 128 of 176
132

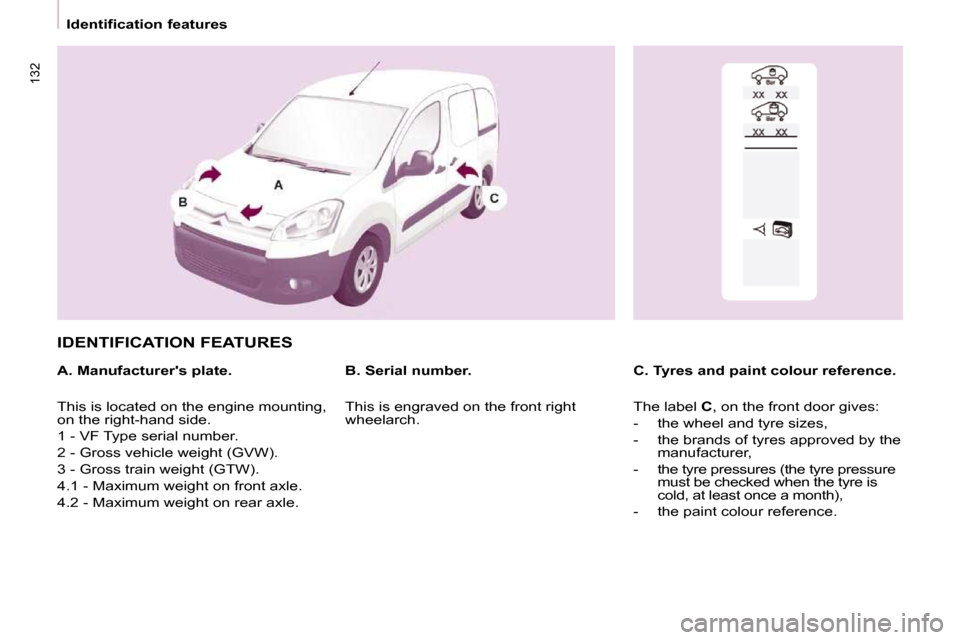

Identification features
IDENTIFICATION FEATURES
A. Manufacturer's plate. C. Tyres and paint colour reference.
B. Serial number.
This is located on the engine mounting,
on the right-hand side.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label
C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when the tyre is
cold, at least once a month),
- the paint colour reference.
Page 129 of 176
9.1

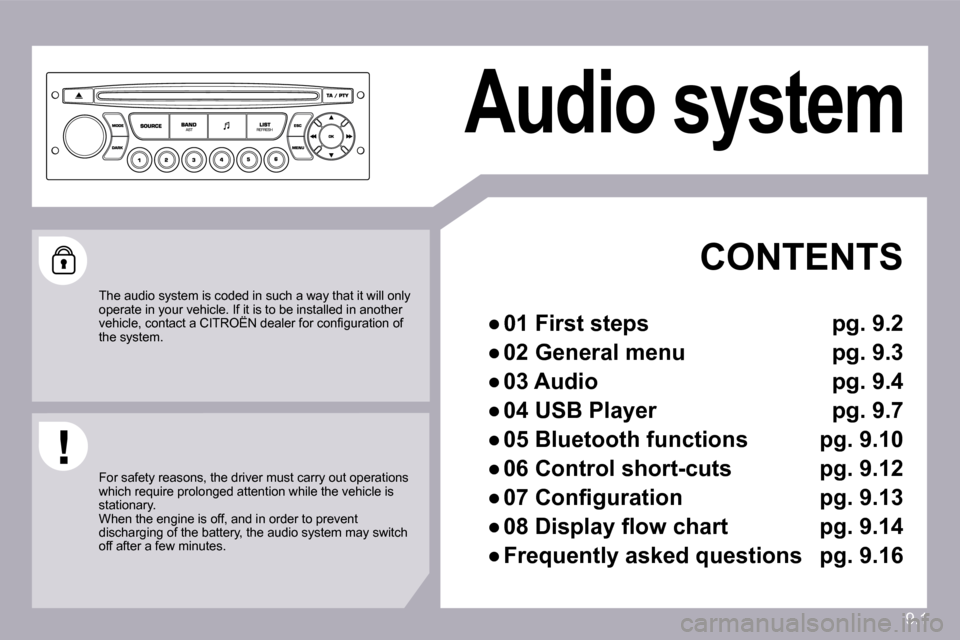

Audio system
CONTENTS
Page 130 of 176
9.2
1 1
2 2
1 0 1 0 1 1 1 1
1 3 1 3 1 4 1 4 1 5 1 5
3 3 4 4 5 5 6 6 7 7 8 8 9 9
1 2 1 2

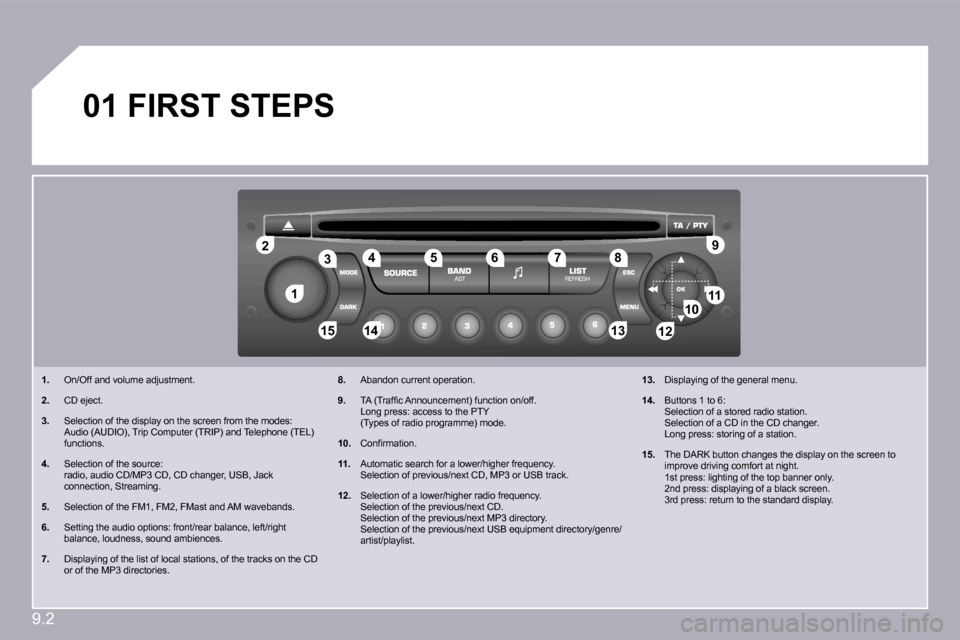

0 1 F I R S T S T E P S
1 . On/Off and volume adjustment.
2 . CD eject.
3 . Selection of the display on the screen from the modes: Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL) functions.
4 . Selection of the source: r a d i o , a u d i o C D / M P 3 C D , C D c h a n g e r , U S B , J a c k c o n n e c t i o n , S t r e a m i n g .
5 . Selection of the FM1, FM2, FMast and AM wavebands.
6 . S e t t i n g t h e a u d i o o p t i o n s : f r o n t / r e a r b a l a n c e , l e f t / r i g h t balance, loudness, sound ambiences.
7 . D i s p l a y i n g o f t h e l i s t o f l o c a l s t a t i o n s , o f t h e t r a c k s o n t h e C D or of the MP3 directories.
8 . Abandon current operation.
9 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( T y p e s o f r a d i o p r o g r a m m e ) m o d e .
1 0 . C o n fi r m a t i o n .
1 1 . A u t o m a t i c s e a r c h f o r a l o w e r / h i g h e r f r e q u e n c y . S e l e c t i o n o f p r e v i o u s / n e x t C D , M P 3 o r U S B t r a c k .
1 2 . S e l e c t i o n o f a l o w e r / h i g h e r r a d i o f r e q u e n c y . Selection of the previous/next CD. Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t U S B e q u i p m e n t d i r e c t o r y / g e n r e /artist/playlist.
1 3 . D i s p l a y i n g o f t h e g e n e r a l m e n u .
1 4 . B u t t o n s 1 t o 6 : Selection of a stored radio station. S e l e c t i o n o f a C D i n t h e C D c h a n g e r . L o n g p r e s s : s t o r i n g o f a s t a t i o n .
1 5 . T h e D A R K b u t t o n c h a n g e s t h e d i s p l a y o n t h e s c r e e n t o i m p r o v e d r i v i n g c o m f o r t a t n i g h t . 1 s t p r e s s : l i g h t i n g o f t h e t o p b a n n e r o n l y . 2 n d p r e s s : d i s p l a y i n g o f a b l a c k s c r e e n . 3rd press: return to the standard display.
