Citroen BERLINGO 2012 2.G Service Manual

39
READY TO GO
22


Gearbox and steering wheel


GEARBOX


5-speed gearbox



To change gear easily, always press
the clutch pedal fully.
To prevent the mat from becoming
caught under the pedal:


- ensure that the mat and its fi xings
on the fl oor are positioned correctly,

- never fi t one mat on top of another.
When driving, avoid leaving your hand
on the gear knob as the force exerted,
even if slight, may wear the internal
components of the gearbox over time.


Engaging 5
th
gear.

Push the gear lever fully to the right to
engage 5 th gear.
GEAR SHIFT INDICATOR


In order to drive as fuel
effi ciently as possible with a
manual gearbox, this indicator
lamp indicates to the driver
when to change up.
The driver remains responsible for
deciding whether or not to follow this
indication, since the indicator lamp
comes on without taking into account
the confi guration of the road, the
amount of traffi c and safety factors.
The system cannot be deactivated.


When reverse gear is engaged
and when changing down whilst
decelerating, the function is not active.



Engaging reverse

To engage reverse gear, wait until the
vehicle is stationary then push the gear
lever to the right then back.
The lever should be moved slowly to
reduce the noise on engaging reverse
gear.

40


Gearbox and steering wheel

6-SPEED ELECTRONIC GEARBOX



- automatic mode: gear selector in
position A
.

- manual mode: gear selector in
position M
.


For safety:
It is only possible to come out
of position N
if the brake pedal is
pressed.
The change from position A
(driving in
automatic mode) to position M
(driving
in manual mode) or vice versa can be
made at any time. The warning lamp A

goes off in the instrument panel.


Moving off



- To start the engine, the gear
selector must be in position N
.

- Press fi rmly on the brake pedal.

- Operate the starter.

- When the engine is running, place
the gear selector on R
, A
or M
as
desired.

- Release the brake pedal and
accelerate.
If the gear selector is not in position N
,
and/or if the brake pedal is not
pressed, the engine will not start.
Repeat the above procedure.

Mode selection


Reverse gear

Engaging reverse gear

Move the gear selector to R
.

Only attempt to select reverse gear
when the vehicle is stationary.



Neutral

Changing to neutral

Move the gear selector to N
. If the
vehicle is moving, do not select this
position even momentarily.

41
READY TO GO
22


Gearbox and steering wheel



Changing gear


In situations of high engine speeds
(heavy acceleration), a change
up will not occur unless the driver
operates the electronic gearbox control
paddle.
Manual mode

Changing to manual mode

Move the gear selector to M
.

Automatic mode

Changing to automatic
mode

Move the gear selector to A
.
The gearbox then operates in
automatic mode, without any action on
your part.
It constantly selects the gear that is
best suited to the following conditions:


- driving style,

- road profi le,

- optimum fuel consumption.
Pull on the " +
" control
paddle to change up.
Pull on the " -
" control
paddle to change down.


- If the vehicle stops or reduces
speed (for example when
approaching a stop sign),
the gearbox changes down
automatically, to fi rst gear if
needed.

- It is not necessary to release the
accelerator completely during gear
changes.

- A gear change instruction is
accepted only if the engine speed
permits.

- For safety reasons, depending on
the engine speed, a change down
may be performed automatically.

42


Starting and stopping

STEERING WHEEL ADJUSTMENT

When the vehicle is stationary,
release the steering wheel adjustment
mechanism by pulling the lever.
Adjust the steering wheel for height
and reach, then lock the mechanism by
pushing the lever fully forwards.

Vehicle stationary, with the
engine running
In the event of a prolonged stop with
the engine running, the gearbox
changes automatically to neutral N
.


Stopping the vehicle

Before stopping the engine, put the
gear selector in position N
.
In all cases, it is essential to apply
the parking brake. Check that the
parking brake warning lamp is on in the
instrument panel.

Before doing anything in the
engine compartment, check that
the gear selector is in neutral N
.


Acceleration

For optimum acceleration (e.g. to
overtake another vehicle), simply
press the pedal beyond the point of
resistance at the end of its travel, by
pressing down fi rmly.

43
READY TO GO
22

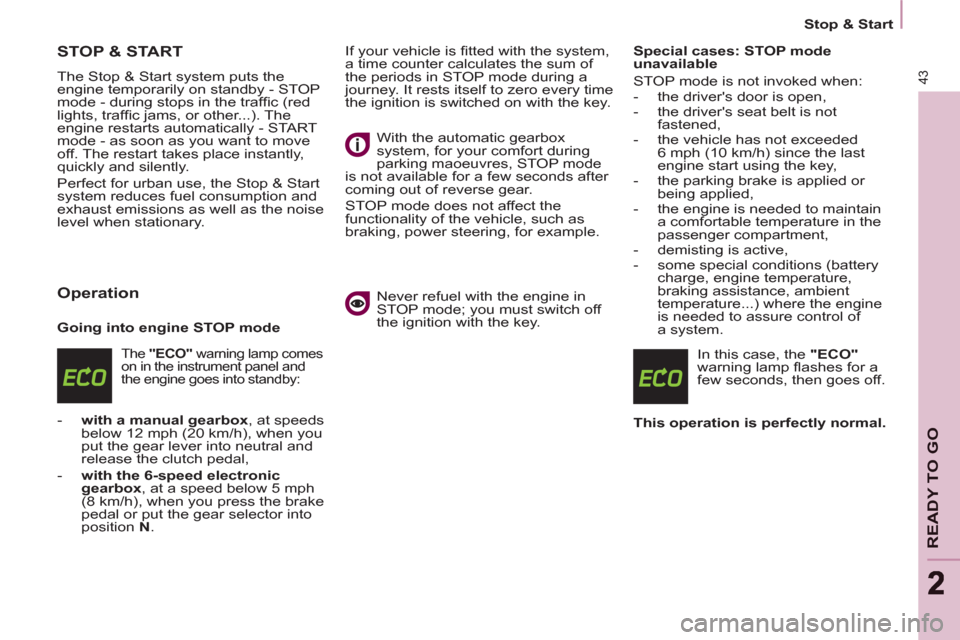

Stop & Start

STOP & START

The Stop & Start system puts the
engine temporarily on standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, or other...). The
engine restarts automatically - START
mode - as soon as you want to move
off. The restart takes place instantly,
quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.

Operation


Going into engine STOP mode

The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal,

- with the 6-speed electronic
gearbox
, at a speed below 5 mph
(8 km/h), when you press the brake
pedal or put the gear selector into
position N
. If your vehicle is fi tted with the system,
a time counter calculates the sum of
the periods in STOP mode during a
journey. It rests itself to zero every time
the ignition is switched on with the key.
With the automatic gearbox
system, for your comfort during
parking maoeuvres, STOP mode
is not available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as
braking, power steering, for example.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not
fastened,

- the vehicle has not exceeded
6 mph (10 km/h) since the last
engine start using the key,

- the parking brake is applied or
being applied,

- the engine is needed to maintain
a comfortable temperature in the
passenger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of
a system.
In this case, the "ECO"

warning lamp fl ashes for a
few seconds, then goes off.

This operation is perfectly normal.

44

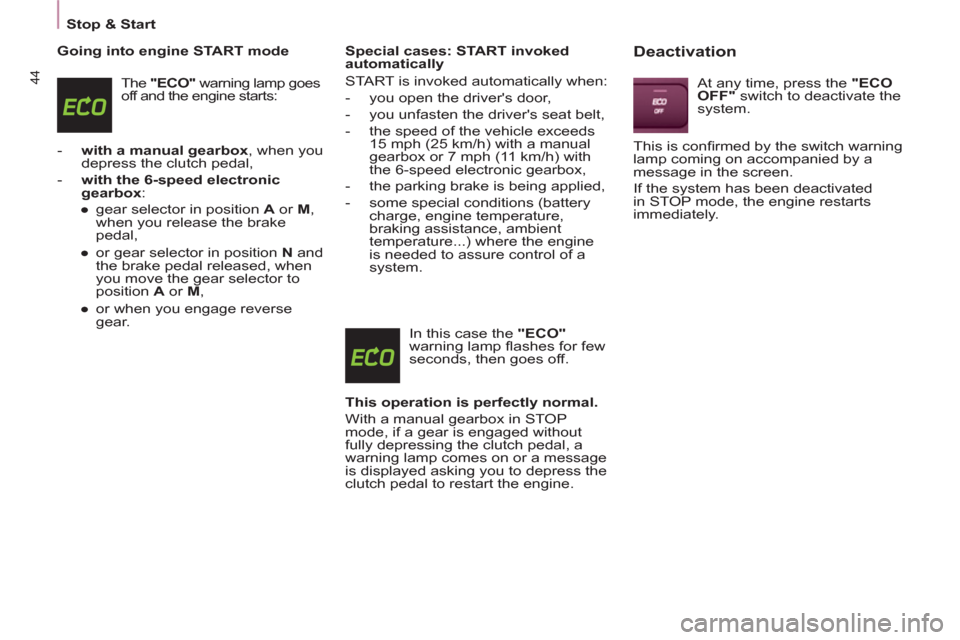

Stop & Start

Going into engine START mode
The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
depress the clutch pedal,

- with the 6-speed electronic
gearbox
:


●
gear selector in position A
or M
,
when you release the brake
pedal,

●
or gear selector in position N
and
the brake pedal released, when
you move the gear selector to
position A
or M
,

●
or when you engage reverse
gear.


Special cases: START invoked
automatically
START is invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox or 7 mph (11 km/h) with
the 6-speed electronic gearbox,

- the parking brake is being applied,

- some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of a
system.
In this case the "ECO"

warning lamp fl ashes for few
seconds, then goes off.

This operation is perfectly normal.

With a manual gearbox in STOP
mode, if a gear is engaged without
fully depressing the clutch pedal, a
warning lamp comes on or a message
is displayed asking you to depress the
clutch pedal to restart the engine.



Deactivation

At any time, press the "ECO
OFF"
switch to deactivate the
system.
This is confi rmed by the switch warning
lamp coming on accompanied by a
message in the screen.
If the system has been deactivated
in STOP mode, the engine restarts
immediately.

45
READY TO GO
22


Stop & Start



Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is
confi rmed by the switch warning
lamp going off and a message in the
instrument panel.
The system is reactivated
automatically at every new start
using the key.


Operating fault

In the event of a malfunction
with the system, the "ECO
OFF"
switch warning lamp
fl ashes, then comes on
continuously.
have it checked by a CITROËN dealer
or a qualifi ed workshop.
In the event of a fault in STOP
mode, the vehicle may stall. It is then
necessary to switch off the ignition and
start the engine again using the key.


Maintenance

Before working under the bonnet,
deactivate the Stop & Start system
to avoid any risk of injury resulting
from automatic operation of START
mode.
This system requires a specifi c
battery with a special specifi cation
and technology (reference numbers
available from a CITROËN dealer or a
qualifi ed workshop).
Fitting a battery not listed by
CITROËN introduces the risk of
malfunction of the system.
The Stop & Start system makes
use of advanced technology. All
work on this type of battery must
be done only by a CITROËN dealer or
a qualifi ed workshop.

Starting and stopping



Good practice when stopping
Good practice when starting


Diesel pre-heating warning
lamp
If the temperature is high
enough, the warning lamp
comes on for less than one
second, you can start without
waiting.
In cold weather, wait for this warning
lamp to go off then operate the starter
(Starting position) until the engine
starts.

Door or bonnet open
warning light
If this comes on, a door or the
bonnet is not closed correctly, check!


Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow
the turbocharger (Diesel engine) to
return to idle.
Do not press the accelerator when
switching off the ignition.
There is no need to engage a gear
after parking the vehicle.


STARTING AND STOPPING


Running and accessories position.

To unlock the steering, turn the
steering wheel gently while turning the
key, without forcing. In this position,
certain accessories can be used.

Starting position.

The starter is operated, the engine
turns over, release the key.

STOP position:
steering lock.
The ignition is off. Turn the steering
wheel until the steering locks. Remove
the key.

47
READY TO GO
22


Starting and stopping


HILL START ASSIST

Operation

With the brake pedal and clutch pedal
pressed, from the time you release the
brake pedal you have approximately
2 seconds before the vehicle starts to
roll back and without using the parking
brake within which to move off.
During the moving off phase, the
function is deactivated automatically,
gradually releasing the braking
pressure. During this phase, the
characteristic noise of mechanical
release of the brakes may be heard,
indicating the imminent movement of
the vehicle.

Operating fault

Hill start assist is deactivated in the
following situations:


- when the clutch pedal is released,

- when the parking brake is applied,

- when the engine is switched off,

- when the engine stalls.

If a malfunction of the system
occurs, this warning lamp
comes on accompanied
by an audible signal and
confi rmed by a message in
the screen. Contact a CITROËN dealer
or a qualifi ed workshop to have the
system checked. This function, linked with the ESP,
makes hill starts easier and is activated
in the following conditions:


- the vehicle must be stationary,
engine running, foot on the brake,

- the gradient of the road must be
steeper than 5%,

- uphill, the gearbox must be in
neutral or in a gear other than
reverse,

- downhill, reverse gear must be
engaged.
The HHC (Hill Holder Control) or Hill
Start Assist function is a driving comfort
system. It is not an automatic vehicle
parking function or an automatic
parking brake.

48


Steering mounted controls





DIRECTION INDICATORS


"Motorway" function
Press the control up or down to fl ash
the corresponding direction indicator
three times.



LIGHTING CONTROL


Left
: downwards passing the
point of resistance.

Right
: upwards passing the
point of resistance.
Front and rear lighting
Selection is by turning ring A
. Lighting off
Automatic illumination of
headlamps
Sidelamps
Dipped beam (green)
Main beam (blue)

Dipped beam/main beam change
Pull the stalk fully towards you.

Lighting-on buzzer
On switching of the ignition, all of the
lamps turn off, except dipped beam if
automatic guide-me-home lighting has
been activated.
To activate the lighting control, turn
ring A
to the lighting off position "0"
then to the selection of your choice.
On opening the driver's door, there is
an audible warning if you have left the
lighting on.
Checking by means of the indicator
lamps on the instrument panel is
described in the "Instruments and
controls" section of chapter 2.


Direction indicators
