Citroen BERLINGO 2013.5 2.G Owner's Manual

Changing a fuse
129
QUICK HELP
7
PASSENGER COMPARTMENT FUSES
Fuses
F Amperes

A Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
TOWING / TOWBAR /
COACHBUILDERS / PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
depends on the converter-coachbuilder
for which the handbook cannot be
used as a technical support.
Fuses F Amperes

A Allocation
1 15 Spare
2 15 Ignition, generator operating relay
3 15 Trailer 12V supply
4 15 Permanent supply for the modifi ers
5 40 Hazard warning lamps

Changing a fuse
130
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F Amperes

A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump or LED
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management
unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

Changing a wiper blade
131
QUICK HELP
7
Placing the windscreen wiper
blades in the special position
- Less than a minute after switching off the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.
CHANGING A WIPER BLADE

Having your vehicle towed
132
Without lifting
(4 wheels on the road)
You should always use a towing bar.
BEING TOWED From the front
- Unclip the cover by pressing the bottom part.
- Fully screw in the removable towing eye.
From the rear
- Unclip the cover using a coin or the fl at part of the towing eye,
- Fully screw in the removable towing eye. When towing with the engine
switched off, there is no braking or
steering assistance.
Lifting
(2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
The towing eye is stored in the tool kit,
located under the left-hand seat.
Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to transmission and
braking components and the absence
of braking assistance when the engine
is started again.

133
TECHNICAL DATA
8
Dimensions

134
Dimensions

VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 4380 4628
H Overall height 1805-1834
A Wheelbase 2728
B Front overhang 925
C Rear overhang 727 975
D Width over panels: without mirrors
1810
with mirrors 2112
E Width of front track 1505
F Width of rear track 1554
G Useable rear fl oor length 1800 2050
I Useable length with front passenger seat
folded 3000
3250 DIMENSIONS DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:

135
TECHNICAL DATA
8
Dimensions
REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum load sill with 195/65 R15 tyre 584 609 612

Hinged doors Tailgate
Small Large

N Useable opening height (under panel) 1148 1313
O Width 495 543 1582

136
Dimensions

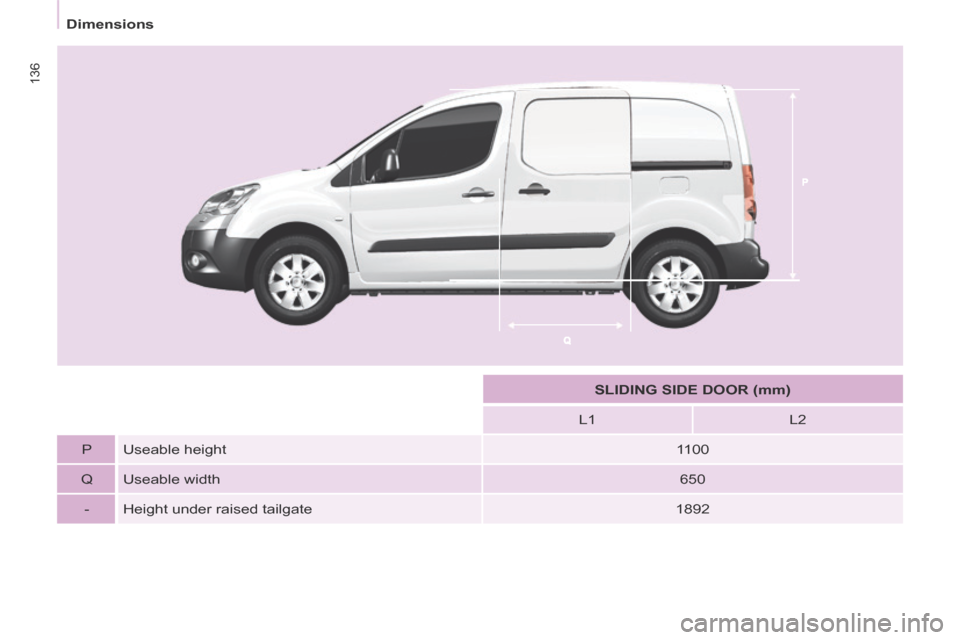

SLIDING SIDE DOOR (mm)
L1 L2
P Useable height 1100
Q Useable width 650
- Height under raised tailgate 1892

137
TECHNICAL DATA
8
Dimensions
PLATFORM CAB (mm)
L Overall length 4237
H Overall height 1821-1822
A Wheelbase 2728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1810
E Width of front track 1505
F Width of rear track 1554

Weights
138

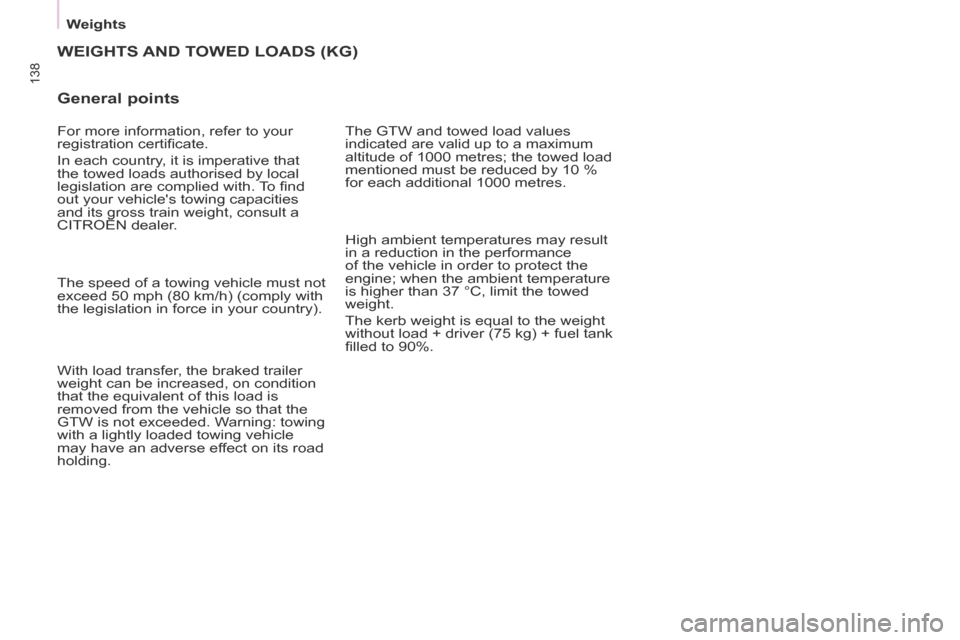

WEIGHTS AND TOWED LOADS (KG)
General points
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres; the towed load
mentioned must be reduced by 10 %
for each additional 1000 metres.
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
with a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High ambient temperatures may result
in a reduction in the performance
of the vehicle in order to protect the
engine; when the ambient temperature
is higher than 37 °C, limit the towed
weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90%.
For more information, refer to your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle's towing capacities
and its gross train weight, consult a
CITROËN dealer.
