Citroen BERLINGO 2015 2.G Owner's Manual

159
Berlingo-2-VU_en_Chap08_Aide rapide_ed01-2015Berlingo-2-VU_en_Chap08_Aide rapide_ed01-2015
Without lifting (4 wheels on the
road)
You should always use a towing arm.
BEInG TOWEDFrom the front
- Unclip the cover by pressing the
bottom part.
-

Fully screw in the removable towing
eye.
From the rear
- Unclip the cover using a coin or the
flat part of the towing eye,
-

Fully screw in the removable towing
eye. When towing with the engine
switched of

f, there is no braking or
steering assistance.
Lifting (only 2 wheels on the
road)
It is preferable to raise the vehicle
using professional lifting equipment.
This procedure involves the use of
the

towing eye supplied with the tools
for changing a wheel.
Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with
a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage to transmission and braking
components and the absence of
braking assistance when the engine is
started again.
Chapter 9, "Changing a wheel"
section.
QUICK HELP
8
Having your vehicle towed

160
Berlingo-2-VU_en_Chap08_Aide rapide_ed01-2015

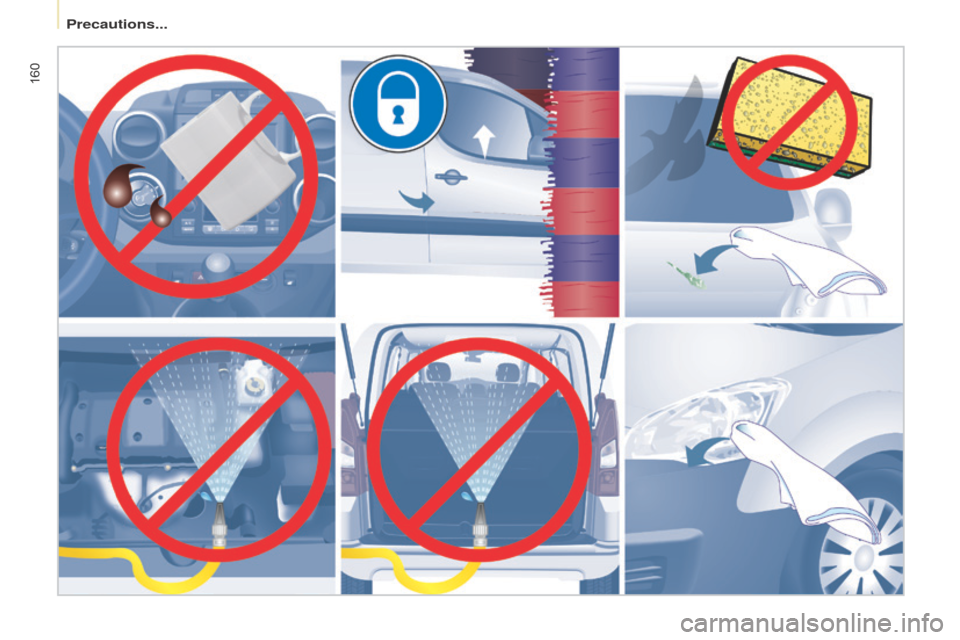

Precautions...

161
Berlingo-2-VU_en_Chap08_Aide rapide_ed01-2015
QUICK HELP
8

162
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015

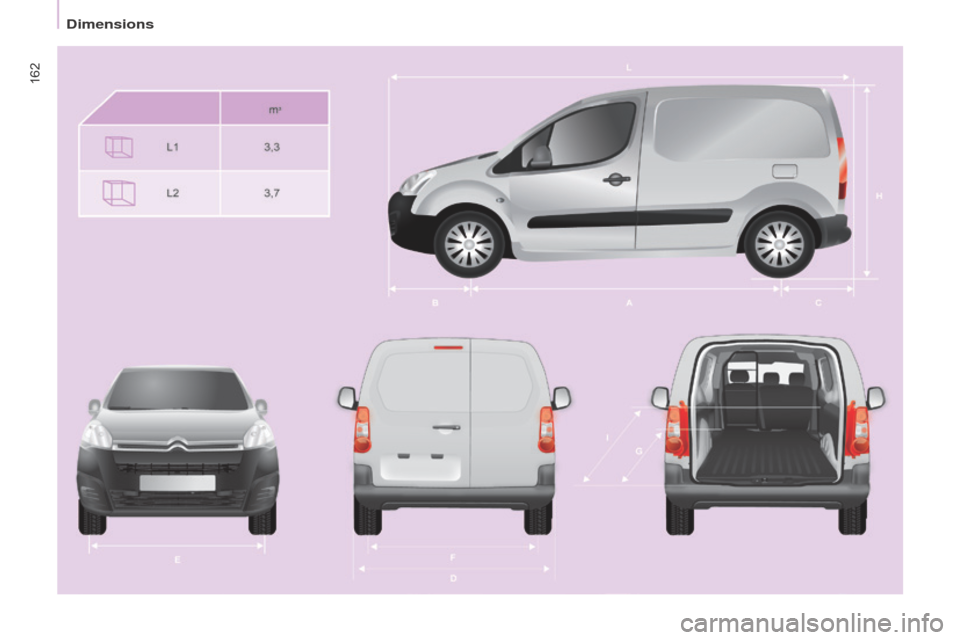

Dimensions

163
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
Short - L1Long - L2
625 850750
L Overall length 43804628
H Overall height 1805-1834
aWheelbase 2728
bFront overhang 925
C Rear overhang 727975
dWidth over panels:without mirrors
1810
with mirrors 21

12
E Width of front track 1505
F Width of rear track 1554
G Useable rear floor length 18002050
I Useable length with front passenger seat
folded 3000
3250
DIMEnSIOnSV
an (mm)
The vehicle is available in 2 lengths (L1 and L2), refer to
the tables.
dimensions
TECHnICaL daTa
9

164
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015

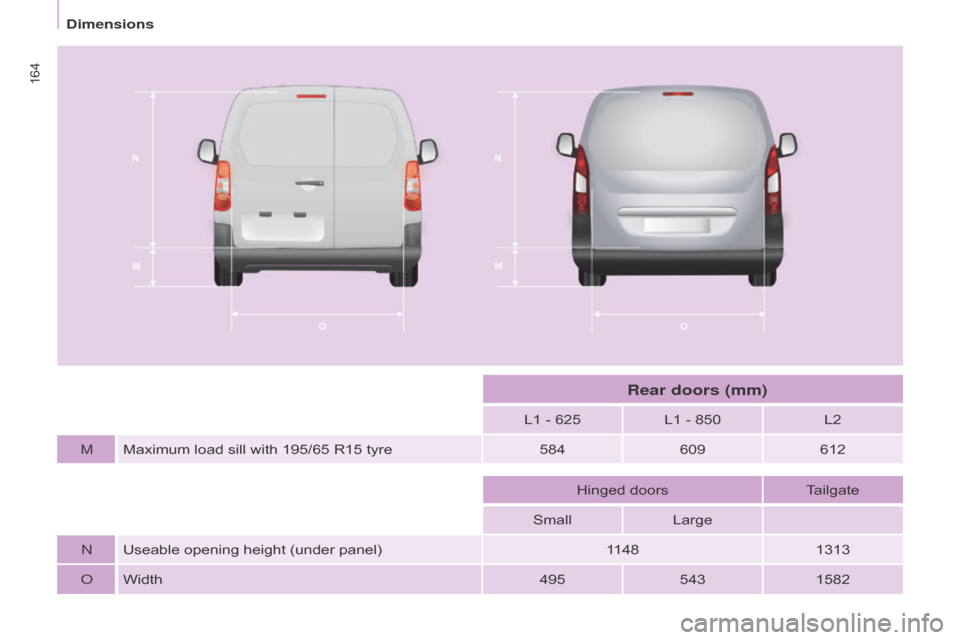

L1 - 625L1 - 850 L2
M Maximum load sill with 195/65 R15 tyre 584609612
Hinged doors Tailgate
Small Large
nUseable opening height (under panel) 1

148 1313
oWidth 4955431582
Rear doors (mm)
dimensions

165
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
L1L2
P Useable height 1100
Q Useable width 650
- Height under raised tailgate 1892
Sliding side door (mm)
dimensions
TECHnICaL daTa
9

166
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015

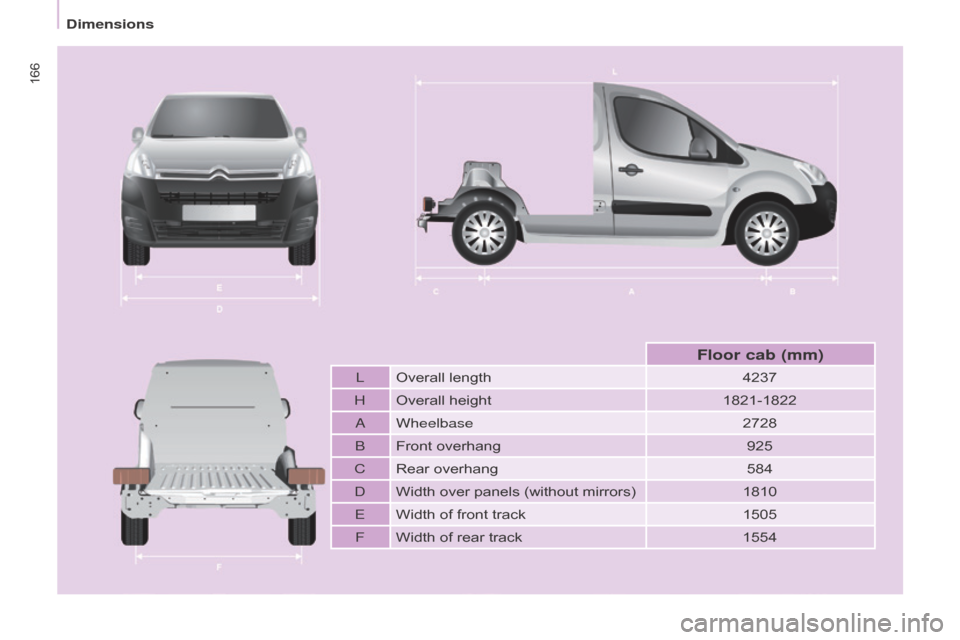

LOverall length 4237
H Overall height 1821-1822
aWheelbase 2728
bFront overhang 925
C Rear overhang 584
dWidth over panels (without mirrors)1810
E Width of front track 1505
F Width of rear track 1554
Floor cab (mm)
dimensions

167
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015
WEIGHTS An D TOWED LOADS
These values, expressed in kg, can be
found on the manufacturer's VIN plate
or label.
The maximum weights and towed
loads for your vehicle can be found on
the vehicle's registration certificate. The recommended nose weight is
the downward force on the towball
(removable with or without tools).
In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied
with. To find out your vehicle's towing
capacities and its gross train weight,
consult a CITROËN dealer.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order to protect the engine. When
the ambient temperature is higher
than 37 °C, limit the towed weight.
The location of the manufacturer's
plate is given in chapter 9,
"Identification markings" section.
EnGInE CHARACTERISTICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO
2 emissions...) for your
vehicle are given in the registration
document.
These characteristics correspond to the
values type-approved on a test bed,
under conditions defined in European
legislation (Directive 1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a CITROËN dealer or a qualified
workshop. GVW : gross vehicle weight, the
maximum authorised weight.
GTW : gross train weight, the
maximum weight for vehicle plus trailer.
Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).
TECHnICAL DATA
9
Weights

168
Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015Berlingo-2-VU_en_Chap09_Caract_technique_ed01-2015

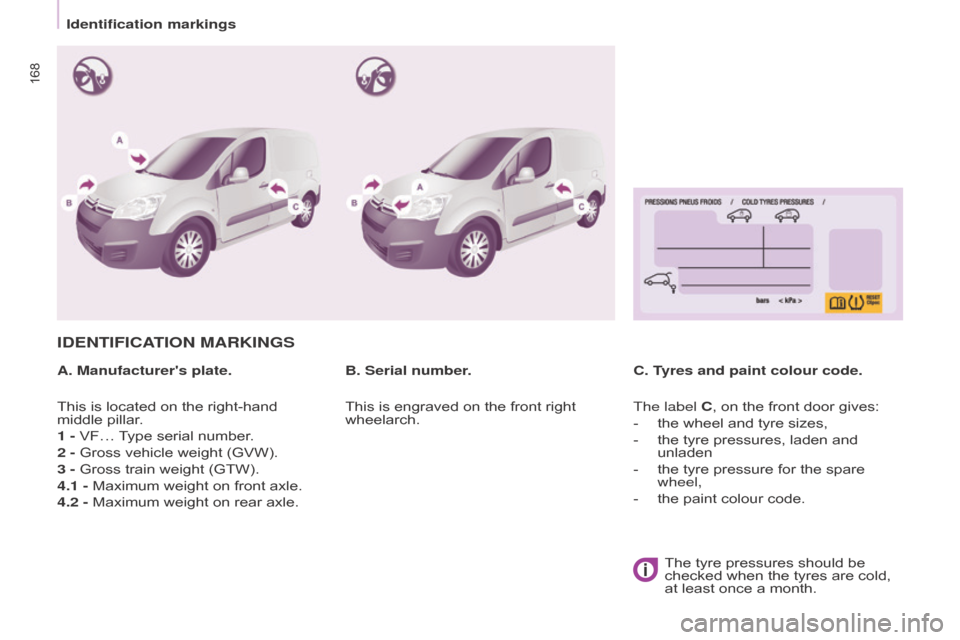

IDEnTIFICATIOn MARKInGS
A. Manufacturer's plate.C. Tyres and paint colour code.
B. Serial number.
This is located on the right-hand
middle pillar.
1 - VF… Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label C, on the front door gives:
-

the wheel and tyre sizes,
-


the tyre pressures, laden and
unladen
-


the tyre pressure for the spare
wheel,
-


the paint colour code.The tyre pressures should be
checked when the tyres are cold,
at least once a month.
Identification markings
