5
1
FAMILIARISATION
Page 2 of 161
7a7b2b
2a
6
Exterior
15 122 129
Key
: c h a p t e r i d e n t i fi c a t i o n
:
p a g e i d e n t i fi c a t i o n
19
Key - Remote control
Complete unlocking of the
vehicle.
Complete locking of the vehicle.
Opening the bonnet
Take care when working under
the bonnet.
Raise the bonnet slightly by
r e a c h i n g i n a fl a t h a n d , p a l m
down, to make access to the
lever easier. Engage the base of
the strut in the hole provided to
hold the bonnet open.
High pressure washing of
the engine compartment is
prohibited, to guarantee correct
operation of the vehicle.
Sliding side door
Pull the handle towards you then
towards the rear and open the
door guiding the rearward sliding
until the point of resistance has
been passed.
F u e l fi l l e r fl a p o p e n
A mechanical system prevents
opening of the left-hand side
d o o r w h e n t h e f u e l fi l l e r fl a p i s
open.
Page 3 of 161
4
2c
8a8b
2d
2
7
1
FAMILIARISATION
Exterior
21
23
R e a r r o o f fl a p
T h e r e a r r o o f fl a p i s o n l y
compatible with the hinged
doors.
Changing bulbs 137
20
Tailgate and rear screen
Hinged rear doors
Spare wheel
The tools are located under
the right-hand seat.
Raise the carrier with the
w h e e l fl u s h a g a i n s t t h e fl o o r .
I n t h e c a s e o f a v e h i c l e fi t t e d
with a towbar, the vehicle
must be raised in order to
disengage the spare wheel
from the carrier.
132
Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control permits opening
to approximately 180°.
Parking assistance 85
Page 4 of 161
8
Interior
INSTRUMENTS AND CONTROLS

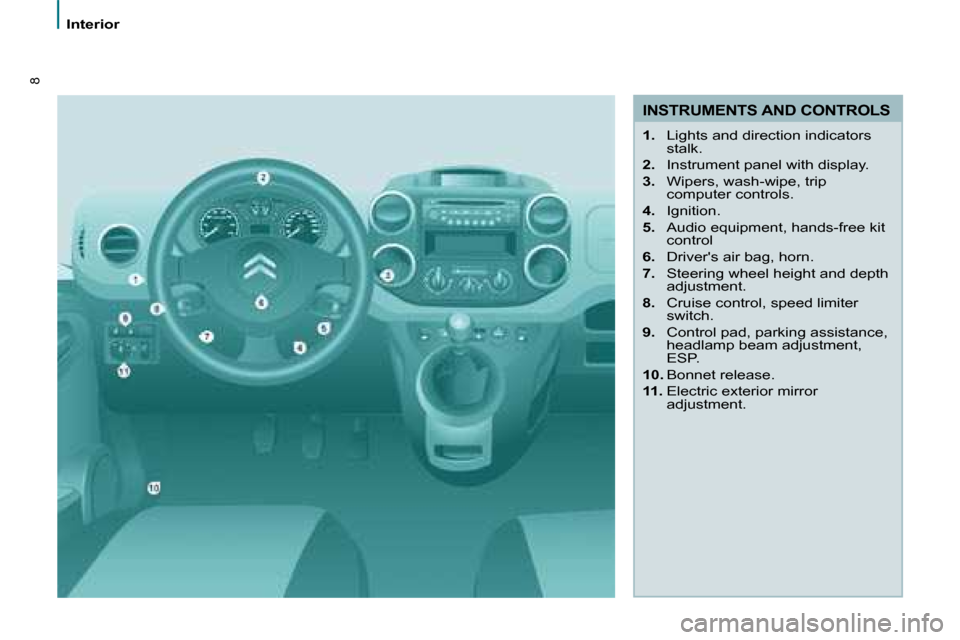

1. Lights and direction indicators
stalk.
2. I n s t r u m e n t p a n e l w i t h d i s p l a y .
3. Wipers, wash-wipe, trip
computer controls.
4. I g n i t i o n .
5. Audio equipment, hands-free kit
control
6. Driver's air bag, horn.
7. Steering wheel height and depth
adjustment.
8. Cruise control, speed limiter
switch.
9. Control pad, parking assistance,
headlamp beam adjustment,
ESP.
10. Bonnet release.
11. Electric exterior mirror
adjustment.
Page 5 of 161
9
1
FAMILIARISATION
Interior

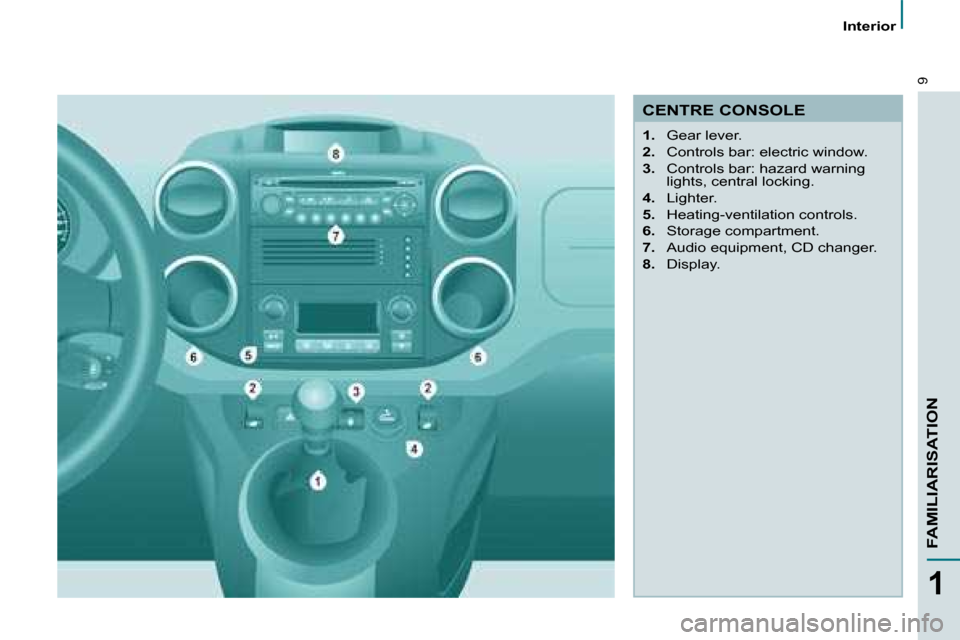

CENTRE CONSOLE
1. Gear lever.
2. Controls bar: electric window.
3. Controls bar: hazard warning
lights, central locking.
4. Lighter.
5. Heating-ventilation controls.
6. Storage compartment.
7. Audio equipment, CD changer.
8. Display.
Page 6 of 161
3
53
2
3
10
Interior
Storage compartments
The tool kit and the jack are stored
under the right-hand seat.
Steering wheel
Adjust the height and depth of the
steering wheel.
Mirrors
Manual adjustments.
Electric adjustments.
Seat belts
Height adjustment.
Fastening.
1.
Forwards-
backwards adjustment.
2. Angle.
3.
Seat cushion
height.
4. Head restraint
height and
angle.
Driver's seat
57 68
37
82
106
SIT COMFORTABLY
Page 7 of 161
3
3
3
3
4
11
1
FAMILIARISATION
Interior
Lights off.
Side lights.
Main beam headlamps (blue).
Dipped headlamps (green).
Wipers stalk
2 fast.
1 normal.
I intermittent.
0 park.
single wipe.
AUTO, press the stalk down.
Reactivate if the ignition
has been off for more than
one minute.
AUTO, automatic switching
on of the lights.
40
Lights stalk
43 Cruise control, Speed limiter
The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged.
Hill start assistance
45,
48
39
SEE CLEARLY
DRIVE SAFELY
Motorway function: press the stalk up
o r d o w n t o fl a s h t h e d i r e c t i o n i n d i c a t o r
three times.
Audio equipment, hands-free kit
This can play MP3 CDs and permits
the matching of a Bluetooth telephone
to the hands-free kit. 87
Page 8 of 161
33
3
3
12
Interior
PASSENGER COMPARTMENT SPACE
Central storage console
Clipped between row 1 and row 2, this
offers an additional storage area and
2 cup holders.
Front layout
Armrest
I f t h e v e h i c l e i s fi t t e d w i t h t h e a d d i t i o n a l
console and an armrest, to fold the passenger
seat to the table position remove the console
or the armrest.
66
67, 68 70, 72
58
Modutop, Fragrance diffuser
The multifunction roof console extends the overhead
storage compartment.
The fragrance is diffused in the passenger compartment
from the vents of the roof console.
Page 9 of 161
33
3
3
3
5
13
1
FAMILIARISATION
Interior
REAR LAYOUT
Rear bench seat
Each 1/3 - 2/3 section can be fully
folded and removed by section. Rear seats
The three rear seats are independent
and can be removed individually.
Maximum loads
Overhead storage compartment: 5 kg.
Modutop roof:
- storage compartments of the
central section: 6 kg,
- box: 10 kg,
- roof bars placed longitudinally or transversely: 35 kg.
Transverse roof bars: 75 kg.
I n t e r i o r r a c k : 1 0 k g p e r b a r .
59
80 62 CHILD SAFETY
Side door child lock 117
84
83
Safety auto-reverse
Monitoring mirror
Interior rack
Page 10 of 161
33
5
5
3
14
Interior VENTILATION
Heating Automatic air
conditioning
51 53
Air conditioning
CHILD SAFETY
Child seats
112
111
Air bag disarming
Recommended settings for the Manual Air Conditioning
For optimum use of the system, we recommend:
If I
require...
Air
distribution
Temperature
A i r fl o w
Air
recirculation
AC
Heating
-
Cooling
De-icing
Demisting 55
With Automatic Air Conditioning, operation in AUTO mode is recommended
irrespective of the requirement.
Remember to switch the system off when the ambient air suits
your requirements.
